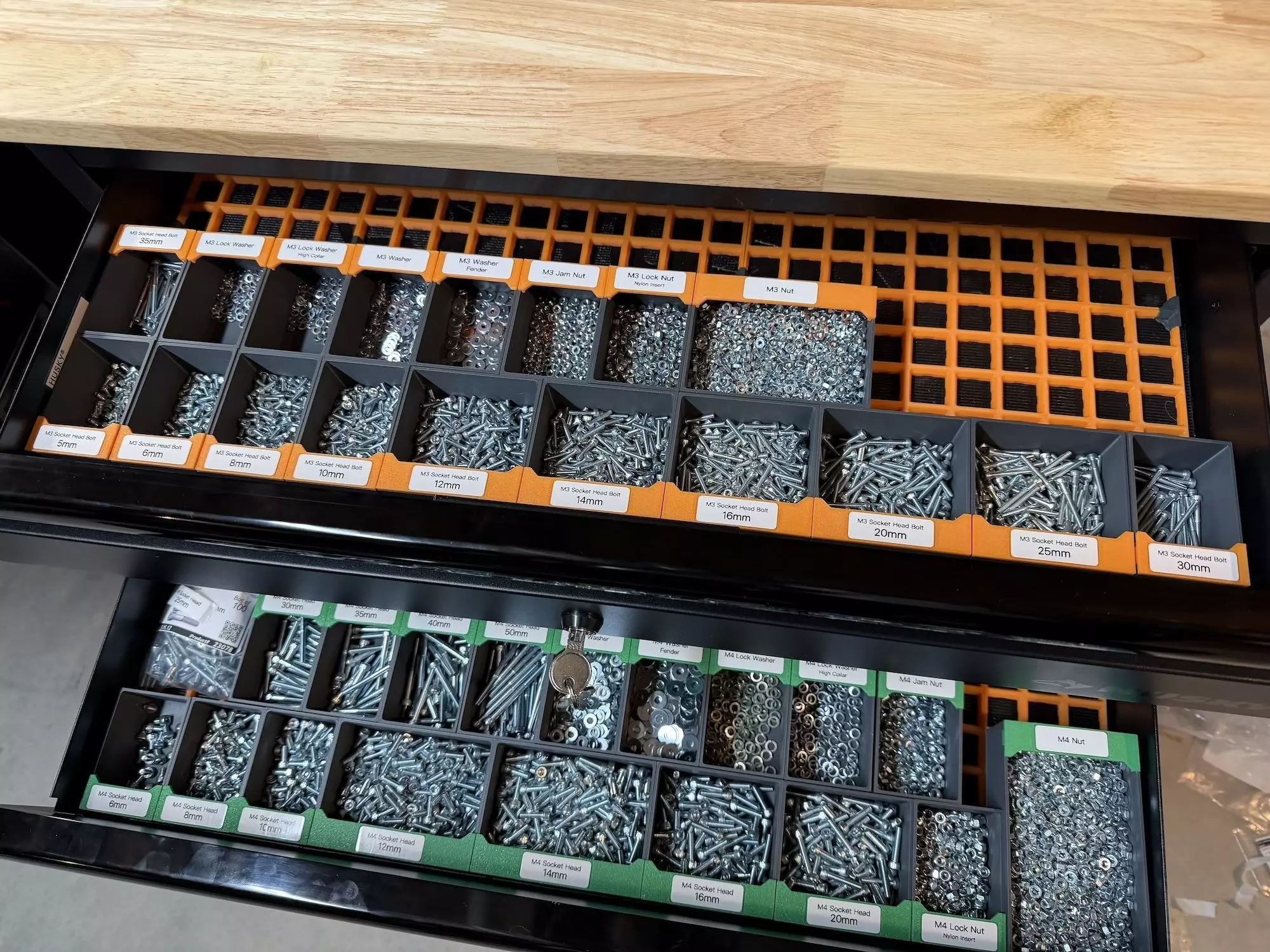

Snap-Cell Organizer is a modular, snap-fit organization system designed for makers who want maximum density, strong mechanical engagement, and a rugged sci-fi aesthetic.

Built around a 25mm cell grid (significantly higher resolution than Gridfinity’s 42mm), Snap-Cell Organizer enables tighter layouts, narrower bins, and more flexible drawer and shelf configurations. 25mm is also very nearly one Inch making this work for Imperial users as well as Metrics users.

Bins nest together using hard-bite snap couplers that lock grids firmly in place—filling drawers and shelves cleanly without shifting. Each bin features four compliant snap posts with tuned flex bridges, delivering a soft, satisfying snap that’s secure yet easy to disengage. This design improves cross-printer compatibility and avoids snaps that are either too loose or painfully hard to remove.

The Snap-Grid architecture allows narrow bins (25mm wide) to remain stable even at taller heights (up to 50mm)—preventing tip-over common in small-footprint organizers.

Snap-Cell Organizer bins also support snap-on label frames, making color-coded sorting fast & modular. Label frames include a guide line for standard 14×40mm labels to ensure easy alignment of the sticker. Optional drop-in covers seal bins to prevent parts from cross-pollinating if a tray is bumped or dropped.

Check out Bolt Depot for quickly stocking up your workshop. For Labels that fit the box designs, something like this Label Maker & Labels will work.

COMPONENTSGrids — Base cell plates built on a 25mm Snap-GridCouplers — Hard-bite connectors for chaining grids togetherBins — Modular organizer bins in multiple sizes and heights with Soft-BiteLabels — Snap-on label frames for color-coded organizationCovers — Drop-in bin covers to protect and isolate contents

PRINTING TIPSBins & Couplers print upright, with default support material (not tree/organic)Grids print upright, no support materialLabels & Covers print upside down, no support material

STYLISTIC TIPSPrint Labels different colors for interface type (M3 = orange, M4  = green, etc)Print Couplers & Bins the same, consistent color and have them be a different color than the GridIf printing Covers in clear filament, do only 3 top layers / 2 bottom layers / 15% HoneyComb infill for a cool SciFi look

This design is proprietary to Crash Makerspace and is for your, the Patron’s or Purchaser’s, sole usage and not for resale, distribution, or modification including distribution of printed versions of this file set. The media channels serve as video proof of originality for automatic US Copyright for these files.
