3D printable F-14 ACM panel with electronics compatible

3D printable F-14 ACM panel with electronics compatible 3D print model

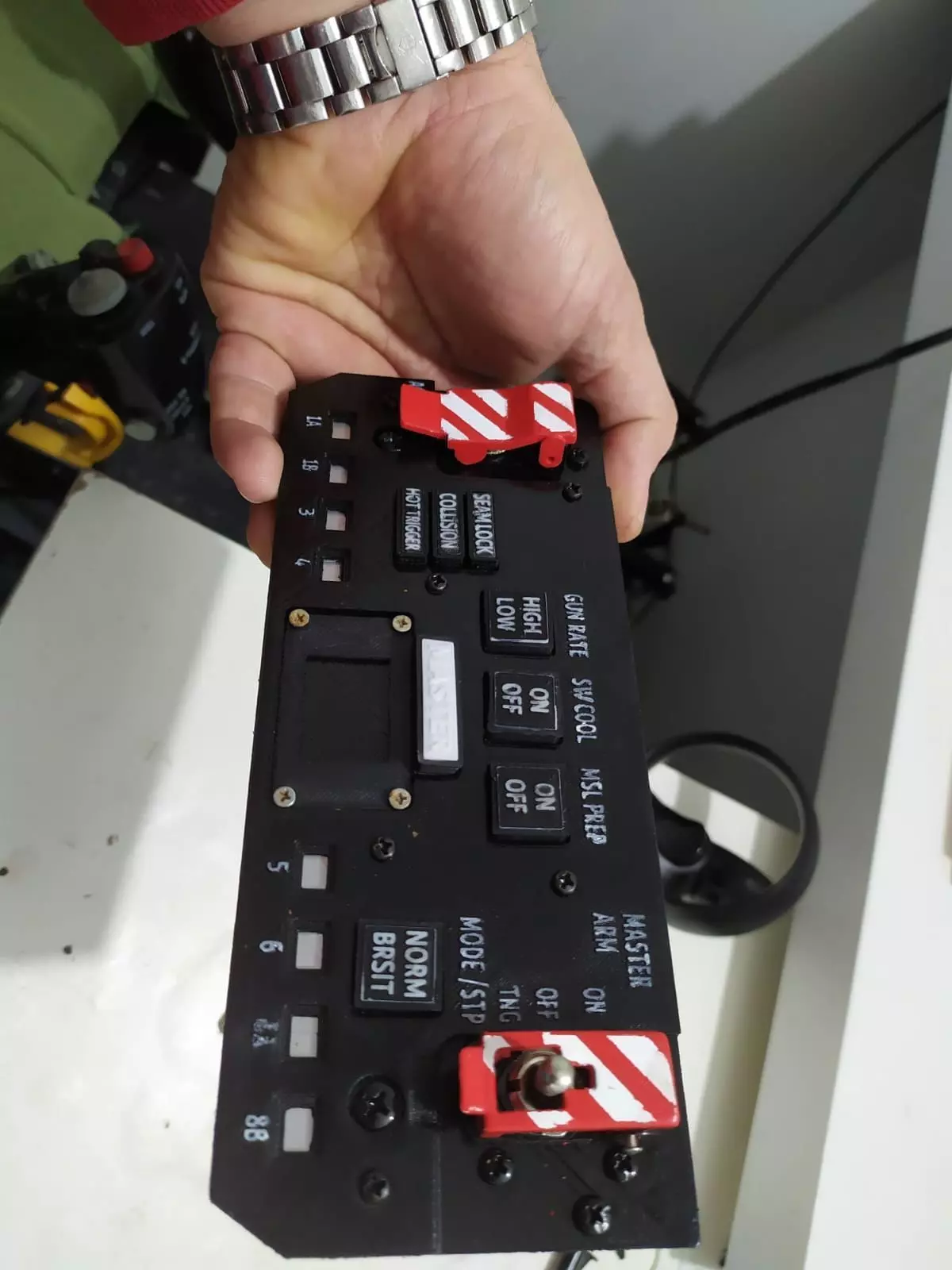

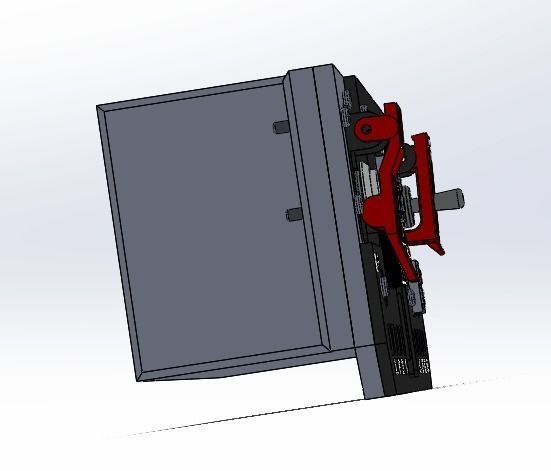

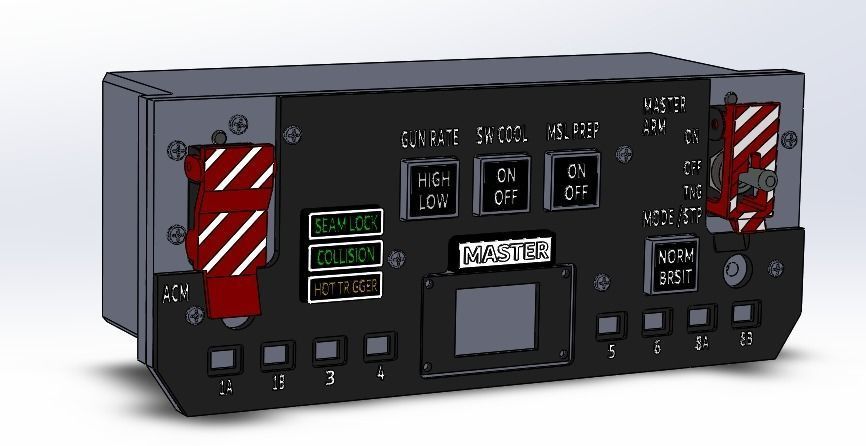

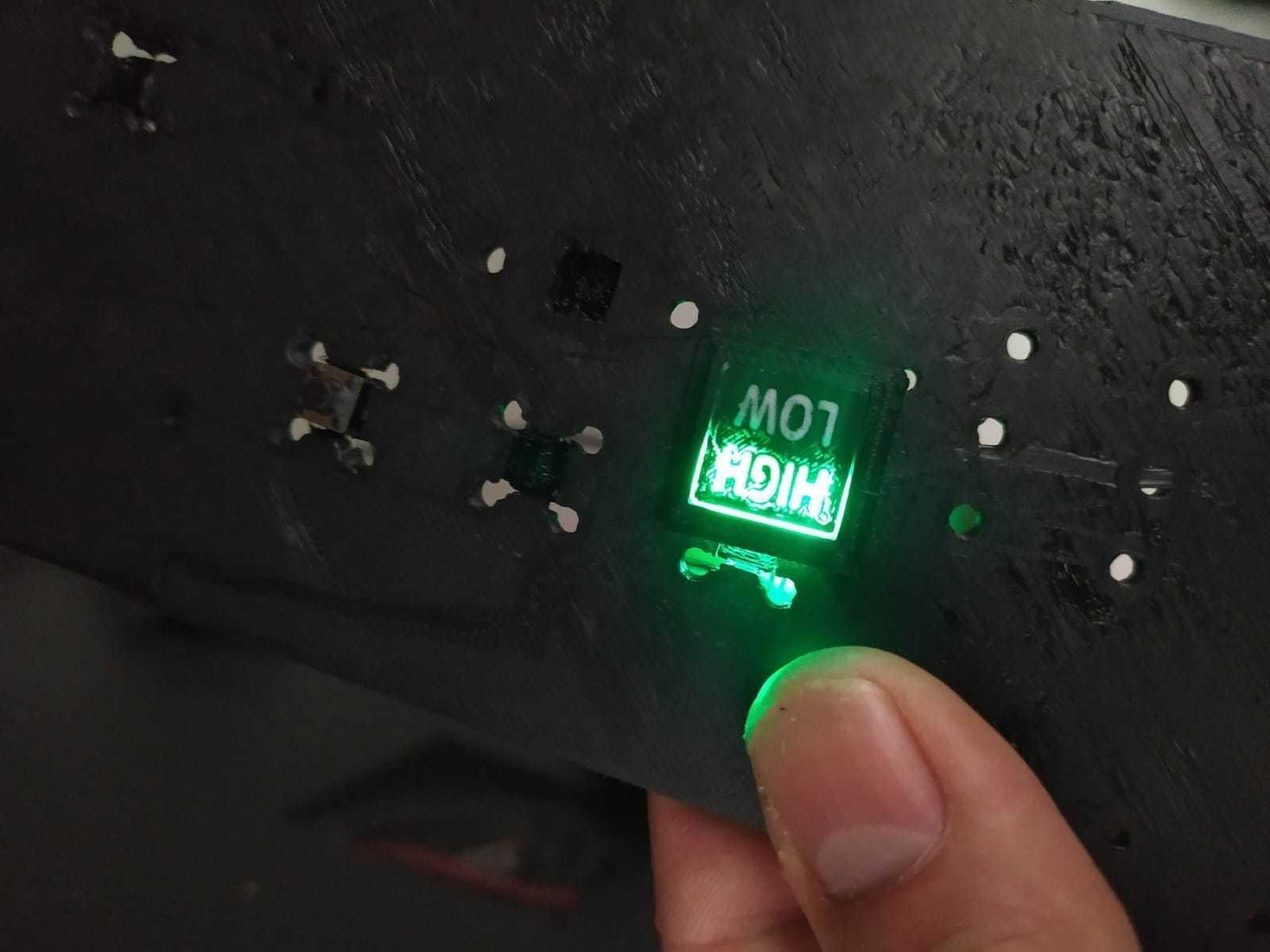

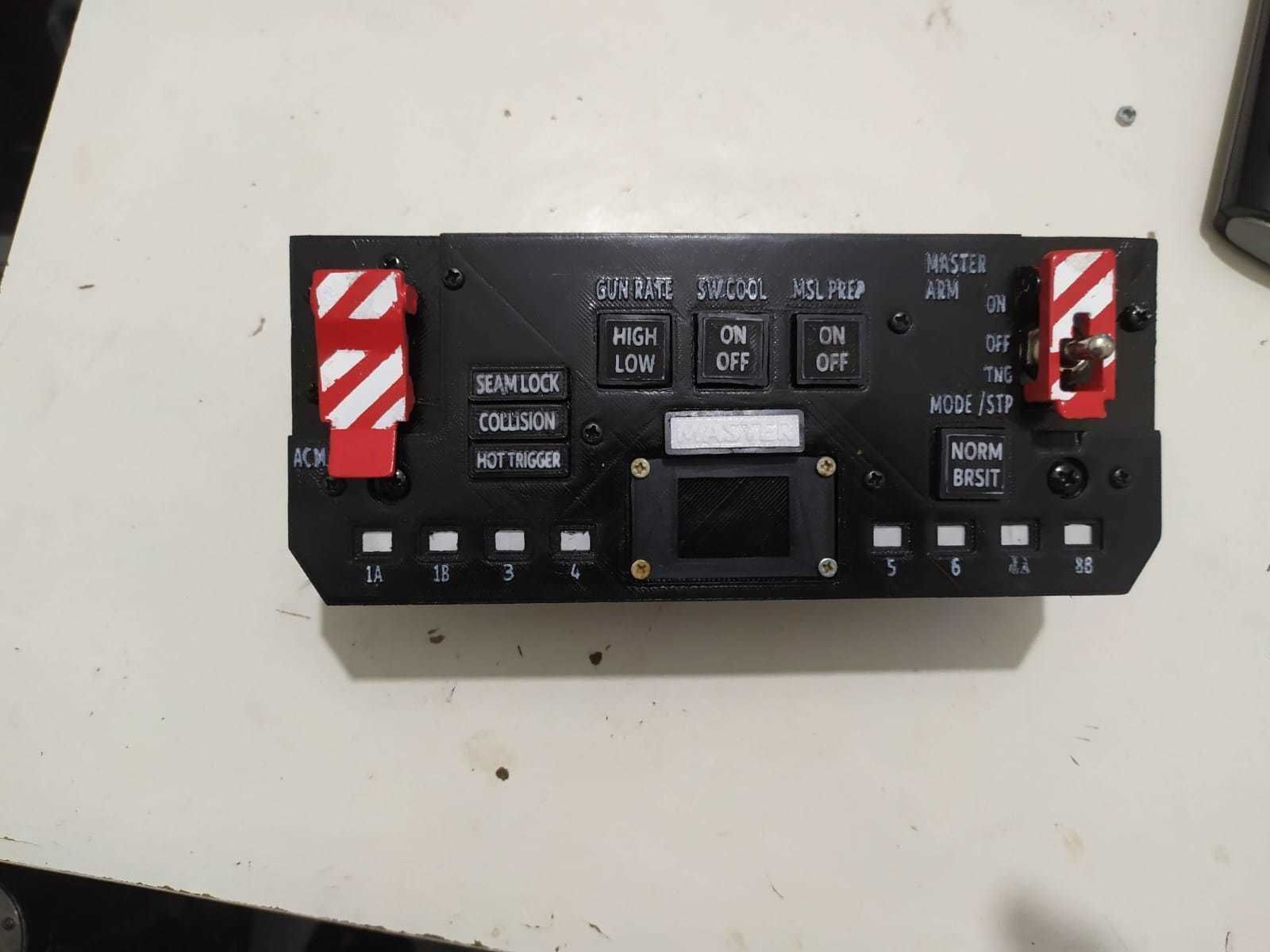

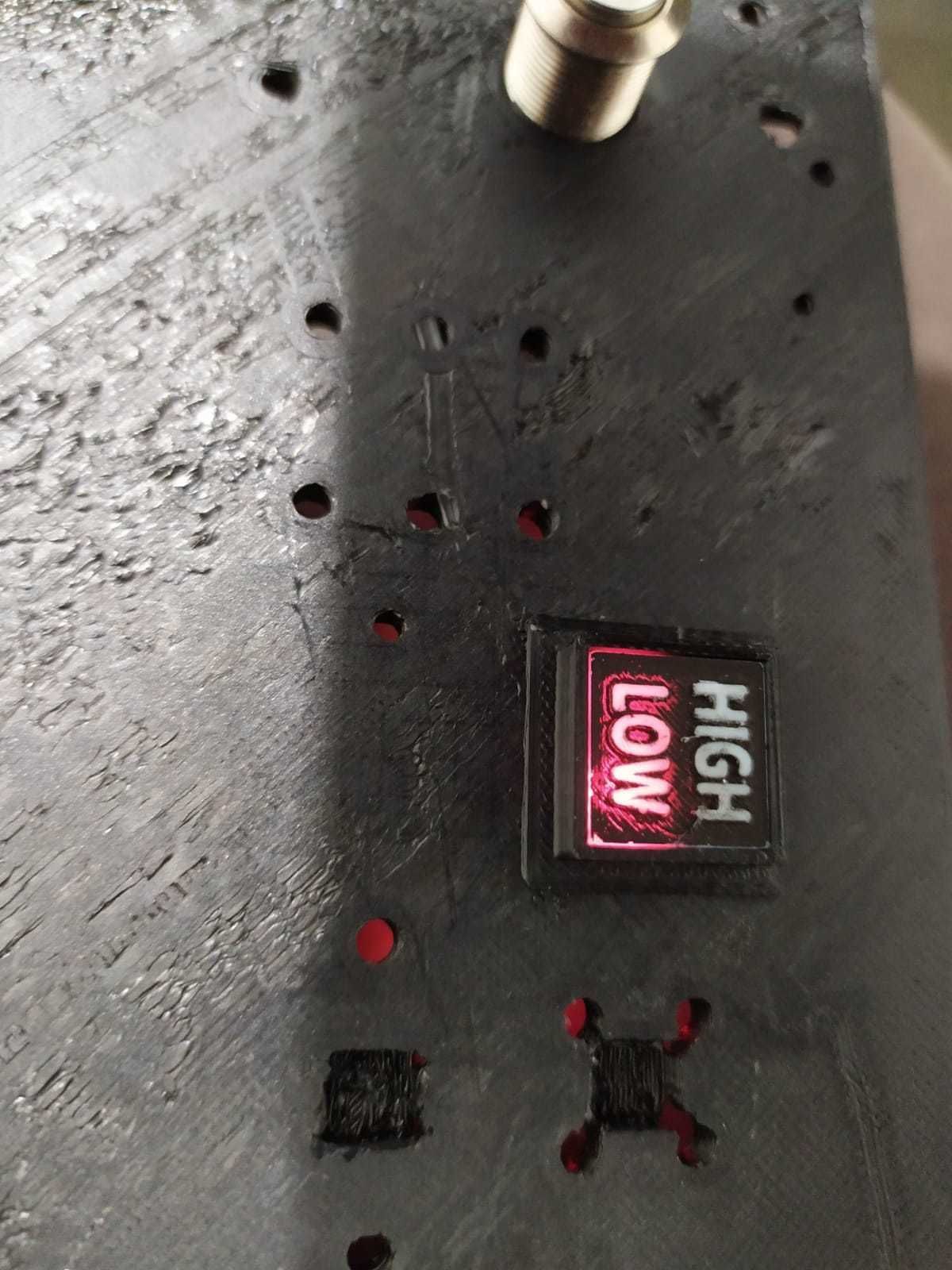

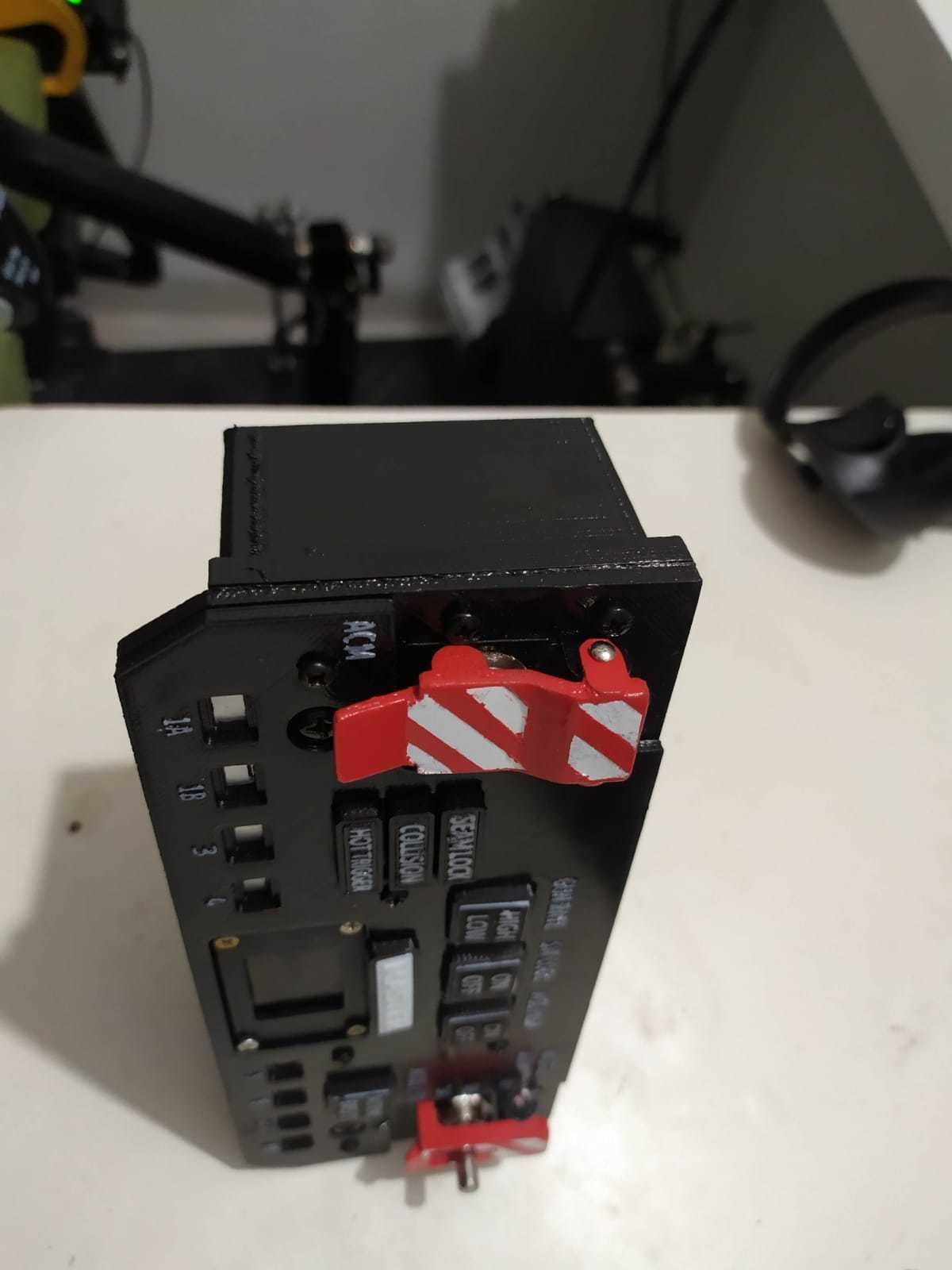

This is a 3D model for ACM panel of F-14 tomcat aircraft simulation. The plans are with elecronics inside. there are places for 3mm LED for all buttons and lights. In ordet to make the buttons and light iluminated print with white PLA and then send the top of the writing.

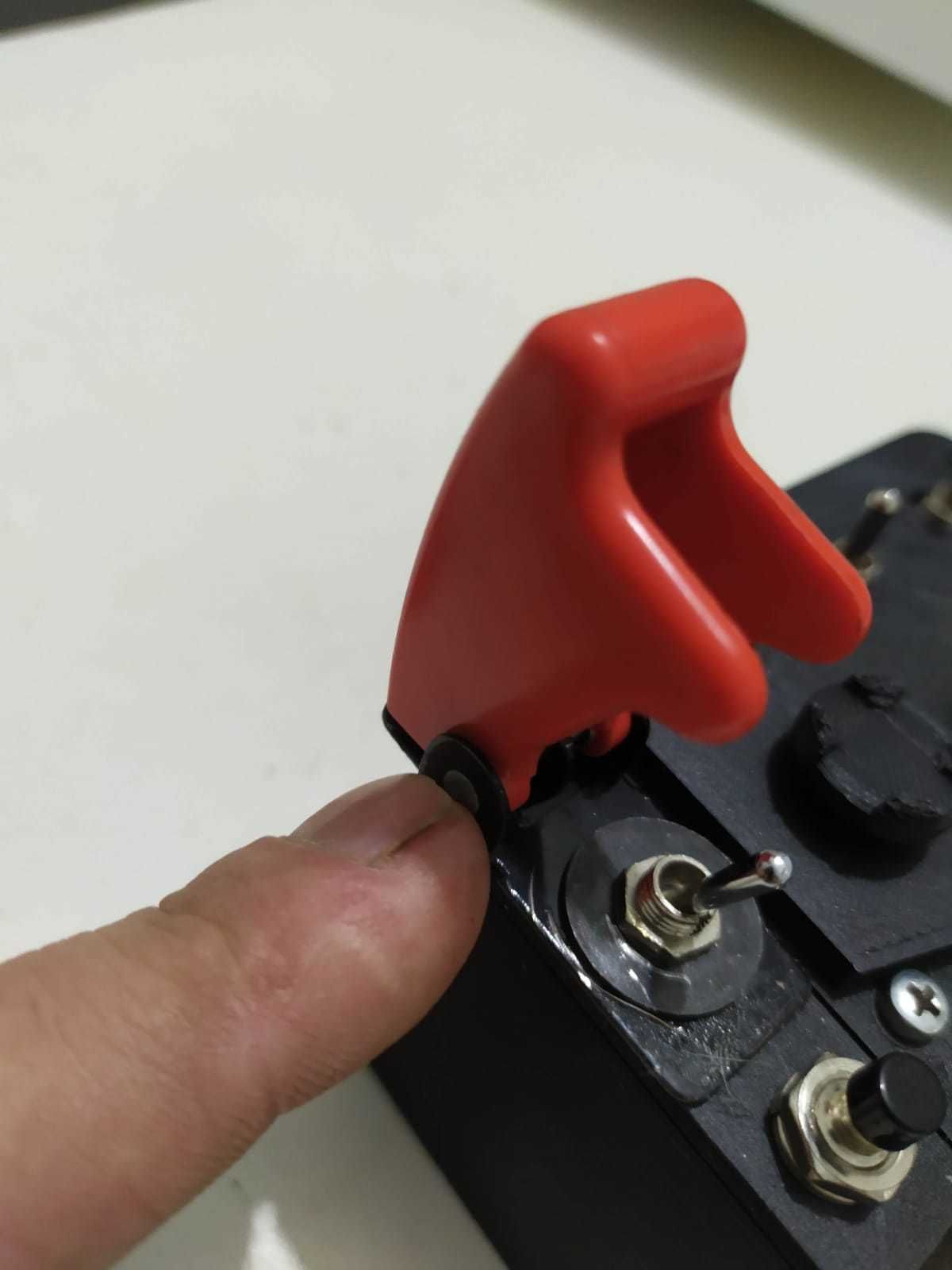

The switch guard are base on the metal part of a standard guard (pic attached) cut at the upper side.

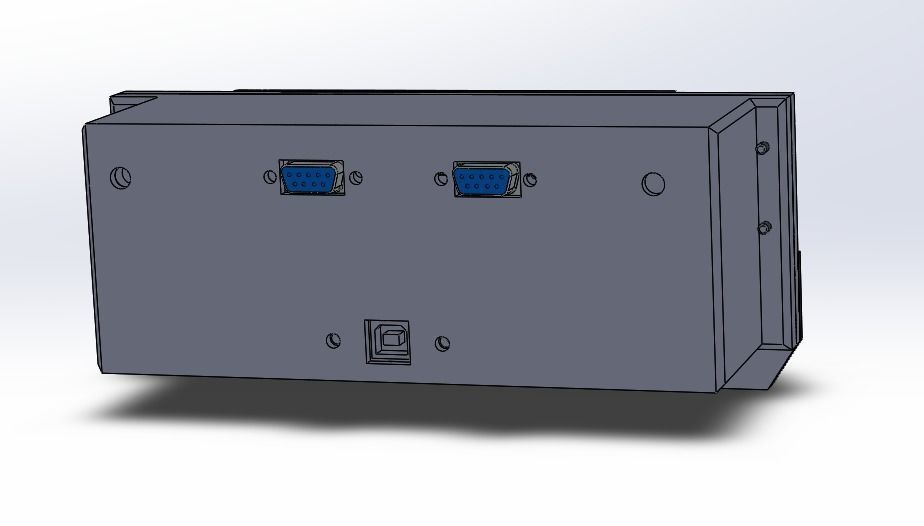

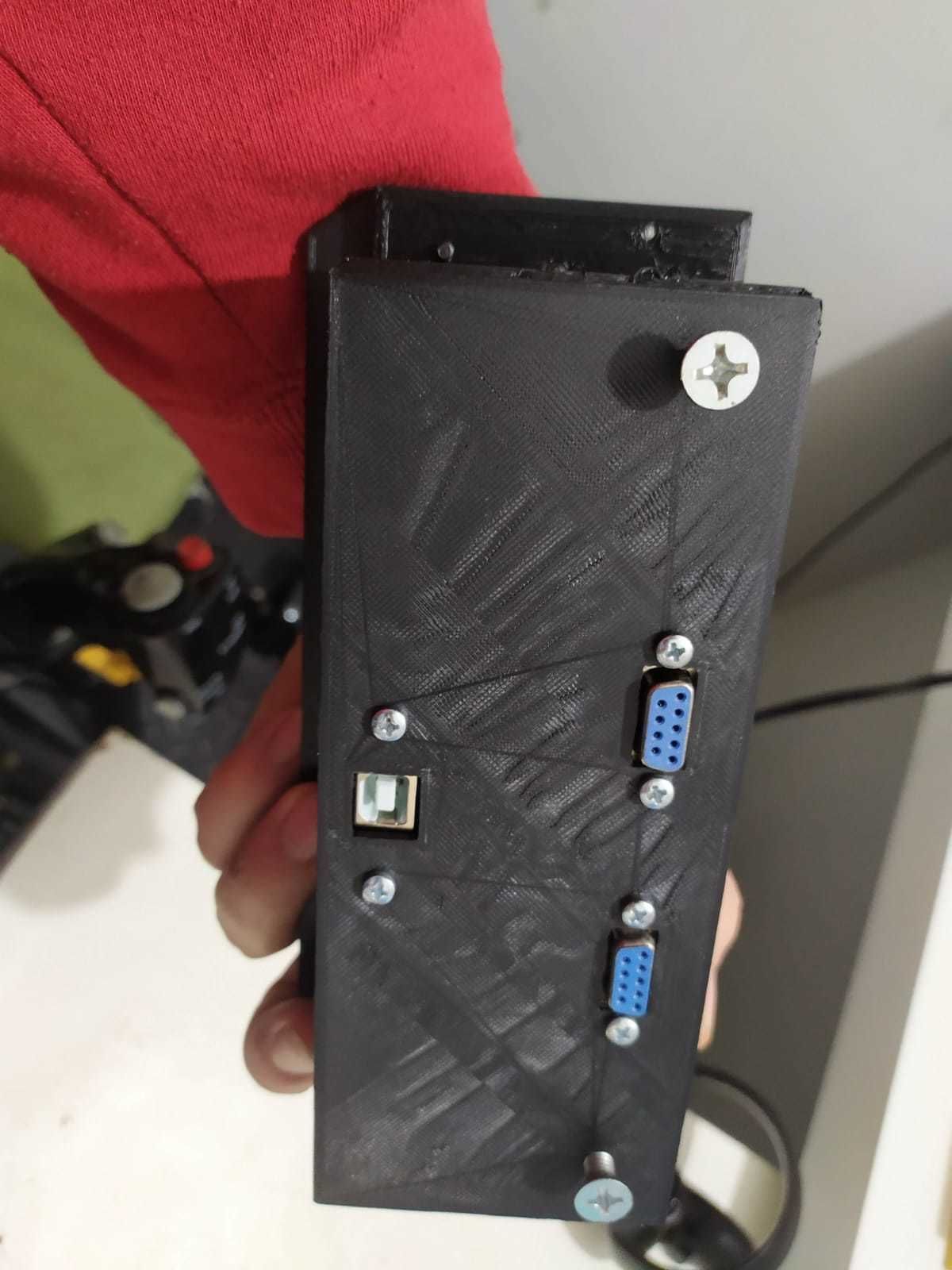

I have made two D-type connector if you whold like to connect additional buttons that are non at the ACM panel

Here id a movie of how it`s working with the sim. https://youtu.be/qZybXQU6_fU

Item rating
3 0
Recommended
Love it gonna print it here this coming week will post pics!
Recommended
Great product. For the price it is awesome to be able to print accurate toggle covers and have a working ACM panel. I wish I had drilled holes so the stores (1A, 1B, 3, 4, 5, 6, 8A, 8B) lights worked. Easy addition...just a few holes and lights so I recommend adding it when you build. This thing works great.
