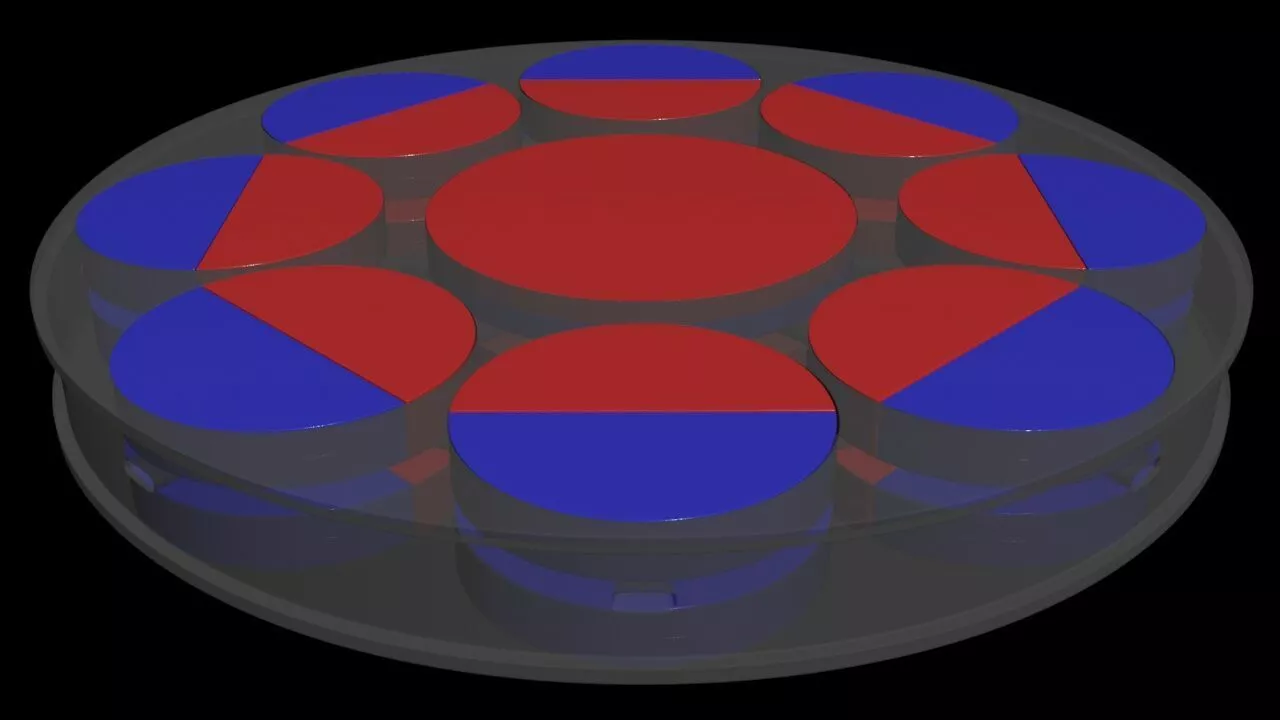

Dual Inverter Electro Magnet - Electro Maglock - Concept.

Double the amount of Magnets in the standard inverter magnet holder, same real world cardinal configuration, to double the effect. Multiple configurations possible for experiments, use one, two or more sets together as building blocks forming a magnetic lattice. Examples show different magnetic configurations, where the sets strengthen each other [matching orientations], or counter each other [forced opposite orientations]. A inverter magnet can be configurated N/S to push and to pull another set at the same time, holding it in a magnetic lock.

The center core magnets attract, while they oppose the fixed ring magnets of a second inverter magnet ring, all being fixated in location with similar thus repelling polarity. Same for the center strongest core magnet, it can be placed in two orientations, and different magnet types can be used, like Disc Axial, or Disc Diametric.

I have added open connections for coils between each magnet set, to possibly make them electro inverter magnets, as a system that we can turn on and more on. Between the magnet sets is a inductor coil with connection possibility, or direct outward gate. Could experiment with wiring it up serially, parallel, or sequentially, in phases. Also, i have added 4 open parts for mounting or stacking purposes, and 4 super capacitor or battery bays, because you never know when you might just need that little bit of extra juice, as we could stack the dual inverter magnet systems, in a longer, higher cylinder, see what it does when powered, see if they all act like a electromagnetic dampener together, all repelling each other mid air, like a magnetic, non touching, wear free, strong suspension or electro dampening system.
