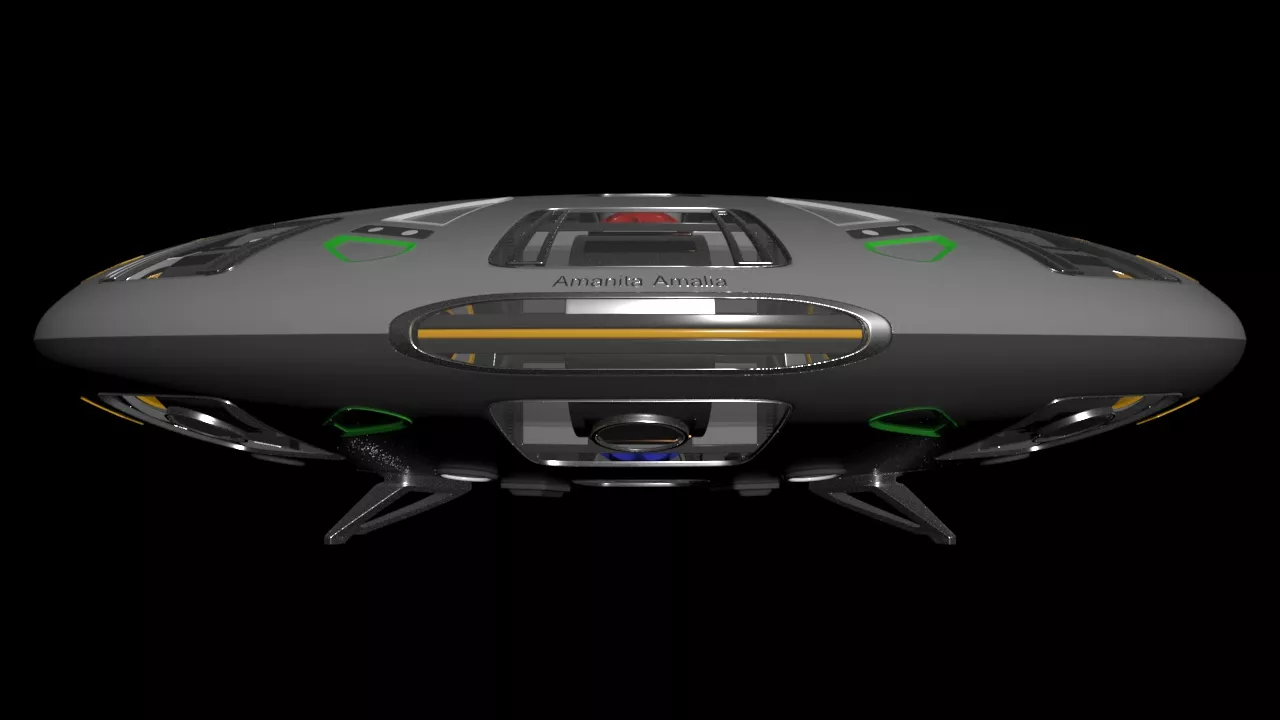

Chariot of the Dutch 3 - Amanita Amalia.

Concept: Toroidal Vertical Centripetal Counter Gyro Lifter - Concept.

The name basically says it all. Must brute force Gravity.

Gave a little thickness to it's outer [Perovskite] shell, and sliced in up in two exact halve domes for more easy printing/manufacturing. Added the central floor and upward insulating walls into the core form, covering the central tesla coils. Added a few cable management paths. While still keeping the ultra light philosophy strong. Perhaps ill model in some floor panels for easy data/power cable access or making connections. Needs some good stands to balance upon. Thinking of going with Linear Mass Displacement with upward cycle electrical boost through a Solenoid and magnetic dampening for displacing mass upwards, transferring upward kinetic energy, into the entire hull, in turn moving it upwards. *if the balance XYZ is kept correctly.

The outer rings could house like 16 x Vertical Centripetal Asymmetric Gyroscopes. Also placed Radially, spaced in perfect balance through precisely divided angles. The ship is designed to have its own Internal Center of Gravity, Well see what happens next...

• Ultra 360 Panoramic windows / Camera Slots.
• Perhaps a couple of Step up/down Transformer units could fit nicely as well.

• Front lights, Top lights, Bottom lights, Turn signals lights for the sky perhaps, Breaking lights, or go full RGB hehe...

• Exploding view, Time to operate a little deeper.Added symbolical coils on the Transformers, as well as made simple access panels and floor segments for easy access to the inner part of the core. Would be nice to perhaps be able to electrically blind the windows, for privacy reasons etc..

• Added aluminum part indications. it doesn't really need a Aero grille, but it would look pretty cool. Tightened up a couple of parts as well, make them look better overall.

Never enough down force, cant have enough down force. added extra round lights on the back, that could be fitted with Lidar on the front, or some other type of collision detection. Gave the windows a nice silver lining, makes quite the difference, nice eye catcher, not important or well has to properly be sealed or tightly fitted of course... don't want to loose a window mid flight...

Added some copper plating to half the cycle of all the vertical centripetal asymmetric gyroscopes, so that we can physically only electrically stimulate or power it during half of a single turning of the mass, creating a asymmetric force, hopefully upwards, when all work together.

The Mass of all Vertical Centripetal Counter Spinning Asymmetric Gyroscopes, must be greater, than the rest of the ships combined mass, this way when the gyros start spinning, they only have to be nudged, to displace the mass of the entire ship through internal inertia.

The Motorized Dual Axial Flux Gyros are also placed inside a Toroidal tube, which could either be filled with a light gas under pressure for levitational effects, or be made void of all gas for air/water resistance/oxidation purposes. The Dual Axial Flux Motor can also be divided into a Motor and a Generator with several different Modes. All Gyroscopic Masses, as well as the Magnetic Piston Masses, are either electrically being pushed up above the ships center of mass, or are falling back down freely, below the ships center of mass. Ad infinitum.

The central coil could be like the spinal cord of the entire ship, the physical clock, sending out signals or commands to the individual parts, from the absolute center, meaning all timings or delays are or can be perfect and correct. Added a power wall to each segment, including space for hot swappable battery bays. As is now, there 6 batteries for each top and bottom segment, meaning 2 for the Mass Displacement Pistons, 2 for the Gyroscope and 2 for other various onboard systems, or have backup power cells.

Added a camera island and or lens in the bottom windows, added Air in/outlets in the top windows. Added a central Screw system to lock and hermetically seal the outer shells strongly together, in case we wanted the ability to go sub Nautic one day.

Note to self: Pretty Nice fit, if i do say so myself.

If you made it this far, you might as well enjoy some amazing matching landing gear.

• Parts all appear 3D printable.
• Exported and included every single individual part as STL.
• Added all original 3dsmax drawings, every version, and many line arts images.
• Made and added two video's with extra's.

Decided to name her: Amanita Amalia.

By: [ Dutch Industrial Space Company ]

Thank you for reading, have a nice day.
