Triple Rim Driven Electric Thrusters - Concept.

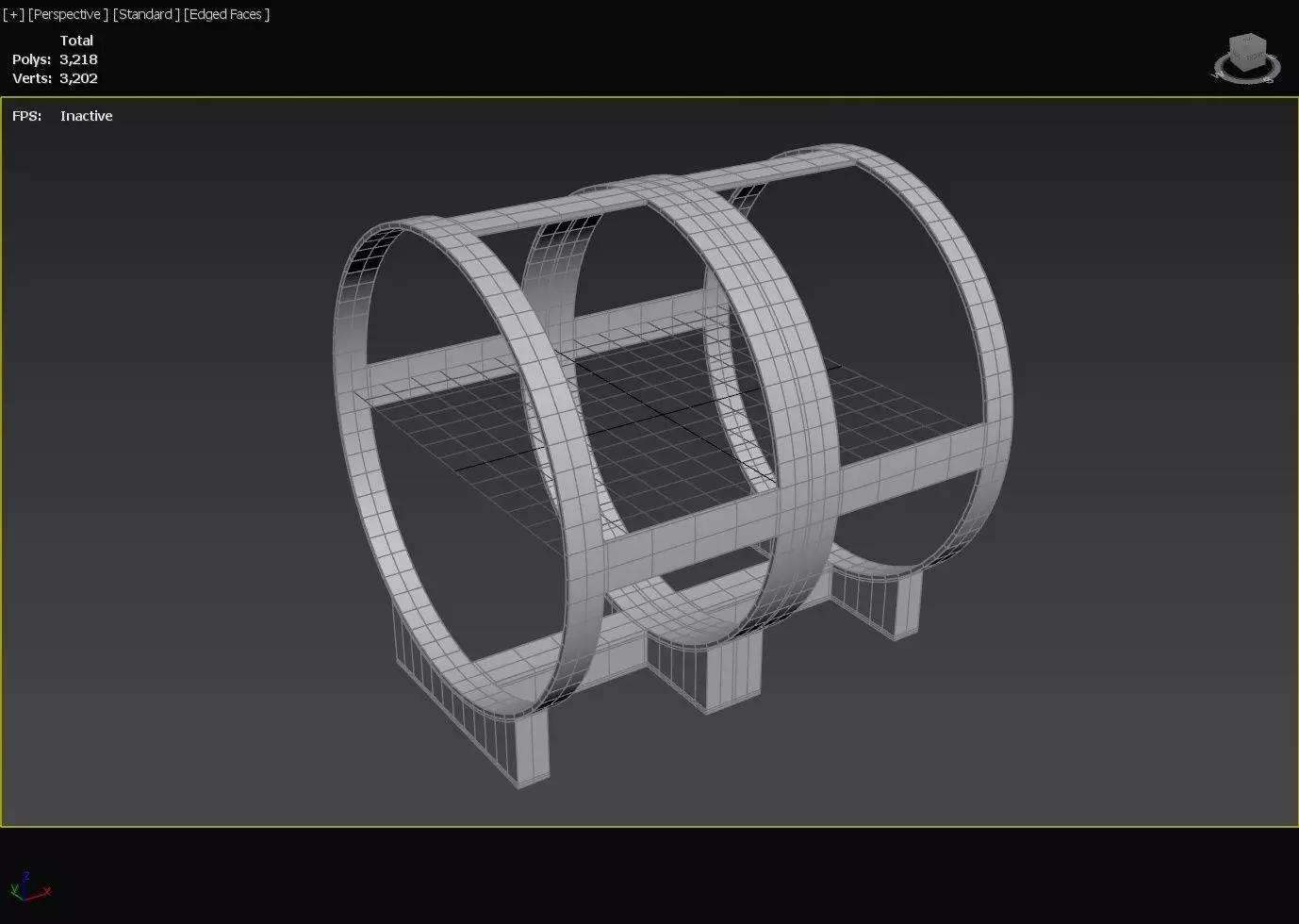

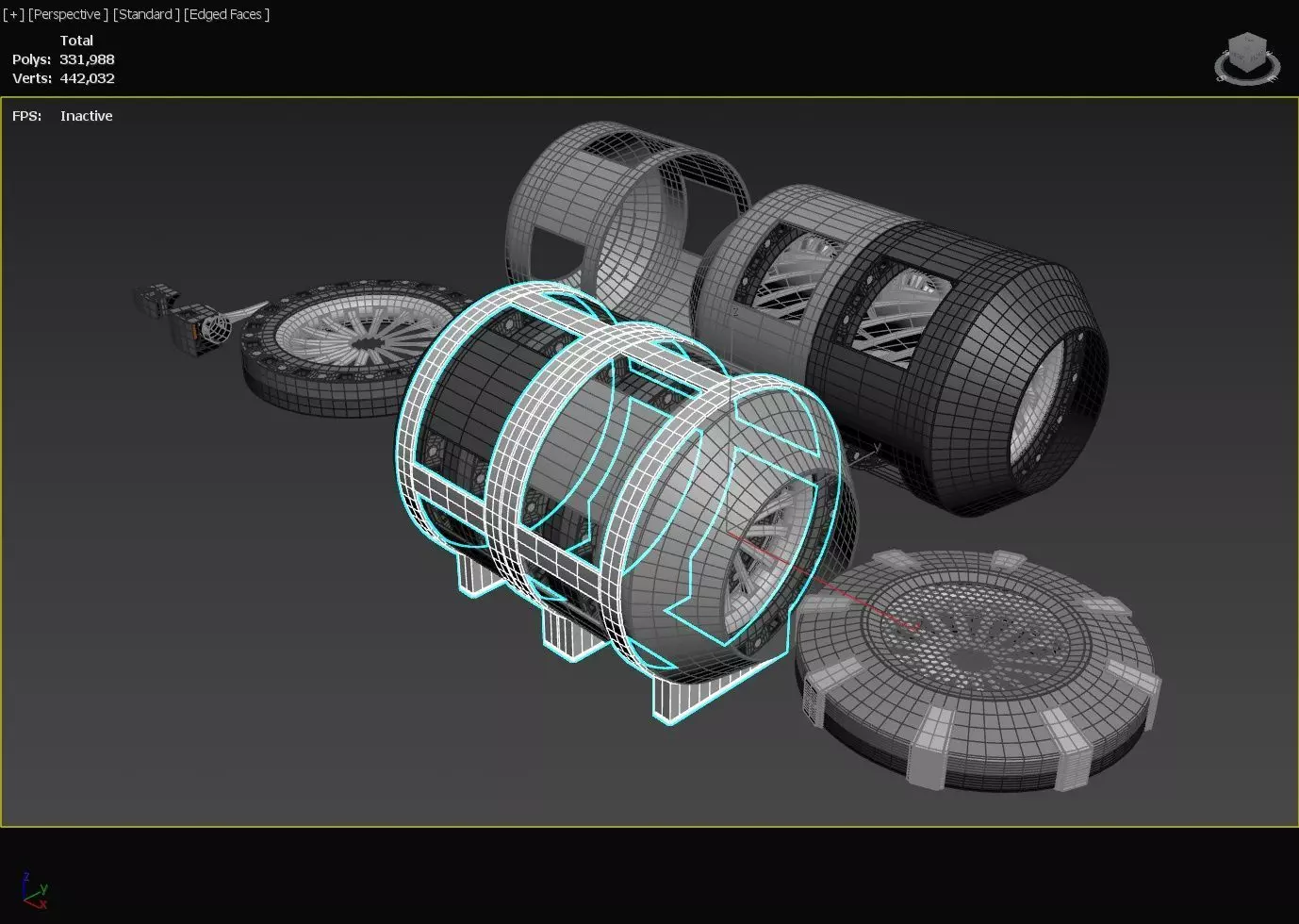

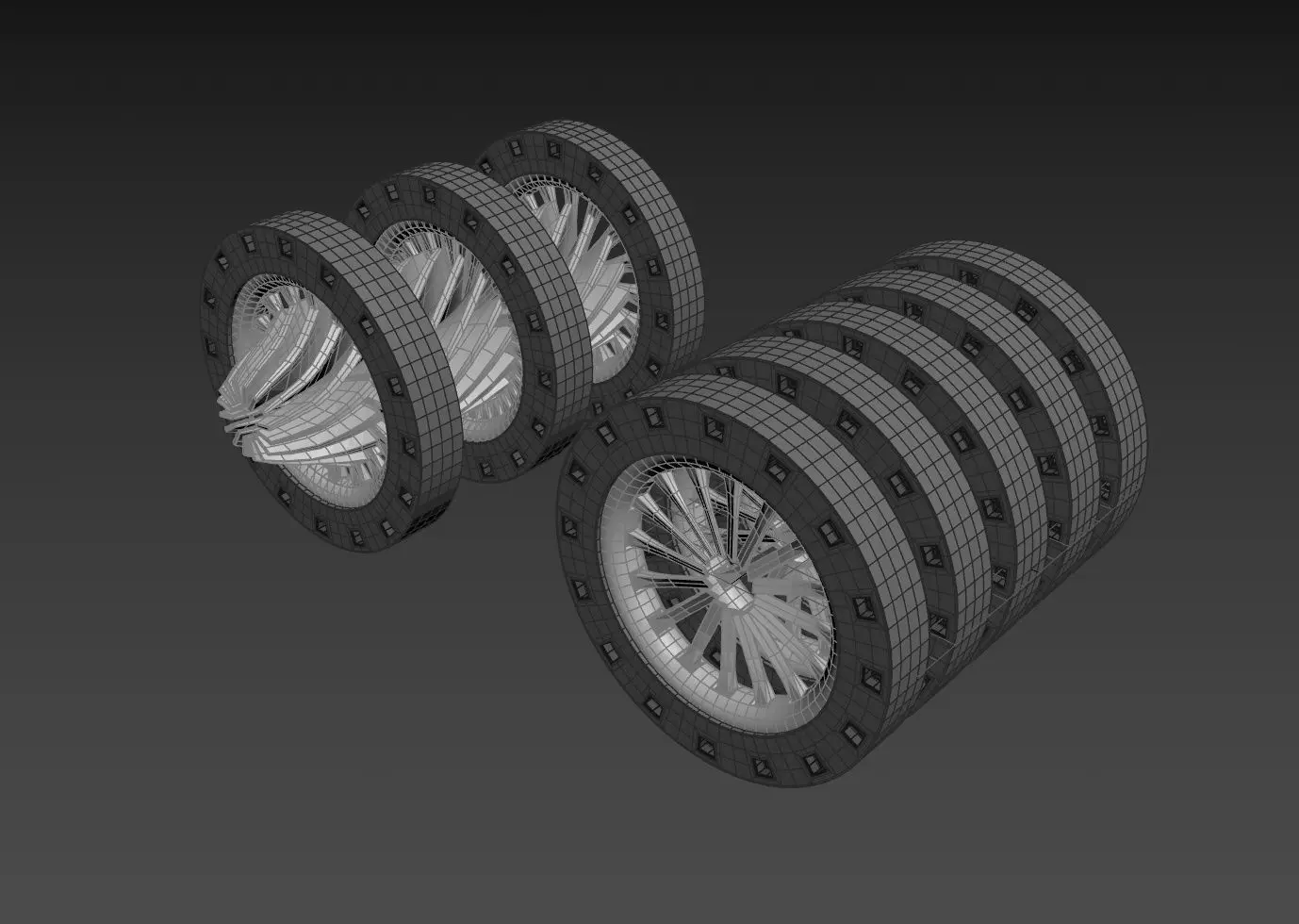

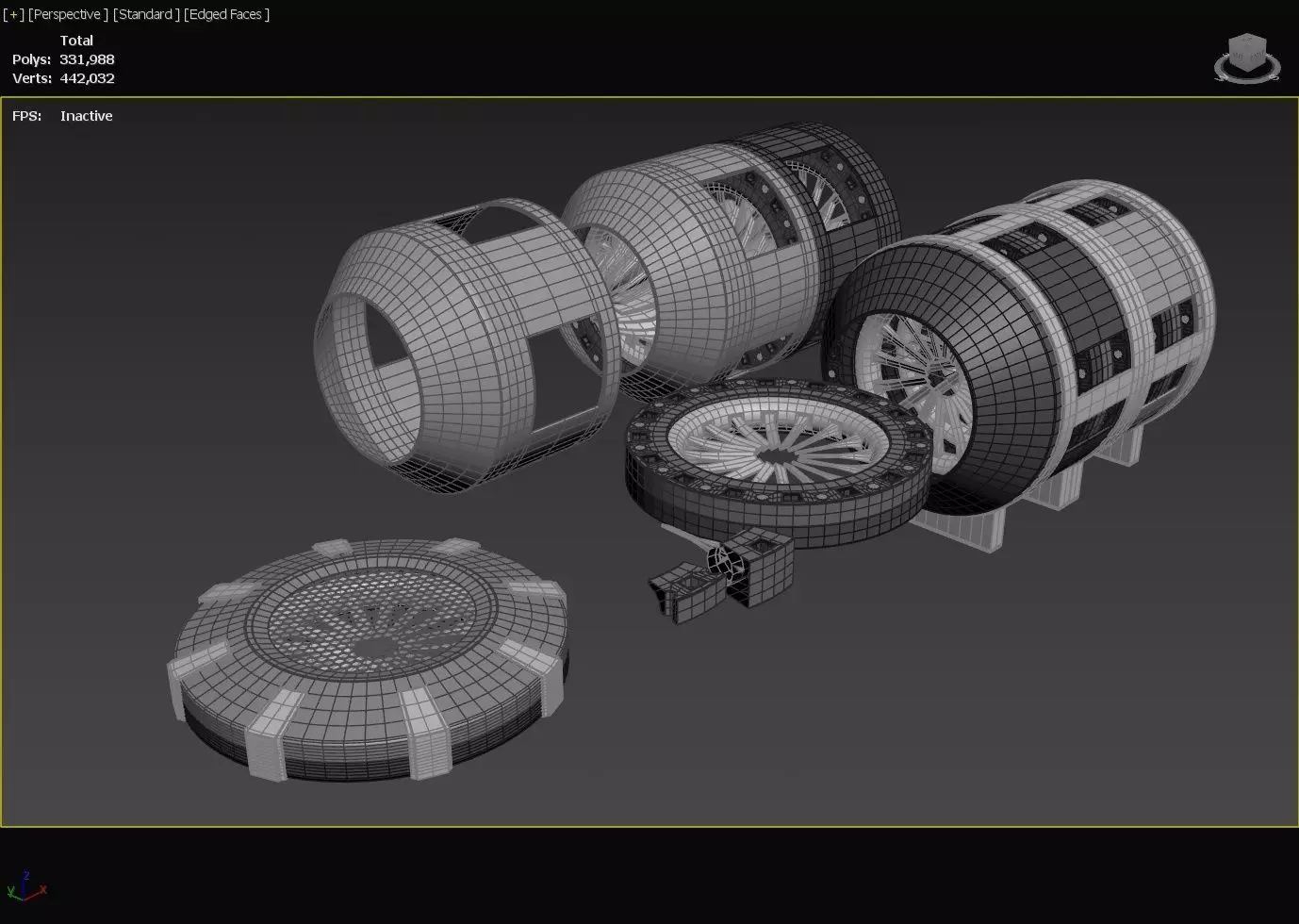

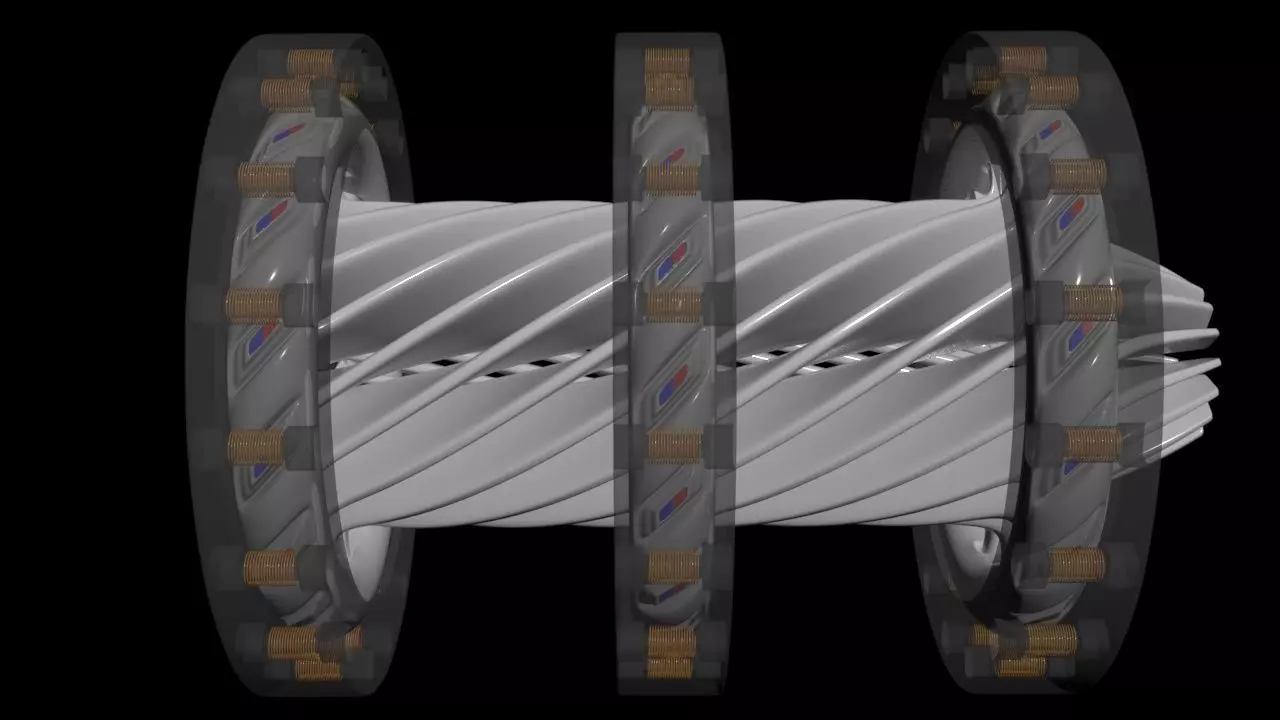

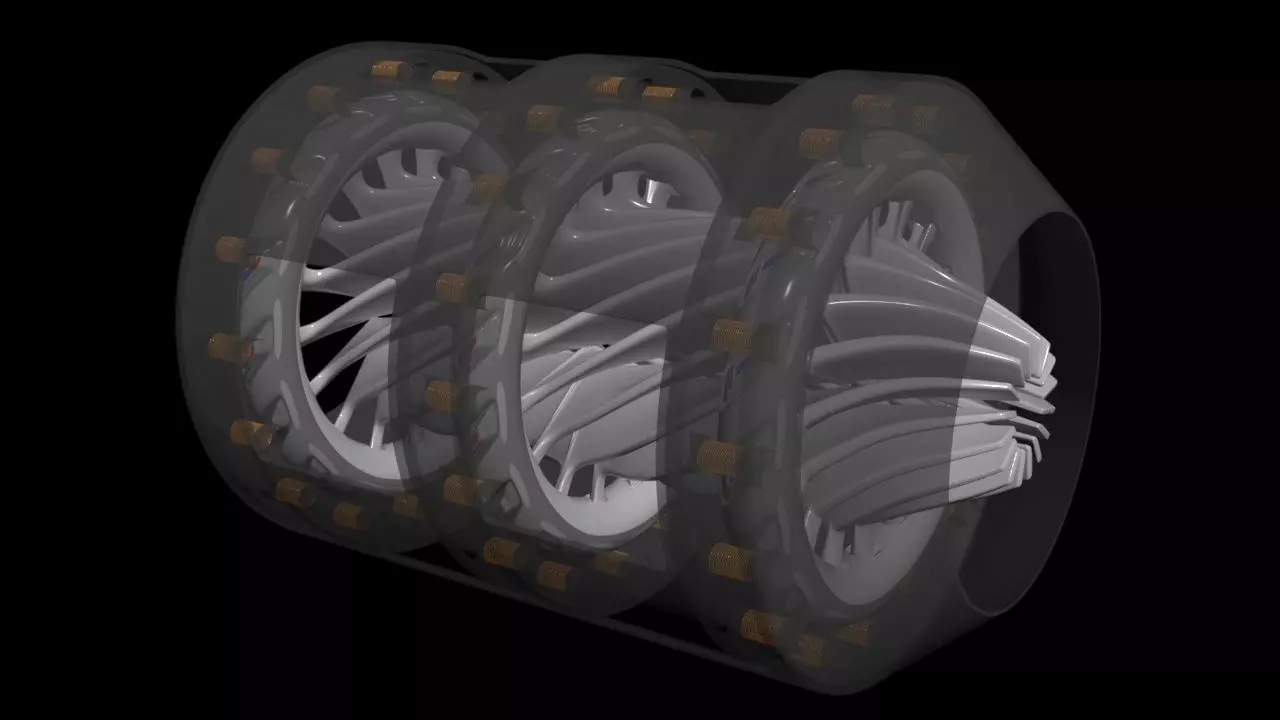

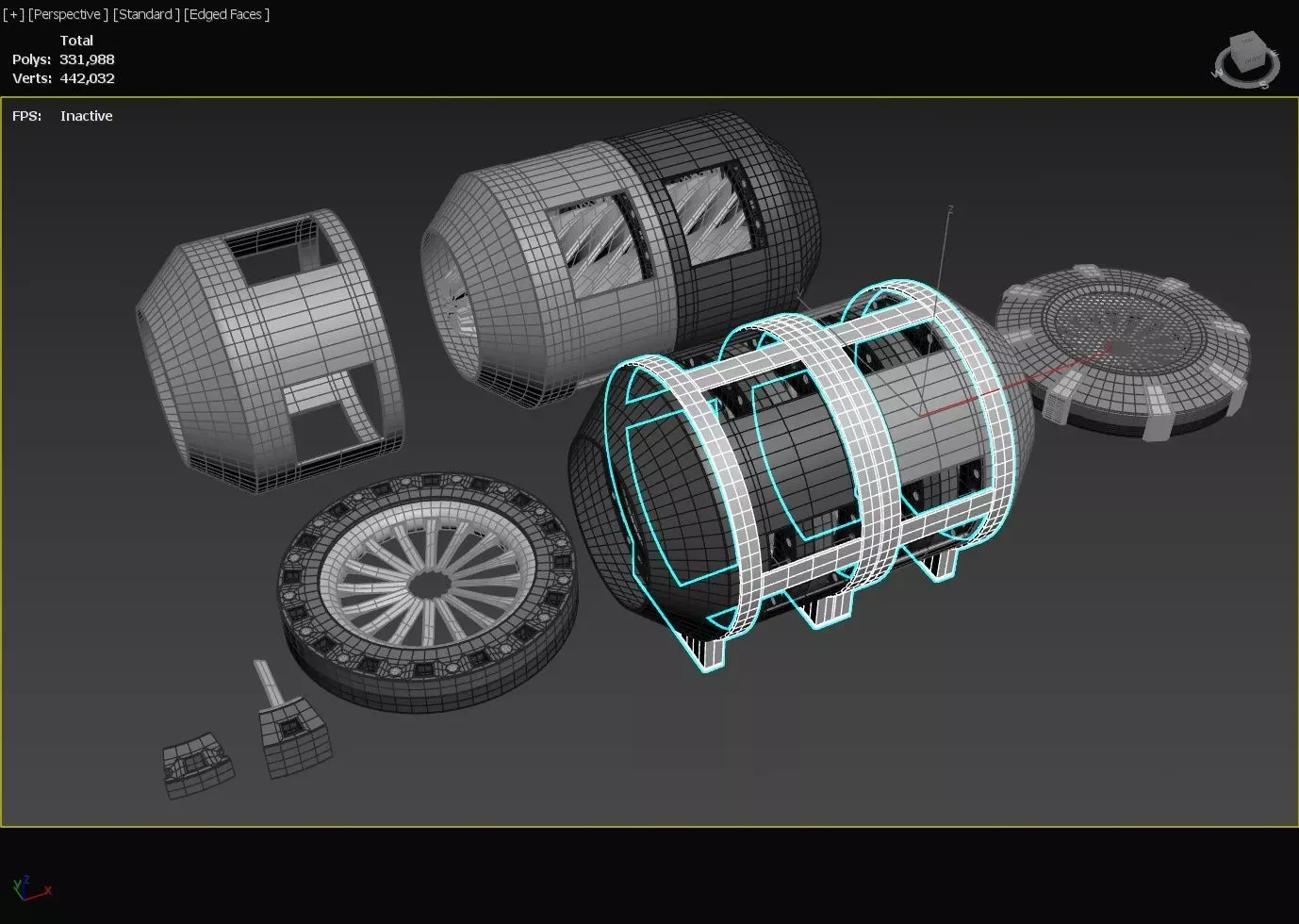

Created 3 Versions to experiments with. Mix and Match, single version, flat version, and the Archimedes screw version.Created a Holder for the outer casing to hold everyhing together.Exported in 3 File Types including .STL

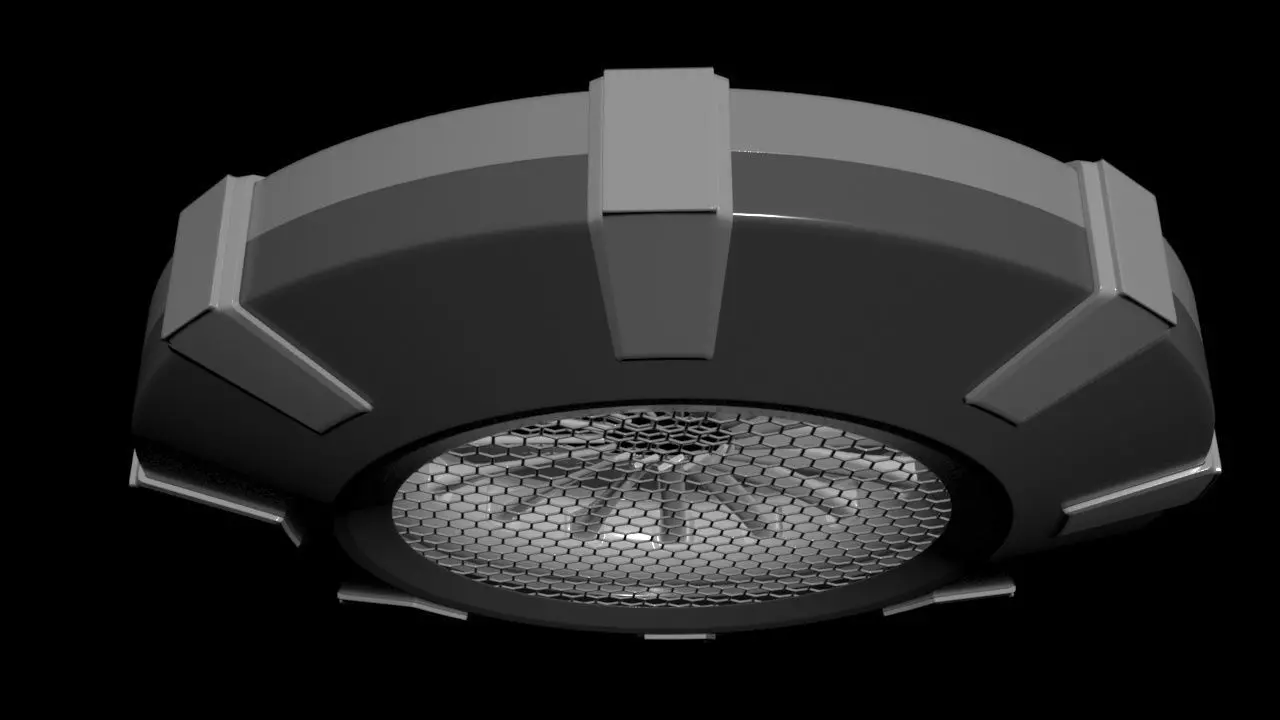

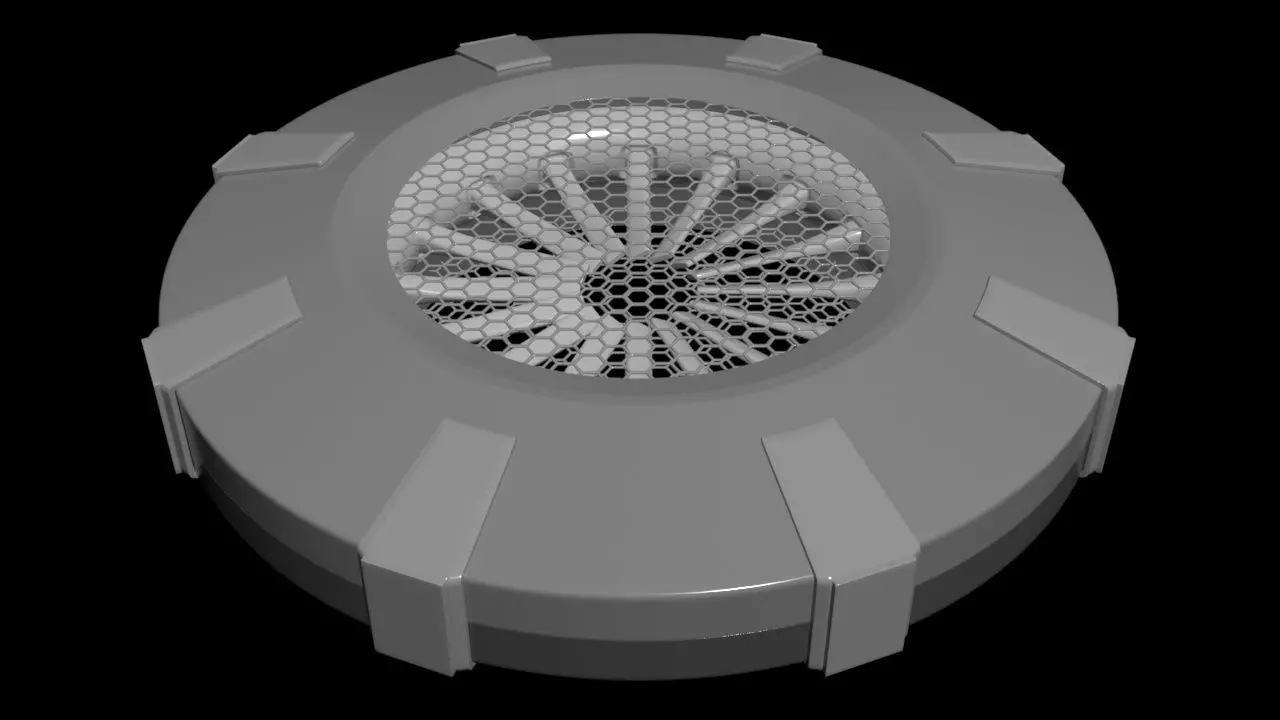

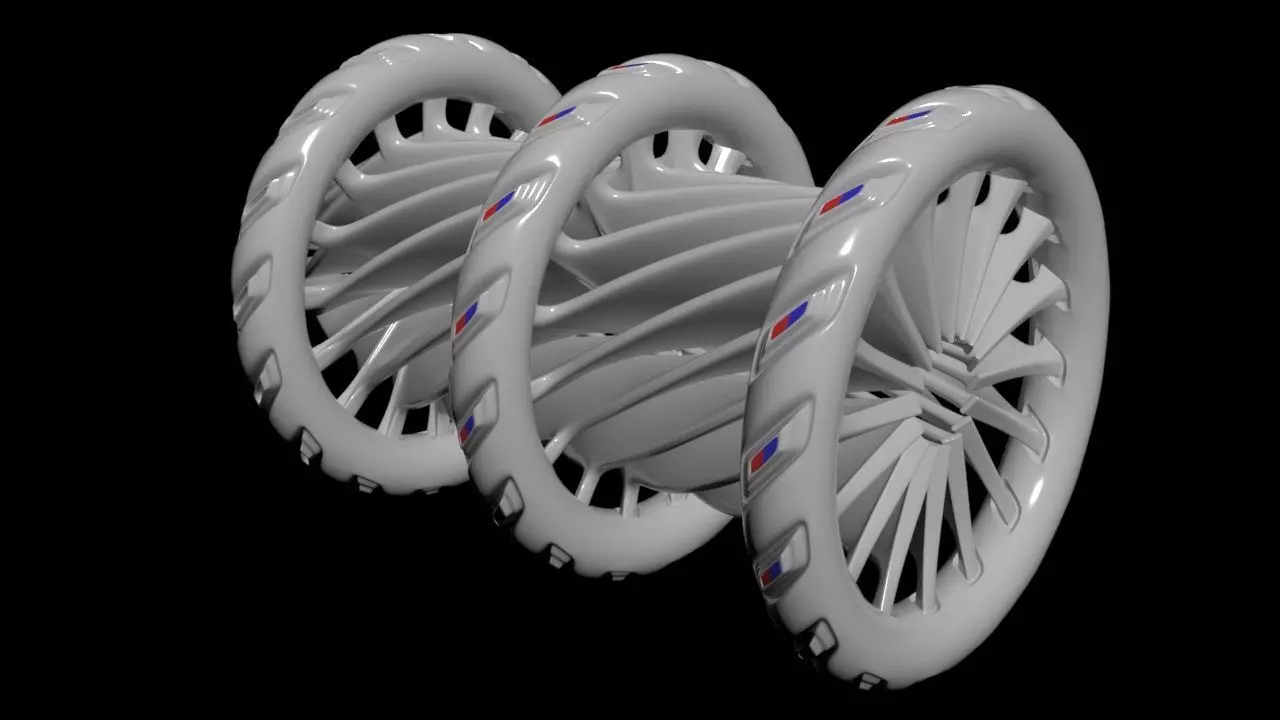

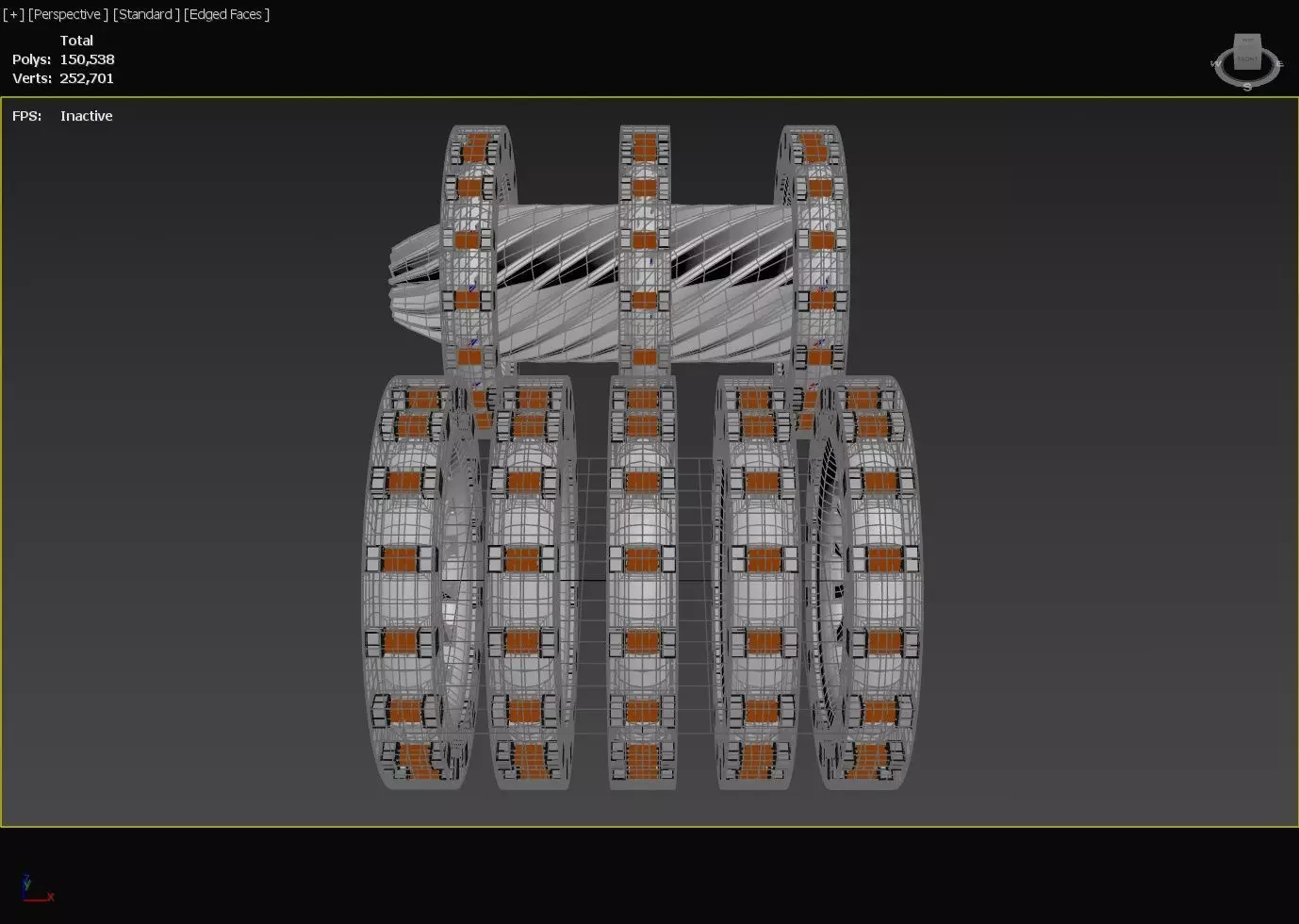

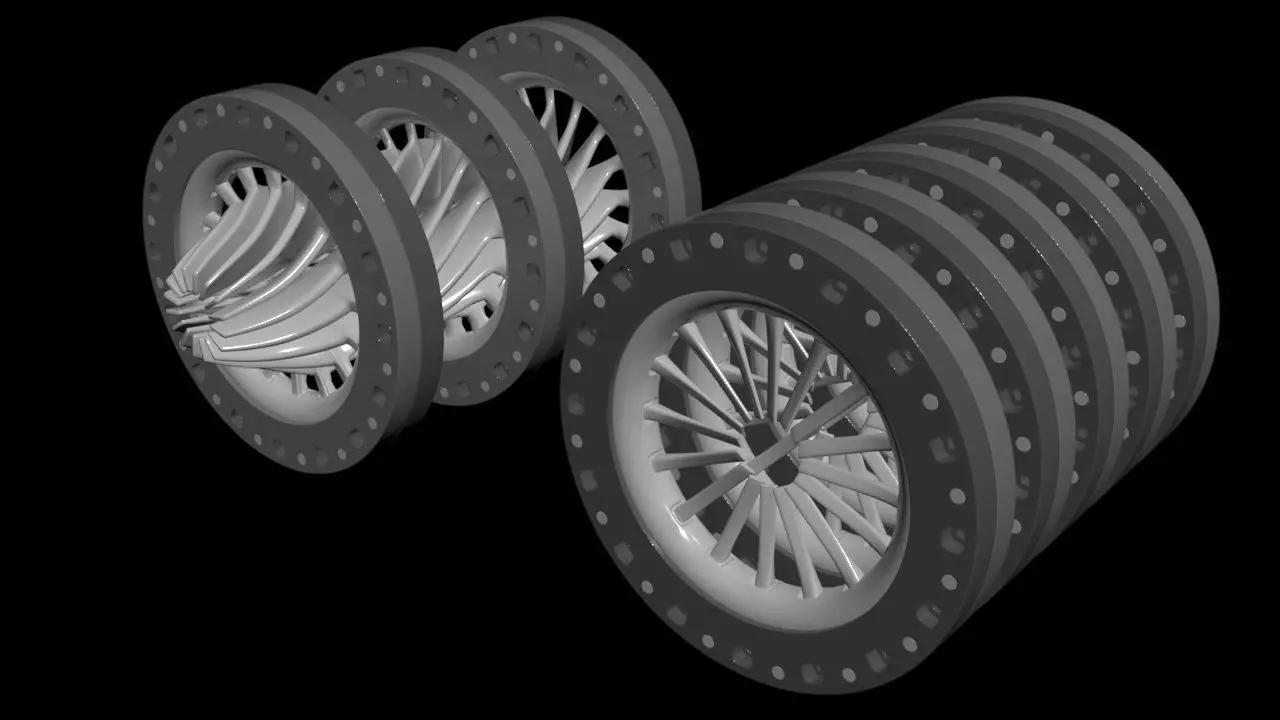

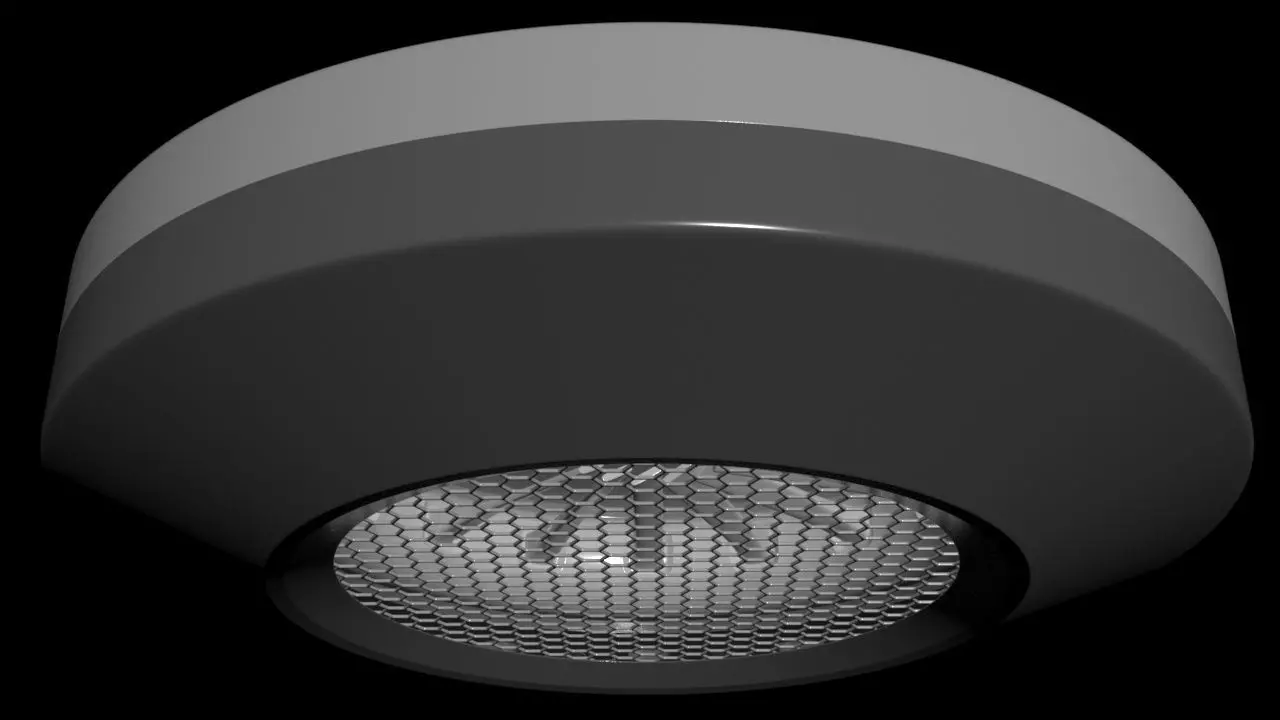

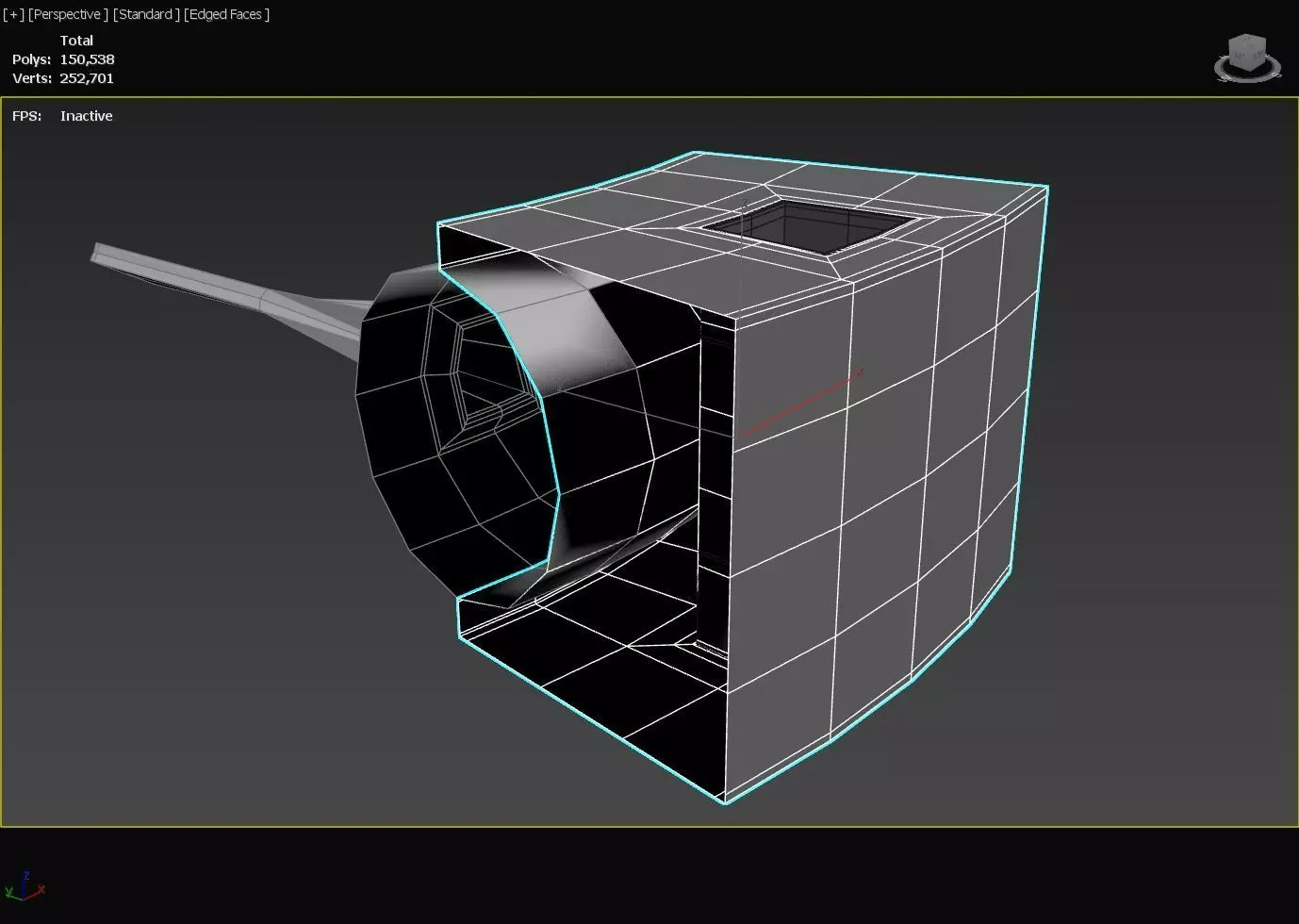

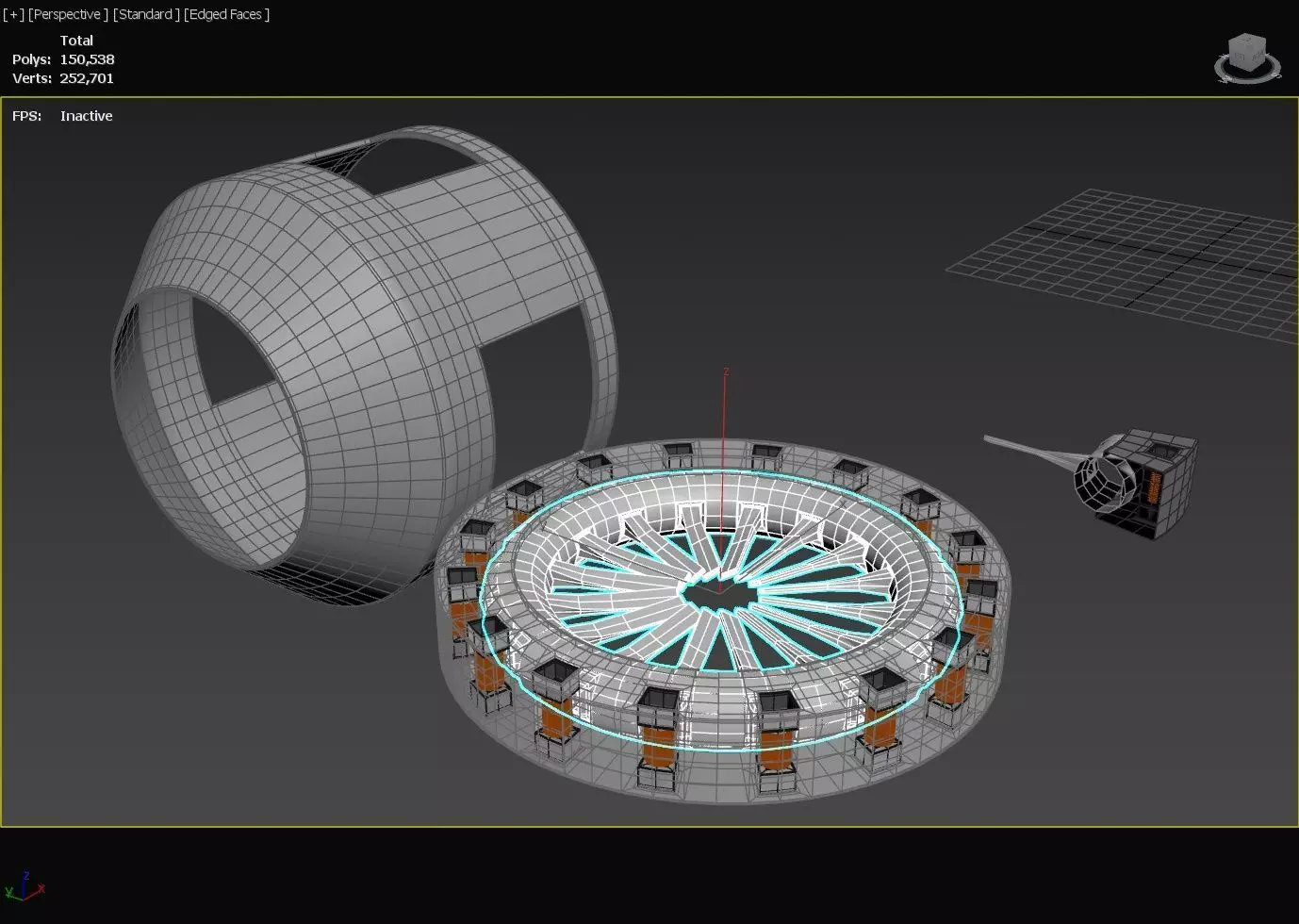

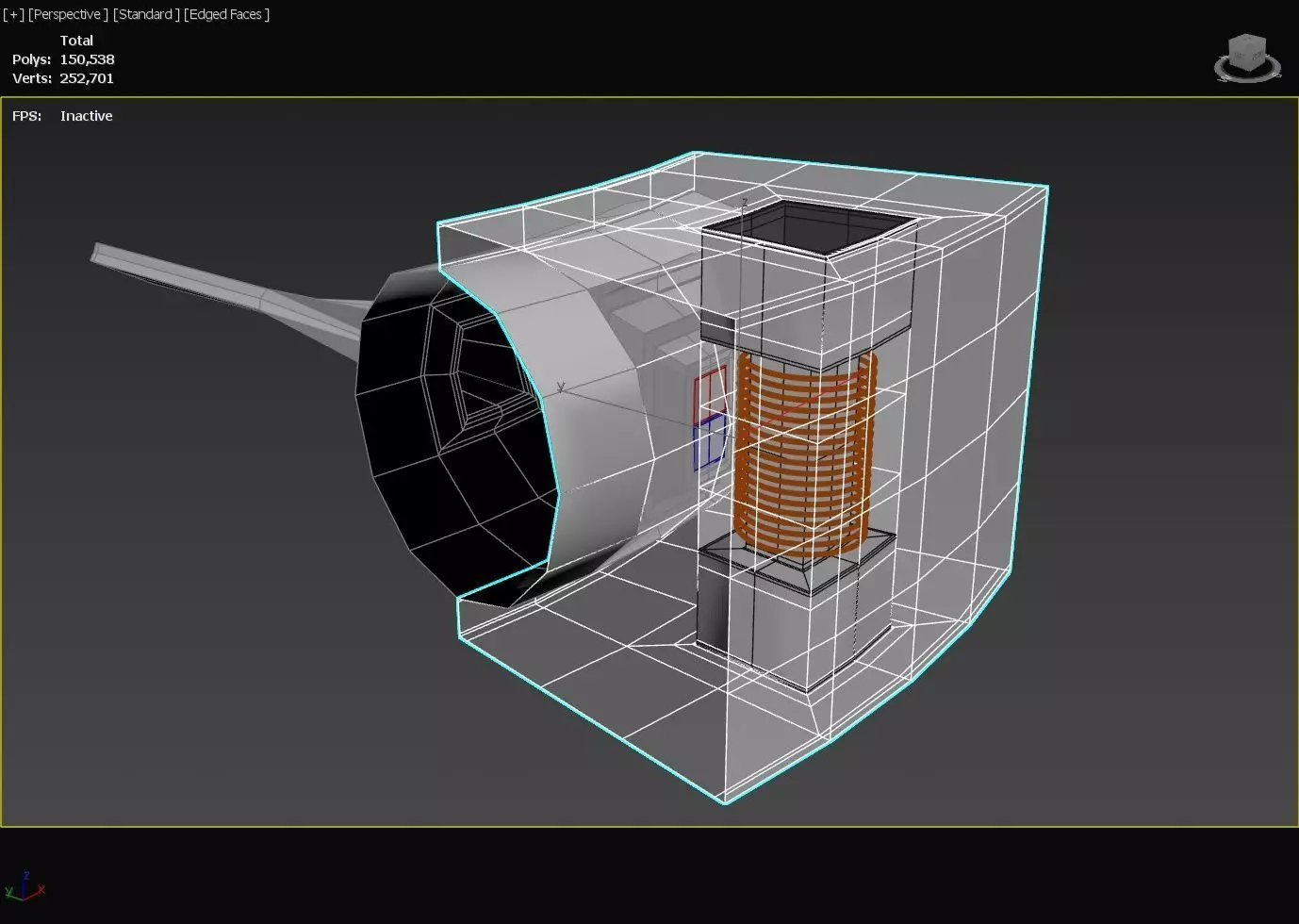

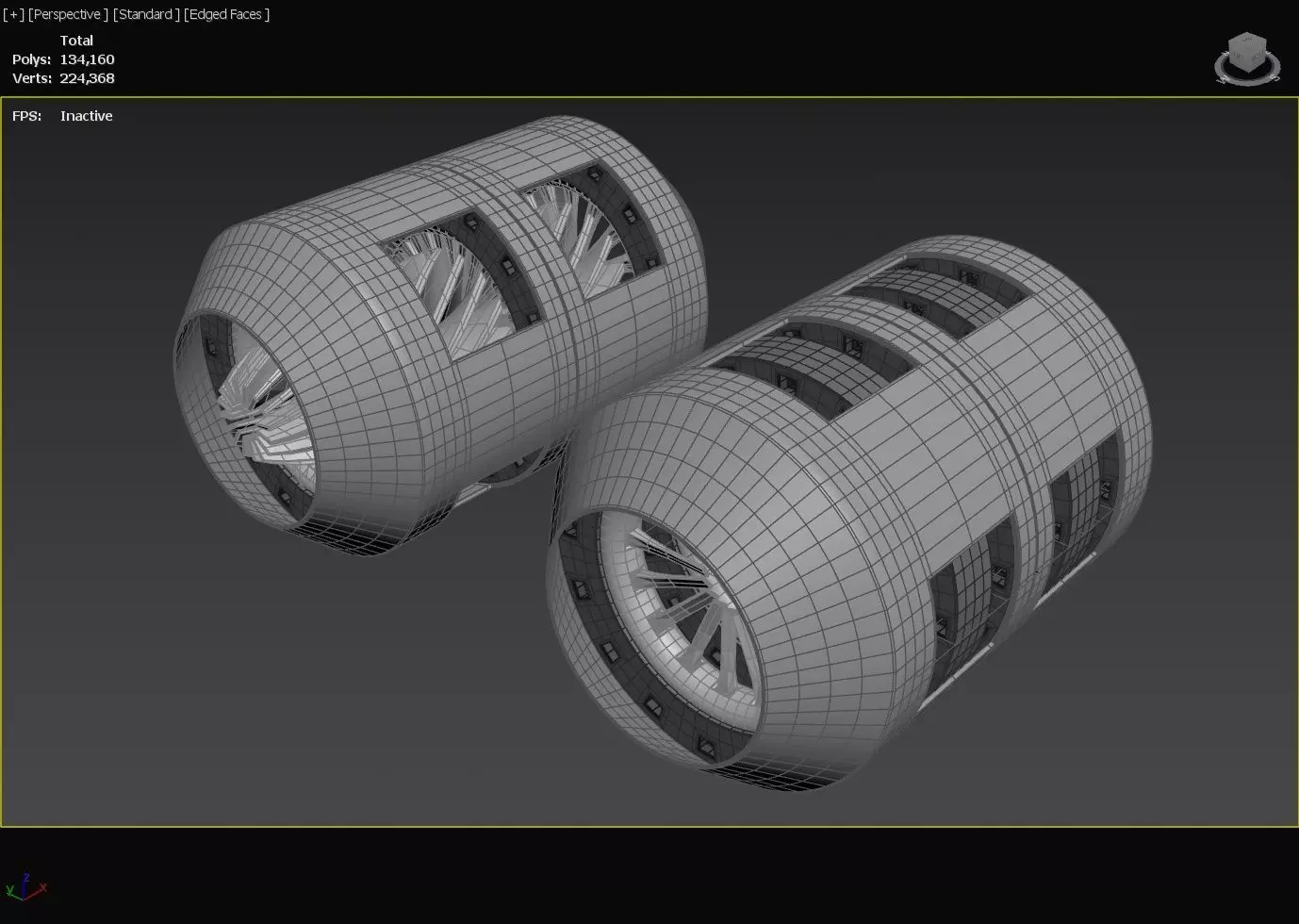

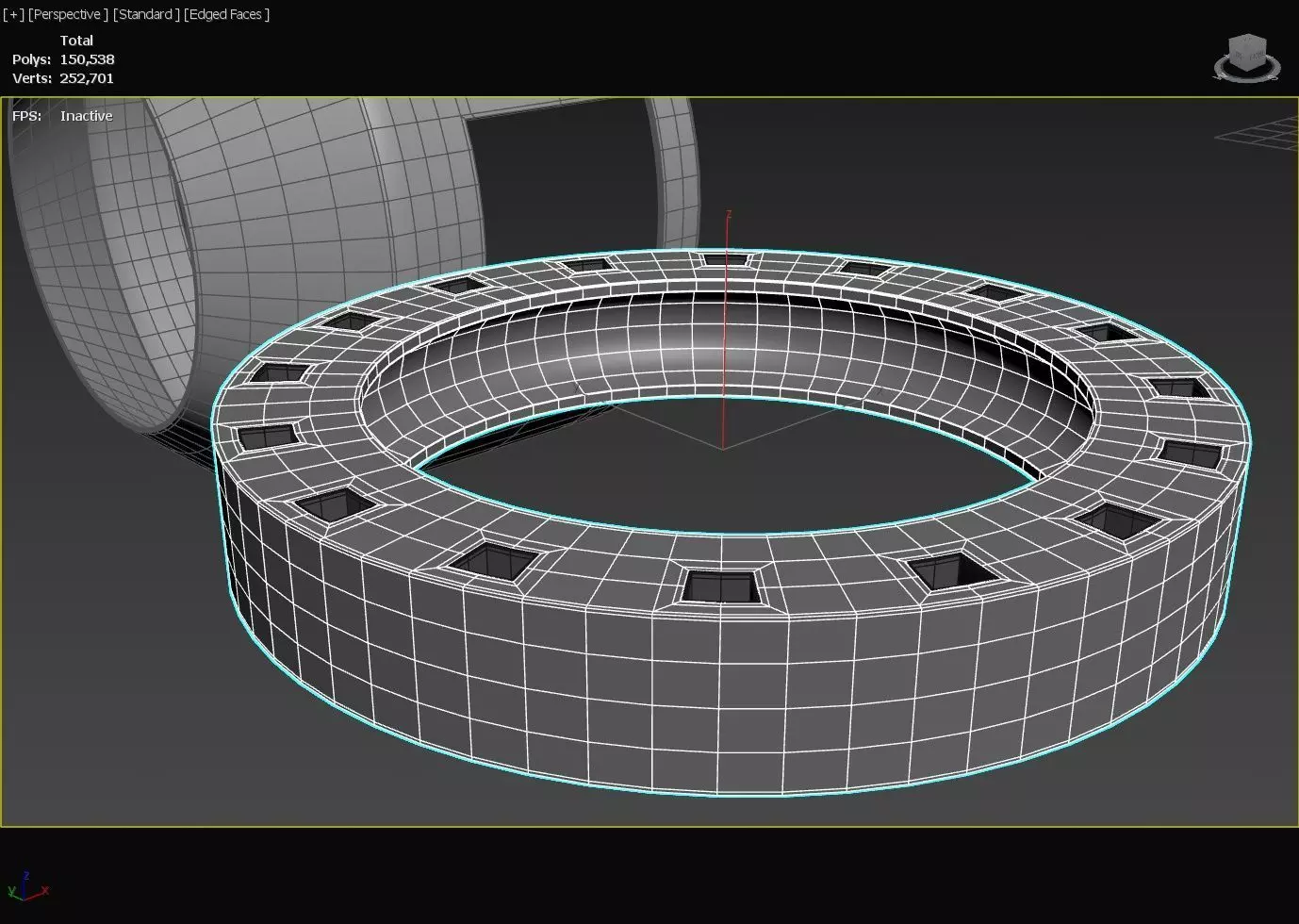

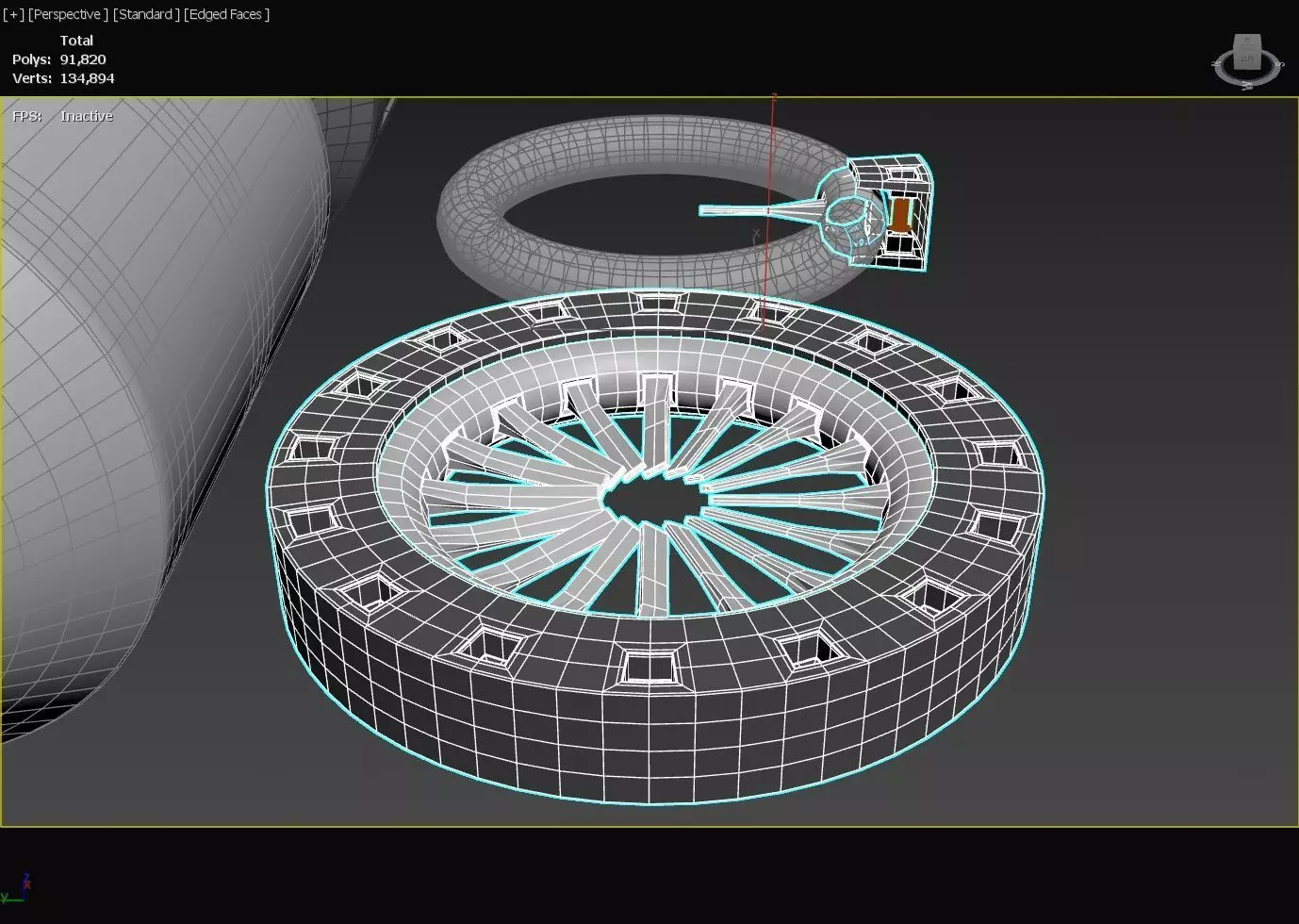

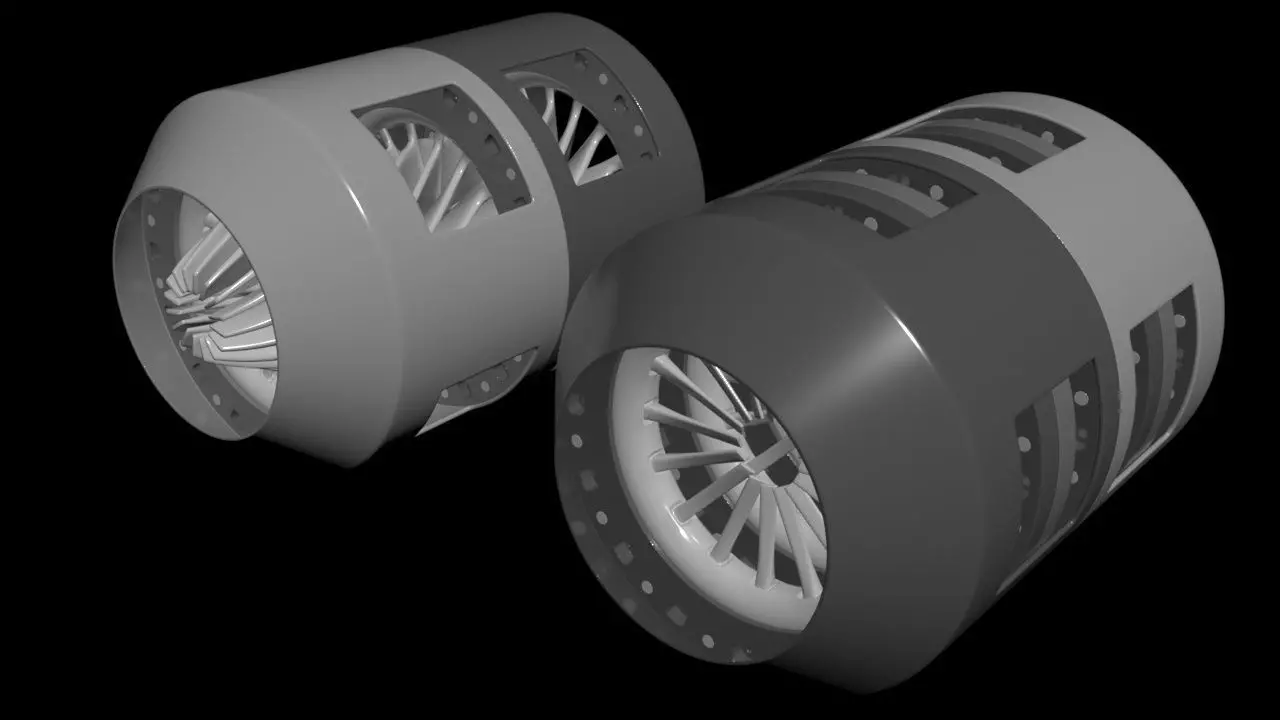

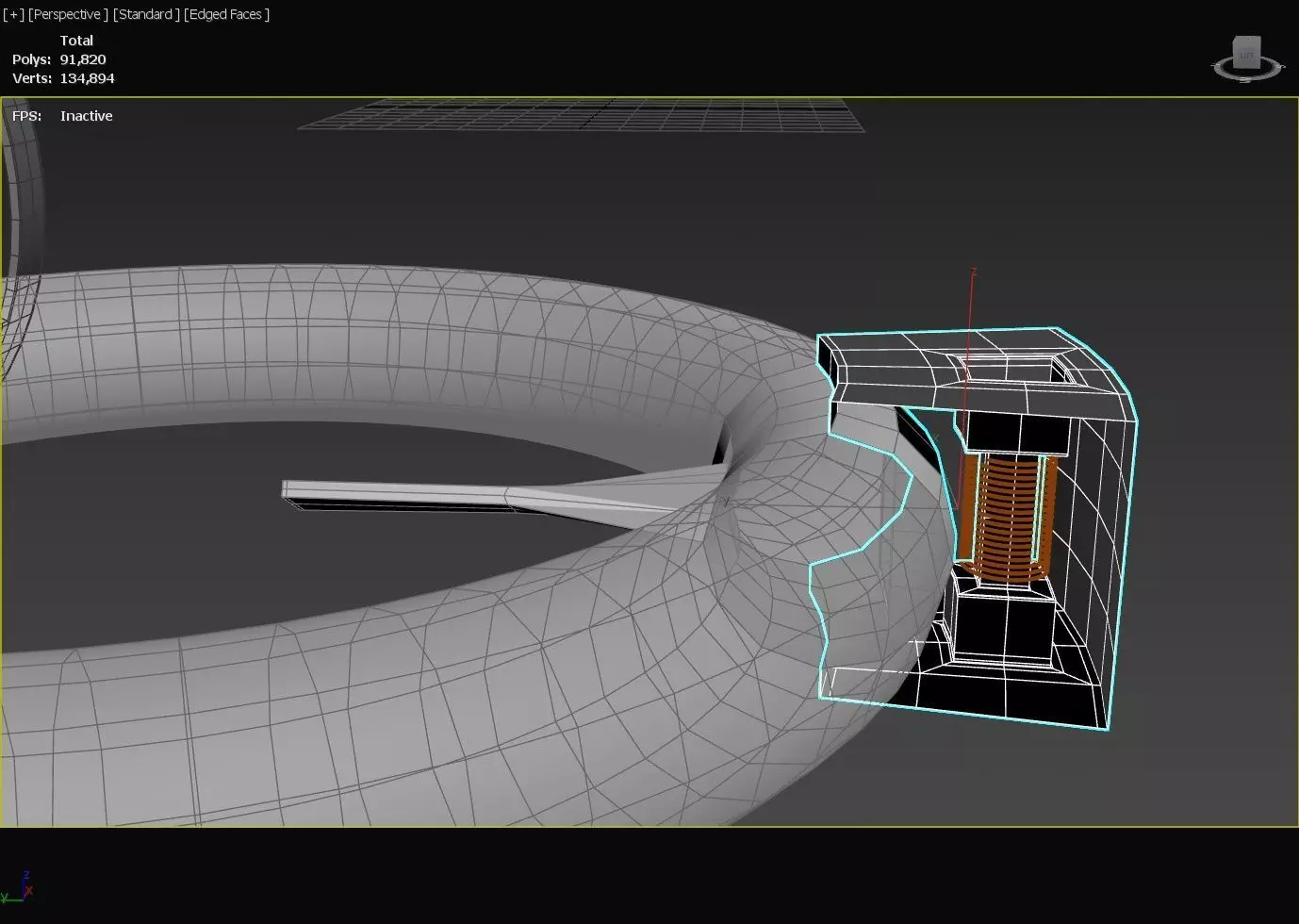

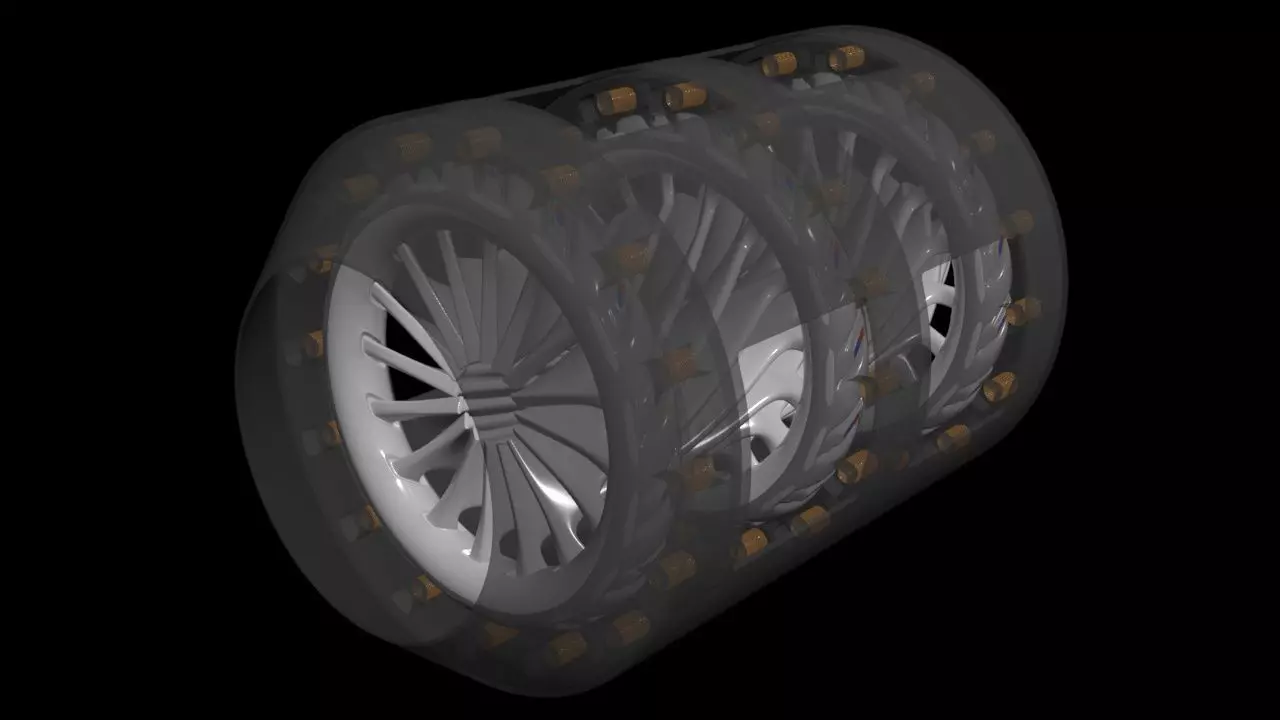

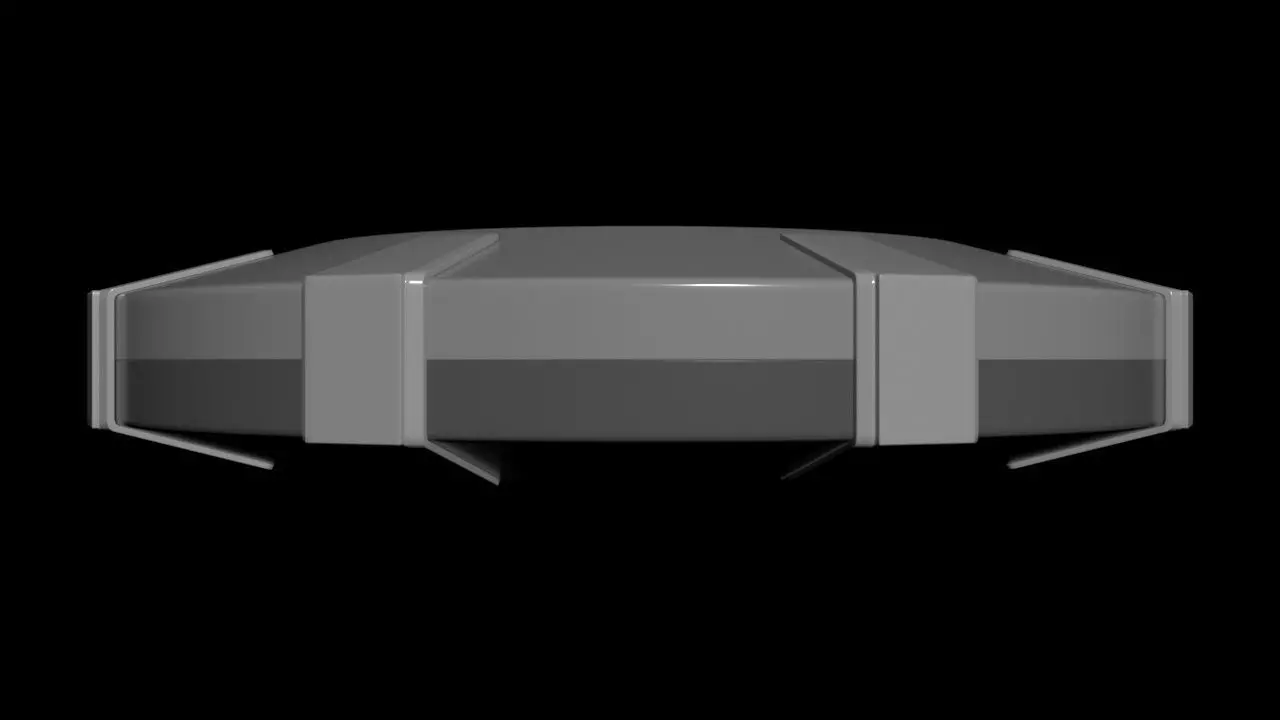

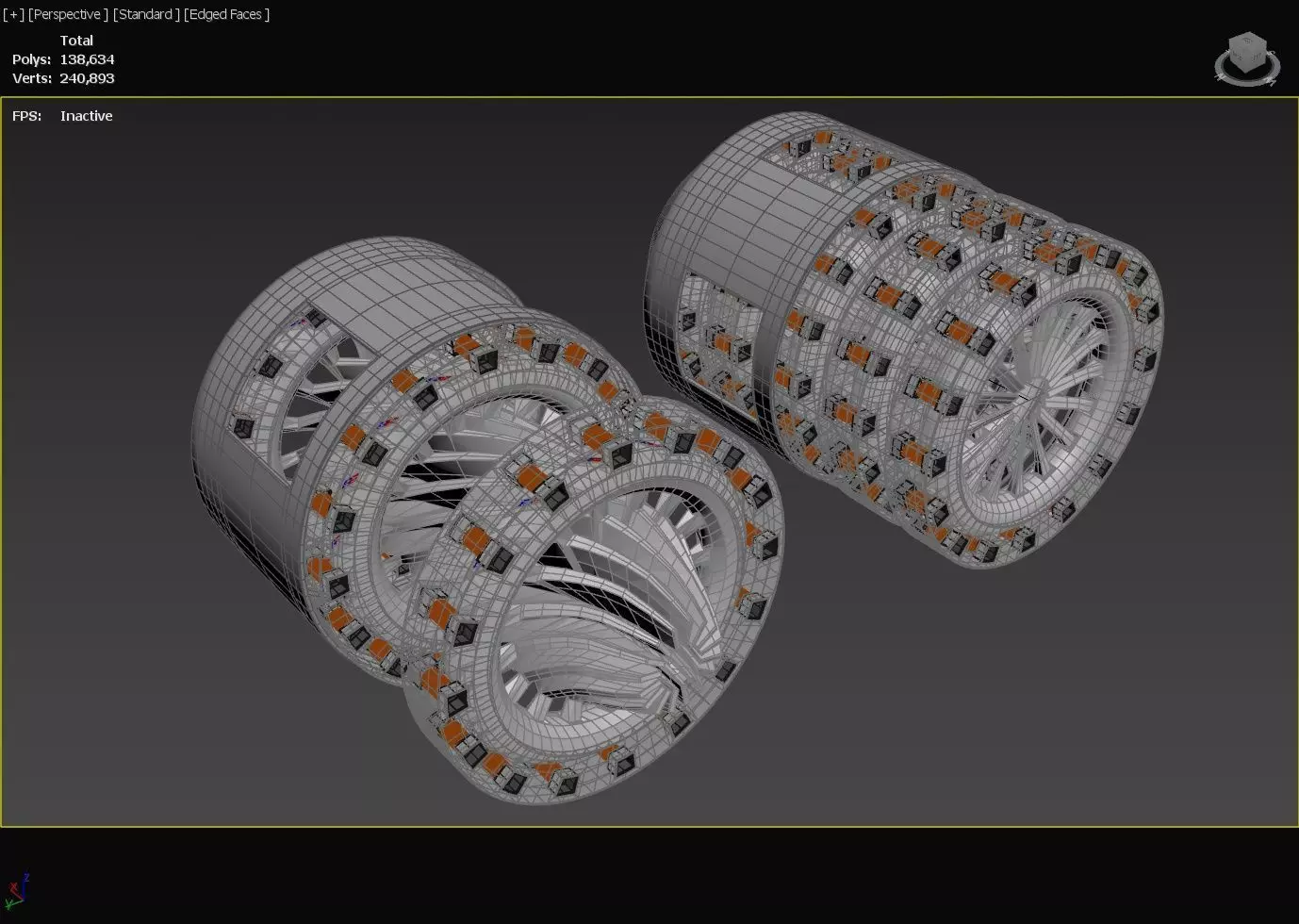

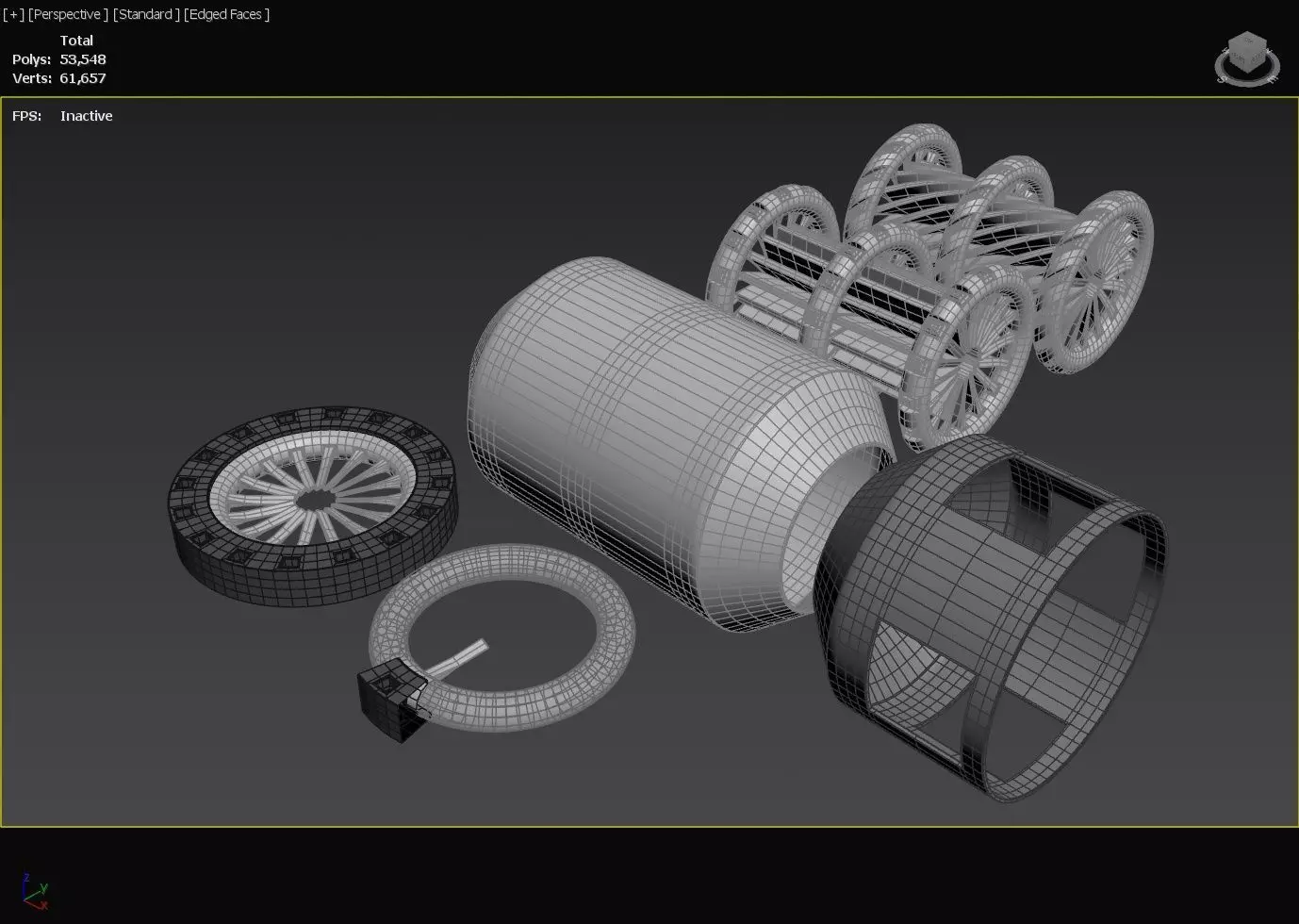

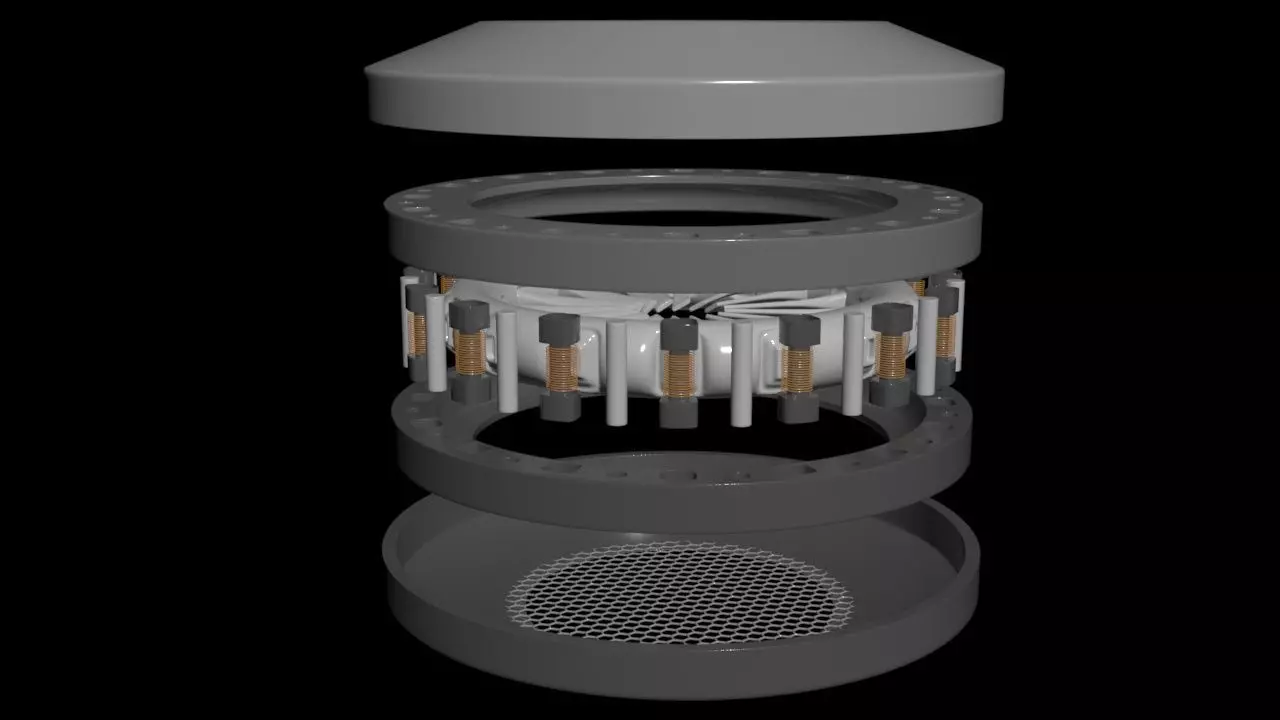

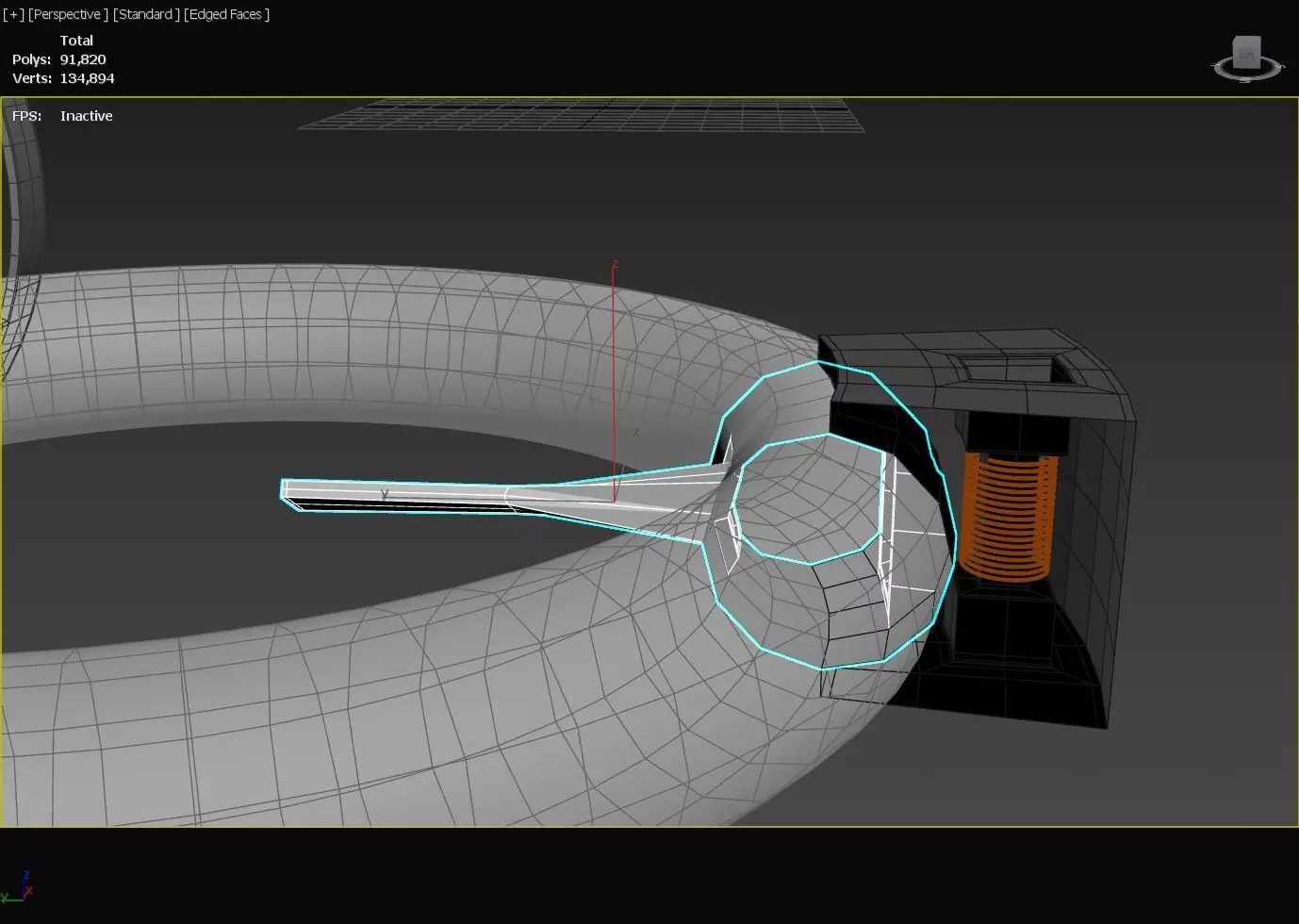

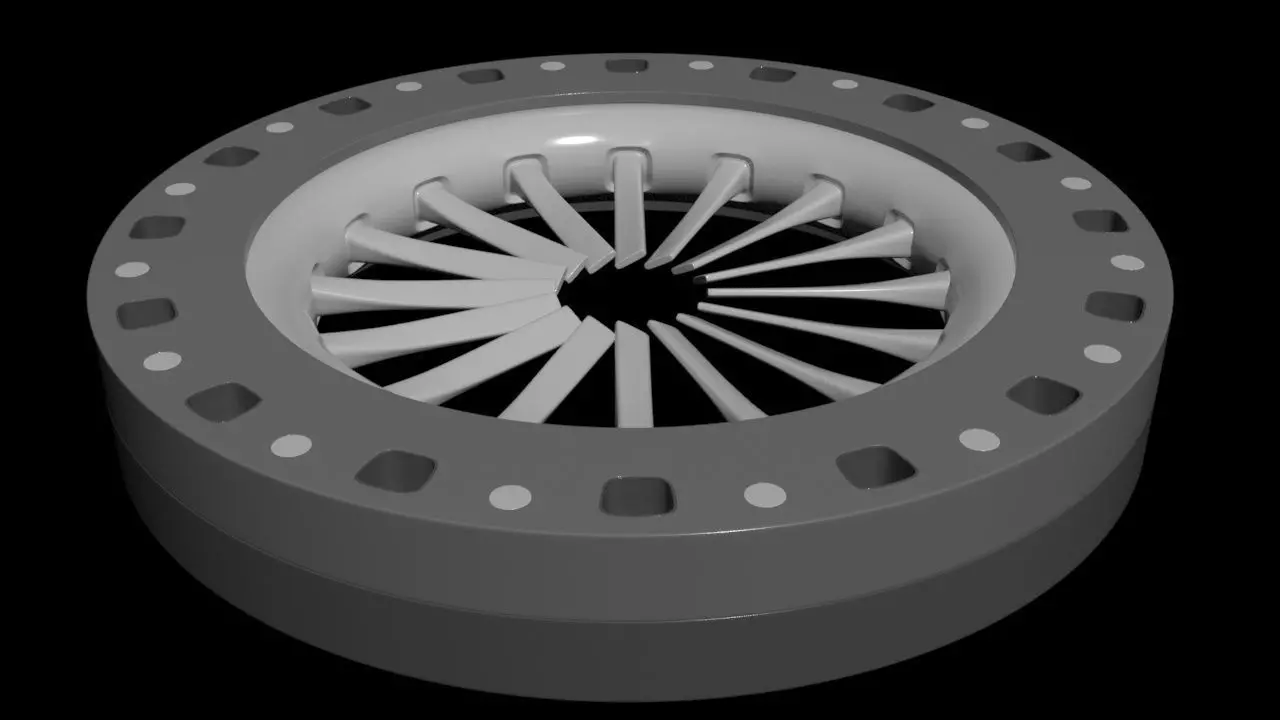

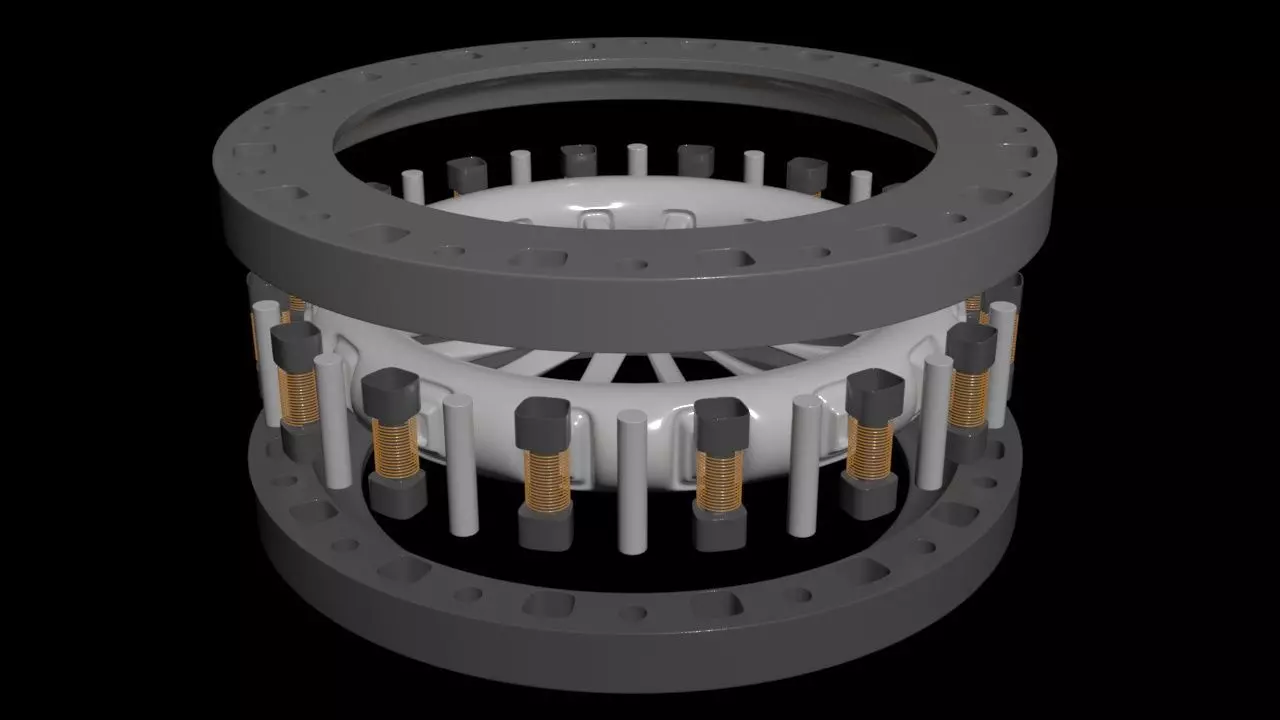

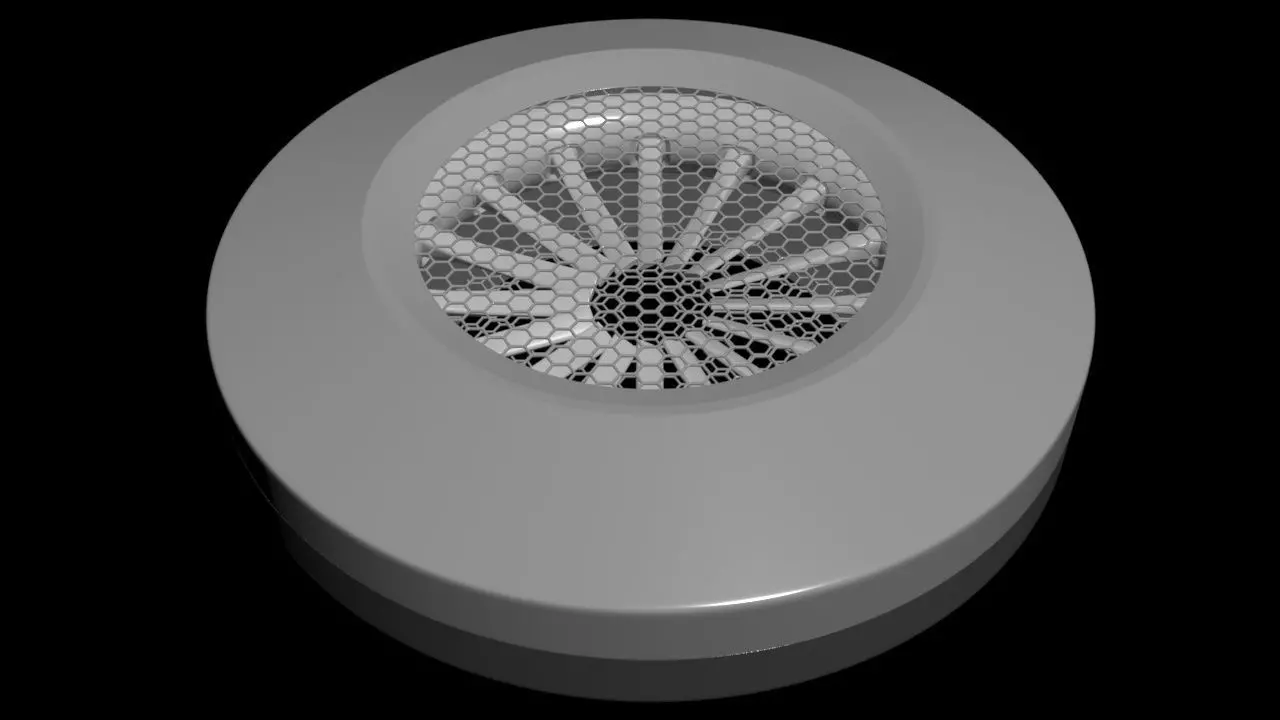

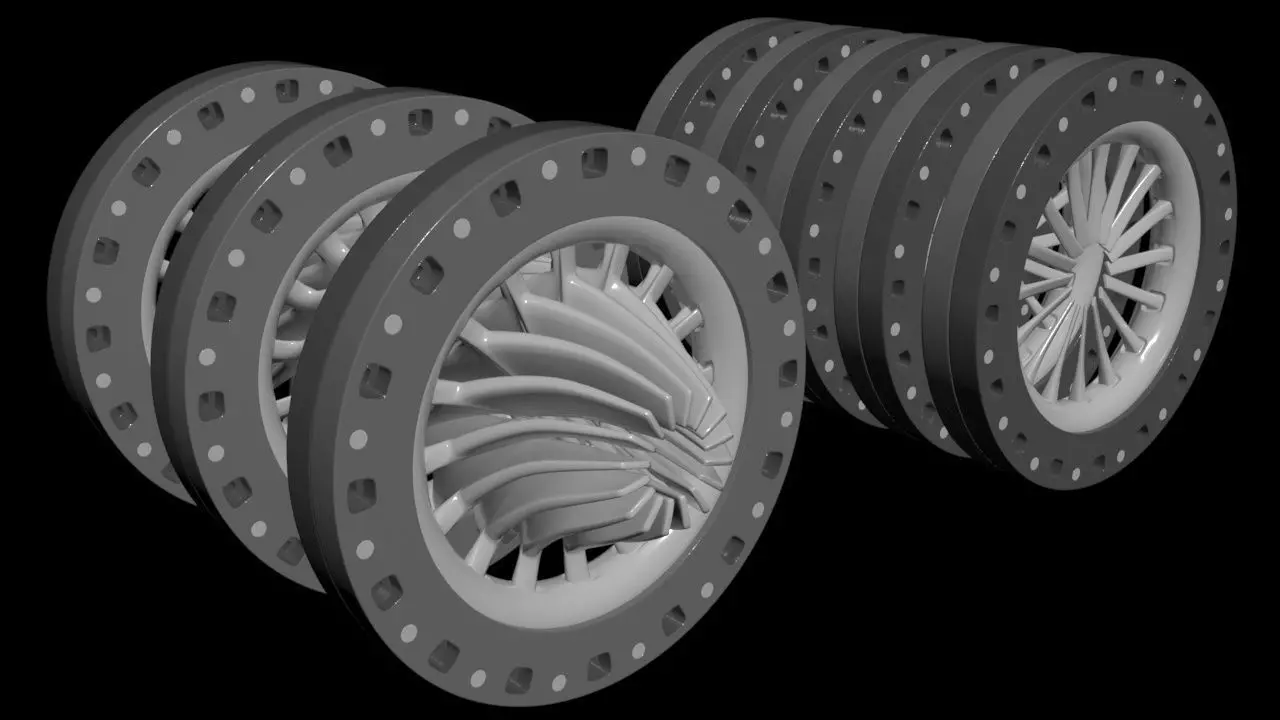

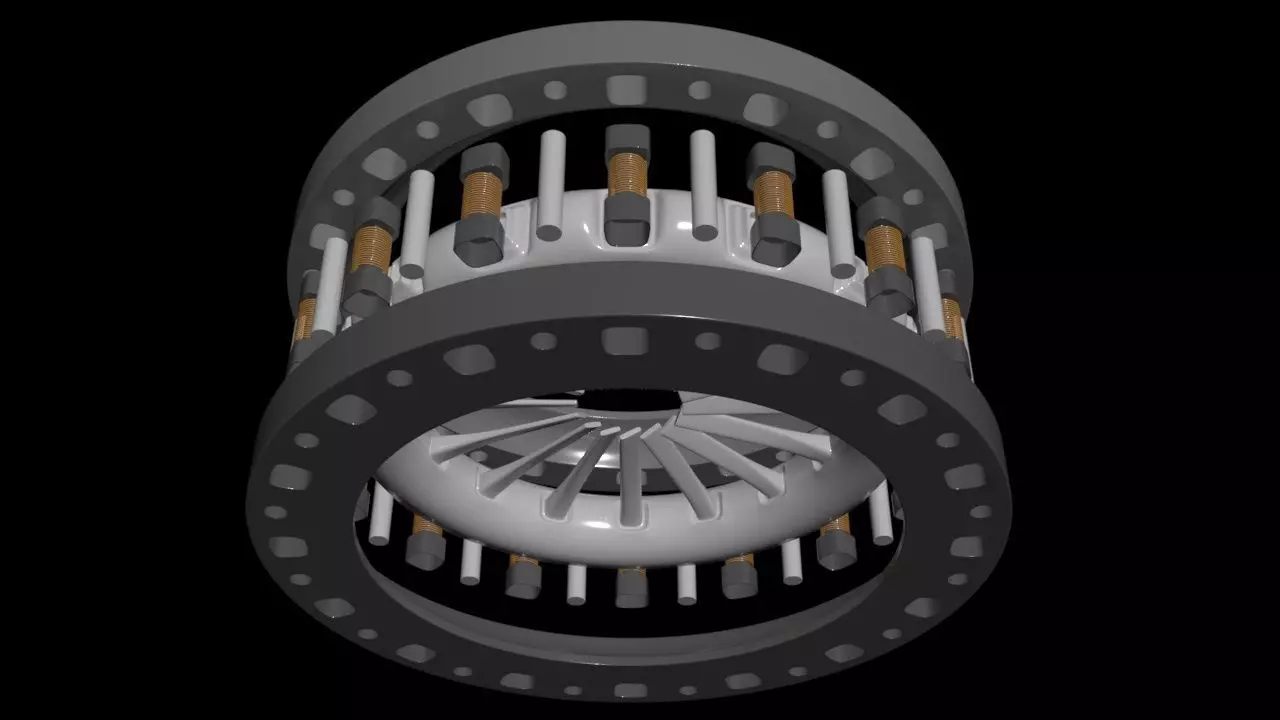

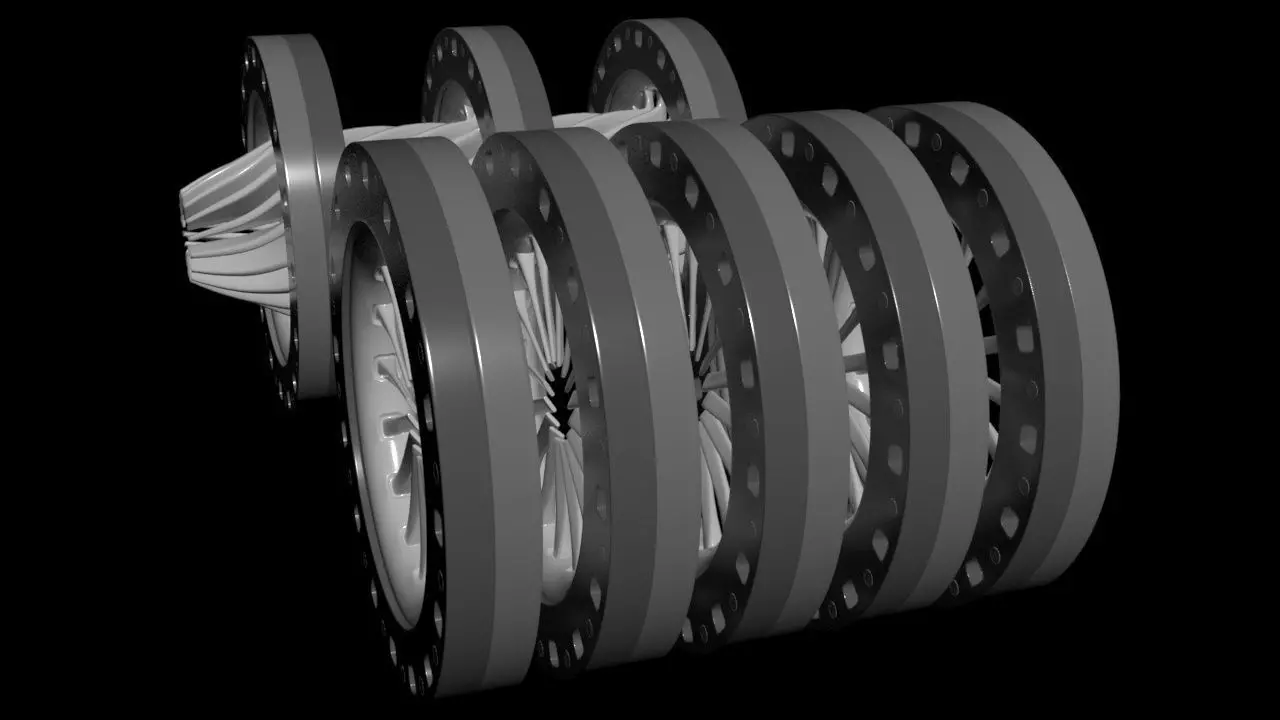

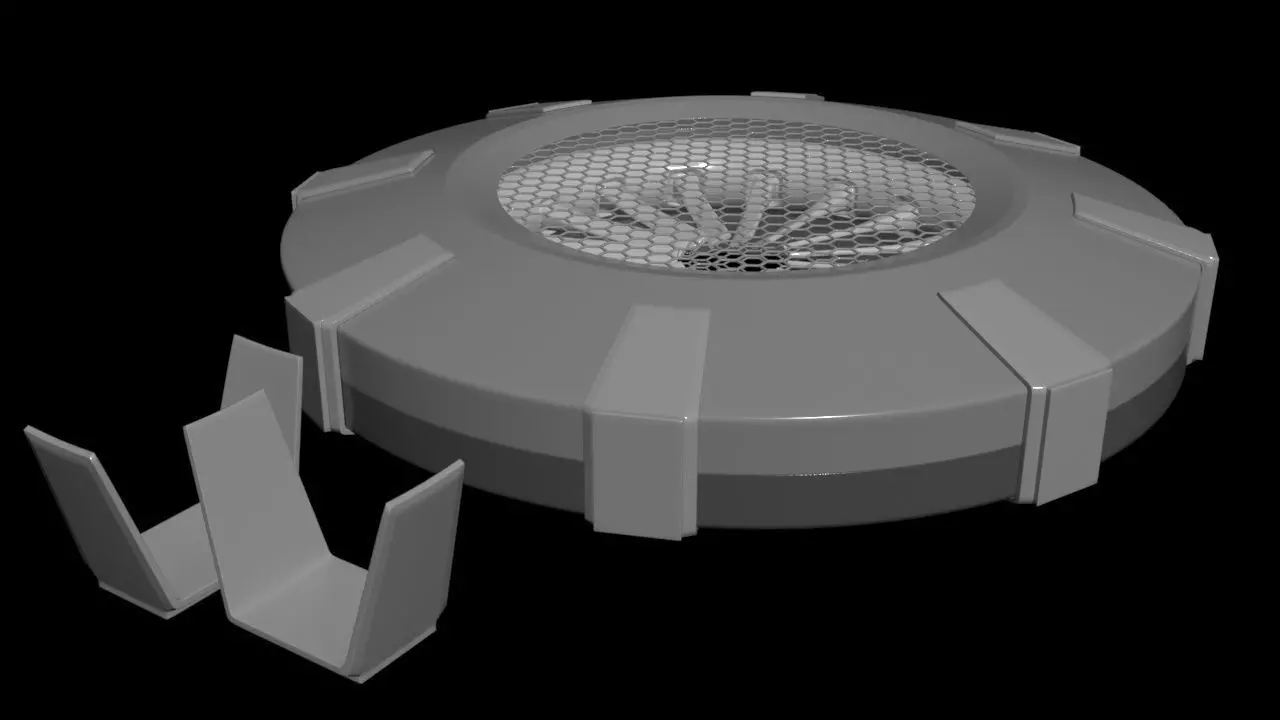

***Updated topology, it is now modular and more easily printable as separate parts. first print the parts, then add coils and magnets and assemble into the stator. Also added a second version, multiple units are fully stackable and or extendable as needed, as the design is now modular and repeatable. one form is like the Archimedes screw, more like a jet thruster, the front version could work in different vehicle situations. Had to split the stator into two parts, in order to be able to easily 3d print it and also still fit the one piece print toroidal rotor part inside. This meant i needed to fit a connection pin between the stator parts to keep them together and not fall apart. Single Flat Version with a slight hexagonal covering. This way i can and might use it in other projects, like the Tr-3B Triangle concept. Can always have a little look to see how it fits.
