High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

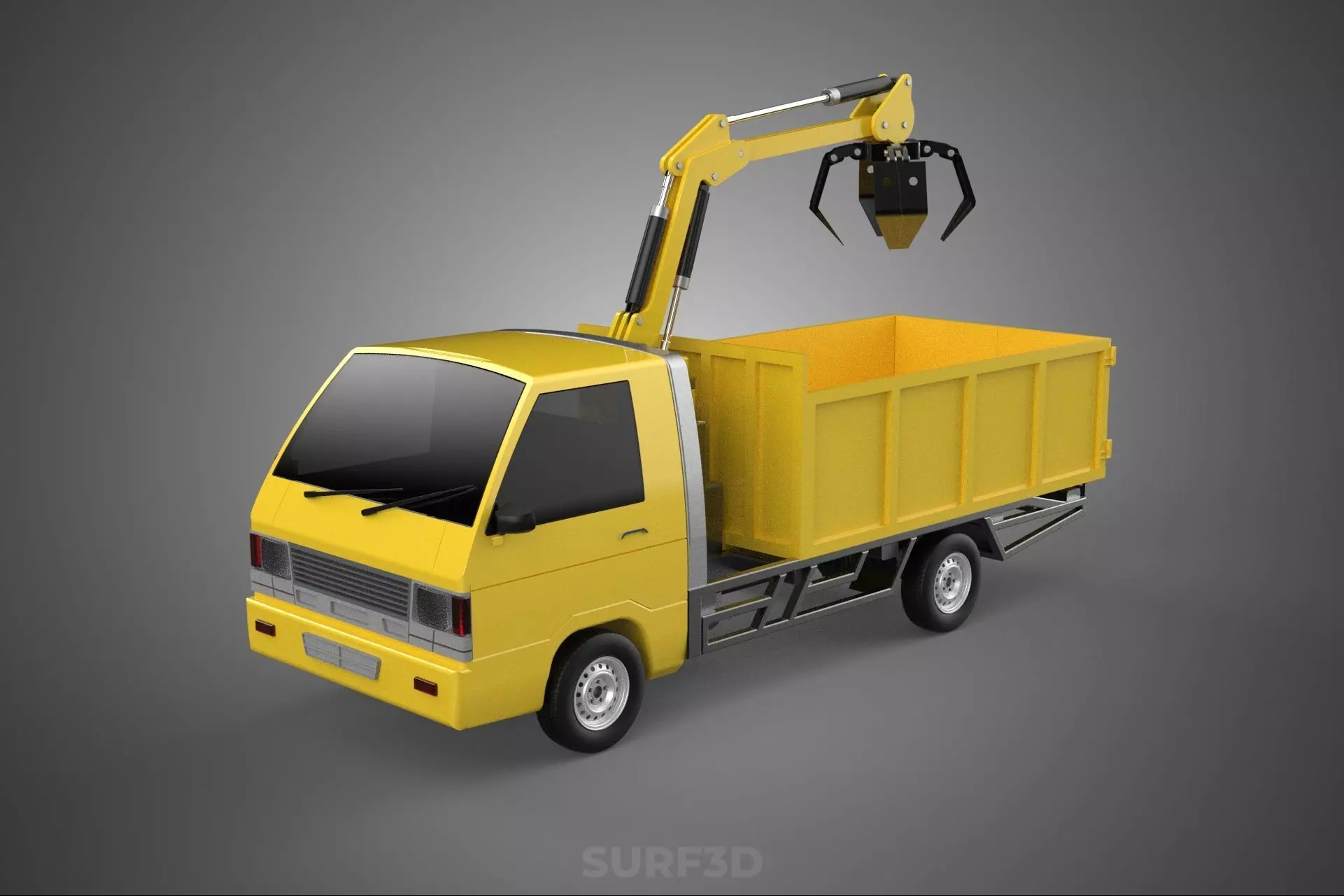

Small Truck-Mounted Hydraulic Crane with Grapple for Skip Bin Waste Handling
A small truck-mounted hydraulic crane with grapple for skip bin waste handling is a specialized type of commercial vehicle designed for the collection, transport, and placement of skip bins (also known as skips or dumpsters) containing various types of waste materials, often in the context of recycling or disposal operations. This vehicle configuration integrates a number of key systems onto a relatively compact truck chassis to provide a versatile material handling solution.
The primary components of this vehicle system include:

1. Small Truck Chassis: The foundation is a light-duty or medium-duty commercial truck chassis. The small designation typically indicates a vehicle sized for greater maneuverability in urban environments, residential areas, or sites with limited access, compared to larger heavy-duty refuse trucks or articulated vehicles.

2. Hydraulic Crane: Mounted on the truck chassis, usually behind the cab or at the rear, is a hydraulic crane. This is an articulated boom system powered by the truck's hydraulic system. It utilizes hydraulic cylinders to extend, retract, raise, and lower the boom sections, providing precise control over the positioning of the attachment.

3. Grapple Arm: As the end-effector attached to the tip of the hydraulic crane, the grapple is a specialized gripping mechanism. Unlike hook-lift systems that engage specific points on a container or cable systems that lift from above, a grapple typically consists of multiple jaws or fingers designed to securely clamp onto the edges or lifting points of a skip bin. This allows for stable lifting and manipulation of the container.

4. Skip Bin: The object being handled is the skip bin itself. These are open-topped containers of varying sizes, commonly used for temporary storage of waste generated from construction sites, renovations, landscaping projects, or household cleanouts. They are designed with structural integrity to be lifted and transported when full.

5. Waste/Recycle Application: The core function of this vehicle is to service sites requiring the collection and exchange of skip bins filled with waste. The emphasis on waste recycle highlights its common use in collecting separated materials (e.g., green waste, metal, wood, mixed recyclables) destined for sorting and processing at recycling facilities, as well as general non-recyclable waste.
   The operational principle involves the truck positioning itself near a skip bin. The operator extends the hydraulic crane's boom towards the bin and maneuvers the grapple attachment using hydraulic controls (which may be located in the cab or via a remote control). The grapple is then lowered onto the bin and closed to firmly grip it. The crane lifts the full bin, swings it onto the truck bed or a trailer, and secures it for transport. A fresh, empty bin may then be placed at the location using the same process in reverse.
   This type of vehicle is particularly useful for waste management companies, recycling operators, and contractors working on projects where access is restricted, or where the versatility of a crane and grapple system is advantageous for manipulating bins in potentially uneven or cluttered environments. Its ability to directly grasp the bin distinguishes it from other common skip bin handling systems like hook-lifts or cable hoists.
