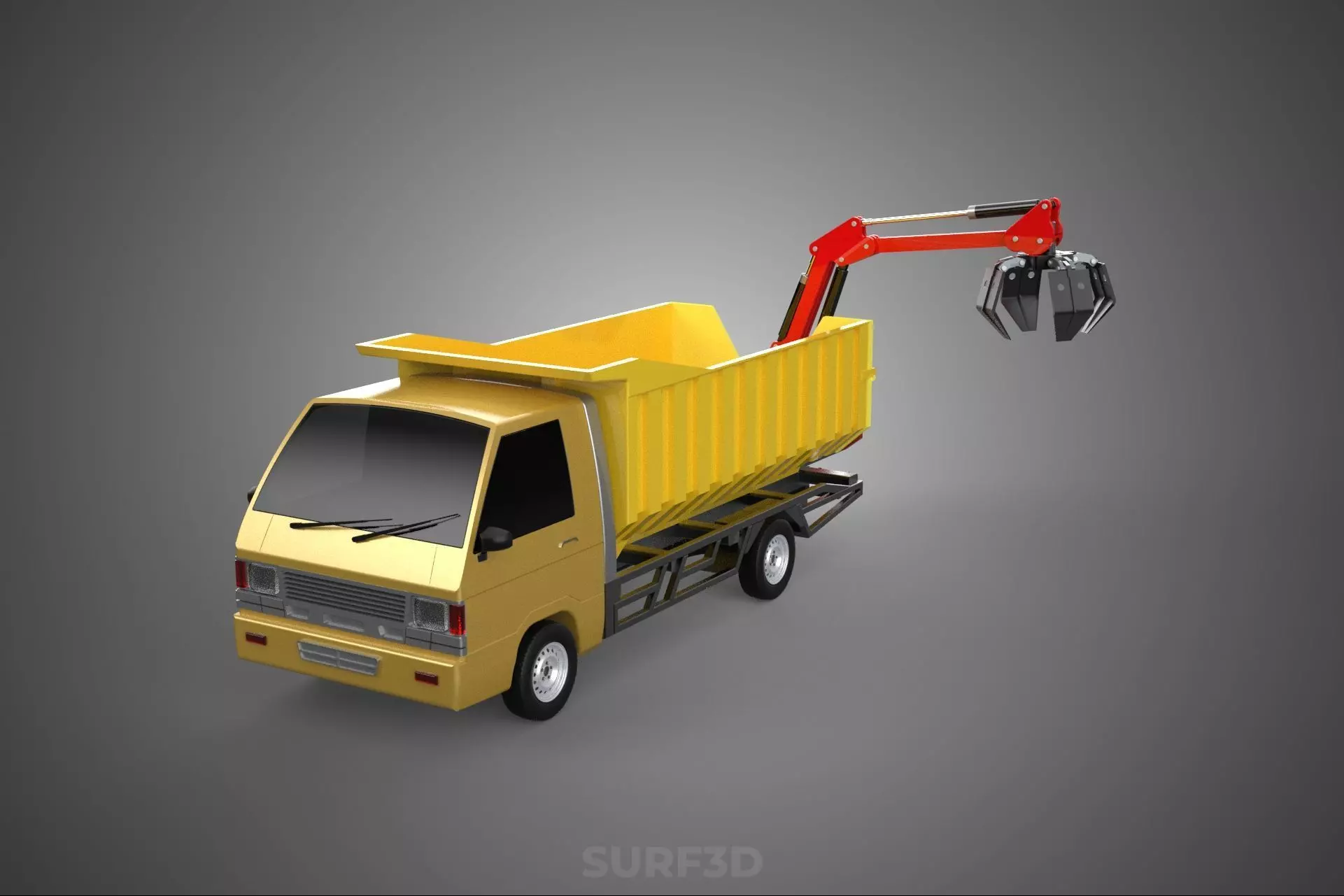

GARBAGE DUMP TRUCK GRAPPLE PICK UP SKIP BIN SCRAP GRABBER CRANE 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
Garbage Dump Truck Grapple Pick Up Skip Bin Scrap Grabber Crane

This detailed descriptive title refers to a highly specialized heavy-duty vehicle designed for the collection, loading, transport, and sometimes unloading of various types of bulk waste, refuse, scrap materials, construction and demolition debris, and potentially materials originating from or collected into skip bins. While the combination of terms is extensive and serves to enumerate the vehicle's capabilities, the apparatus is typically classified under broader categories such as Grapple Truck, Crane Truck with Grapple, or Waste Grapple Loader.

Essentially, this vehicle integrates several key functionalities onto a single mobile platform, typically a robust truck chassis:

1. Truck Chassis and Dump Body: The foundation is a heavy-duty truck chassis, designed to carry significant payloads. It is equipped with a dump body, a large open or enclosed container capable of being tilted or articulated via hydraulic cylinders to facilitate the rapid discharge of collected materials. This allows for the efficient transport and dumping of bulk waste at disposal or processing sites.

2. Crane System: Mounted on the truck chassis, often directly behind the cab or at the rear, is a hydraulic crane system. This crane usually features an articulated boom, consisting of multiple sections that can be extended, retracted, and folded. The articulation provides significant reach, flexibility, and the ability to maneuver the attached tool in tight spaces or over obstacles. The crane's primary function is to provide the lifting and positioning capability for the grapple attachment.

3. Grapple/Grabber Attachment: Connected to the end of the crane's boom is a specialized gripping tool known as a grapple or grabber. These attachments are hydraulically operated and designed to pick up irregular and bulky objects that cannot be handled by conventional loading mechanisms like buckets or compactors alone. Common types include multi-tine grapples, clamshell buckets (a type of grapple), or orange-peel grapples, made from high-strength steel to withstand the stresses of handling diverse and often abrasive materials like construction debris, scrap metal, green waste, furniture, appliances, or general bulk refuse. The Pick Up action is performed by the grapple.

4. Control System: The crane and grapple are controlled via hydraulic levers or joysticks, typically operated by a trained operator. Control stations can be located within the truck cab, externally on the truck chassis, or via a remote control system, providing the operator with a clear view of the loading area. Outriggers or stabilizers are often integral components of the system, extended hydraulically before crane operation commences to provide a stable base and prevent the vehicle from tipping under heavy loads or extended reaches.

Functionality and Application:

The combined functionality of the dump truck, crane, and grapple allows this vehicle to perform various tasks efficiently:

* Bulk Waste Collection: It is highly effective in collecting large items or piles of waste left for collection (e.g., during bulk trash pickup events) or from illegal dumping sites.
* Loading Construction and Demolition Debris (C&D): The grapple is ideal for picking up irregular shapes and mixed materials found on construction or demolition sites, such as concrete pieces, wood, metal scraps, and rubble, and loading them directly into the dump body.
* Scrap Metal Handling: In scrap yards, these vehicles are used to sort, load, and move various types of metal scrap.
* Handling Materials from Skip Bins: While some vehicles are designed to lift skip bins, a grapple truck with a dump body is more commonly used to remove materials from large, fixed, or overflowed skip bins, or to clear areas where skip bins have been emptied or are awaiting collection.
* Green Waste Management: Efficiently handles large volumes of branches, logs, and other vegetative debris.

This configuration provides significant advantages in terms of labor reduction, safety (by minimizing manual handling of heavy/hazardous items), and versatility compared to manual loading or using separate pieces of equipment. The dump body ensures that once loaded, the material can be efficiently transported and discharged.

KEYWORDS: Dump truck, Crane truck, Grapple truck, Waste truck, Refuse truck, Material handling vehicle, Crane, Hydraulic crane, Articulated boom, Grapple, Grabber, Clamshell grapple, Hydraulic system, Outriggers, Dump body, Loading, Unloading, Waste collection, Material handling, Bulk waste, Refuse, Scrap metal, Construction debris, Demolition waste, Skip bin, Illegal dumping cleanup, Municipal waste, Recycling vehicle, Grapple loader, Waste management equipment.
