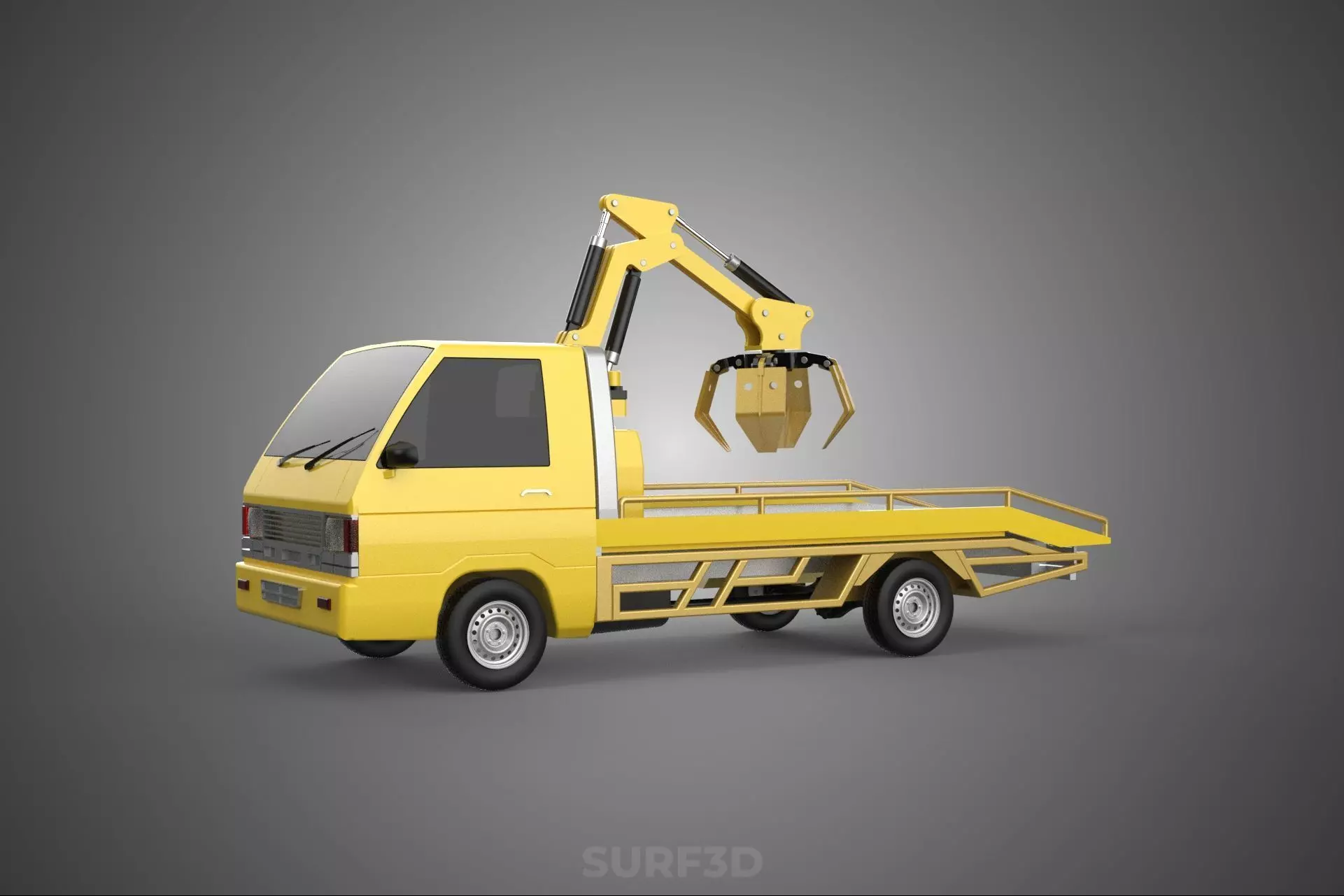

CAR PICK UP TRUCK WOOD LOG TREE LOADER GRAB CRANE LIFTER GRABBER 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
Vehicle-Mounted Log Loader Grapple Crane

A vehicle-mounted log loader grapple crane is a specialized piece of hydraulic lifting and material handling equipment designed specifically for the efficient and safe manipulation, lifting, loading, and unloading of wood logs, timber, and related forestry products. This apparatus is characterized by its integration with or mounting upon various road vehicles, most commonly trucks, pickup trucks, or trailers, providing mobility to the loading operation.

Nomenclature: The equipment is known by several names depending on the specific application, size, and mounting type, including log loader crane, timber crane, forestry crane, grapple loader, wood loader, or simply a truck-mounted log grapple. The terms lifter, grab, and grabber refer to the function of the integrated grapple attachment, which is the primary tool for gripping and manipulating the logs.

Function and Purpose: The primary function is to replace manual labor in the handling of heavy and often irregularly shaped wood logs. The system typically consists of a rotatable boom structure (either articulating or telescopic) equipped at its end with a hydraulically operated grapple (or grab). The operator uses controls (which can be manual levers, electronic joysticks, or even wireless remote systems) to manipulate the boom, lower the grapple onto a log or bundle of logs, close the hydraulic jaws to secure the load, lift it, swing it via the rotation mechanism, and place it onto a vehicle bed, trailer, processing equipment, or stockpile. This significantly increases efficiency, reduces physical strain on workers, and enhances safety compared to traditional manual loading methods or less specialized equipment.

Components and Mechanism:
1. Mounting Base: A sturdy frame or structure that secures the crane to the vehicle's chassis, bed, or trailer. Proper mounting is critical for stability and load distribution. Outriggers or stabilizers are often deployed from the base to prevent the vehicle from tipping during lifting operations.
2. Pedestal/Column: Rises from the mounting base and allows for the rotation (slewing) of the boom structure.
3. Boom System: The articulated or telescopic arm of the crane that provides reach and lifting height. Articulating booms consist of multiple sections connected by hydraulic cylinders, offering flexibility. Telescopic booms extend or retract to vary reach.
4. Hydraulic Grapple/Grab: The end-effector, composed of two or more hydraulic jaws designed to securely clamp onto logs. Grapples come in various sizes and configurations optimized for single logs or multiple smaller pieces.
5. Hydraulic System: Provides the power for all movements (boom lift/lower, extend/retract, rotation, grapple open/close). It typically includes a pump, hydraulic fluid reservoir, control valves, cylinders, and hoses. The pump can be driven by the vehicle's engine (via a Power Take-Off or PTO), a separate auxiliary engine, or an electric motor.
6. Control System: The interface through which the operator controls the hydraulic functions. This can range from direct mechanical linkages to the valves, to electronic controls with joysticks, or advanced wireless remote controls allowing the operator to stand at a safe distance with a clear view.

Vehicle Integration: While the title mentions CAR/PICK UP/TRUCK, the primary platforms for log handling are pickup trucks and larger trucks due to their payload capacity and structural robustness required to support the crane's weight and handle dynamic loads. Smaller units might be mounted on utility vehicles (UTVs), ATVs, or light trailers, potentially aligning with the CAR reference in a non-traditional sense (e.g., small utility vehicle or tractor attachment). The integration method varies, including chassis mounting (most stable for larger cranes), truck bed mounting (common for medium-sized units), or trailer mounting (allowing the truck to be used for other purposes when not hauling logs).

Applications: Vehicle-mounted log loaders are widely used in:
* Logging operations (loading felled trees onto transport vehicles).
* Sawmills and wood processing facilities (sorting, moving, and feeding material).
* Firewood production (handling and loading cut logs).
* Arboriculture and land clearing (removing and loading tree sections and debris).
* Utility maintenance (clearing storm-damaged trees from roadsides or power lines).
* Personal use by landowners or small businesses for material handling.

Advantages: The use of this equipment significantly improves efficiency, reduces manual labor requirements, and enhances workplace safety by minimizing human exposure to heavy, awkward loads and pinch points. Its mobility, being attached to a standard vehicle, allows it to be deployed quickly to various locations.

Limitations: The lifting capacity and reach are limited by the design of the crane and the stability and structural capacity of the supporting vehicle. The weight of the crane reduces the vehicle's available payload. Operation requires trained personnel to ensure safe handling and prevent damage to the equipment, vehicle, or surroundings.

KEYWORDS: Log loader, Truck mounted crane, Timber crane, Forestry crane, Grapple loader, Wood handling, Log handling, Material handling, Hydraulic crane, Vehicle-mounted equipment, Pickup truck crane, Truck crane, Wood logs, Timber, Forestry, Lifting equipment, Loading equipment, Hydraulic grapple, Crane boom, Articulating boom, Outriggers, Logging, Sawmills, Firewood processing, Arborist equipment, Land clearing, Mobile crane, Log grapple, Wood processing, Loading logs.
