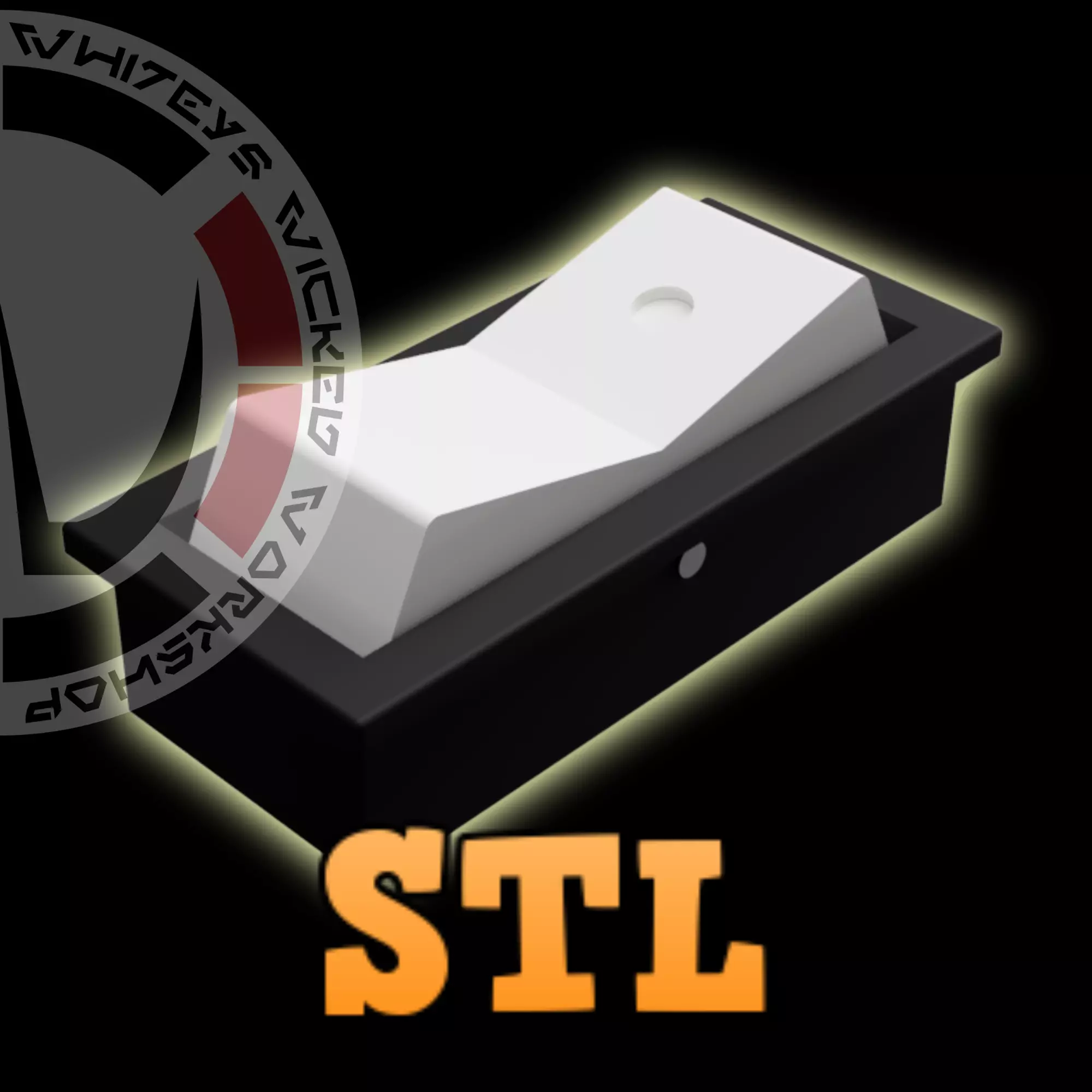

Whiteys Original Functional Rocker Switch with Dimple 3D print model

All paid tier Patreon Members get 20% off all Etsy items and files ($1/month).or Join Patreon 3d Member tier and get all my files soon as you join ($10)! (its a no brainer) :)Want to print and sell my files? You can with the 3D Merchant Tier ($20)https://patreon.com/WhiteysWickedWorkshop

Other than my Patreon Page this functional rocker switch was never offered before. Get it while you can!

Whiteys Wicked Workshop Functional Rocker Switch!Others Rocker switches are posers, this is the real deal!

Included:

• Files to print a Rocker Switch and Housing.

Dimensions:This was designed to be the same size of the original Star Wars rocker switches on the Millennium Falcon.

• Switch Dimensions: 55mm x 25mm x 24mm
• Hole Insert Dimensions: 52mm X 22mm
• Lip around top of switch is approx. 2mm

Items Needed:

• Just add a Micro Switch (https://amzn.to/459FGEv)
• Pin Rocker to housing with 1.75mm 3d Filament (https://amzn.to/3F92Mkg)
• [Optional] Push fit 5mm LED lights into the 2 slots underneath (https://amzn.to/3FbrTCW)

Assembly Instructions:

• Print out all the parts (Resin Recommended).
• Spray paint color(s) selected if different from Resin.
• Let Dry
• Spray with Satin Clear Coat to protect.
• Let dry before handling
• Add the micro switch into the housing by snapping it into place.
• Place the Rocker switch into the housing, Keep in mind dimple side should be facing the 1 of the switch
• Align the holes.
• Push a piece of 3D Filament into the holes to hold the Rocker Switch in place.
• Place it on your cockpit or favorite prop and wire it up!
• Led slots if used are made to pressure fit 5mm LED's into if desired. Just push them in place and wire.

Here is a video to show you how easy it is: https://youtu.be/r0j8RWA5CE4 , https://youtu.be/7IlYiAuMpw8

Want to use these rockers in your home? Download Free Rocker Switch Template Here: https://www.patreon.com/posts/rocker-template3-80575292?utm_medium=clipboard_copy&utm_source=copyLink&utm_campaign=postshare_creator&utm_content=join_link

I am a proud sponsor of the Amazon affiliate program. Some of my Amazon links are affiliate links and help to support Whiteys Wicked Workshop. Thanks for your support!

Enjoy!

Please let me know of any issues.

Please do not share this file.

Please do not print and sell this item.

Please do not print and make a mold with the purpose of selling this item.

This is for Personal use only!

For the Children! :)

Whitey!
