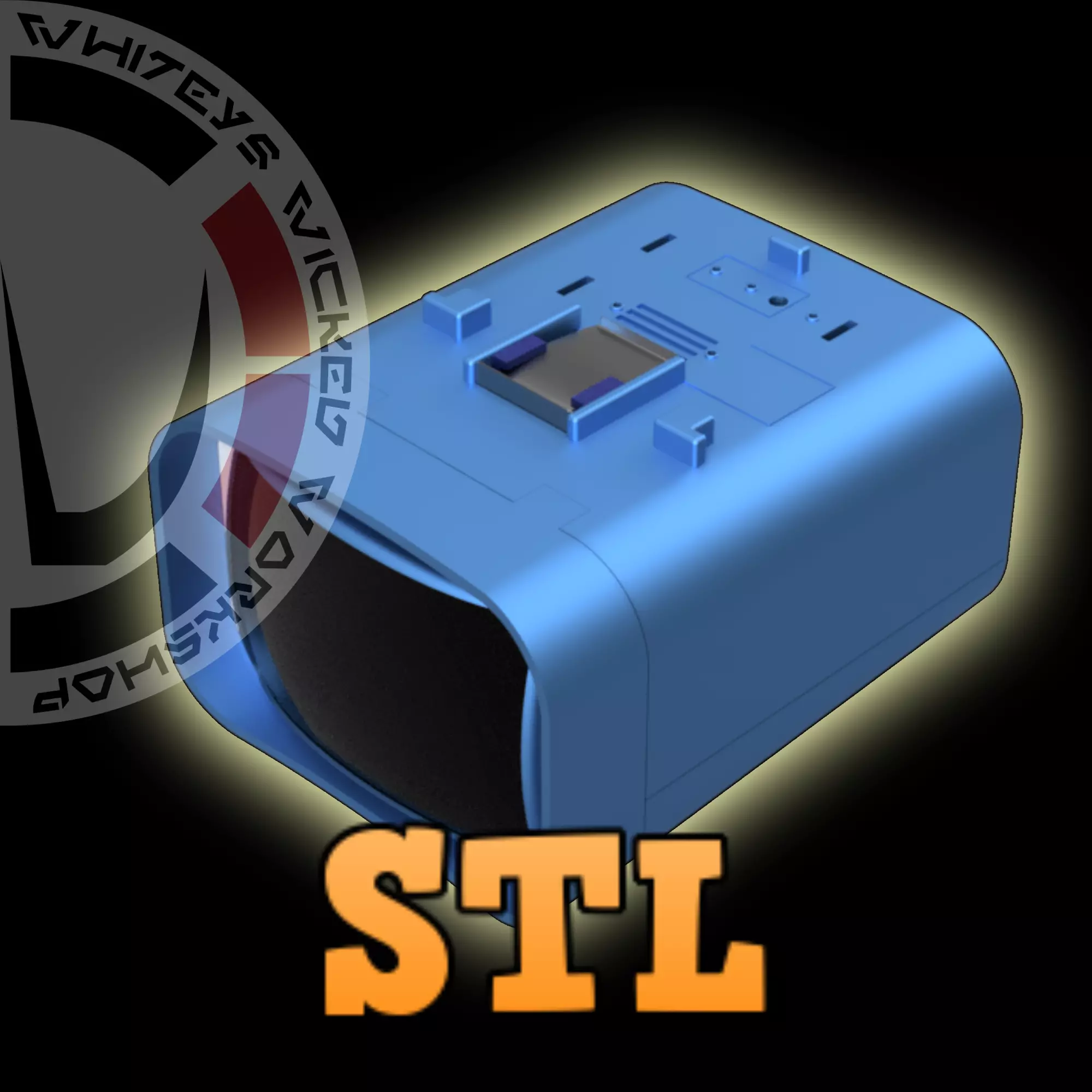

Files are the 3D printable Paterson Trident Viewer only.Lens and Antennae STL's sold separately
Since everyone likes to print in different ways, many files included in this stl file set.Totally separate/cut up files.Solid files.Flat back or Original Back.Flatback might work better if your building the Death Star Detention Cameras.Files placed in the suggested print orientation.
Items Needed (some are affiliate links):QTY 1 - Bob Smith Superglue or equivalent: (Optional) QTY 1 - Hexagon Socket Button Head Screw M3 x 8mm:
Dimensions (from a Paterson Trident Viewer):
- approx 84mm tall x 115mm wide x 140mm deep.
Assembly:
- Print out all parts.
- Do a Dry Run / Test Fit before doing anything.
- You can do this many ways.I will be explaining the seperate/cut up kit:
- Make sure the Lens will fit through the InnerLensSleeve
- Place the LensHolder to Face of InnerLensSleeve making sure the lens will fit through (glue when ready)
- Push the Lens through the InnerLensSleeve so it sits nicely into the LensHolder
- Place the LensClipLeft and LensClipright pieces to hold the lens in place (glue when ready)
- Push Metal Clip through the Slider and place onto Bottom piece (glue when ready)
- Carefully place the BottomLipFront under the Bottom piece (towards the front) to help hold the part in place (glue when ready)
- Place the TopLip into the rear of Top (glue when ready)
- Push a screw through the hole in the Top part and tighten gently (its plastic :) )
Enjoy!
PROTIP:
- Paint and let dry before handling.
- Do not over tighten the screws
Whitey!
