FOLDING MOUNTED BED CRANE HOIST LIFT ELECTRIC WINCH PICKUP TRUCK 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

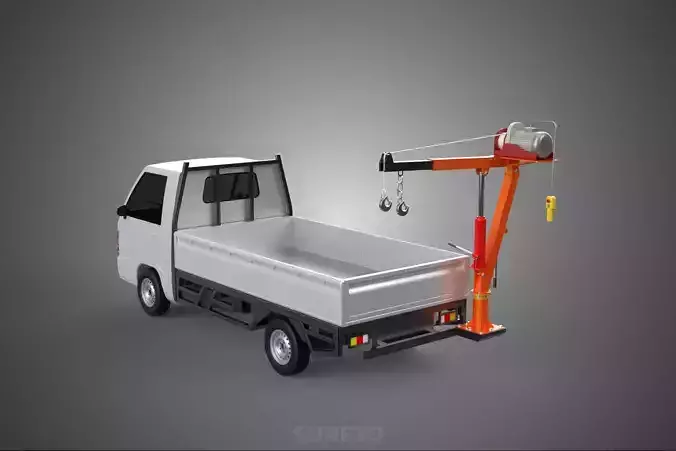

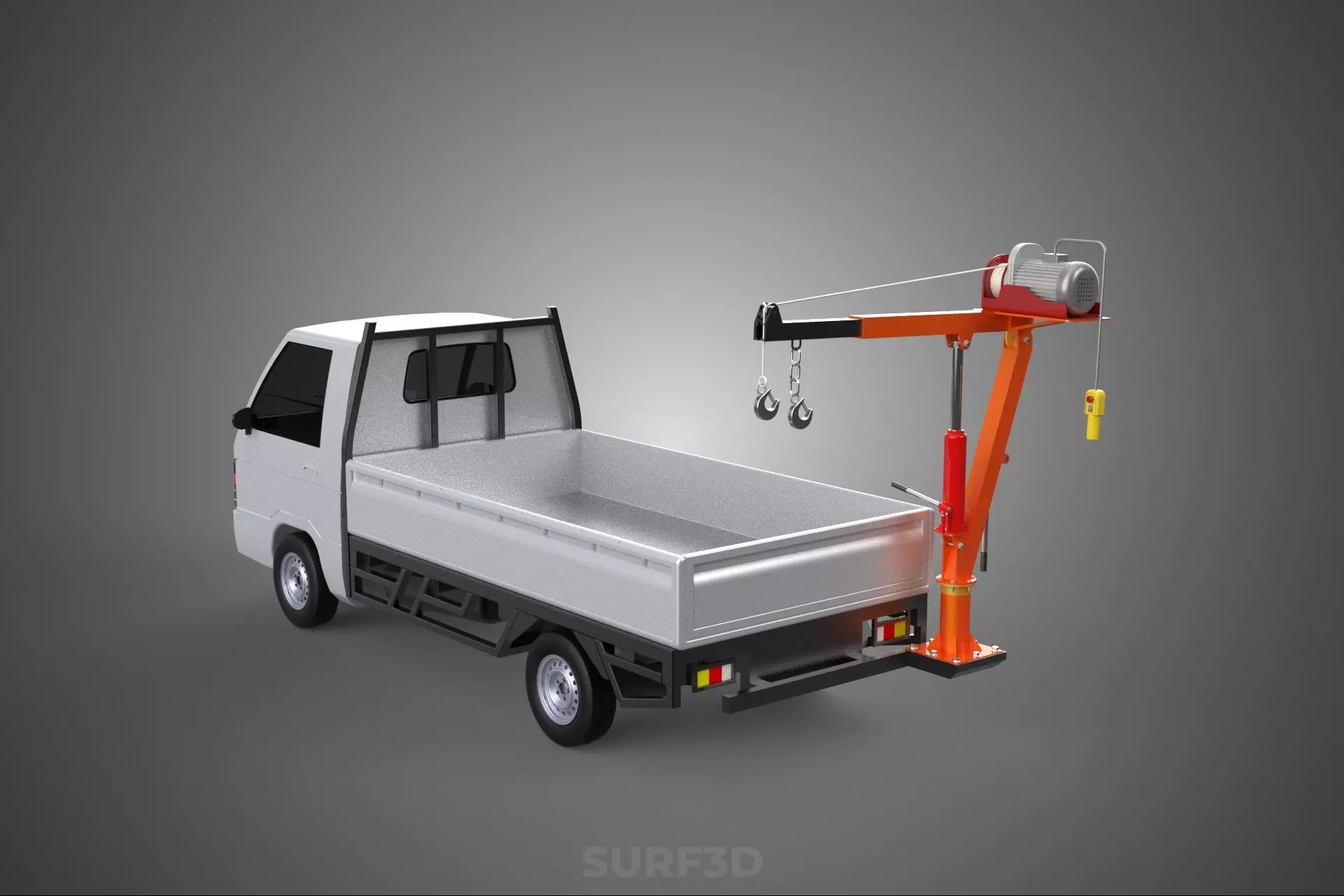

A Folding Mounted Bed Crane Hoist Lift with Electric Winch Attached on a Pickup Truck is a specialized, mobile material handling apparatus designed to facilitate the loading, unloading, and positioning of heavy or cumbersome objects directly from or onto the bed of a light-duty utility vehicle. This integrated system combines the inherent mobility and versatility of a pickup truck with the lifting capabilities of a small crane, providing a highly portable and self-sufficient solution for various operational needs in diverse environments.

Core Components and Design:

1. Mounting Platform: The foundation of the system is a robust base plate engineered for secure attachment to the structural frame of a pickup truck's cargo bed, typically requiring drilling and bolting for optimal load distribution and stability. This mounting ensures the integrity of the crane during lifting operations, preventing vehicle damage and ensuring operational safety.


2. Folding Boom/Davit System: Central to the lift's functionality is an articulated or telescoping boom arm. This boom is generally constructed from high-strength steel or aluminum alloys and designed to pivot from a vertical mast. The folding characteristic allows the boom to collapse or articulate into a compact configuration when not in use, thereby minimizing its footprint within the truck bed and enabling unobstructed cargo space or vehicle storage. The folding mechanism usually involves pivot pins, locking latches, and sometimes gas springs for assisted deployment. The boom's reach and height are adjustable, providing flexibility in positioning loads over varying distances and elevations.


3. Vertical Mast/Column: Supporting the folding boom is a sturdy vertical column or mast, securely anchored to the mounting platform. This mast enables the boom to rotate horizontally (slewing), typically offering 360-degree rotation on a bearing system, allowing for precise load placement around the truck, extending its utility beyond direct bed loading.


4. Electric Winch System: The primary lifting force is provided by an electric winch, a self-contained unit comprising an electric motor, a gear reduction system, a winding drum, and a high-strength steel or synthetic rope fitted with a safety hook. Unlike hydraulic systems, electric winches derive power directly from the pickup truck's 12-volt DC electrical system, making them energy-efficient and eliminating the need for an external power unit or complex hydraulic lines. The winch cable is spooled onto the drum, and the motor's reversible action controls the precise raising and lowering of the load. Most electric winches include safety features such as thermal overload protection, dynamic braking, and sometimes a load indicator.


5. Control System: Operation of the hoist is typically managed via a wired pendant control, offering intuitive push-button commands for lift, lower, and sometimes boom extend/retract or slew. More advanced models may feature wireless remote controls for enhanced safety and operational freedom, allowing the operator to maintain a safe distance from the load.

   Operational Mechanism:

   To operate the device, the folding boom is first deployed from its stowed position and secured. The boom's angle and extension are then adjusted to position the hook directly over the intended load. The electric winch is activated, gradually lifting the object from the ground or another surface. Once suspended, the boom can be rotated (slewed) to swing the load over the truck bed. The winch then lowers the object securely into place. The process is reversed for unloading. Rated lifting capacities for these units typically range from 500 to 2,000 pounds (approximately 227 to 907 kg), depending on the specific model, boom extension, and vehicle stability.

   Applications:

   This type of truck-mounted crane is widely employed across various professional and personal sectors, including:

6. Construction: Facilitating the movement of tools, small generators, concrete forms, and miscellaneous building materials on job sites.

7. Utility Services: Handling transformers, heavy cables, pumps, and service equipment for municipal and private utilities.

8. Agriculture: Aiding in the movement of feed bags, engine parts, small machinery components, or irrigation equipment.

9. Landscaping: Efficiently loading and unloading rocks, trees, or bags of soil and mulch.

10. Recreational and Personal Use: Assisting individuals with the loading of ATVs, generators, mobility scooters, motorcycles, or other heavy recreational gear onto a truck bed.

11. General Trades: Serving plumbers, electricians, mechanics, and other mobile professionals who frequently need to transport and manipulate heavy items.

    Advantages:

    The design offers several key advantages that contribute to its widespread utility:

12. Portability and Mobility: Being integrated into a pickup truck, it provides exceptional mobility, allowing it to be easily transported to various job sites or remote locations.

13. Self-Sufficiency: Powered directly by the vehicle's electrical system, it requires no external power source, making it highly self-contained and ready for immediate use.

14. Space Efficiency: The folding design significantly preserves valuable cargo bed space when the crane is not in active use, allowing for other equipment or materials to be transported simultaneously.

15. Ease of Operation: Electric winches are generally simpler to operate and maintain compared to hydraulic systems for light-to-medium loads.

16. Cost-Effectiveness: Offers a more economical alternative to larger, dedicated truck cranes for lighter lifting tasks, reducing capital expenditure and operational costs.

17. Versatility: Capable of handling a wide range of loads within its specified capacity, making it a multi-purpose tool.

    Safety Considerations:

    Safe operation necessitates strict adherence to manufacturer guidelines, proper load securement, avoidance of overloading beyond rated capacities, and ensuring vehicle stability.
