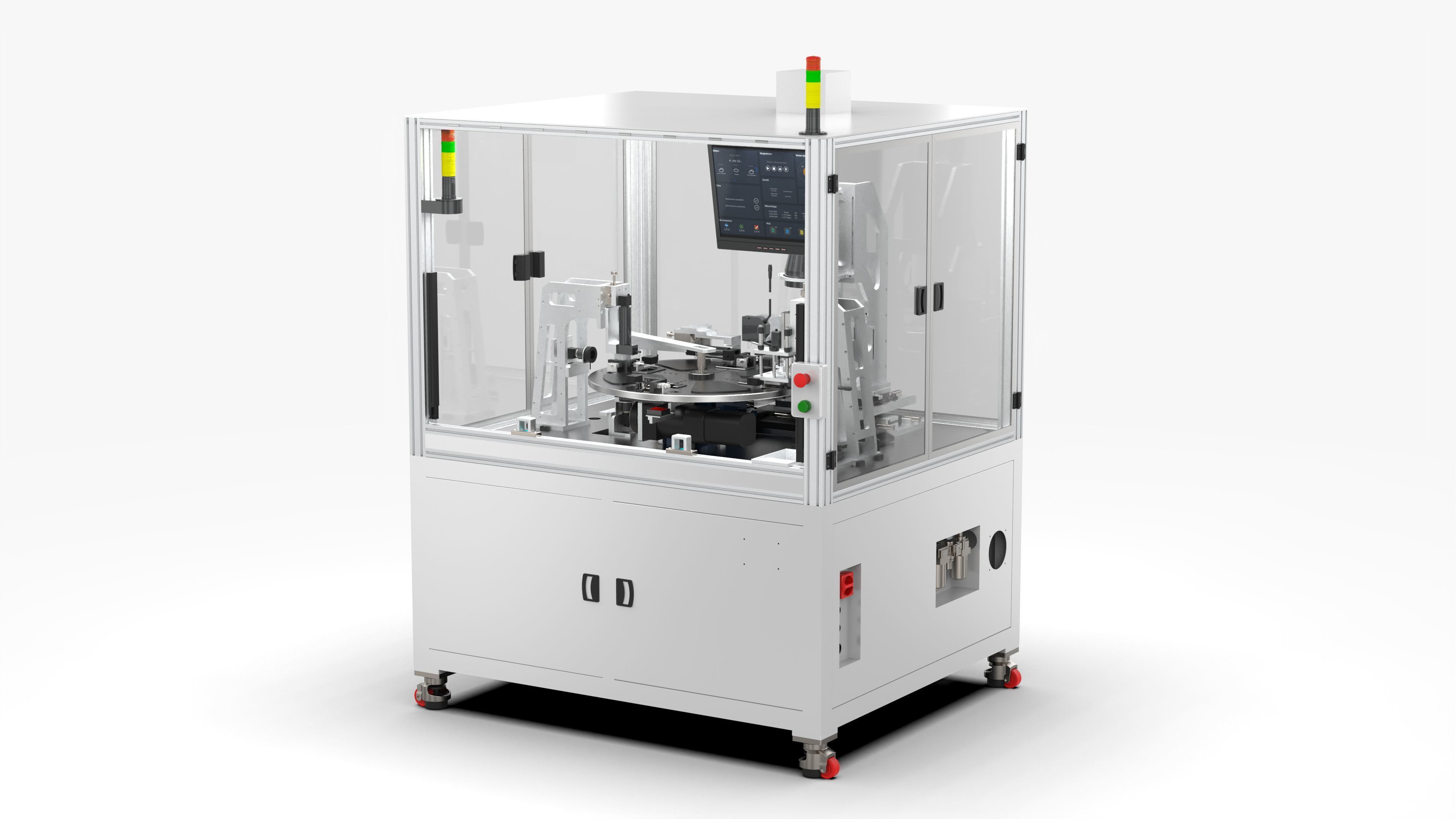

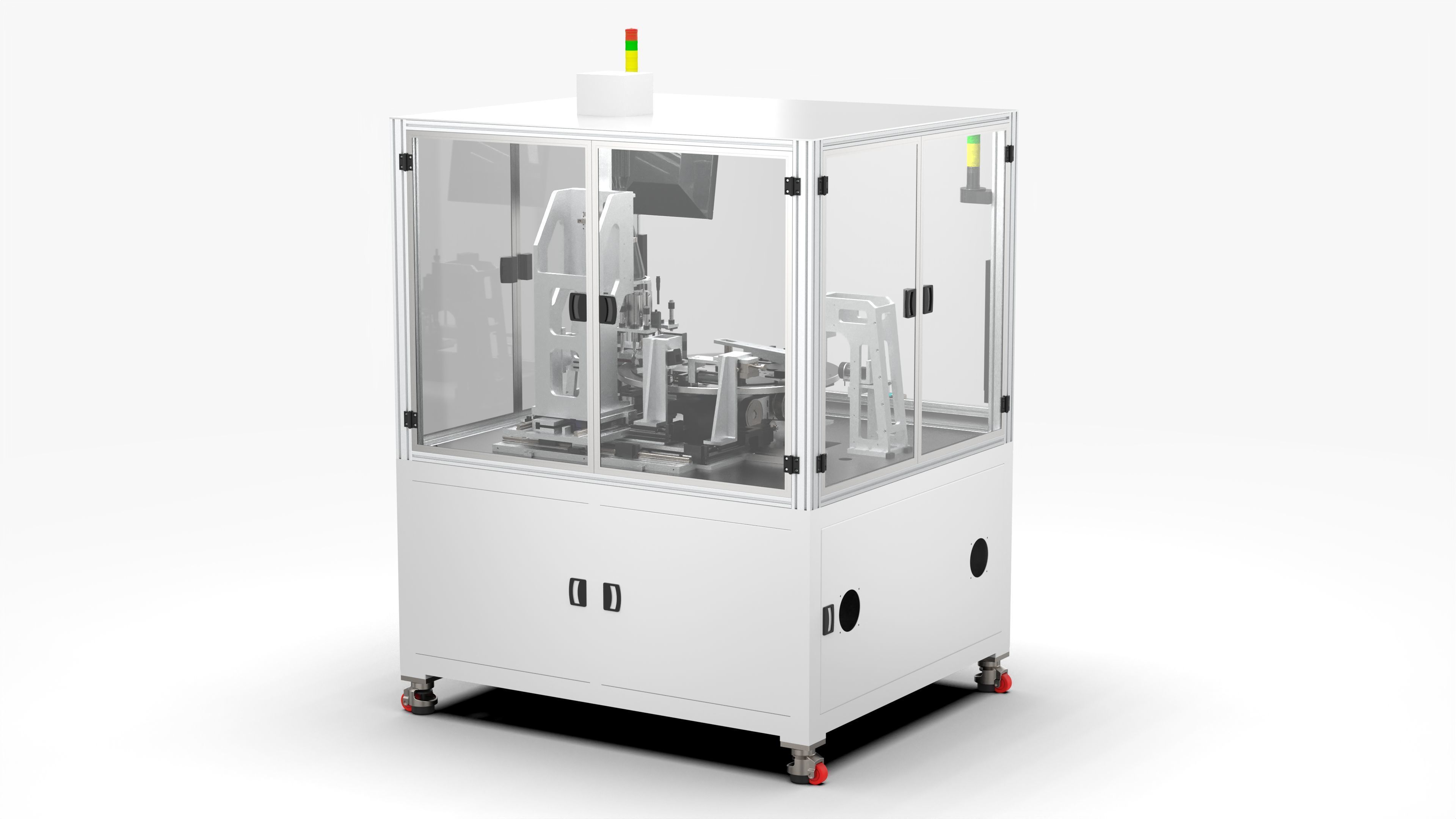

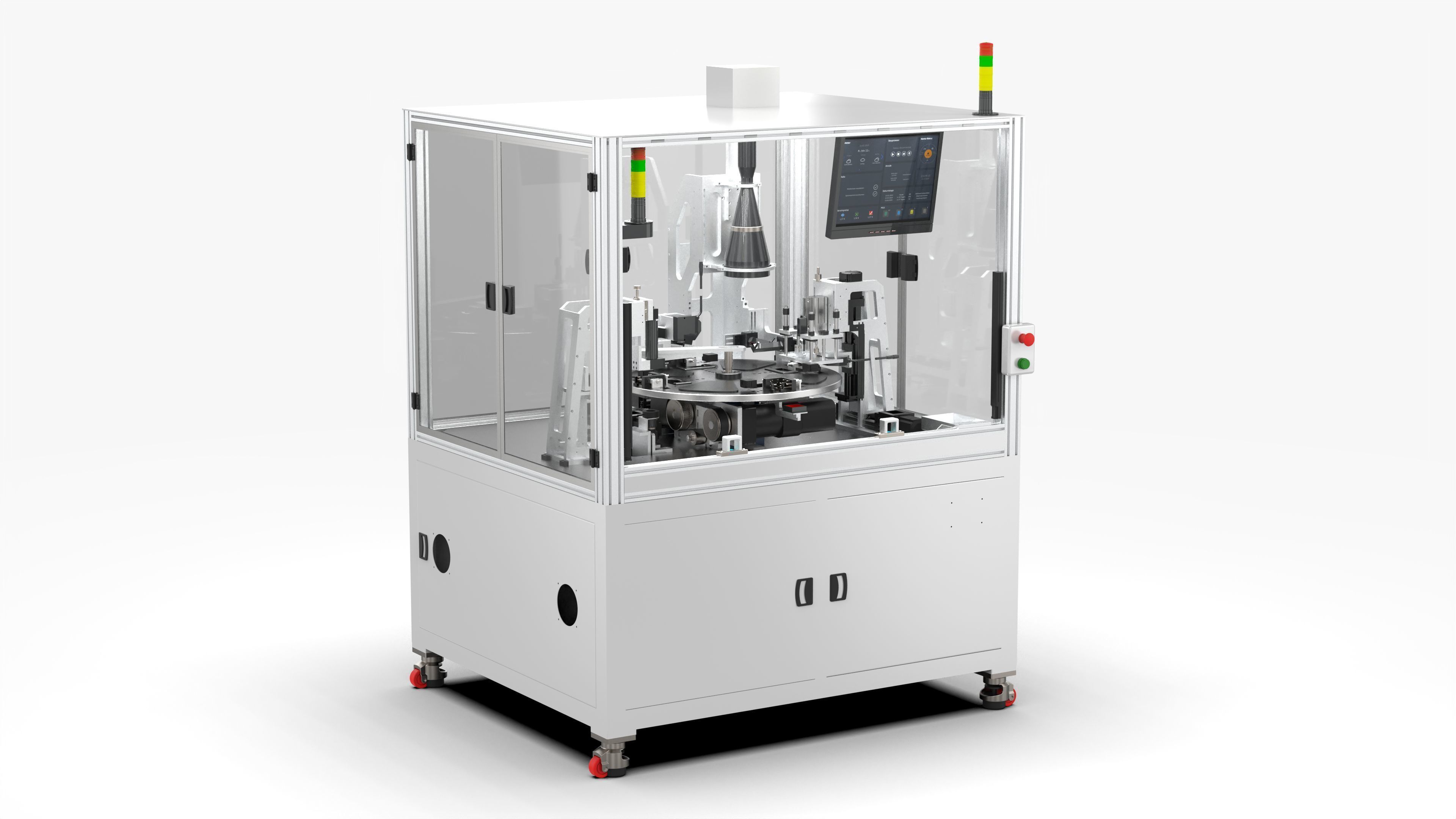

Automatic Battery Flatness Contour Size Inspection Machine

Automatic Battery Flatness Contour Size Inspection Machine 3D model

Description

Automatic Mobile Phone Battery Flatness Contour Size Inspection Machine

- Mass Production-

Introduction

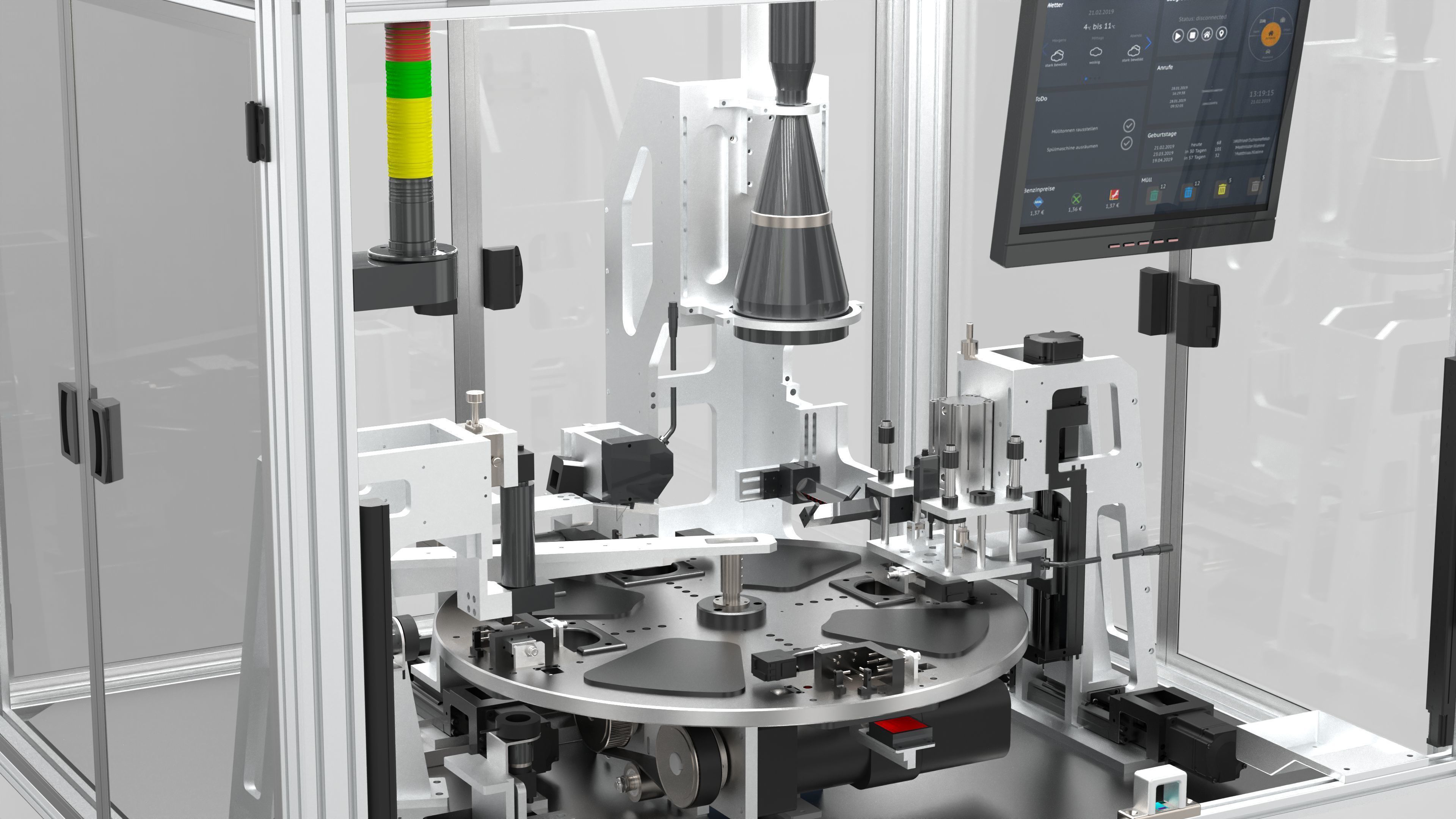

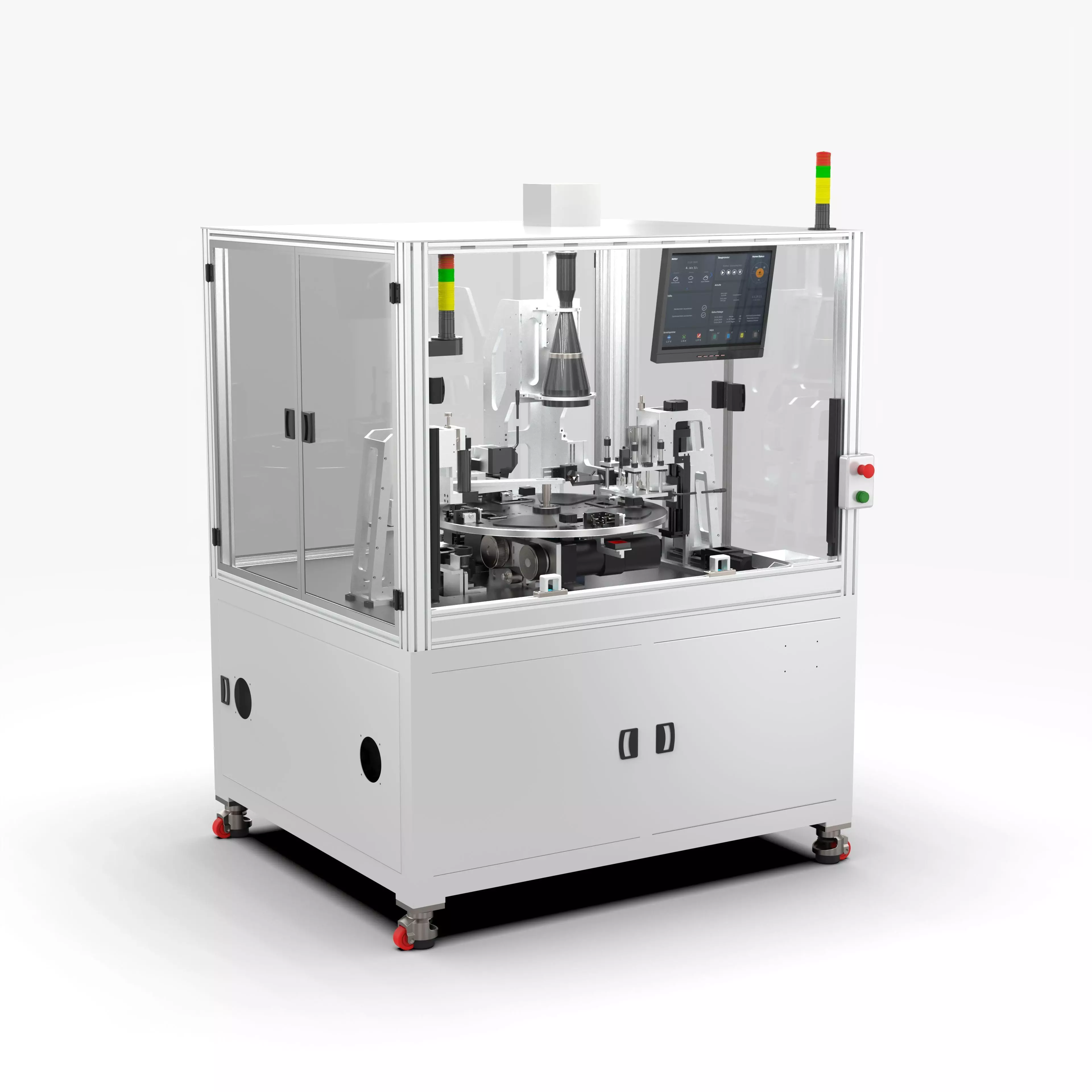

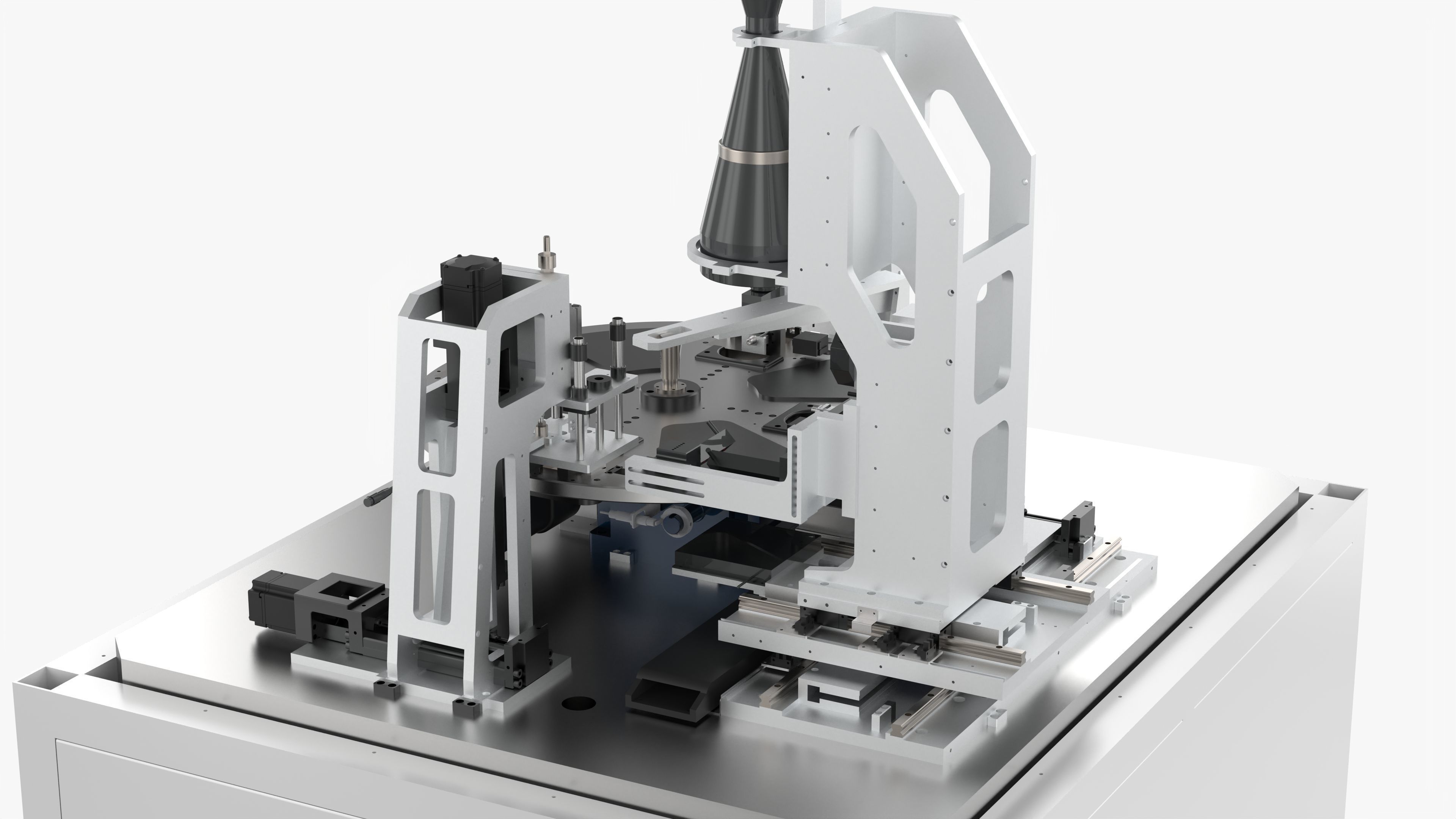

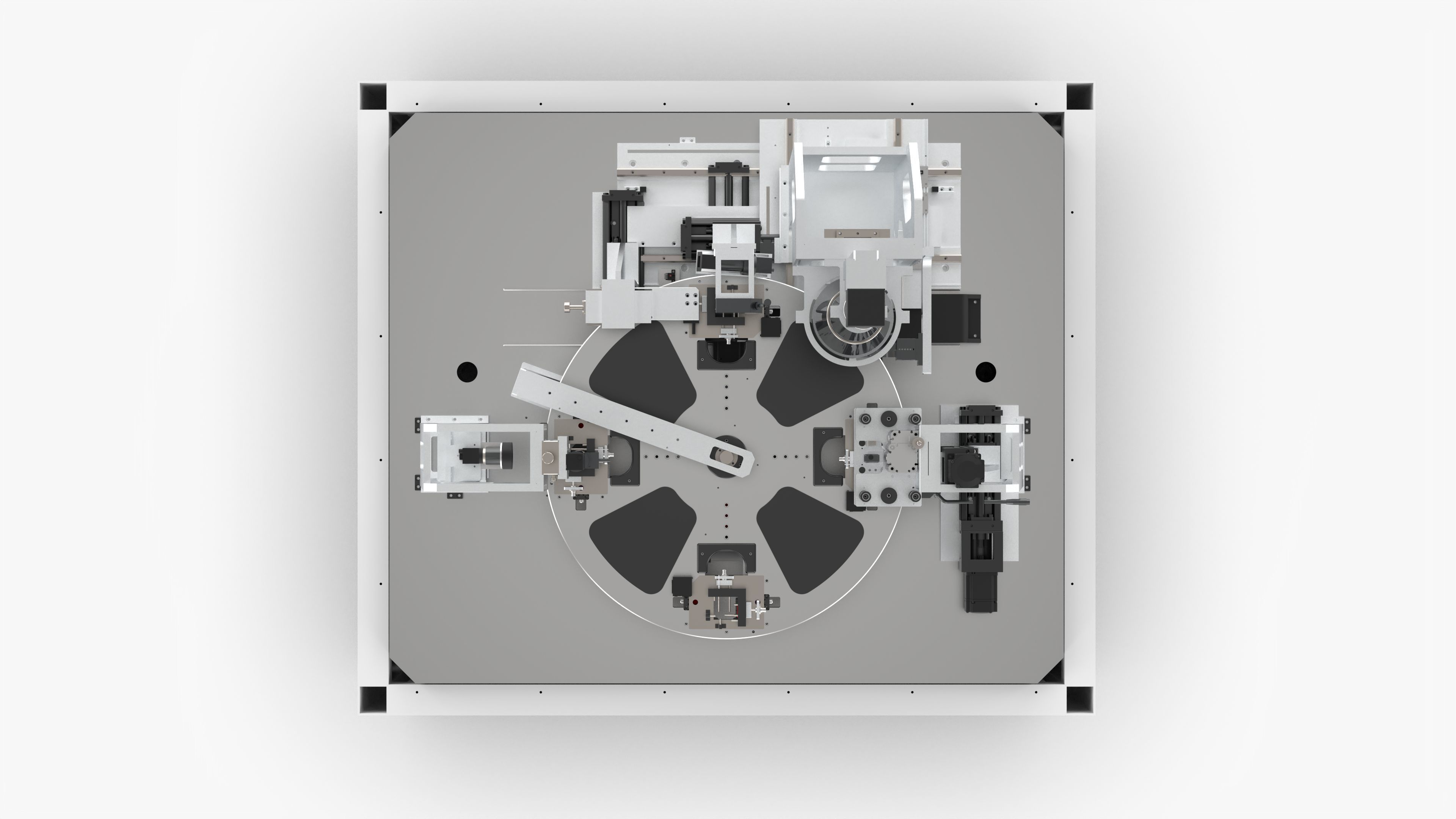

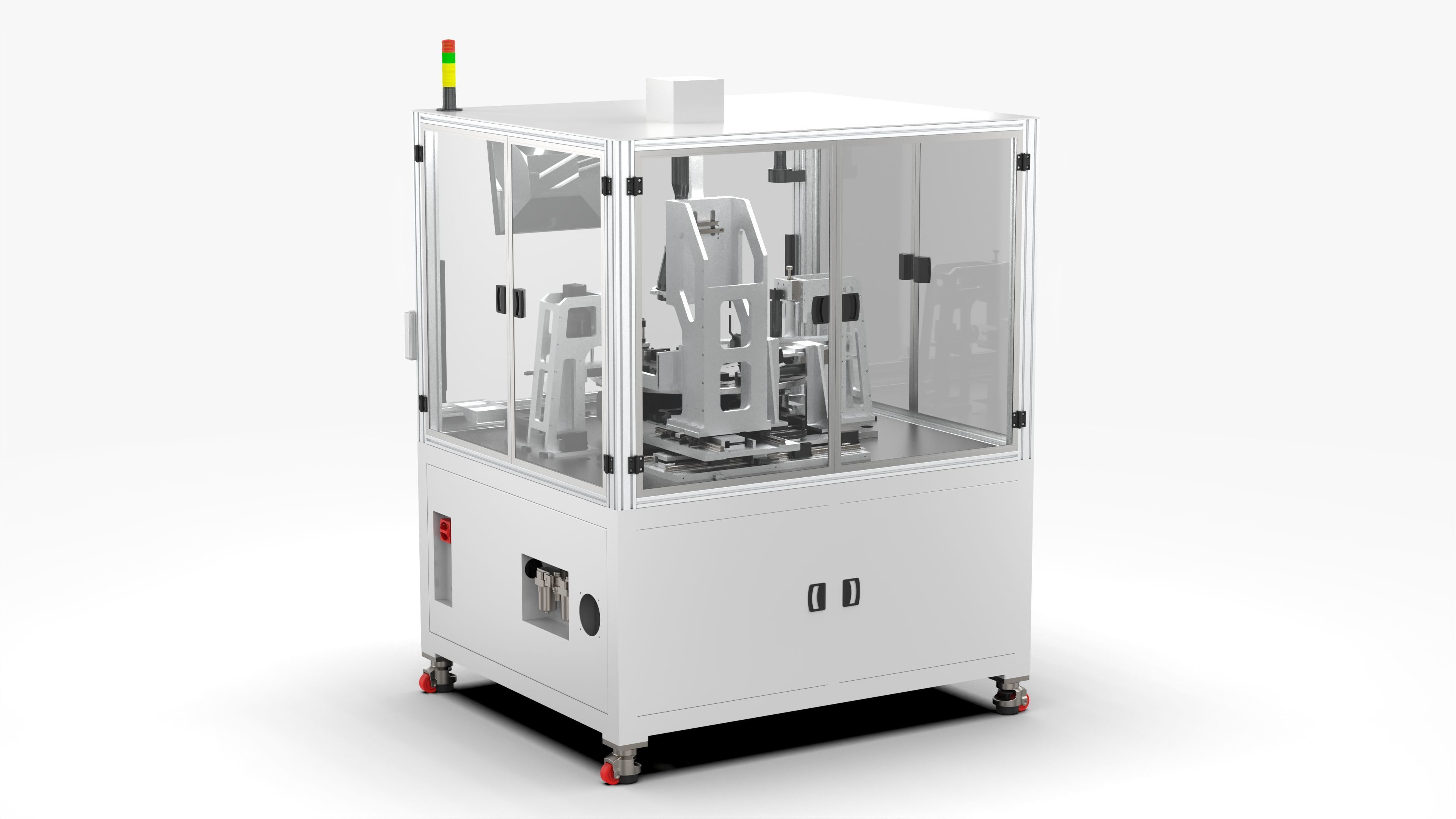

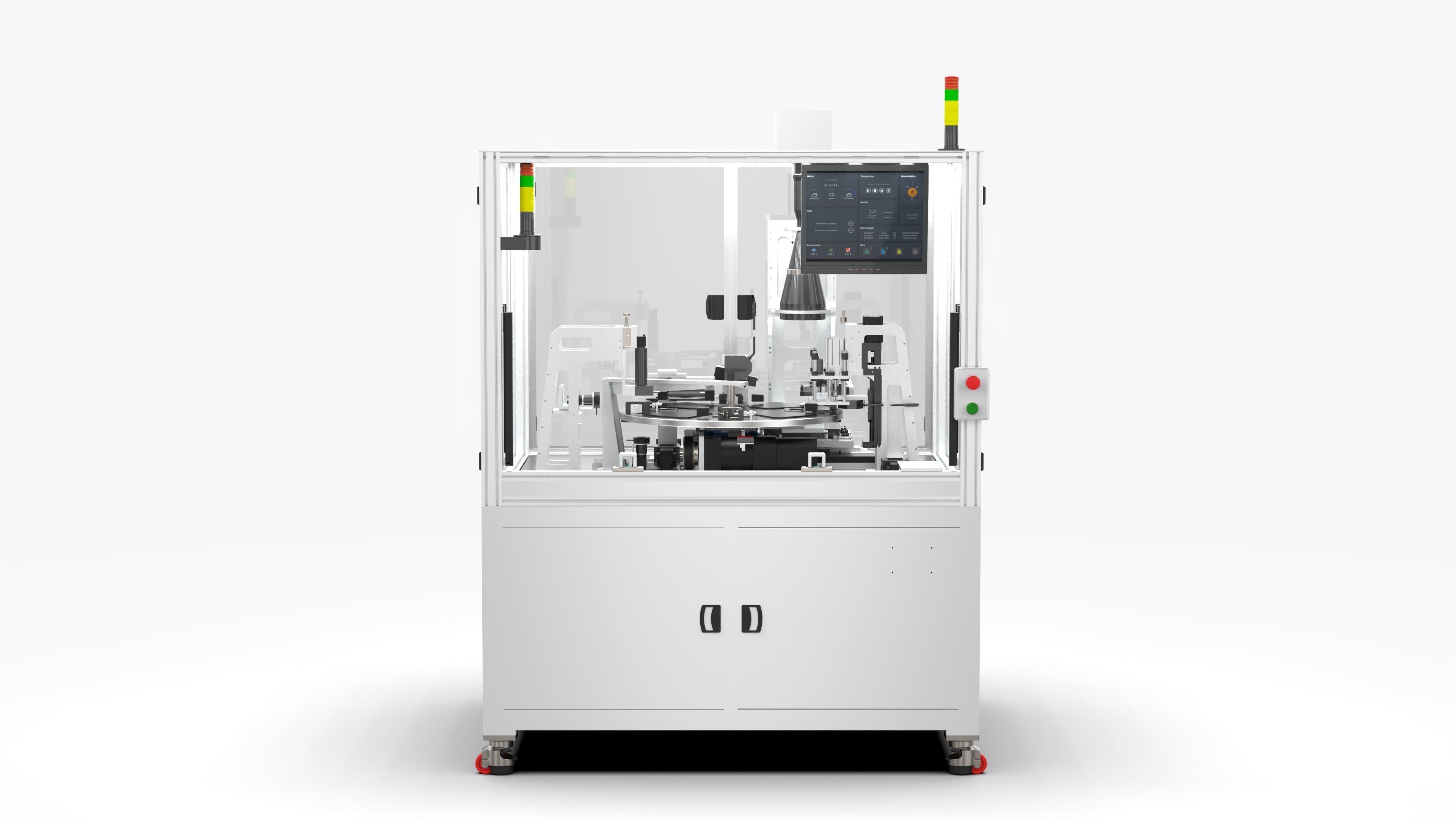

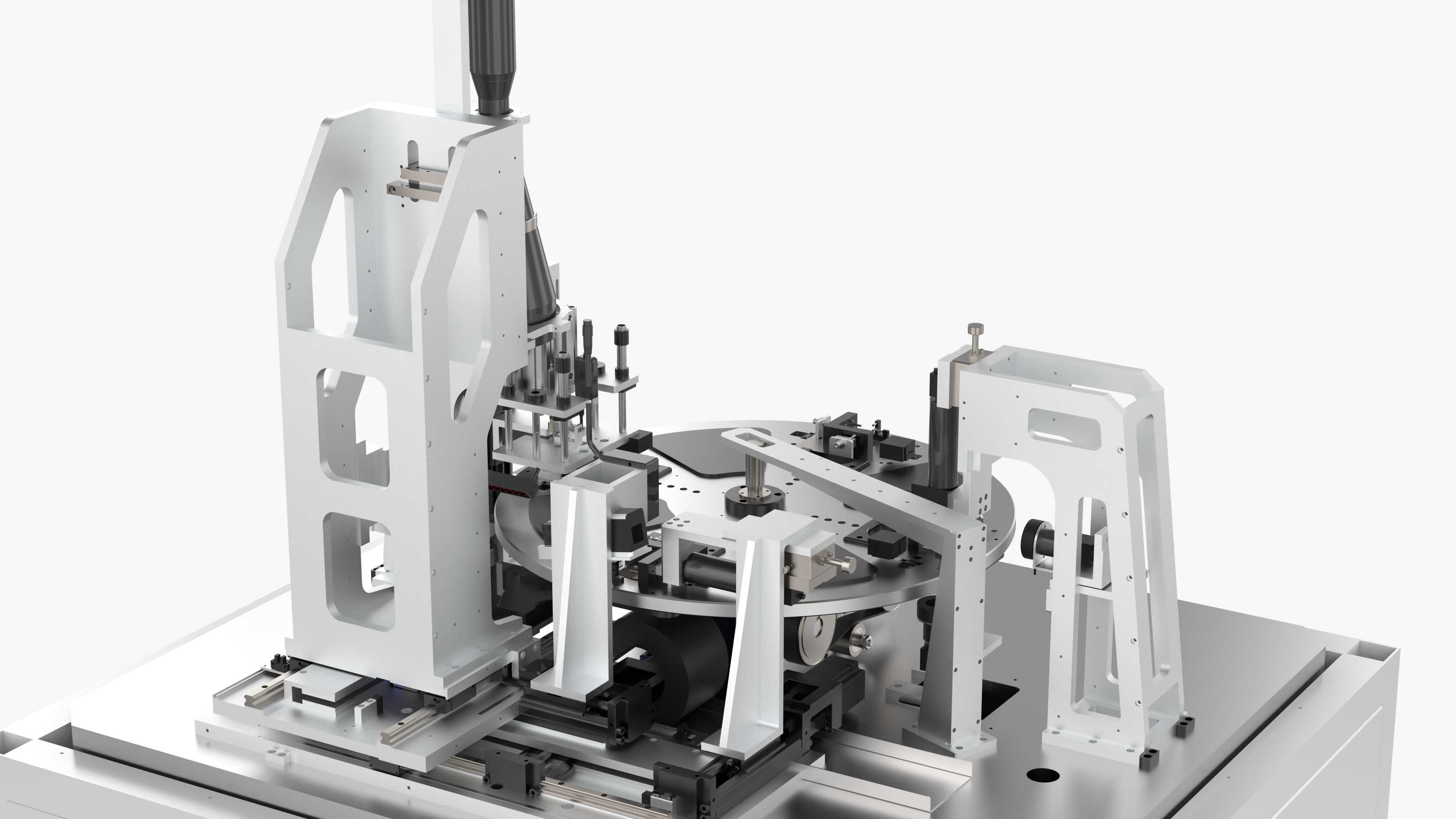

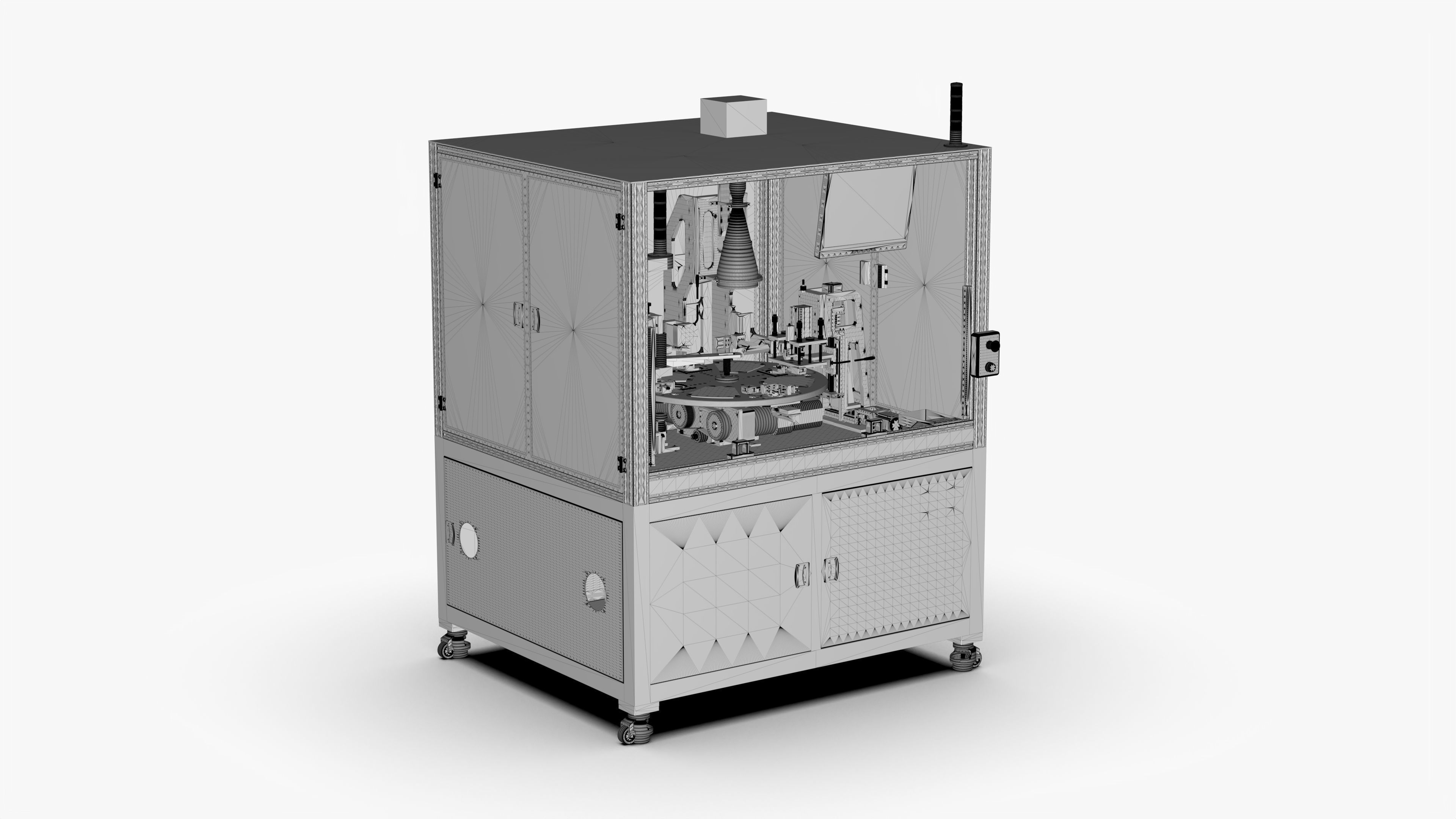

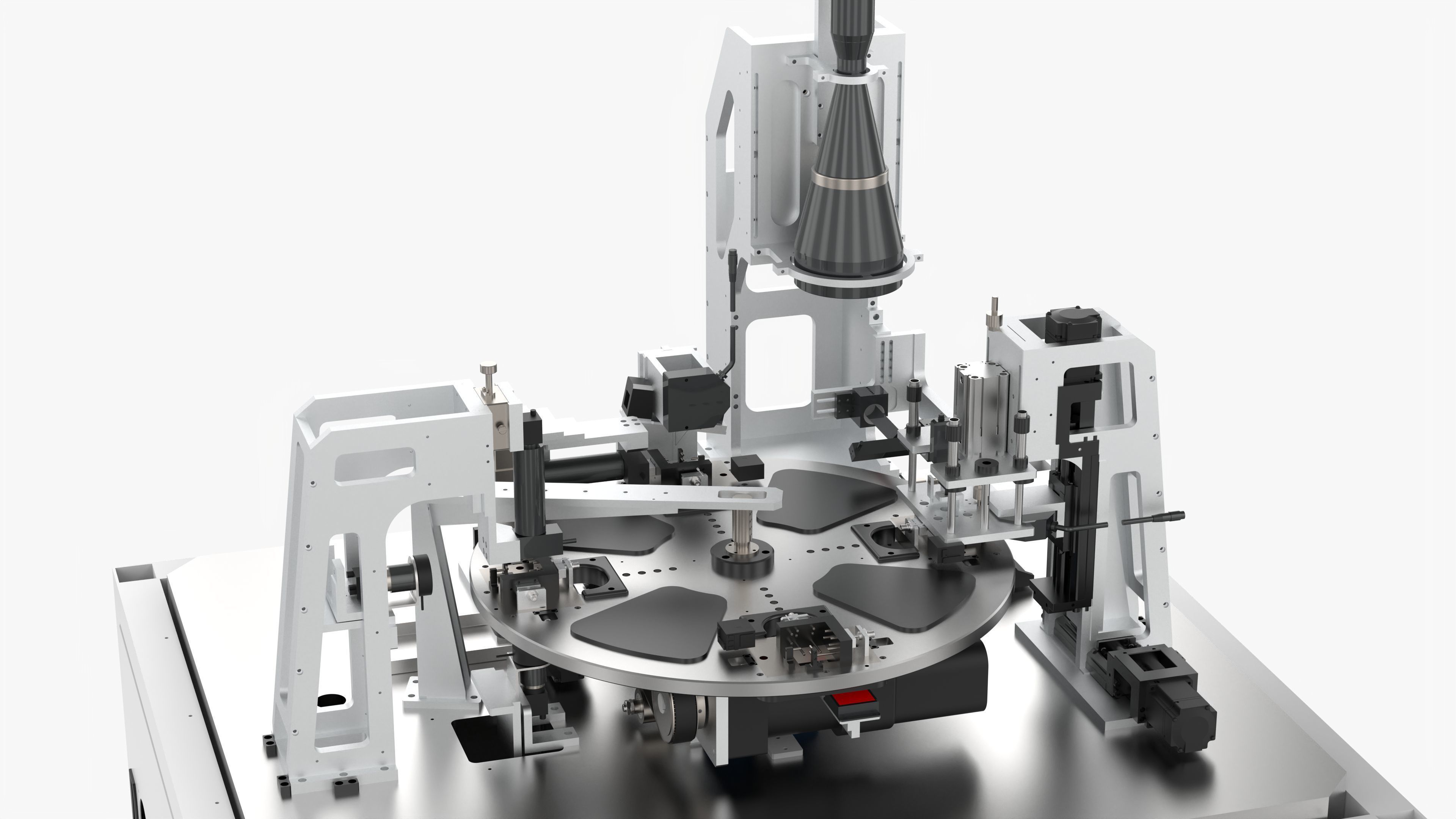

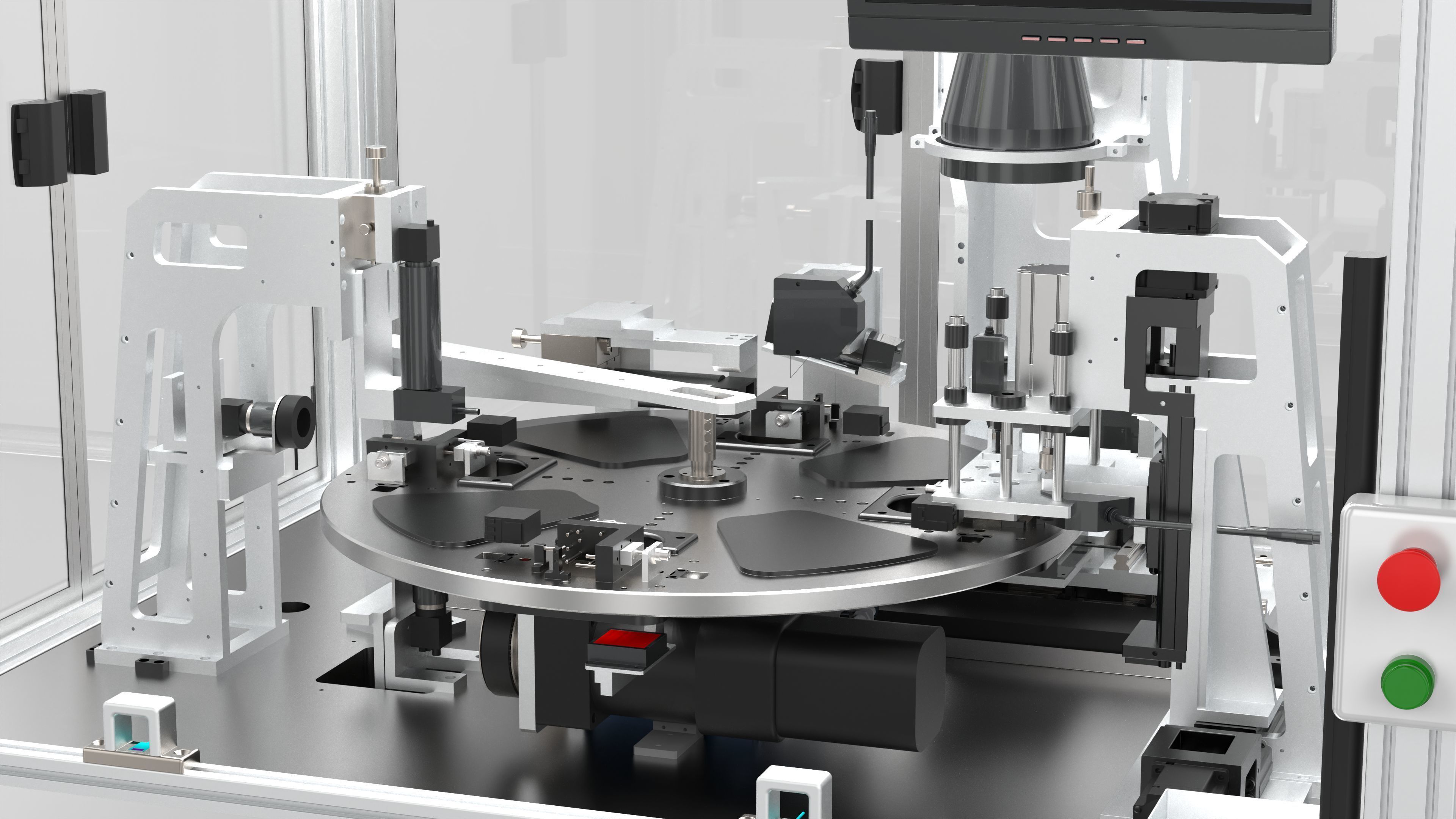

The equipment uses vision to detect the flaws, appearance and size contour of the mobile phone battery, and uses laser line scanning to detect the height difference of the battery. The contact is the GT displacement sensor to detect the overall flatness of the battery. The equipment has been produced, and the equipment has been optimized for production, stable operation and stable test accuracy.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,181,723
  • Vertice: 3,545,169
Item rating
0 0
Automatic Battery Flatness Contour Size Inspection Machine
$59.00

Royalty Free License
Automatic Battery Flatness Contour Size Inspection Machine
$59.00

Royalty Free License
Response 100% in 1.3h
3D Modeling
Rendering
Hire me

3D Model formats

Format limitations
Native
  • SolidWorks 2018 (.sldprt, .sldasm, .slddrw)54.6 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • OBJ (.obj, .mtl)84.9 MB
  • STEP (.stp)19.3 MB
  • Stereolithography (.stl)56.3 MB
  • IGES (.ige, .igs, .iges)80.6 MB

3D Model details

  • Publish date2023-03-10
  • Model ID#4351311
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 1,181,723
  • Vertices 3,545,169
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
