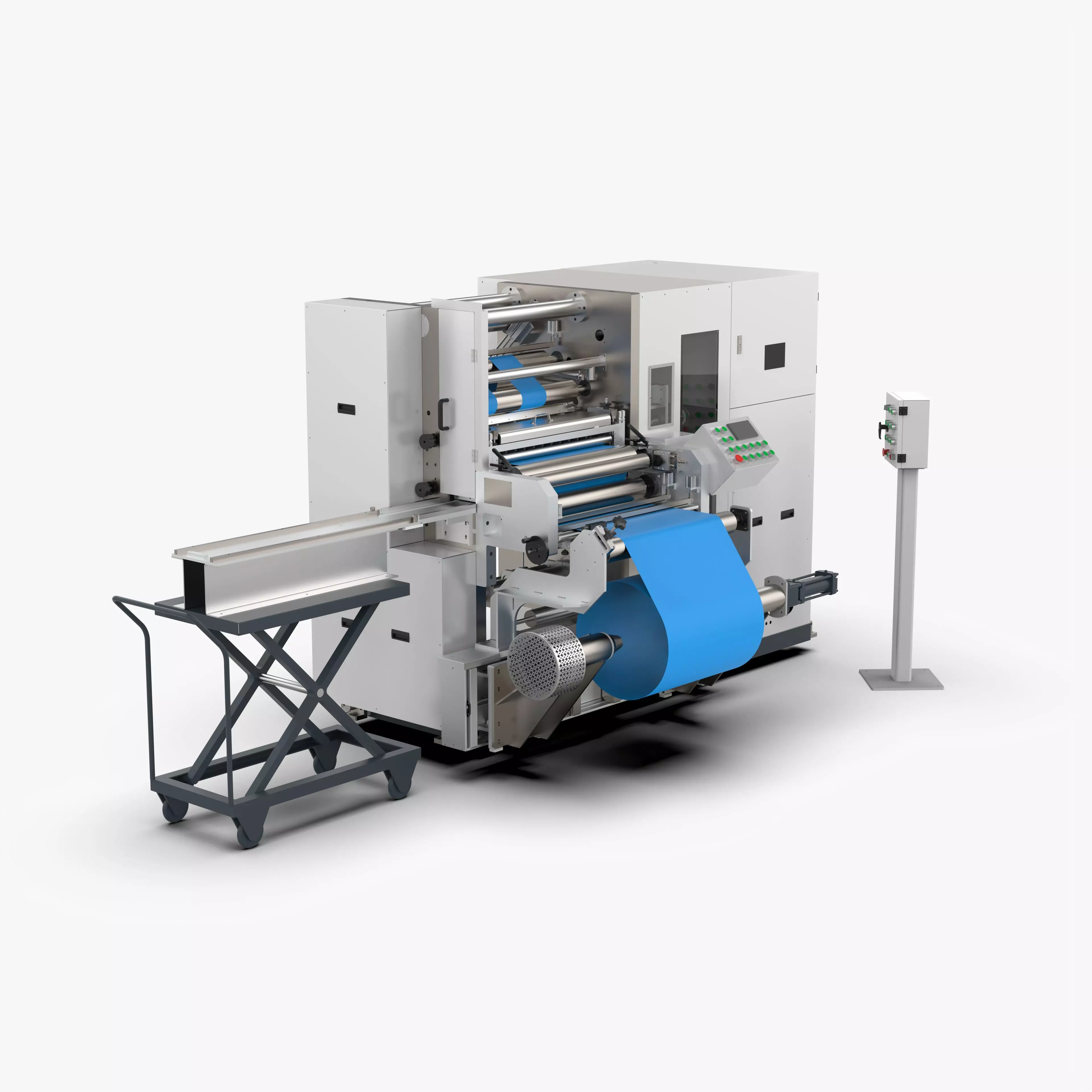

Automatic Lithium Battery Slitting Machine 3D model

Automatic Lithium Battery Slitting Machine

Introduction

The function of unilateral or double-sided cutting of the positive and negative electrodes of lithium batteries: providing the stripping function for lithium battery production.

1. The equipment adopts a single-sided large plate and a cantilever support structure.
2. It can fully replace traditional hardware die-cutting equipment.
3. High speed, good consistency of processed products and low cost of use.
4. Solve the cutting and slitting functions at one time, with high efficiency

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 5,822,834
• Vertice: 17,468,502
