Fully Automatic Drilling and Tapping Machine 3D model

Fully Automatic Drilling and Tapping Machine

Introduction

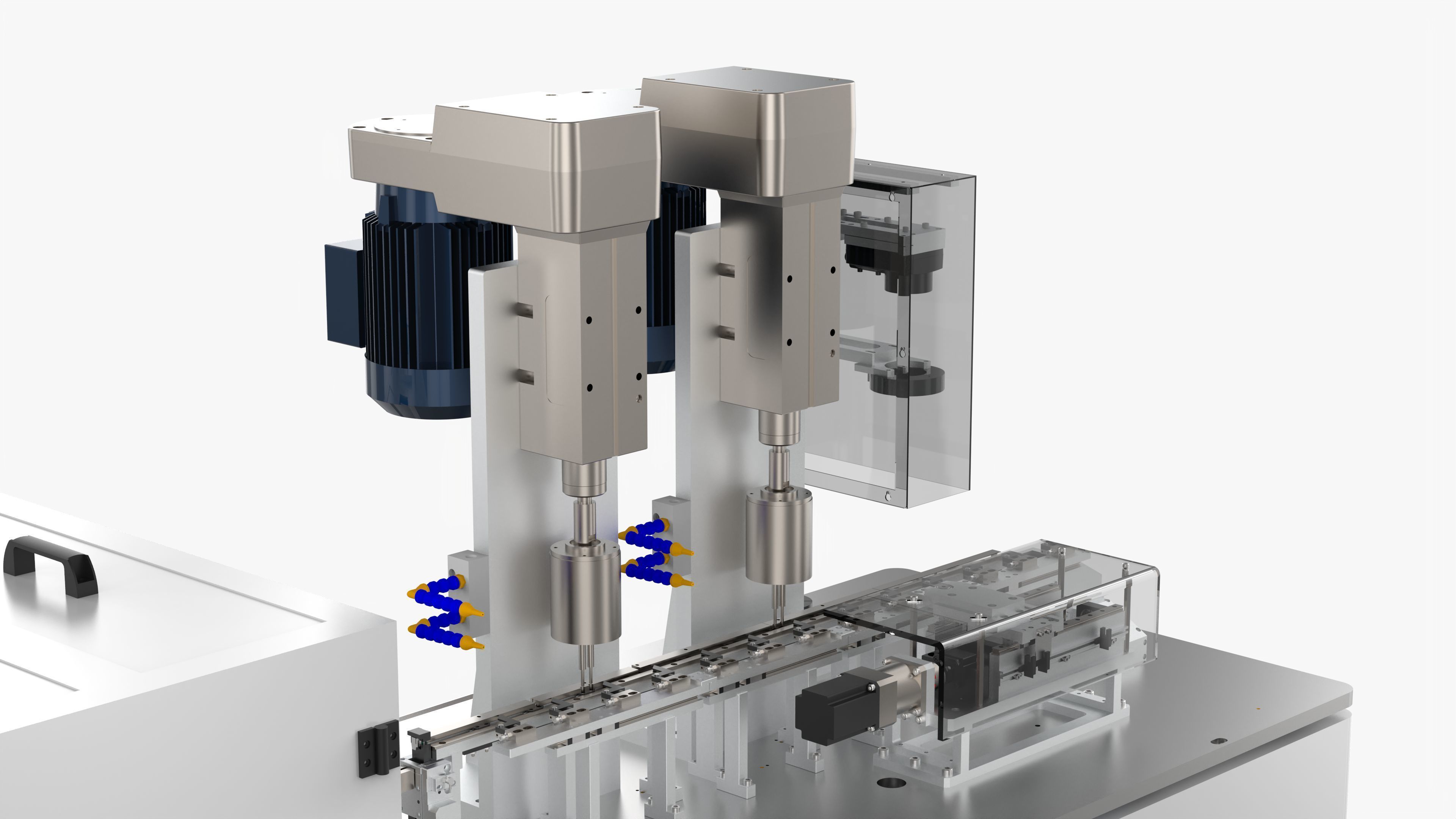

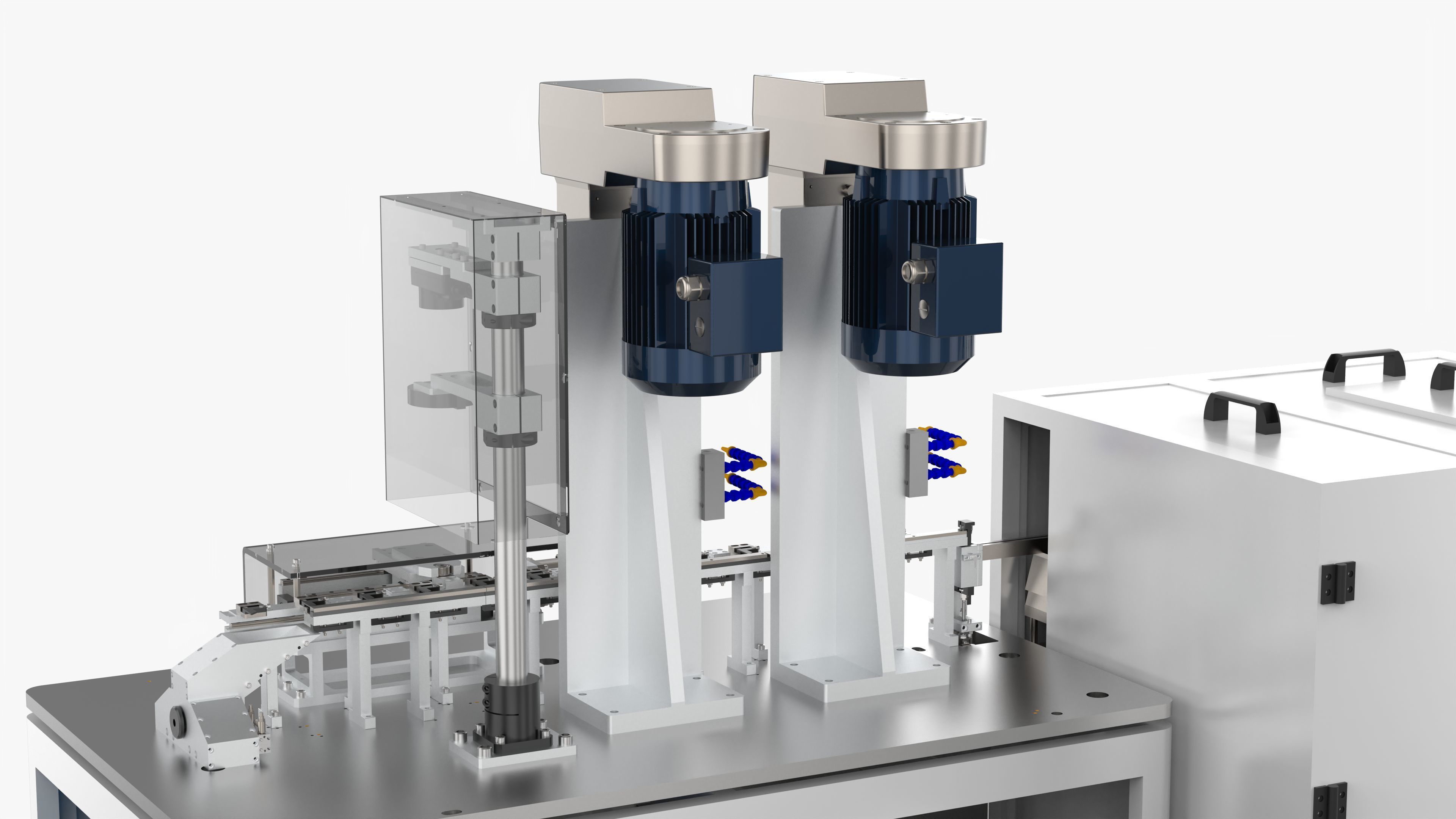

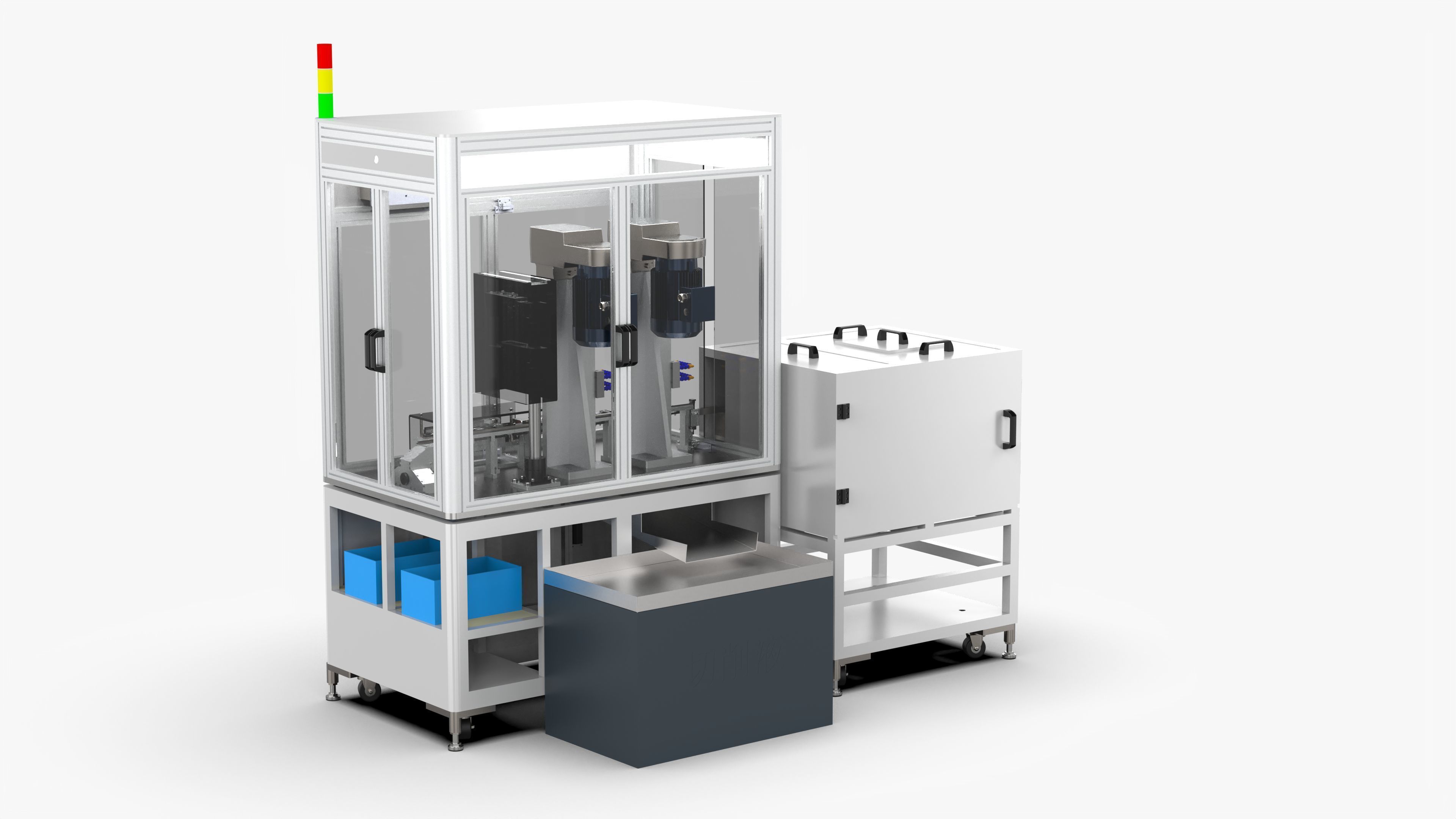

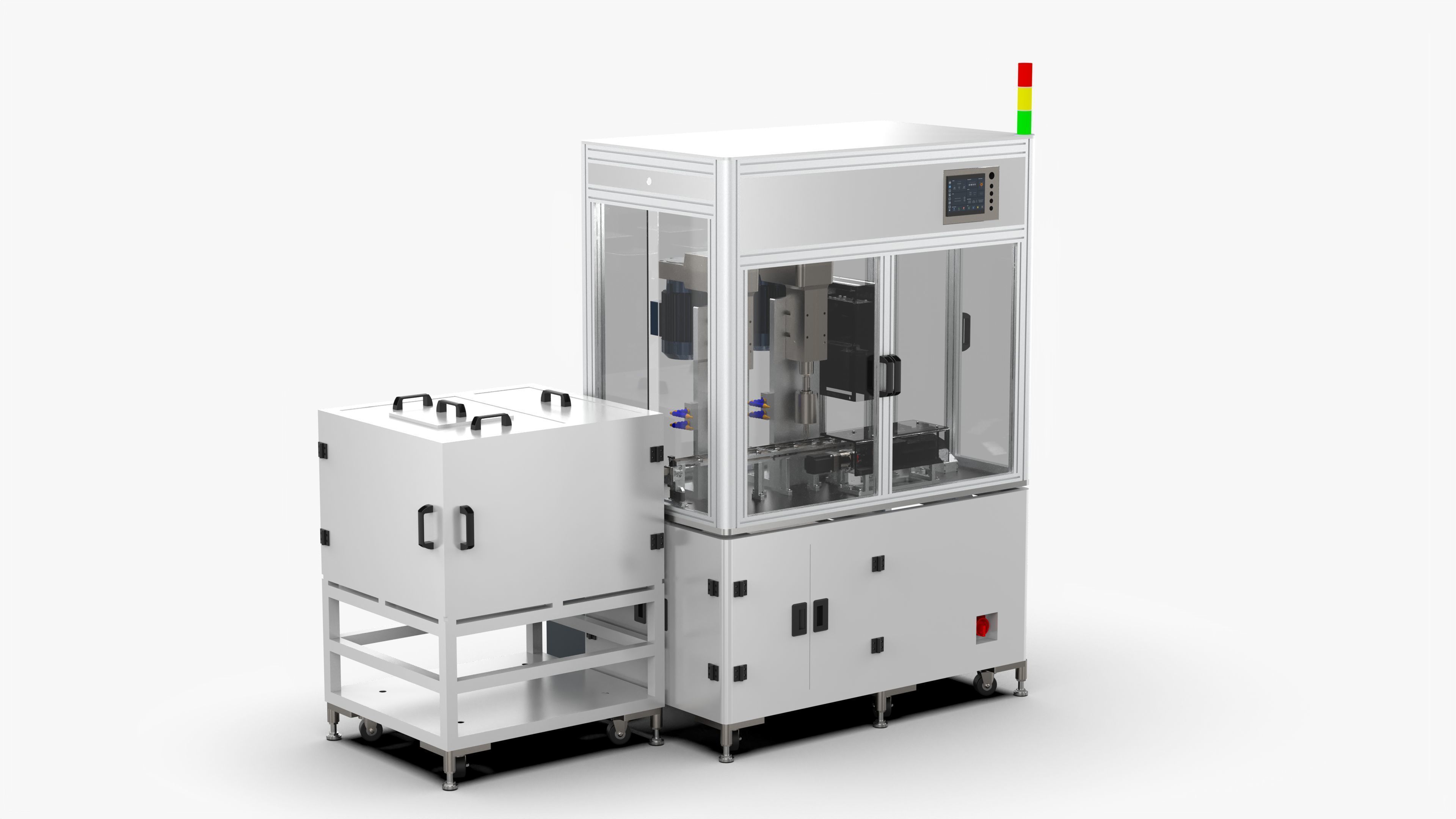

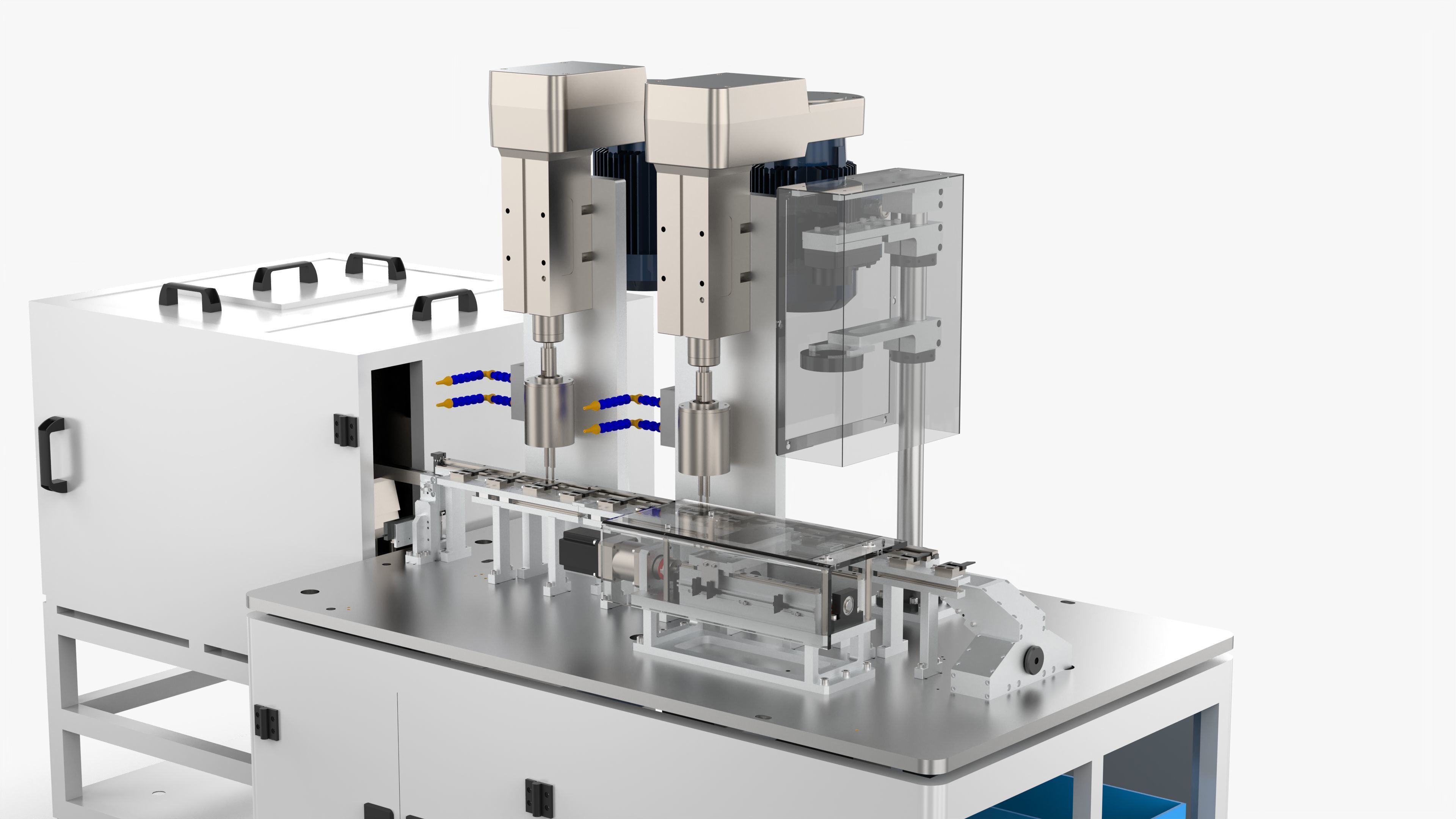

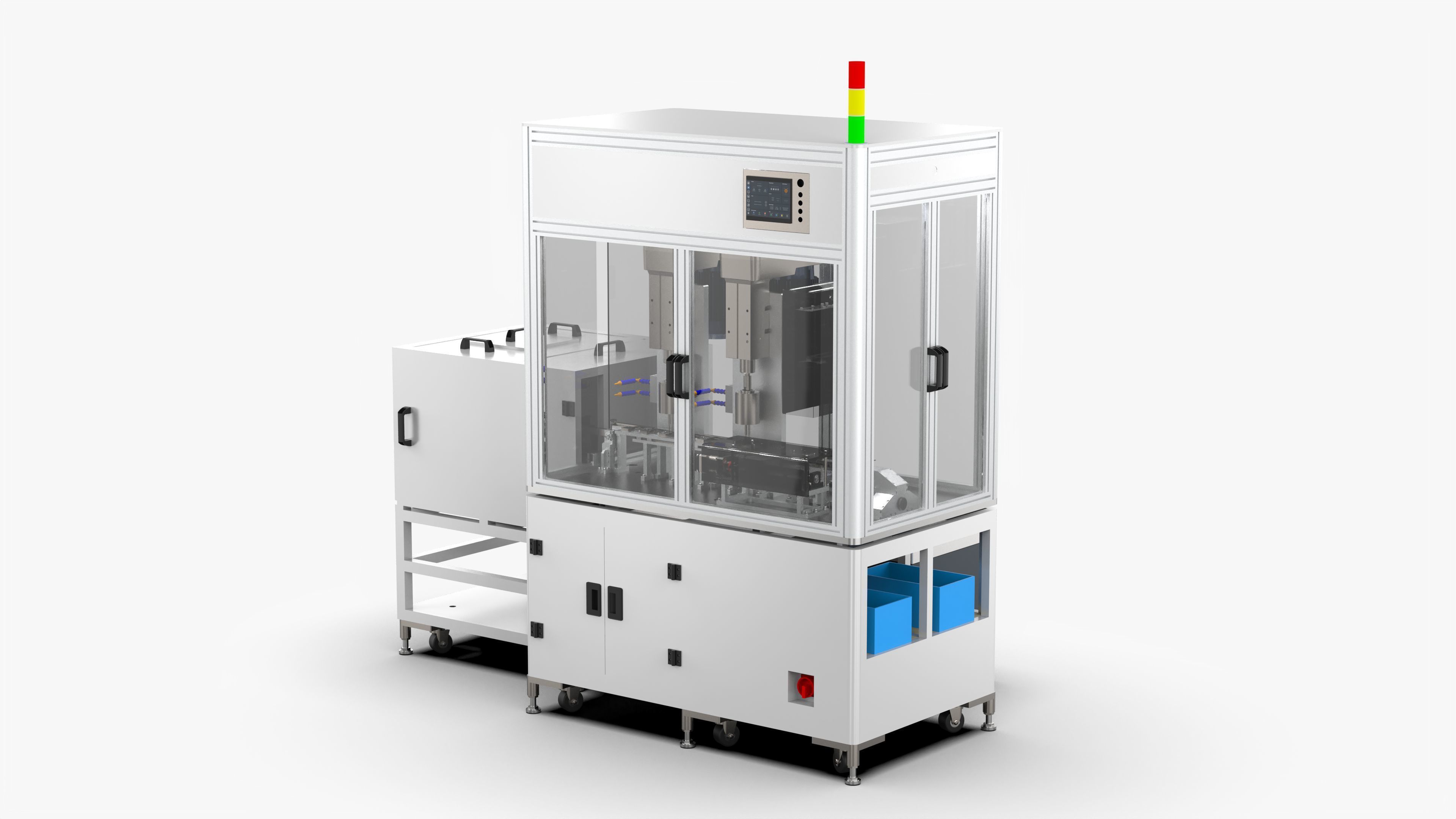

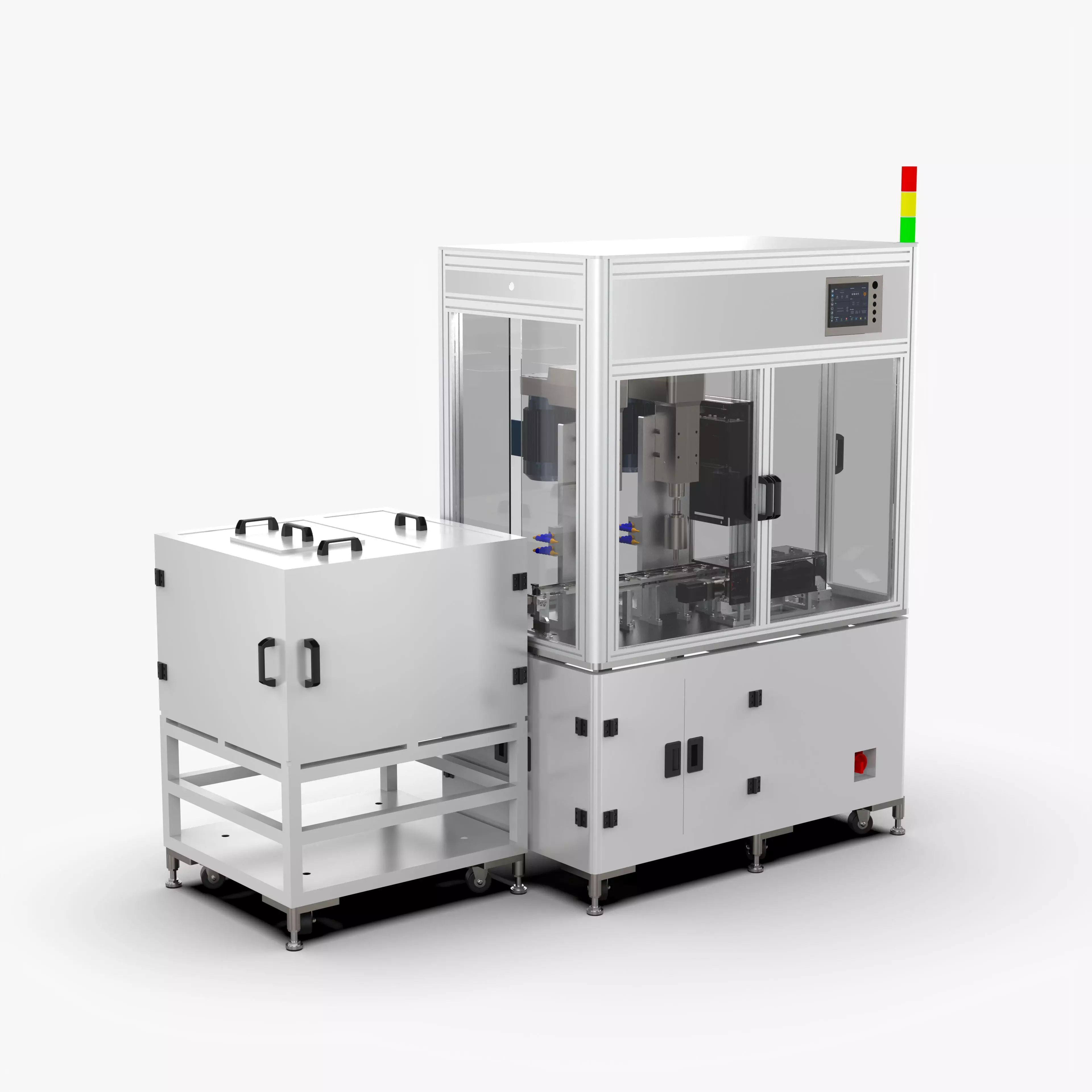

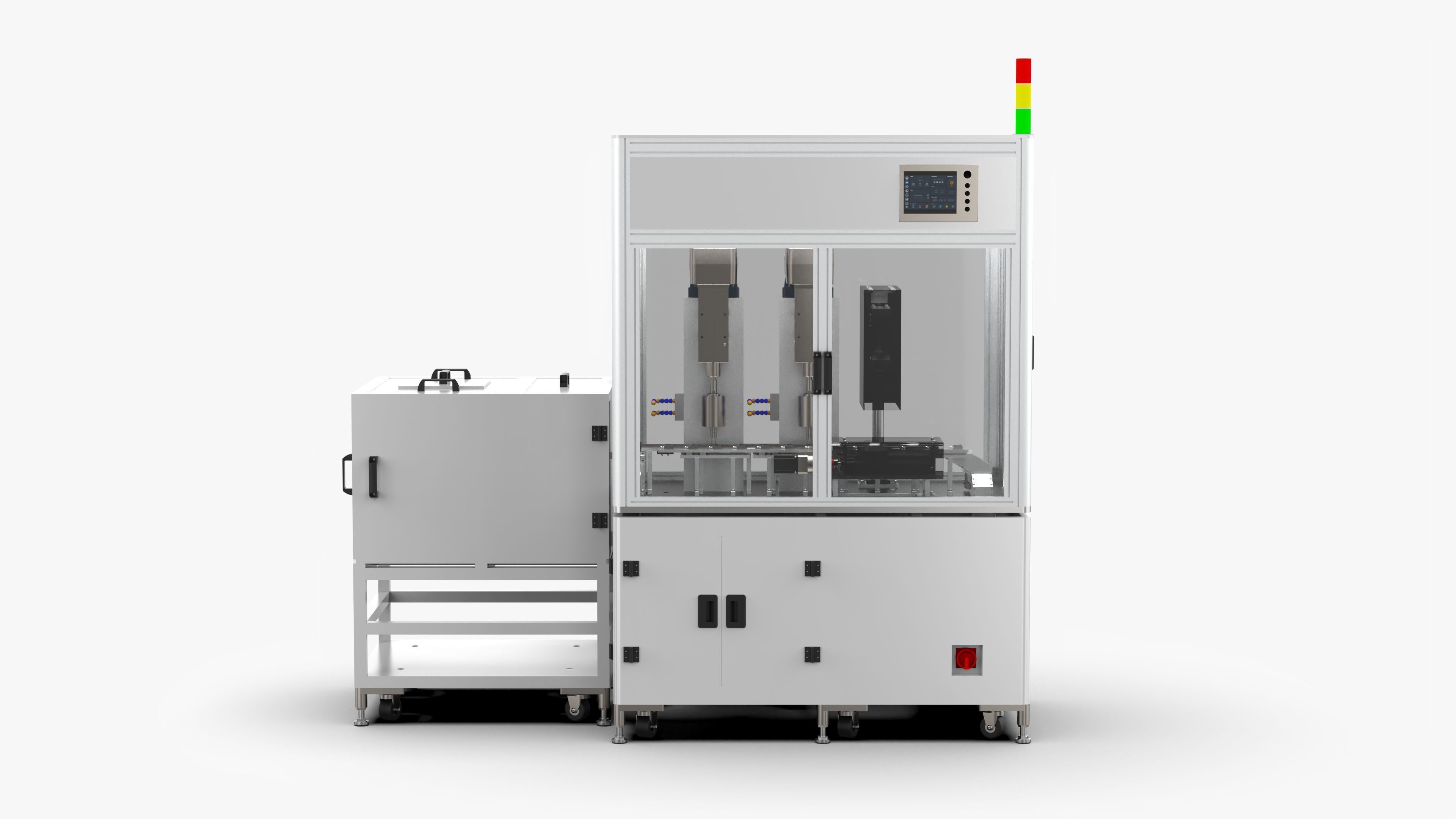

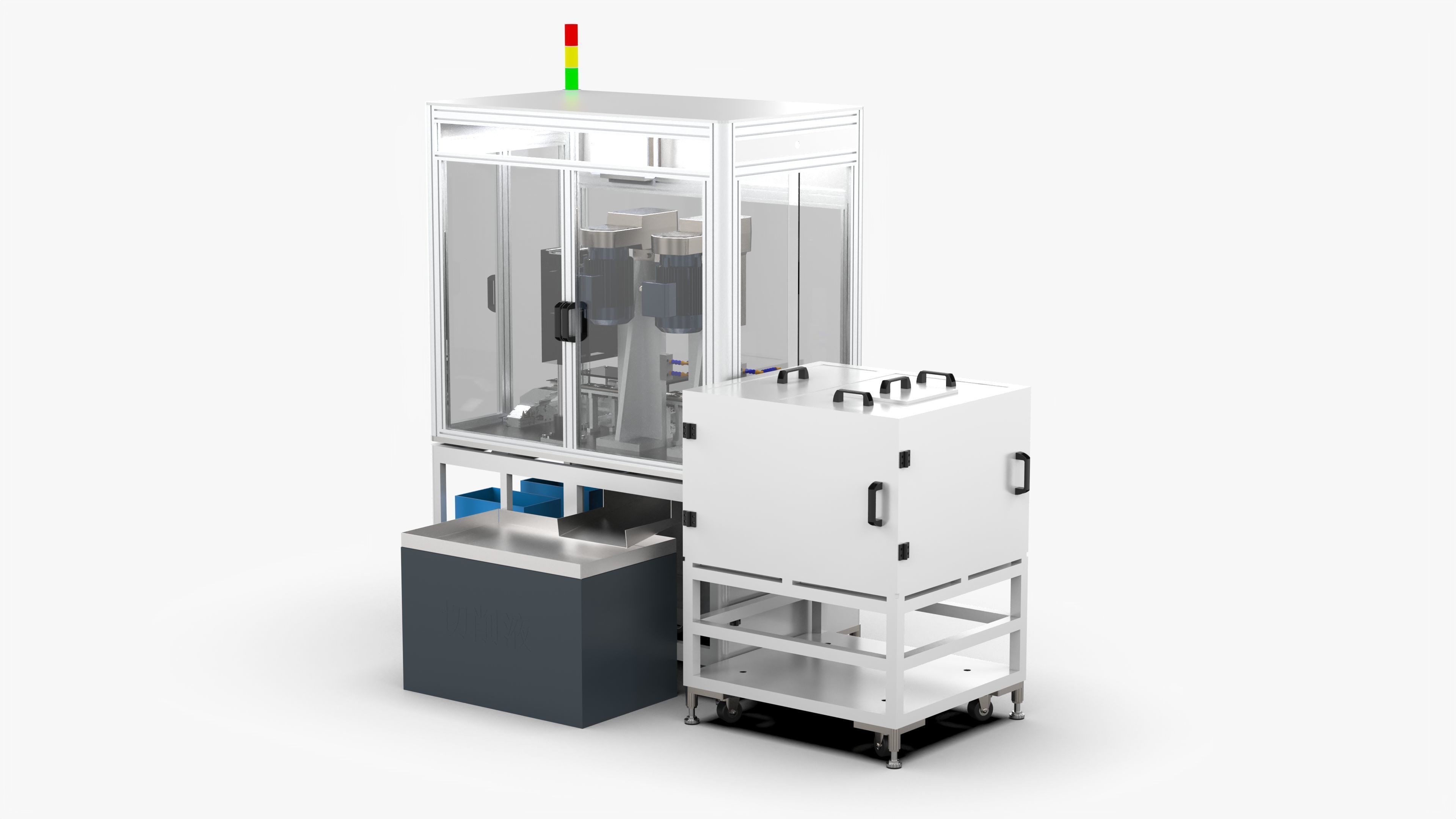

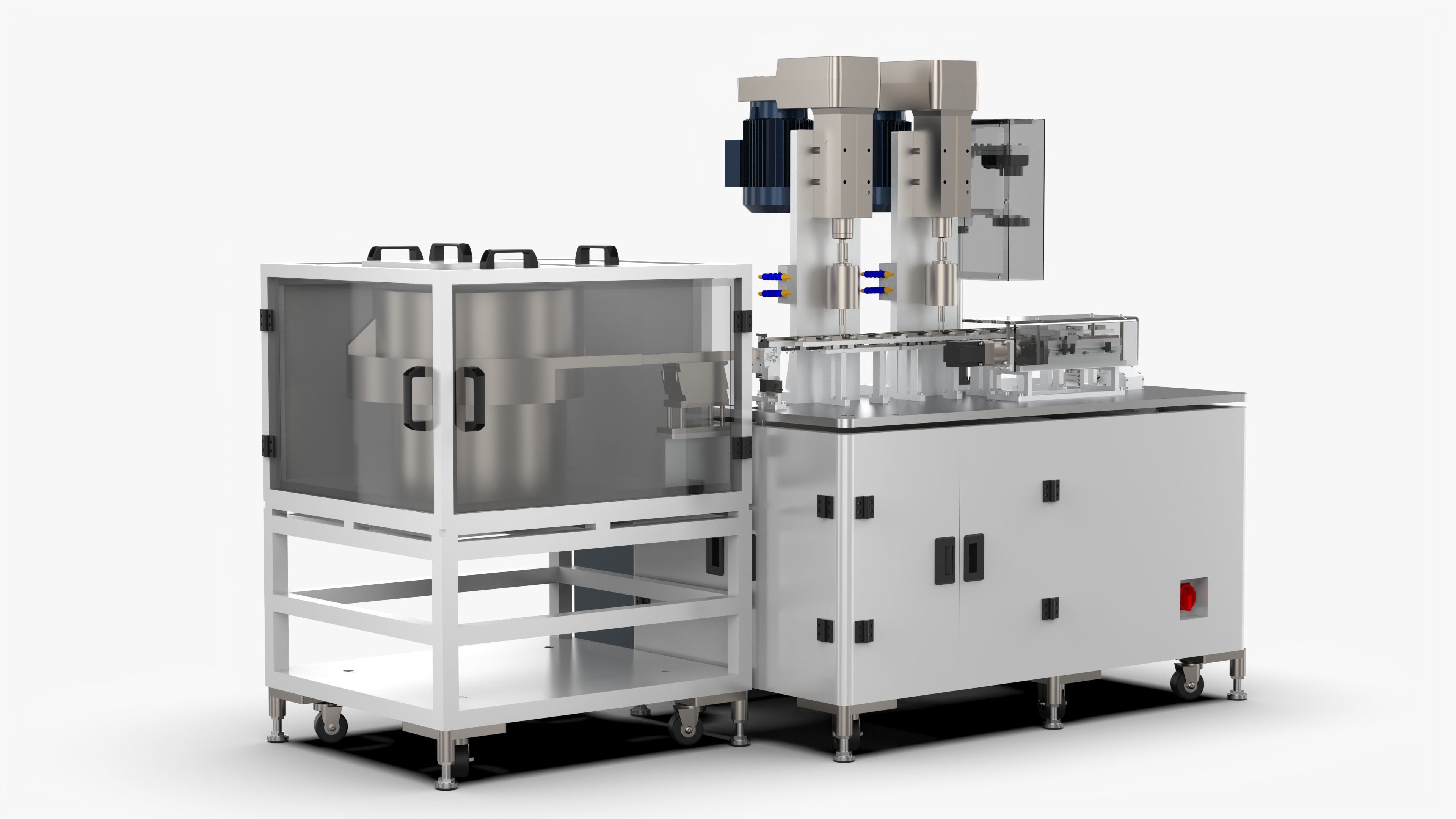

The automatic punching and tapping machine adopts the vibrating plate feeding method. After entering the equipment, the servo screw rod is used to carry the pushing head to complete the transplanting action of the product in the flow channel. The first station completes the automatic punching action, and the second station completes the automatic Tapping equipment, the third station adopts visual inspection, completes the OK/NG distinction through the automatic material distribution module, the overall structure of the equipment is mature, the production street is high, the control is simple, and the equipment has been mass-produced.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,988,488
• Vertice: 5,965,464
