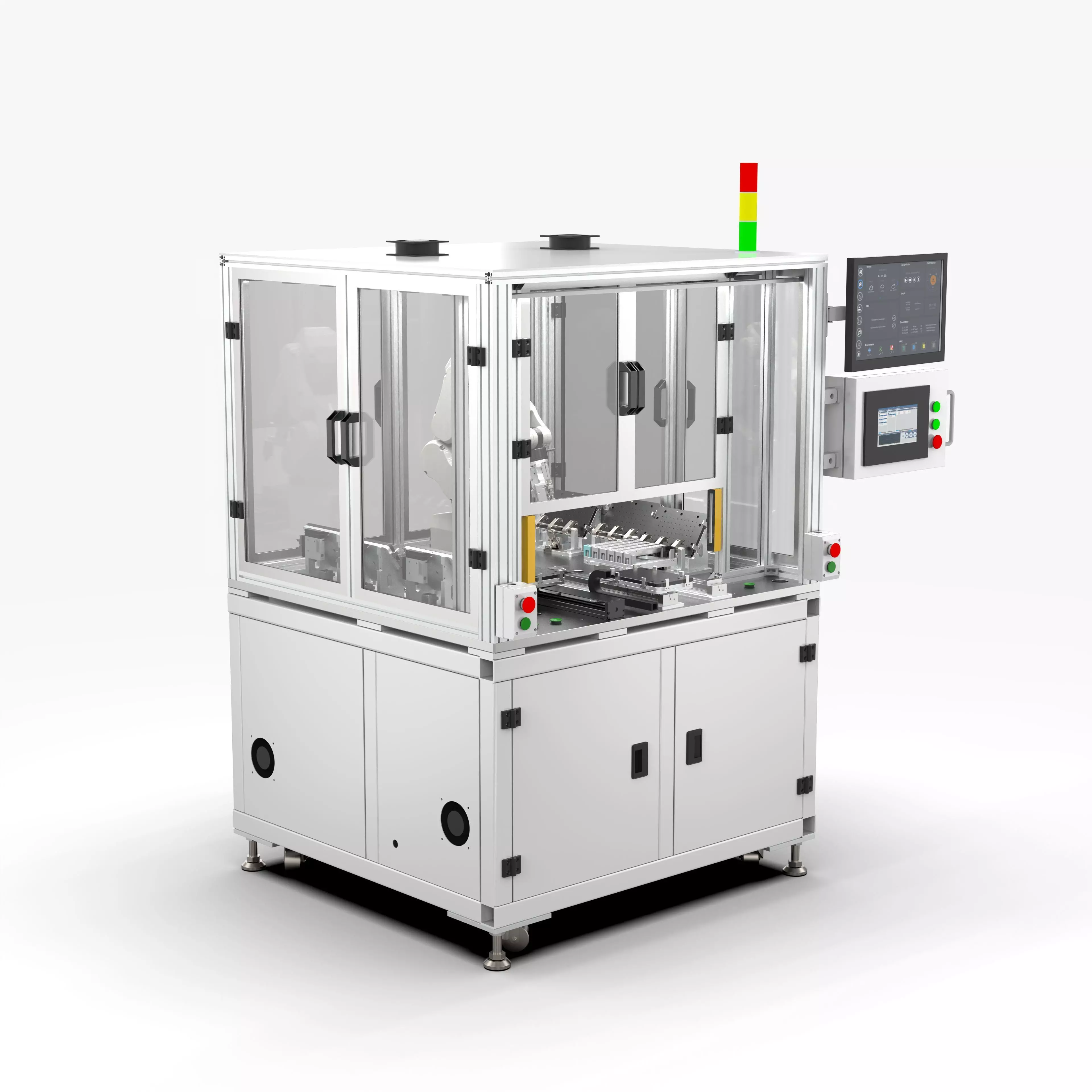

Automatic Magnet Heat Holding Assembly Machine

Introduction

Automated magnet assembly heat holding equipment process:

  1. The magnet jig is manually put into the equipment.
  2. The flat shell is manually loaded to the shell loading station.
  3. The manipulator absorbs the shell and the magnet jig to prevent the visual positioning of the holding station Assemble the magnet.
  4. Heating the pressure-holding magnet.
  5. After completion, the manipulator grabs and unloads the material to the shell.

File Formats

  • Inventor 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 2,572,490
  • Vertice: 7,717,470
Related Tagsautomaticmagnetheatholdingassemblymachinesolidworkdesignmodeling
3d
automationmachinerypartmechanismlineproductionrobotmanufacturedrawingindustrialindustrial machine
