DESCRIPTION

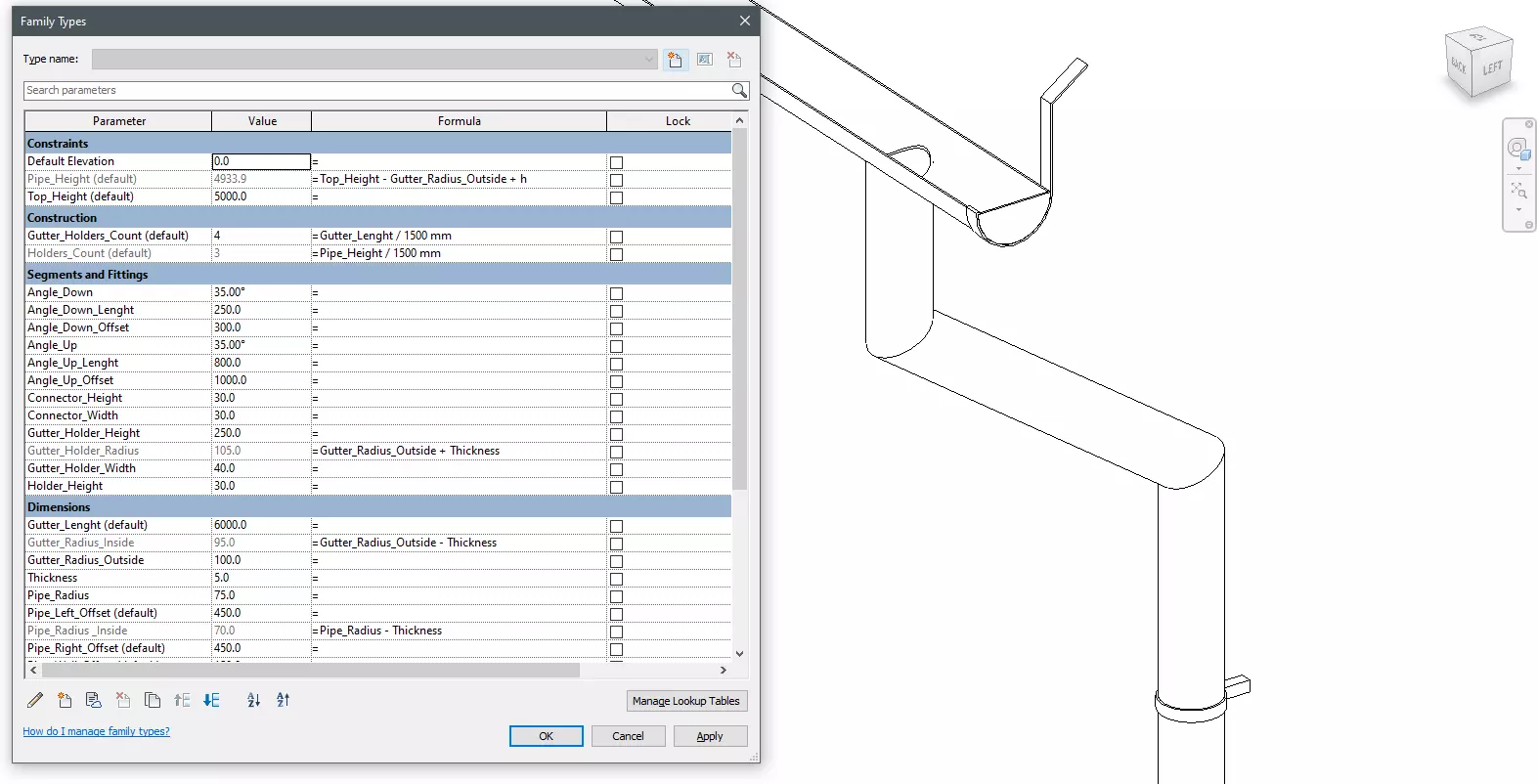

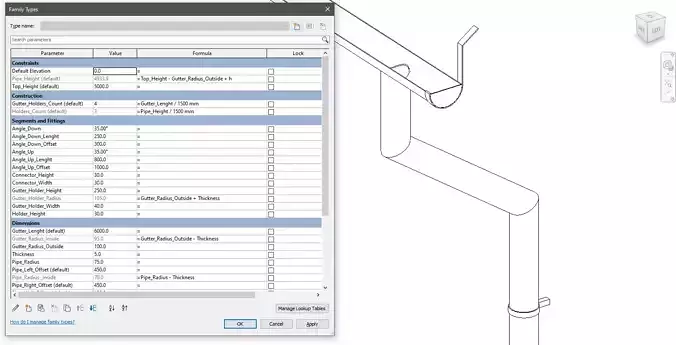

This is a fully parametric 3d Revit Family for rain gutter with pipes, holders and connectors. All aspects of the gutter are parametric including the height, lenght, offsets, angles, pipes visibility and number of holders.

  1. General Parameters:
  2. Gutter_Lenght
  3. Top_Height
  4. Gutter Radius Inside
  5. Gutter Radius Outside
  6. Thickness
  7. Pipe_Radius
  8. Pipe_Left_Offset
  9. Pipe_Radius _ Inside
  10. Pipe_Right_Offset
  11. Pipe_Wall_Offset
  12. Roof_Angle
