Glass Balustrade Line Based Revit Family 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

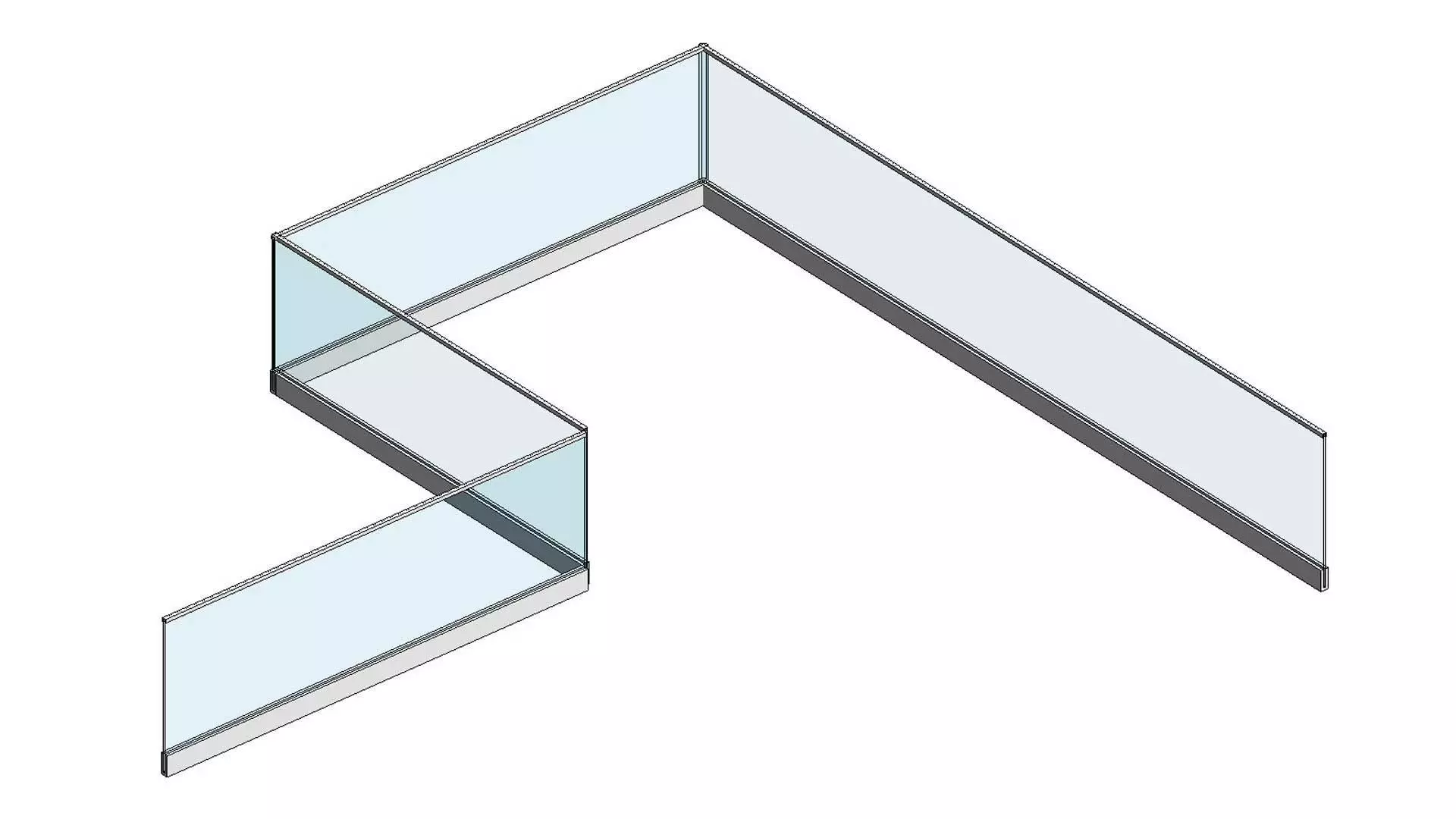

This is a revit line based family 3D model of a glass balustrade with exposed aluminium base supprot.

Line based models can be loaded into any project and entered as 3D family components just be drawing simple lines, rectangular shapes, polygons or by selecting existing lines ( i.e. balcony edges ).

This is a fully parametric family, meaning user can change its propertis and create various variations of a glass balustrade based on each project needs. Parameters available are shown below.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Line Based Generic Model
  • File Extension : .rfa

PARAMETERS:

  • Total Height
  • Glass Thickness
  • Base support height
  • Top CAP ON/OFF graphical illustration
  • Material parameters for base support, glass and top cap

Length is controlled by the line drawn ( no need to enter specific length )Full parametric family, line based generic model that can be cut through sections.

Related Tagsbalustradearchitecturalbalconyrailingbalusterglassrevitfamilylineotherparametric
architecture
exteriorfencerail
