DESCRIPTION

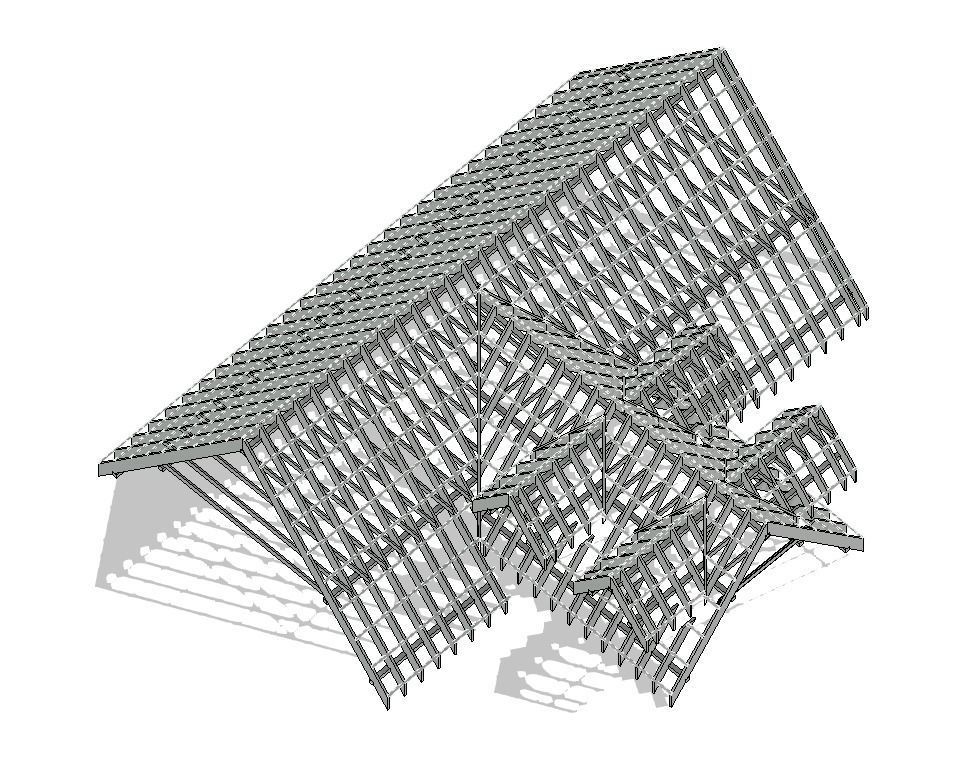

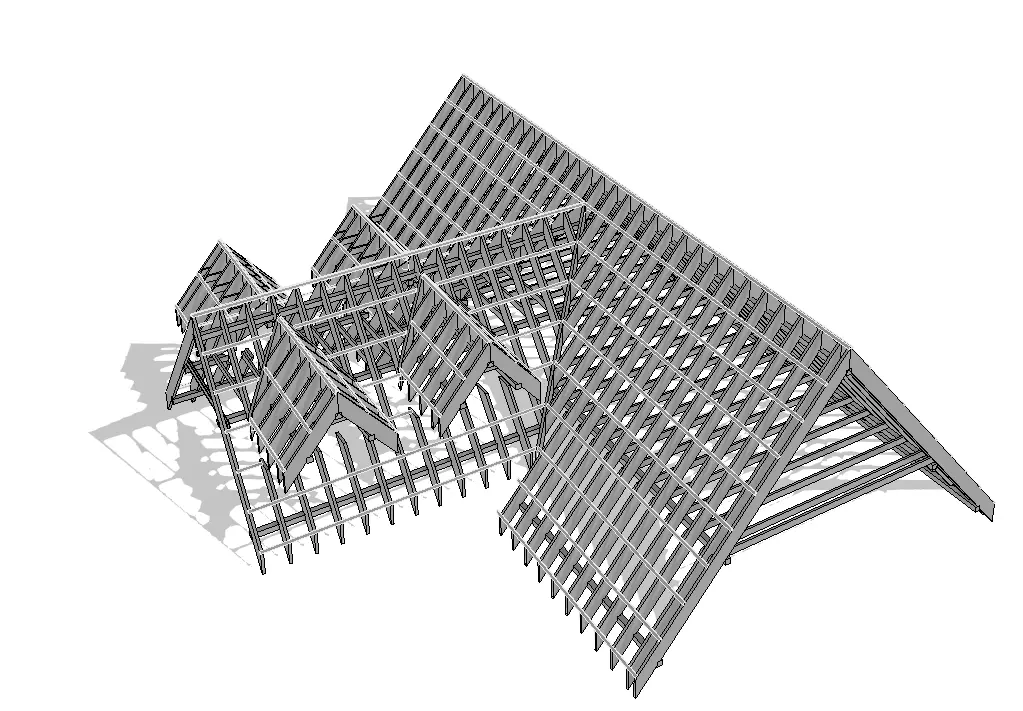

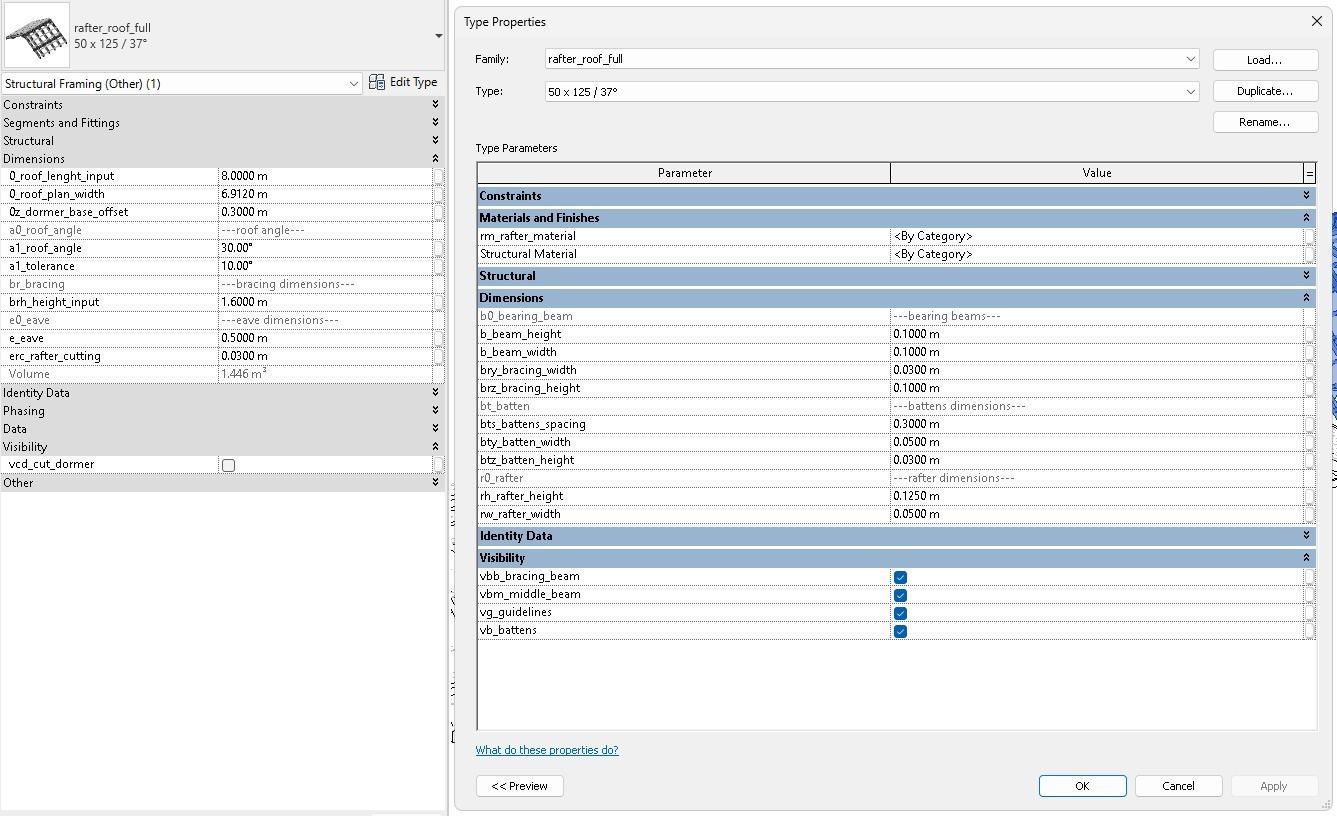

This is a fully parametric and detailed 3d Revit Family of Rafter Roof. All aspects of the roof are parametric including the height, length, offsets, angles, beams count, spacing and visibility.

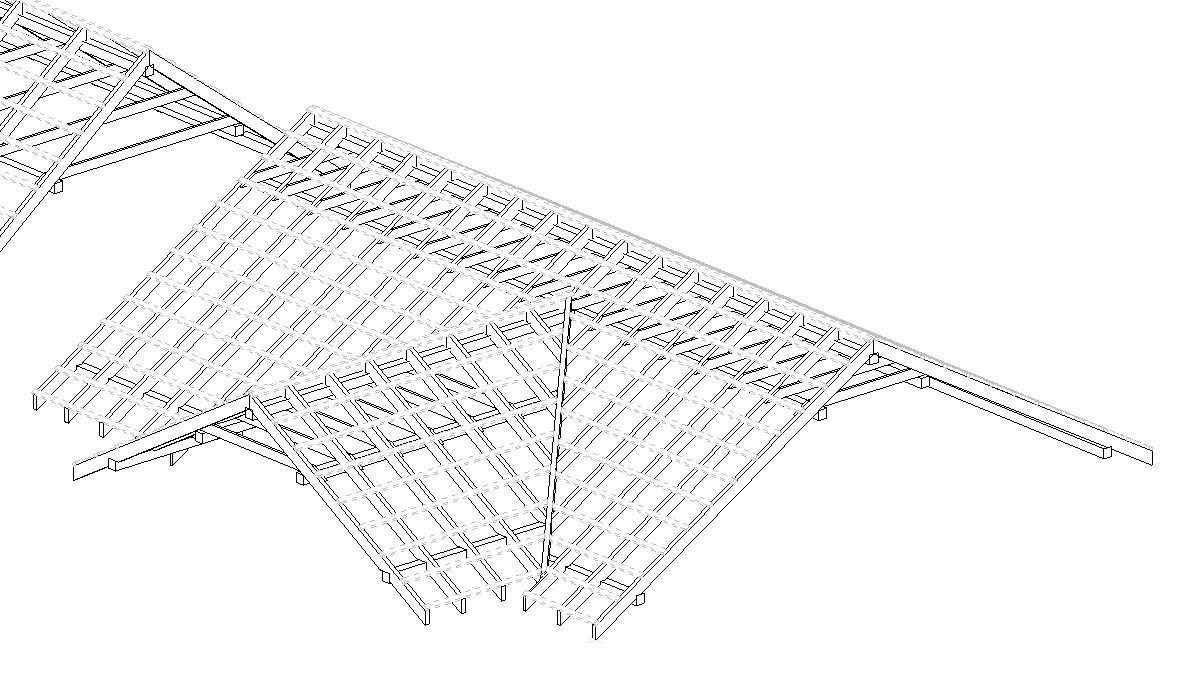

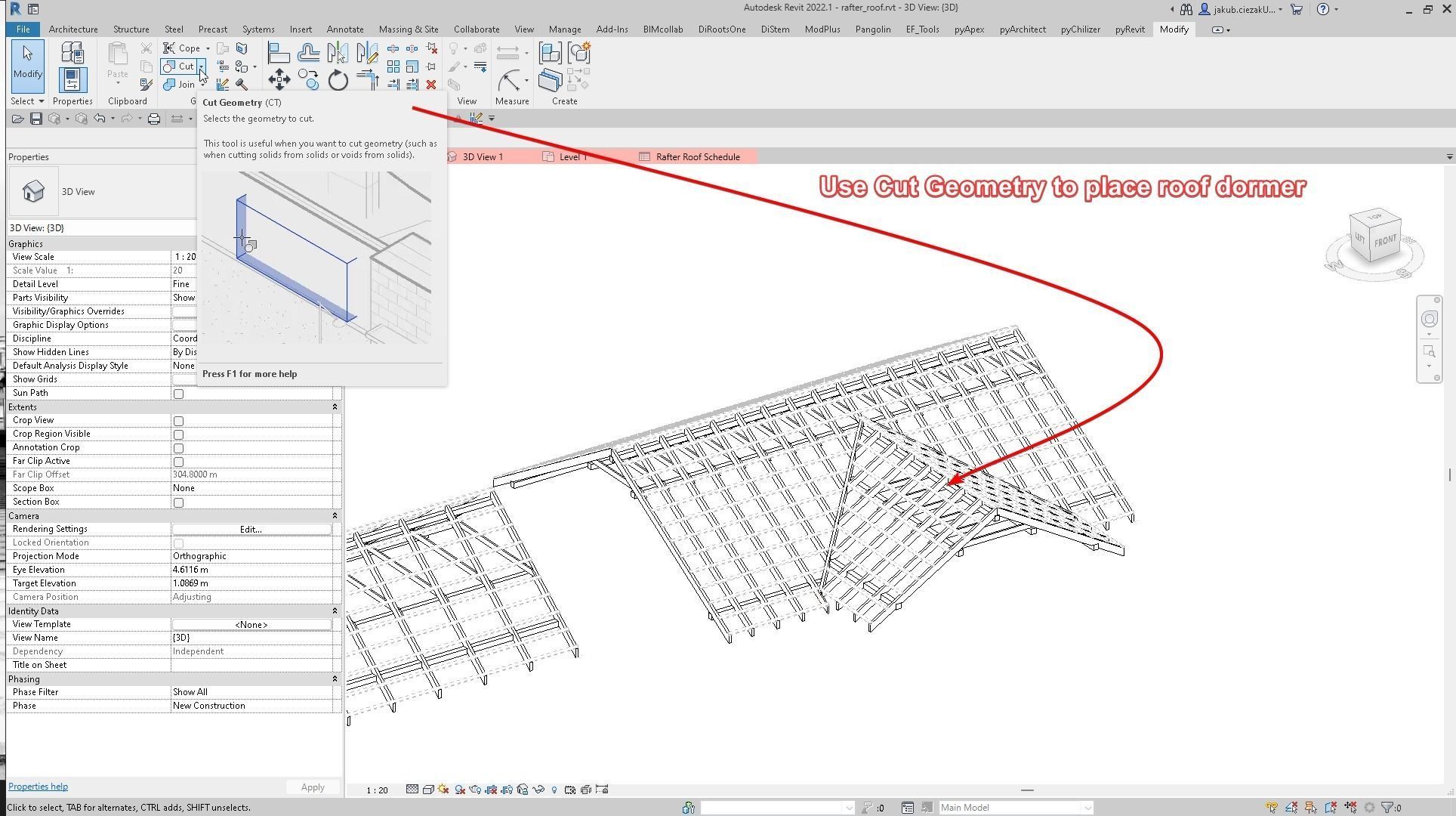

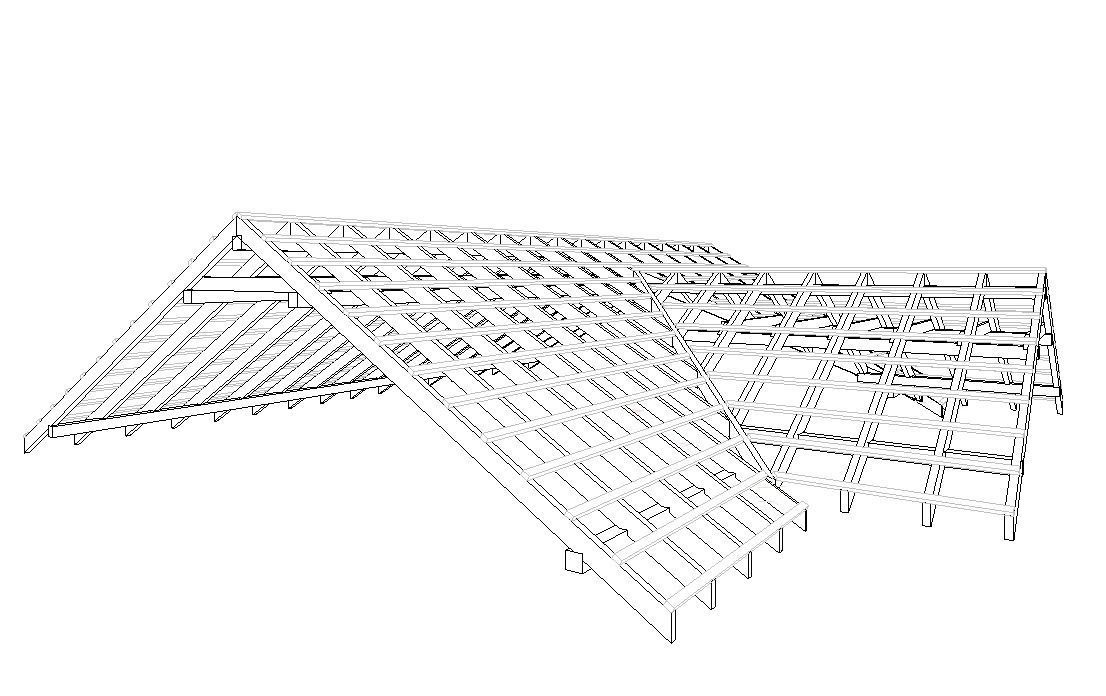

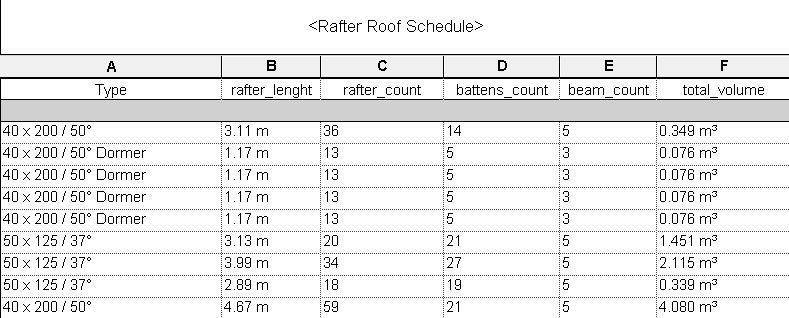

The structure consists of main wooden timber rafters lying on beams, horizontal beams that provide additional support to the rafters mid-span. Family includes battens for support roof tiles. You have possibility to create dormer window on the roof- use Cut Geometry tool to create void in main roof. You can create eave of the roof to provide an overhang. Family is using shared parameter for volume schedule.

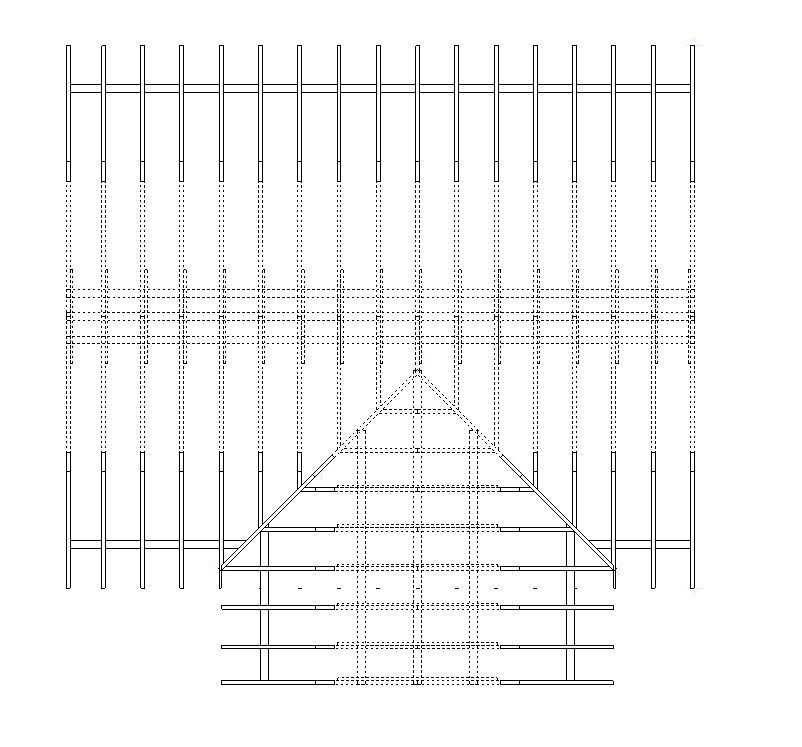

With few clicks you can create rafter roof construction with 2d visibility on a plan and volume schedule.

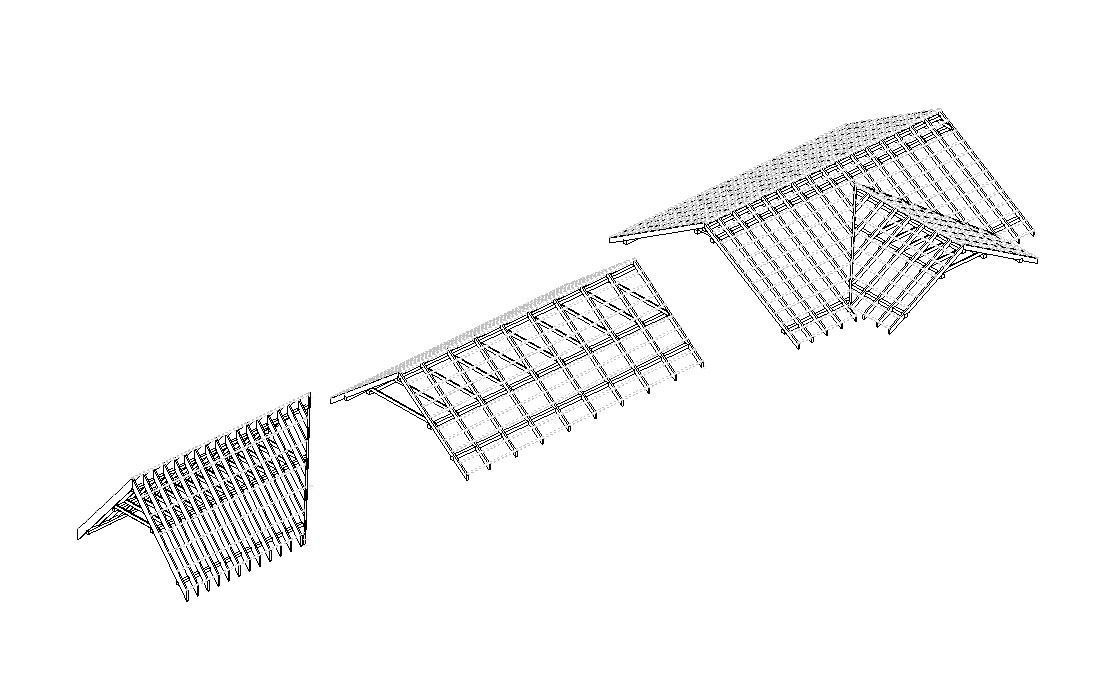

You can create unlimited number of variations to match any project, please see examples in preview. All element have parameters they can be changed by the user separately.

Feel free to contact me if you have any questions. I hope u like it.

Related Tagsrevitexterior
model
architecturalfamilyhouseparametric
architecture
buildingrooftimberwoodstructurehistoricengineering

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
TOP SELLING
One of the best-selling models in its category — trusted by many buyers.

Revit Family Rafter Roof Parametric Timber Structure 3D model

Royalty Free License
Created by
j
jcarchwiz
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
RFA2 files
Size: 6.01 MB
Default 2022 | 2022
Default 2022 | 2022
Exchange format
OTHER
Other<br />File Size: 2.56 KB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
The model includes animations (movement or actions) that can be played in supported software or engines.
The model has a skeleton or bone structure, making it ready for posing or animation.
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Geometry
Other
The model uses a different geometry type (e.g., voxels, point cloud).
Unwrapped UVs
Unknown
Publish date
2024-05-24
Model ID
#5302830
