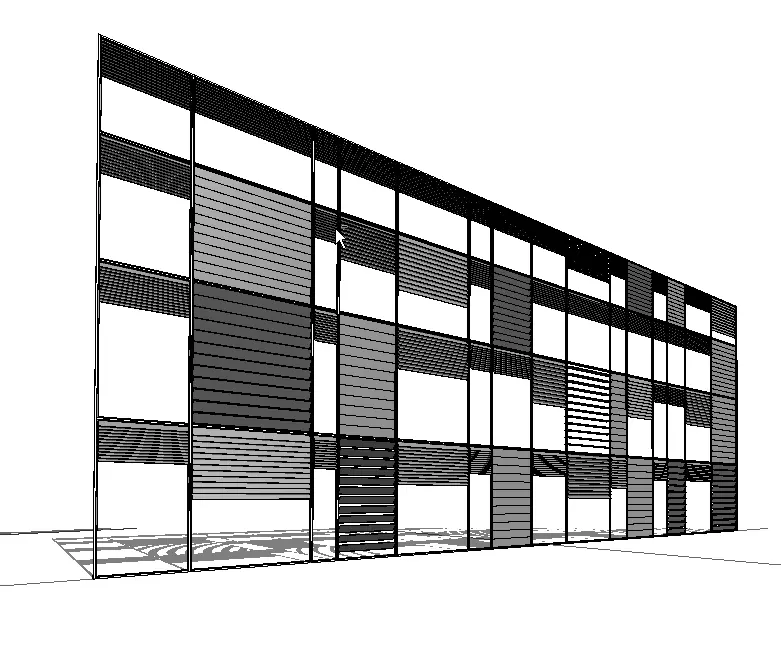

High-quality Revit Curtain Panel family with fully parametric dynamic louvers, designed for modern façades, sun-shading systems, and responsive building envelopes. Ideal for architectural visualization, BIM documentation, and performance-driven façade design.
This family is built for Curtain Walls and allows complete control over louver geometry, spacing, orientation, and behavior directly from Revit parameters.
Key Features:
- Fully parametric dynamic louver system
- Adjustable louver angle (open / closed / custom tilt)
- Control of louver spacing, depth, thickness, and count
- Curtain Panel–based family for seamless Curtain Wall integration
- Panel dimensions driven automatically by curtain grid
- Optimized, lightweight geometry for large façades
- Clean and organized Revit parameters
- Supports responsive façade and sun-shading design
- Suitable for BIM documentation and architectural visualization
- No plugins or scripts required (native Revit family)
- Compatible with Revit 2024+
