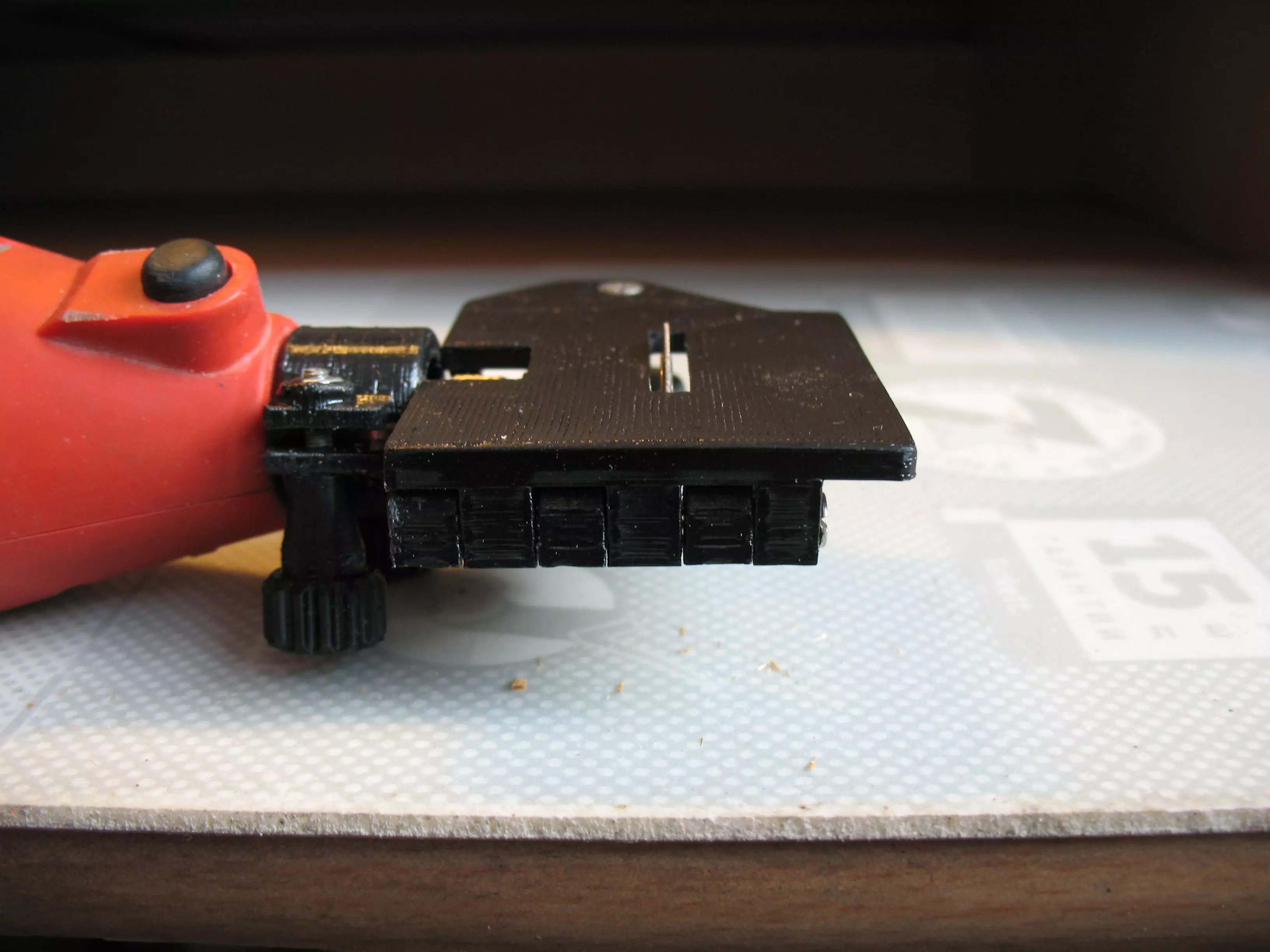

Add-ons for Dremel and clones.
- functionality, minimum plastic and weight
- https://youtu.be/cGOsqgVxJYE
- The diameter of the mount on the engraver is two options
- File Clon Stol krep for clone china - diameter approx 17.5mm pitch approx. 1.25mm.
- Drem Stol krep file for Dremel - thread diameter - 19mm, on the nut - 16mm, pitch about 2mm. Files marked with Dremel and Clone.
- The height of the table is adjustable for different discs and tasks. The diameter of the nozzle (disk) is from 10 to 28 mm. or lower the table to the disk and there will be a size under the disk for example 32mm ;)
- I print the cheapest ABS. Total weight 18 grams
- The table itself (the upper part) is printed - face down, the lower part - up,
- both attachments to the engraver - standing, nuts twisting - standing.
- For assembly, several screws with a diameter of 3 mm
- 40mm - 1pc, 25mm - 1pc. 20mm - 1pcs. 10mm - 2pcs. And the nuts - 7pcs.
- Includes OBj and Step files.
- Print nozzle 0.4mm height 0.2mm Supports included for 70 degrees.
STL, STEP, F3D files. If the site lacks the source file you need, I will upload it to the site. Or I will send it to you personally.
