Bunker for Skyhunter 1800 Trichogramma 3D print model

Bunker for Skyhunter 1800 Trichogramma or other bulk material.

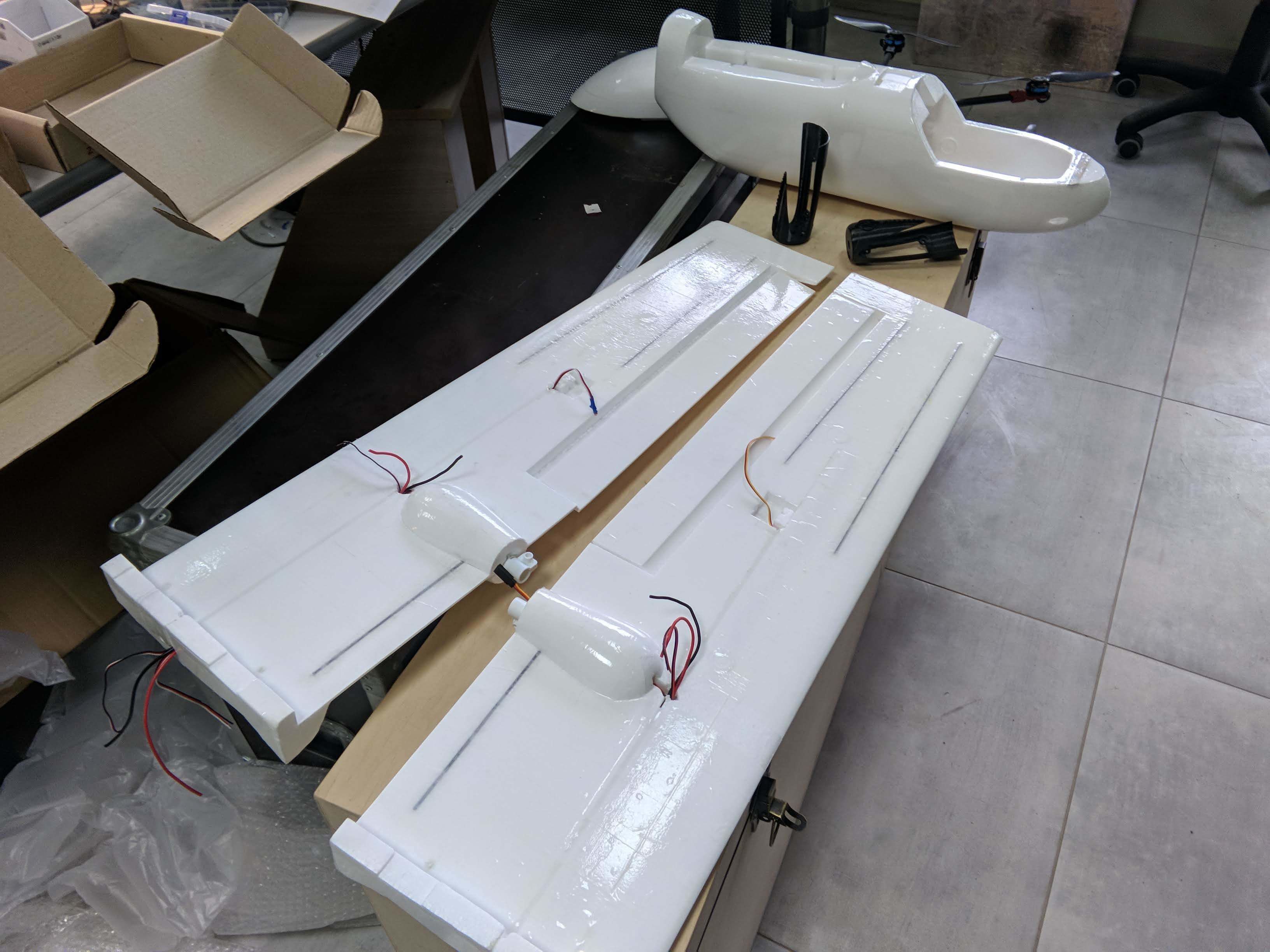

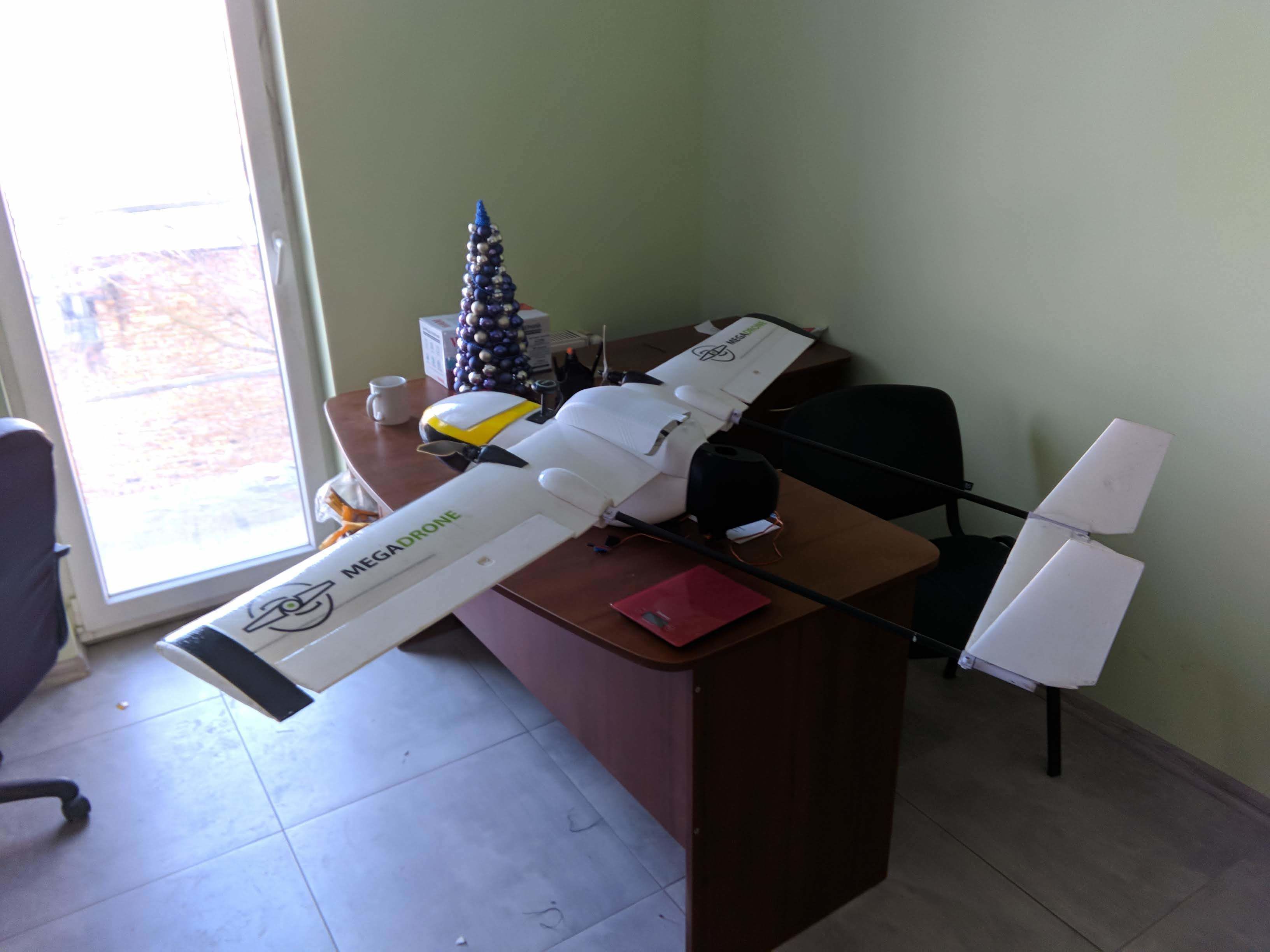

• The Skyhunter 1800 EPO aircraft is used as a carrier for the introduction of substances in agriculture.

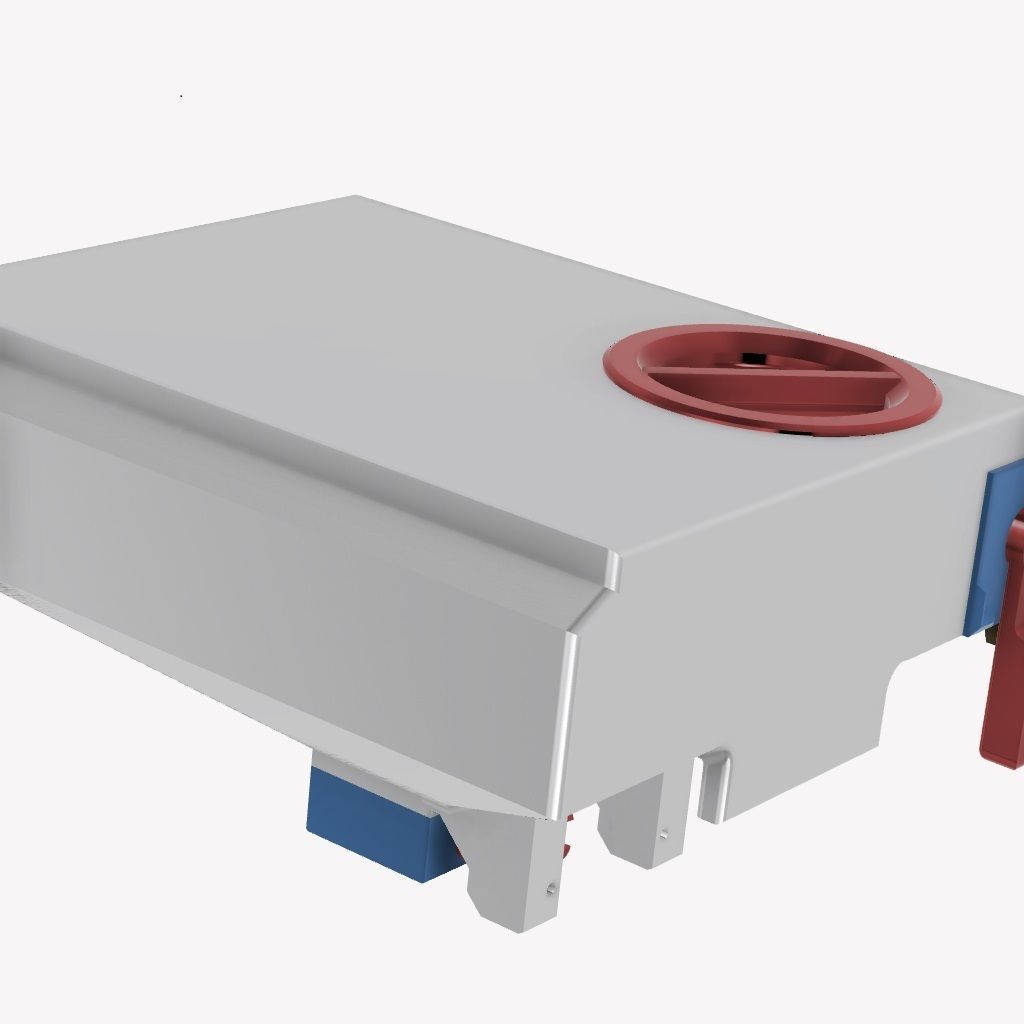

• Hopper - Max height 80mm, width 117mm, length 136mm
• Printed in its entirety. Serva Emax ES08.
• The flow is regulated by impulses of opening and closing within wide limits, the time in both positions of the damper is controlled by the AP.
• There is a version of the product with a continuous controlled supply of substances, if it is interesting, please inform.
• Upon request, I will post the sources.

STL, STEP, F3D files. If the site lacks the source file you need, I will upload it to the site. Or I will send it to you personally.

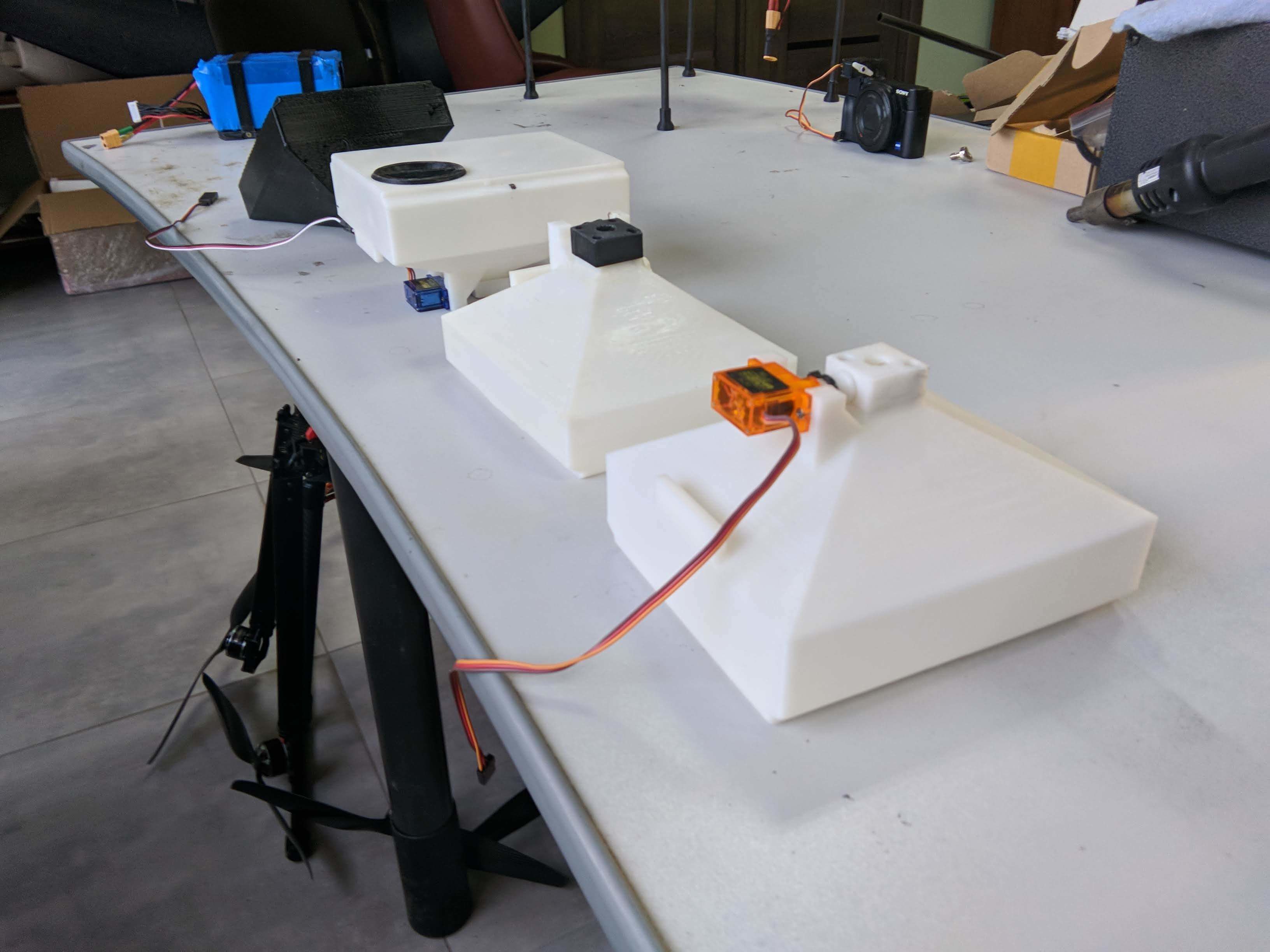

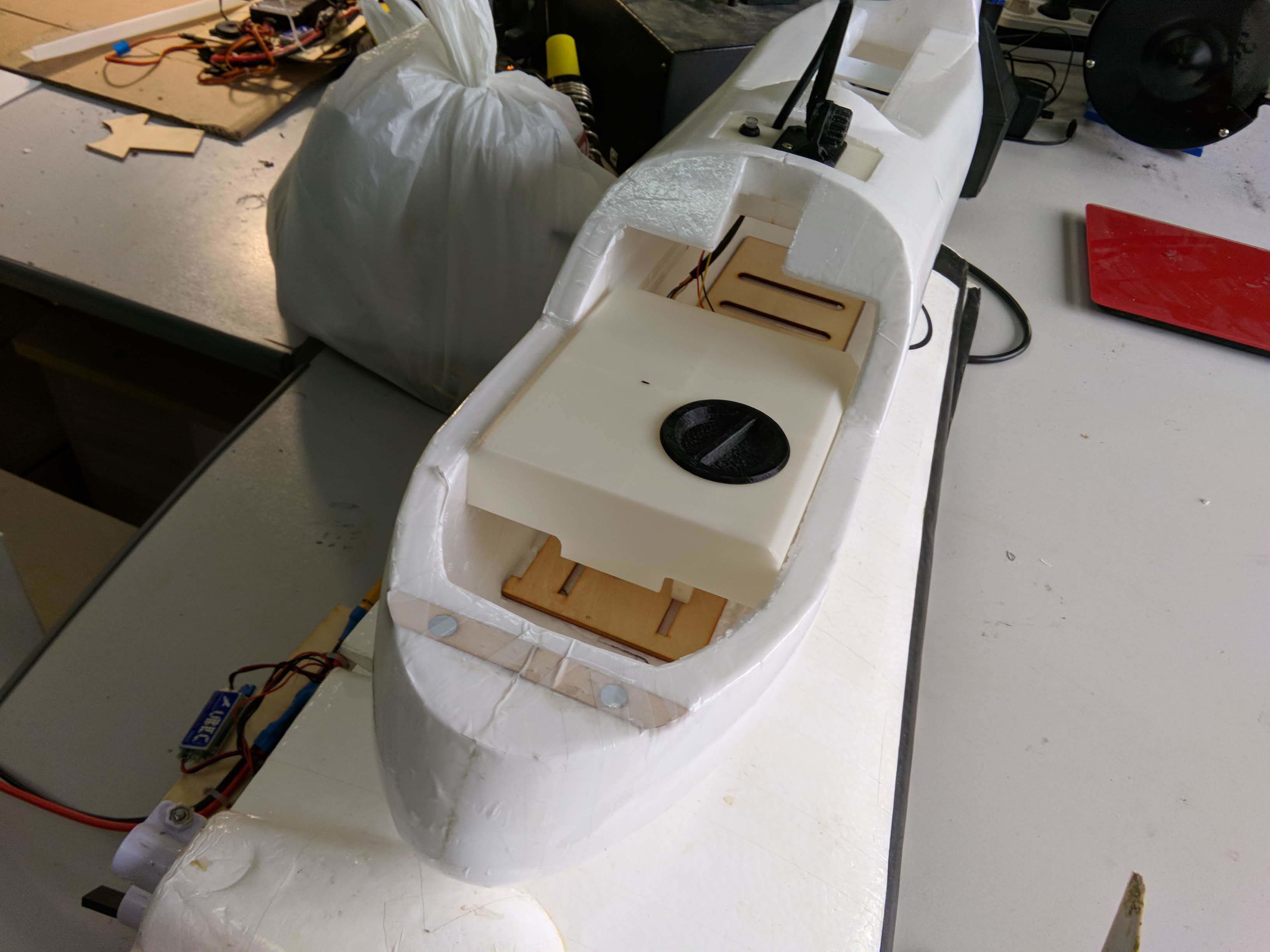

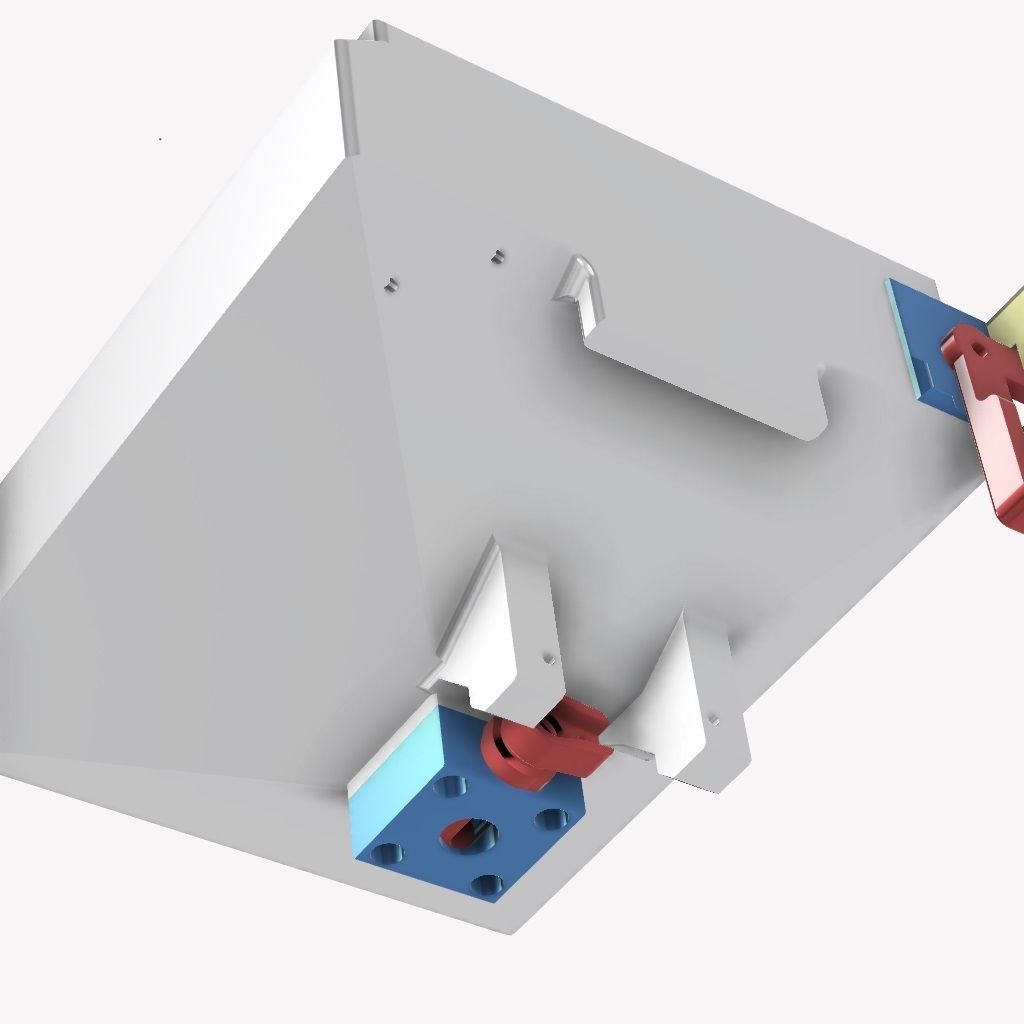

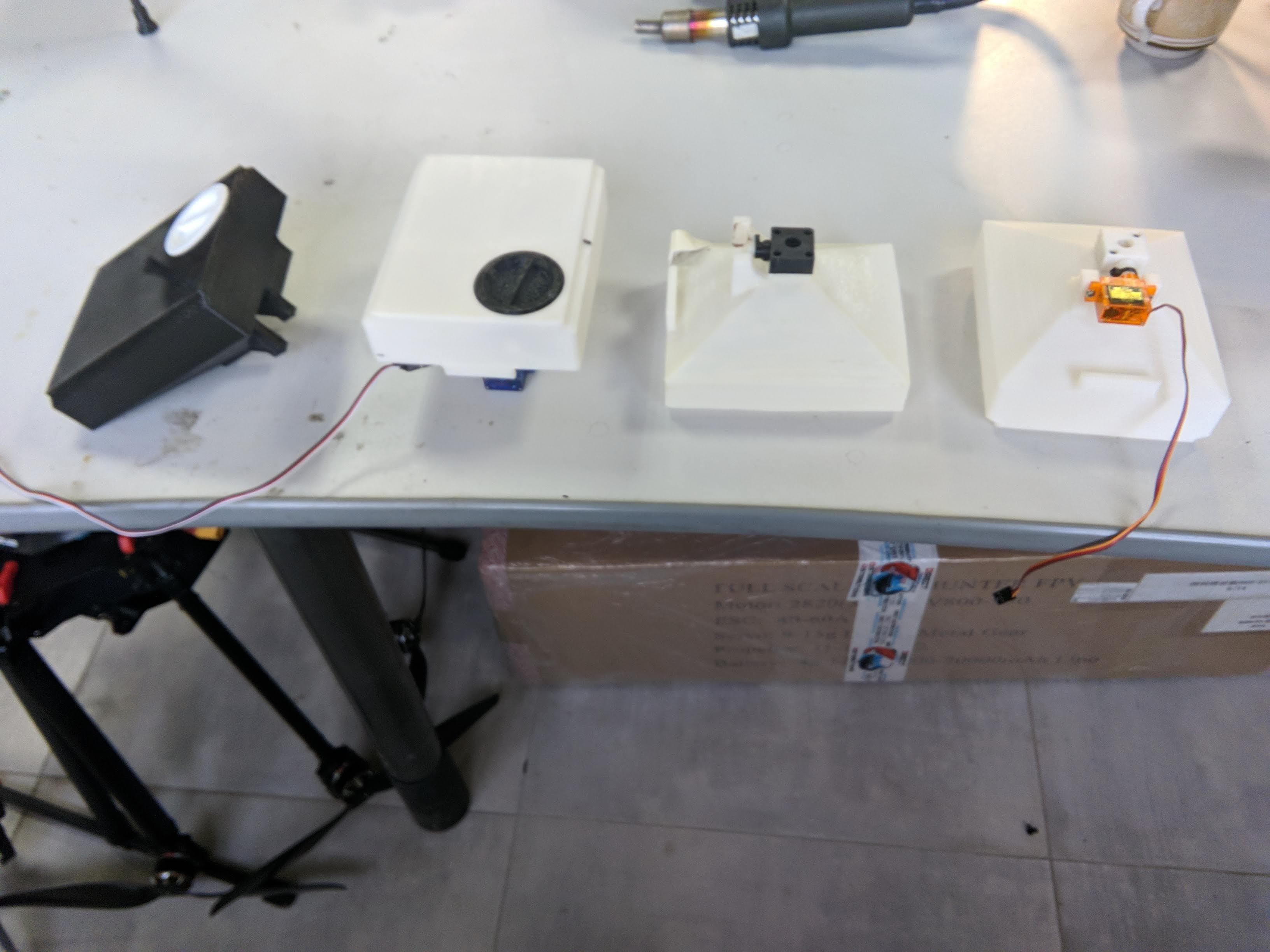

The bunker is inserted into the fuselage from the front. It is fixed inside the fuselage with a lock on the side. Servo - two options...

1. normal, open the valve and close, the amount depends on the open time and the opening angle.
2. This is a new... servo converted to constant rotation, and the dispenser (impeller) is constantly pouring, the amount depends on the rotation speed. The amount of all this is regulated by a PWM signal to the servo. It can be used as a camera control, that is, take pictures, and at this moment the servo dispenser opens or rotates. That is, Pixhawk is completely enough for flight, creating a mission and controlling the rash. something like this...
