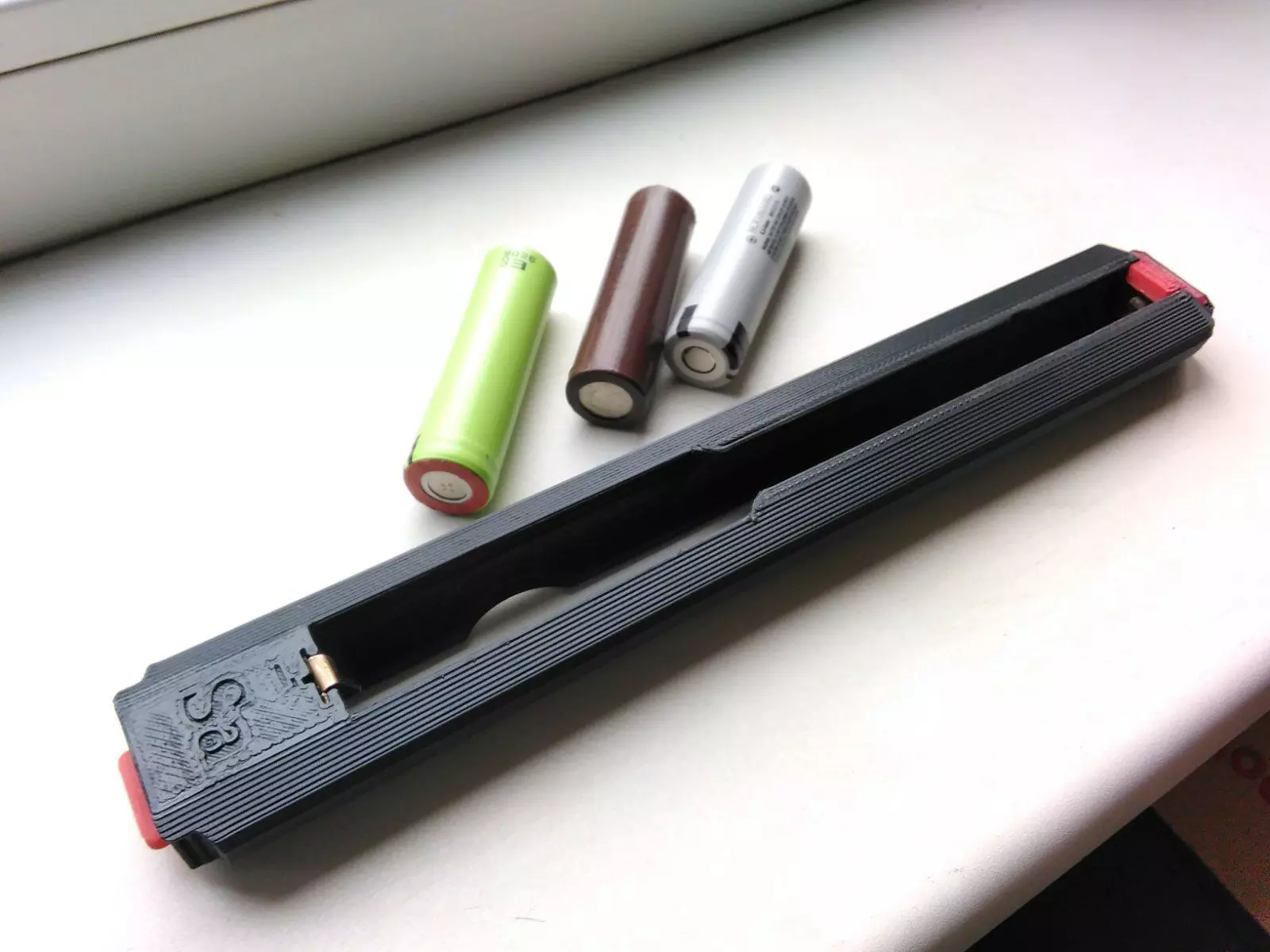

Minelab battery case for 18650 .

• For metal detectors Minelab Explorer, Quattro, Safari, E-TRAC.

• I offer a working version that is convenient for printing.
• Failes - STL, Solid, Parasolid.
• After printing, it is also necessary to manually close the contacts, terminals and connect them with a wire.
• Only for conventional 18650 Li-ion batteries without protection (65mm).
• on batteries, the + terminal should be approximately flush with the battery case.
• Lightweight, strong. The batteries do not protrude from above. The box itself is exactly in size, does not dangle and comes out easily. Box lock with spring, its latch snaps off effortlessly. The contacts for the batteries are either purchased or hand made from spring steel or brass.
• Box weight 35 grams. With Akums 3 * 47gr. = 180 grams.
• The original weighs 330 grams.
• Print nozzle 0.4 - 0,6mm height 0.2 - 0,3mm.
• Supports included for 70 degrees.

STL, STEP, F3D files. If the site lacks the source file you need, I will upload it to the site. Or I will send it to you personally.
