1-Meter High-Detail 3D Printable Model3D model descriptionExperience the pinnacle of modern submarine warfare with this meticulously detailed 1-meter 3D printable model of the Virginia-class nuclear-powered attack submarine (SSN-774). As the U.S. Navy's most advanced and numerous active submarine class, the Virginia-class represents a revolution in stealth technology, multi-mission capability, and undersea dominance.Commissioned since 2004 to replace the aging Los Angeles-class fleet, these submarines are designed for the post-Cold War era, excelling in both deep-ocean anti-submarine warfare and shallow-water littoral operations. With 22 submarines delivered and production continuing through 2043, the Virginia-class will remain the backbone of American undersea superiority well into the 2070s.Technical Specifications of the Real Submarine:

Length: 377 feet (115 meters)Beam: 33 feet (10 meters)Displacement: Approximately 7,800 tons submergedSpeed: 25+ knots (28+ mph)Crew: 132 personnel (15 officers, 117 enlisted)Propulsion: One S9G nuclear reactor, one shaftArmament:

4x 533mm torpedo tubes (Mk 48 ADCAP torpedoes)12x Vertical Launch System tubes (Tomahawk cruise missiles)Block V variants: Virginia Payload Module (VPM) with 4 additional large-diameter tubes (up to 40 Tomahawks total)Harpoon anti-ship missiles, advanced mobile mines

Key Innovations:

Photonics Mast: Revolutionary camera-based imaging system replacing traditional periscopesFly-by-Wire Control: Advanced ship control system for superior shallow-water handlingBQQ-10 Sonar Suite: State-of-the-art detection with bow spherical array, flank arrays, and towed arraySpecial Operations Support: Reconfigurable torpedo room and lock-out chamber for SEAL team deploymentStealth Design: HY-100 steel double-hull construction optimized for acoustic signature reduction

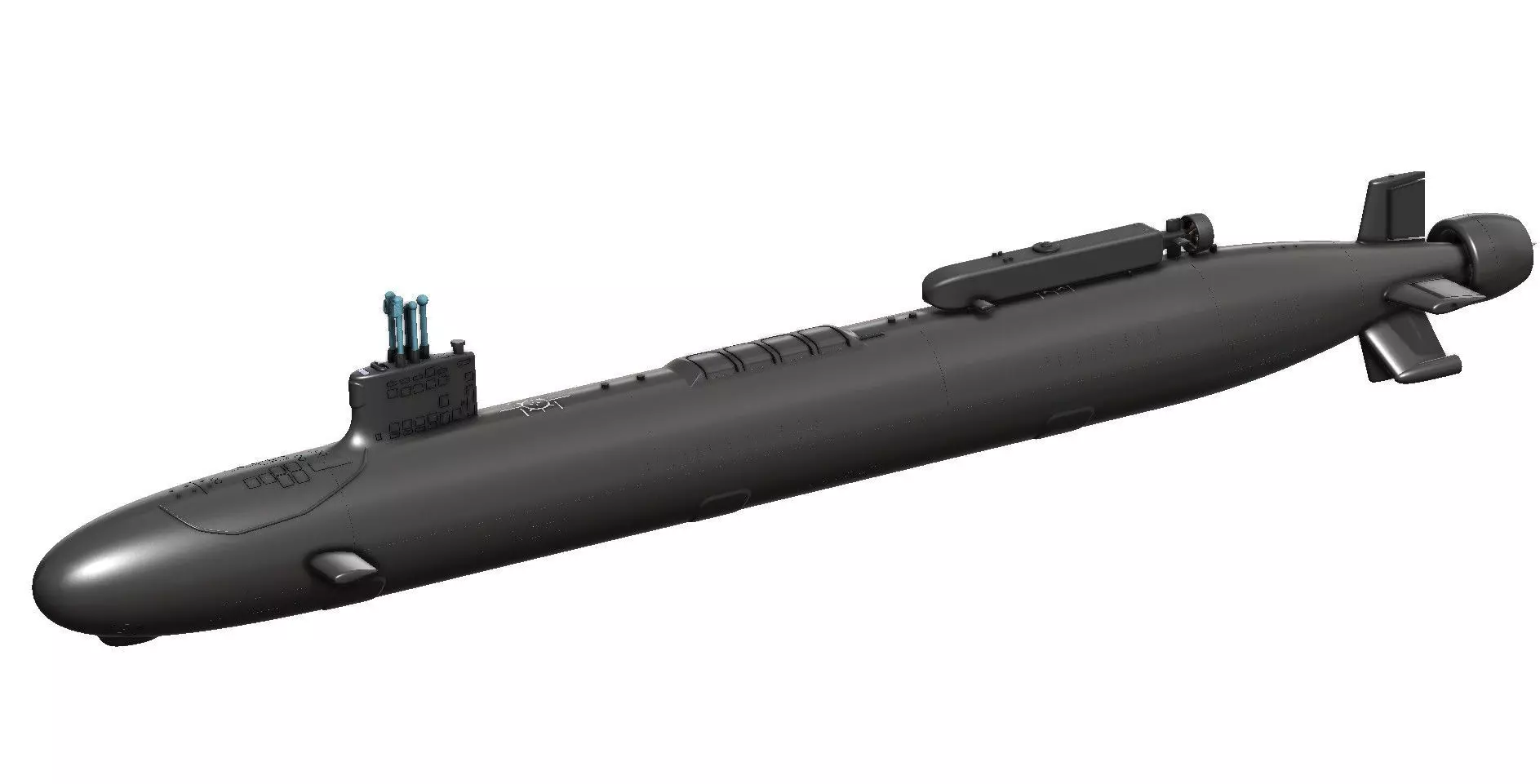

3D Model Features:This highly detailed 1-meter model captures the Virginia-class in exceptional accuracy, offering modular construction for maximum versatility and display options.What Makes This Model Special:

Modular Design Philosophy: Build multiple Virginia-class variants representing different Block configurations (I through V)Configurable Weapon Systems: Choose between VLS tubes or large-diameter Virginia Payload Tubes (VPTs)Functional Missile Hatches: Optional opening or permanently sealed silo hatches with hinge mechanismsVariable Hull Lengths: Construct standard Block I-IV configurations or extended Block V submarines with Virginia Payload ModuleSpecial Forces Capability: Includes detailed mini-submarine (Dry Deck Shelter) for SEAL operationsMultiple Display Options: Three different display stand configurations includedControl Surface Articulation: Separate dive planes (bow and stern) and rudder componentsRealistic Propulsion: Detailed propeller with optional shaft or mounting hole configurations

File Contents (41 STL Files):

Modular hull sections (8 pieces - upper and lower)Bow sections with/without vertical launch missilesMissile silo hatches (2 types) with functional hinge axesNose cone configurations (standard and missile-equipped)Tail cone and propeller assemblyDive planes (4 pieces - front left/right, rear left/right)Periscope masts (5 variations) plus radar and snorkelMini-submarine (upper and lower hull)Display stands (3 configurations)Propeller guard and rudder components

3D printing settingsPrinting Specifications:

Optimized for: Standard FDM printers (220×220×250mm build volume minimum)Recommended Layer Height: 0.12-0.2mm for optimal detailSupport Required: Minimal - most parts designed for support-free printingAssembly: Precision-fit components with alignment featuresSkill Level: Intermediate to AdvancedEstimated Print Time: 80-120 hours (depending on settings and configuration)Material Recommendation: PLA, PETG, or ABS; black or dark gray for authentic appearance

Build Options:

Display Model: Fully assembled static model with open or closed hatchesBlock Variant Selection: Build Block I/II (12 VLS tubes), Block III/IV (2 VPTs), or Block V (with extended VPM section)RC Conversion Ready: Modular sections designed to accommodate waterproofing and internal componentsEducational Cutaway: Display with removable upper hull to show internal missile configuration

Historical Context:The Virginia-class program represents one of the most successful naval procurement efforts in modern history, consistently delivered under budget and ahead of schedule. Originally developed under the codename Centurion, these submarines were the first U.S. warships designed entirely using 3D visualization technology (CATIA), revolutionizing naval architecture.Notable Achievements:

First commissioned: USS Virginia (SSN-774) in October 2004Most numerous active submarine class globally (as of July 2025)Selected by Australia under AUKUS agreement for Royal Australian NavyRecipient of the David Packard Excellence in Acquisition Award (1996, 1998, 2008)

Mission Capabilities:

Anti-submarine warfare (ASW)Anti-surface warfare (ASuW)Intelligence, Surveillance, and Reconnaissance (ISR)Special operations supportStrike warfare (land attack with Tomahawk missiles)Mine warfare and deploymentBattle group operations

Perfect For:

Military history enthusiasts and submarine collectorsNaval architecture students and educatorsRC submarine builders seeking authentic scale platformsMuseum display and educational exhibitsAdvanced 3D printing challengesSTEM education programsDiorama and scale model builders

Designer Notes:This model represents months of research and refinement, incorporating authentic Virginia-class features while optimizing for 3D printing. The modular design allows you to customize your build based on your interests—whether you want a museum-quality display piece, an RC conversion platform, or an educational cross-section model.Every detail has been carefully considered: the photonics mast configurations reflect different Block variants, the missile silos feature realistic hinge mechanisms, and the hull sections include authentic sonar array housings. The optional mini-submarine attachment represents the Dry Deck Shelter used for covert SEAL team deployments, adding another layer of operational realism.

Please Note: This is a scale model for educational, display, and hobbyist purposes. All dimensions and details are based on publicly available information about the Virginia-class submarine program.
