Worm Gear Collection 02

Worm Gear Collection 02 3D print model

Description

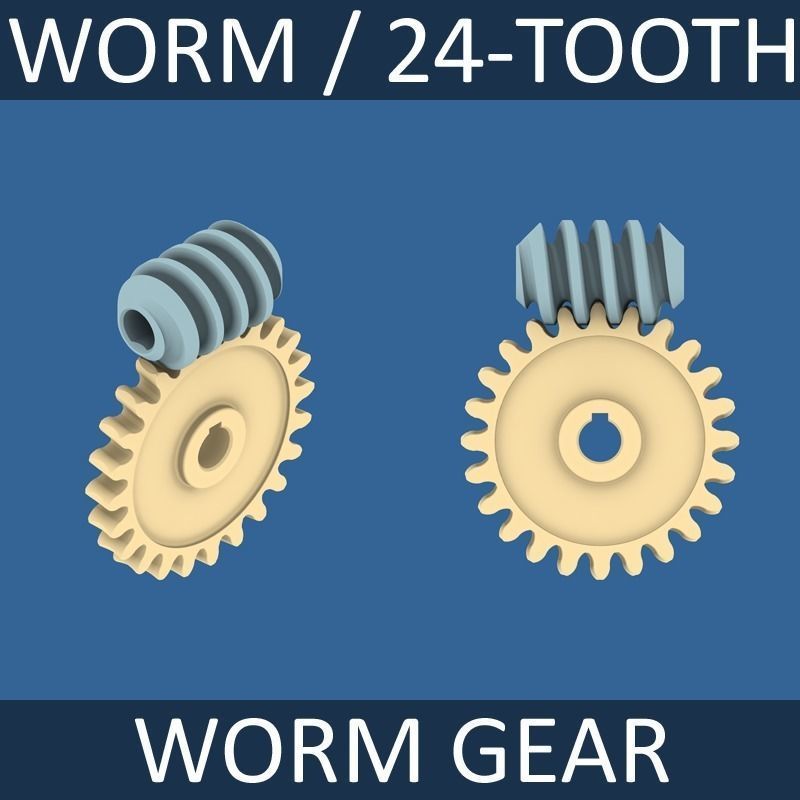

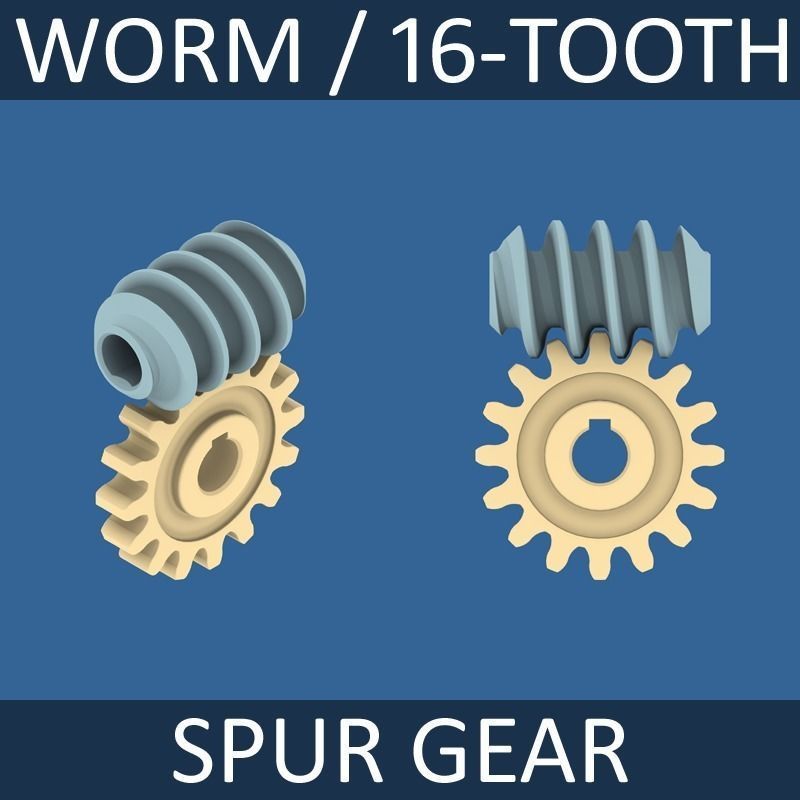

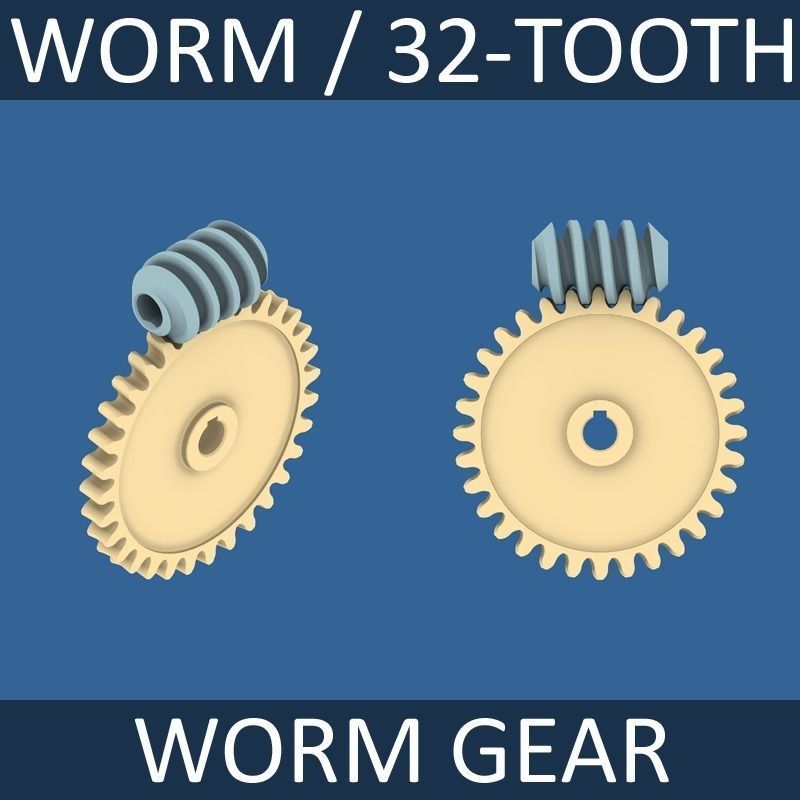

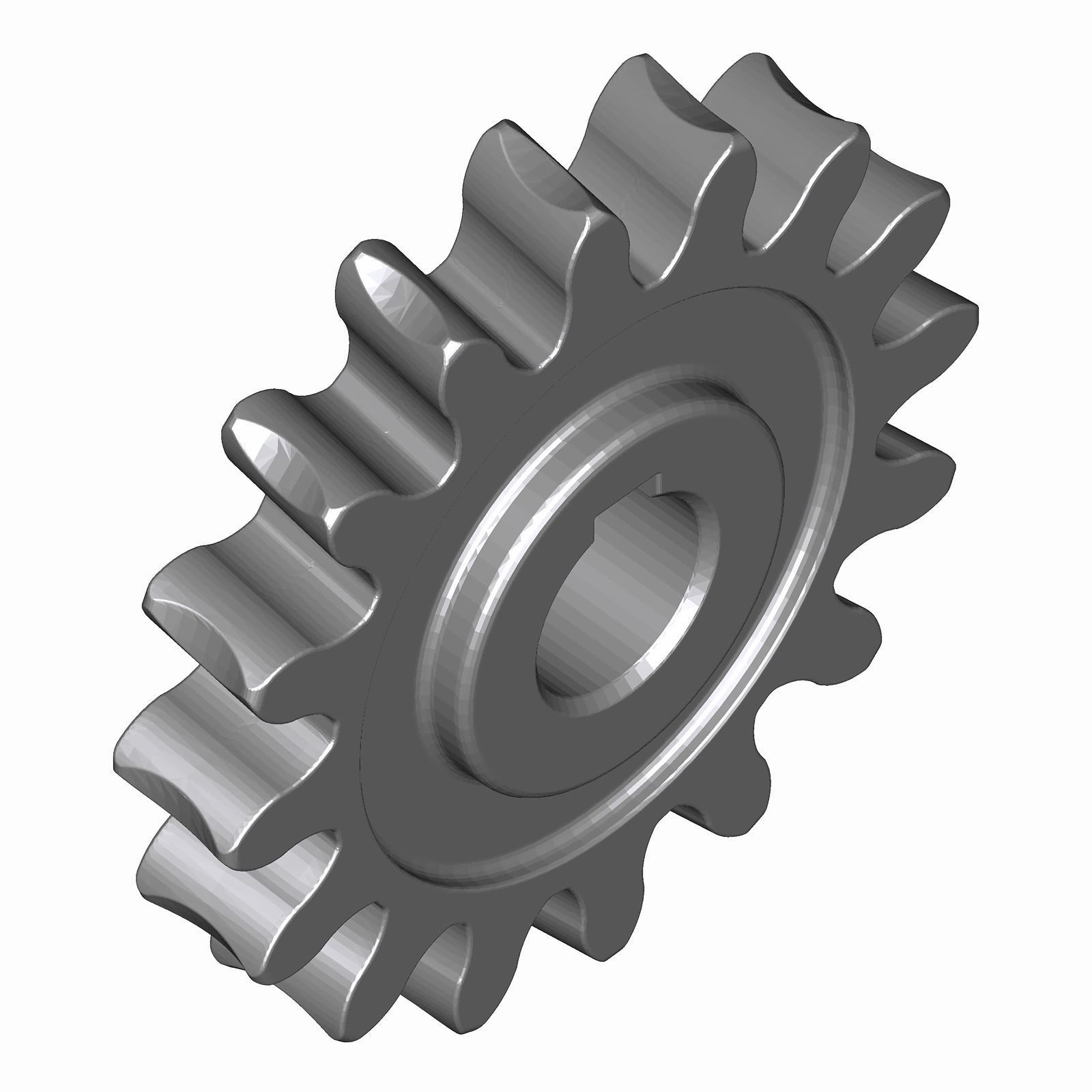

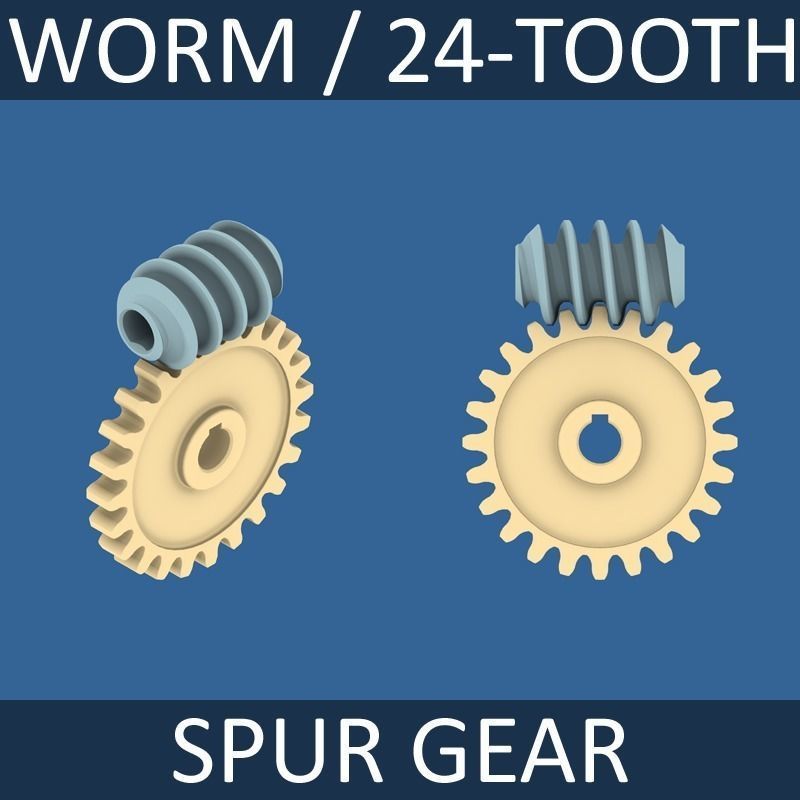

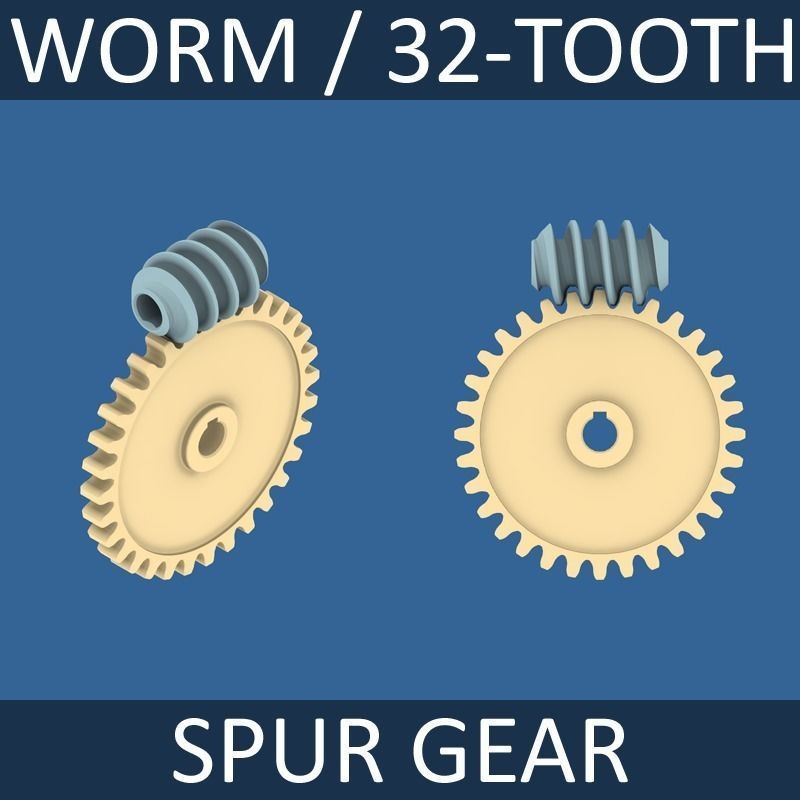

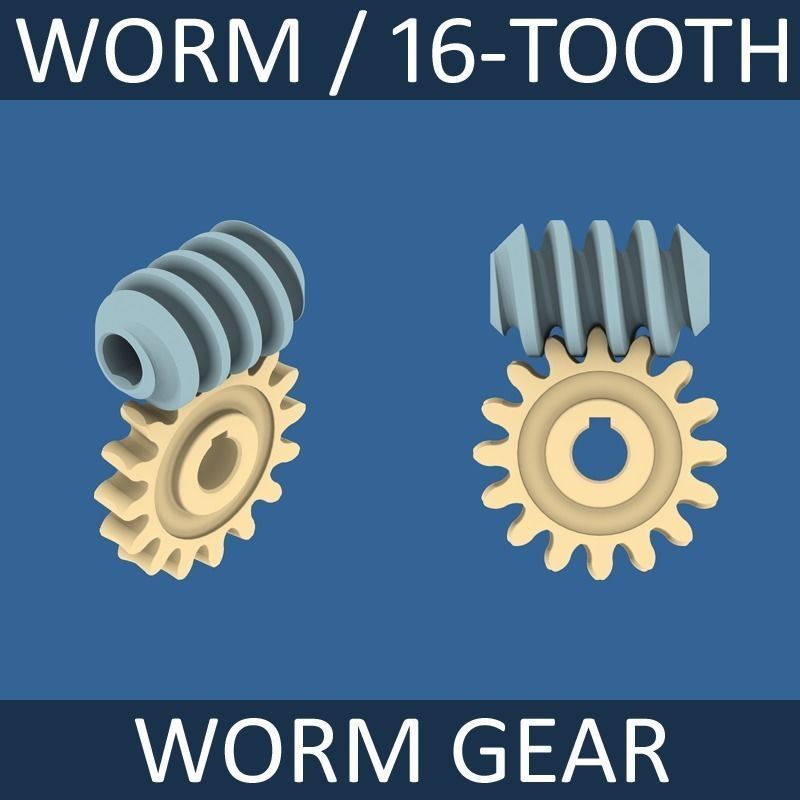

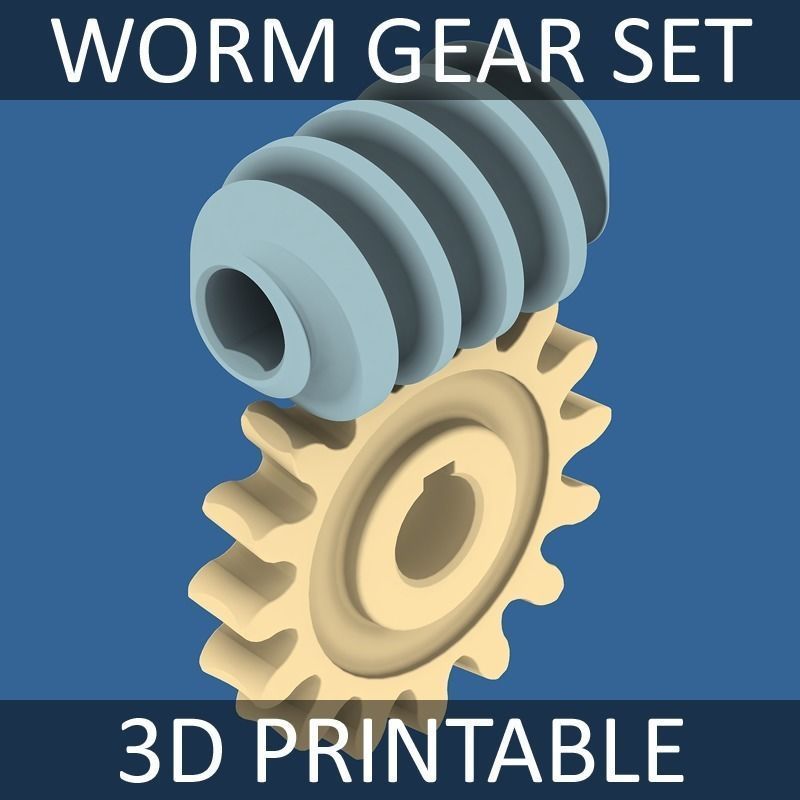

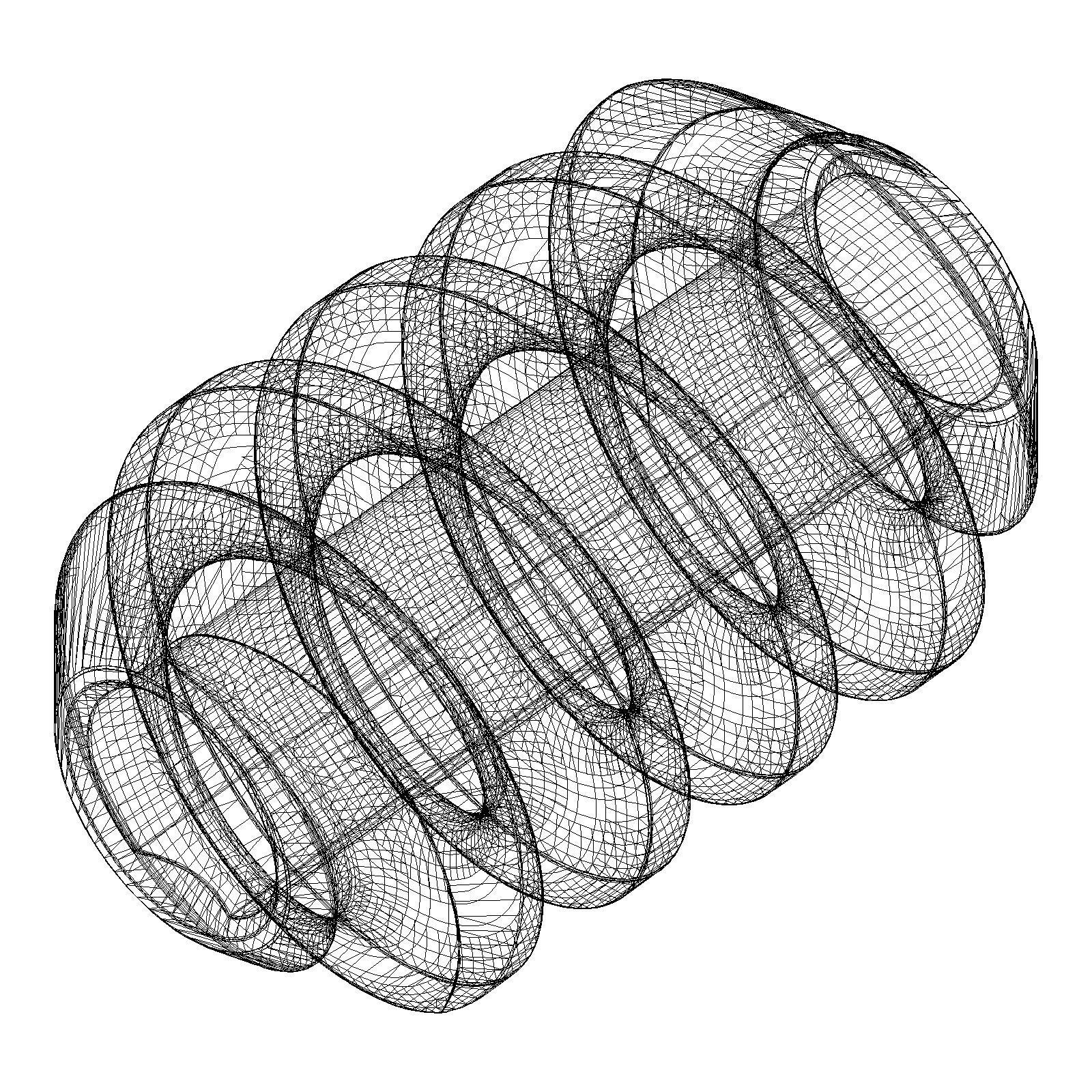

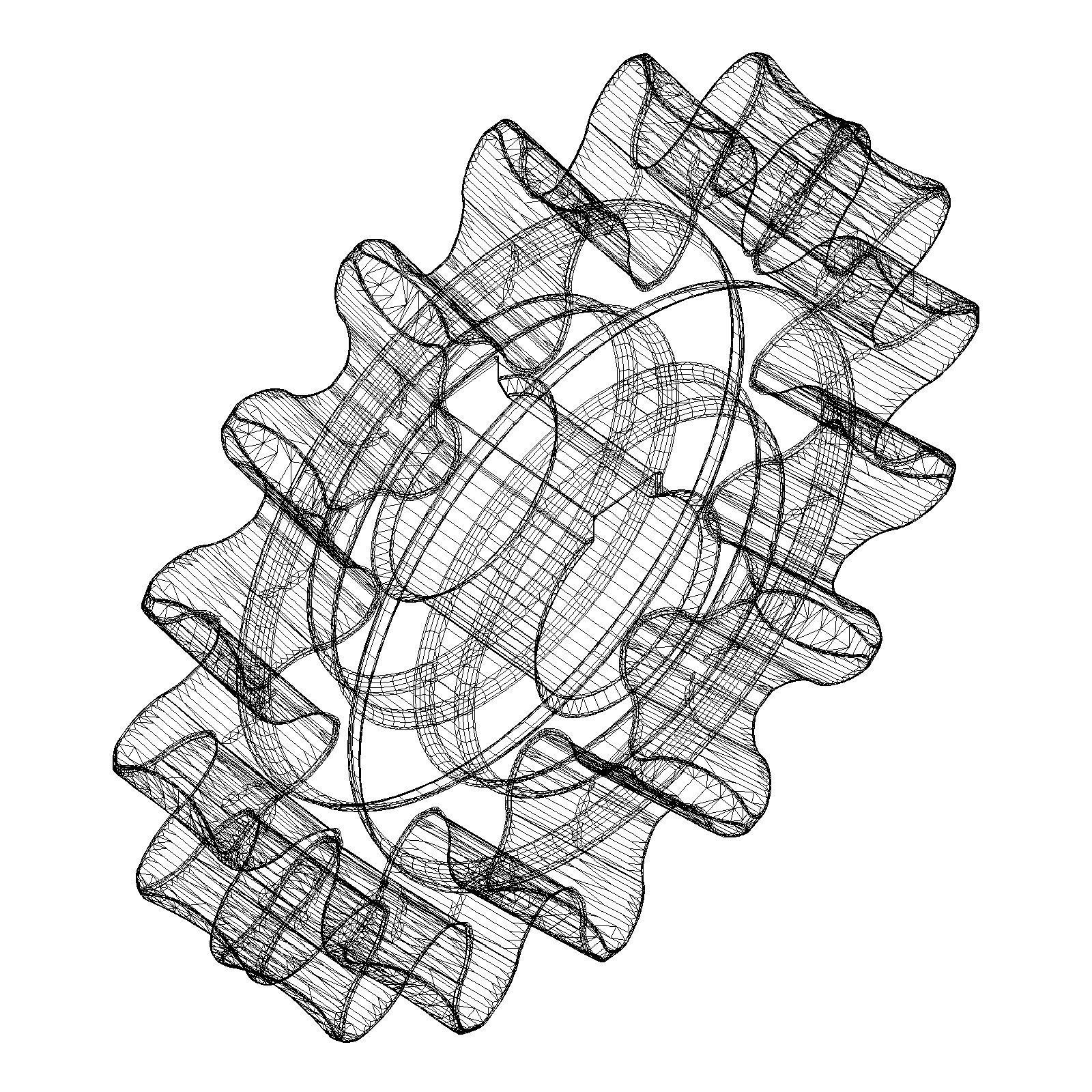

Worm gear collection modeled in Inventor 2010 and provided in multiple file formats (.IPT, .STP, .STL, .3DS, .OBJ). Collection includes 3 worm gear sizes (16-tooth, 24-tooth, and 32-tooth), 3 spur gear sizes (16-tooth, 24-tooth, and 32-tooth), and 2 worm styles (compatible with spur gears and compatible with worm gears), all fully ready for 3D printing.

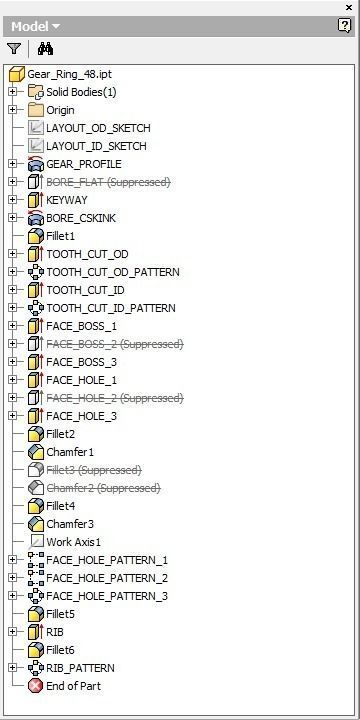

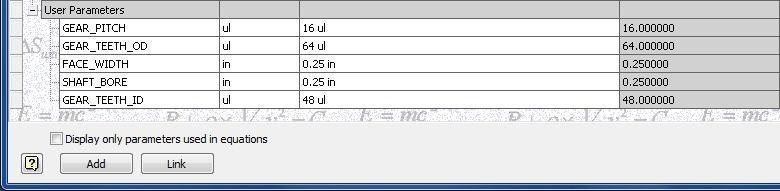

The native Inventor files are fully parametric and can be opened and manipulated in any version of the software that is 2010 or newer. The feature trees and parameter tables are logically arranged and clearly labeled, making edits extremely simple.

All gears have been exported as STP files, allowing them to be opened in any 3D CAD software. They have also been exported as 3DS and OBJ files, for use in 3D graphics packages. Finally, they are provided as STL files, making them ready for 3D printing.

Strategic recesses have been engineered into the larger gears to minimize their volume for the purpose of reducing the cost of 3D printing.

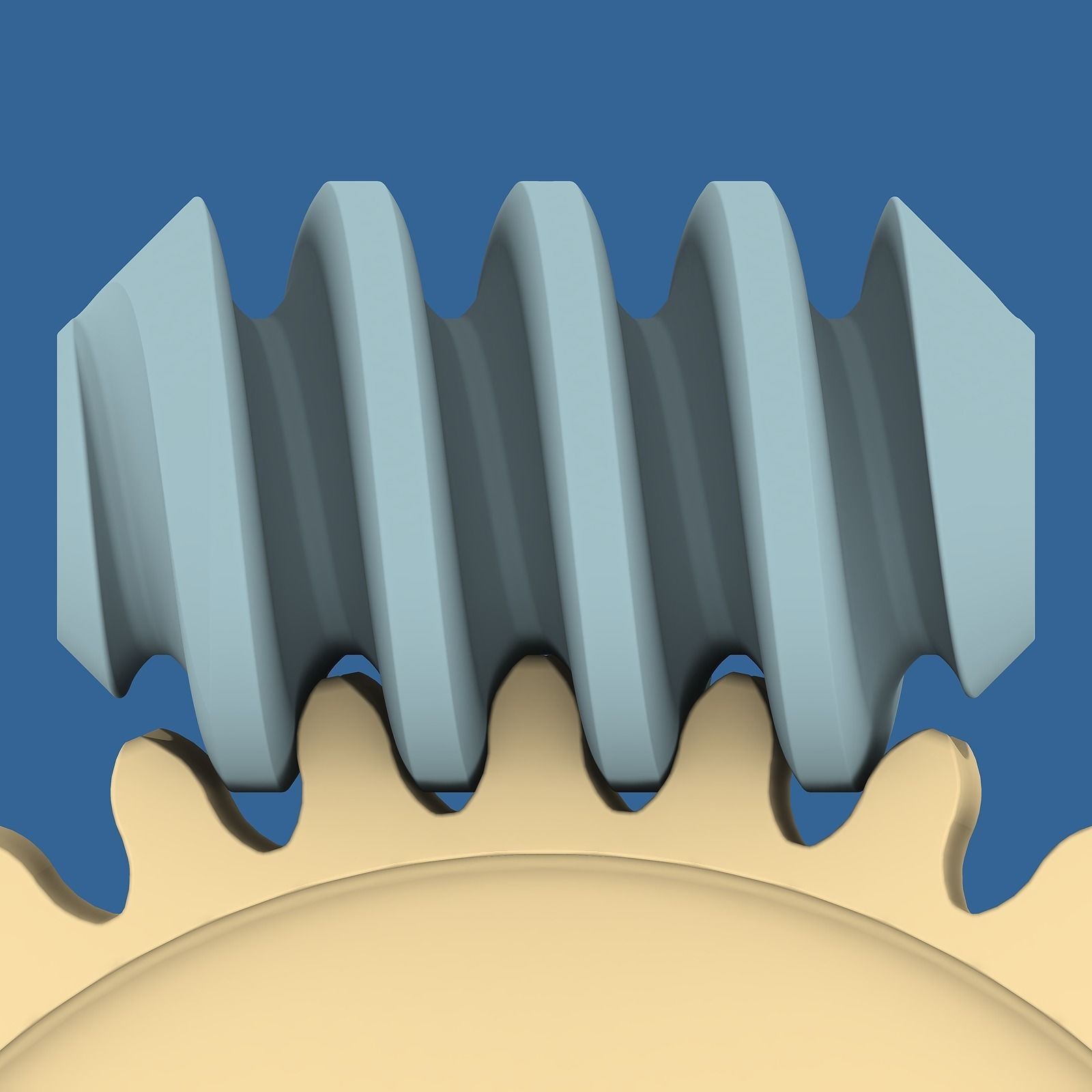

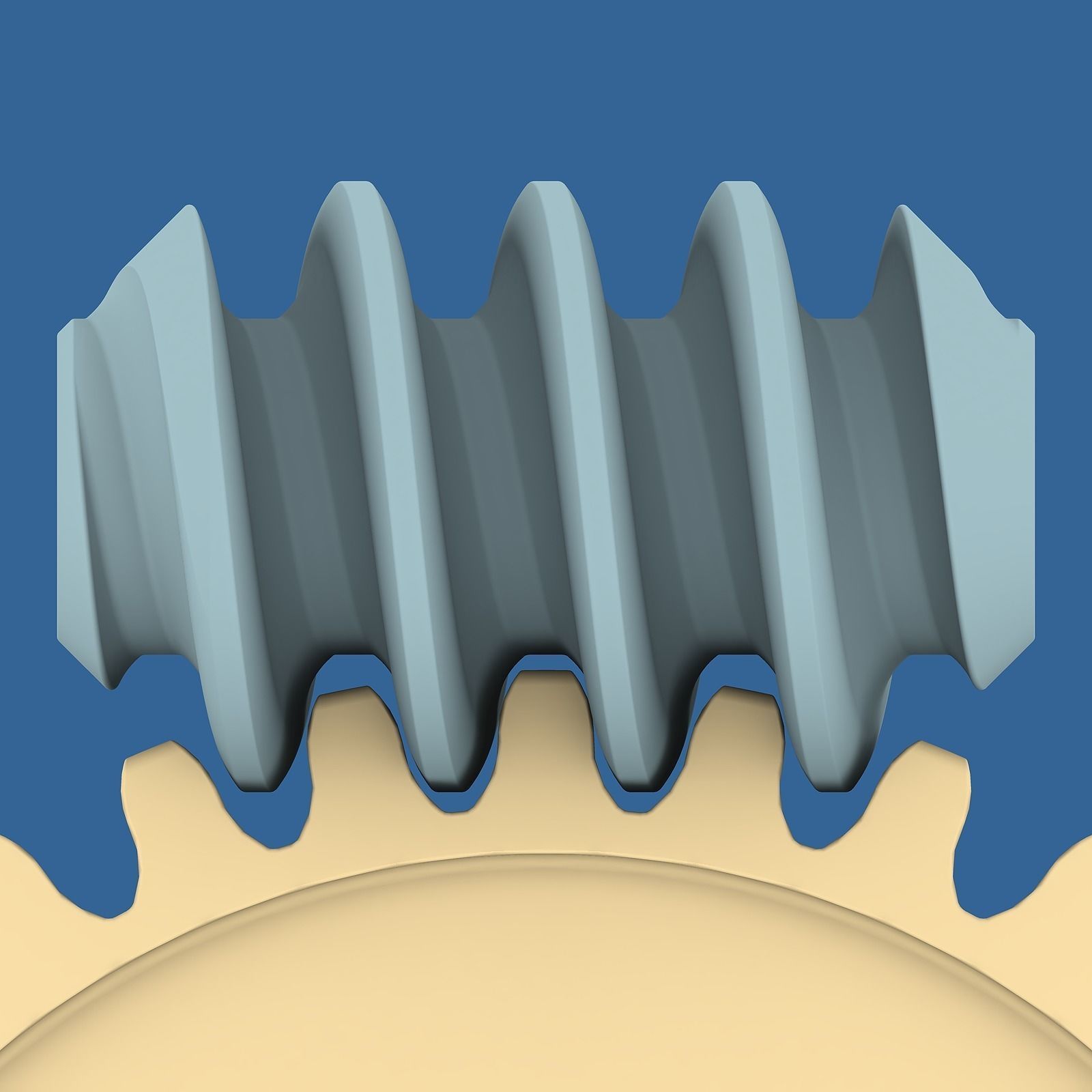

Worm / spur gear set fully compatible with Spur Gear Collection 02.

No textures or materials included.

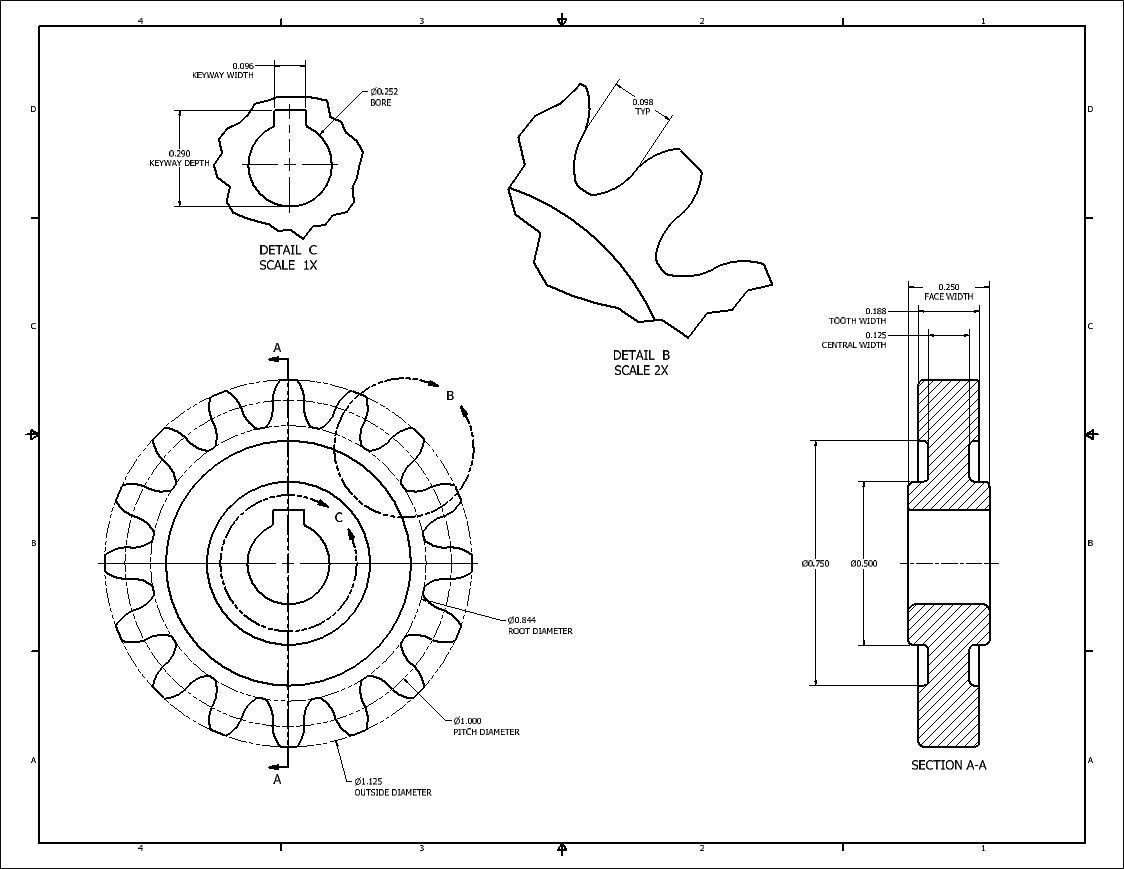

Gear specifications:

  • Approximate involute gear tooth profile
  • Minimal backlash between gears
  • 1/4 inch face width
  • 1/4 inch shaft bore
  • 16 Pitch (P) gear size
  • Pitch Diameter (PD) = Gear Teeth (T) / Pitch (P)
  • Outside Diameter (OD) = Pitch Diameter (PD) + 0.125 inch

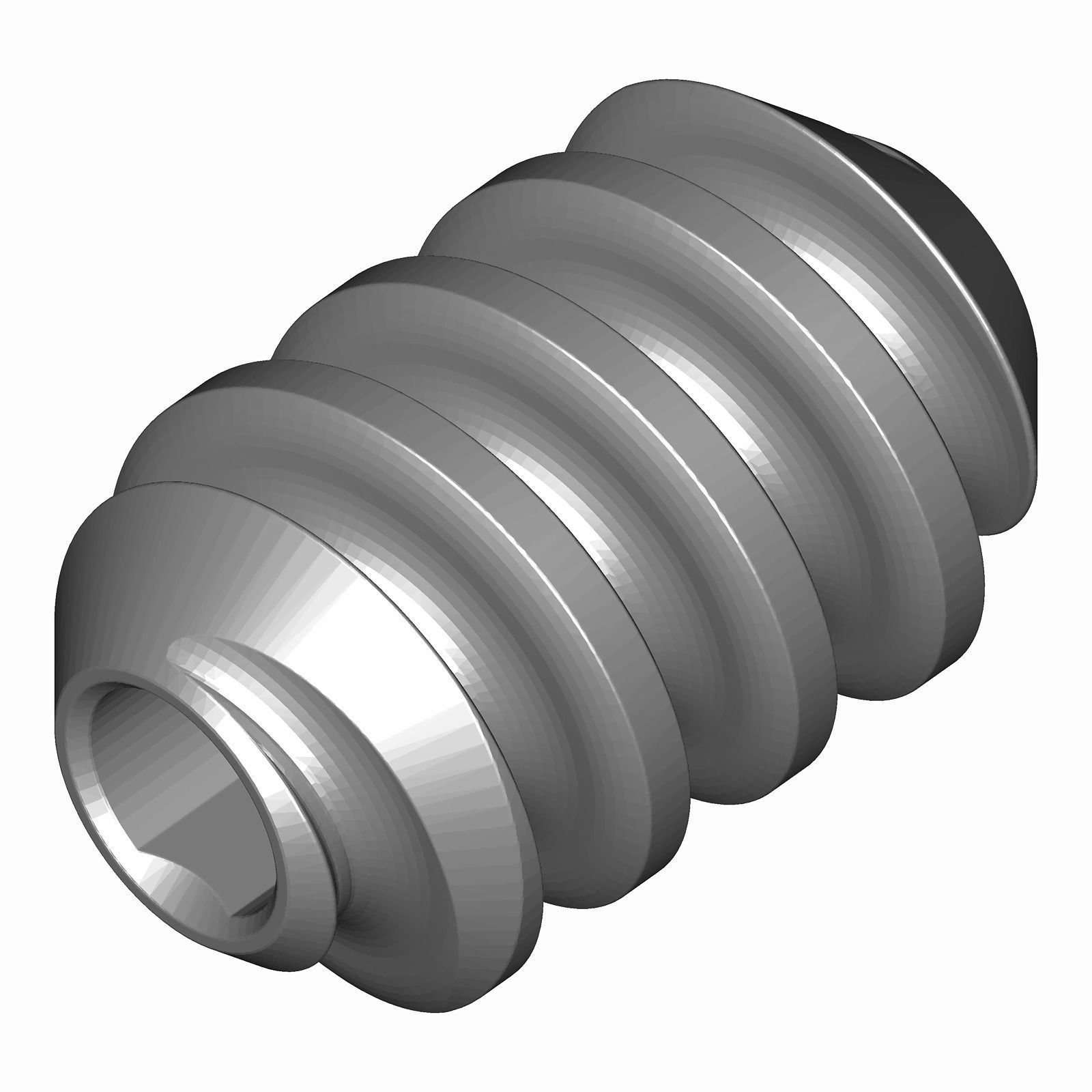

  • Worms provided with bore for 1/4 inch ANSI D-profile shaft
  • Worm gears and spur gears provided with bore for 1/4 inch round shaft with standard ANSI 3/32 inch keyway
  • Polygon counts range from 22,016 (16-tooth spur gear) to 56,866 (32-tooth worm gear)

Product includes:

  • Worm gear set Inventor 2010 files (IPT)
  • Worm gear set STP files (for other 3D CAD packages)
  • Worm gear set STL files (for 3D printing)
  • Worm gear set 3DS files (for 3D graphics packages)
  • Worm gear set OBJ files (for 3D graphics packages)
  • Sample worm gear animation (AVI)

_CBSpicer

J
johansuh 2023-10-09 22:28:01 UTC
Does it requires support on FDM printer? have you tested it? I am looking to use it for my ukulele and size it to small 6mm standing.
cbspicer
cbspicer 2023-10-10 13:34:28 UTC
Yes, this particular gear set does require a little bit of support material when using an FDM printer. I have run test prints of all of my gear models on a Prusa printer, and they work quite well. Gears are, by nature, very high-precision parts. So depending on the quality and settings of your printer, you may want to plan for a few fine touches with sand paper. Particularly if you are printing on a very small scale.
J
johansuh 2023-10-11 02:18:44 UTC
really appreciate your thorough explanation!
Item rating
2 0
M
mszkatulak 2023-10-15 11:23:44 UTC
Recommended
All right. Very good communication with the author of the pieces. Thank you so much!
