Gelatin Capsule

Gelatin Capsule 3D model

Verification details of the FBX file
Files
FBX file format
Scene
Supported object types
Geometry
No N-gonsManifold geometryNo faceted geometry
Textures and Materials
Missing required texturesPower of 2 texture sizesNo embed texturesAssigned materialsTexture aspect ratio
UVs
UV unwrapped modelNo overlapped UVs per UV island
Naming
Allowed characters
Description

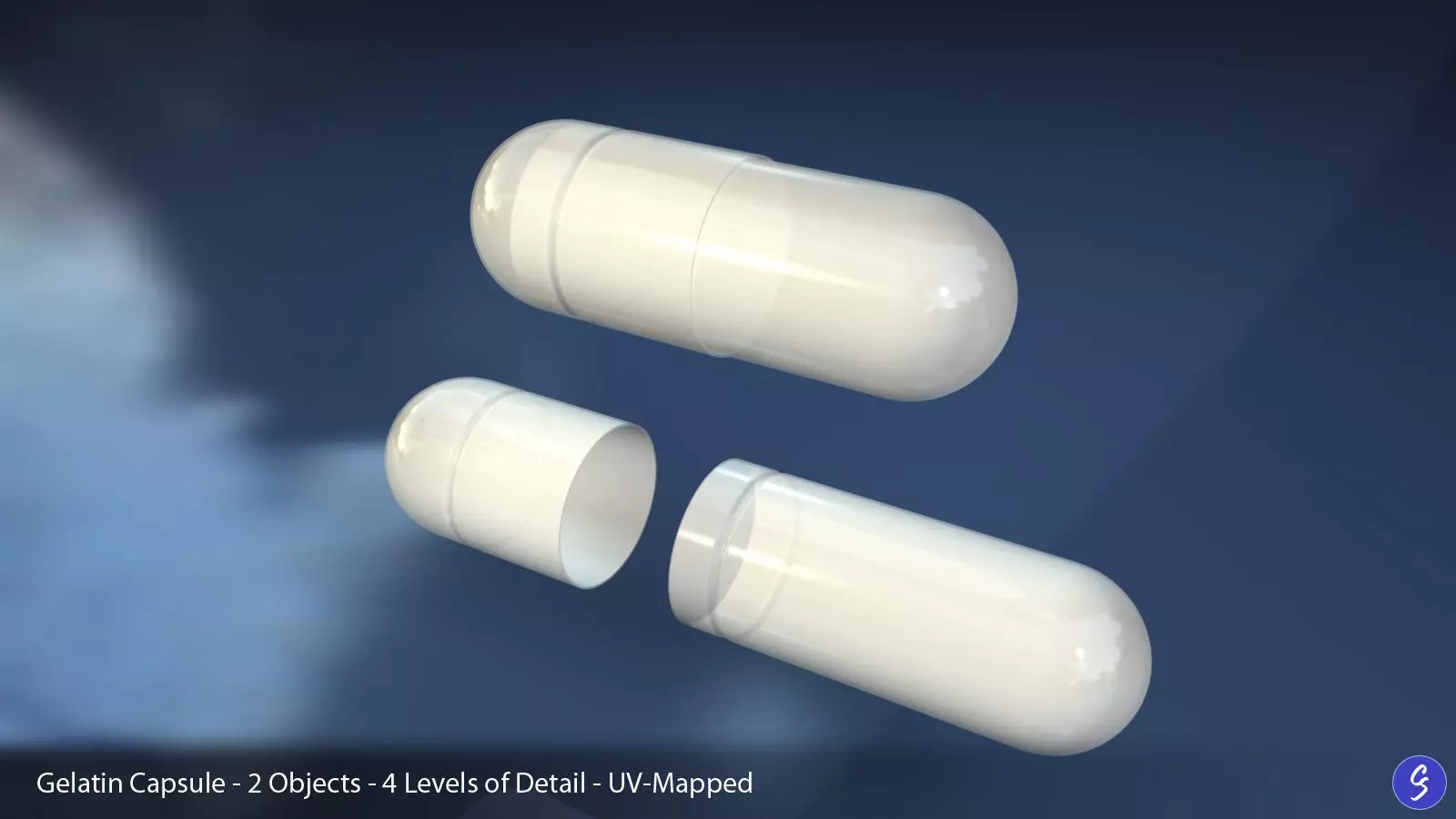

Gelatin capsule - as used for prescription and over-the-counter drugs, as well as nutritional supplements - ready for use in CGI and CAD applications. Modeled in Autodesk Inventor and Carrara Studio and provided in multiple solid-based and surface-based file formats.

Each half of the capsule is modeled as a separate object. Model is provided in four levels of detail, ranging from 272 to 8,576 quads. All versions are modeled with all-quad geometry that can be further subdivided if additonal resolution is required. Models are UV-mapped for easy texture mapping. Exported UV maps are included.

Native Autodesk Inventor 2012 files are provided with intact browser trees and parameter tables to allow full configurability and customization.

Model specifications:

  • Physical dimensions: 5.7 x 5.7 x 16.6 mm
  • Objects: 2
  • Base mesh: 272 quads
  • Subdivision level 1: 800 quads
  • Subdivision level 2: 2,496 quads
  • Subdivision level 3: 8,576 quads
  • Texture maps: 2 (3,200 x 3,200 px)

Product includes:

  • 1 Autodesk Inventor 2012 assembly file (IAM format) - capsule assembly
  • 2 Autodesk Inventor 2012 part files (IPT format) - each capsule half
  • 1 STP model - capsule assembly
  • 1 SAT model - capsule assembly
  • 1 IGS model - capsule assembly
  • 4 OBJ models - base mesh, subdivision level 1, subdivision level 2, and subdivision level 3
  • 4 FBX models - base mesh, subdivision level 1, subdivision level 2, and subdivision level 3
  • 4 3DS models - base mesh, subdivision level 1, subdivision level 2, and subdivision level 3
  • 2 STL models - each capsule half
  • 1 Carrara Studio model (CAR format) - includes model in all levels of detail, along with lights and cameras
  • 2 Exported UV maps (PSD, BMP, and JPG formats) - each capsule half
  • 1 Read Me text file (TXT format)

If you have any questions, either before or after purchasing this model, please feel free to contact me here on CGTrader and I will help in any way possible.

CBSpicer

Item rating
0 0
Gelatin Capsule
$4.00

Royalty Free License
Gelatin Capsule
$4.00

Royalty Free License
Response 92% in 1.2h
3D Modeling
3D Print Modeling

3D Model formats

Format limitations
  • Autodesk Inventor 2012 (.iam, .ipt)311 KB
  • 3D Studio (.3ds)236 KB
  • Autodesk FBX (.fbx)539 KB
  • IGES (.ige, .igs, .iges)6.77 KB
  • OBJ (.obj, .mtl)367 KB
  • 3D ACIS (.sat)4.03 KB
  • Stereolithography (.stl)1.05 MB
  • STEP (.stp)5.88 KB
  • Textures 2.39 MB

3D Model details

  • Publish date2021-03-28
  • Model ID#2950132
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 8,576
  • Vertices 8,580
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
