Assorted Gear Collection 01 3D print model

Assorted gear collection, accurately modeled and ready for use in CAD and 3D print applications. Modeled in Autodesk Inventor and provided in multiple file formats (IPT/IAM, STP, SAT, IGS, and STL). Gears are constructed with modular geometry, allowing them to be combined in an endless variety of ways. Easily create complex power transmission systems that produce rotational motion, speed multipliers, and torque multipliers. Perfect for both digital and physical mechanical design projects.

Native Autodesk Inventor 2012 files are provided with intact browser trees and parameter tables to allow full configurability and customization.

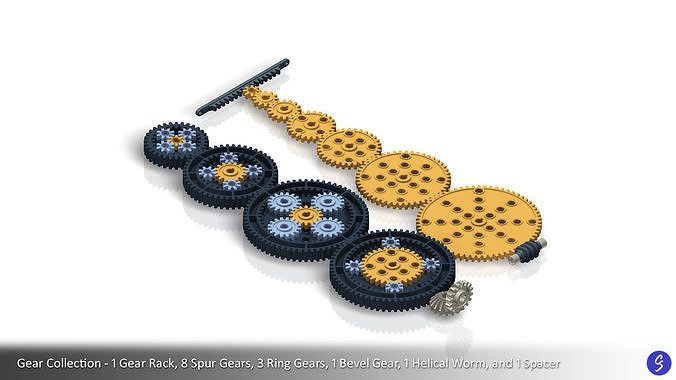

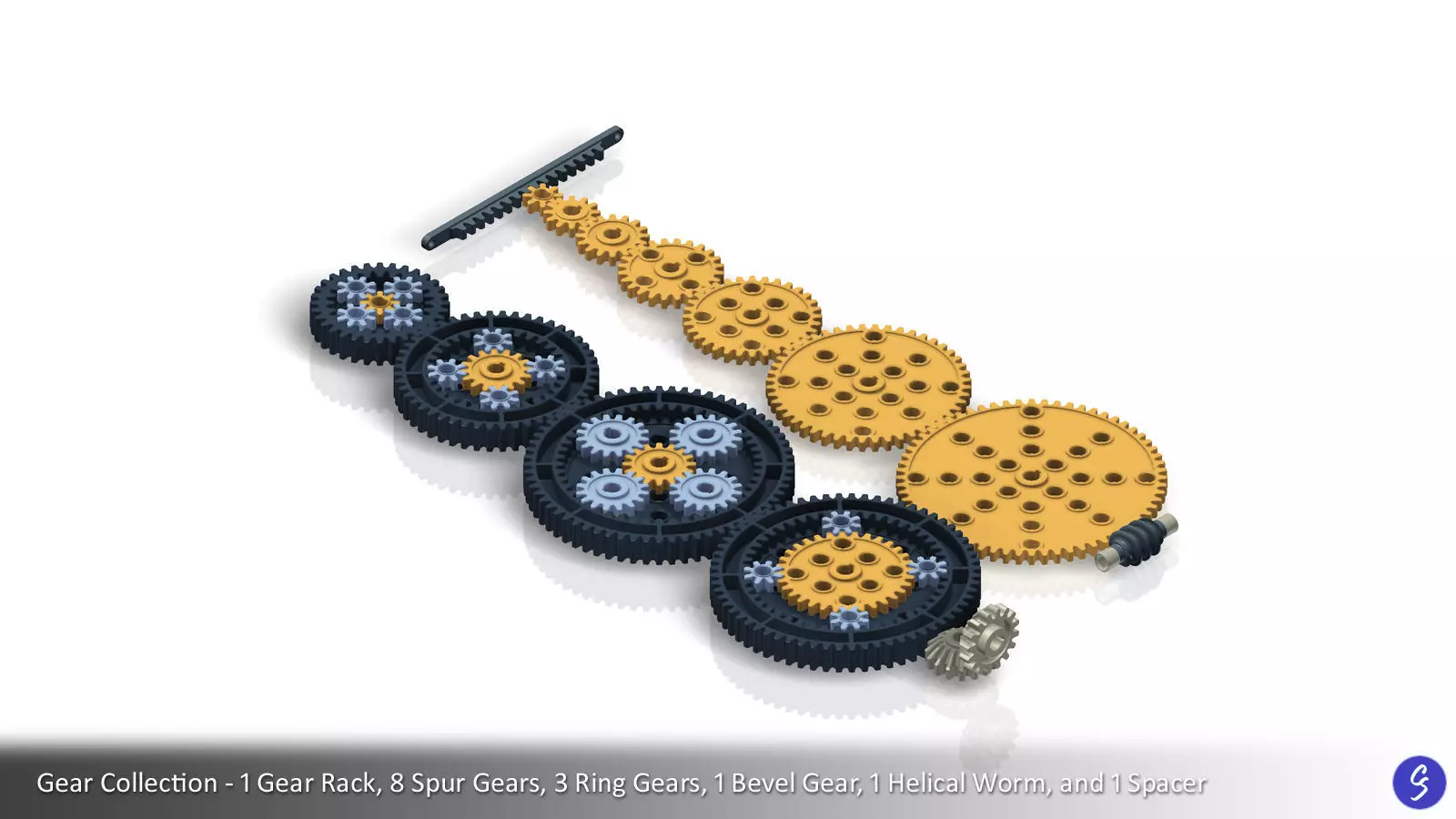

Collection includes 15 models:

  • Spur gear, 8-tooth, round bore (0.50in pitch diameter, 12.7mm reference diameter)
  • Spur gear, 8-tooth, D-profile bore (0.50in pitch diameter, 12.7mm reference diameter)
  • Spur gear, 12-tooth, round bore with keyway (0.75in pitch diameter, 19.05mm reference diameter)
  • Spur gear, 16-tooth, round bore with keyway (1.00in pitch diameter, 25.4mm reference diameter)
  • Spur gear, 24-tooth, round bore with keyway (1.50in pitch diameter, 38.1mm reference diameter)
  • Spur gear, 32-tooth, round bore with keyway (2.00in pitch diameter, 50.8mm reference diameter)
  • Spur gear, 48-tooth, round bore with keyway (3.00in pitch diameter, 76.2mm reference diameter)
  • Spur gear, 64-tooth, round bore with keyway (4.00in pitch diameter, 101.6mm reference diameter)
  • Gear rack, 16-tooth (4.00in (101.6mm) eye-to-eye distance)
  • Ring gear, 32-tooth external, 24-tooth internal (2.00in external pitch diameter, 50.8mm external reference diameter)
  • Ring gear, 48-tooth external, 32-tooth internal (3.00in external pitch diameter, 76.2mm external reference diameter)
  • Ring gear, 64-tooth external, 48-tooth internal (4.00in external pitch diameter, 101.6mm external reference diameter)
  • Bevel gear, 16-tooth, round bore with keyway (1.00in pitch diameter, 25.4mm reference diameter)
  • Helical worm, D-profile bore (0.50in pitch diameter, 12.7mm reference diameter)
  • Spacer, round bore (0.25in (6.35mm) face width)

All gear tooth profiles are precisely modeled with accurate arc-based geometry and a small amount of backlash to ensure proper engagement. Gears can be used as drive gears (rotationally locked to shaft) or idle gears (free spinning about shaft).

All gears are provided with a diametrical pitch of 16 teeth/inch (module 1.6). All gear bores are designed for a 0.25in (6.35mm) nominal shaft size. Gears can be easily scaled to create any diametrical pitch or module that you may need.

The centerline distance between any two mating gears is ( First Gear Pitch Diameter + Second Gear Pitch Diameter ) / 2.

All models are provided in 5 file formats:

  • IPT/IAM (Autodesk Inventor 2012 format for CAD)
  • STP (general solid model format for CAD)
  • SAT (general solid model format for CAD)
  • IGS (general solid model format for CAD)
  • STL (general surface model format for 3D print)

Product also includes a Read Me text file (TXT format) detailing the physical dimensions of all gears.

If you have any questions, either before or after purchasing this model collection, please feel free to contact me here on CGTrader and I will help in any way possible.

CBSpicer

    Item Rating10
    Assorted Gear Collection 01
    $24.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 89% in 0.8h
    3D Modeling
    3D Print Modeling
    Hire me
    3D model formats
    • Autodesk Inventor (.iam, .ipt)11.5 MB
    • IGES (.ige, .igs, .iges)7.36 MB
    • 3D ACIS (.sat)6.66 MB
    • Stereolithography (.stl)11.8 MB
    • STEP (.stp)5.83 MB
    3D model details
    • Publish date2017-02-14
    • Model ID#693840
