Spur Gear Collection 01

Spur Gear Collection 01 3D print model

Spur gear collection, accurately modeled and ready for use in CAD and 3D print applications. Modeled in Autodesk Inventor and provided in multiple file formats (IPT, STP, SAT, IGS, and STL). Gears are constructed with modular geometry, allowing them to be combined in an endless variety of ways. Easily create complex power transmission systems that produce rotational motion, speed multipliers, and torque multipliers. Perfect for both digital and physical mechanical design projects.

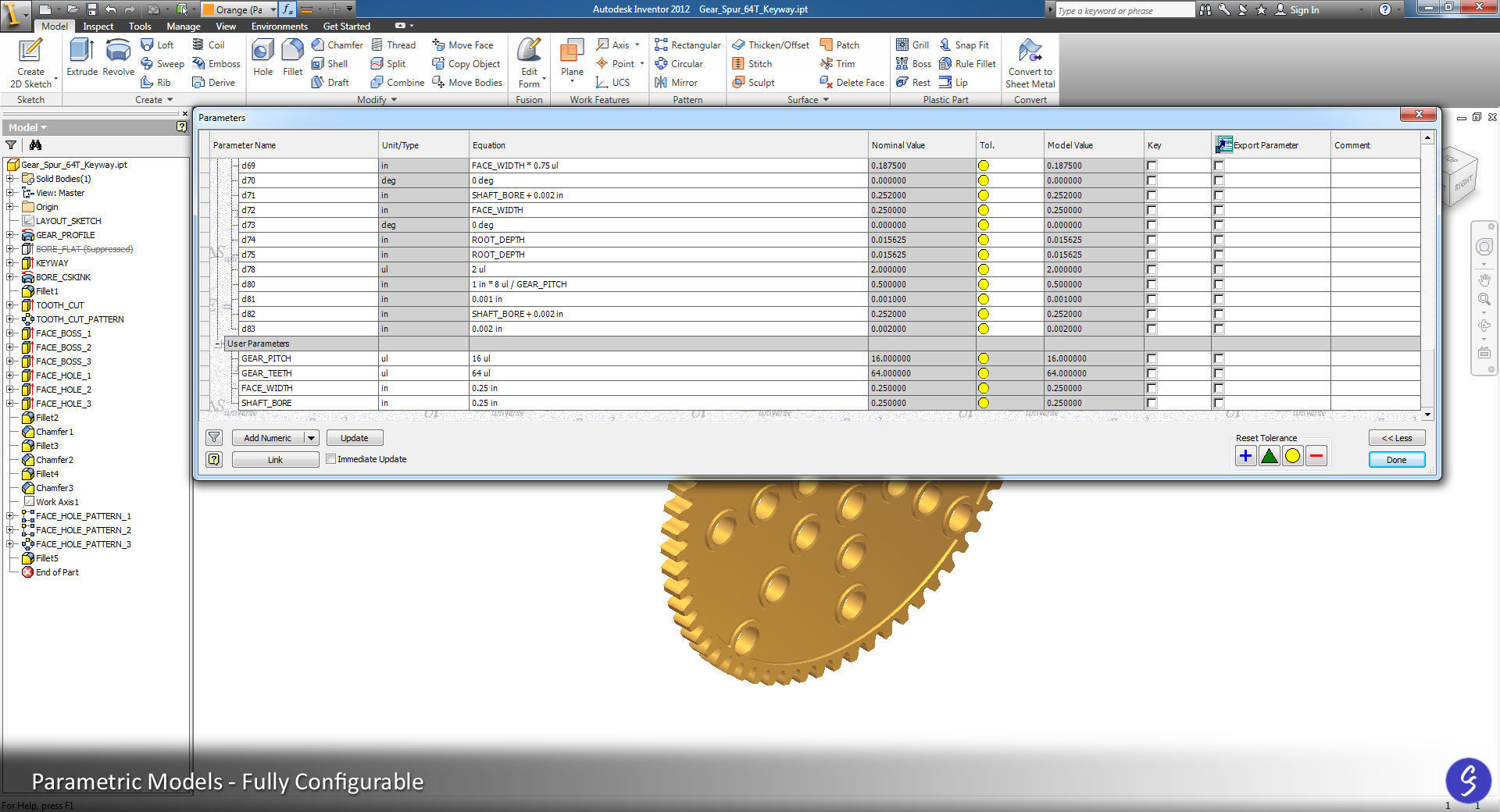

Native Autodesk Inventor 2012 files are provided with intact browser trees and parameter tables to allow full configurability and customization.

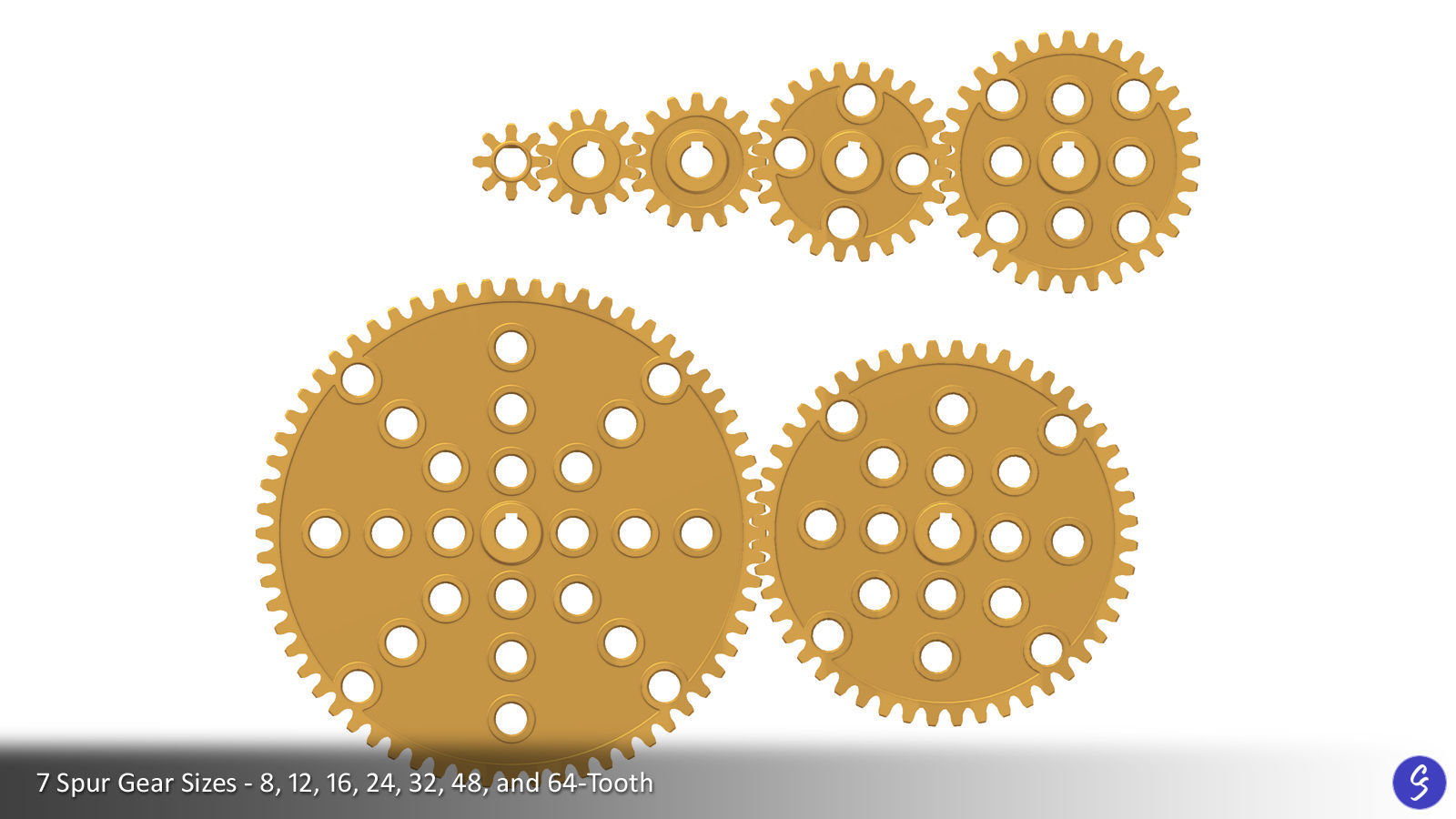

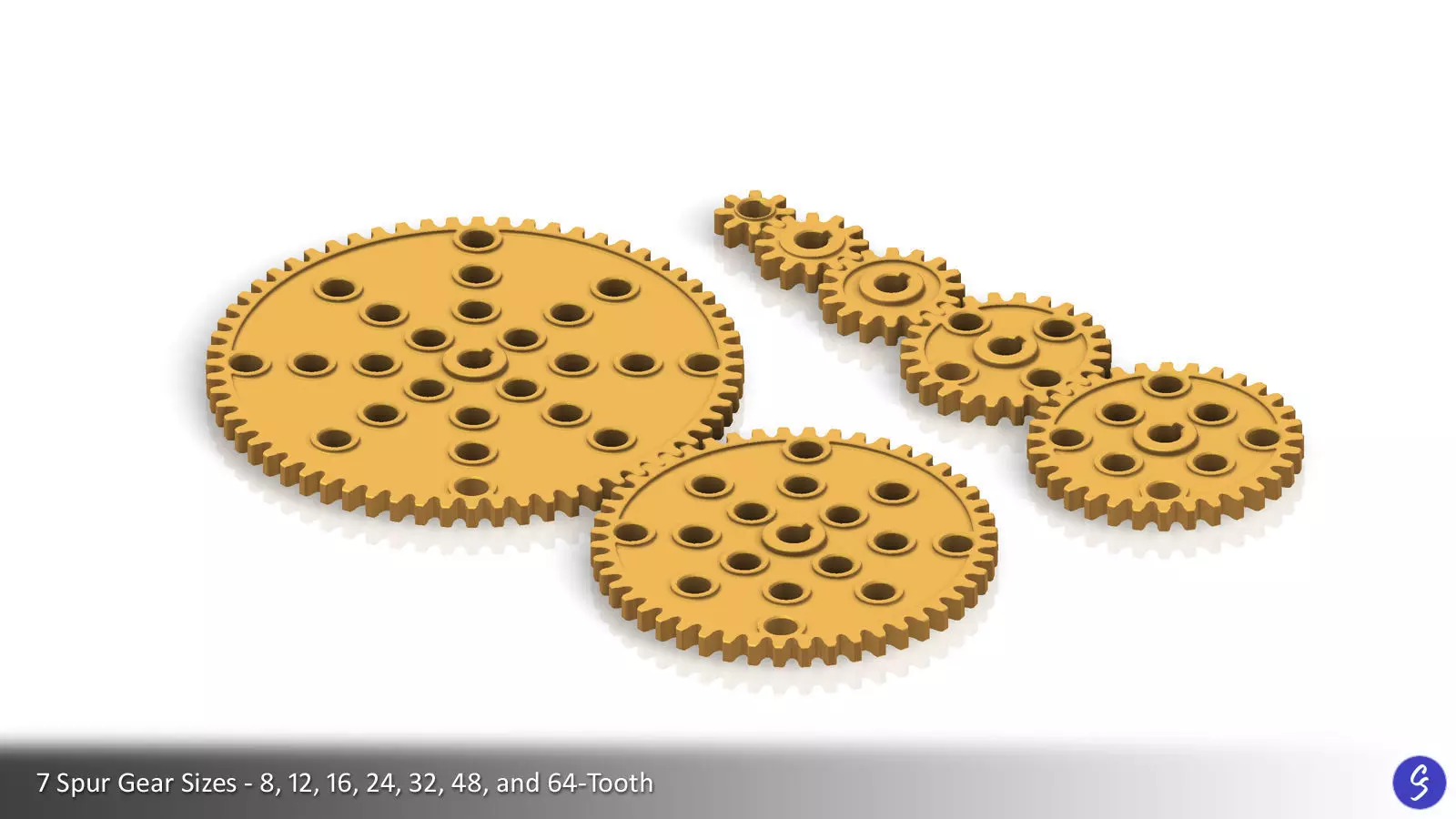

Collection includes 8 spur gear configuations:

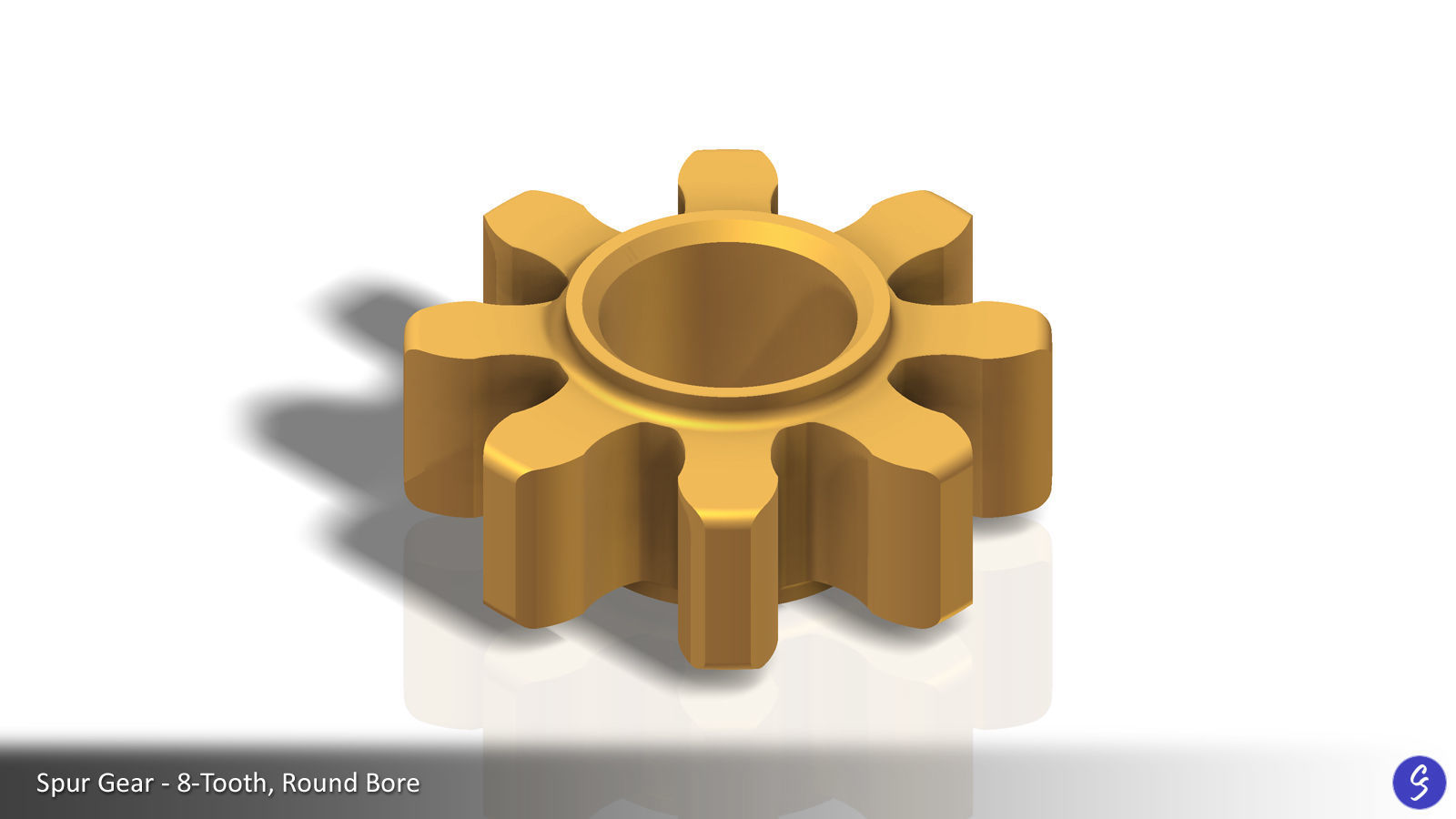

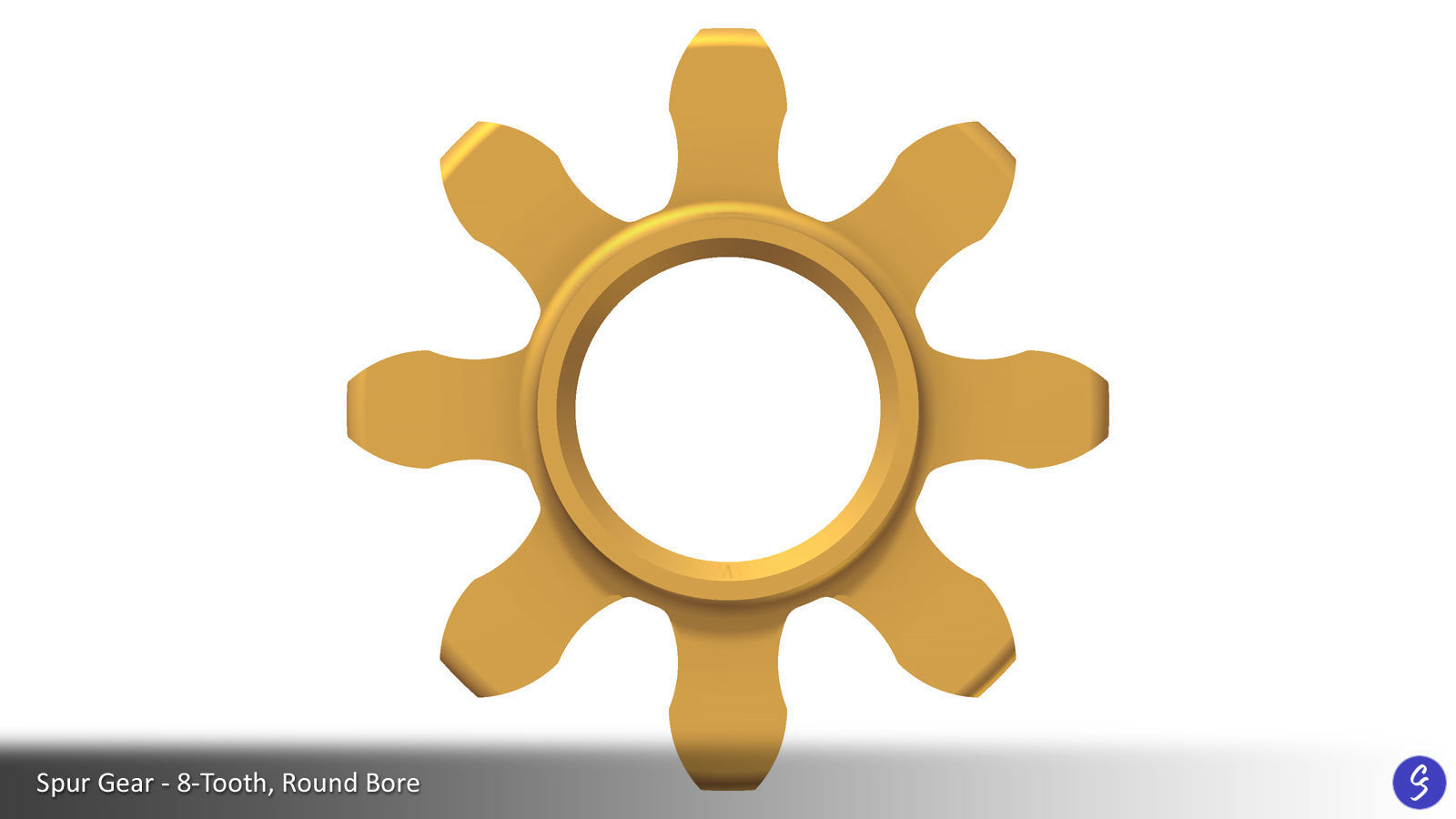

  • 8-Tooth, round bore (0.50in pitch diameter, 12.7mm reference diameter)

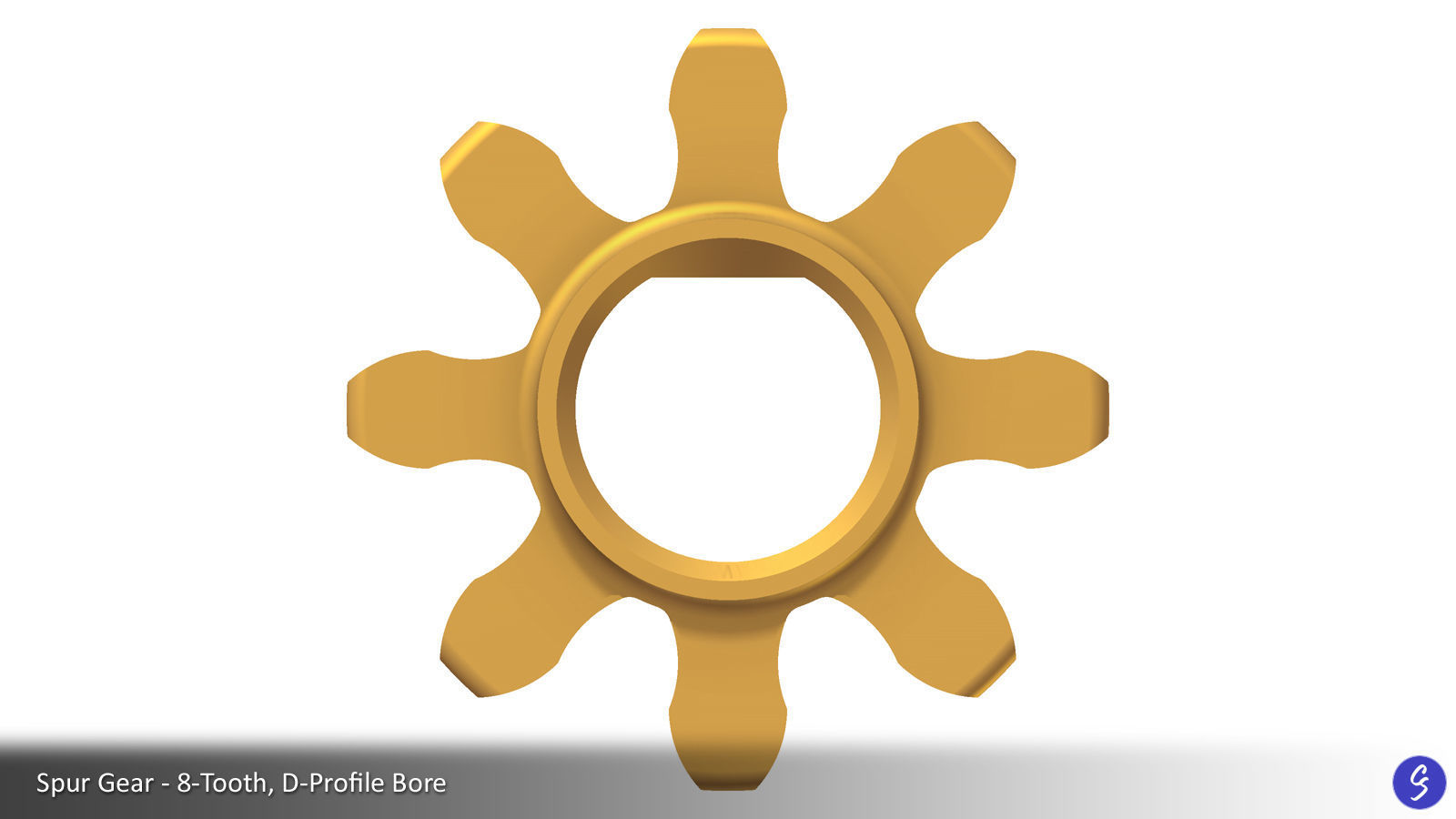

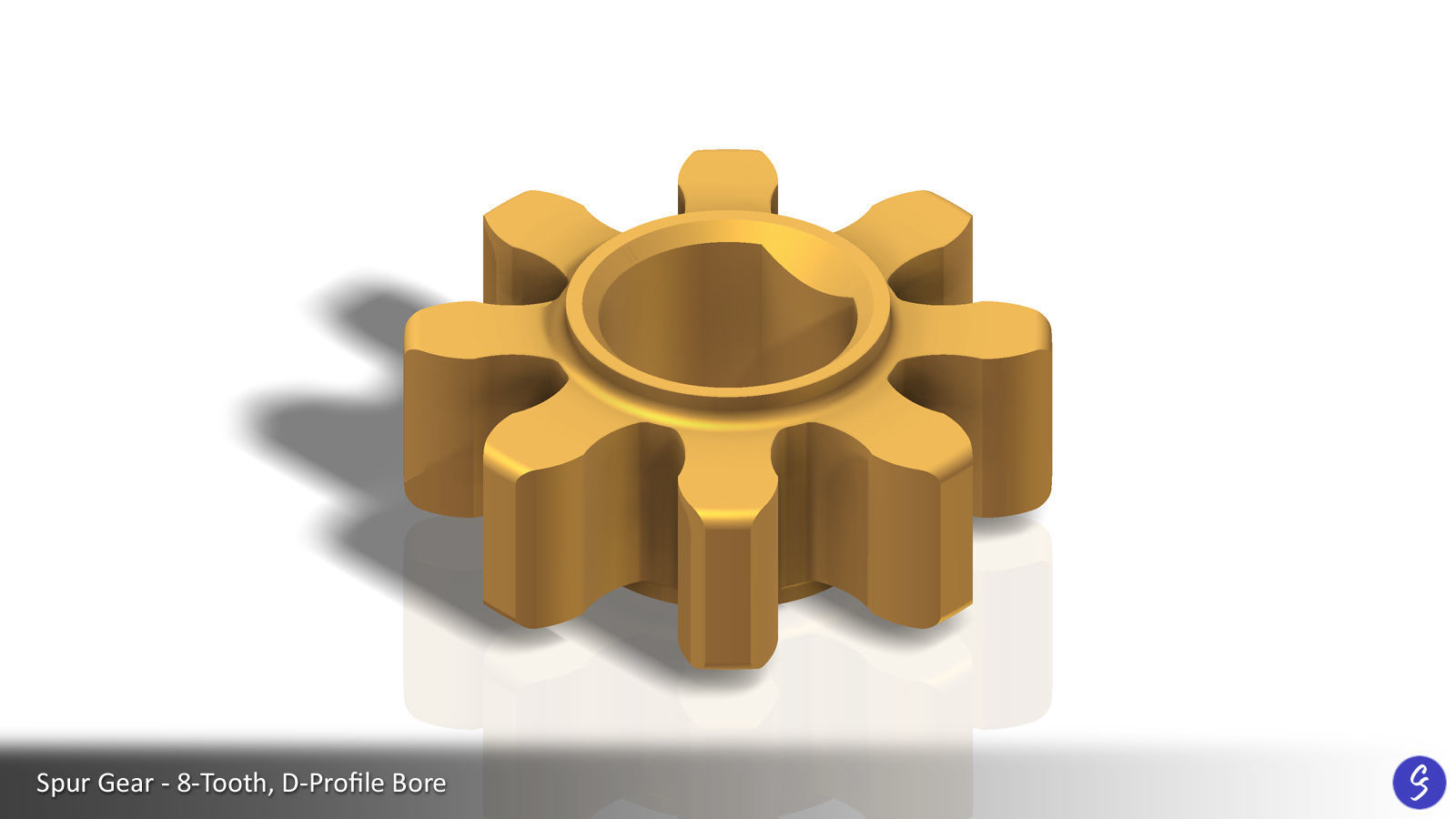

  • 8-Tooth, D-profile bore (0.50in pitch diameter, 12.7mm reference diameter)

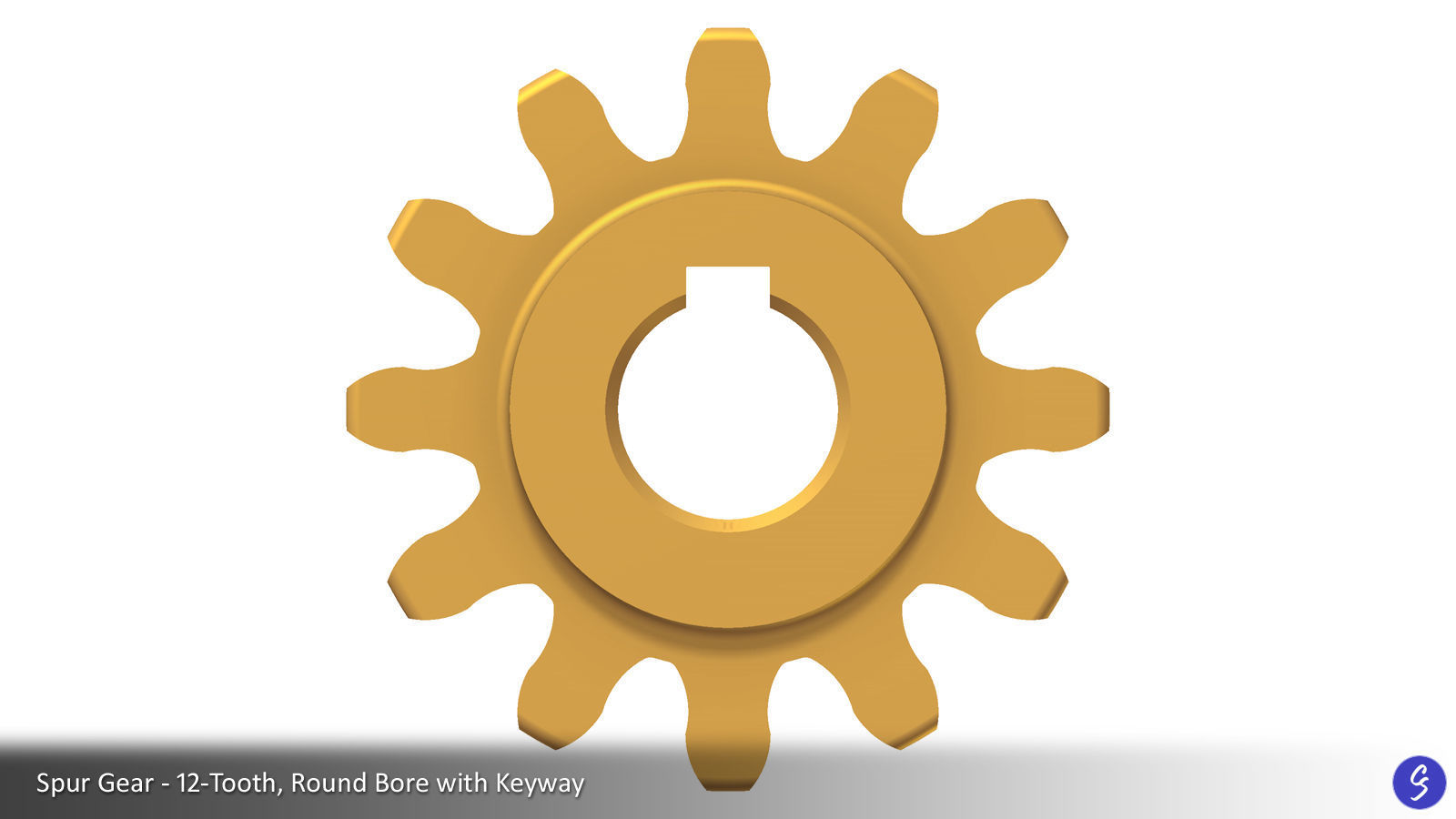

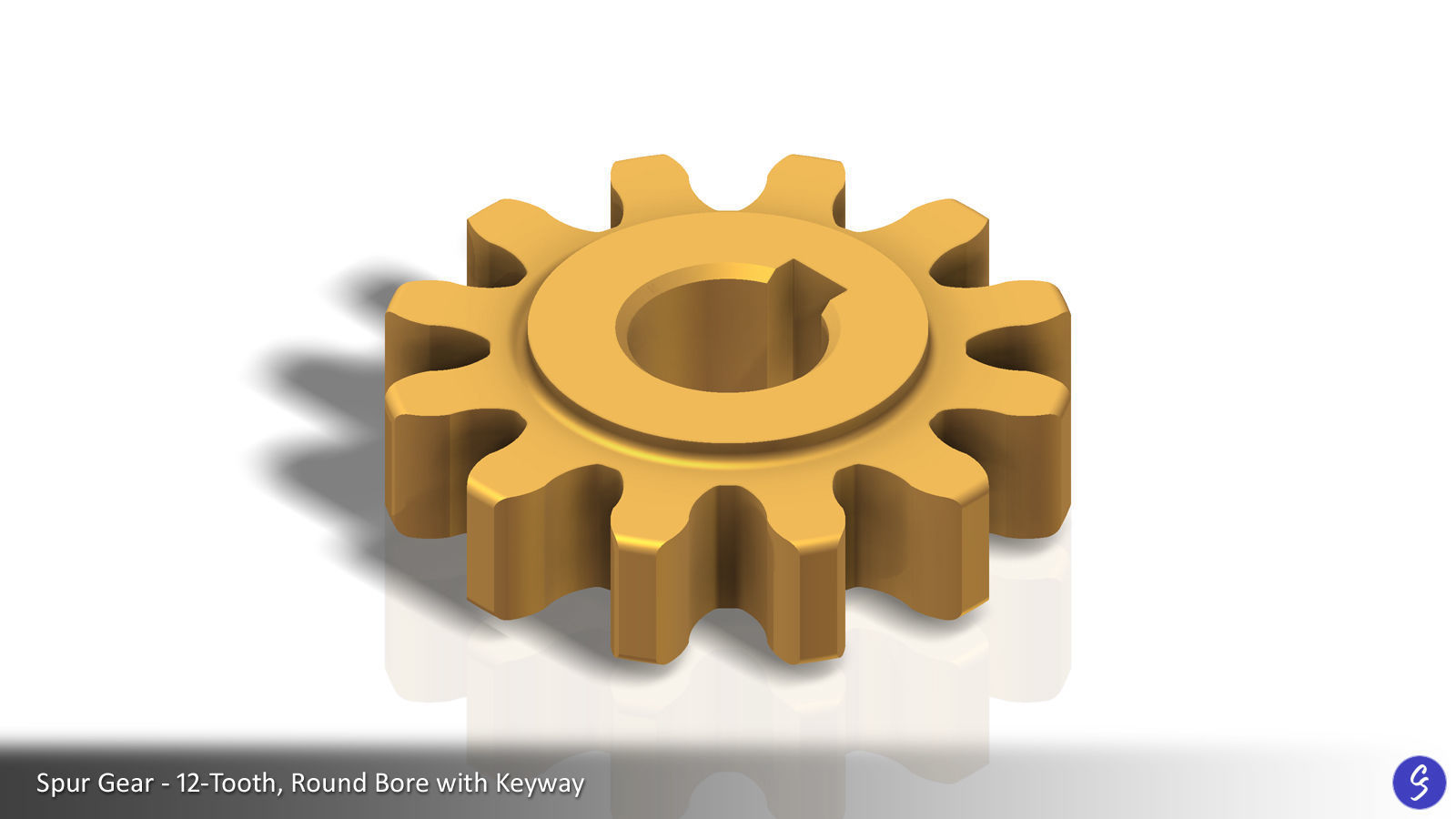

  • 12-Tooth, round bore with keyway (0.75in pitch diameter, 19.05mm reference diameter)

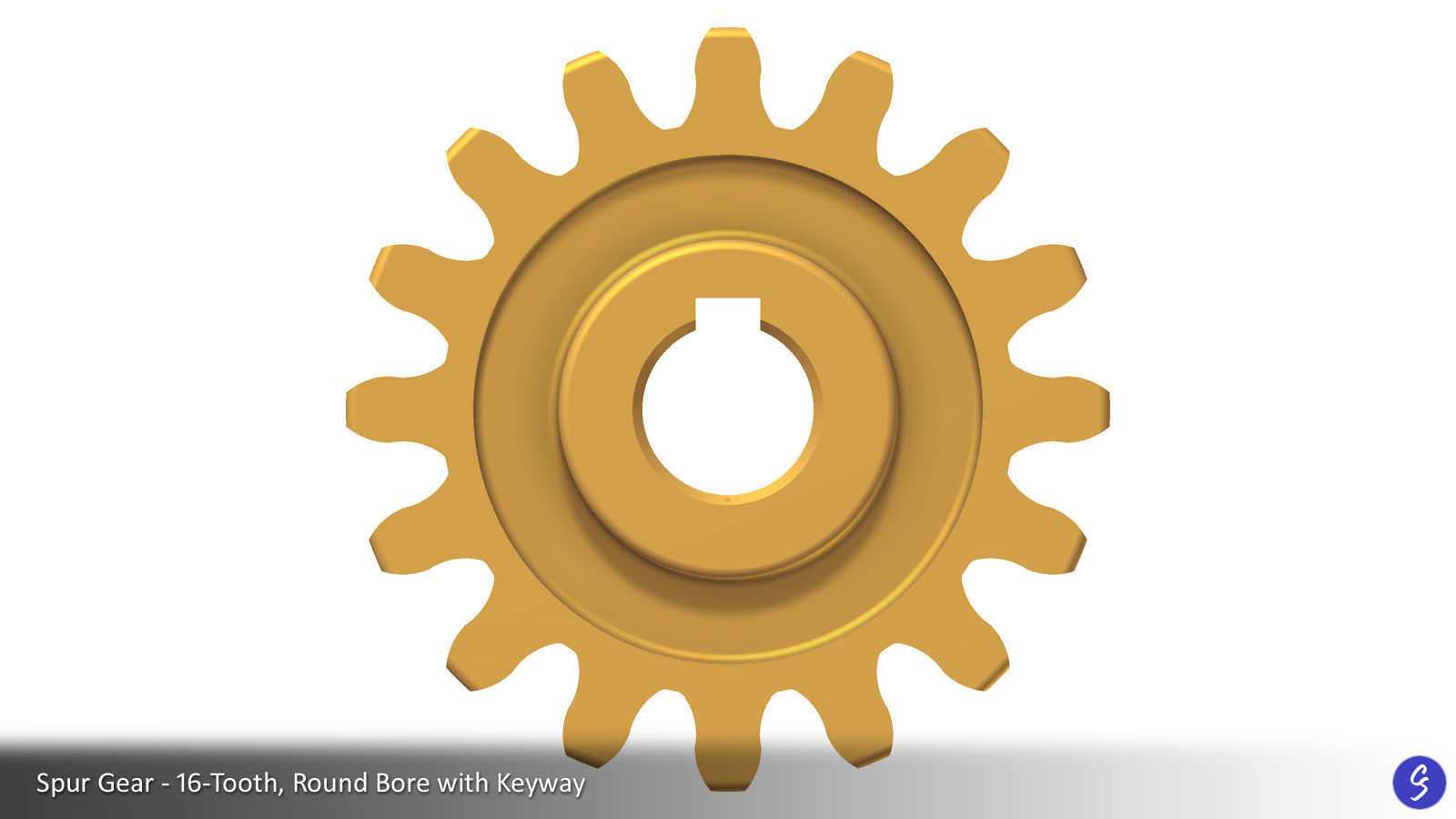

  • 16-Tooth, round bore with keyway (1.00in pitch diameter, 25.4mm reference diameter)

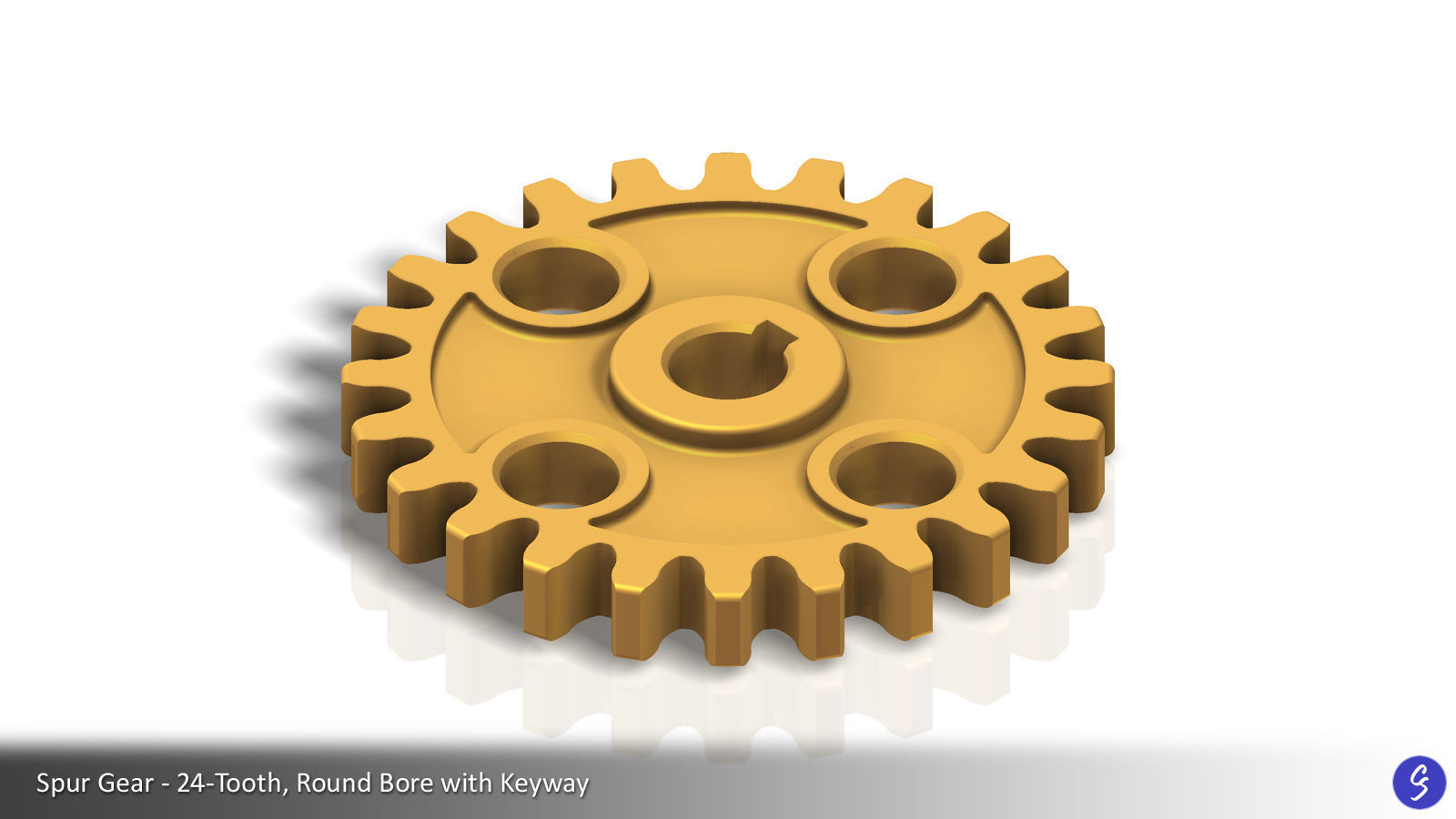

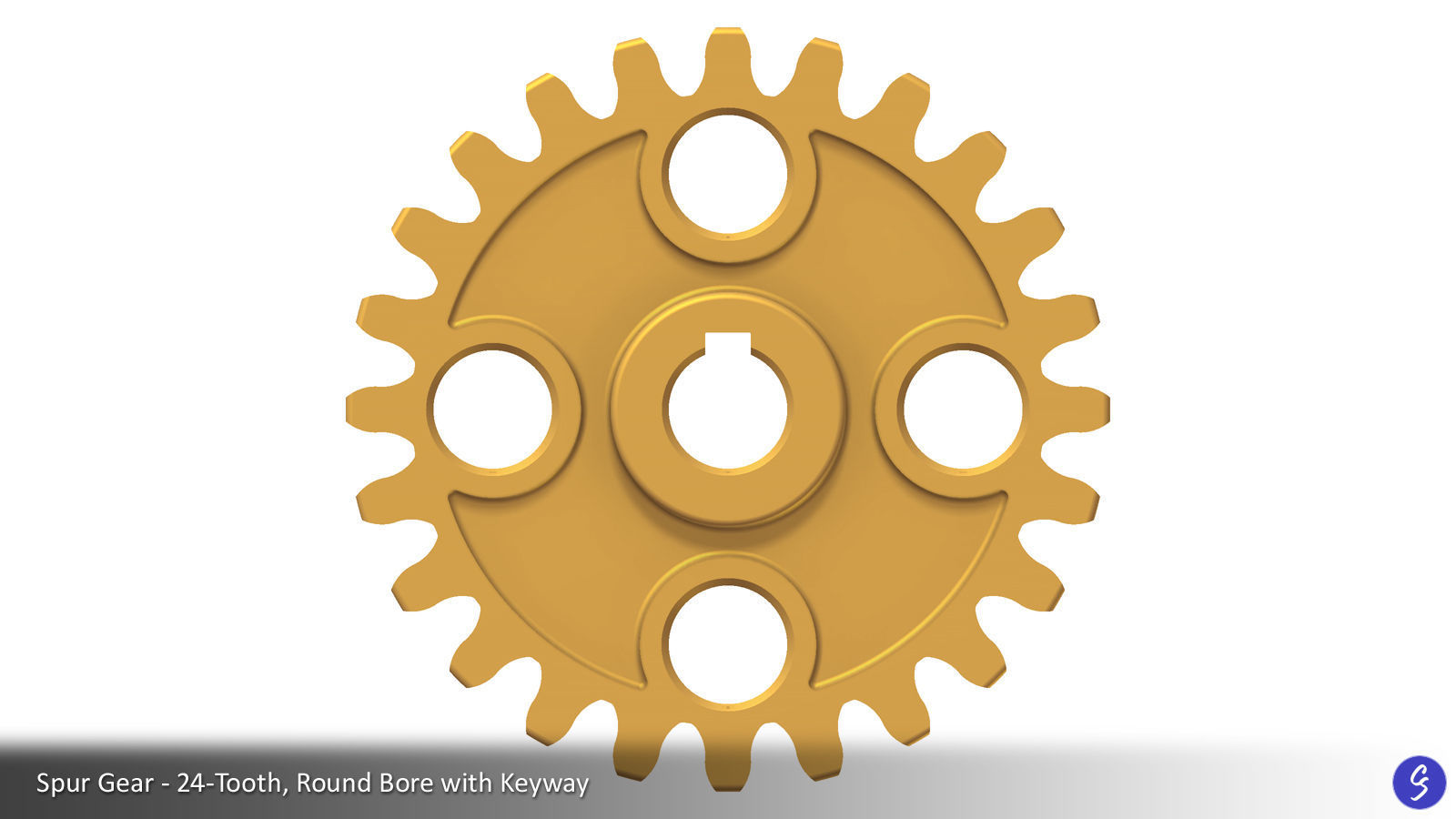

  • 24-Tooth, round bore with keyway (1.50in pitch diameter, 38.1mm reference diameter)

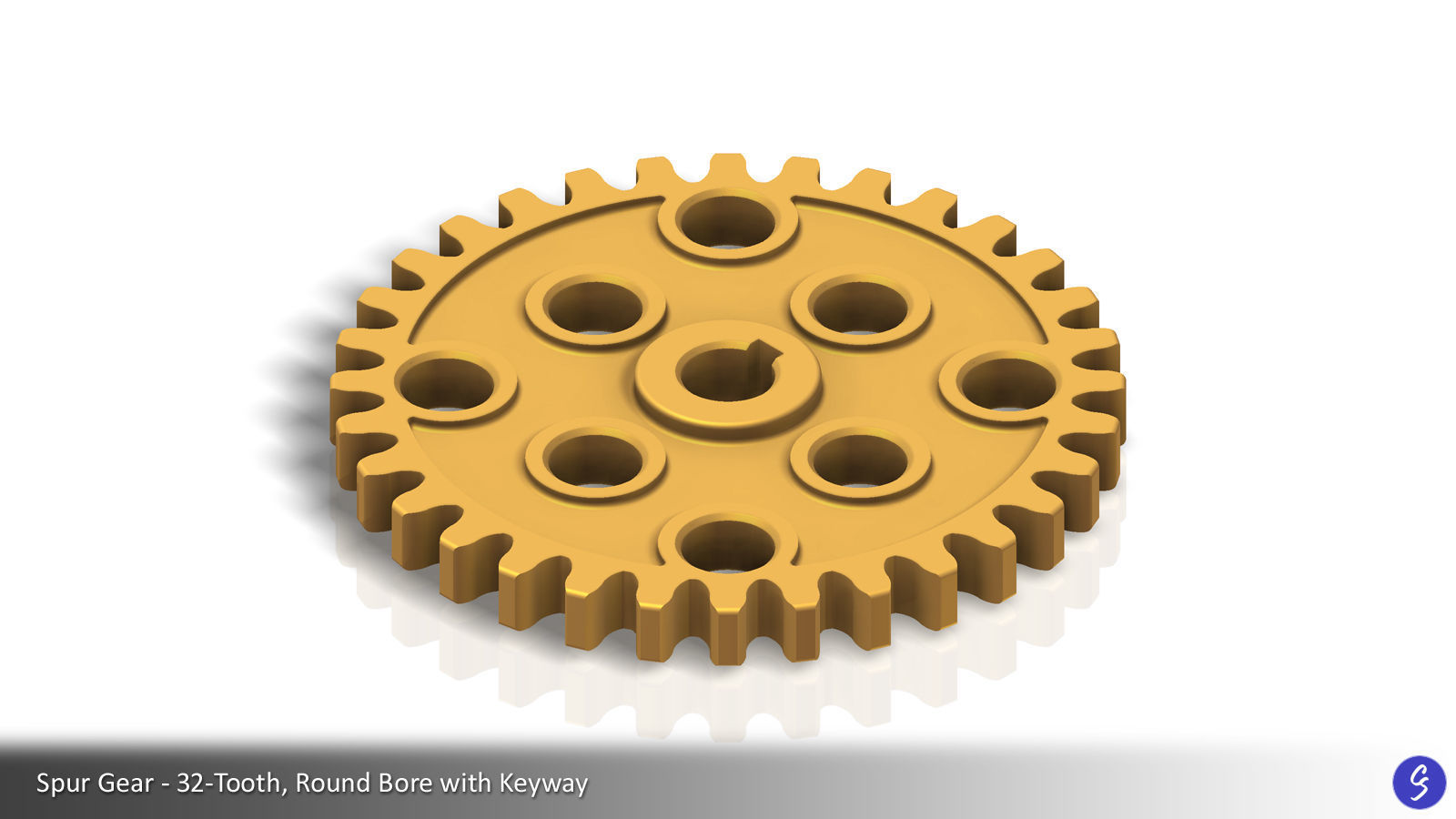

  • 32-Tooth, round bore with keyway (2.00in pitch diameter, 50.8mm reference diameter)

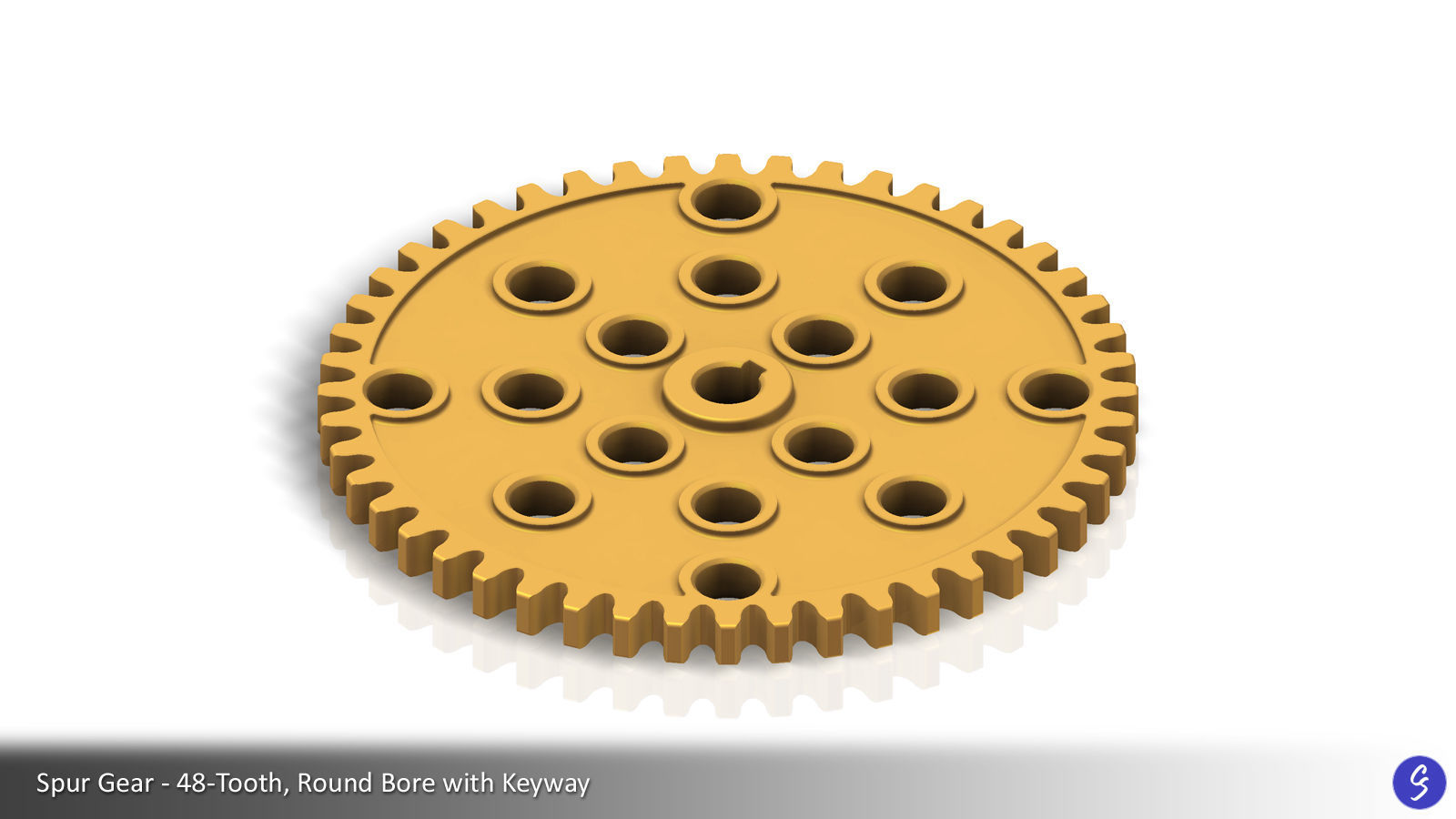

  • 48-Tooth, round bore with keyway (3.00in pitch diameter, 76.2mm reference diameter)

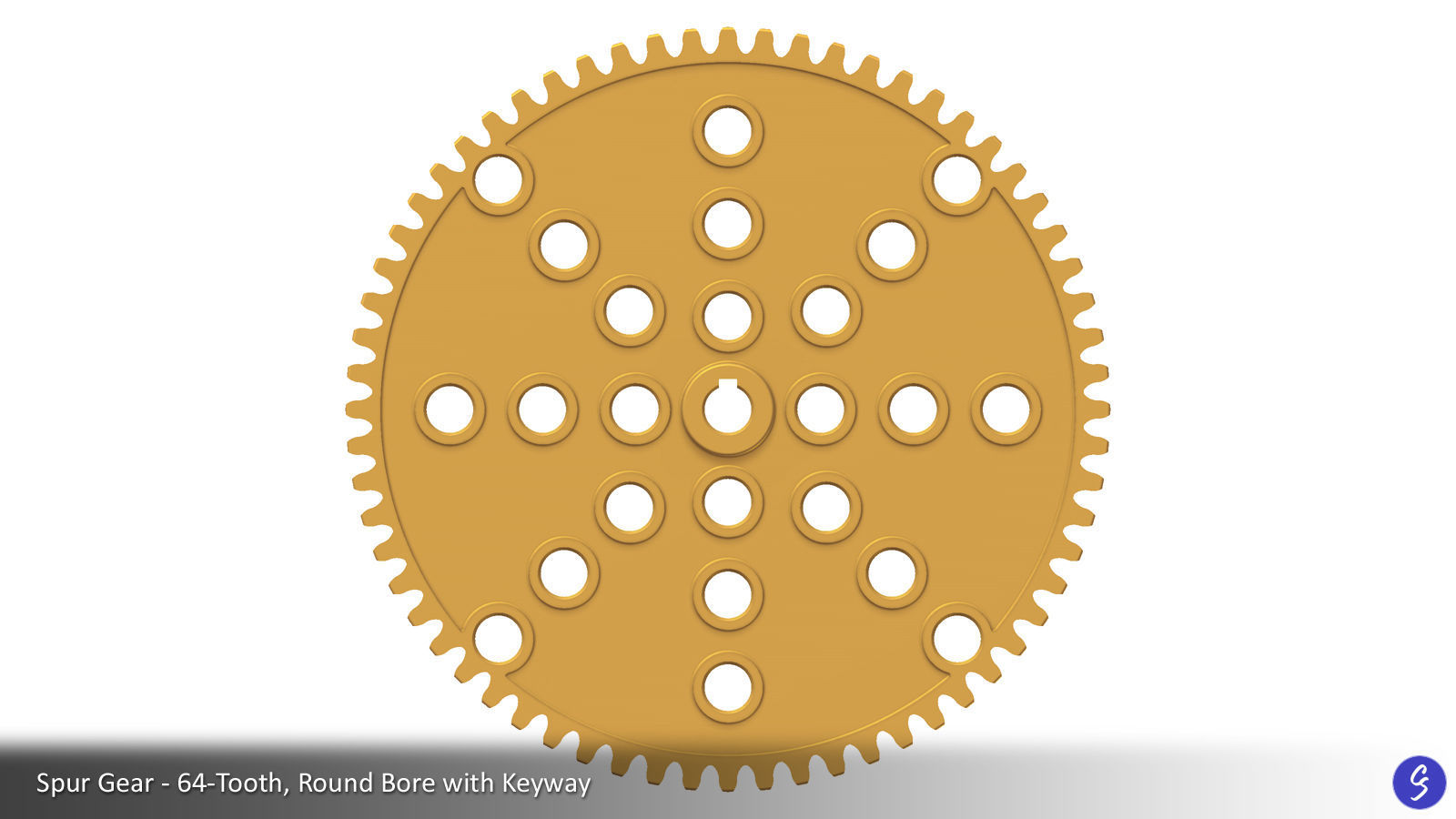

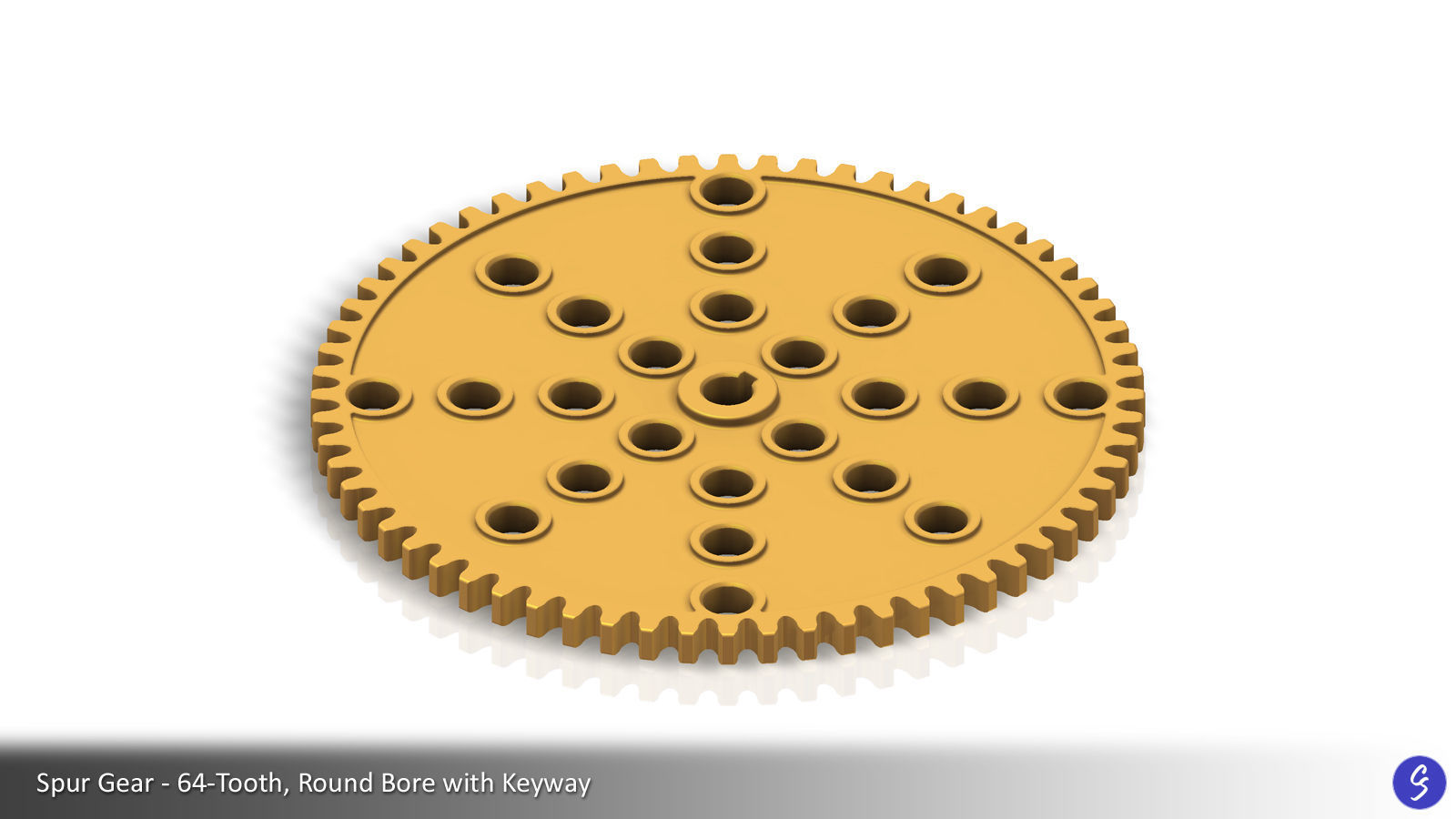

  • 64-Tooth, round bore with keyway (4.00in pitch diameter, 101.6mm reference diameter)

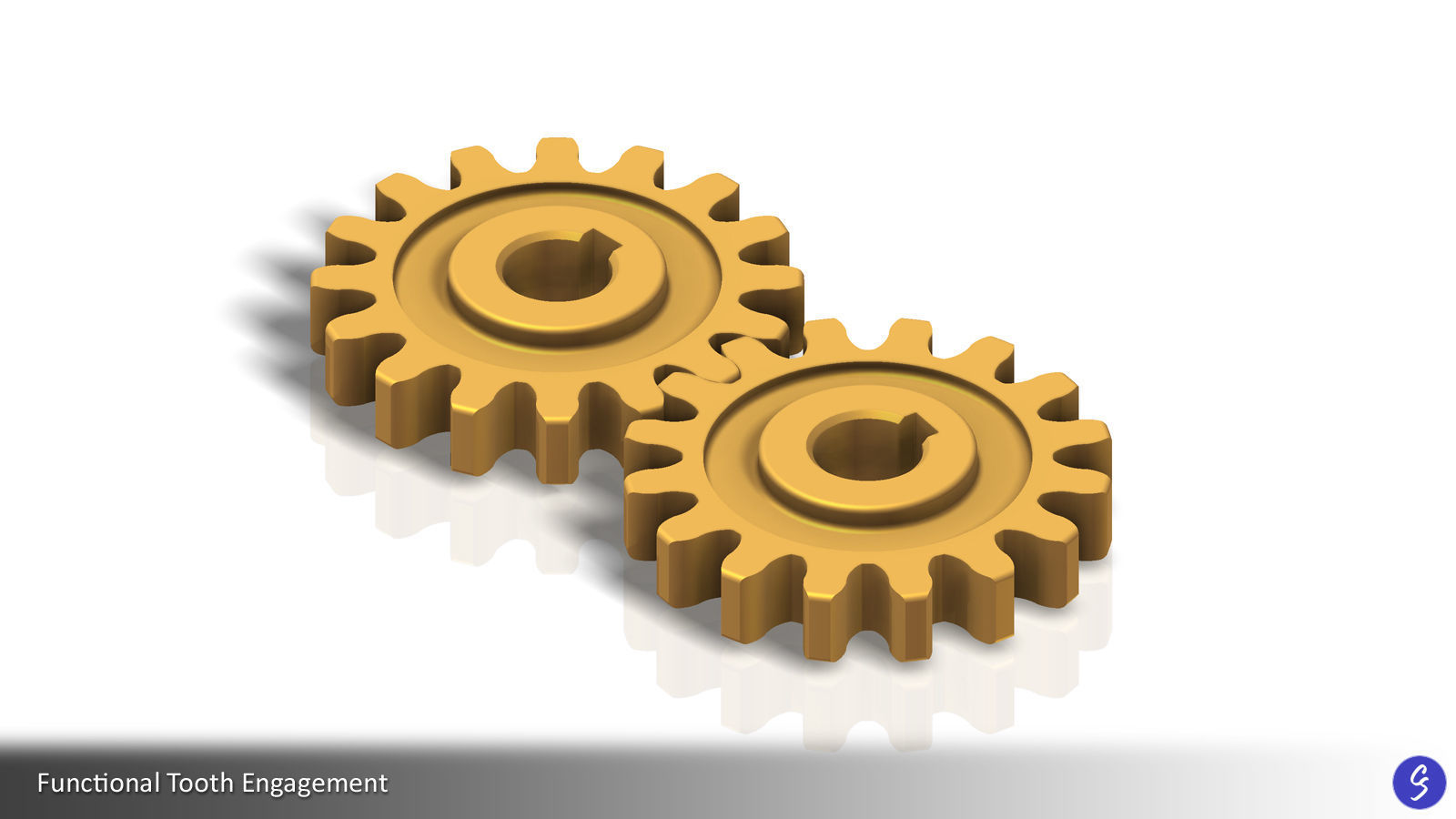

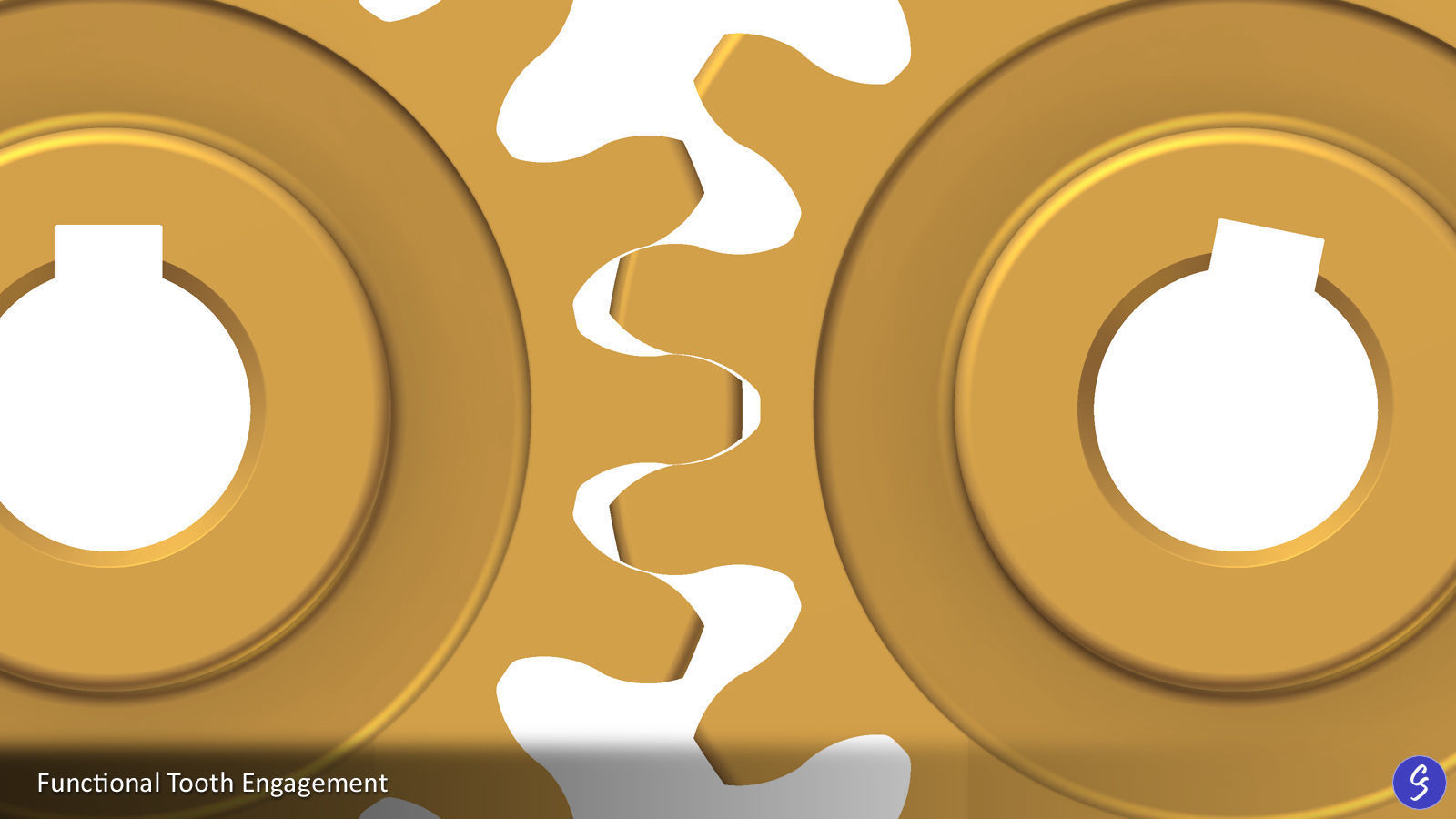

All gear tooth profiles are precisely modeled with accurate arc-based geometry and a small amount of backlash to ensure proper engagement. All gears can be used as drive gears (rotationally locked to shaft) or idle gears (free spinning about shaft).

All gears are provided with a diametrical pitch of 16 teeth/inch (module 1.6). All gear bores are designed for a 0.25in (6.35mm) nominal shaft size. All gears have a 0.25in (6.35mm) face width. Gears can be easily scaled to create any diametrical pitch or module that you may need.

The centerline distance between any two mating gears is ( First Gear Pitch Diameter + Second Gear Pitch Diameter ) / 2.

All gears are provided in 5 file formats:

  • IPT (Autodesk Inventor 2012 format for CAD)
  • STP (general solid model format for CAD)
  • SAT (general solid model format for CAD)
  • IGS (general solid model format for CAD)
  • STL (general surface model format for 3D print)

Product also includes a Read Me text file (TXT format) detailing the physical dimensions of all gears.

Want more gears that are compatible with this product? Download additional gear collections:

  • Assorted Gear Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/ultimate-gear-collection
  • Planetary Gear Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/planetary-gear-collection
  • Gear Accessory Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/gear-accessory-collection

If you have any questions, either before or after purchasing this model collection, please feel free to contact me here on CGTrader and I will help in any way possible.

CBSpicer

Item rating
0 0
Spur Gear Collection 01
$12.00

Royalty Free License
Spur Gear Collection 01
$12.00

Royalty Free License
Response 96% in 1.0h
3D Modeling
3D Print Modeling

3D Model formats

Format limitations
  • Autodesk Inventor 2012 (.iam, .ipt)5.35 MB
  • IGES (.ige, .igs, .iges)1.38 MB
  • 3D ACIS (.sat)1.01 MB
  • Stereolithography (.stl)5.61 MB
  • STEP (.stp)1.13 MB

3D Model details

  • Publish date2017-02-15
  • Model ID#694199
