3DP3BLROD60A mechanical shutter Iris mechanism diaphragm diy 3D print model

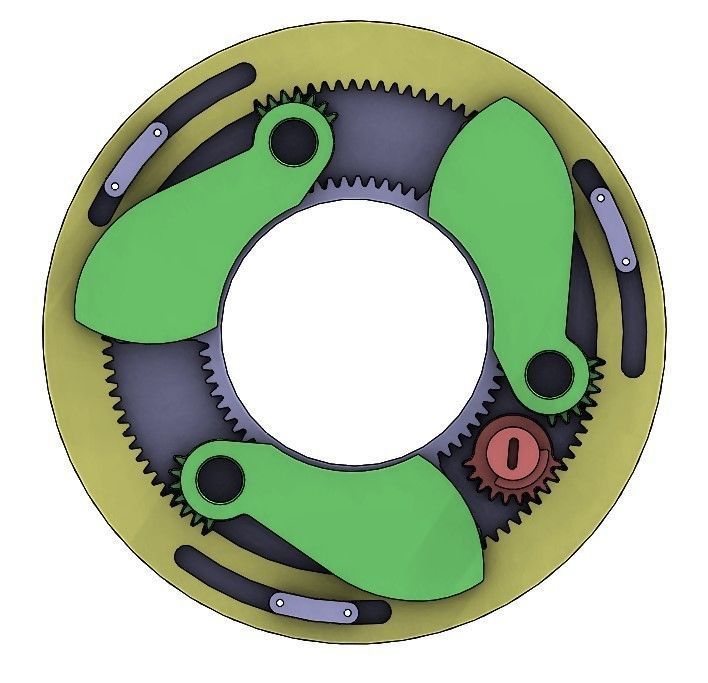

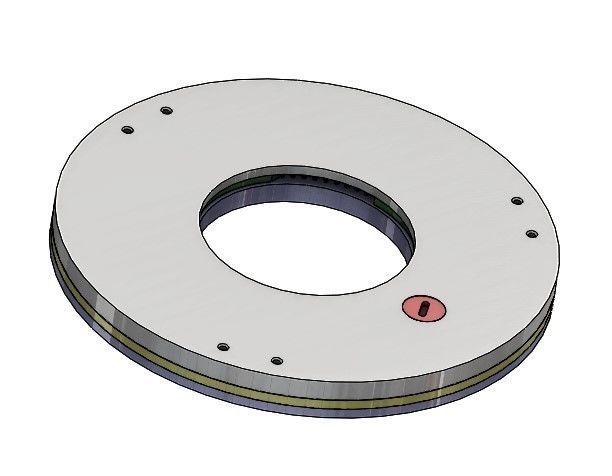

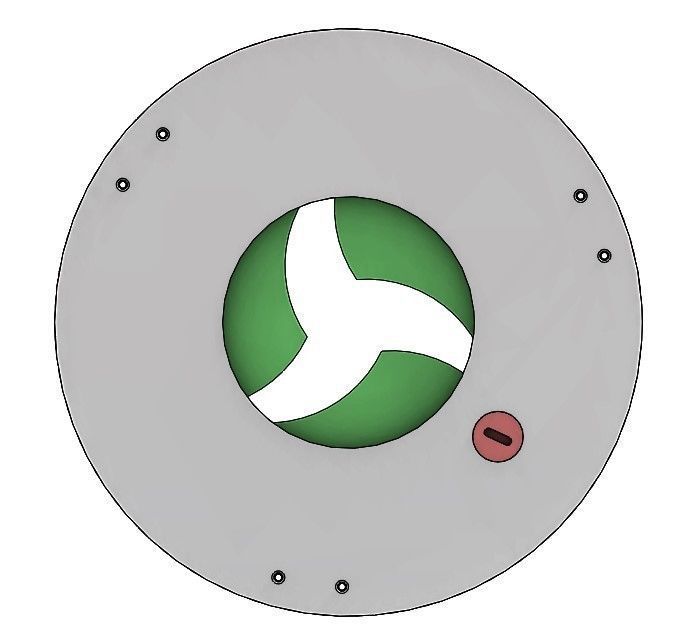

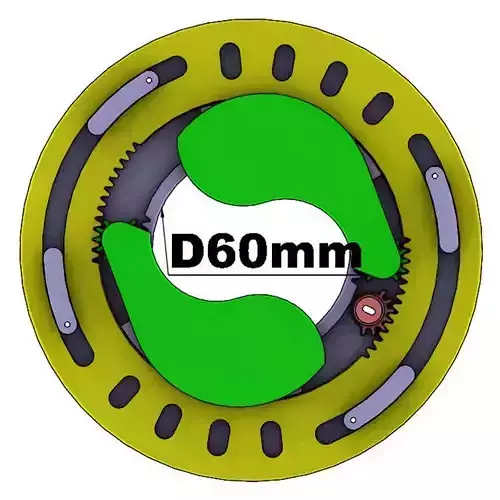

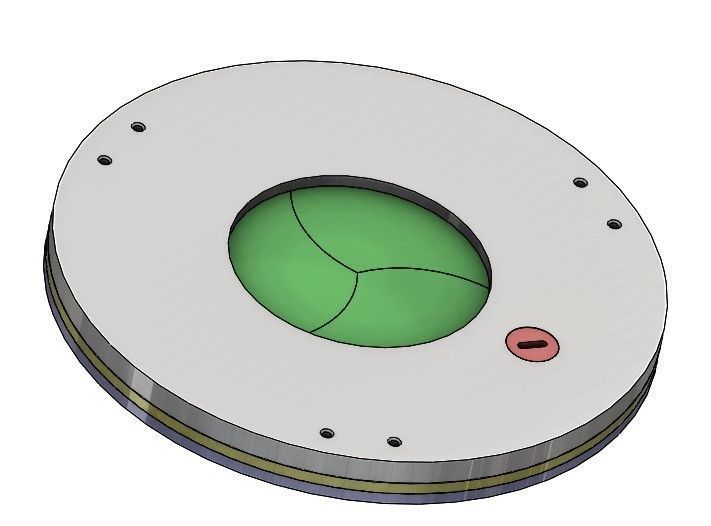

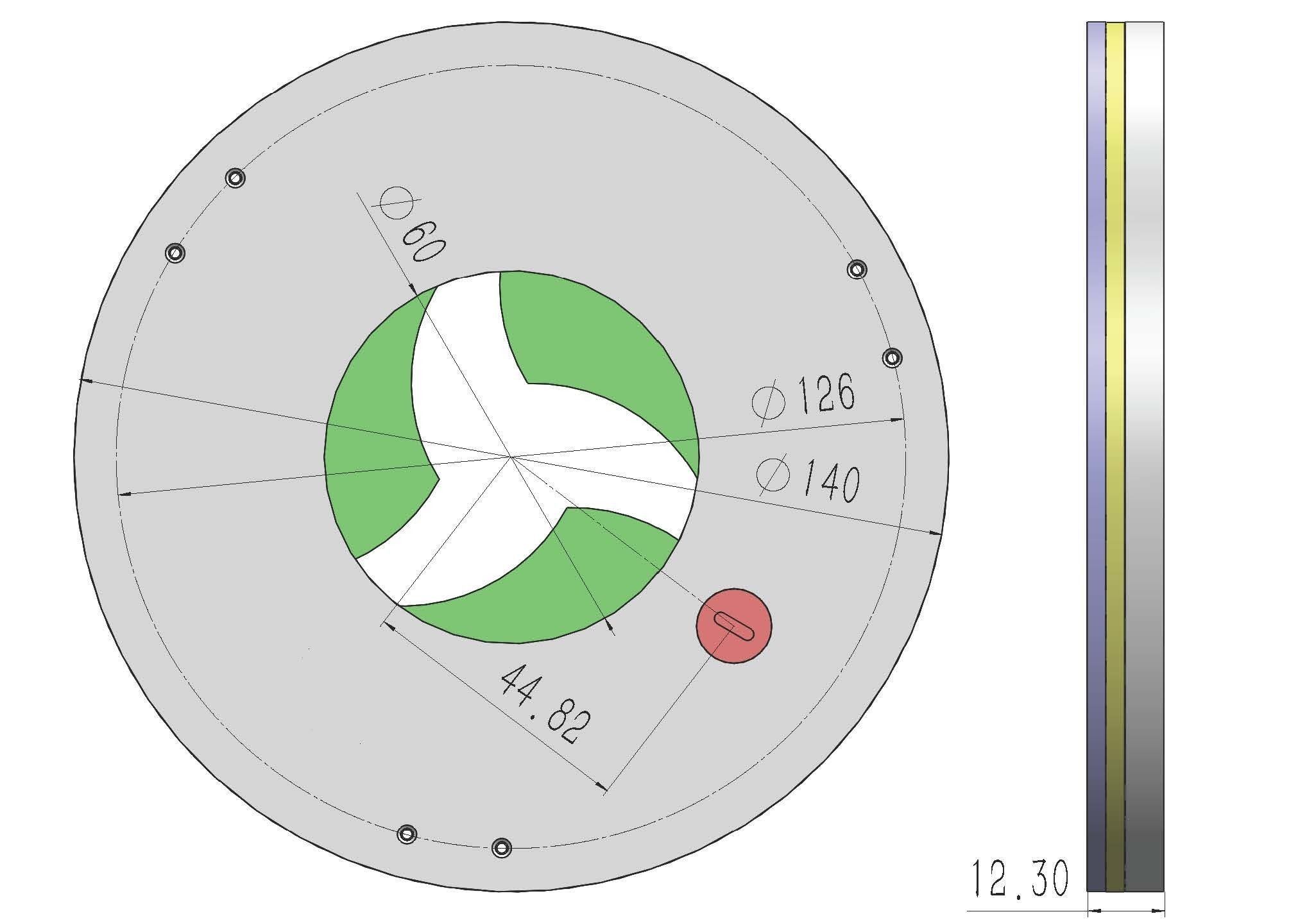

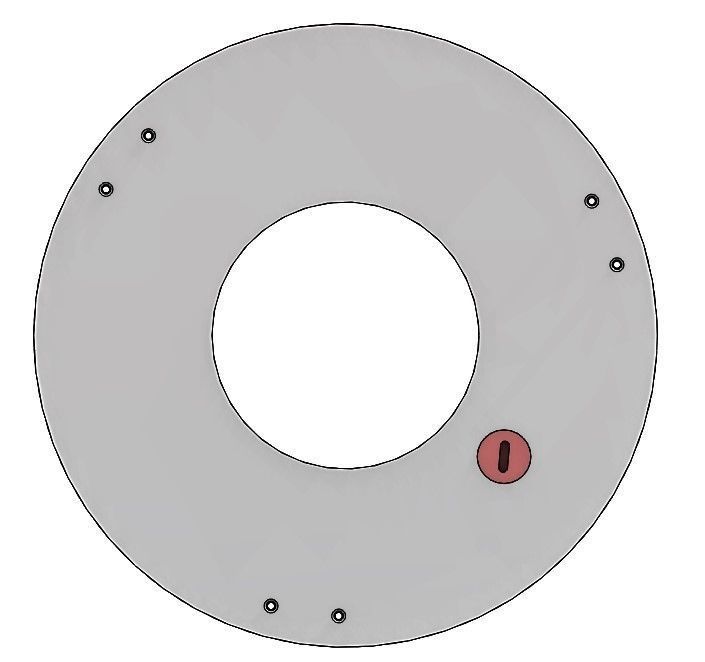

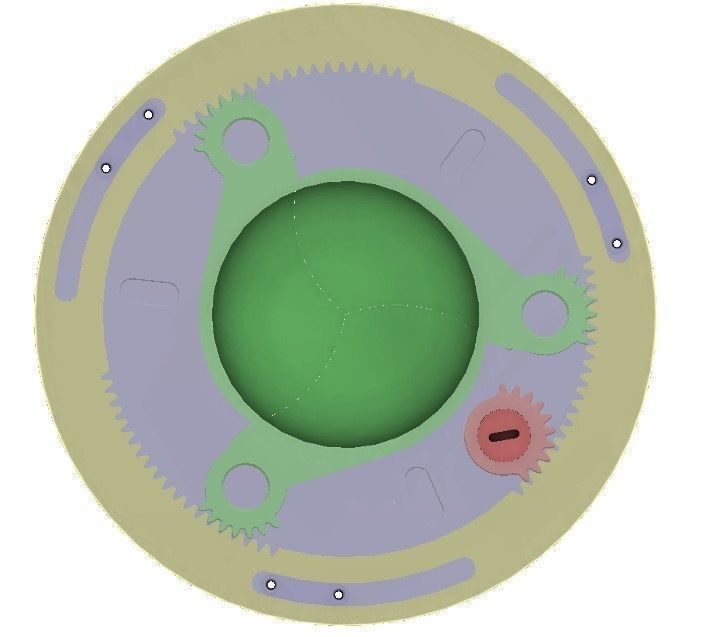

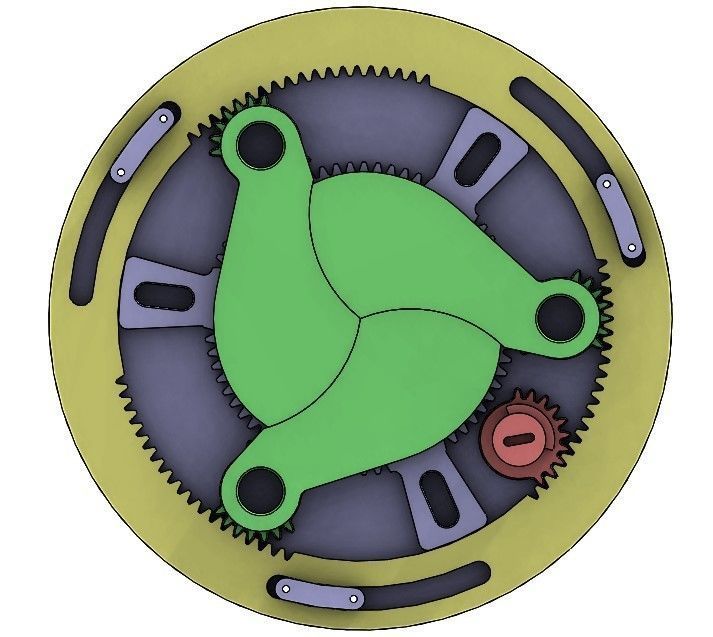

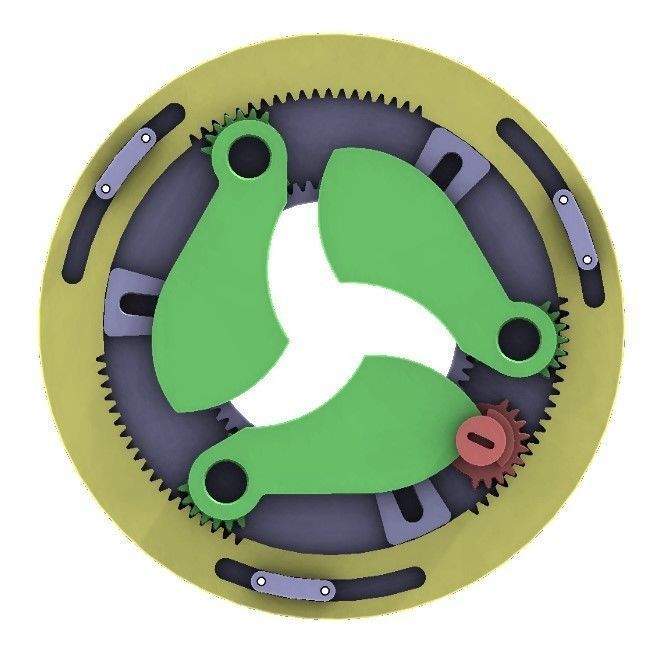

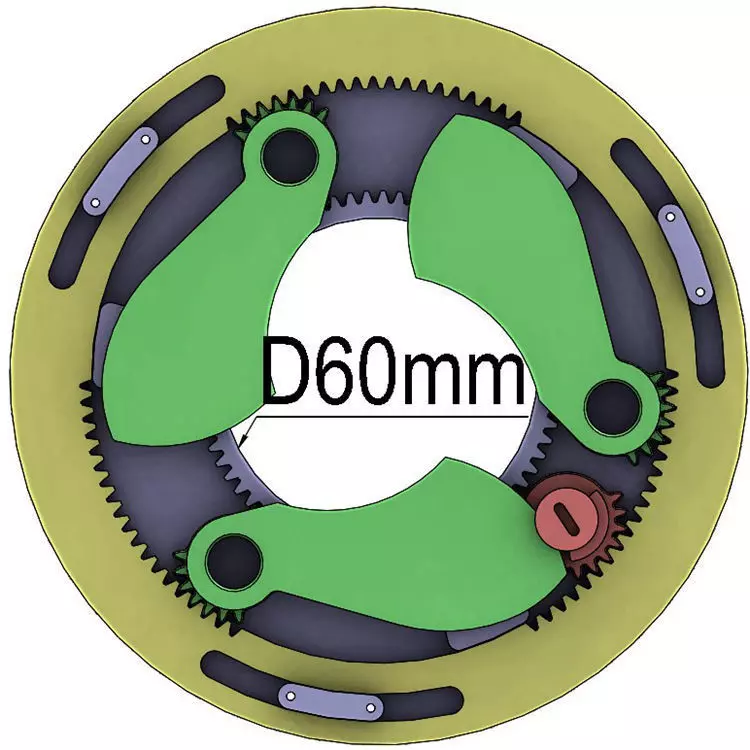

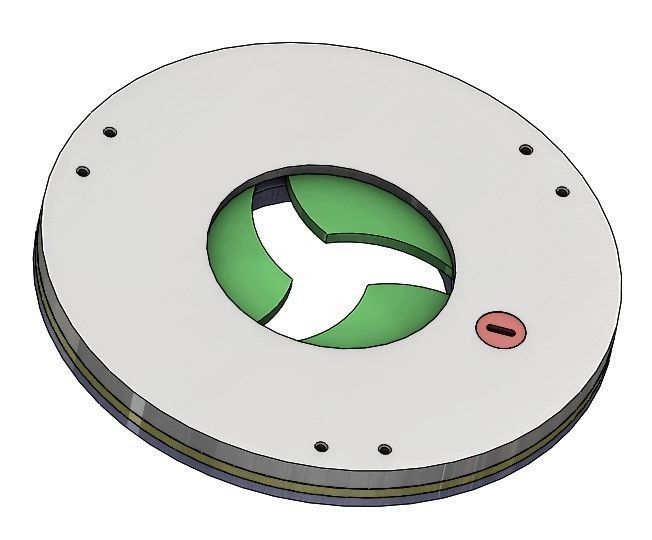

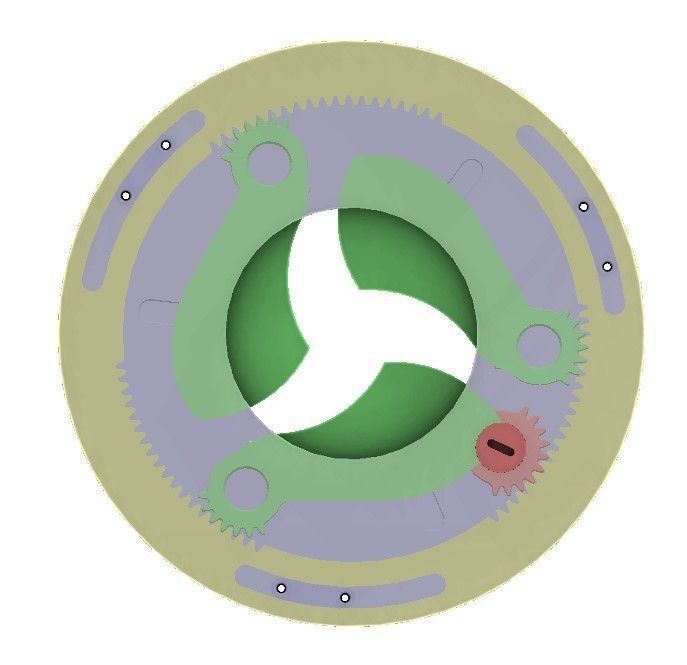

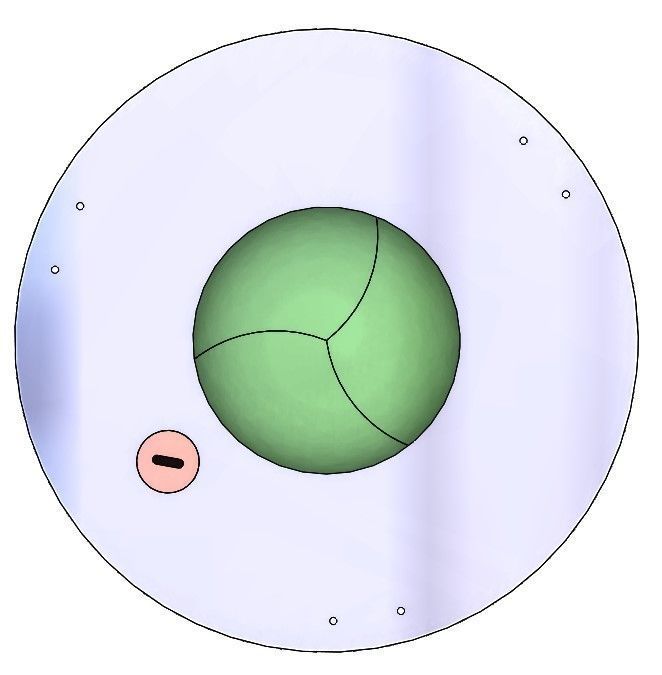

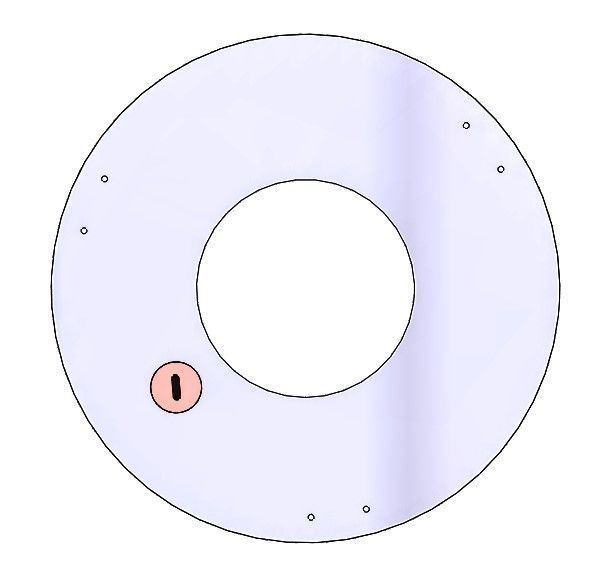

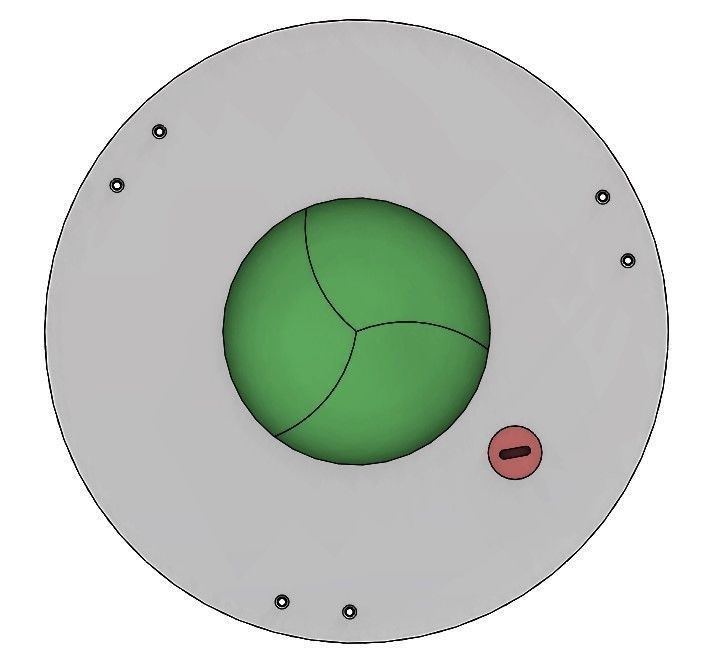

Iris mechanism designed for 3d printing. There are 3 blades. When you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 60mm, the outer size is diameter 140mm and thickness is 12.3mm. To assemble the parts togther,you need to prepare some M2 screws. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality. Parts should be printed separately and then assembled together.

The FBX and OBJ format files can be deleted,they are only for cgtrader's requirement. Download pdf file here: https://www.tanerxun.com
