3D Printable Iris mechanism-3DP2BLROD50A 3D print model
Description

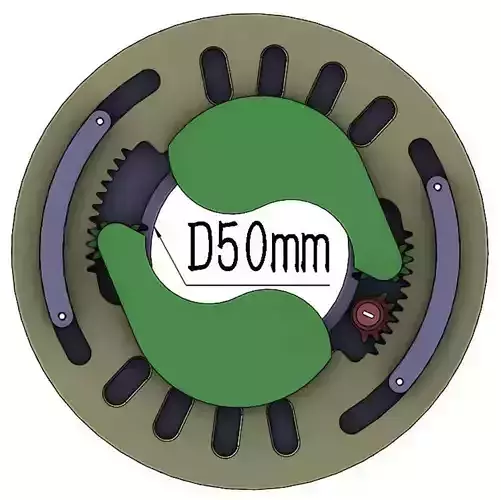

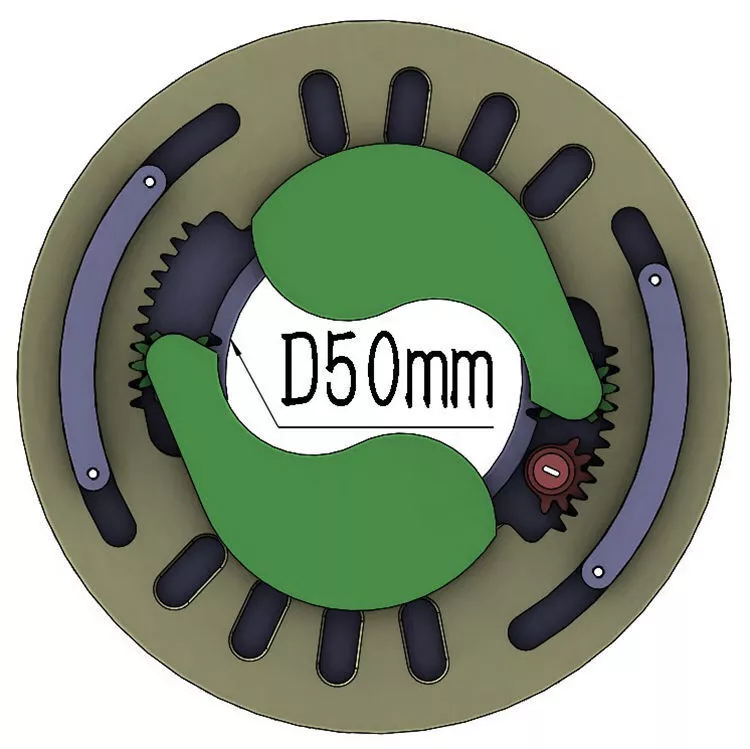

Iris mechanism or taiji mechanism designed for 3d print. There are 2 leaves. Then you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 50mm, the outer size is diameter 120mm and thickness is 8.2mm. To assemble the parts togther,some M2 screws are needed. Parts are designed for 3d printing. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality. Parts should be printed separately and then assembled together. STEP and STL are included in the attachment. The FBX and OBJ format files can be deleted,they are only for cgtrader's requirement. Download pdf file here: www.twothreed.com
3D Printable Iris mechanism-3DP2BLROD50A
Royalty Free License
3D Printable Iris mechanism-3DP2BLROD50A
Royalty Free License
3D Model formats
Format limitations
- OBJ (.obj, .mtl)562 KB
- Autodesk FBX (.fbx)562 KB
- PDF (.pdf) (3 files)1.25 MB
- Stereolithography (.stl) (5 files)4.27 MB
3D Model details
- Publish date2022-01-04
- Model ID#3489951
- Ready for 3D Printing
