3DP3BLROD30A mechanical shutter Iris mechanism diy part

3DP3BLROD30A mechanical shutter Iris mechanism diy part 3D print model

Description

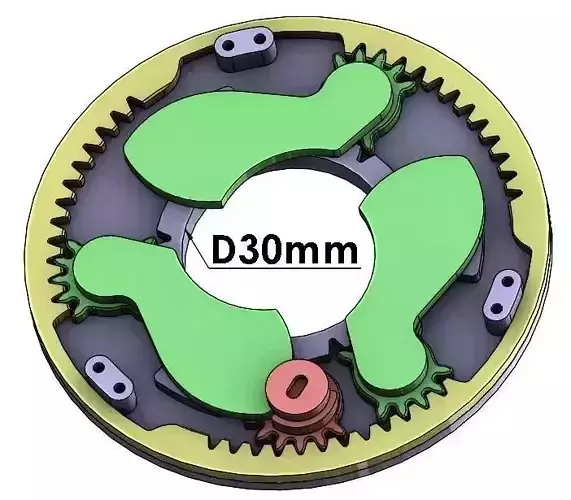

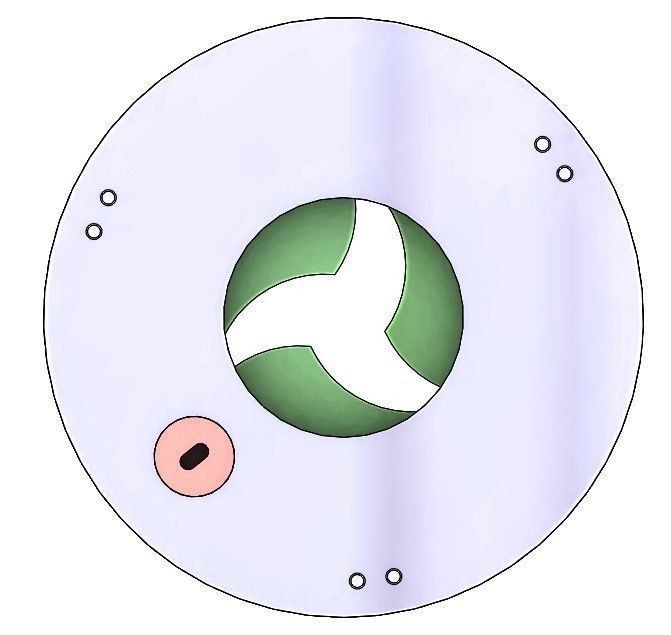

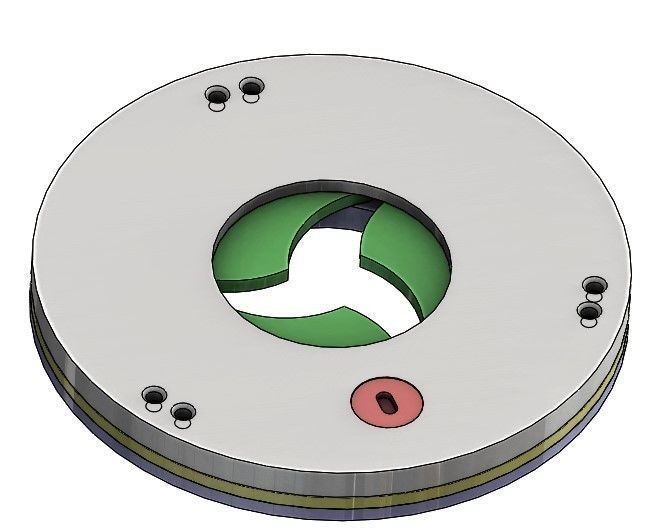

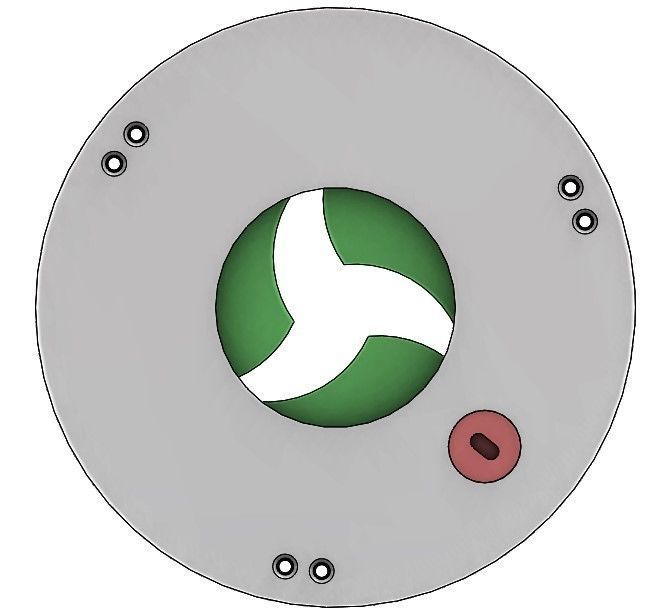

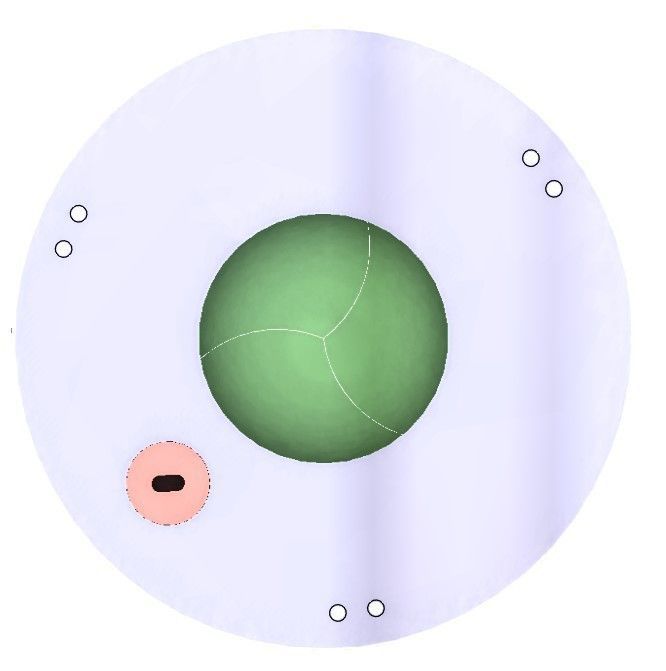

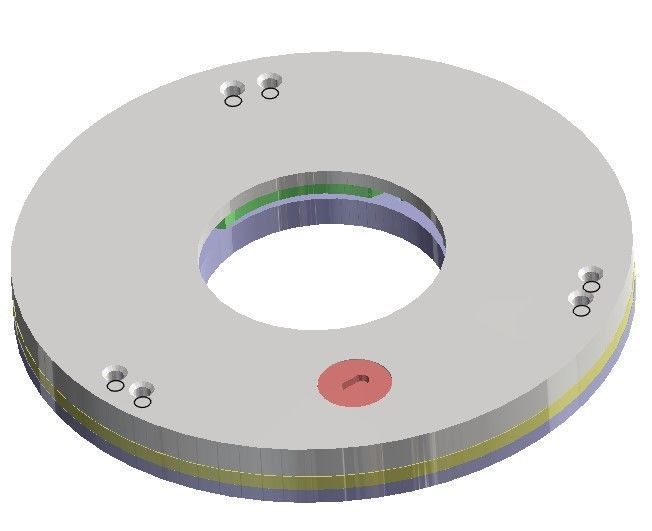

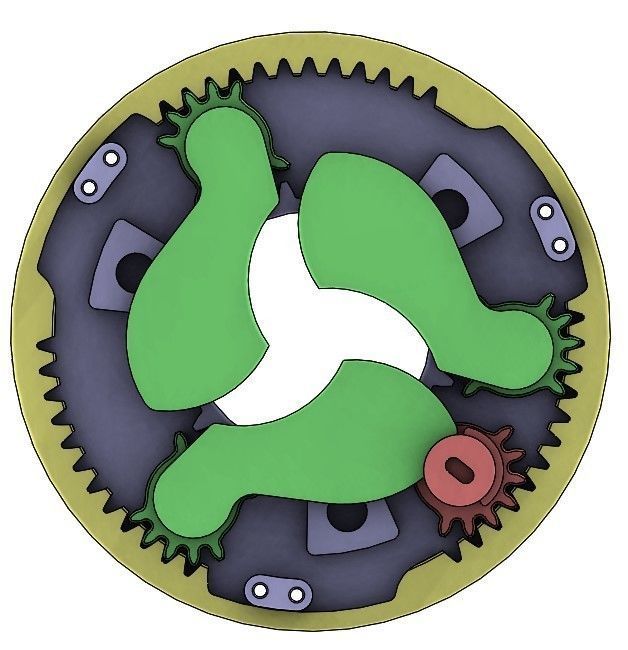

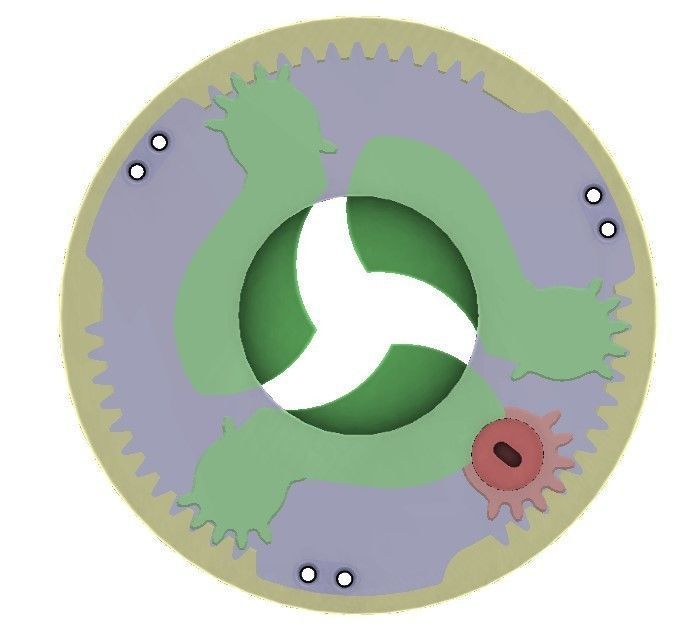

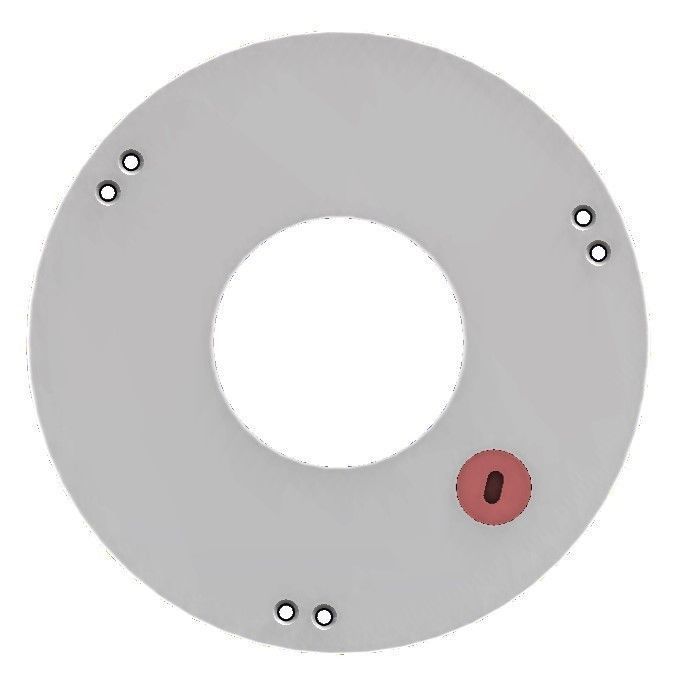

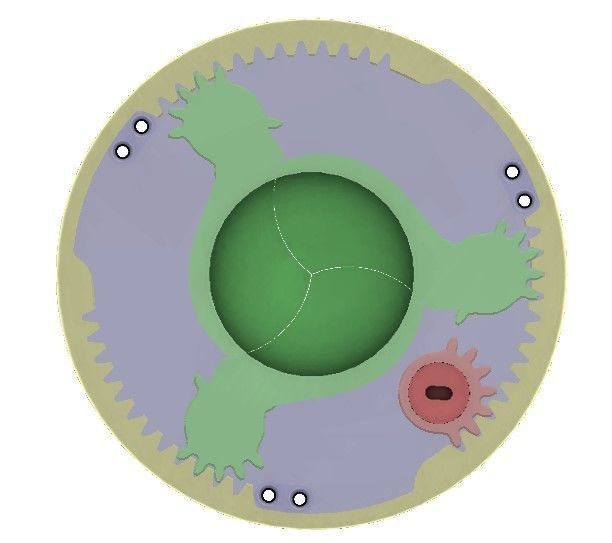

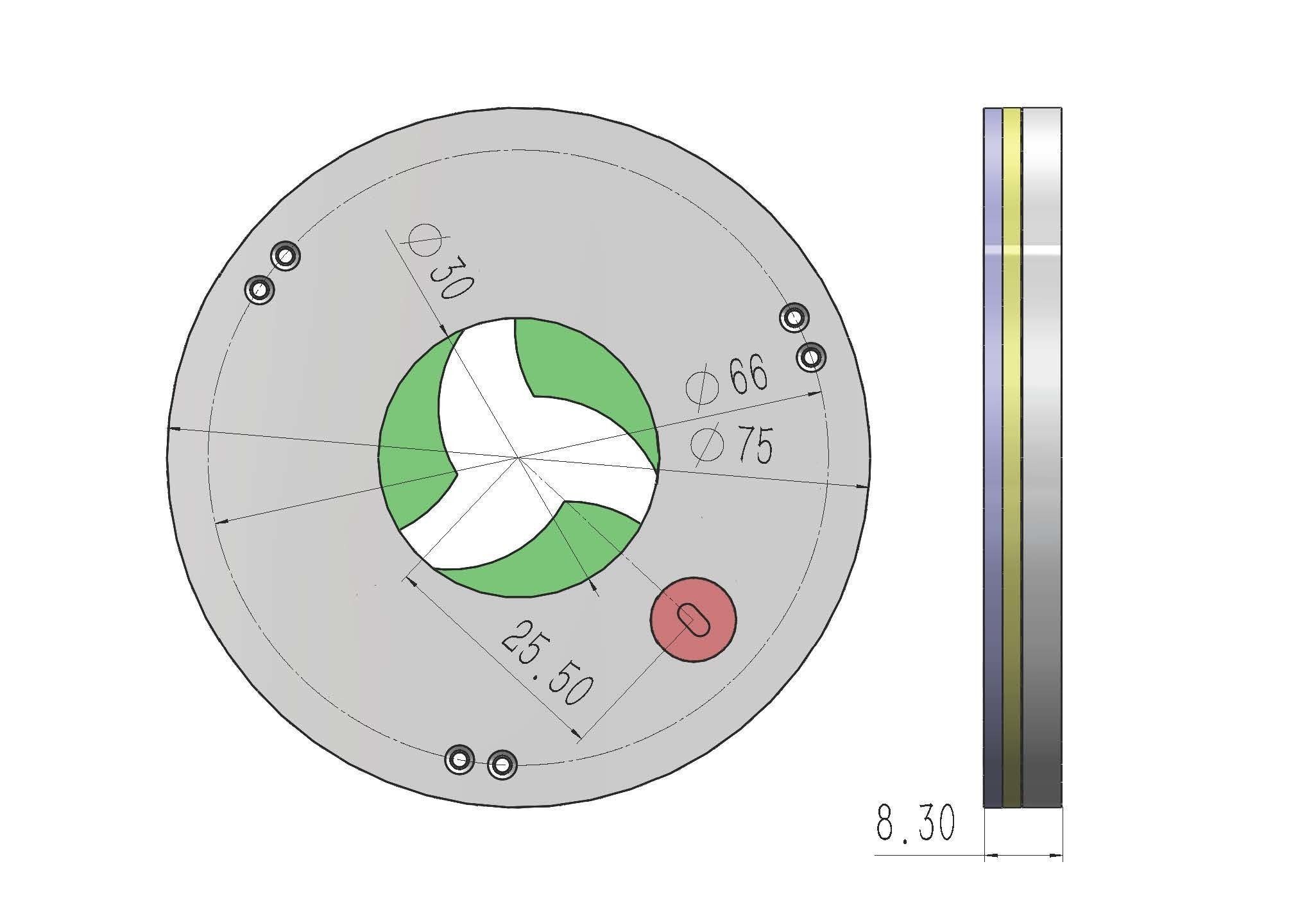

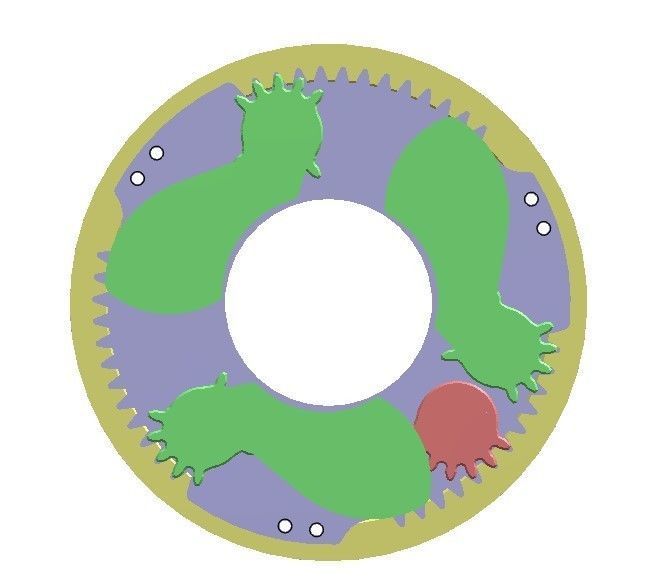

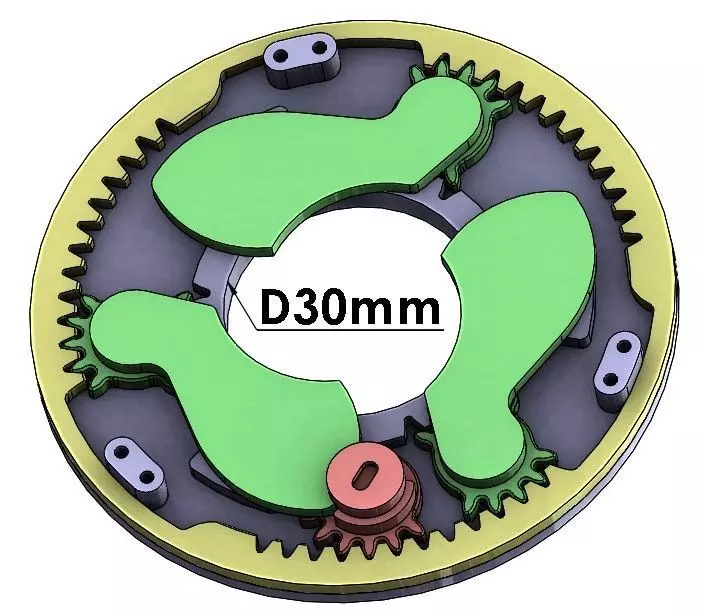

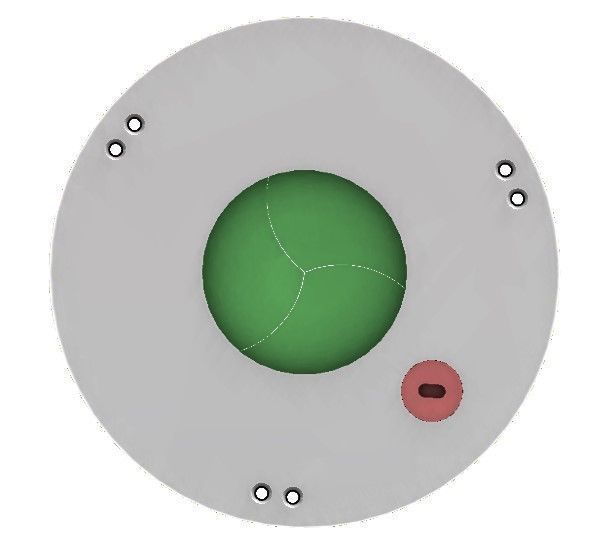

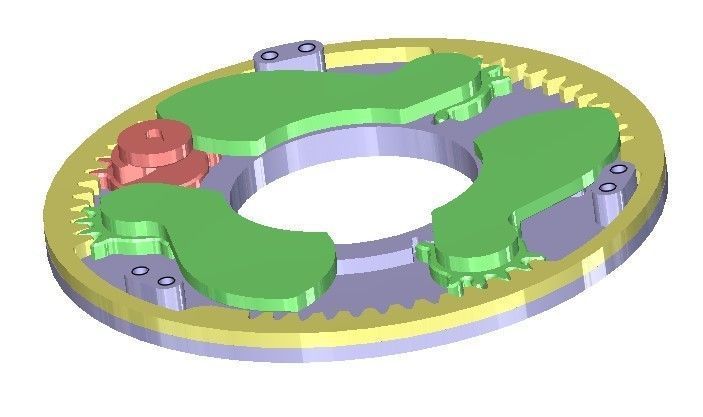

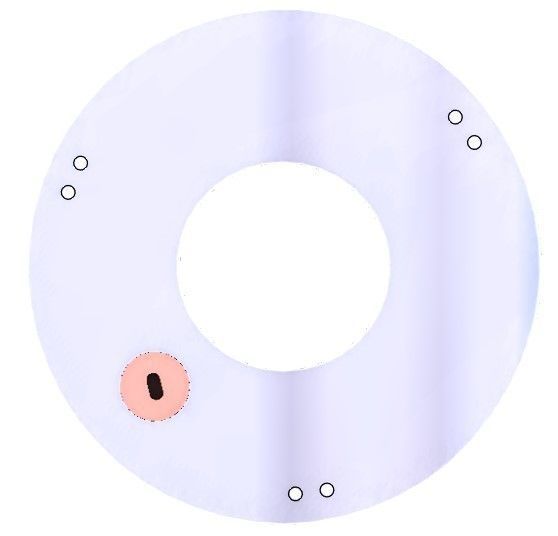

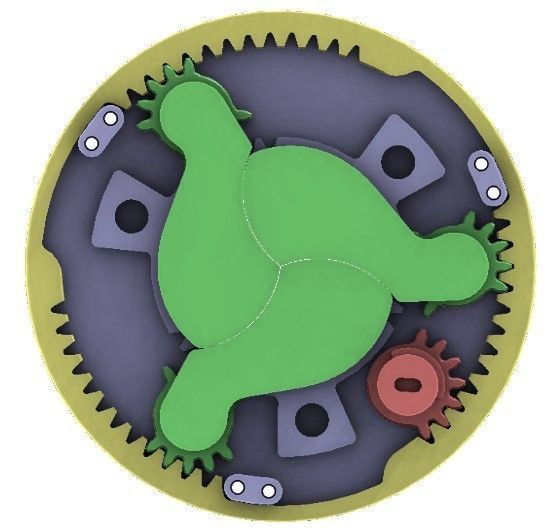

Iris mechanism designed for 3d printing. There are 3 blades. When you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 30mm, the outer size is diameter 75mm and thickness is 8.3mm. To assemble the parts togther,you need to prepare some M2 screws. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality. Parts should be printed separately and then assembled together.

The FBX and OBJ format files can be deleted,they are only for cgtrader's requirement. Download free 3d pdf file: https://www.twothreed.com/

Item rating
0 0
3DP3BLROD30A mechanical shutter Iris mechanism diy part
$5.90

Royalty Free License
3DP3BLROD30A mechanical shutter Iris mechanism diy part
$5.90

Royalty Free License
Response 100% in 2.8h
3D Modeling
3D Print Modeling
Low-poly Modeling
3D Scanning
Hire me

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)744 KB
  • Stereolithography (.stl) (5 files)4.88 MB
  • Autodesk FBX (.fbx)744 KB
  • PDF (.pdf) (3 files)1.63 MB

3D Model details

  • Publish date2022-01-10
  • Model ID#3502714
  • Ready for 3D Printing
