3DP3BLROD50A Iris diaphragm mechanism mechanical shutter diy 3D print model
Description
Iris mechanism for 3d printing-3DP3BLROD50A

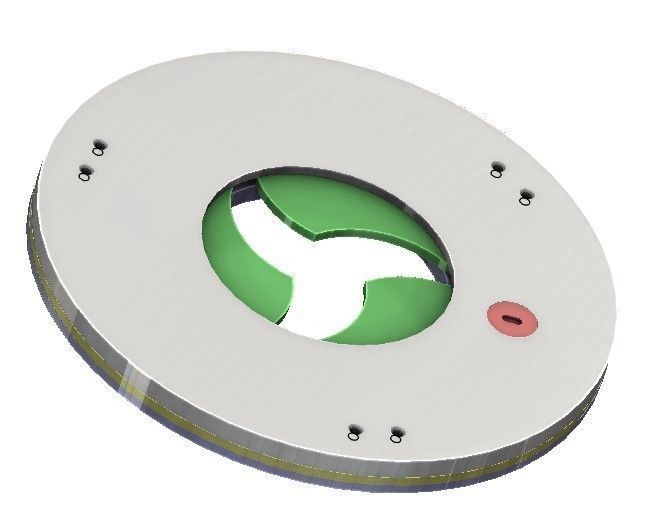

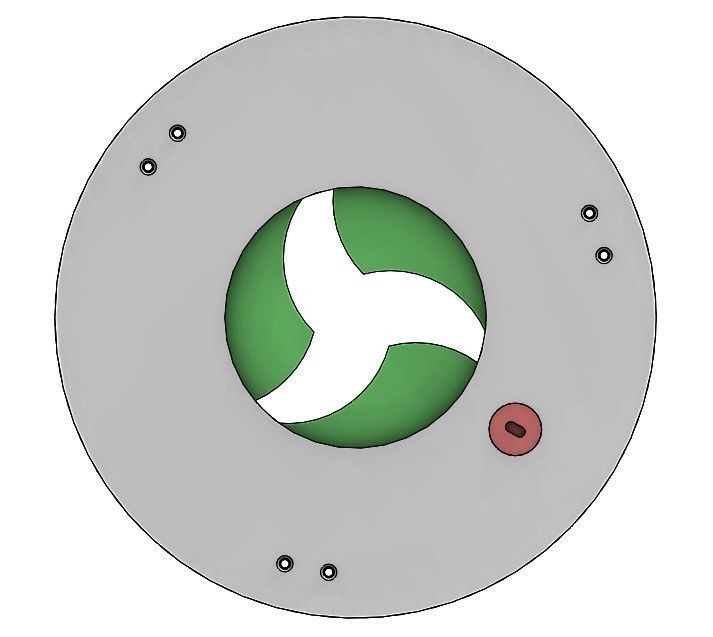

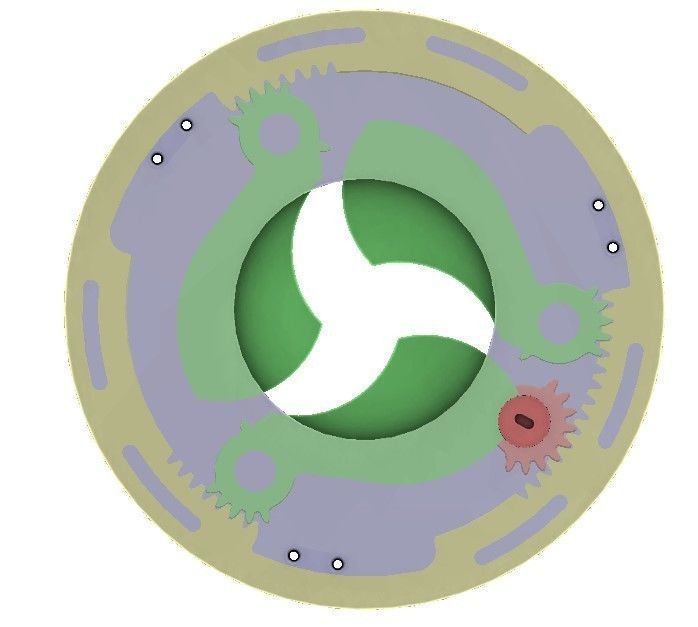

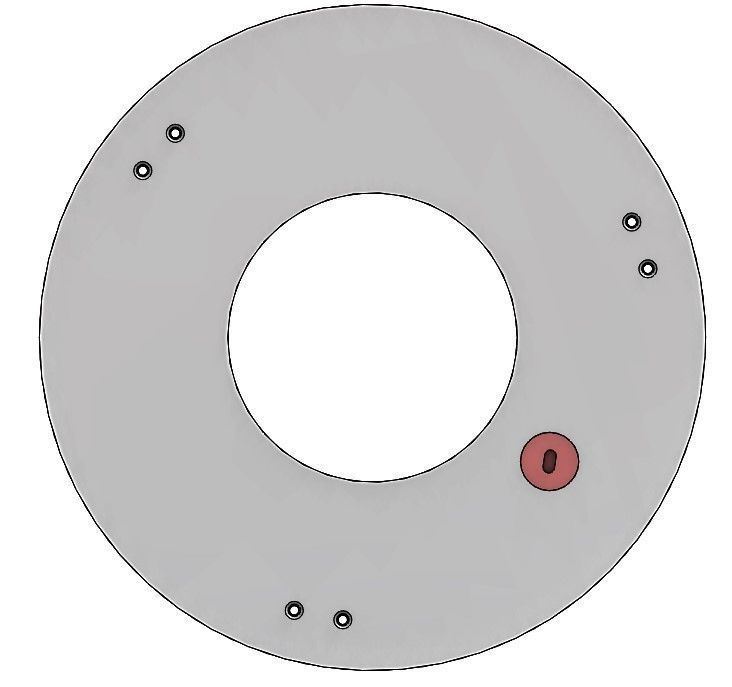

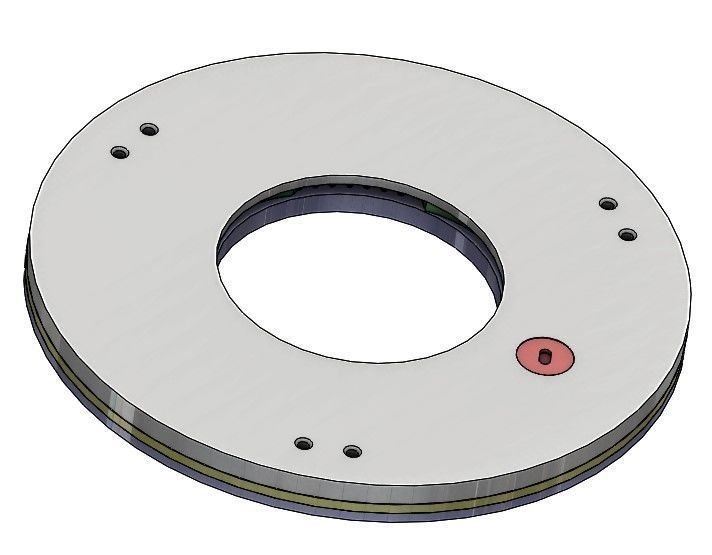

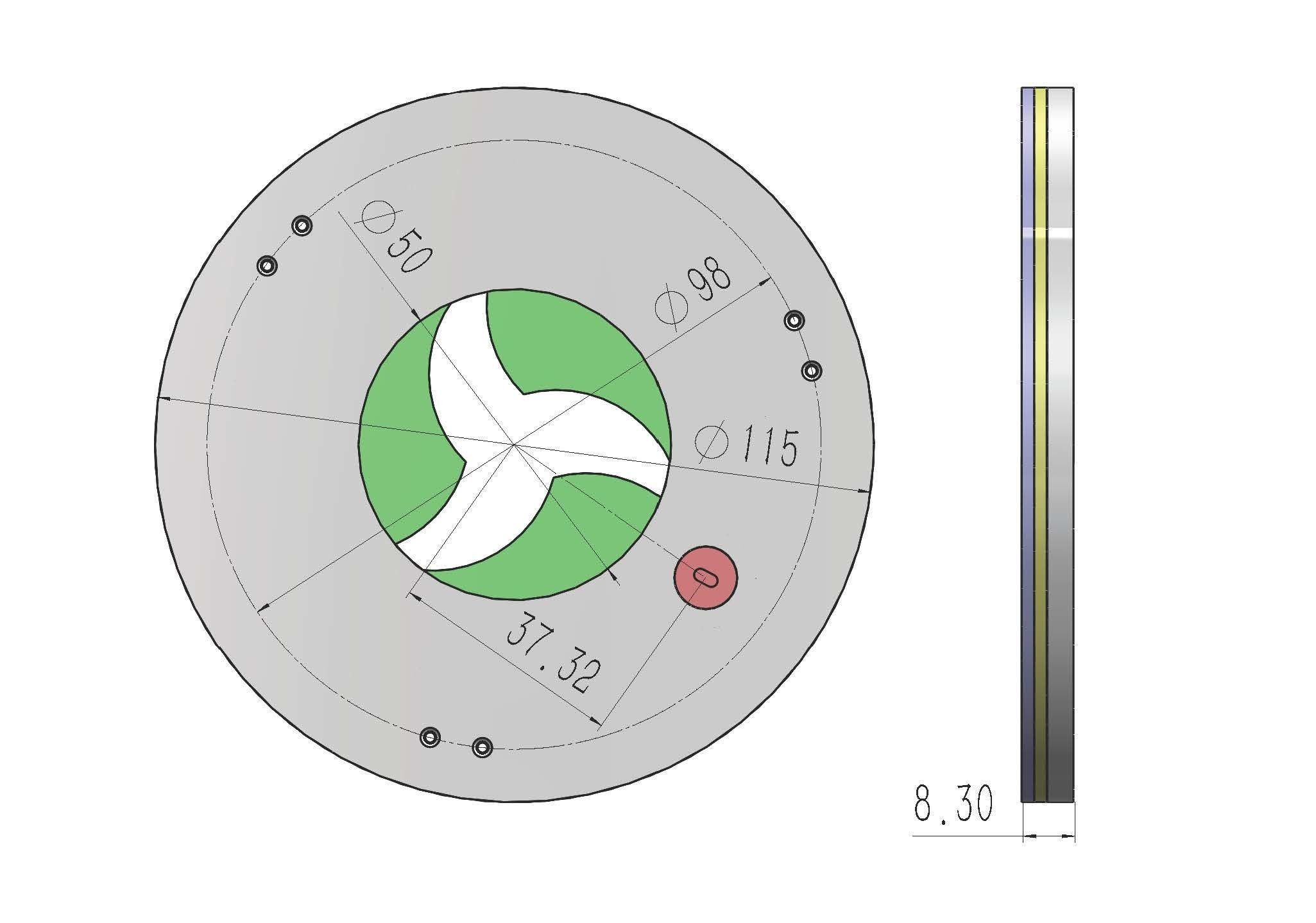

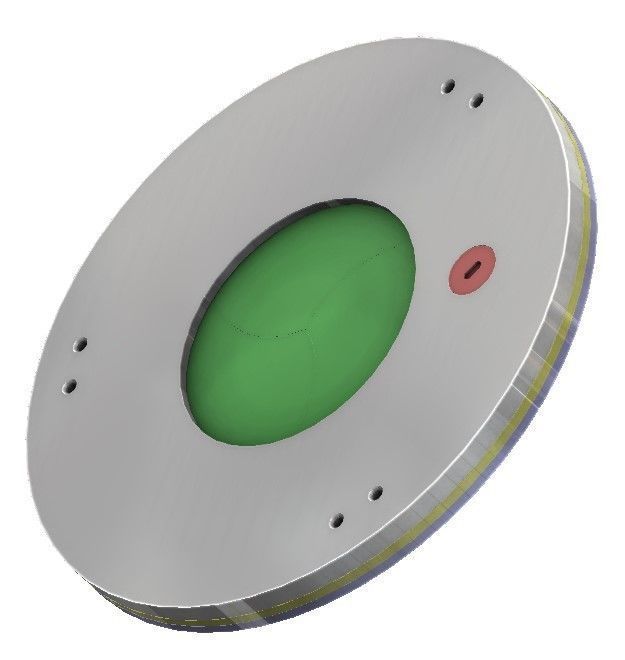

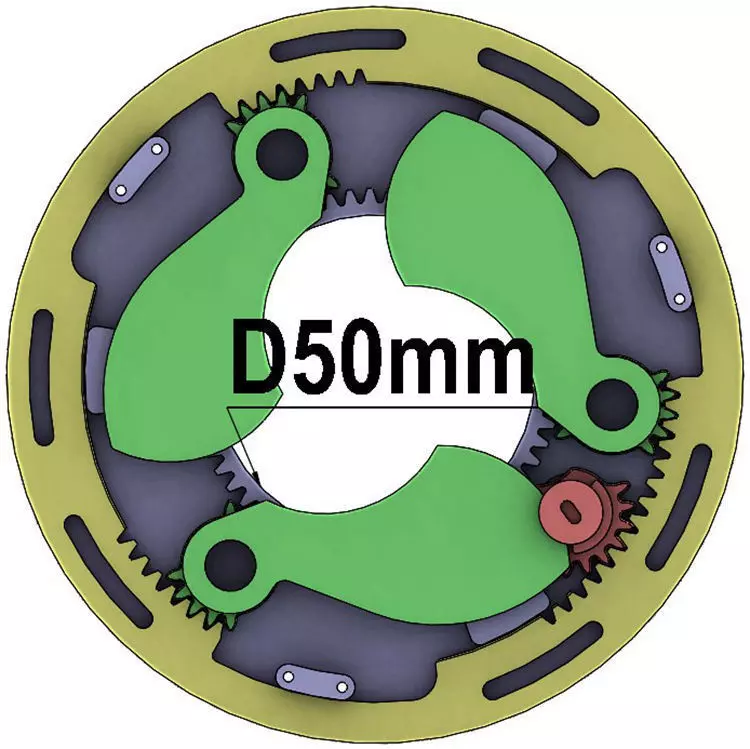

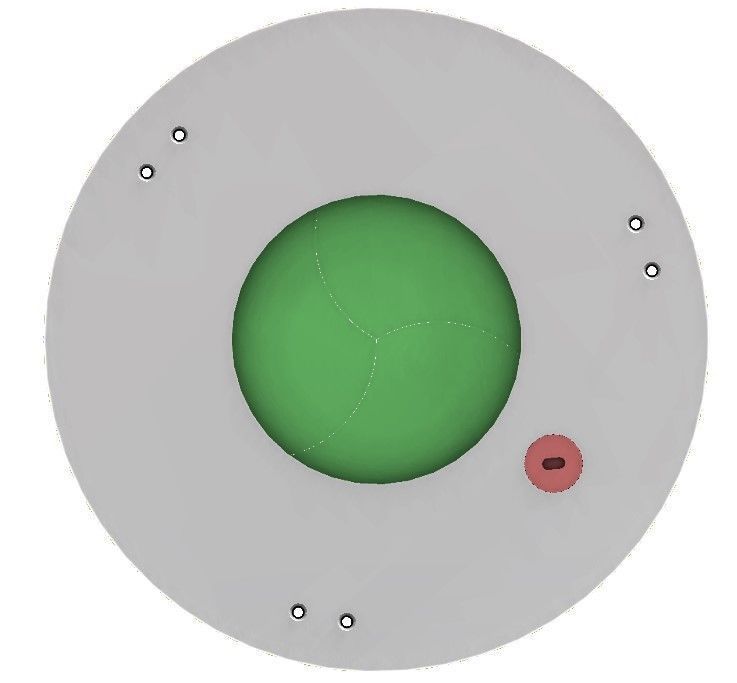

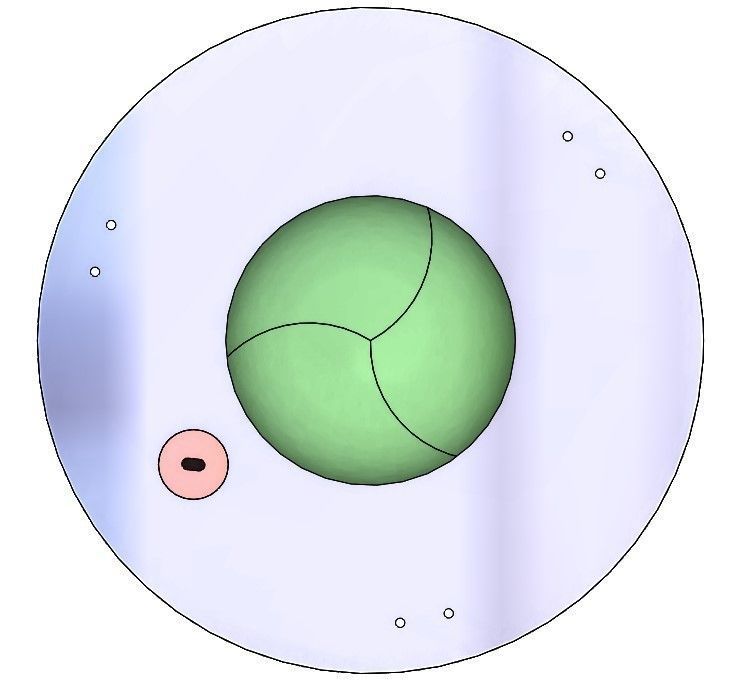

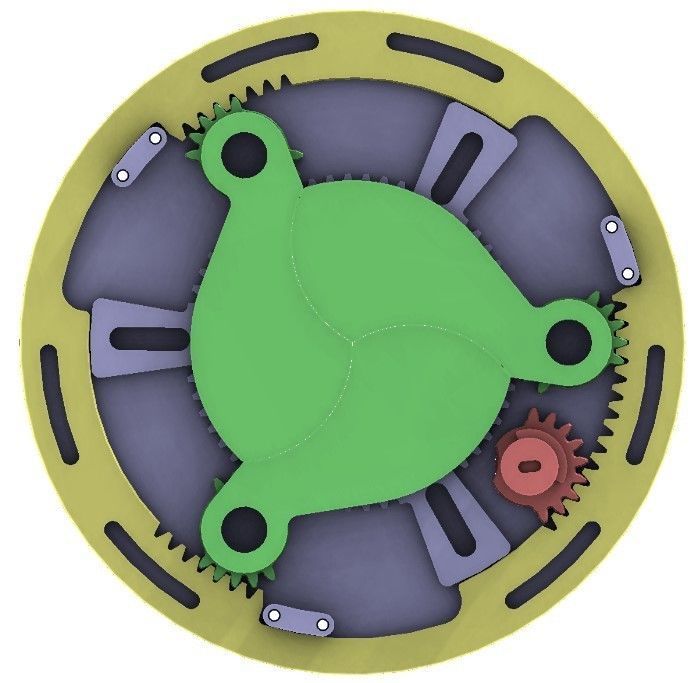

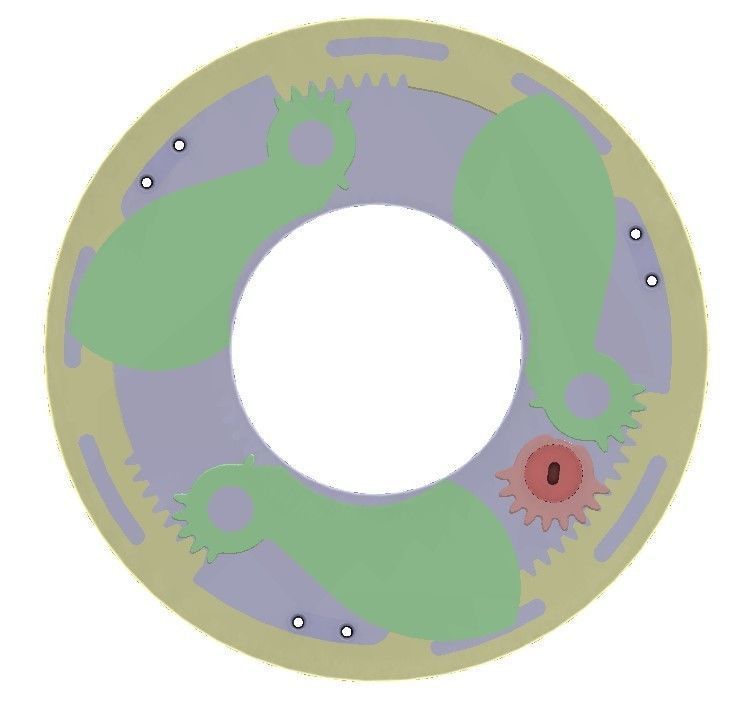

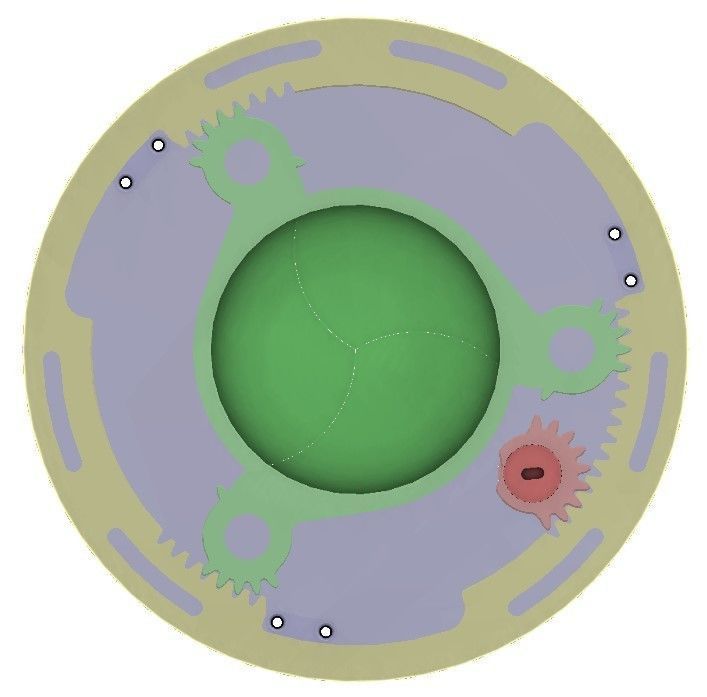

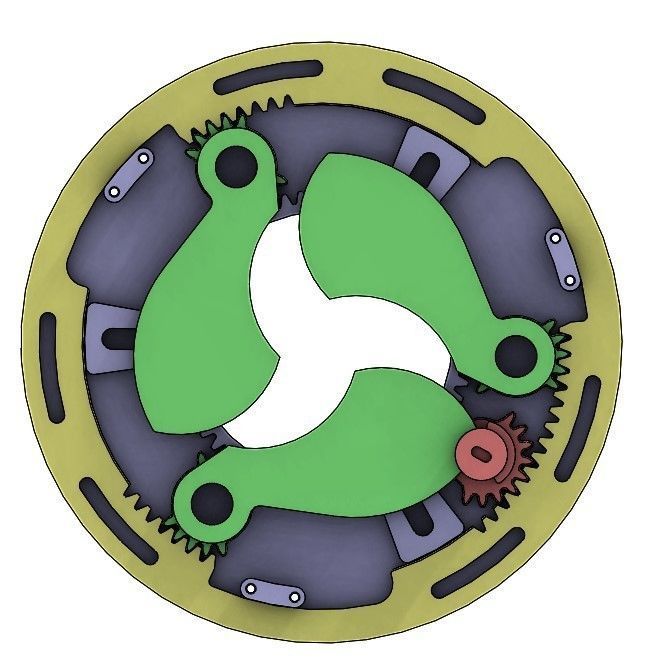

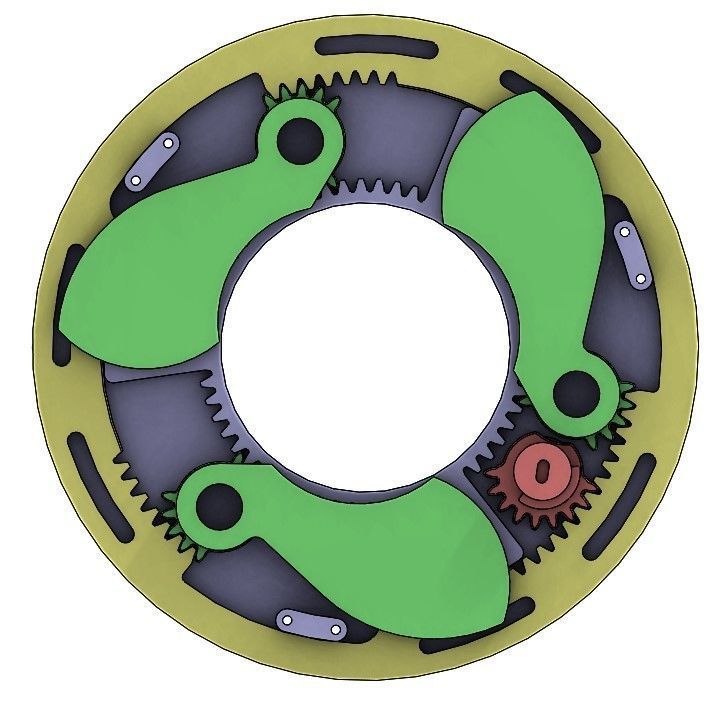

Iris mechanism designed for 3d printing. There are 3 blades. When you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 50mm, the outer size is diameter 115mm and thickness is 8.3mm. To assemble the parts togther,you need to prepare some M2 screws. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality. Parts should be printed separately and then assembled together.
The FBX and OBJ format files can be deleted,they are only for cgtrader's requirement. Download pdf file here: https://www.tanerxun.com
3DP3BLROD50A Iris diaphragm mechanism mechanical shutter diy
Royalty Free License
3DP3BLROD50A Iris diaphragm mechanism mechanical shutter diy
Royalty Free License
3D Model formats
Format limitations
- PDF (.pdf) (3 files)1.69 MB
- Autodesk FBX (.fbx)828 KB
- Stereolithography (.stl) (5 files)6.02 MB
- OBJ (.obj, .mtl)828 KB
3D Model details
- Publish date2022-01-12
- Model ID#3507225
- Ready for 3D Printing
