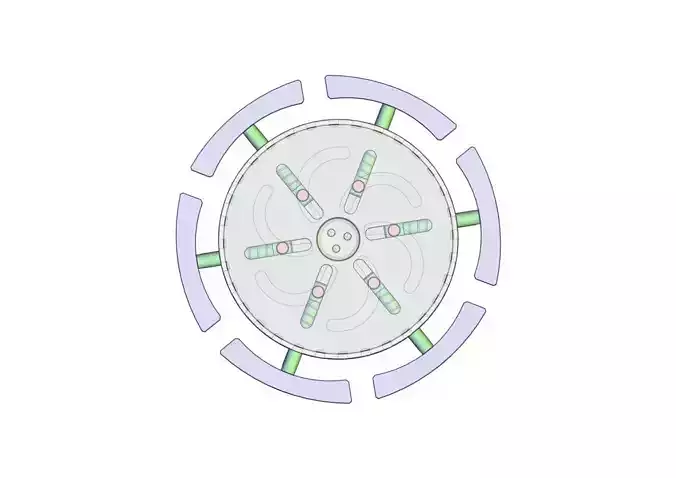

Self-locking expansion mechanism-outer spring 3D print model
Description

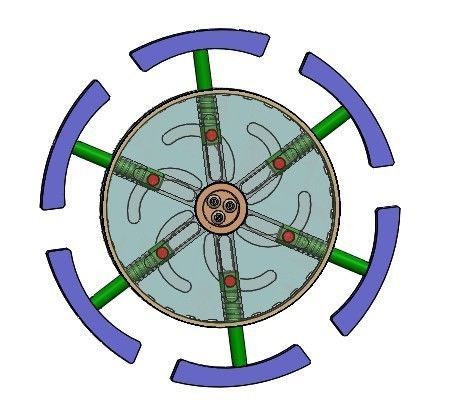

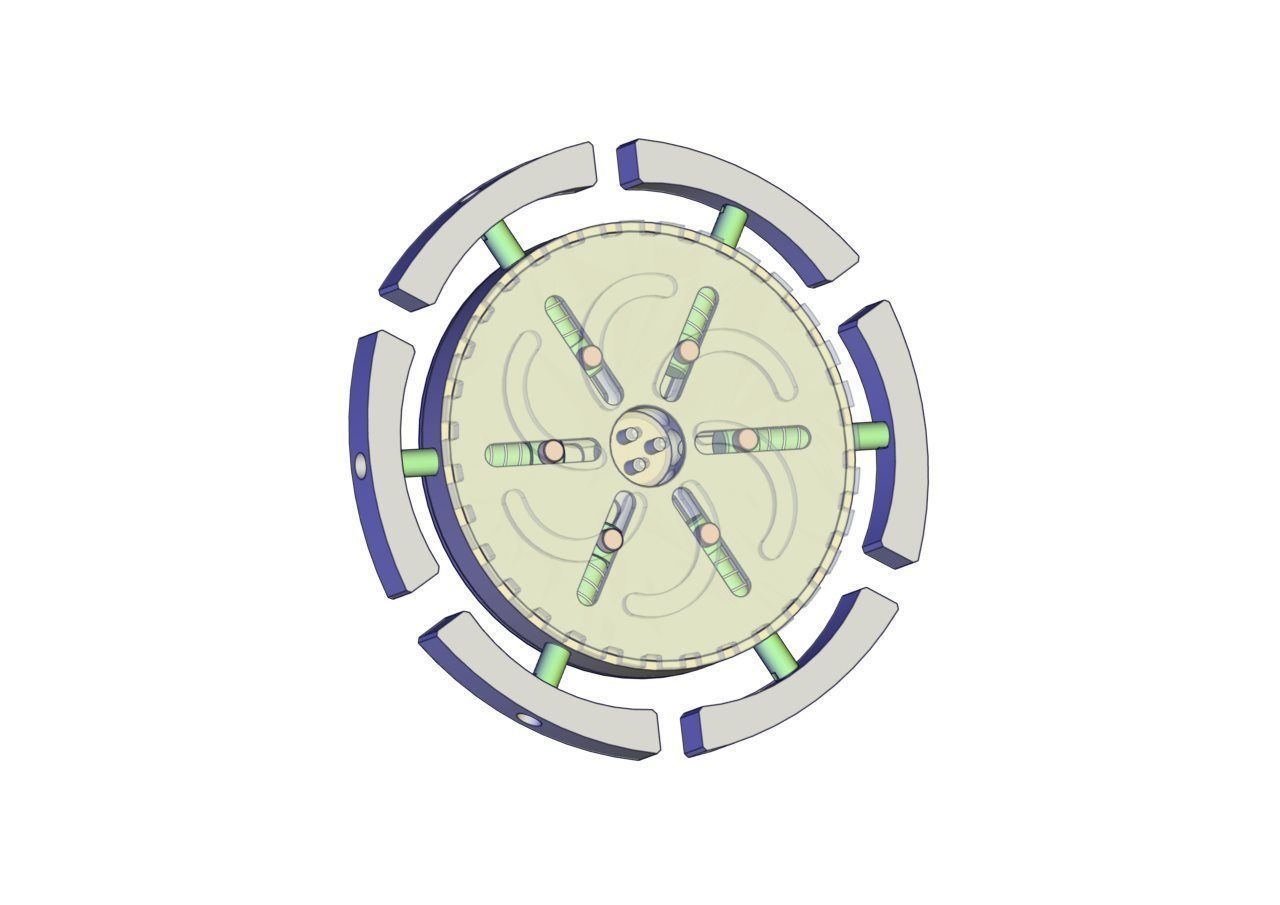

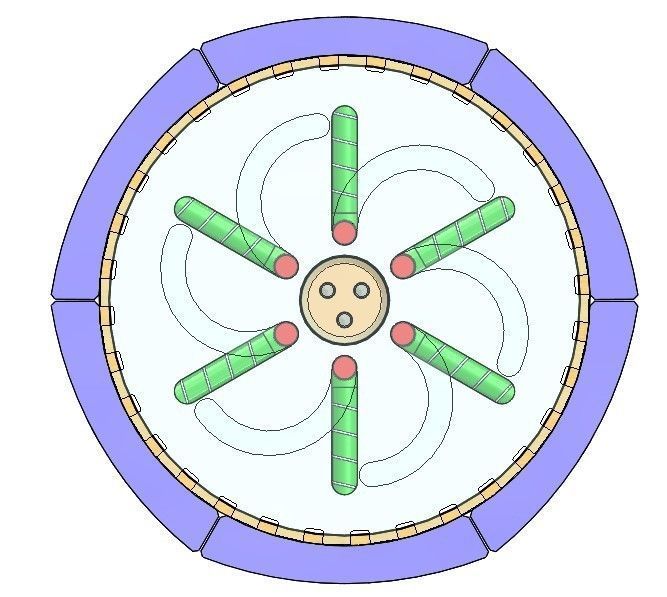

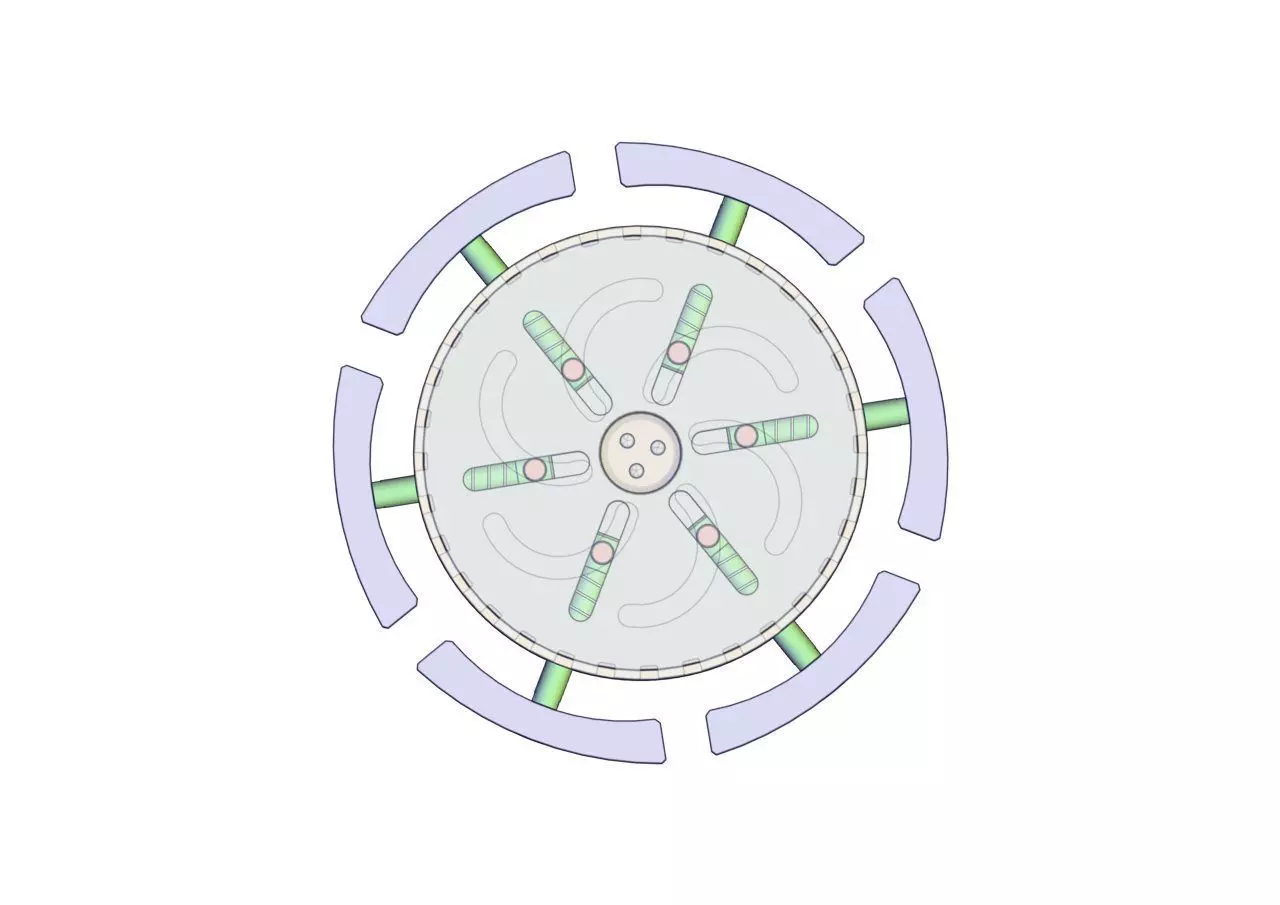

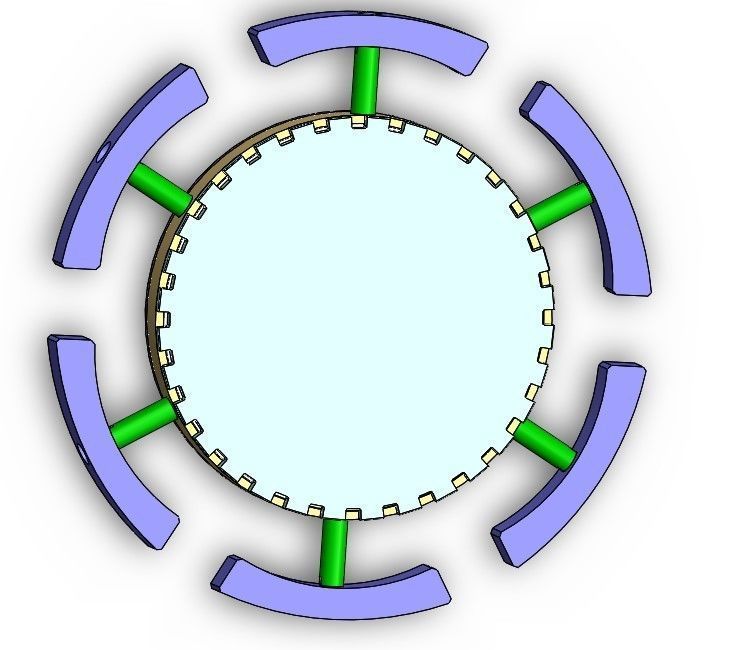

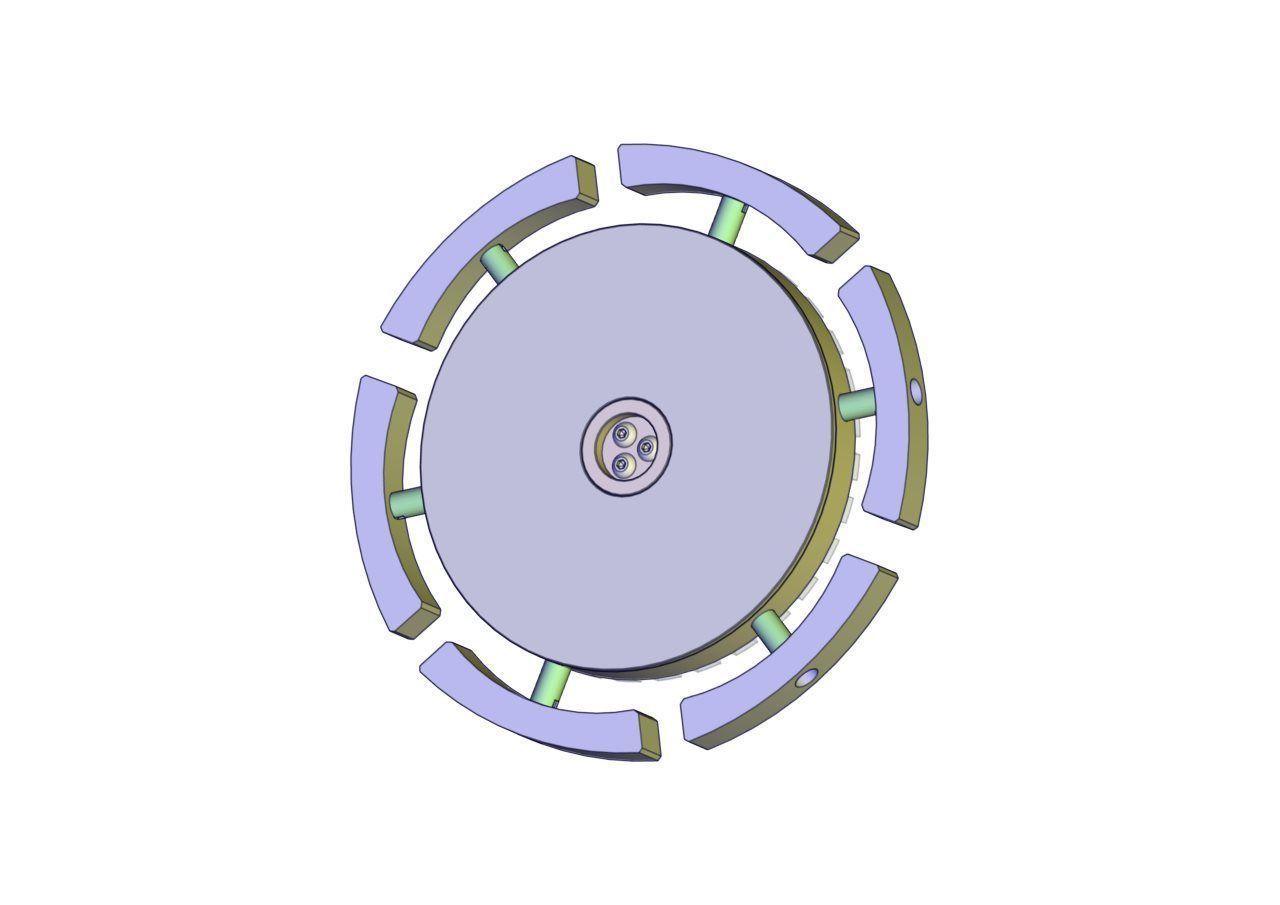

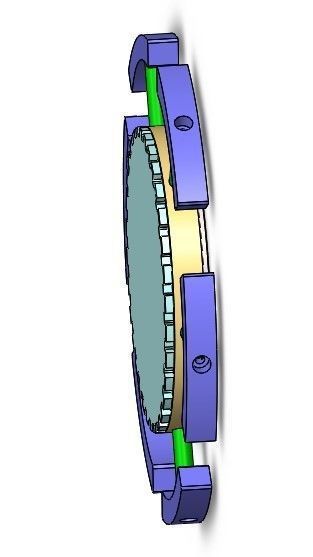

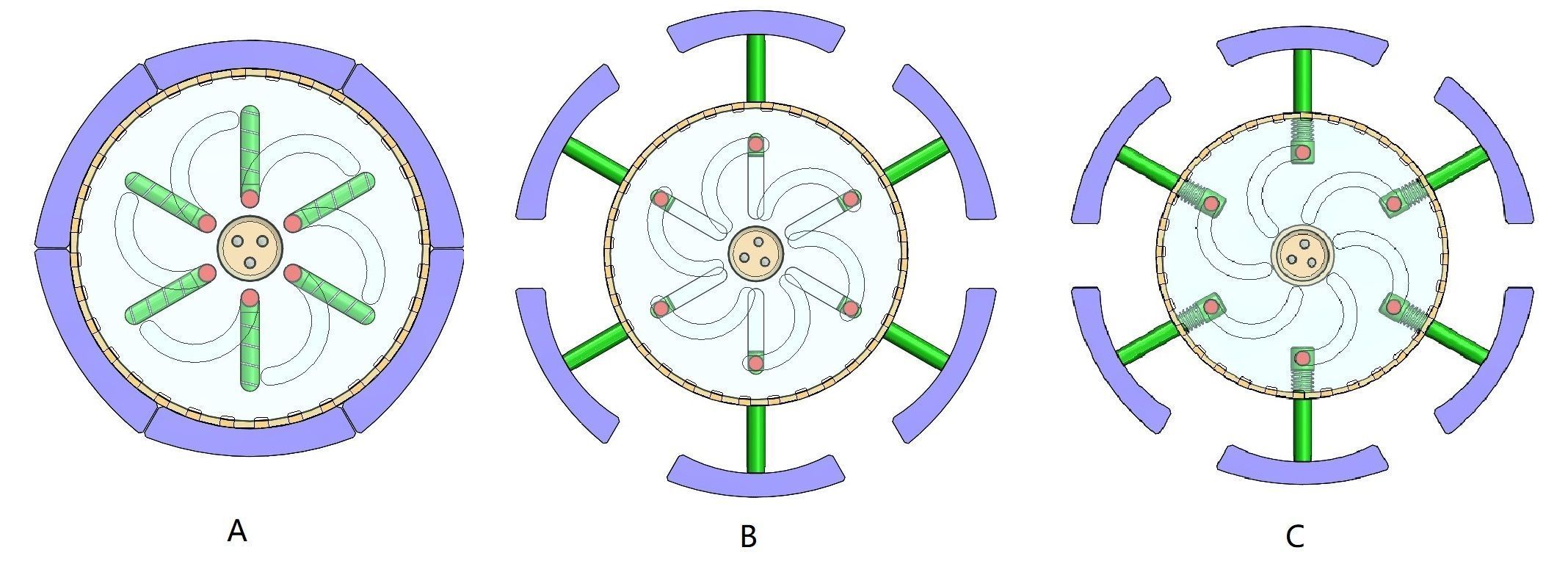

A self-locking expansion mechanism and is a two-position locking mechanism too. It can be used to expand pipes or other cylindrical parts. Parts can be 3d printed or manufactured with CNC machine. If you plan to 3d print the parts, it is best to use resin material. ABS may not work well. Of course, you can modify some parts to meet ABS’s requirements too. Download the free 3D PDF format file here: https://www.tanerxun.com/self-locking-expansion-mechanism/.html Ignore the OBJ and FBX files, they are only used to meet cgtrader’s requirement.
U
udley-b-cumaio udley-b-cumaio
its nice
Self-locking expansion mechanism-outer spring
Royalty Free License
Self-locking expansion mechanism-outer spring
Royalty Free License
3D Model formats
Format limitations
- Stereolithography (.stl) (8 files)47.1 MB
- OBJ (.obj, .mtl)106 KB
- Autodesk FBX (.fbx)106 KB
- PDF (.pdf) (3 files)2.37 MB
3D Model details
- Publish date2020-12-20
- Model ID#2768609
- Ready for 3D Printing
