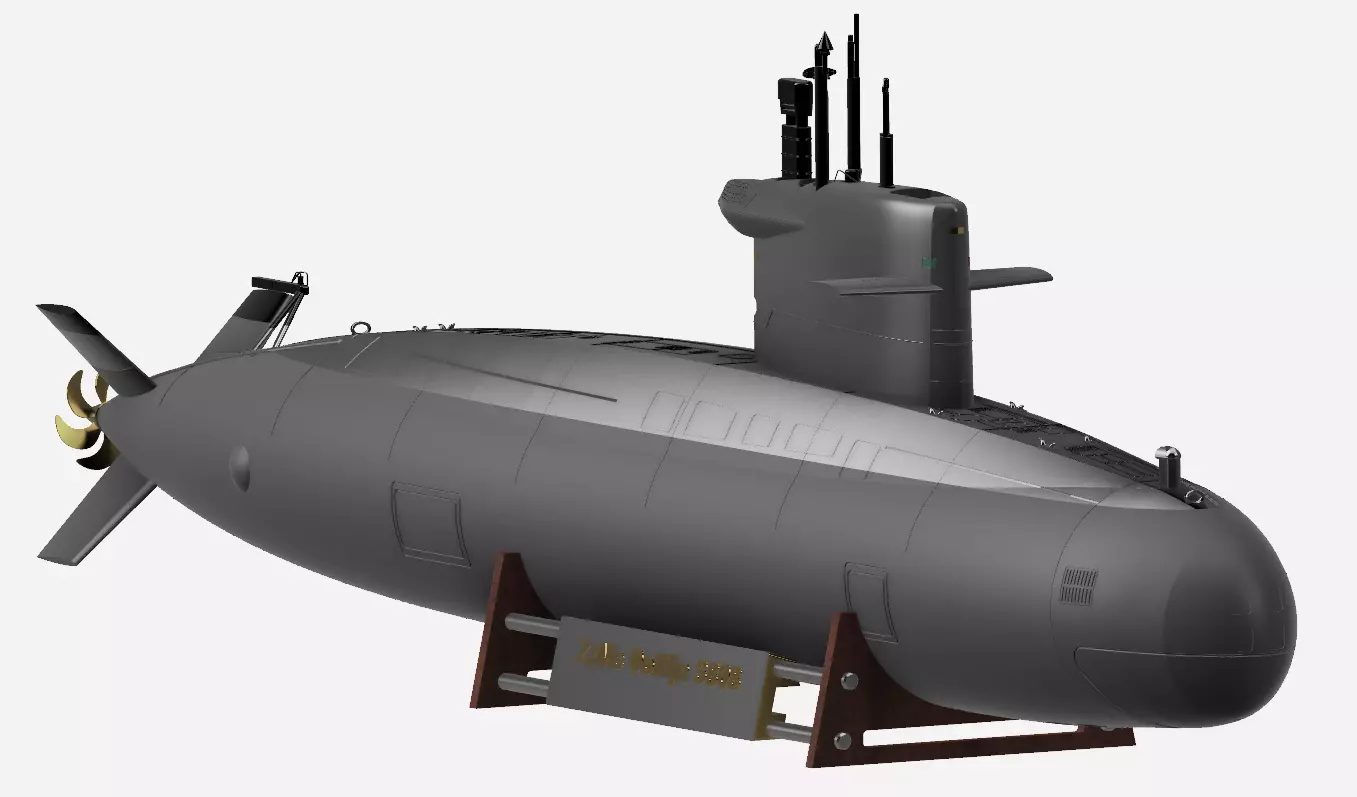

Complete 3d model of the Dutch Walrus Class submarine made for RC.

The Walrus Class is a modern Diesel-Electric submarine in service from 1990 with a total of 4 submarines in active service.

HrMs Walrus, HrMs Bruinvis, HrMs Zeeleeuw, HrMs Dolfijn.

The Walrus Class has the ability's to operate worldwide with an armament of 4 21 inch torpedo tubes.

Length: 67,75mBeam: 8,4mDraft: 6,6m

The model printed in 1/50 scale is 1,36m long. and made for 100mm or 120 mm WTC.

Specs:

Updated model, completely new designed.

Complete submarine hull,

Hull separated in 2 parts, top and bottom. with locking system.

78mm Propellor (to be printed in resin)Complete with 3d printable rudder hevels for X-rudder in the tail.Scissor mechanism for raising periscopes

I wanted to make a rather unique submarine and always liked the look of the Dutch Walrus Class. I didnt want to make a epoxy hull because to much time consuming.

This model is developed consulting an experienced rc submarine builder. Any rcmodelling experience is needed for the technical diving part.

The images of the printed version are the (identic) 1/60 scale version.

3D PRINTING SETTINGSPrint filament: PLA+ (Esun)Printer: SovolSV06Temp: 210 cRes 0,1mmSpeed 50mm/s depends on printer typeBed : 50 cMost parts with brim and without support

Printbed size for 1/50 version: 250x250x250Printbed for 1/60 version 220x220x250 (I printed the Walrus in 1/60 scale)

Usage: 2,5kg Filamanet.

Some parts are best printed in Resin:Nav lights and Propellor.

This model is soon also available in 1/60 and 1/100 scale

The model in te pictures is printed in 1/60 scale

Sailing RC model on YouTube is printed from this files in 1/60 scale:
