U-Boot TYP VIID 3D Print

U-Boot TYP VIID 3D Print 3D print model

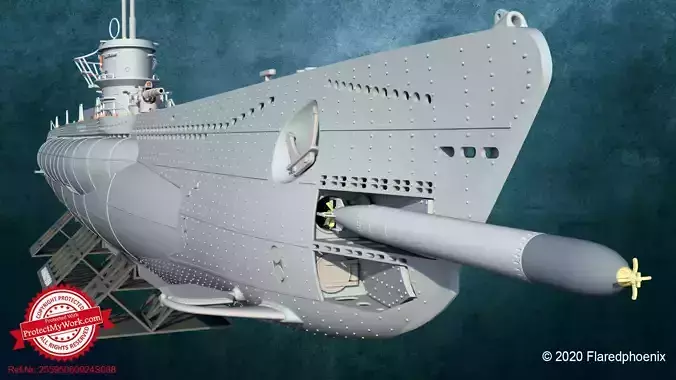

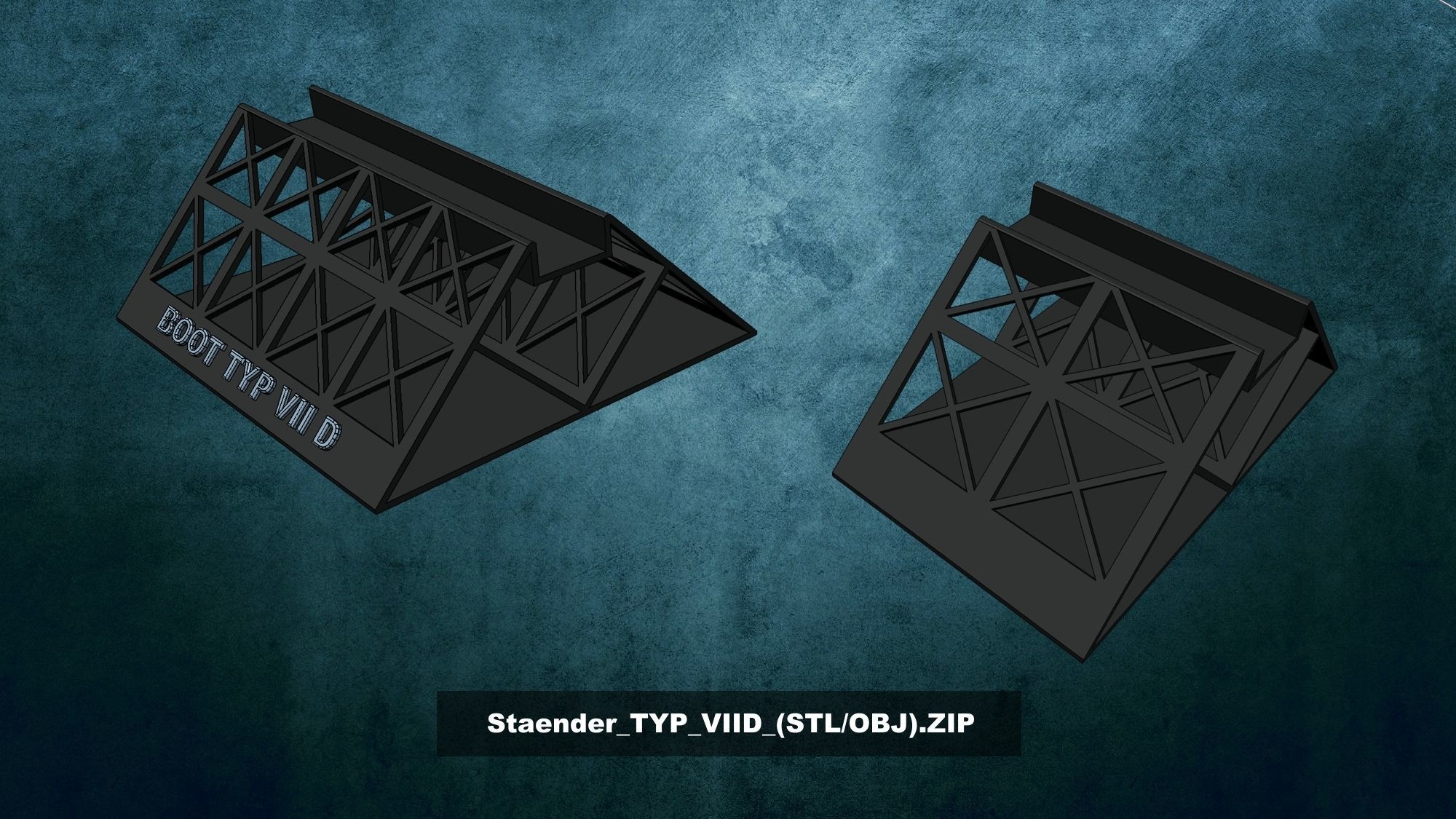

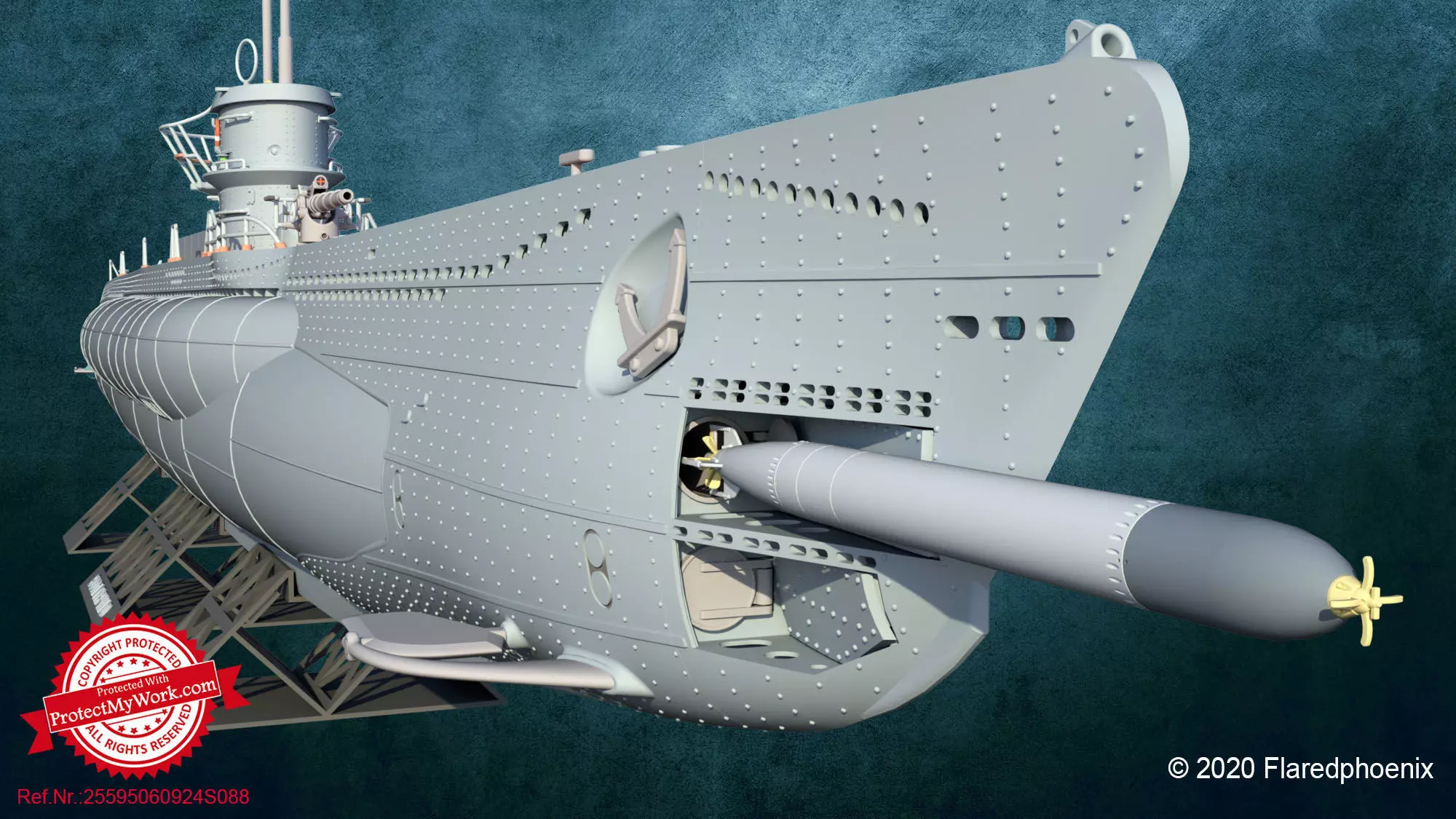

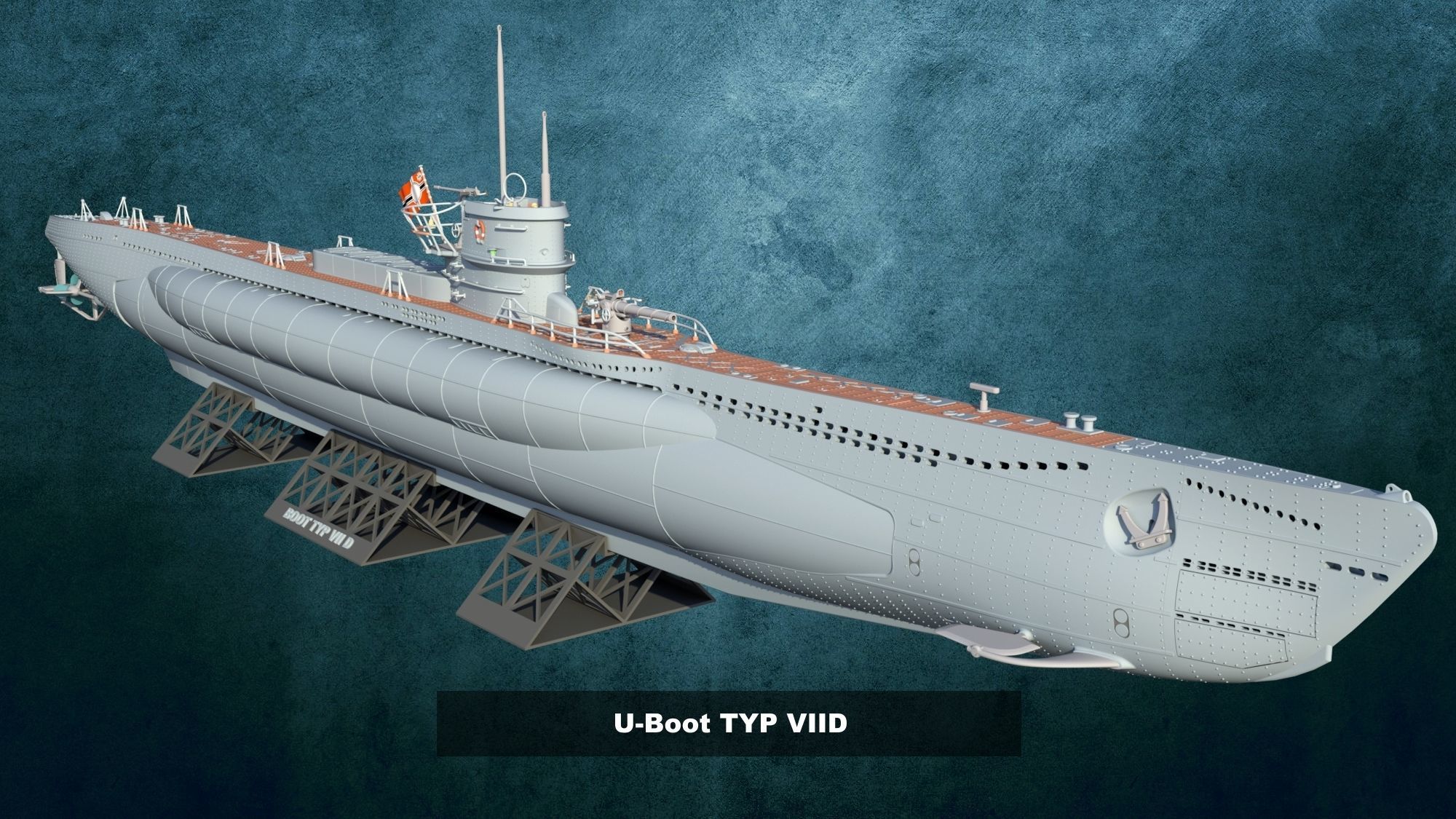

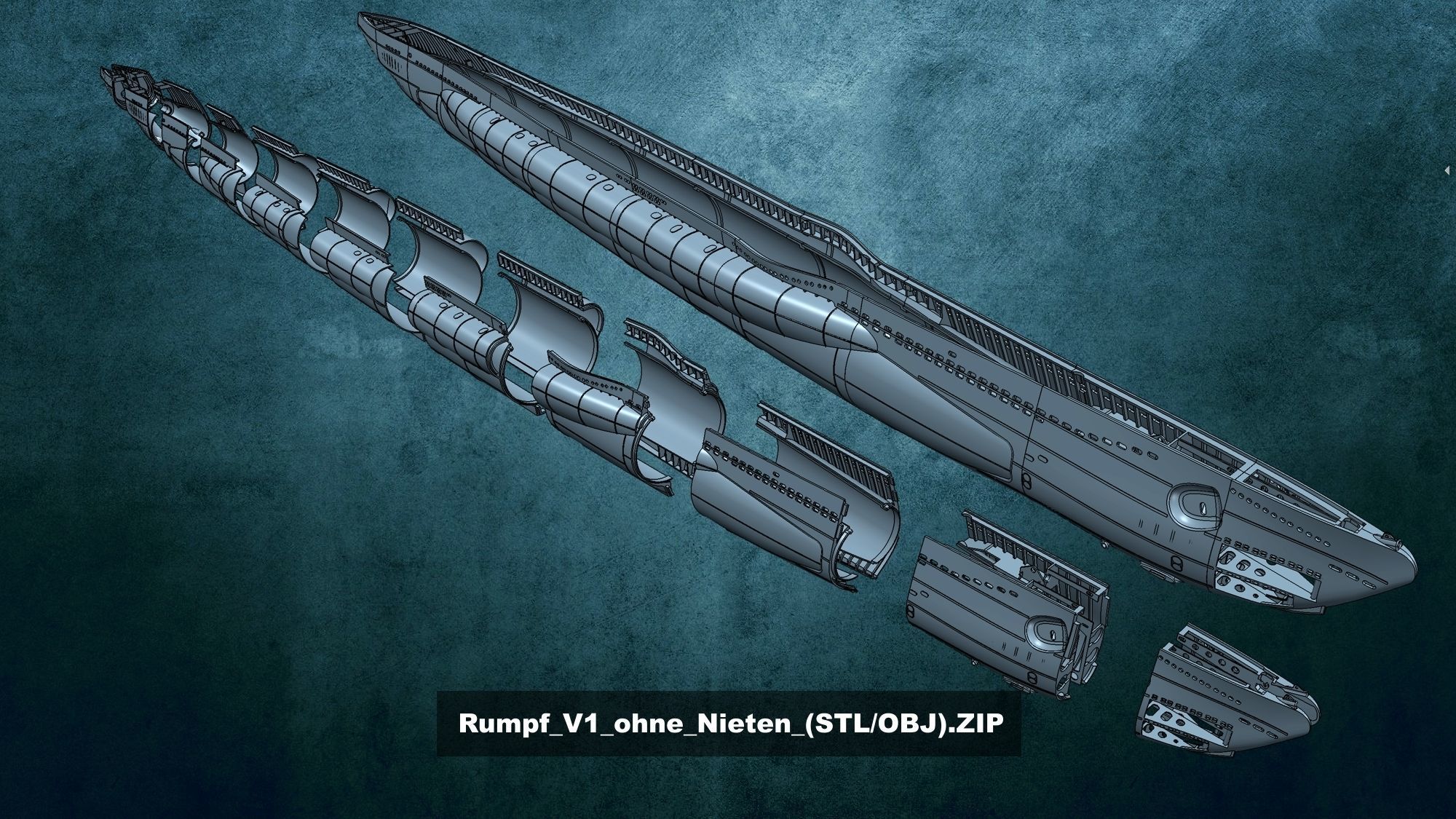

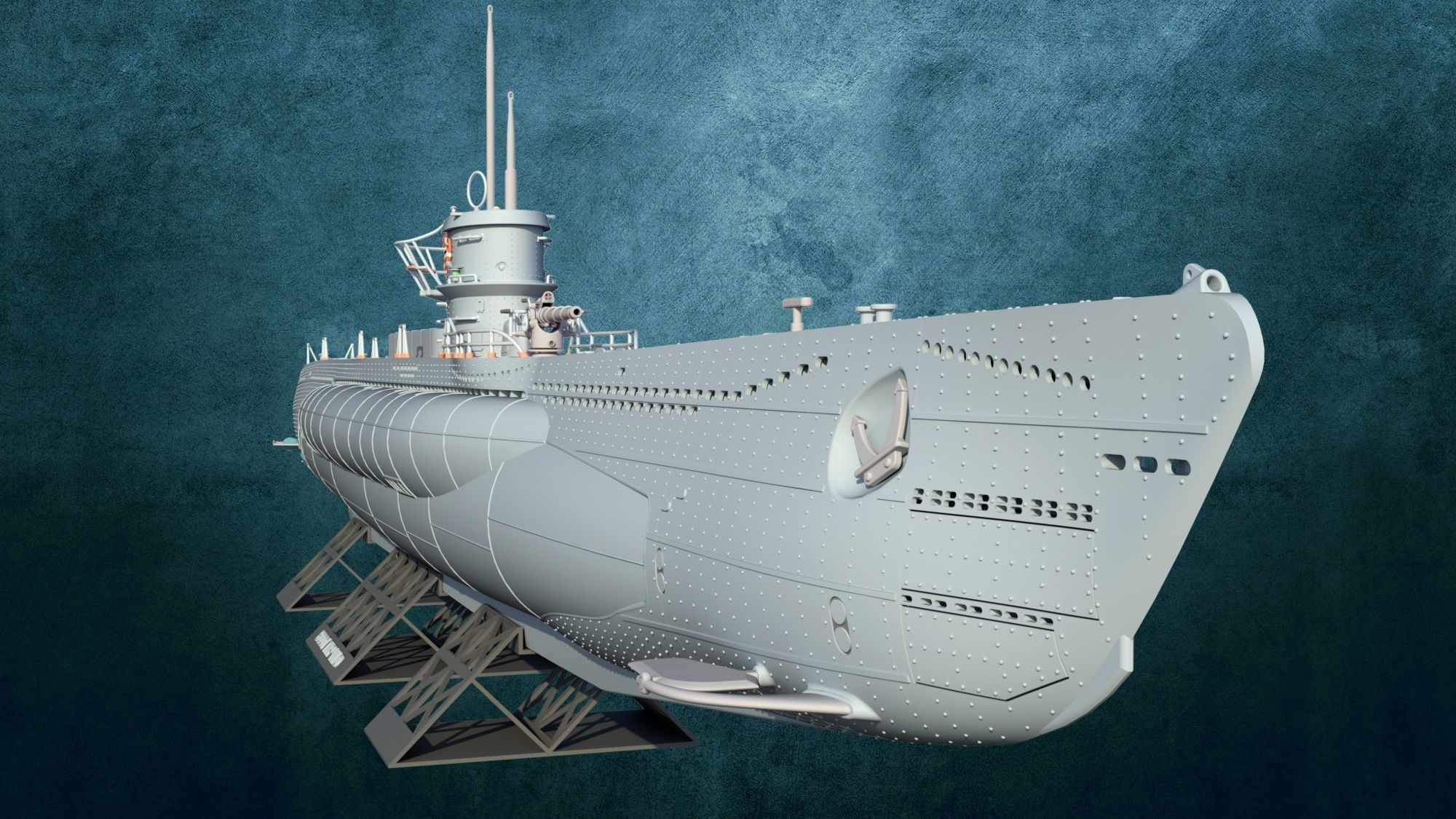

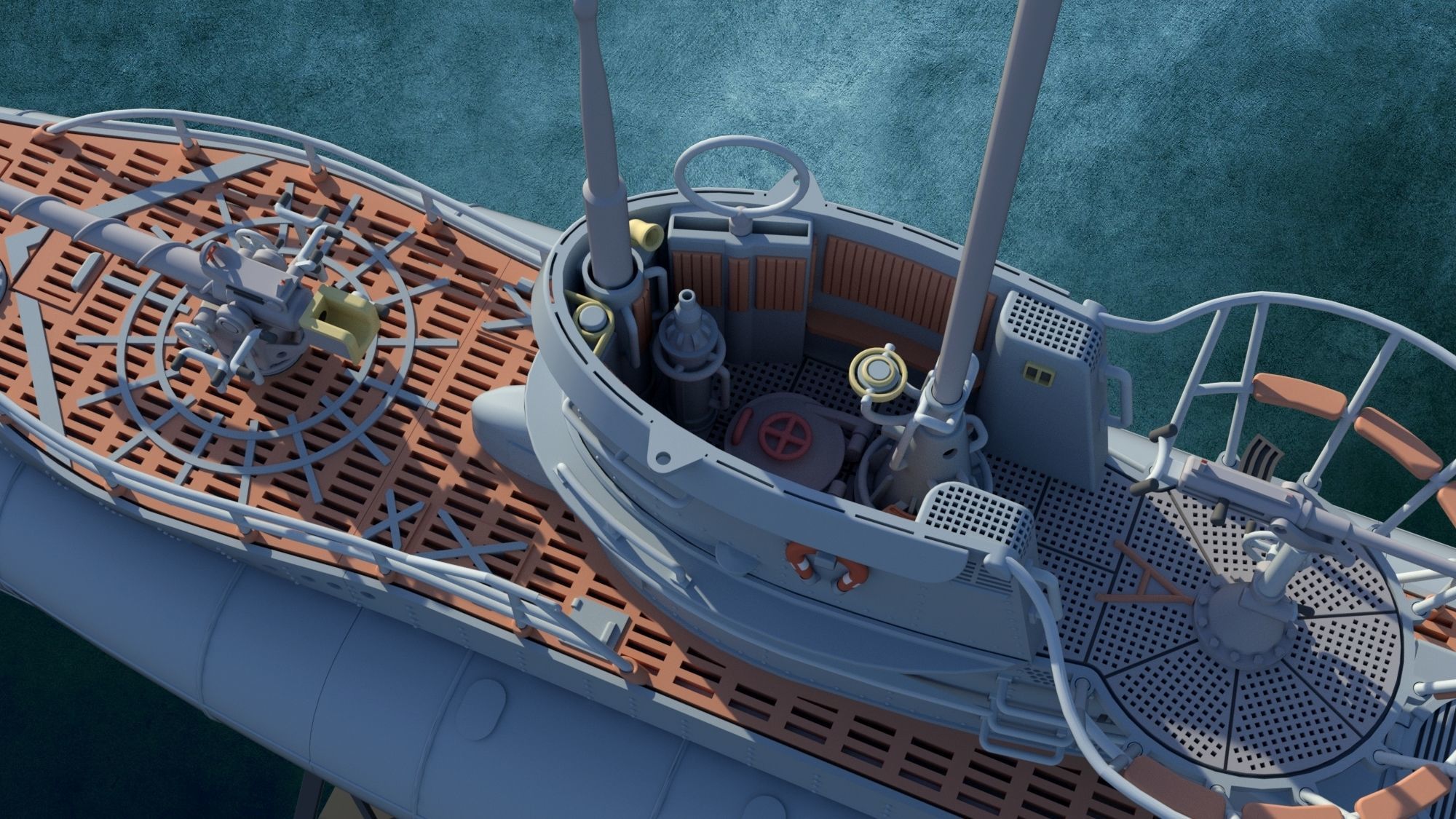

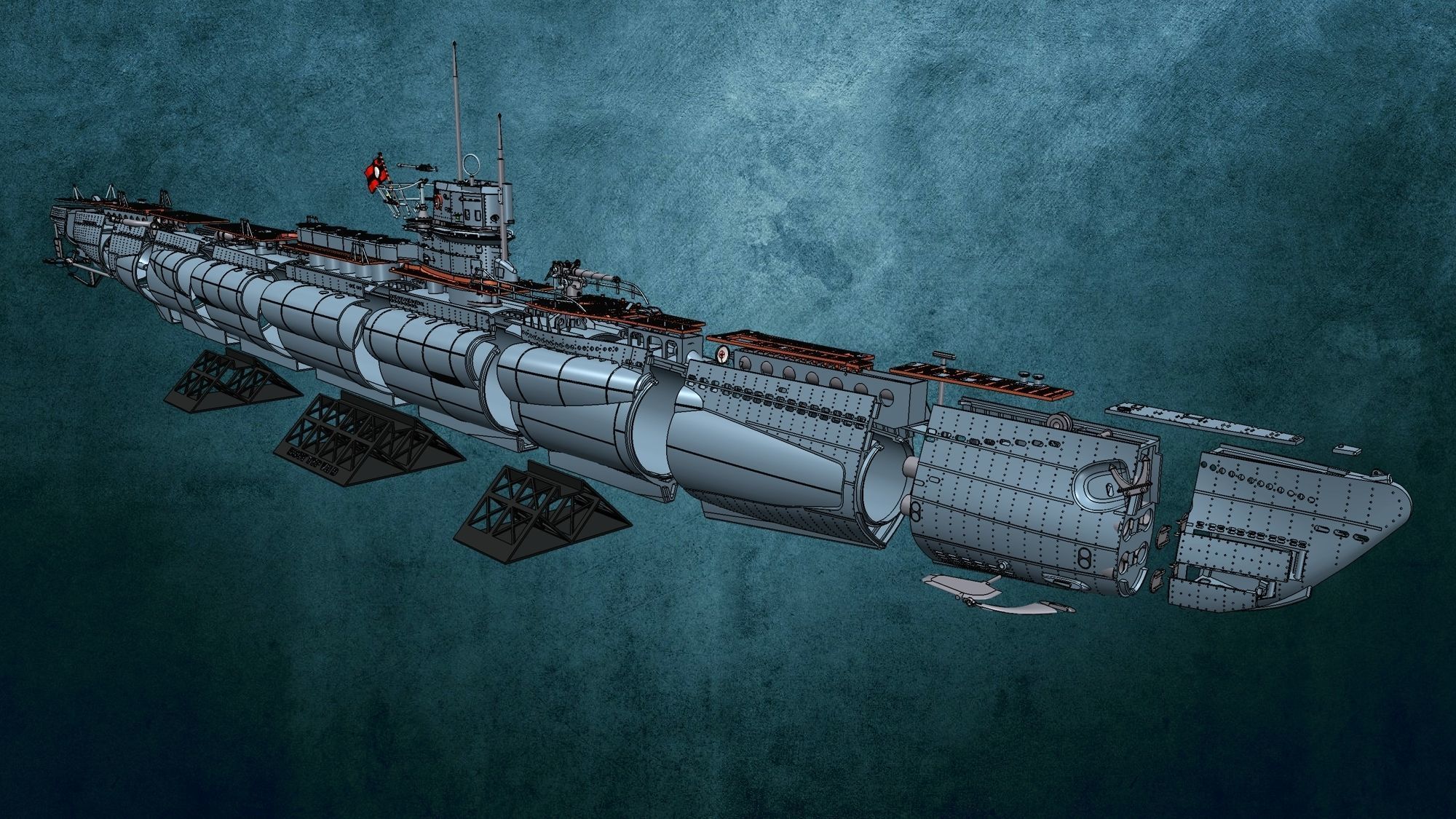

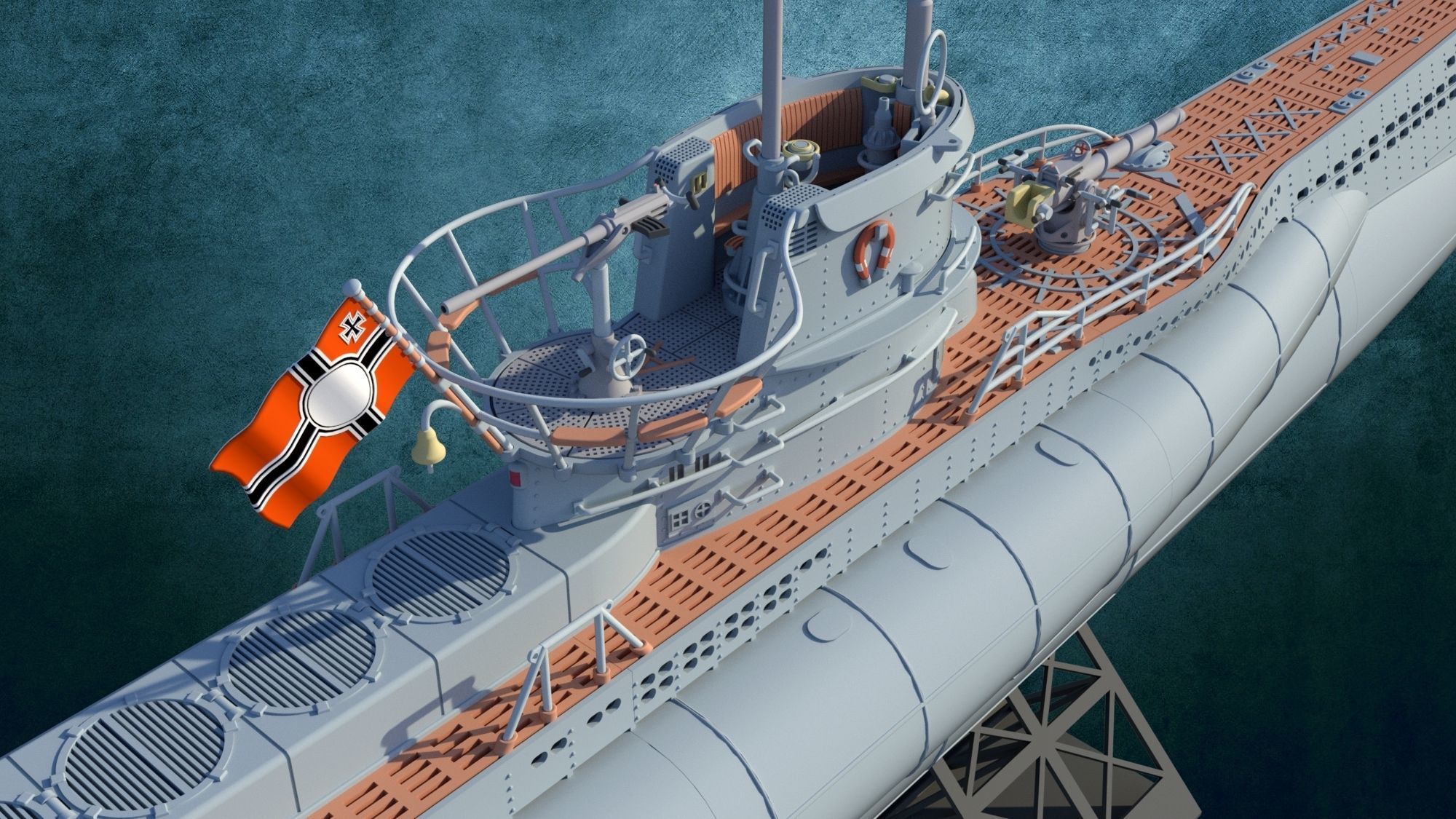

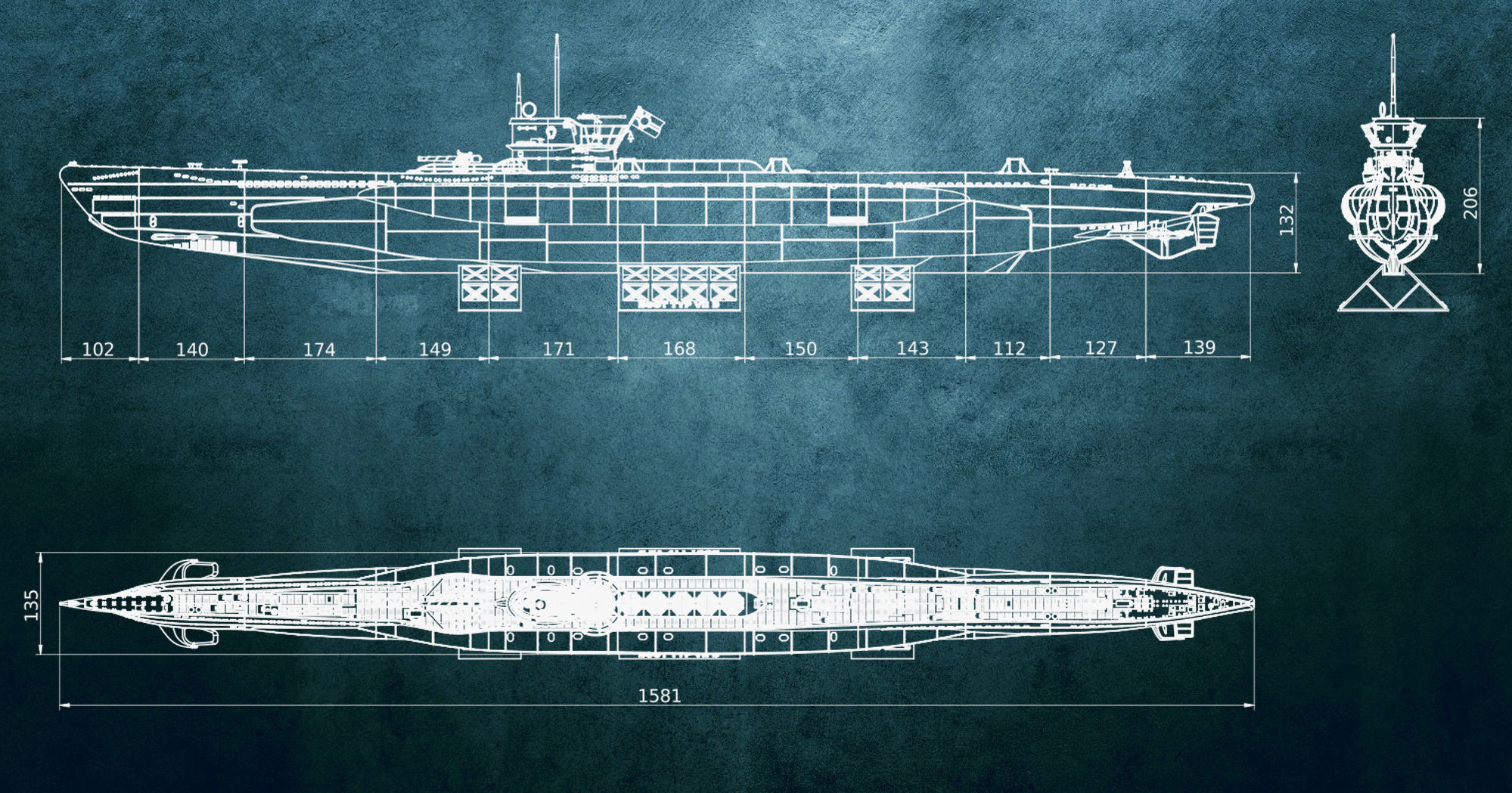

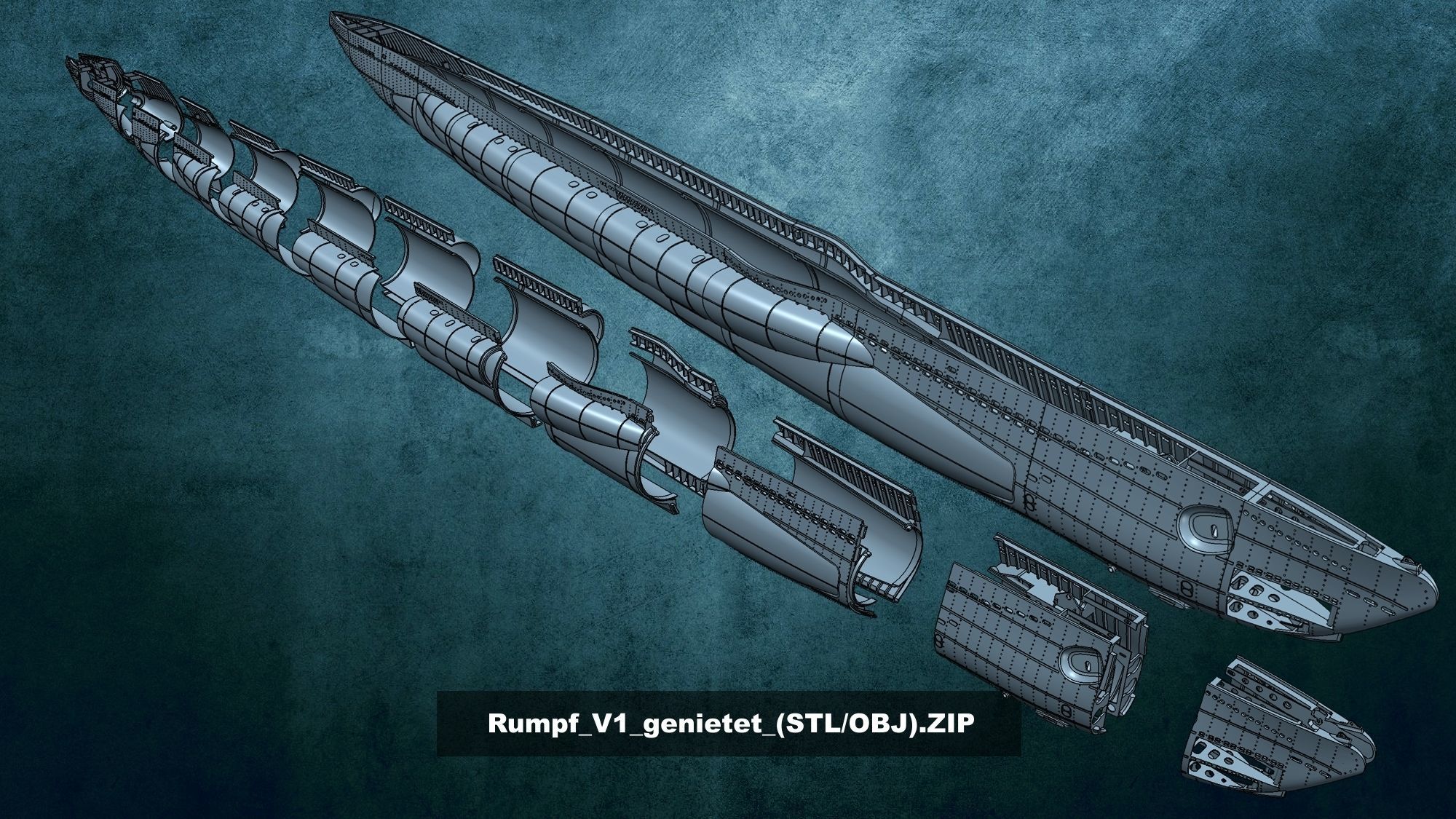

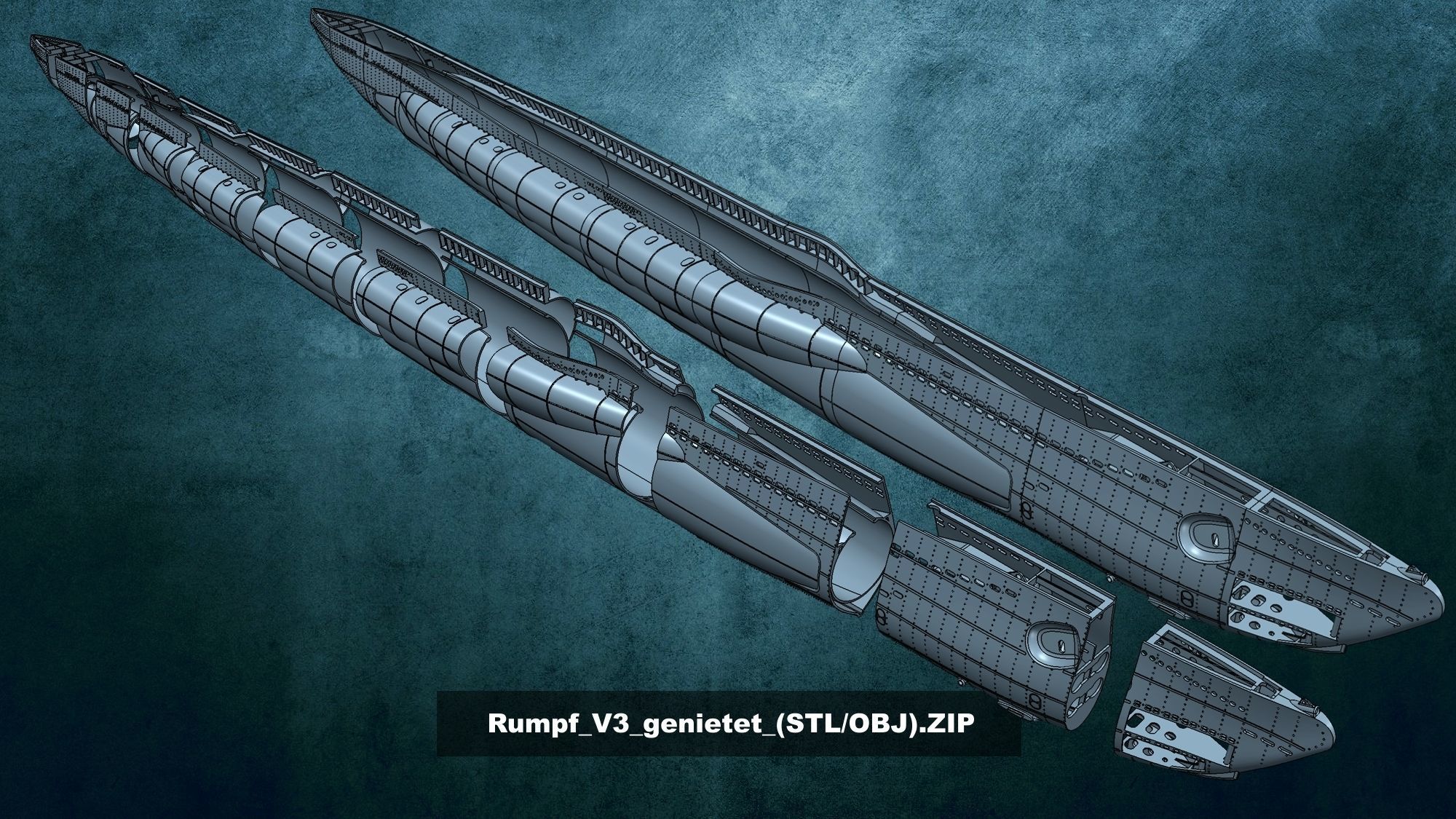

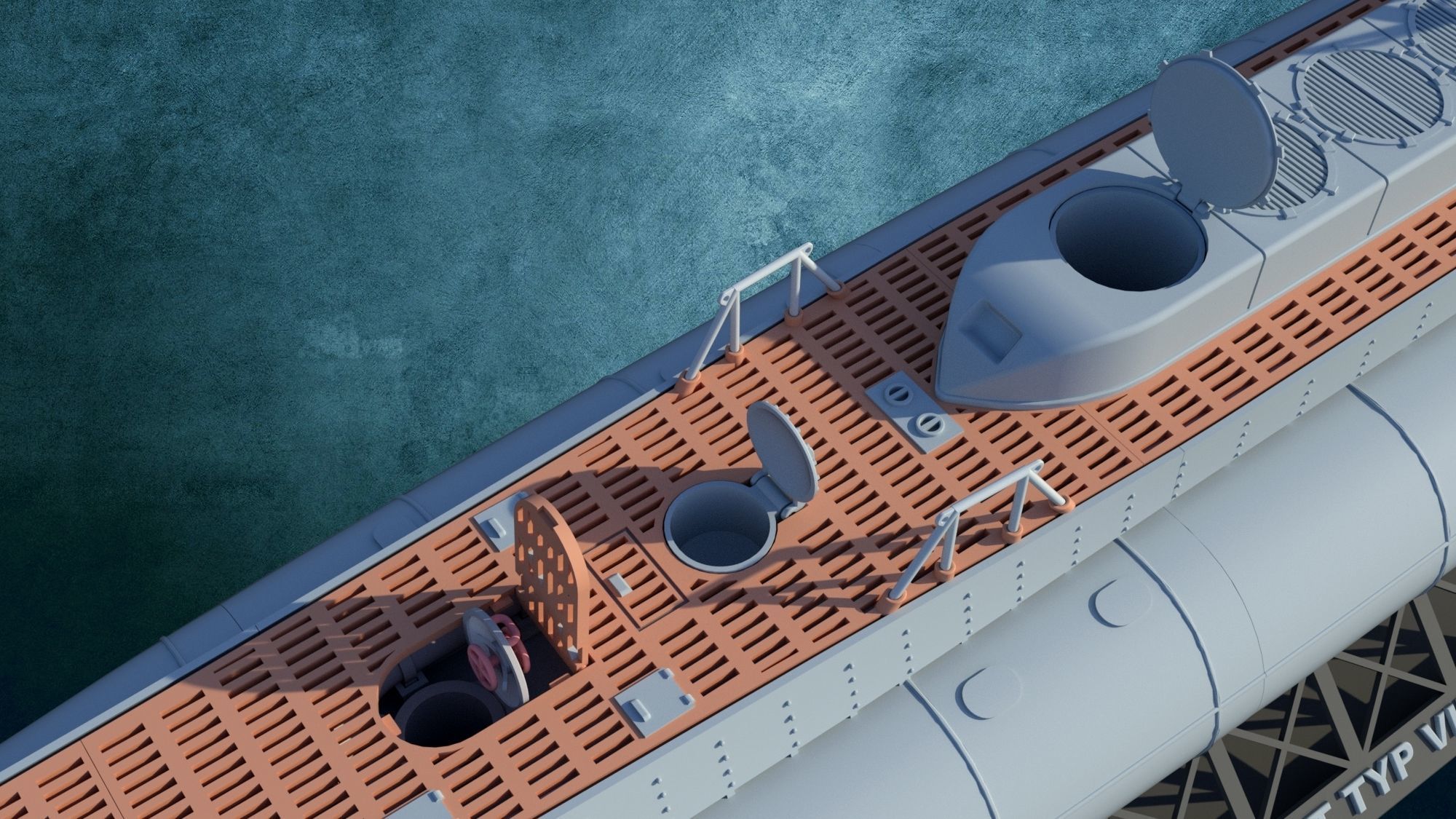

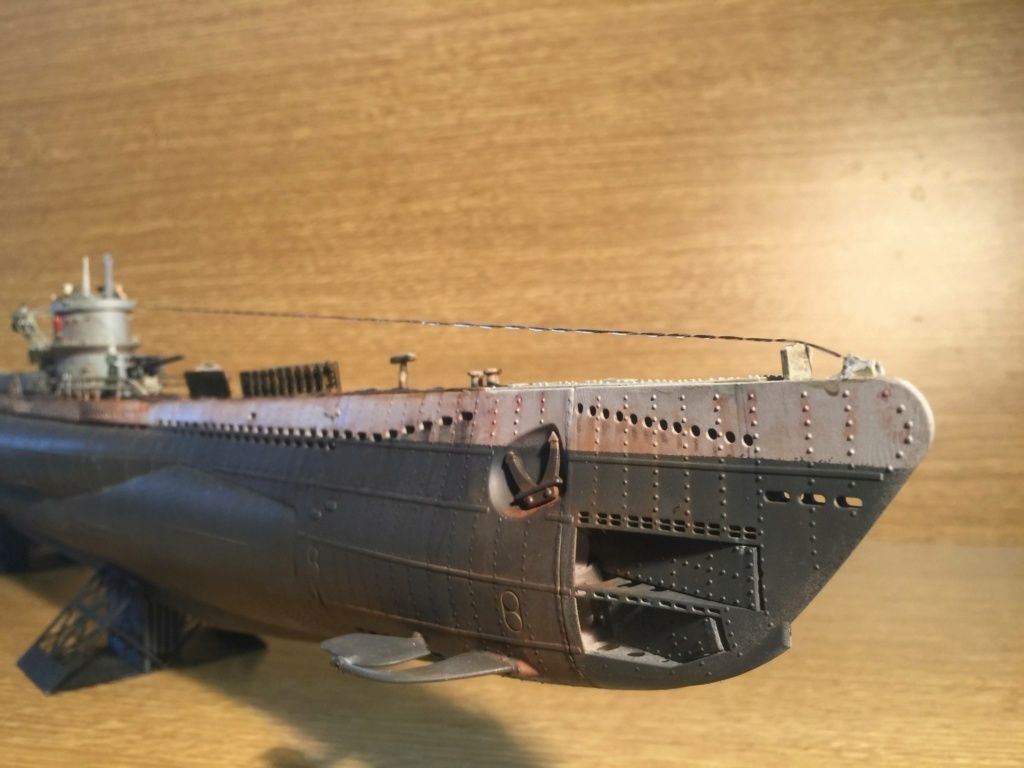

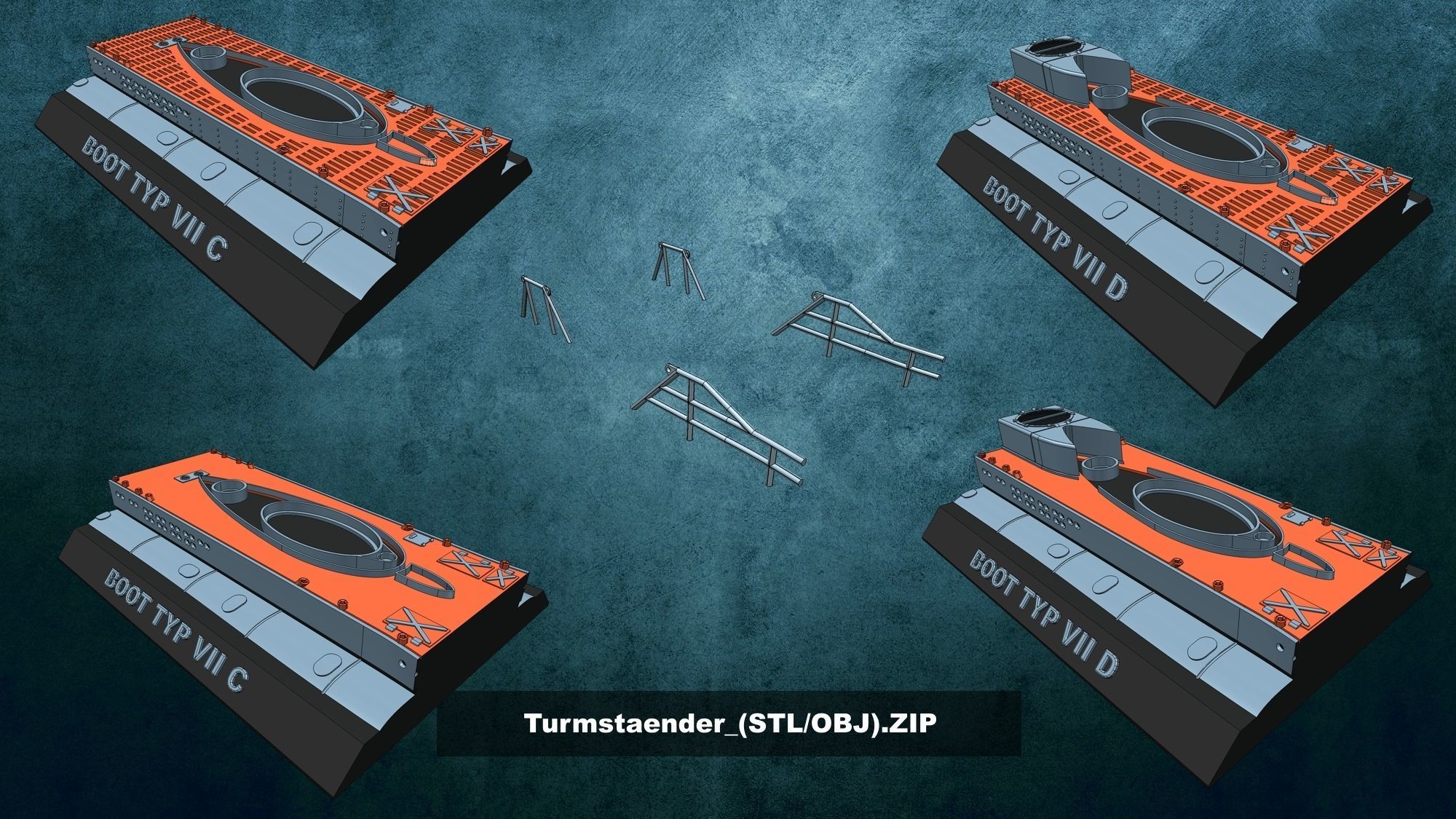

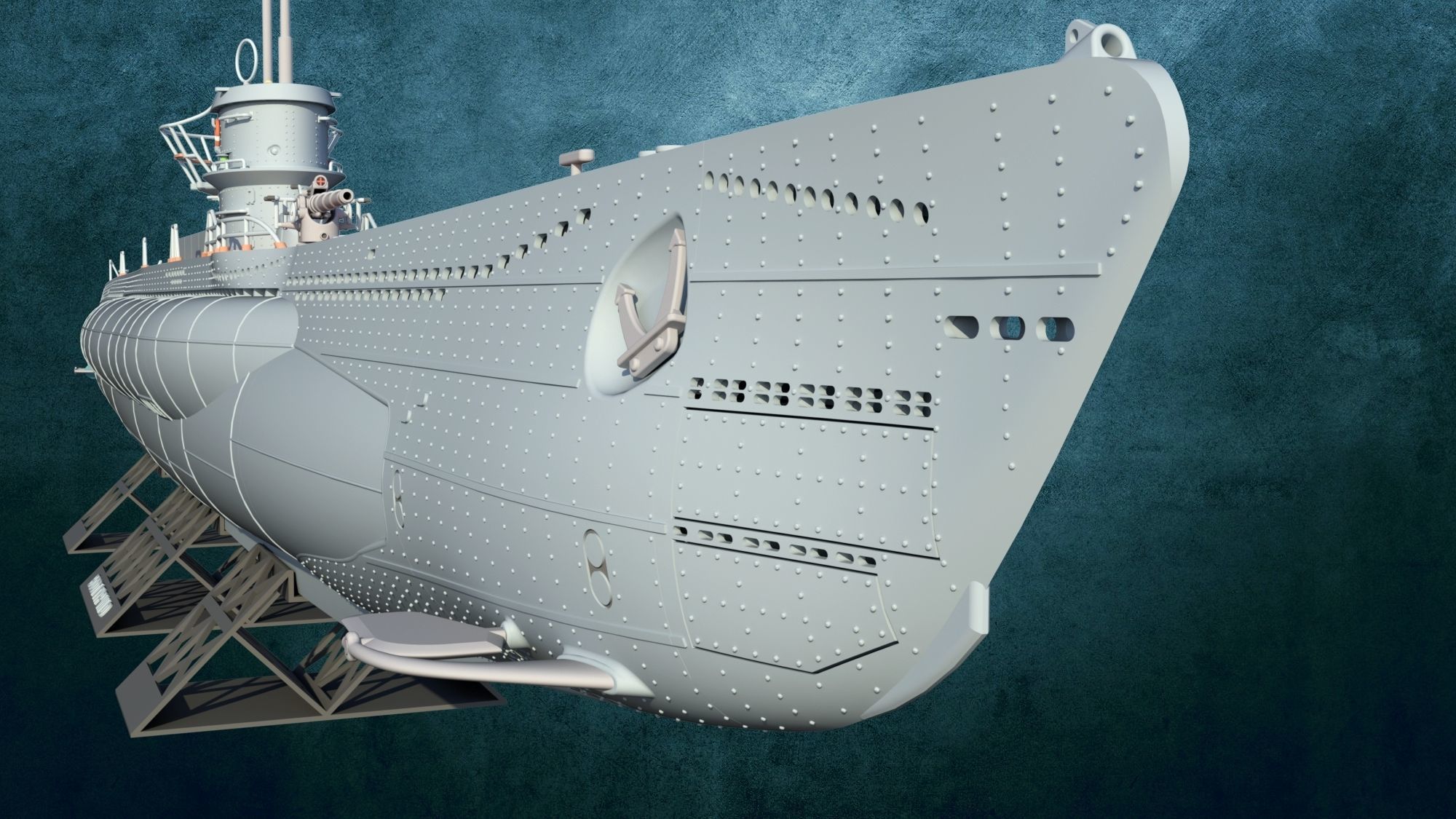

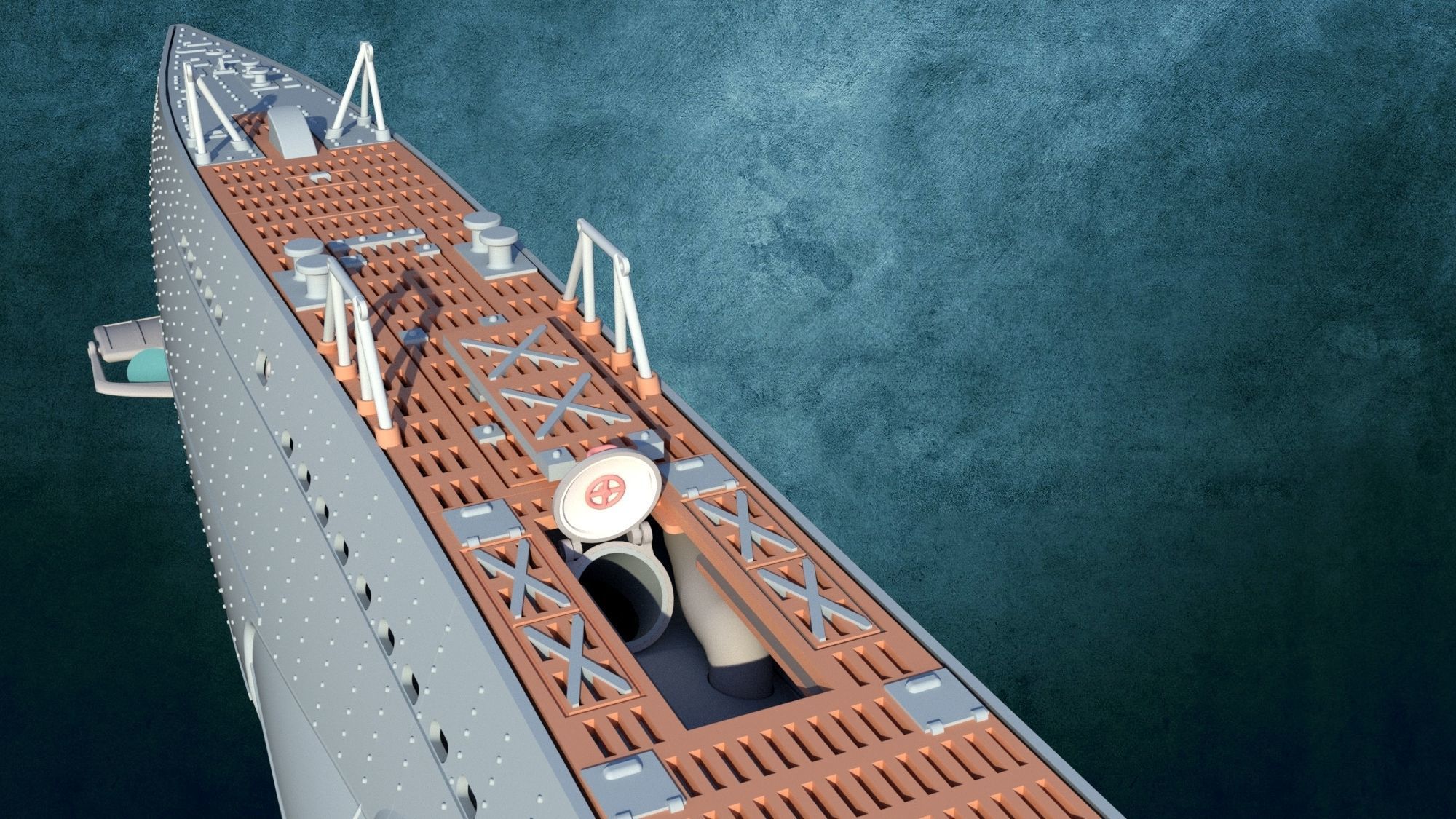

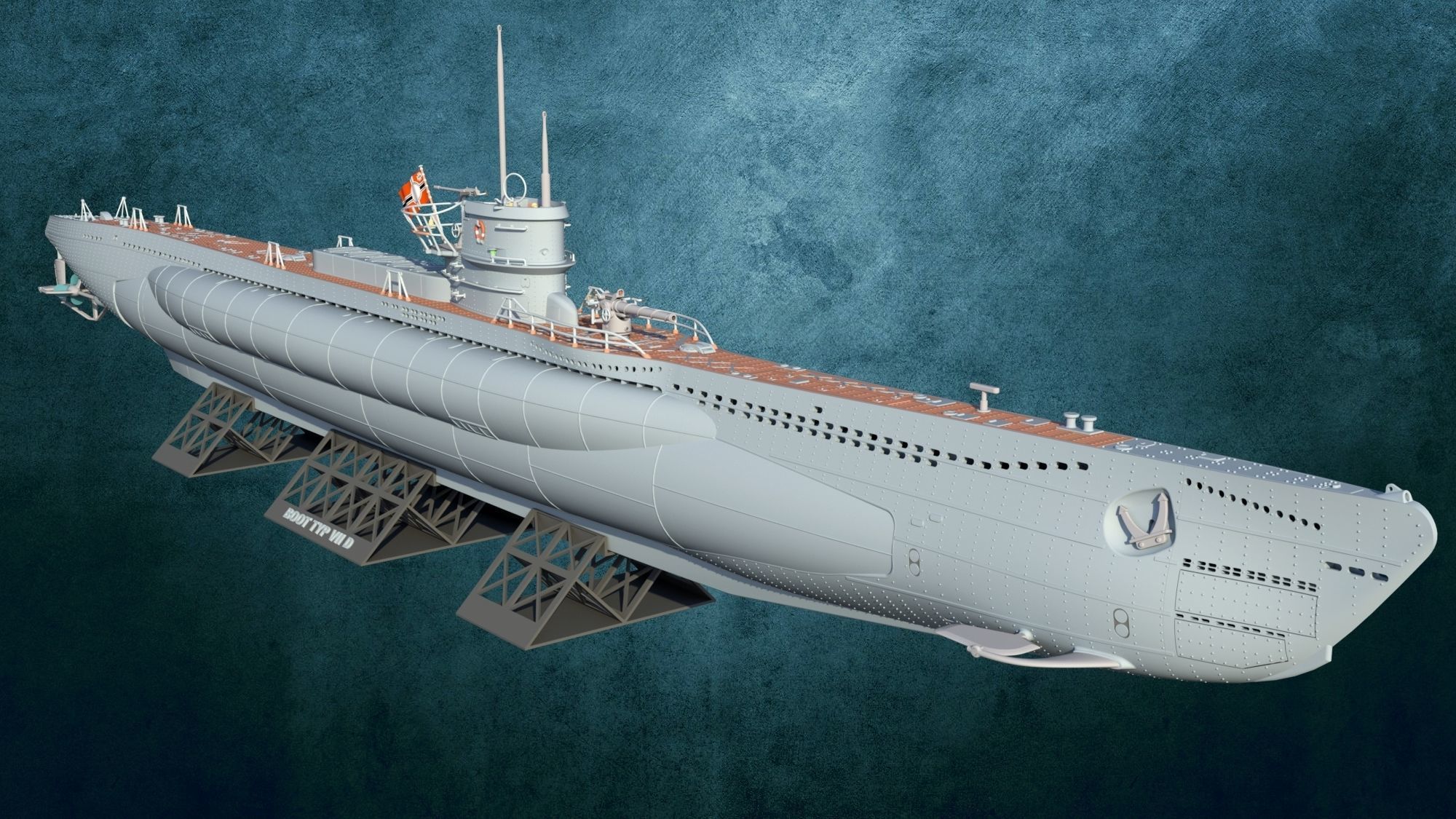

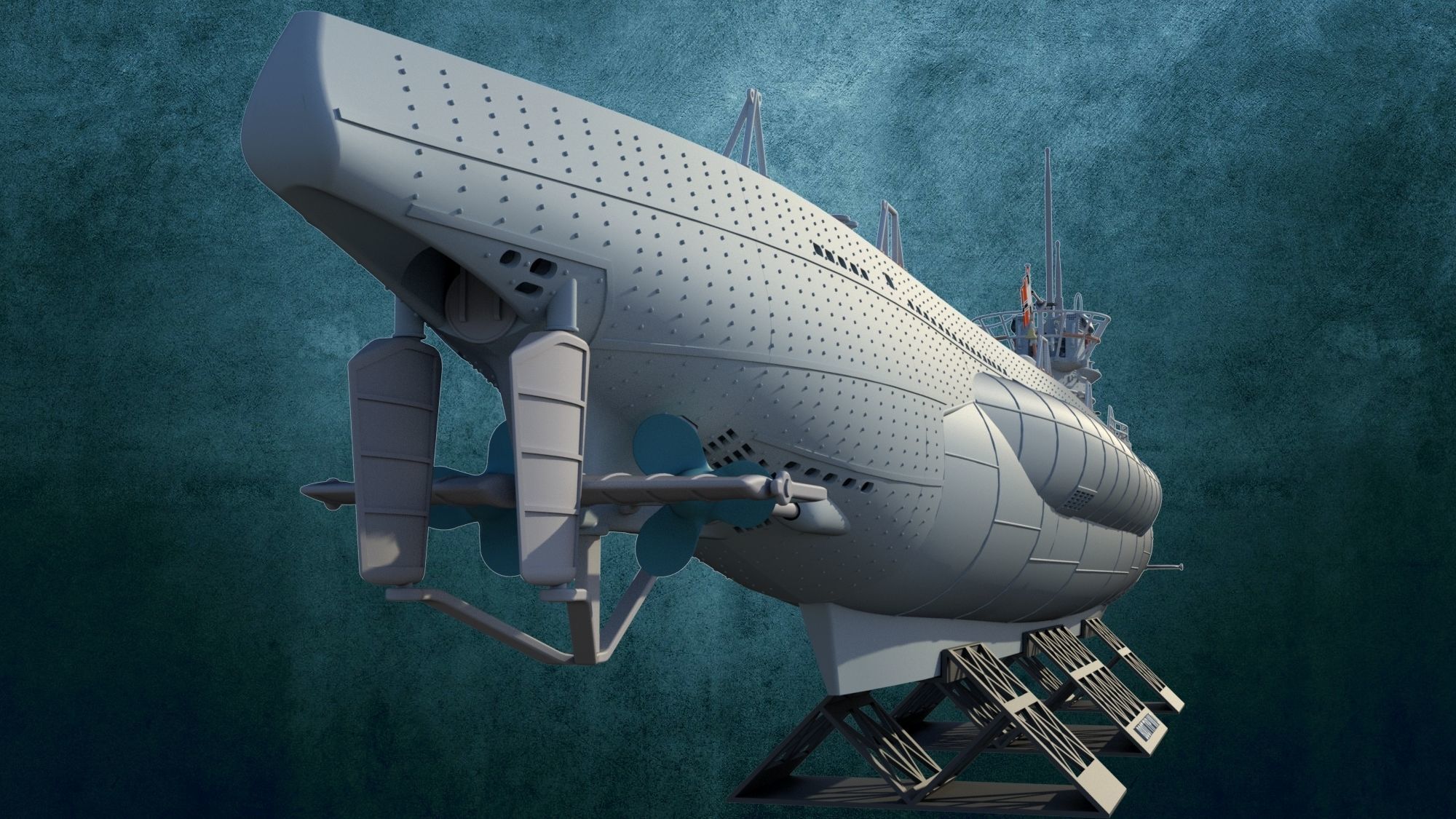

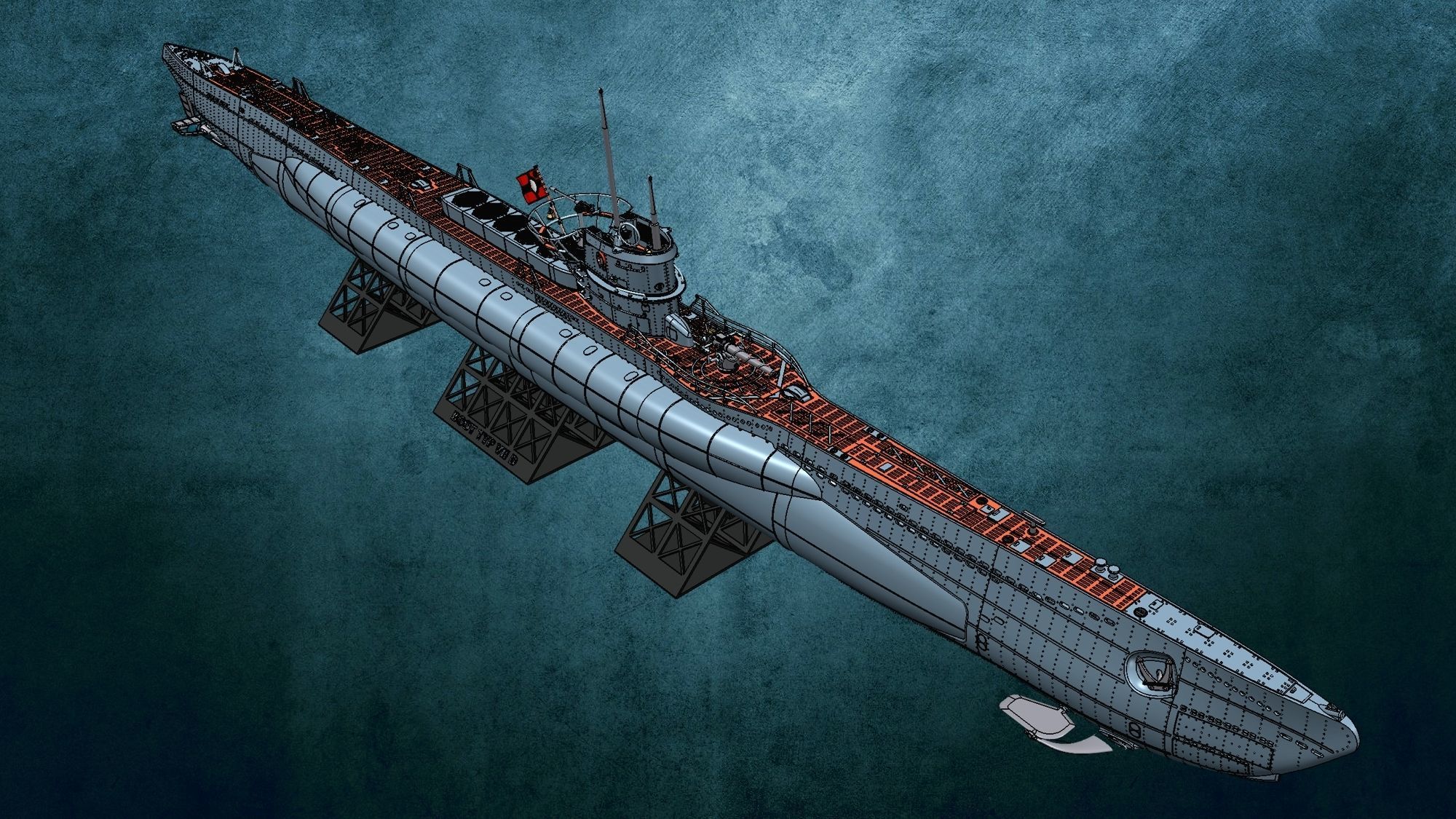

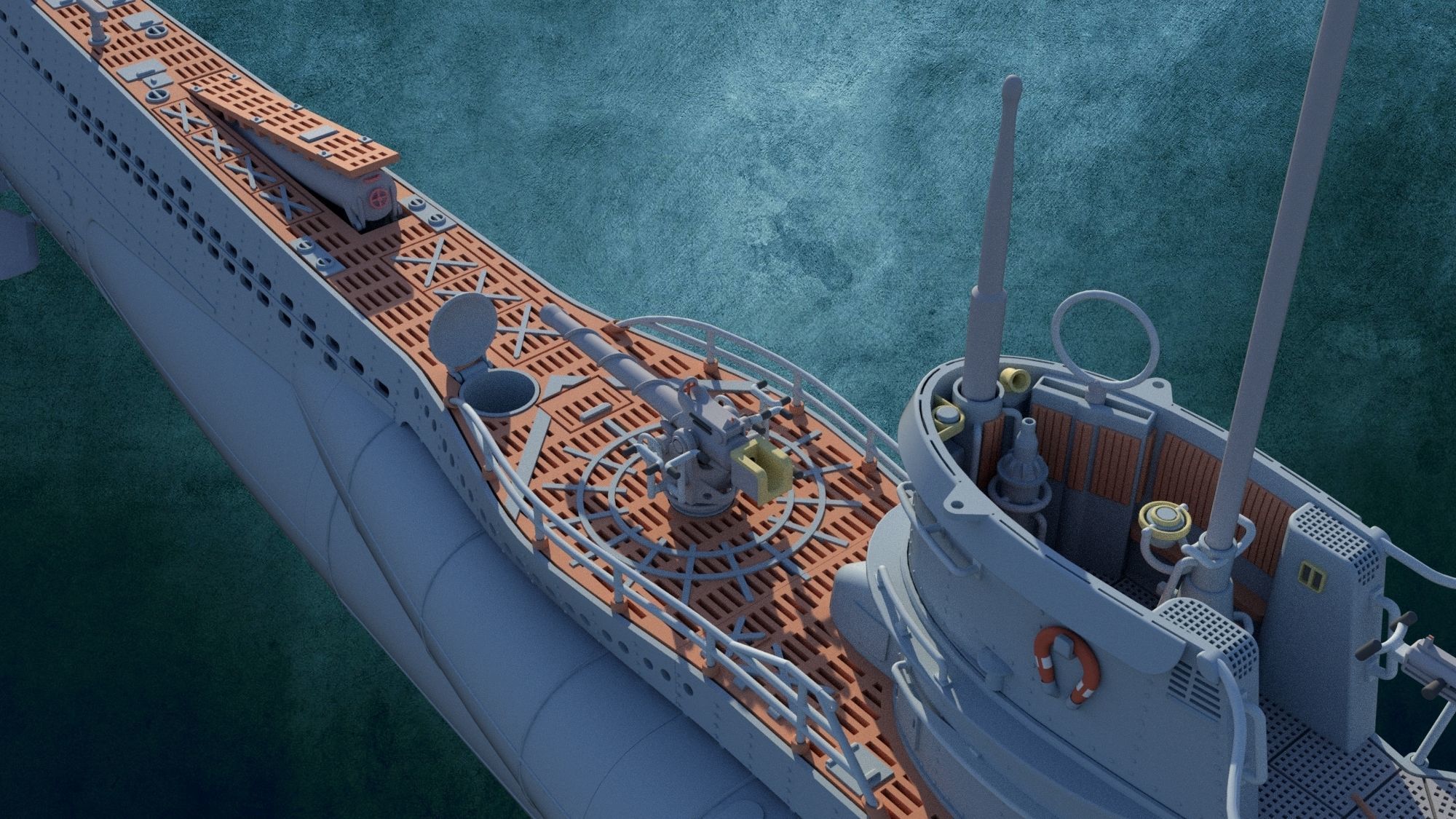

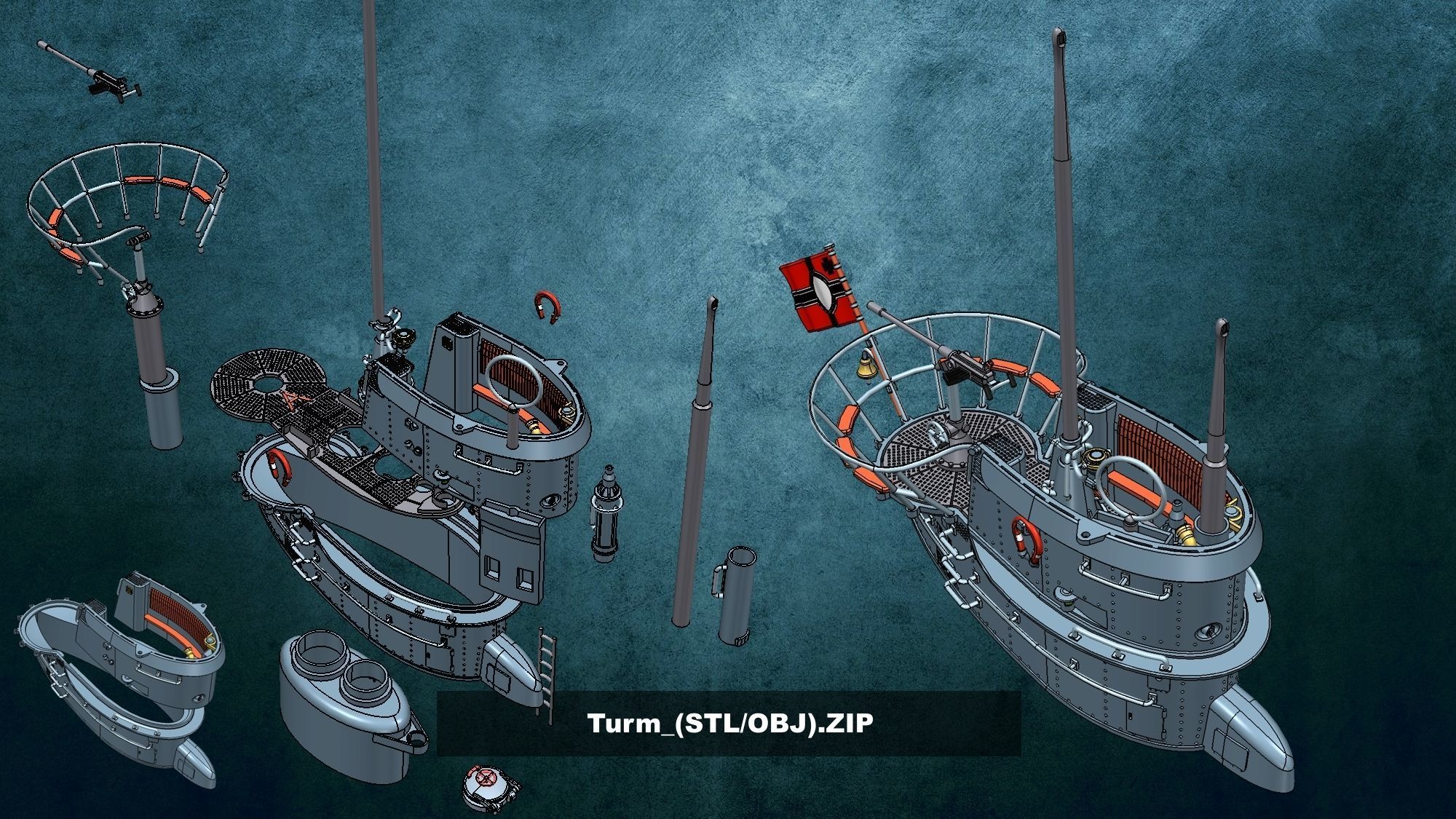

This boat was created on the basis of old construction plans and specially prepared for 3D printing. The model is drawn on a scale of 1:48 and thus has a total length of approx. 1.6m a minimum print volume of 145x145x185mm is required to print all parts in this scale . In this kit I tried to get as close as possible to the original. Since the wishes and requirements are not the same for everyone, I created different variants. In order to create a good starting point for as many buyers as possible, the boat basically exists in 2 variants, one detailed with rivets and one without rivets . Except for the interior, the whole boat has been recreated as detailed as possible. This model is also ideal for RC variants of this boat. A suitable stand is included with the boat, but only the tower can be combined separately with a suitable stand.

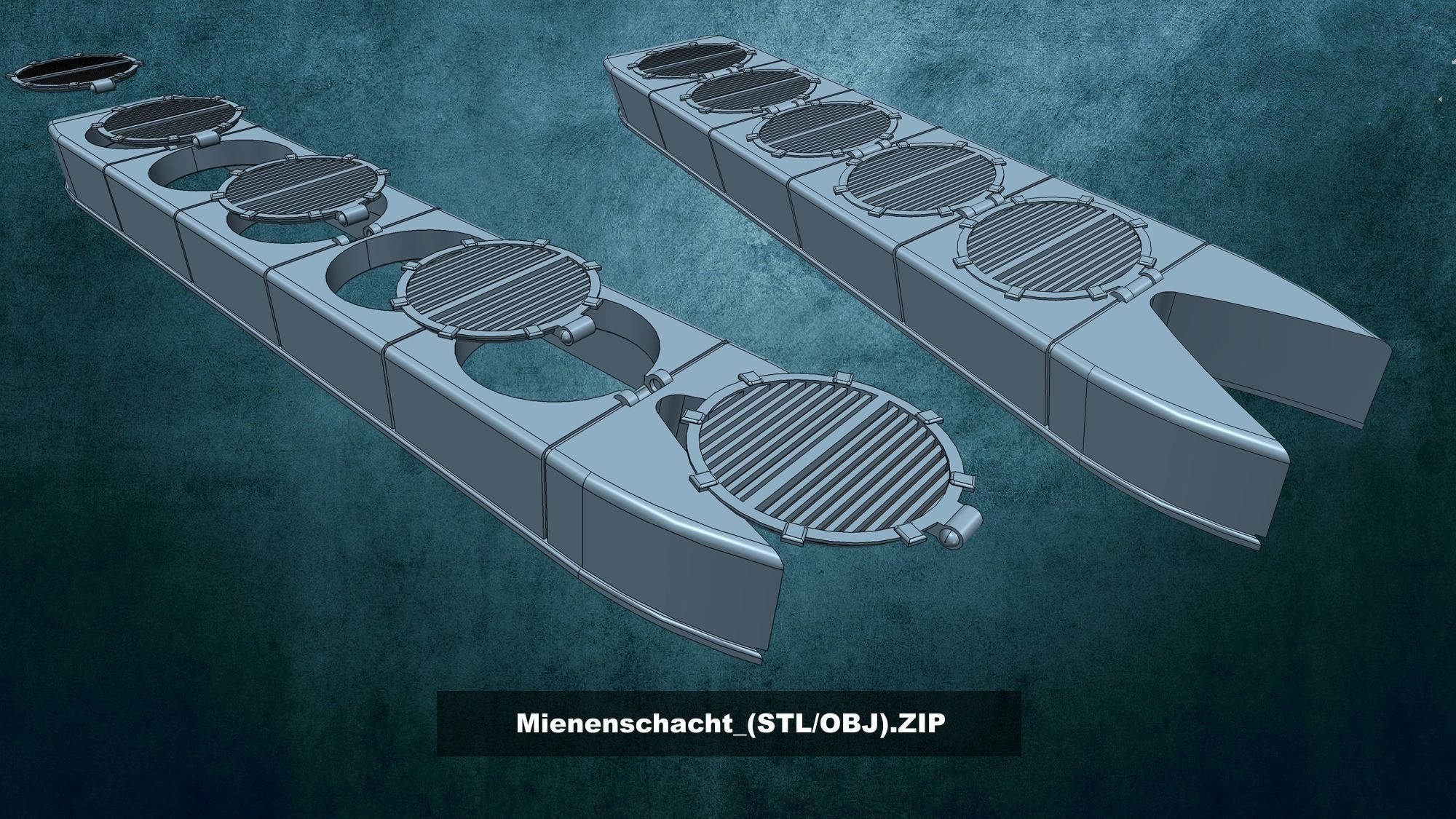

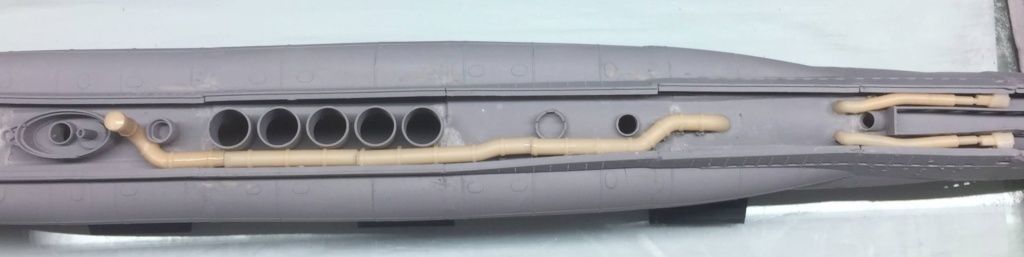

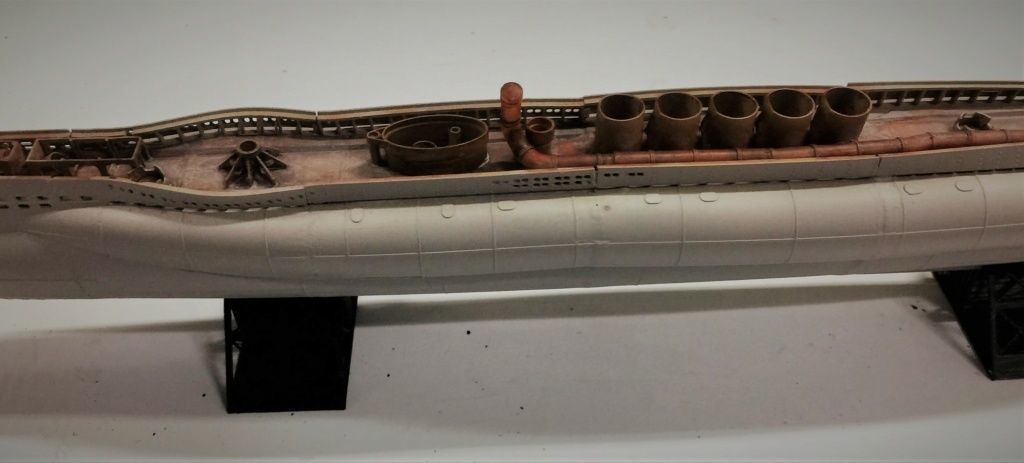

This type was designed as a mine-layer and had a center section that was about ten meters longer and contained five vertical shafts for receiving anchor mines. Due to the fact that all German submarine types were able to eject specially developed mines from the torpedo tubes and thus there was no increased need for mine-laying boats, only six boats were built.

This material may not be sold, divided into groups, or published. Files are 3D watermarked www.watermark3d.com

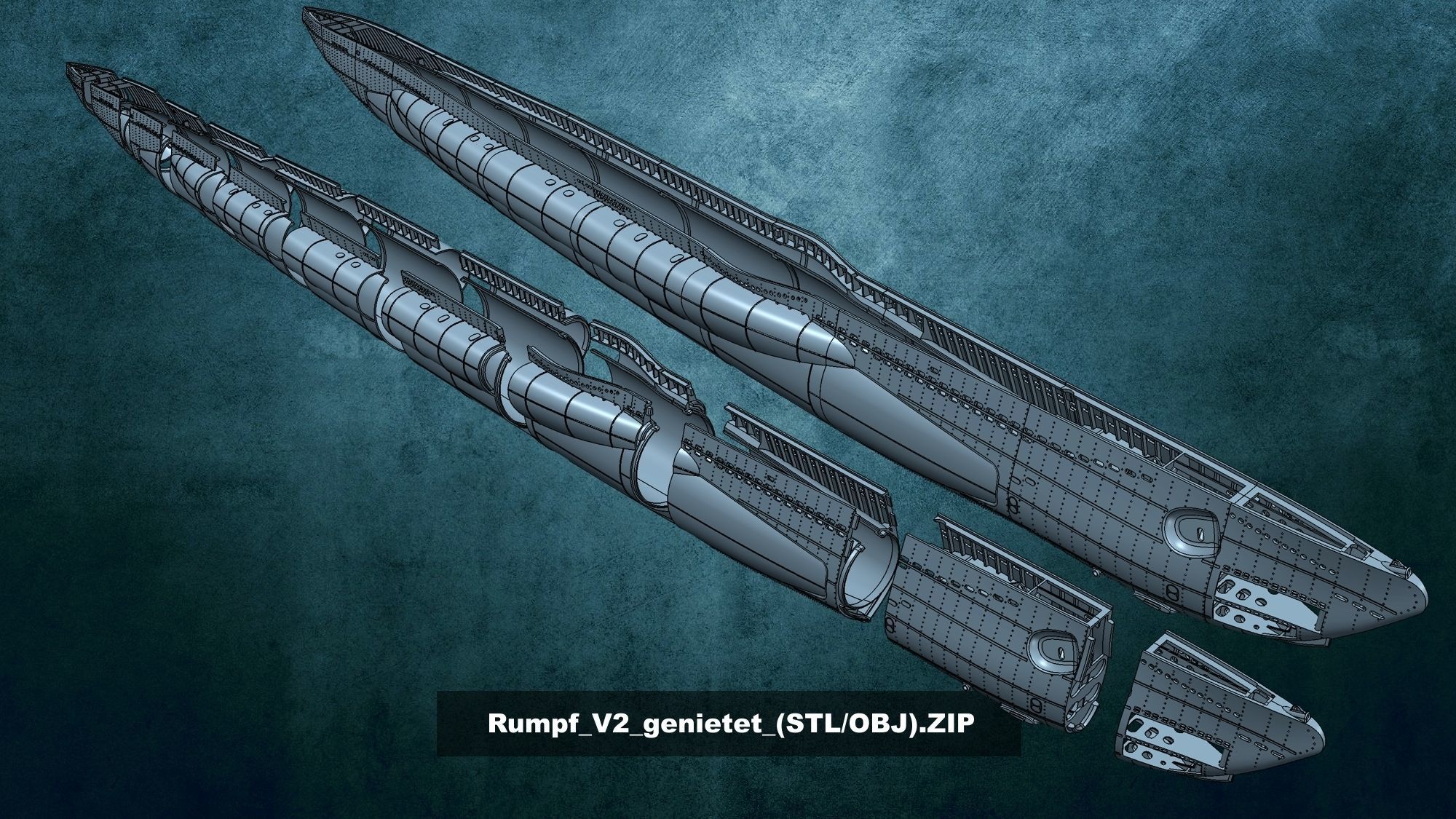

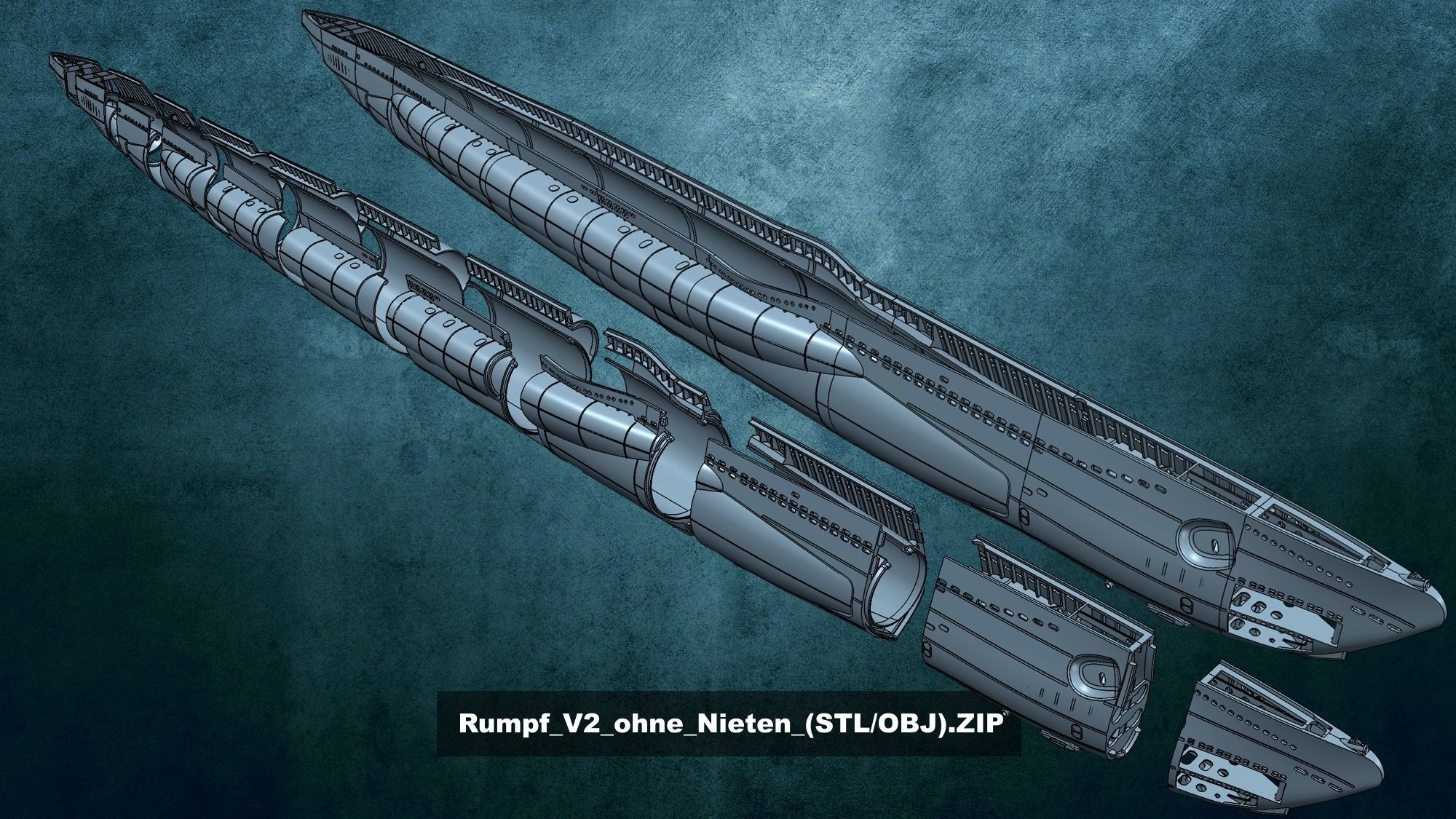

Dieses Boot wurde anhand alter Konstruktionspläne erstellt und speziell für den 3D-Druck vorbereitet, Das Modell ist im Masstab 1:48 gezeichnet und hat damit eine gesammtlänge von ca,1.6m ein minimales Druckvolumen von 145x145x185mm ist erforderlich um alle Teile in diesem Masstab zu drucken. In diesem Bausatz habe ich versucht so nah wie möglich an das Original heranzukommen. Da die Wünsche und Anforderungen nicht für alle gleich sind, habe ich verschiedene Varianten erstellt. um eine gute Ausgangslage für möglichst alle Käufer zu schaffen, Das Boot existiert Grundsätzlich in 2 Varianten, einmal Detailiert mit Nieten und einmal ohne Nieten dazu wurde Der Rumpf in Jeweils 2-3 Varianten gezeichnet, somit kann dieses Boot auf verschiedene Arten gedruckt und kombiniert werden. Das ganze Boot wurde bis auf den Innenraum möglichst Detailgetreu nachemfunden. Dieses Modell ist auch ideal für RC Varianten dieses Bootes. Zum Boot ist ein passender Ständer enthalten es kann aber auch nur der Turm Separat mit einem Passenden Ständer kombiniert werden.

Dieser Typ wurde als Minenleger konzipiert und hatte eine um etwa zehn Meter verlängerte Mittelsektion, in der sich fünf senkrechte Schächte zur Aufnahme von Ankertauminen befanden. Aufgrund der Tatsache, dass alle deutschen U-Boot-Typen in der Lage waren, speziell entwickelte Minen aus den Torpedorohren auszustoßen und somit kein erhöhter Bedarf an Minenlegerbooten bestand, wurden nur sechs Boote gebaut.

Dieses Material darf weder verkaut, in Gruppen geteilt oder veröffentlicht werden. Dateien sind mit 3D Wasserzeichen versehen www.watermark3d.com

K
koffml
Thank you for your response. You have done a remarkable job designing this. Ivevalways wanted a big UBoat. The plastic kit is to expensive. This kit is just what I wanted. Thank you.
K
koffml
Thank you for your response. You have done a remarkable job designing this. Ivevalways wanted a big UBoat. The plastic kit is to expensive. This kit is just what I wanted. Thank you.
K
koffml
Is there a file available for the net cutter that might have been installed on the bow to cut anti submarine netting?
Flaredphoenix
Flaredphoenix
As far as I know, no such mesh cutters were used for Type VIID, there are variants of type VIIC with such, I will also publish TYPE VIIC one day, they will be there :-)
Item rating
32 0
Recommended

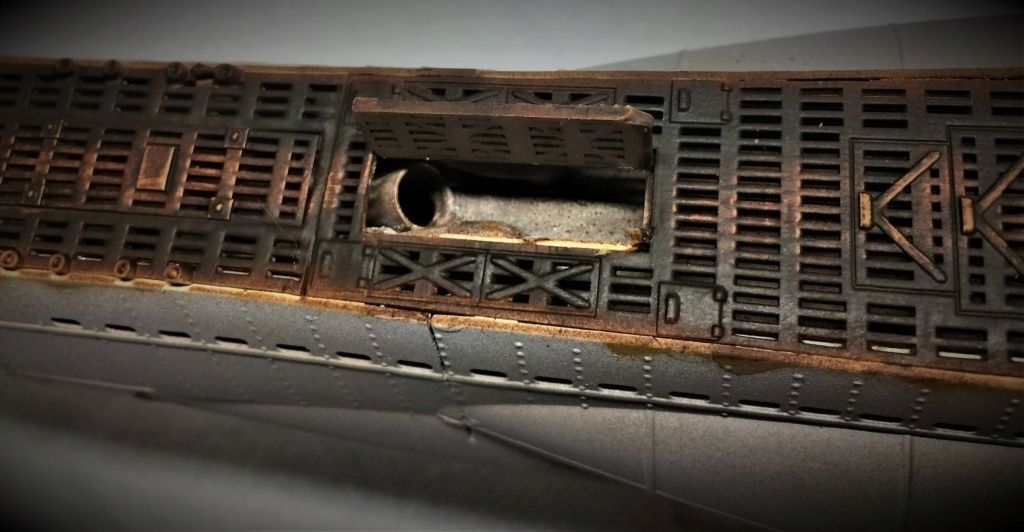

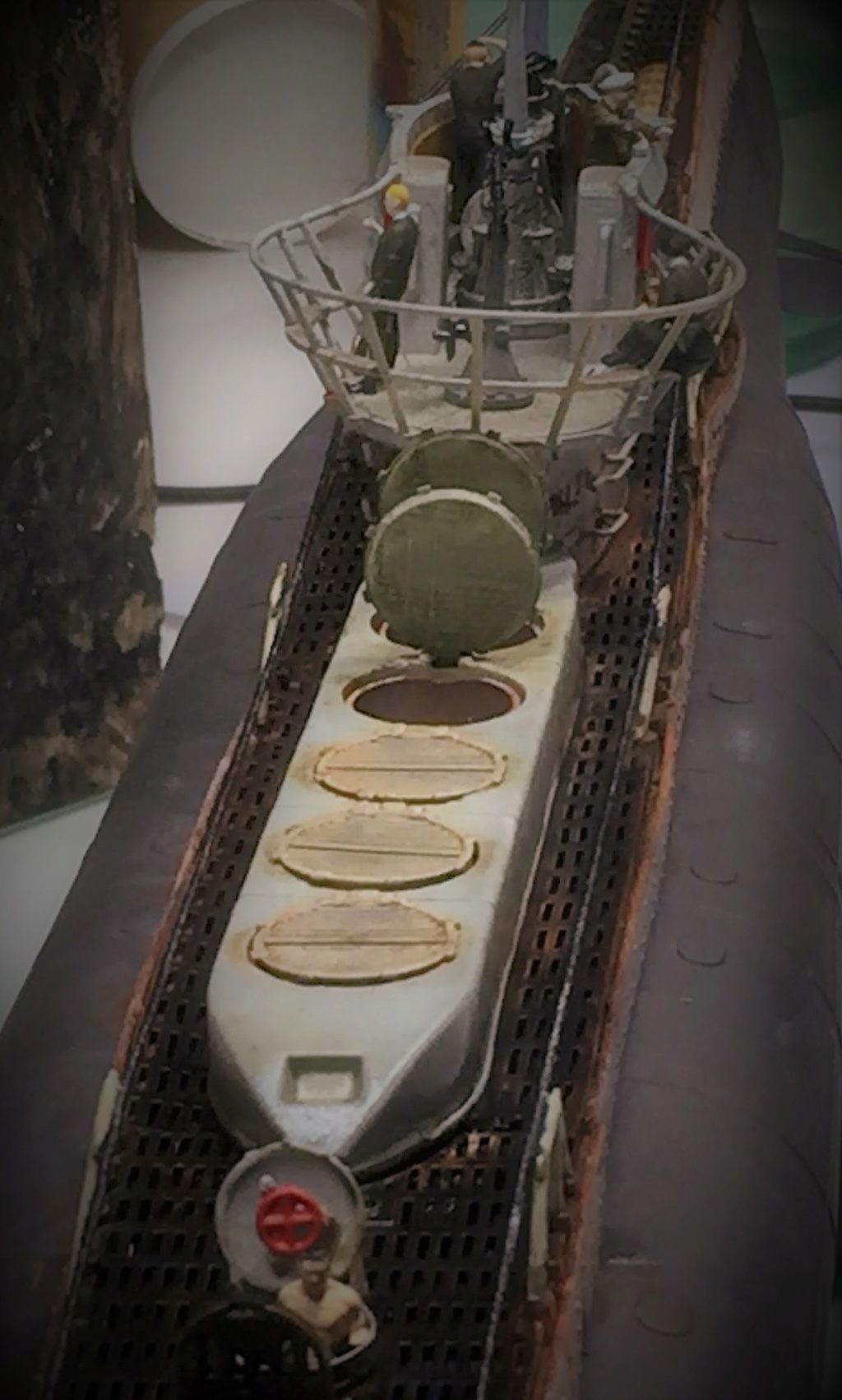

Very challenging build, all pieces fit together well, difficult to align hull sections and clean so as not to be seen but worth the effort, alignment pins would have been a plus, enjoyable to build and paint
Recommended
I enjoy purchasing on your website. However it would be awesome if you can add a button to download all the files at once option.
Recommended
Top Objekt , Very fine Parts (stl`s) I would print it with 200% bigger....is a looooong Projekt but i hope and think -- it is it worth , with each Hour of printing. The Builder is very nice and have a open Ear for Questions and answer very fast of any Question with his helping tips and hand. All in All - FAZIT....... 12 from 10 Stars....i would look forward for his works and buy too 1000% again from him.
Recommended
Great model and seller. I am new to 3d printing and the seller took the time to help me out with issues I was having.
Recommended
Printing well on my FLSun SR. I have sliced both of each section together to cut down on joints.
U-Boot TYP VIID 3D Print
$59.00

Royalty Free License
U-Boot TYP VIID 3D Print
$59.00

Royalty Free License
Response 95% in 1.9h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • PDF (.pdf) (3 files)25.3 MB
  • Stereolithography (.stl) (21 files)2.75 GB

3D Model details

  • Publish date2020-10-18
  • Model ID#2661042
