Terminator arm control 3D print model

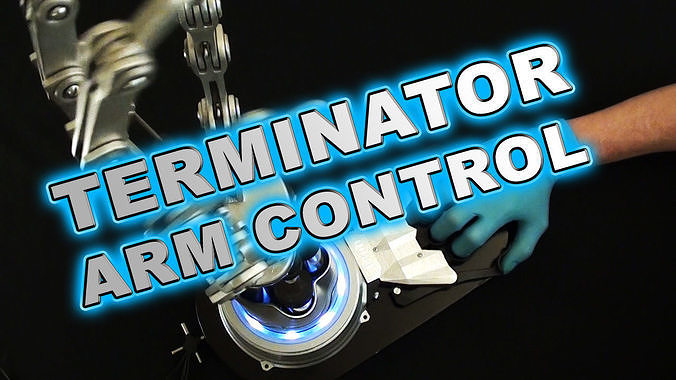

This is the control system for my working Terminator arm replica project. My original idea was a lot more complicated, but I decided to simplify the design to make it easier for everyone to build. Paired with the arm, it now looks great and works well as a functional display piece.

The design uses thin fishing gut and small pulleys to transfer each finger movement from the control unit to the Terminator arm. Small nuts and screws will need to be acquired and are needed to attach the gut as well as to attach the control unit to the Arm base. It is a challenging build, but satisfying if completed correctly. After a year on my shelf, it still stands proudly, works perfectly and I still occasionally use it to flip the bird. :)

Have fun & enjoy!

    Item Rating30
    • ssfav1
      2019-07-01 03:39
      Recommended
      Replaced the finger pulls with Servo Motors. Now I can program it from a Arduino Uno
    • aantvian1959
      2018-08-29 05:12
      Recommended
    • ppaanguev
      2018-08-10 02:17
      Recommended
      Just Awesome, I would have paid more... (seriusly)
    Terminator arm control
    $15.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 95% in 1.8h
    3D Modeling
    3D Print Modeling
    Rigging
    Hire me
    3D model formats
    • OBJ (.obj, .mtl) (22 files)-
    • Stereolithography (.stl)826 KB
    3D model details
    • Publish date2017-01-22
    • Model ID#687974
