Falcon Fairing Upgrade 3D print model

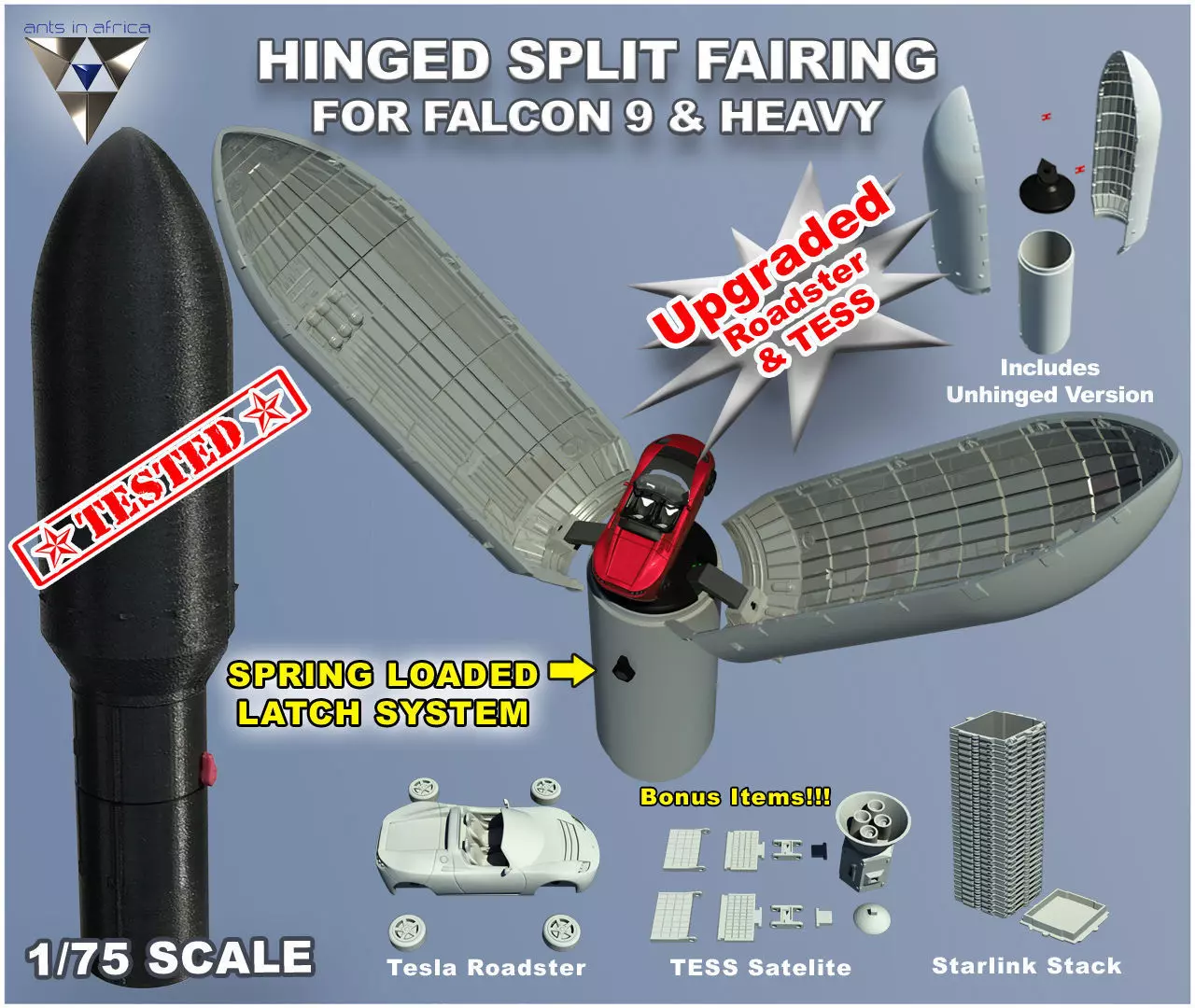

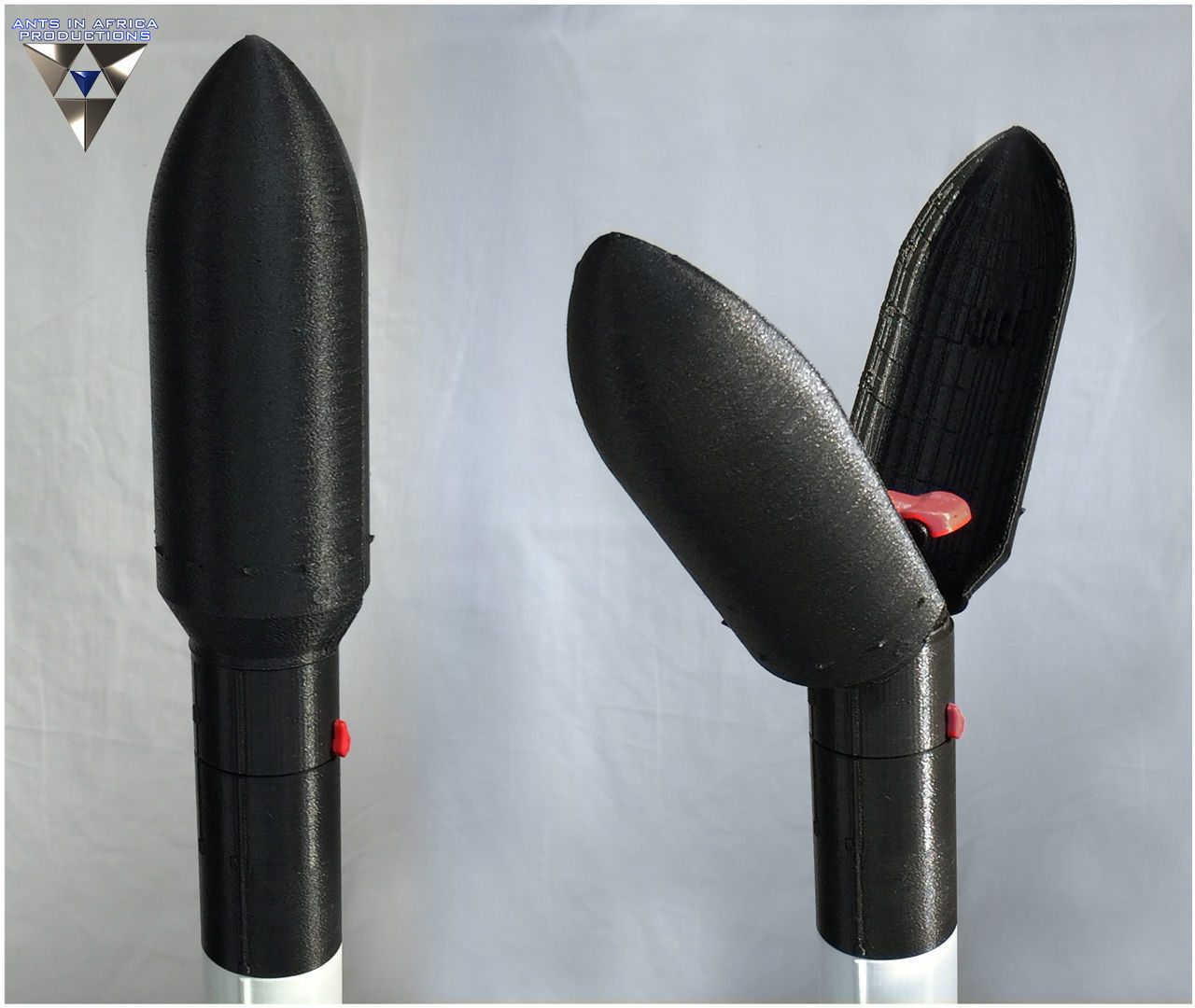

This Split Fairing is designed to fit directly on to my existing Falcon 9 and Falcon Heavy model. It is a really nice addition to complete the Falcon 9 or Heavy models, and adds much more detail and functionality to the rocket with a simple and fun solution to open and lock the fairing closed for display and instructional purposes.

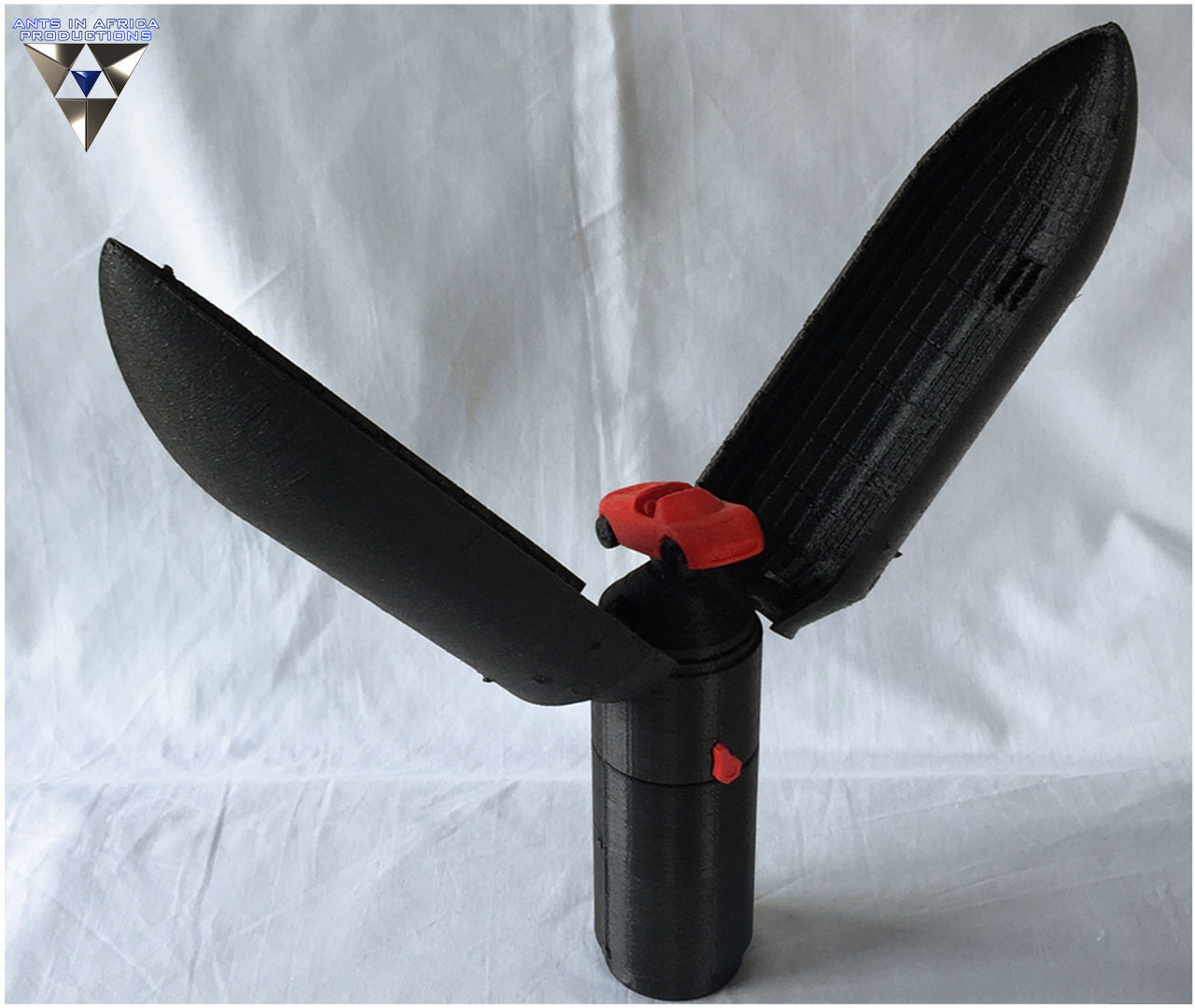

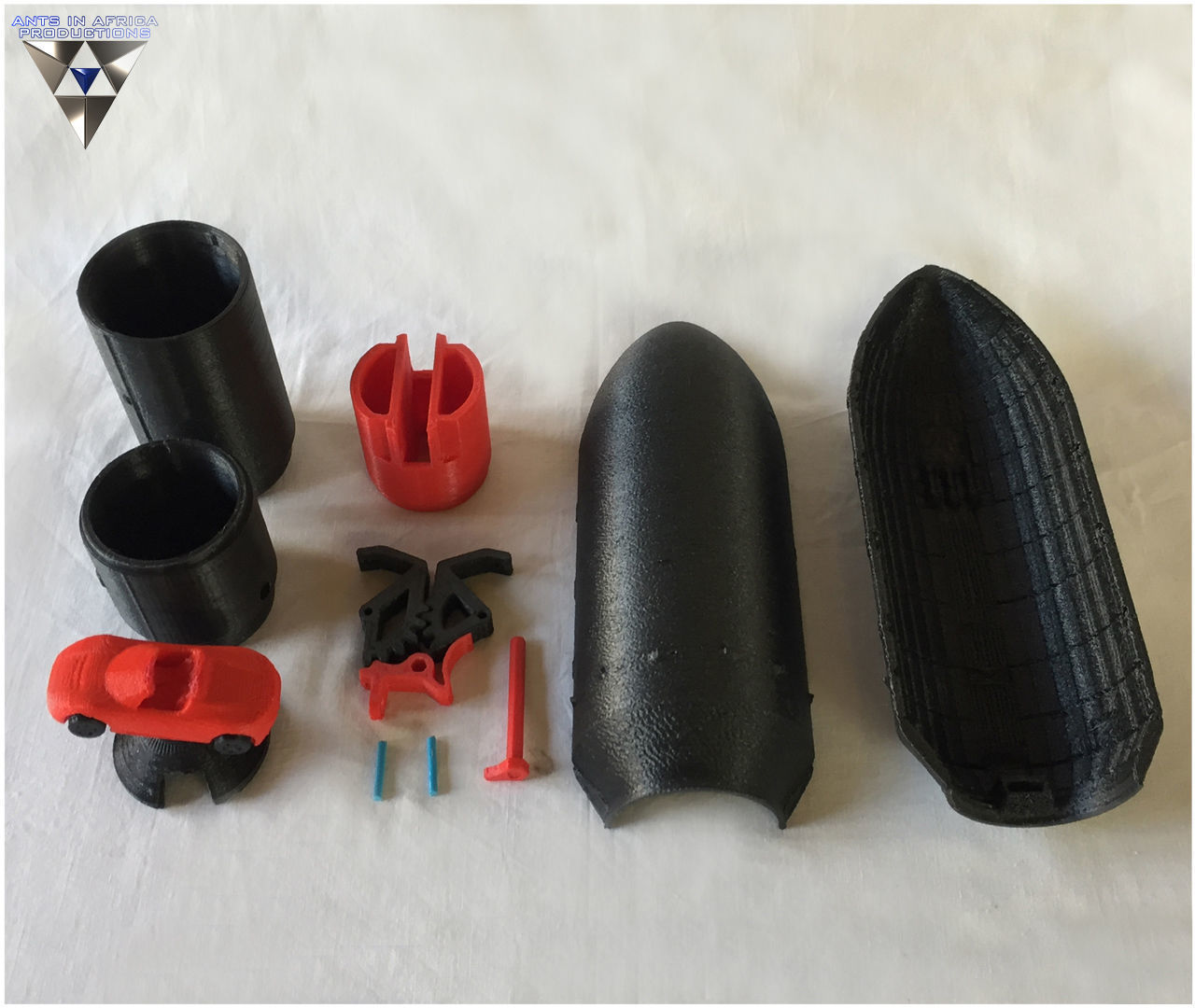

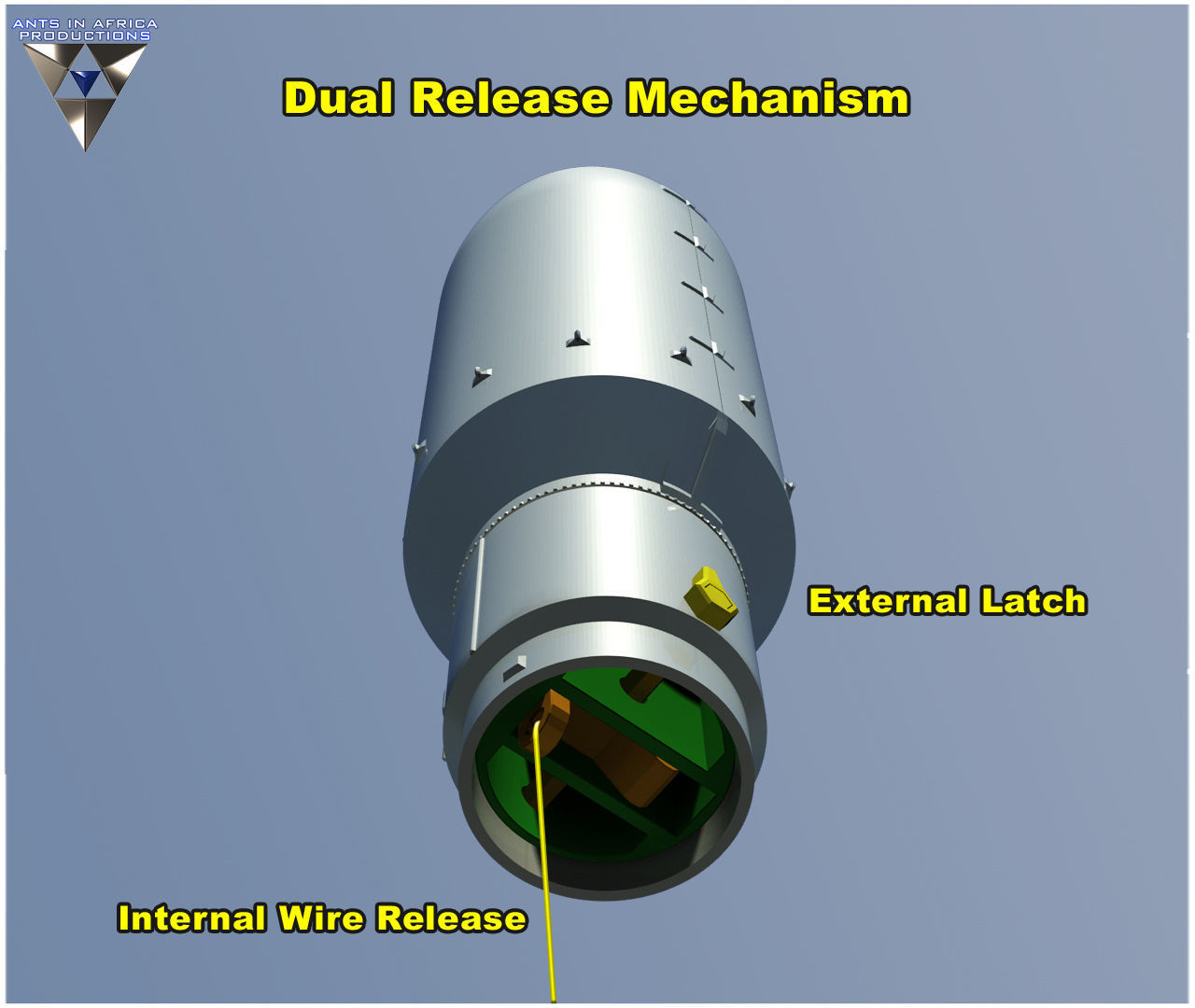

Over a period of a month, I increased the detail substantially and wittled the mechanical design part of it down from 11 parts to just 5, creating the most practical, functional and simple design I could. The lever to release the two fairings is only sprung when it is turned, so it will not warp or distort over time. There are two different latch release options. There is an option to have a lever on the outside, or on the inside by using a string that runs down the centre and out the centre thruster hole. I also supply an additional gear to drive the gears with a servo internally for electronics enthusiasts. The model can be assembled very quickly and is tested to ensure successful prints. As usual, I design my models to print without supports and in most cases, with no infil. I printed this with two perimeter passes, no infil and 0.2mm layer height.

Features in this package include:

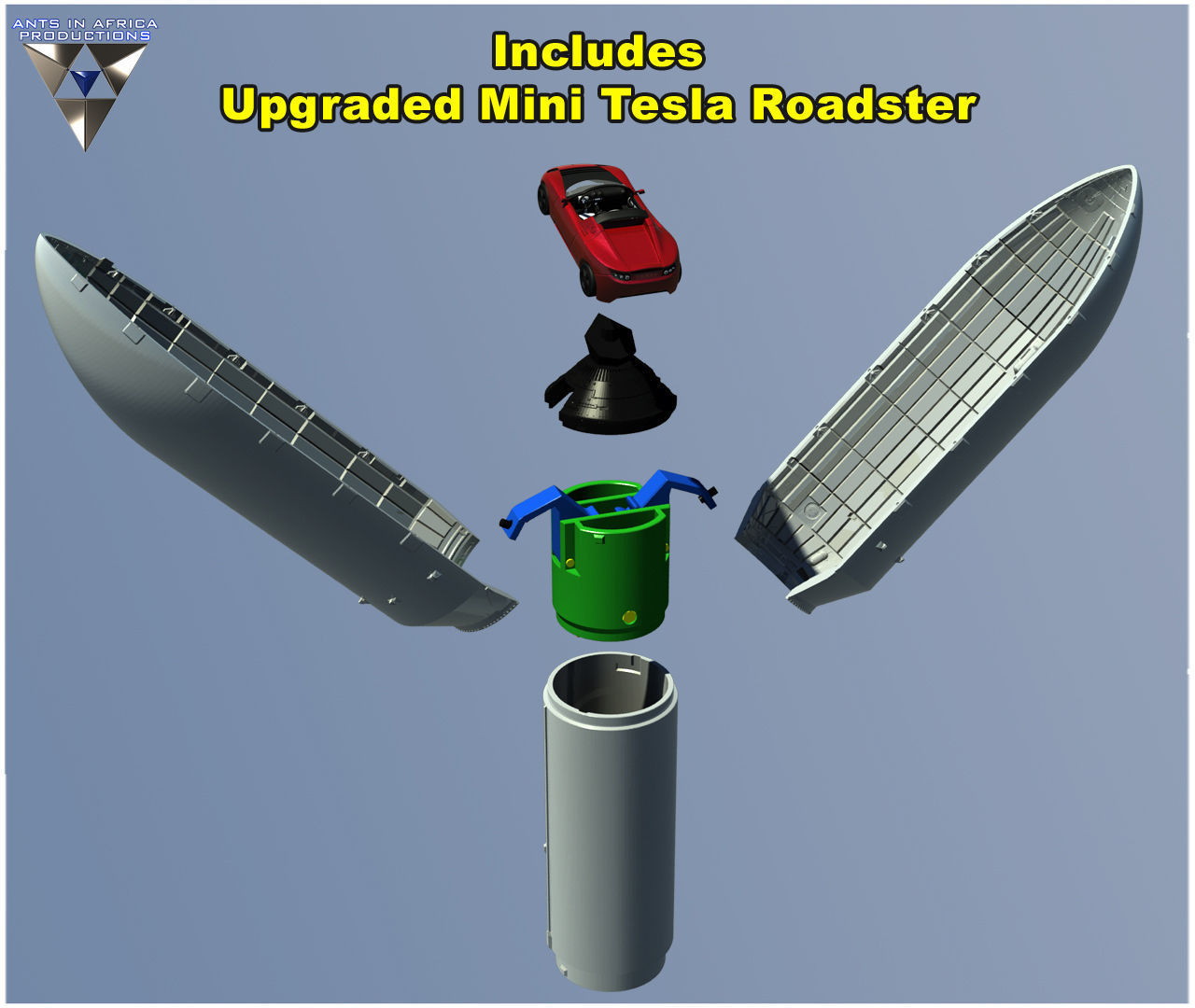

  1. - High detail Mini Tesla Roadster Upgrade

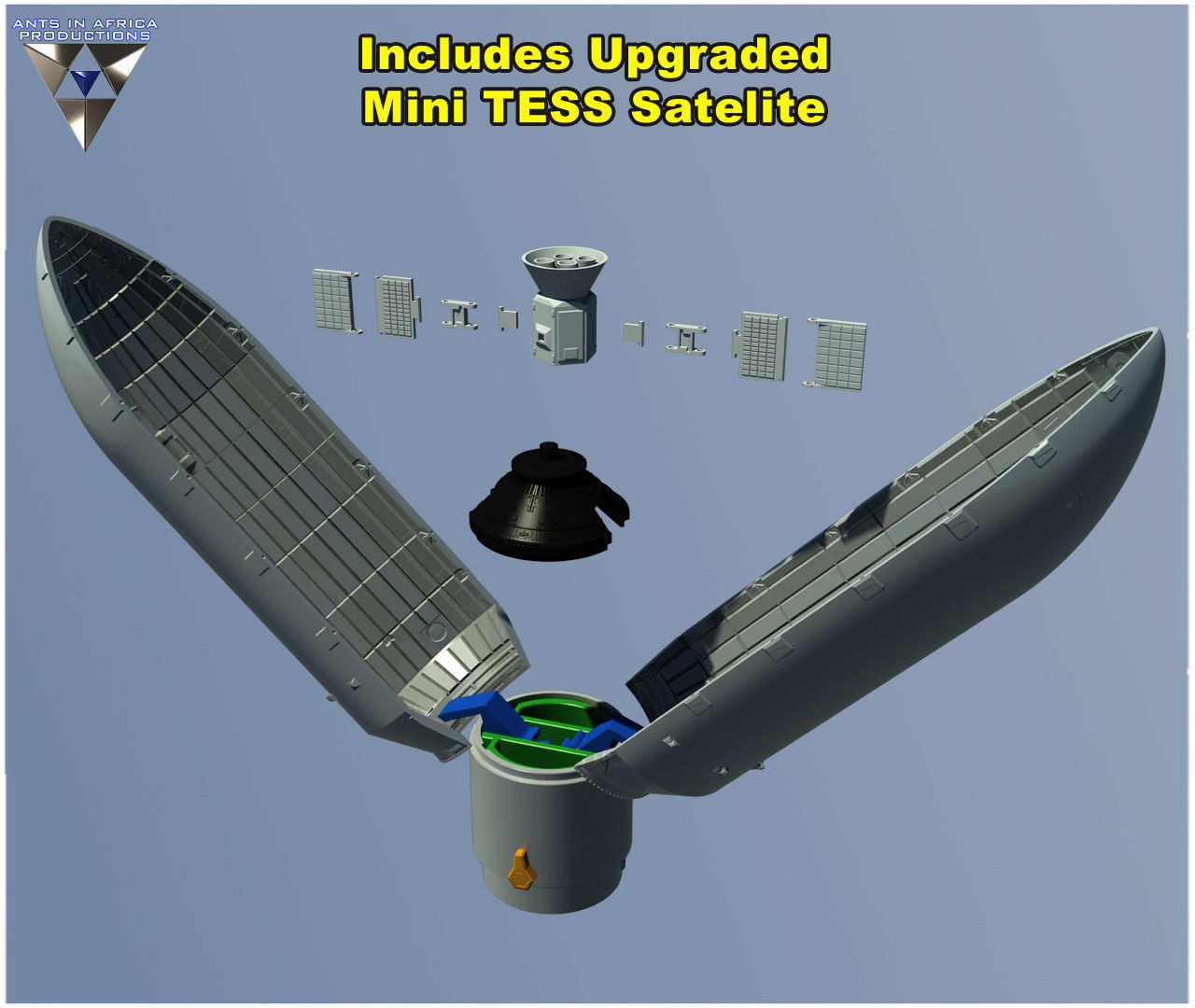

  2. - TESS Satilite Upgrade
  3. - Starlink style box with lid

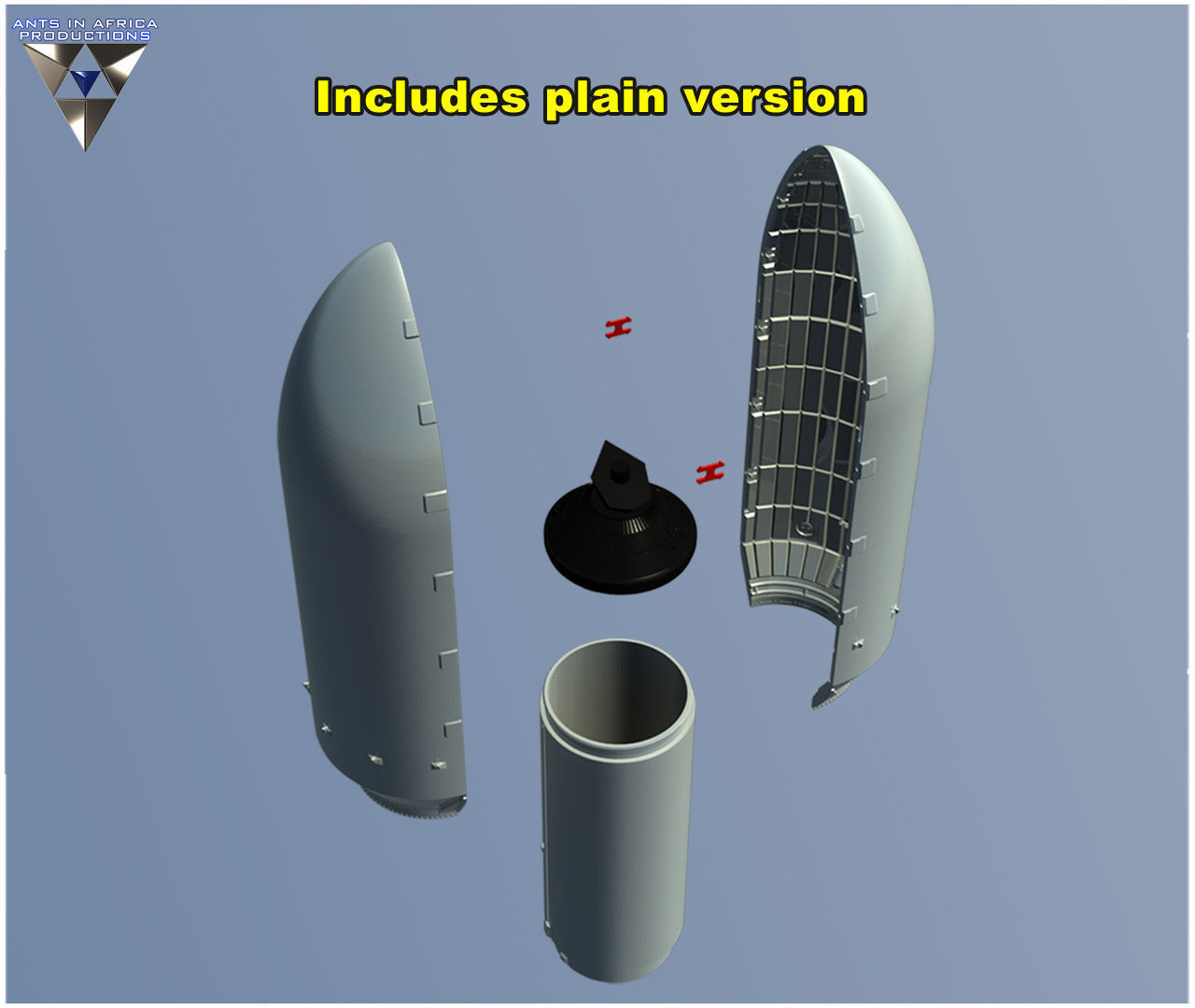

  4. - No Hinge version.
  5. - Option for servo direct control.

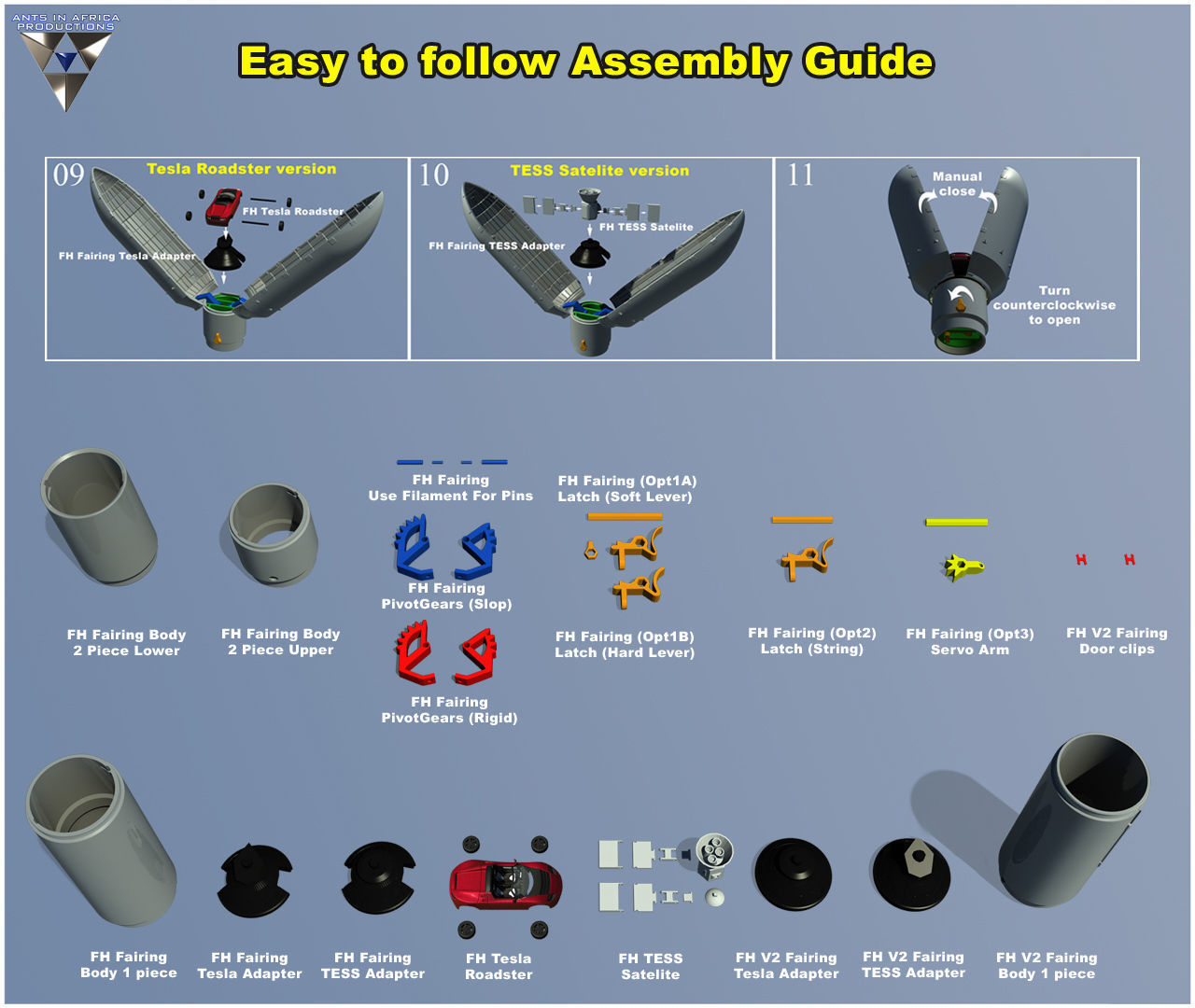

  6. - Detailed, easy to follow instructional PDF

I am really happy with this addition to my Falcon series, and I am sure you will be too.

  • andystechgarageandystechgarage
    2020-09-30 03:27
    Love it! One of the nicest additions to Andy's growing collection of SpaceX rockets.
    Item Rating10
    Falcon Fairing Upgrade
    $10.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 94% in 3.5h
    3D Modeling
    3D Print Modeling
    Rigging
    Hire me
    3D model formats
    Native
    • Autodesk 3ds Max 2011 (.max)11.9 MBVersion: 2011Renderer: Mental Ray 2011
    Exchange
    • PDF 2011 (.pdf)6.68 MB
    • Stereolithography 2011 (.stl)4.02 MB
    • OBJ 2011 (.obj, .mtl)6.74 MB
    • Autodesk FBX 2011 (.fbx)11.1 MB
    • 3D Studio (.3ds) -
    3D model details
    • Publish date2020-08-31
    • Model ID#2585236
