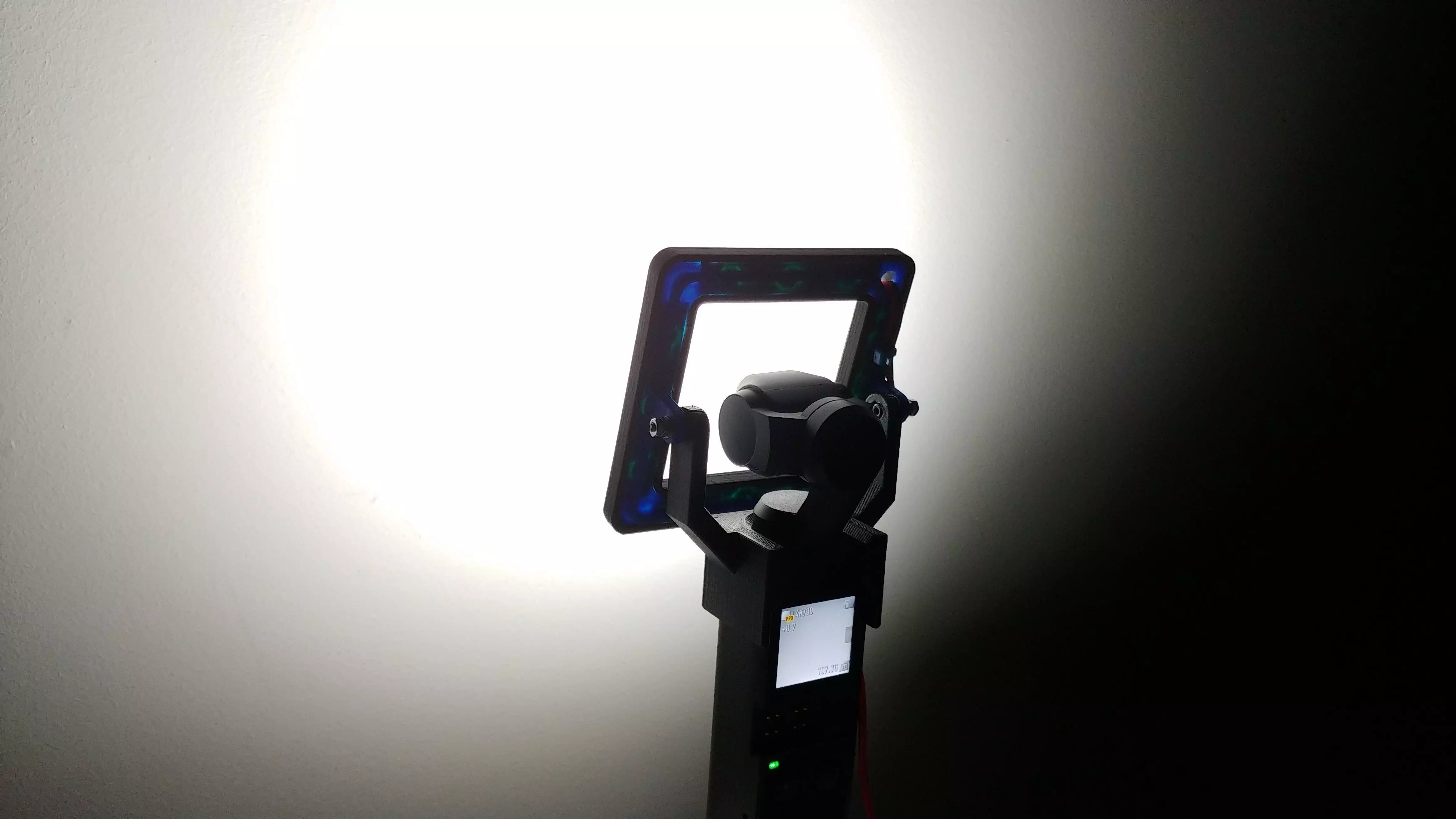

DJI Osmo Pocket LED ring 3D print model

A very functional and cheap to make LED ring for DJI Osmo Pocket.

Video with detailed overview: https://youtu.be/lTESM3O_U2s

The model includes following elements:

  • LED ring in 4 different sizes
  • A cover for LEDs to hold tracing paper for softer light
  • Dimmer box
  • Slide door to hold the dimmer
  • Voltage step-up converter box
  • Template for tracing paper cut-out

Available sizes:

  • 4x1 50mm led strips
  • 4x2 50mm led strips
  • 5x1 50mm led strips
  • 5x2 50mm led strips

Components required for assembly:

  • 3D printed parts
  • White LED strip that can be cut into 50mm pieces, 8mm wide
  • LED strip dimmer
  • DC to DC voltage step-up converter
  • 4 pairs of XT30 connectors
  • 6 x 10mm M2 screws
  • 6 x 7mm M2 screws
  • 5 x M2 nuts
  • 8 x M2 washers
  • 1 x M7 half (thin) nut -> forgot to mention about it in the video
  • 2x 18650 batteries
  • A holder for two 18650 batteries
  • Around 1.5m of 2-wire cable
  • Small sheet of 60gsm tracing paper
  • Some Loctite
  • A bit of grease
    This product has no reviews yet
    DJI Osmo Pocket LED ring
    $7.00
    All prices are exclusive of VAT
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    3D model formats
    • Stereolithography (.stl) (19 files)-
    3D model details
    • Publish date2019-09-25
    • Model ID#2105019
