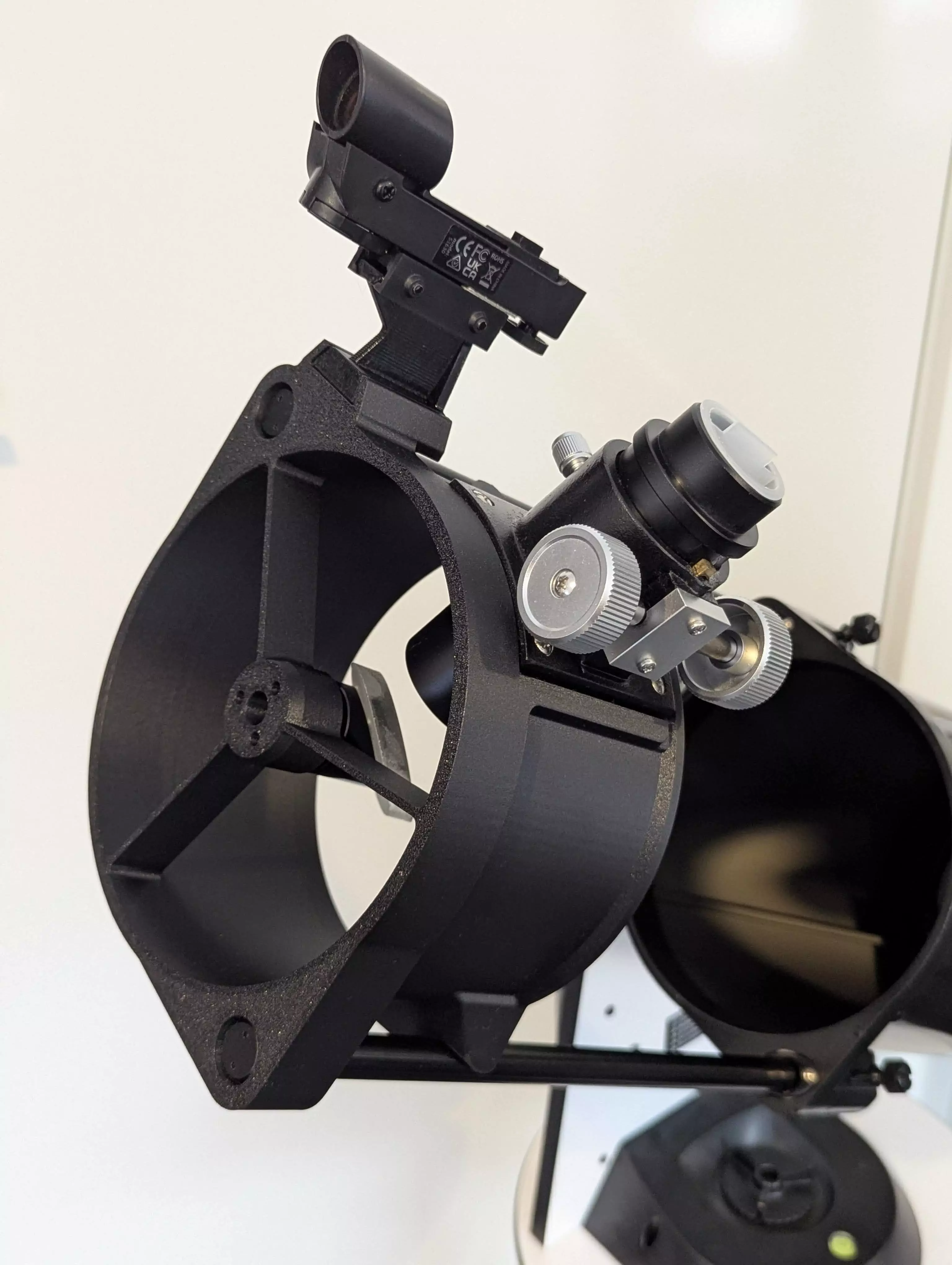

I got frustrated by the helical focuser on this telescope so I decided to replace the entire secondary mirror holder (spider) assembly with one which will accept a rack focuser which is readily available. The quality of observations is unchanged, but the usability is much improved - it is now a joy to use the scope and much less of a pain to change between non-parafocal eyepieces!
ADDITIONAL HARDWARE REQUIRED:
- 3x M4 nuts (required to retain secondary mirror)
- 4x M4 x 10mm long screws with a countersunk head (or equivalent, to attach rack focusser)This model also uses a minimum of additional hardware, only needing 3x M4 nuts to suit the grub screws for adjusting the secondary mirror, and the 4 screws or nuts and bolts to hold in the new focusser of your chosing. In my case I used M4 x 10mm long screws with a countersunk head, but any bolt or nut combo under 3.5mm in diameter will work without modification.
Notes:
- This design helps block stray light and provides a backing for the secondary.
- When closed, it increases the length of the optical tube to about 50cm.
- I have not experienced any balance issues even with heavy eyepieces.
- The minimum focus distance is maintained compared to the original. T
- his mount also incorporates an upgrade to a standard finder scope shoe to enable the use of standard accessories (not only the red-dot finder.
- This model is designed to be 3D printed without supports.
- I have designed a matching lid, since the original does not seat fully due to the new design - a worthy sacrifices to improve printability!
Designed to fit:
- Sky-Watcher VIRTUOSO GTi 150/750mm Reflector dobsonian
- Sky-Watcher Heritage 6″ Collapsible Tabletop Telescope (non-GTi)
Example rack focusser which will fit: https://www.ebay.com.au/itm/365245336938
