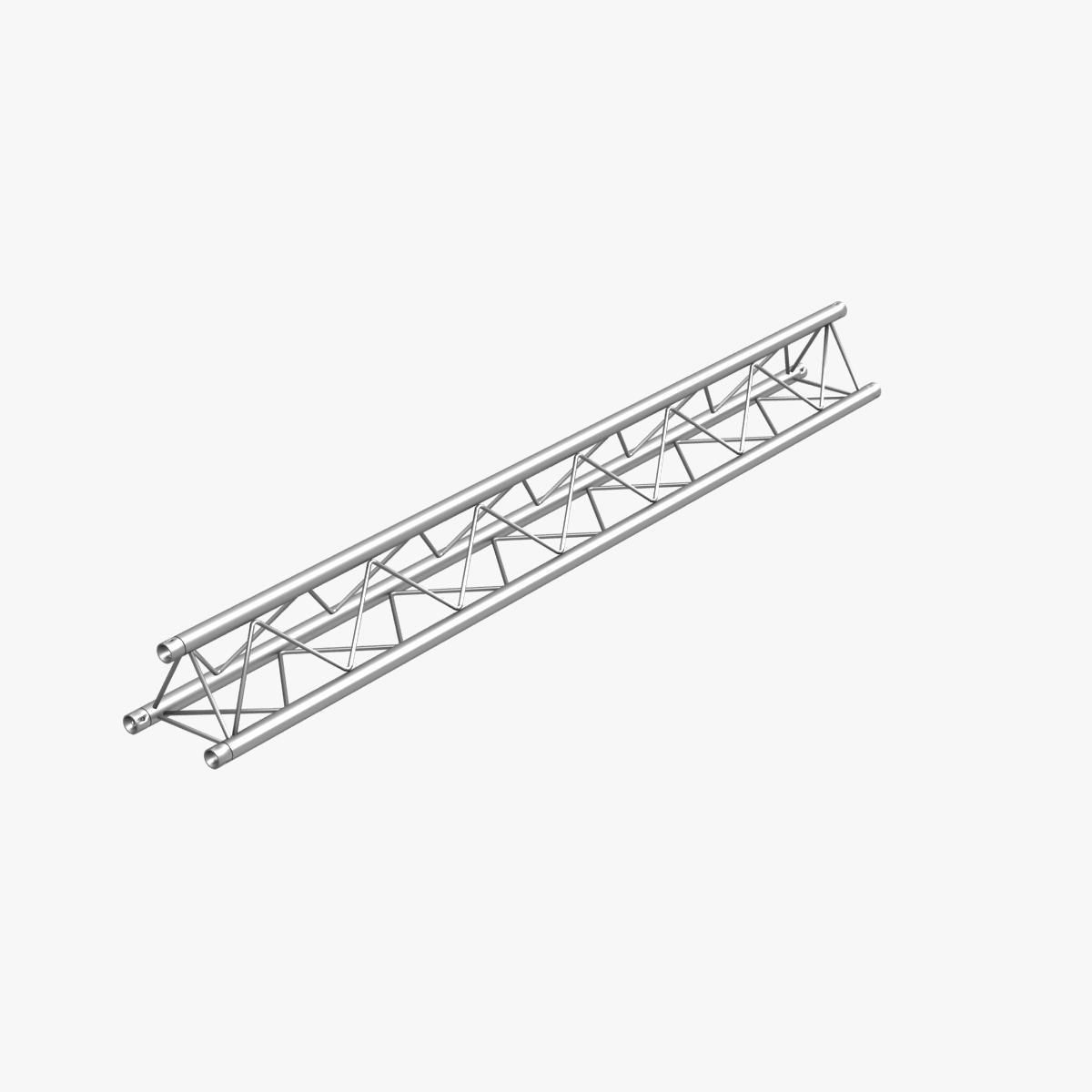

Mini Triangular Truss 009

Mini Triangular Truss 009 3D print model


Model Info;

  • Modeled in 3ds Max 2012
  • Modular
  • All Geometry Named Appropriately
  • 14 Modular Pieces.
  • Modeled in Real World Scale Overall Width : 8 5/8(220mm) Outer Diameter Tubing : 1 1/3 (35mm) Diagonal Bracing : 1/3(8.30mm) Wall Thickness : 0.04 (1mm) -Drawings are error free for manufacturing and visualization. -Ideal for 3d printers. -File may be reduced in proportion

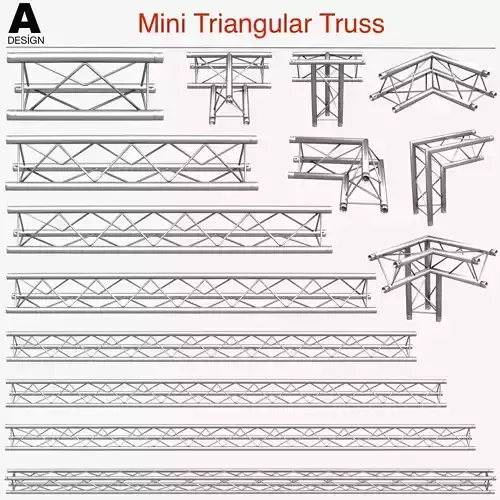

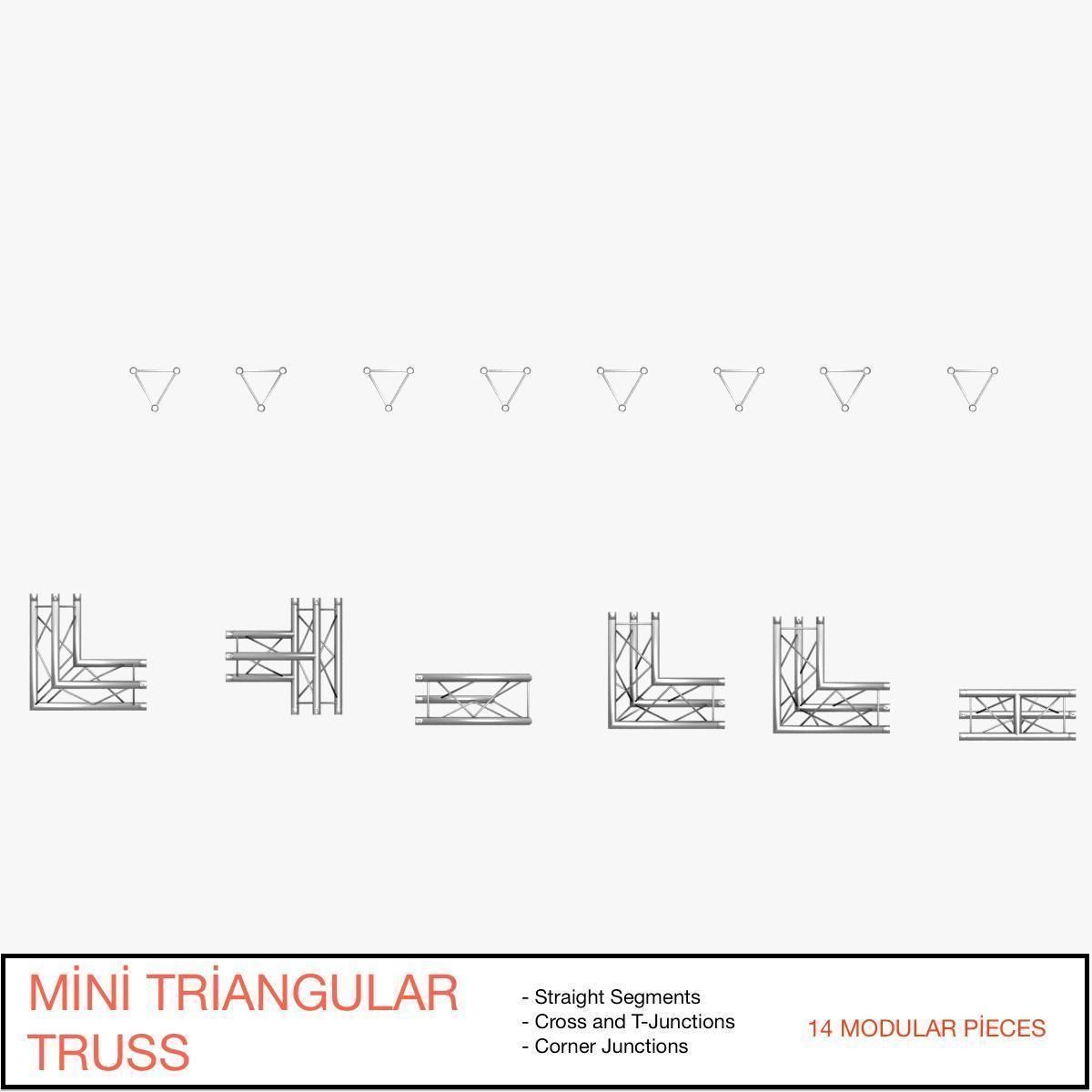

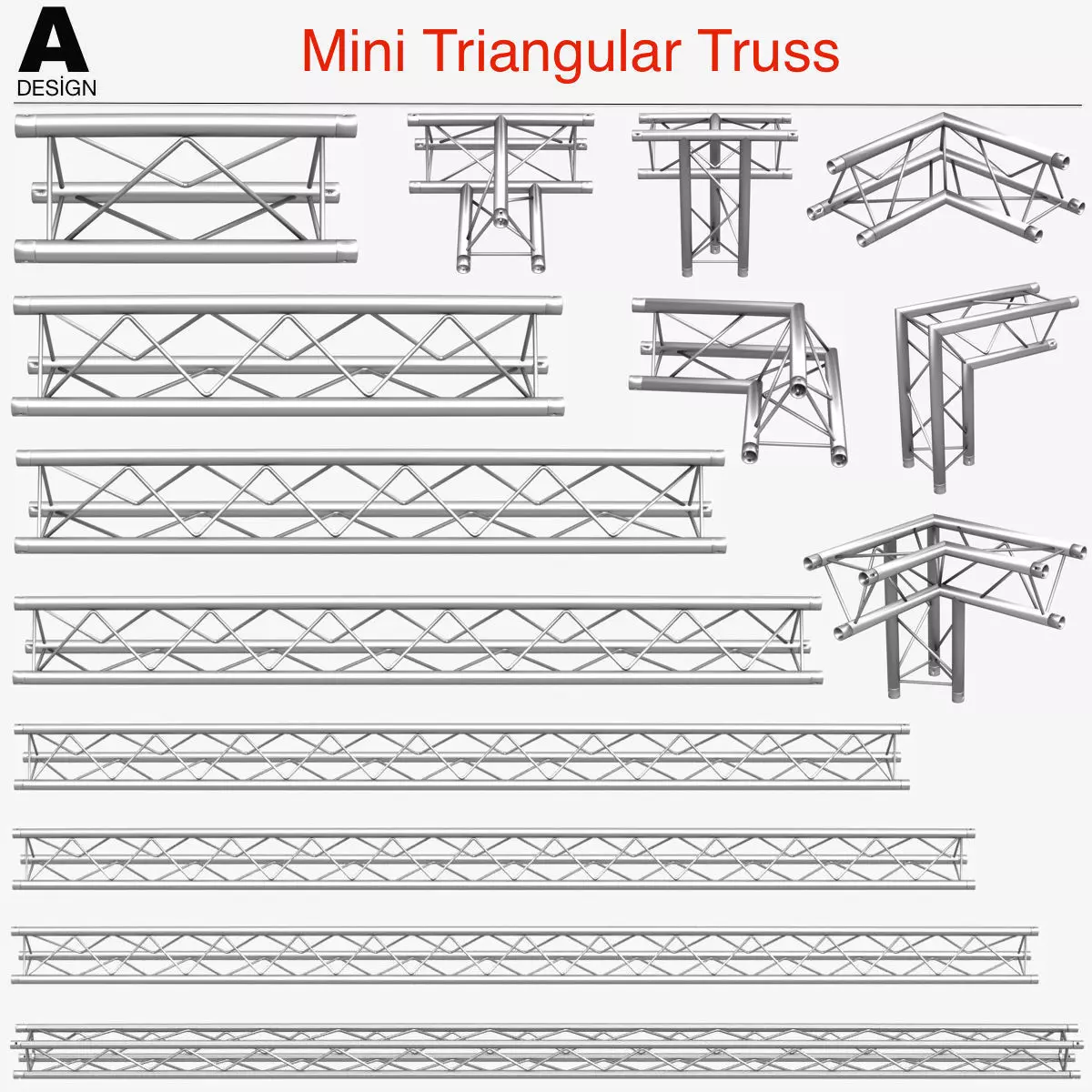

Mini Triangular Truss: 14 object

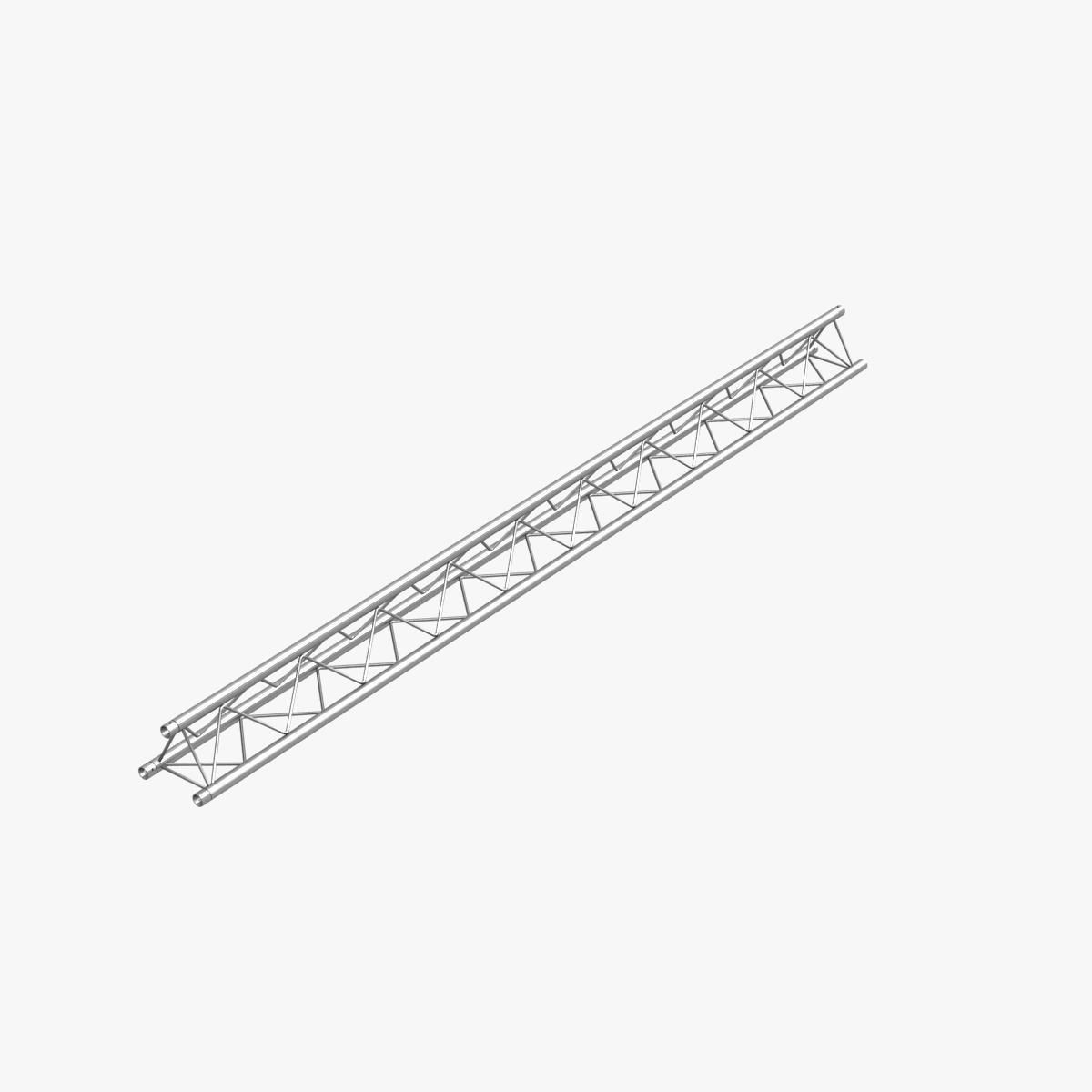

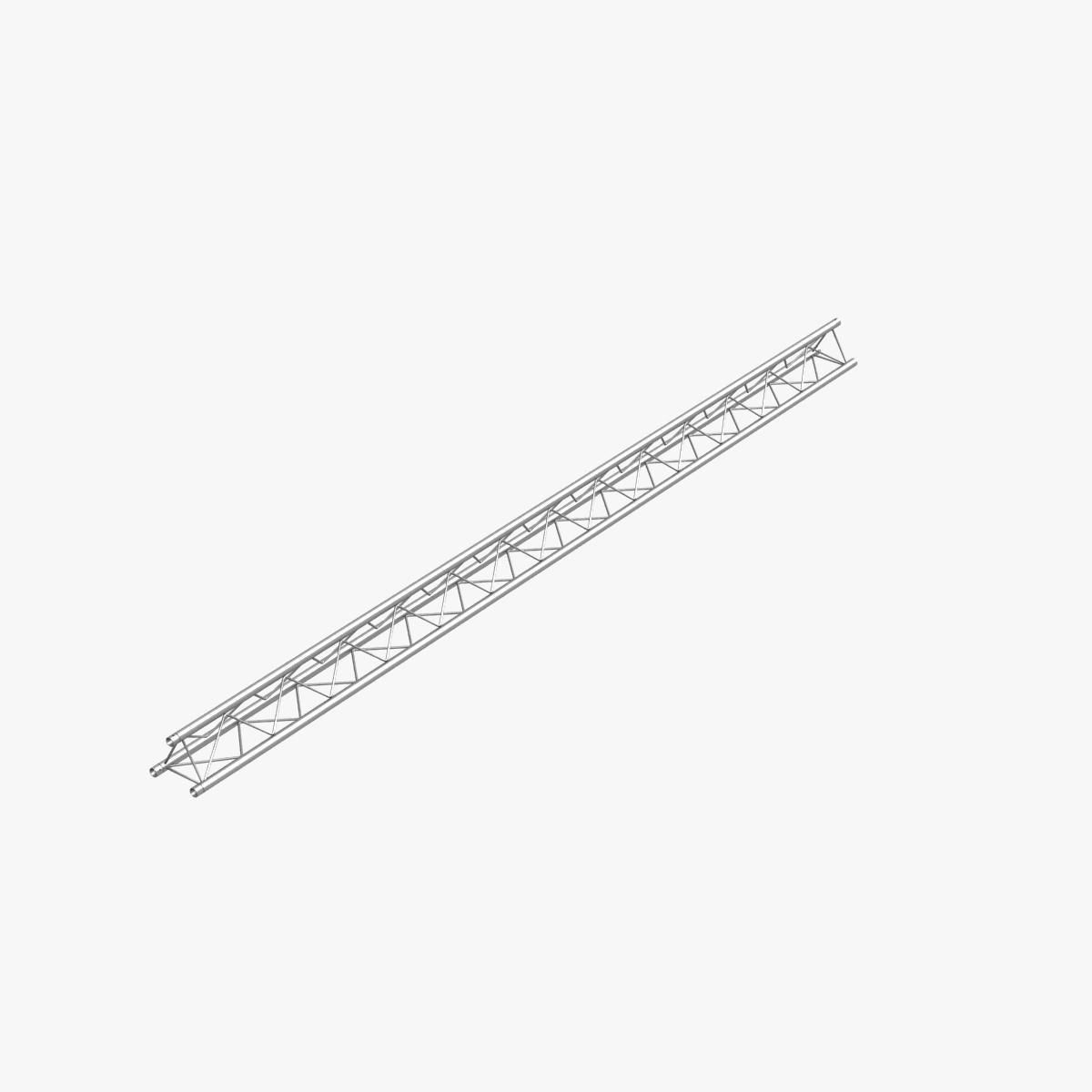

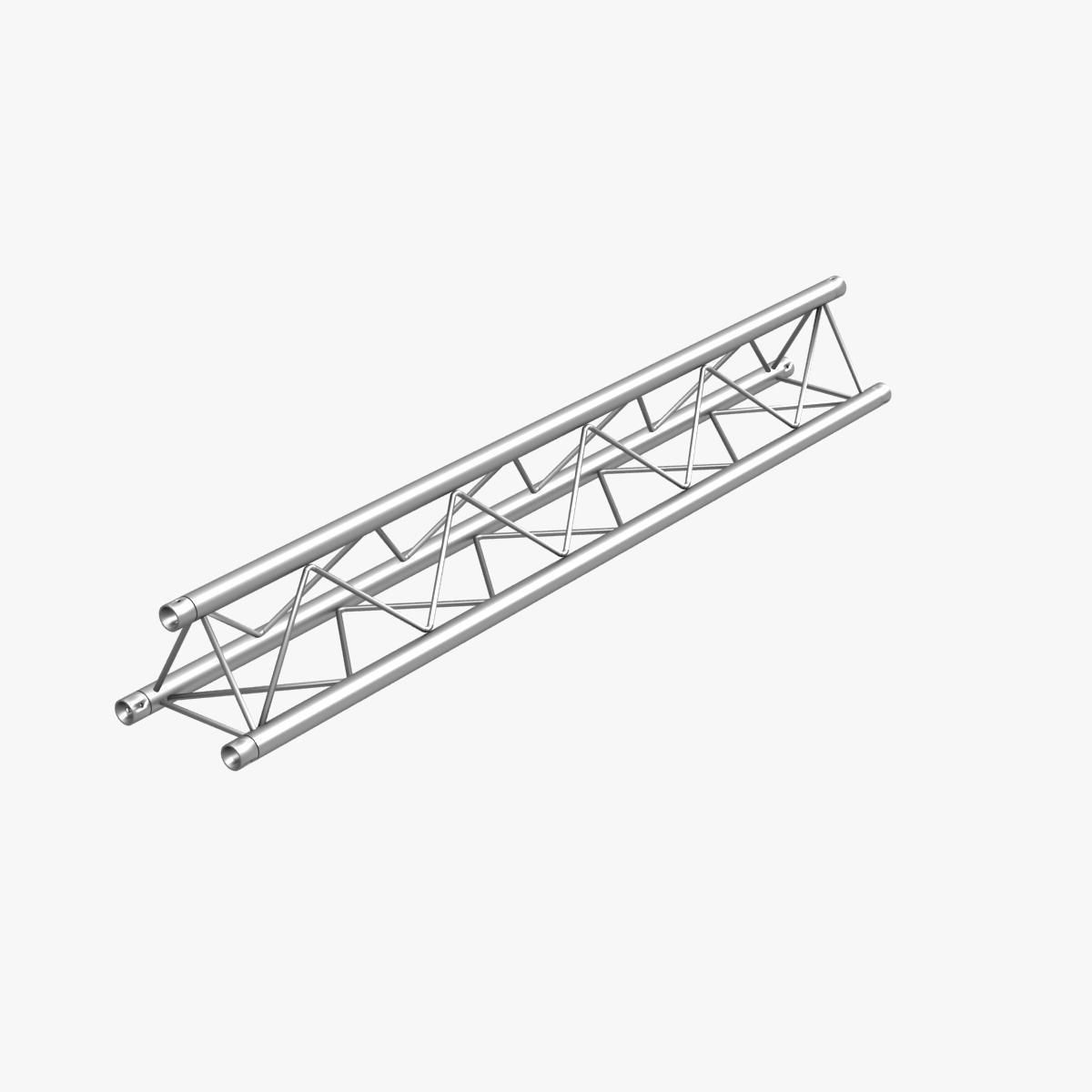

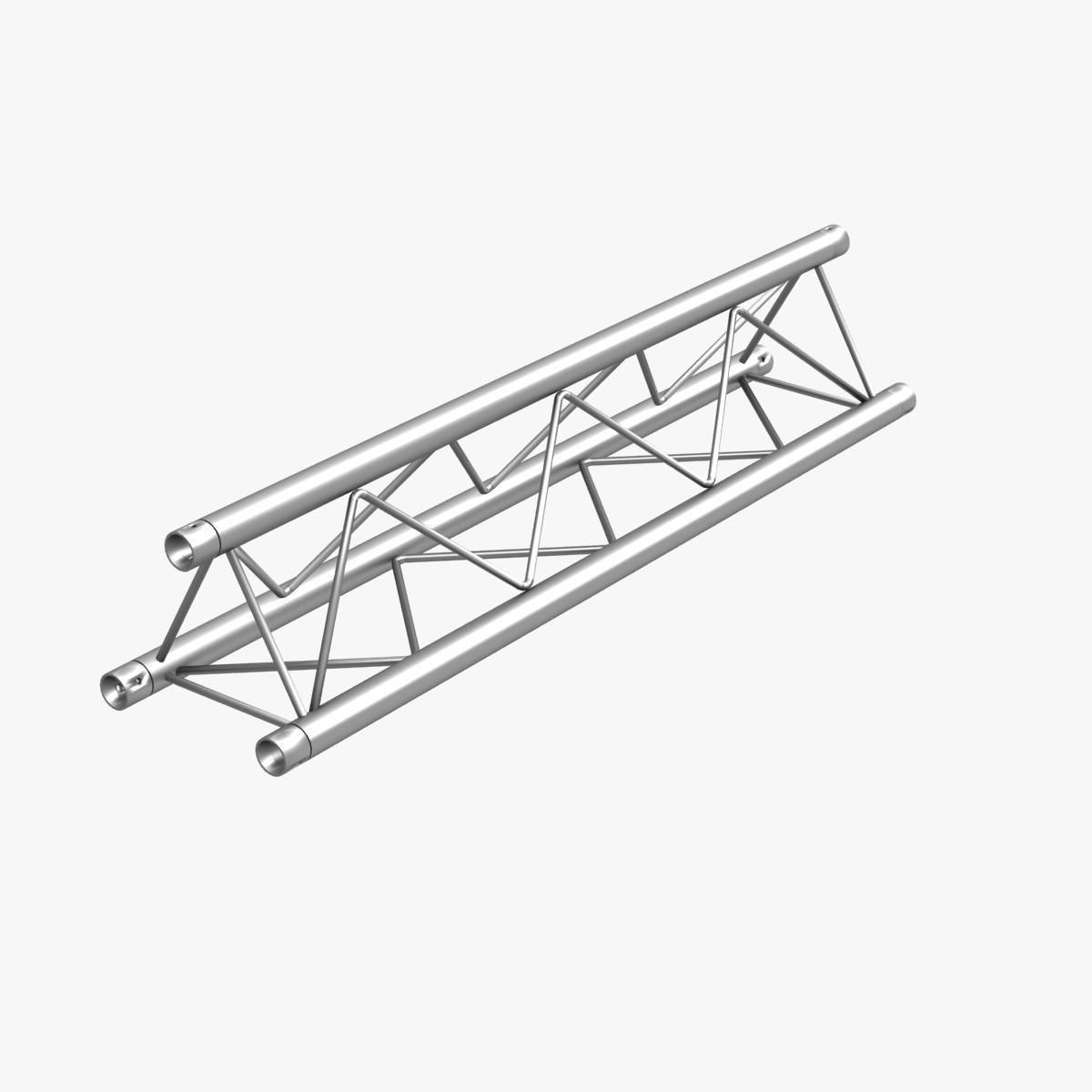

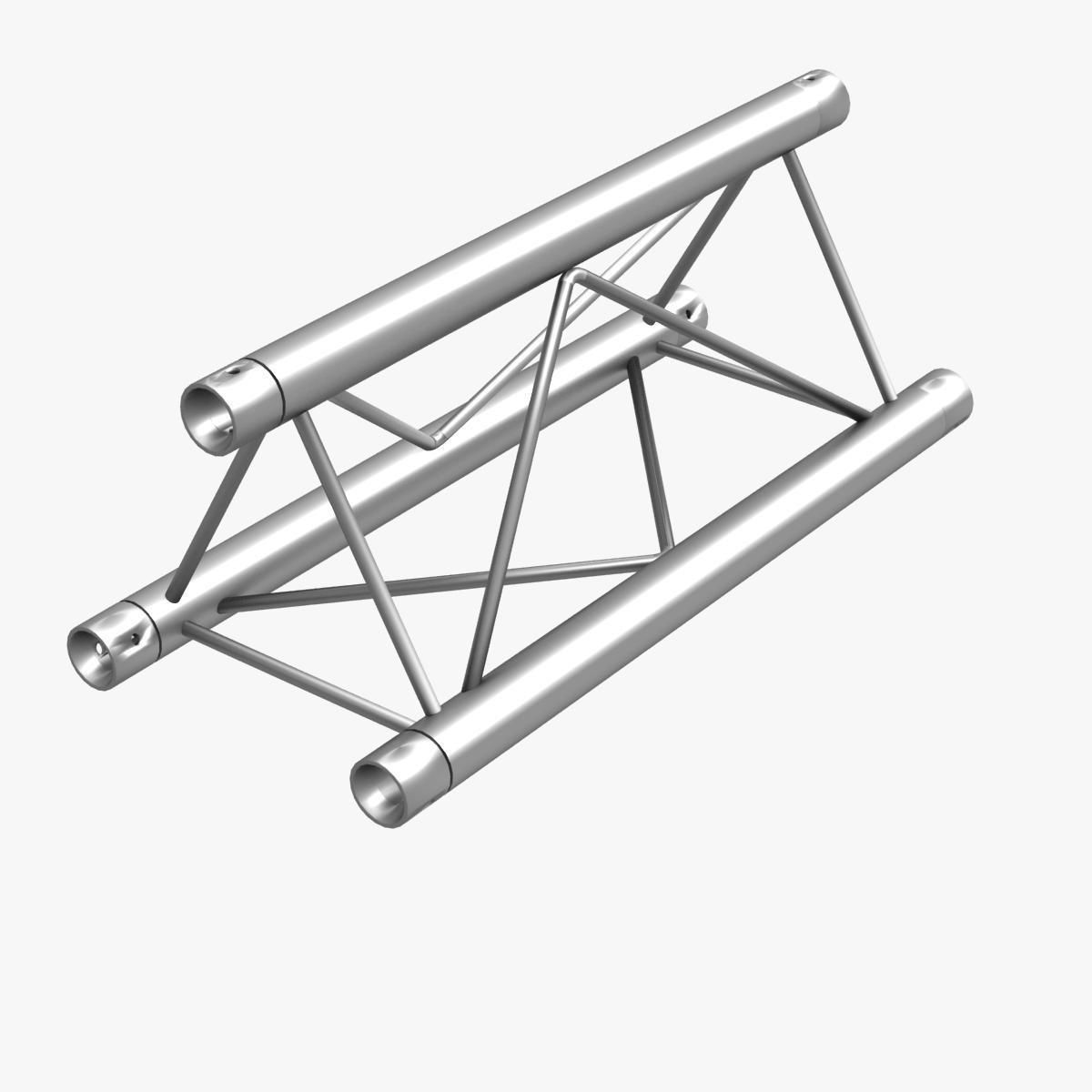

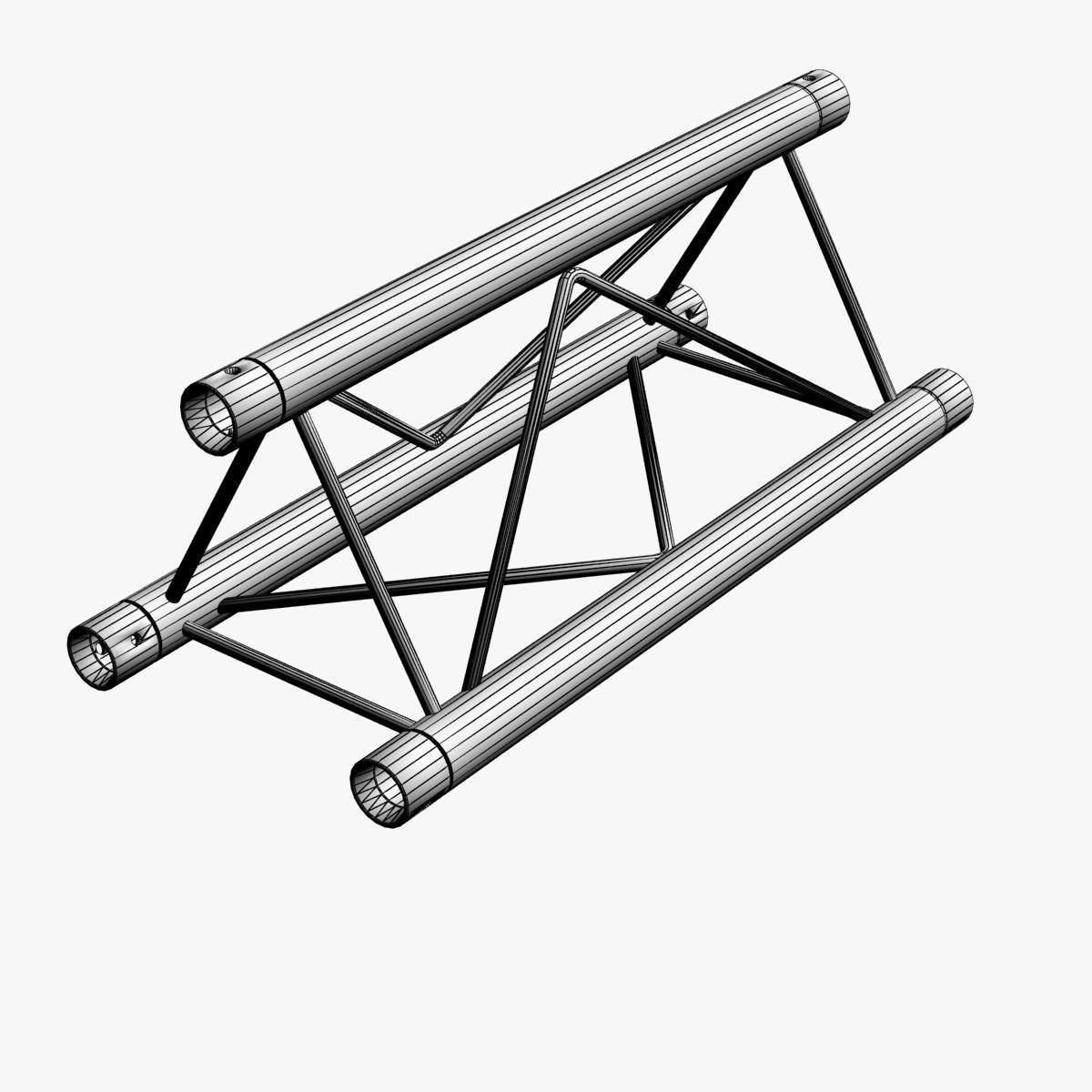

  • Straight Segments

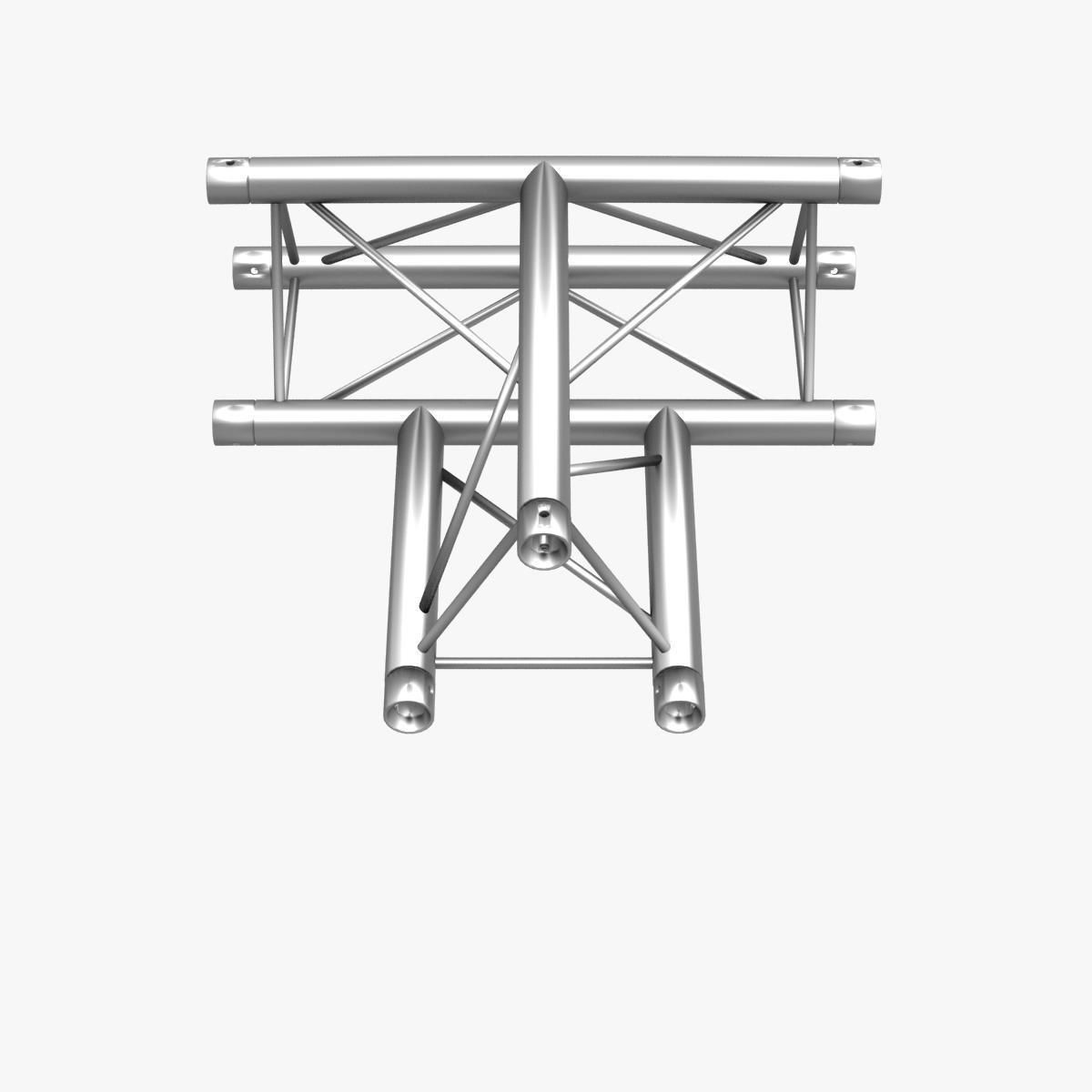

  • Cross and T-Junctions

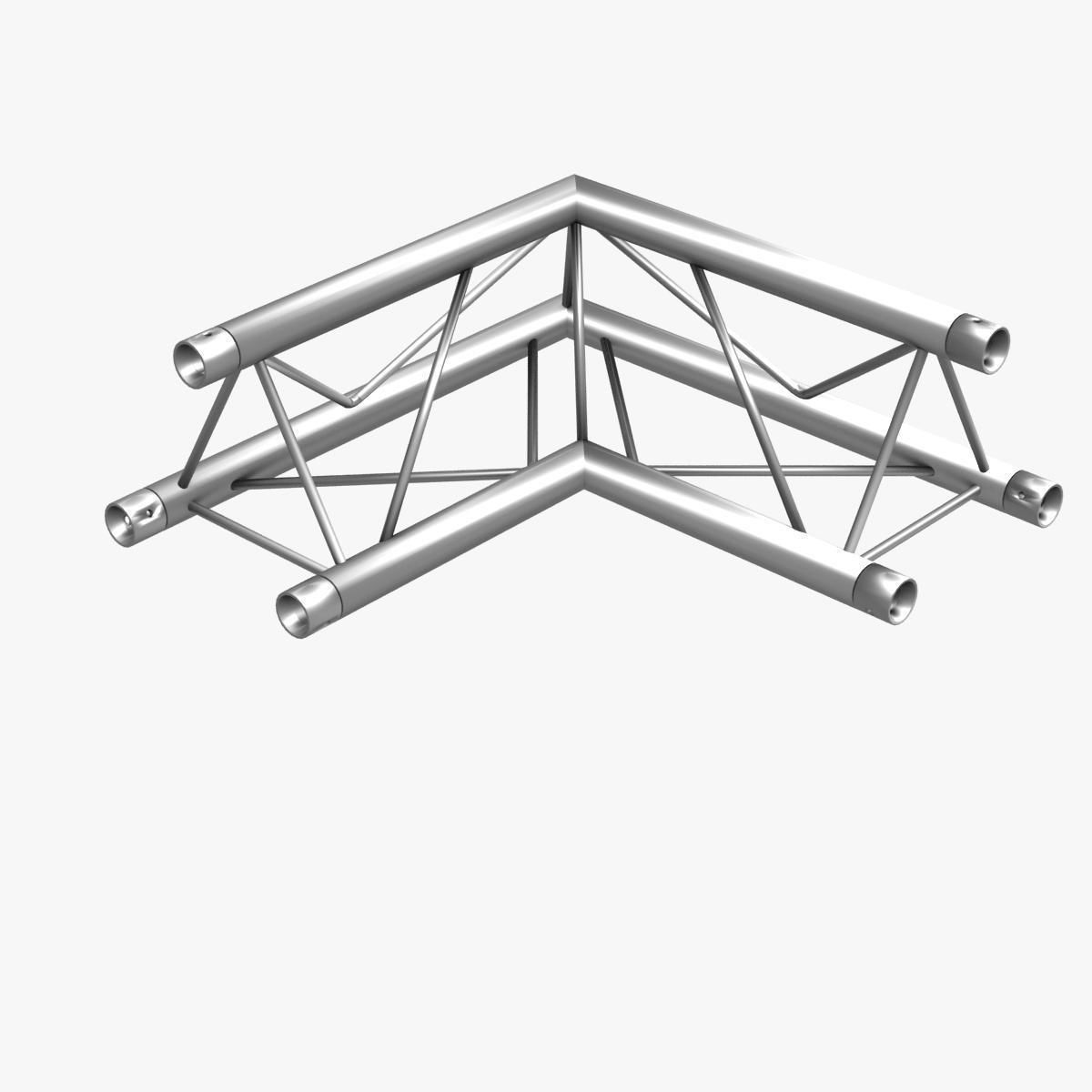

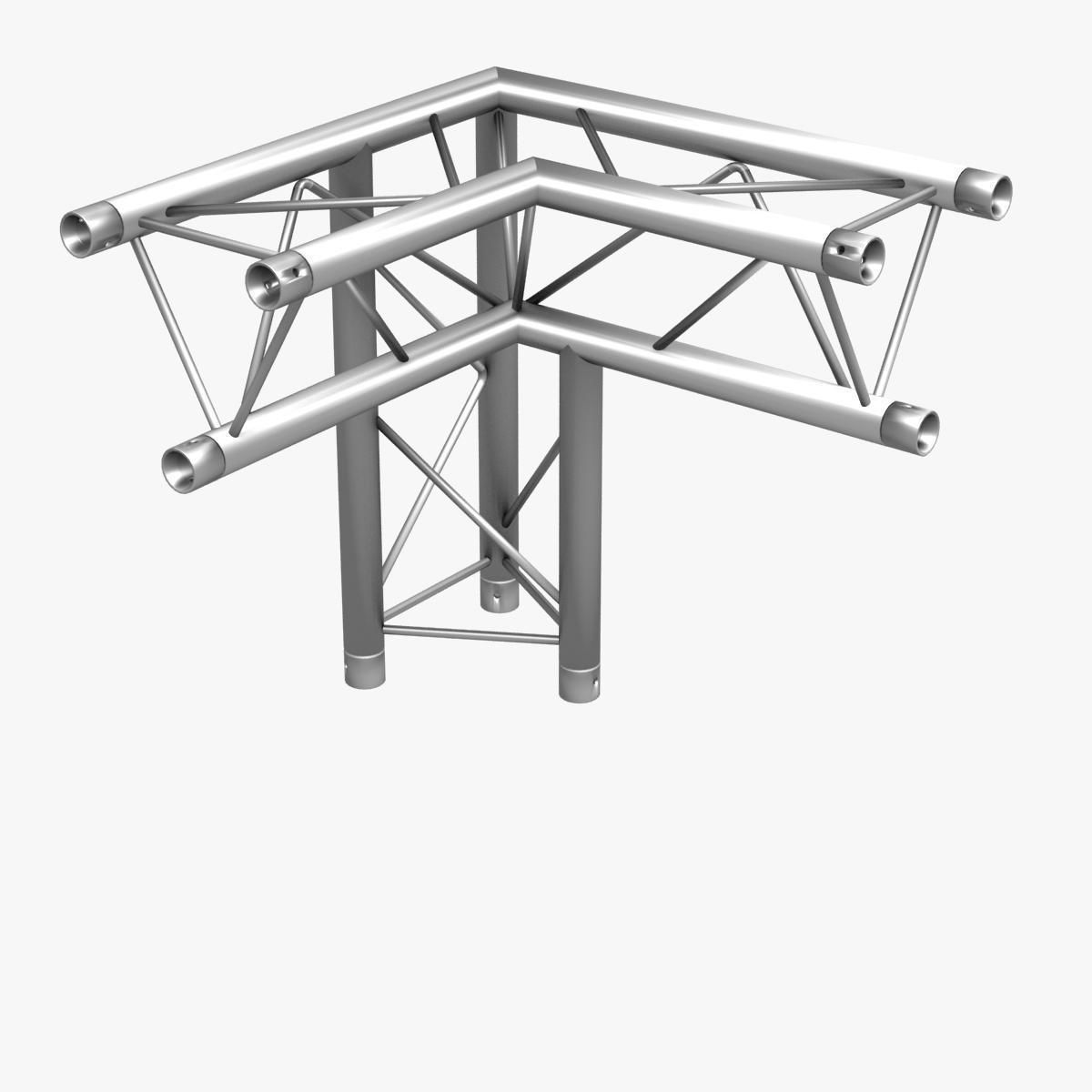

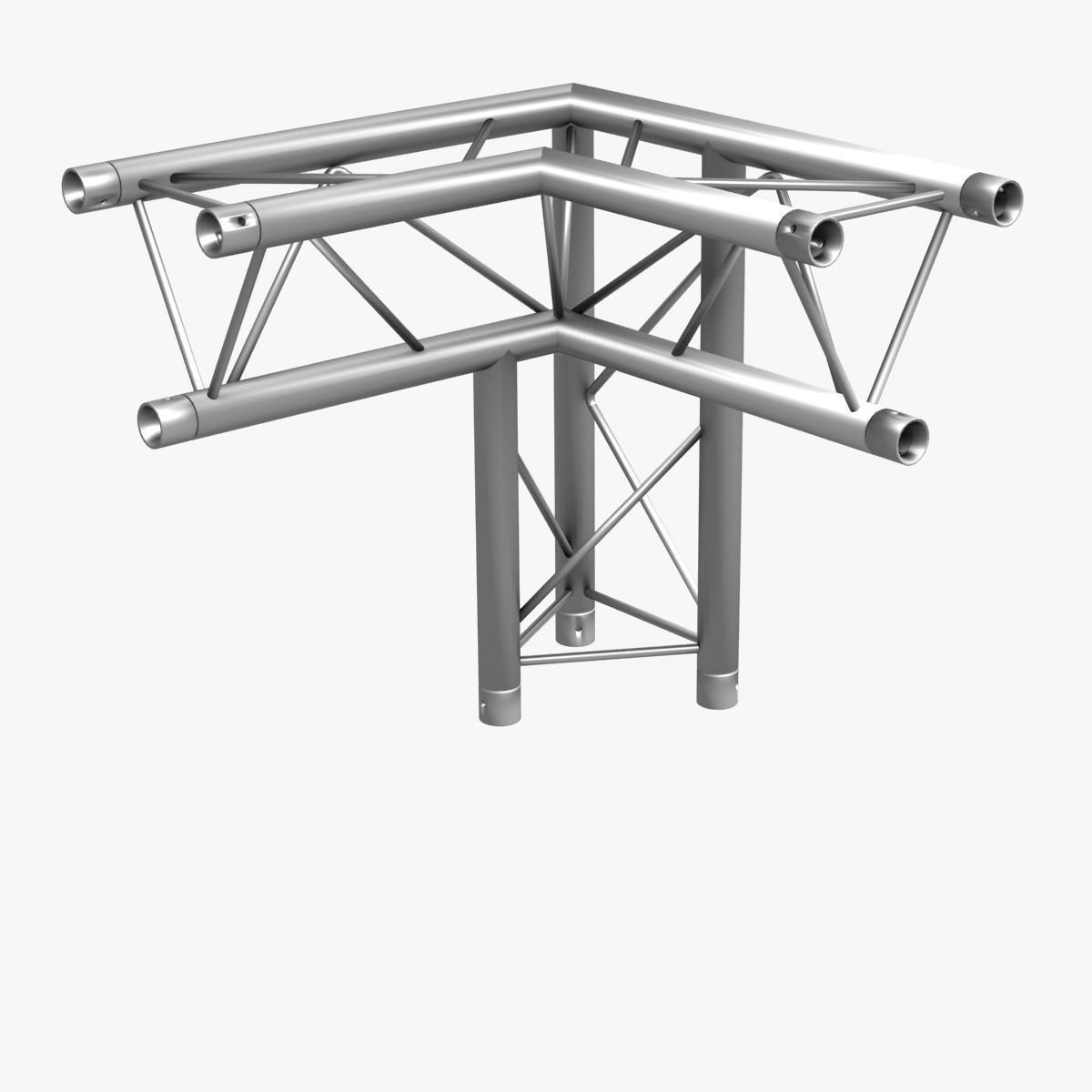

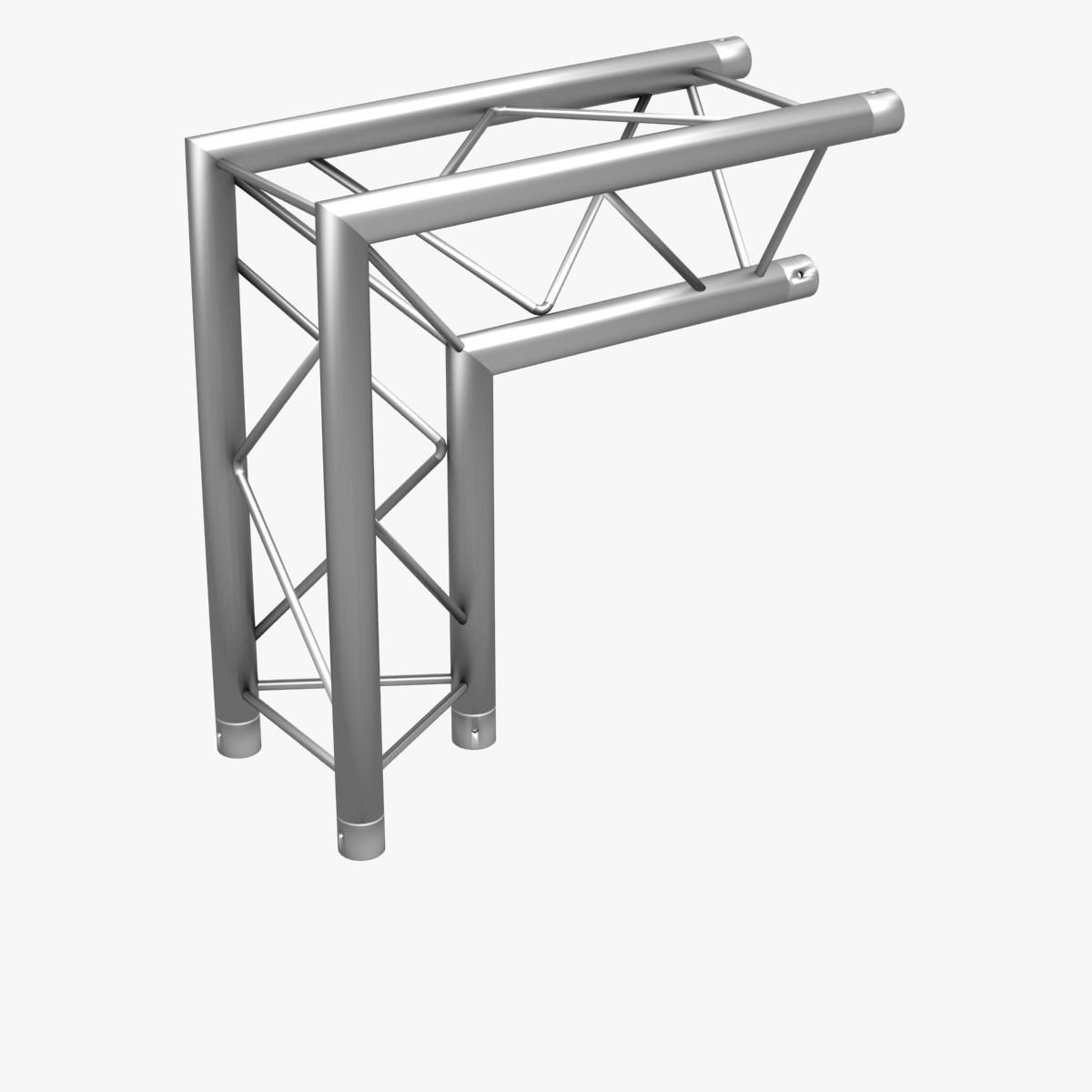

  • Corner Junctions

File Formats Available; STL, WRL

This a Collection of Collections Other collection ID's are;

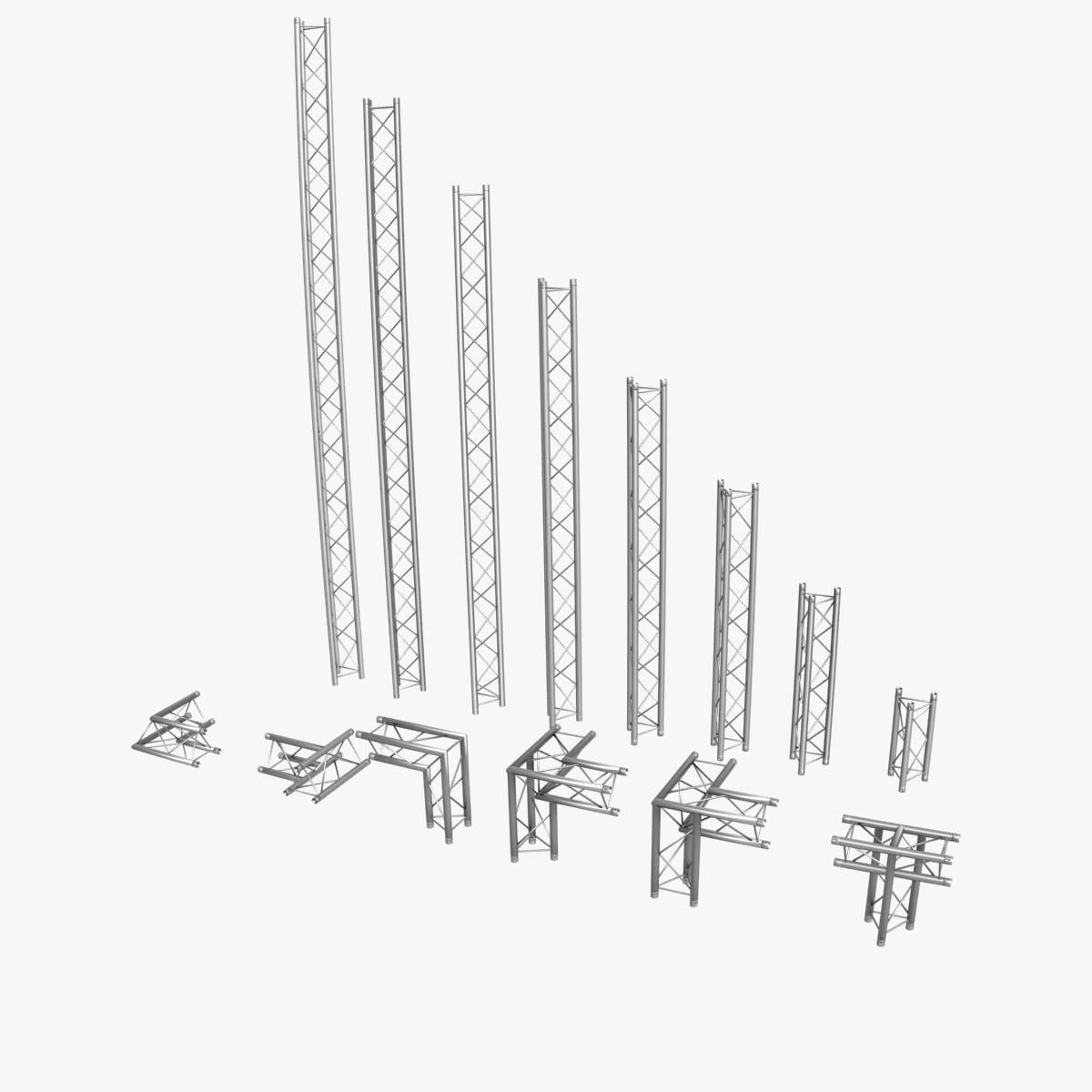

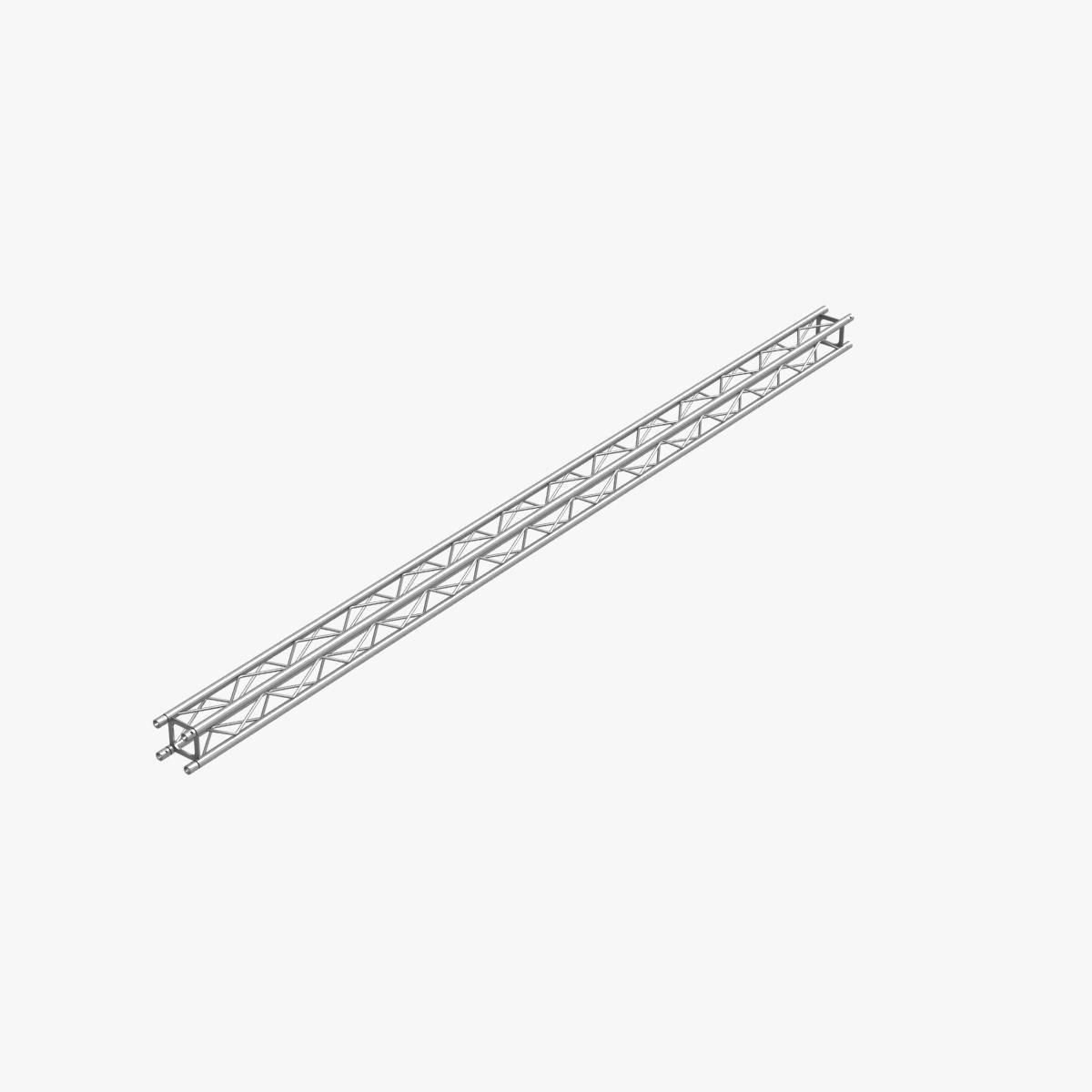

Square Trusses Square Truss Standard: 24 objects Mini Square Truss: 7 objects Light Duty Square Truss: 9 objects Big Square Truss: 10 objects

Triangular Trusses Triangular Truss Standard: 41 objects Mini Triangular Truss: 14 objects

Beam Truss Standard: 24 objects

For questions and requests, please send us mail. Our other models, click the user name to see the full gallery.

Usage License: You may NOT sell or give away any files found in this zip package without express permission.
