Mini Square Truss 005

Mini Square Truss 005 3D print model

Mini Square Truss 005

Model Info;

  • Modeled in 3ds Max 2012
  • Modular
  • All Geometry Named Appropriately
  • 7 Modular Pieces.
  • Modeled in Real World Scale Overall Width : 3 7/8(100mm) Outer Diameter Tubing : 3/4 (20mm) Diagonal Bracing : 1/4(5mm) Wall Thickness : 0.08 (2mm) -Drawings are error free for manufacturing and visualization. -Ideal for 3d printers. -File may be reduced in proportion

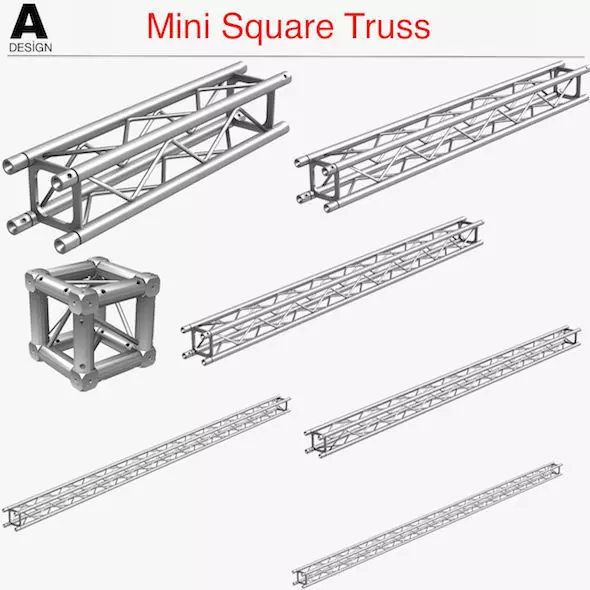

Mini Square Truss: 7 object

  • Straight Segments
  • Cross and T-Junctions
  • Corner Junctions

This a Collection of Collections Other collection ID's are;

Square Trusses Square Truss Standard: 24 objects Mini Square Truss: 7 objects Light Duty Square Truss: 9 objects Big Square Truss: 10 objects

Triangular Trusses Triangular Truss Standard: 41 objects Mini Triangular Truss: 14 objects

Beam Truss Standard: 24 objects

For questions and requests, please send us mail. Our other models, click the user name to see the full gallery.

Usage License: You may NOT sell or give away any files found in this zip package without express permission.

Enjoy.

Item rating
1 0
Mini Square Truss 005
$22.42

Royalty Free License
Mini Square Truss 005
$22.42

Royalty Free License
Response 40% in 48.0h
3D Modeling
3D Print Modeling
Lighting
Rendering
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (8 files)12.2 MB
  • Autodesk FBX (.fbx)5.77 MB

3D Model details

  • Publish date2017-02-20
  • Model ID#695689
