Big Square Truss 007 3D print model

Model Info;
- Modeled in 3ds Max 2012
- Modular
- All Geometry Named Appropriately
- 25 Modular Pieces.
- Modeled in Real World Scale
Overall Width :  15 3/4" (400mm)
Outer Diameter Tubing :2" (50mm)
Diagonal Bracing :  1" (25.4mm)
Wall Thickness :  0.12" (3mm)
-Drawings are error free for manufacturing and visualization.
-Ideal for 3d printers.
-File may be reduced in proportion

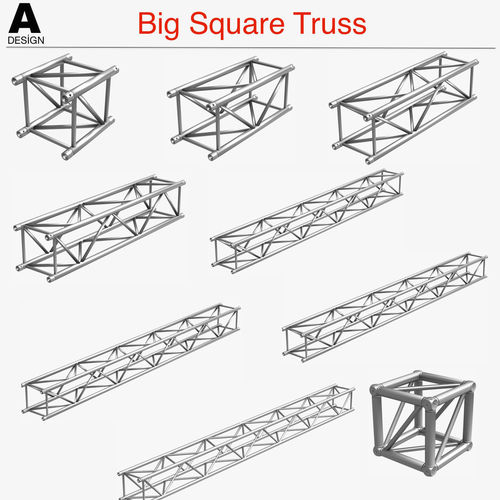

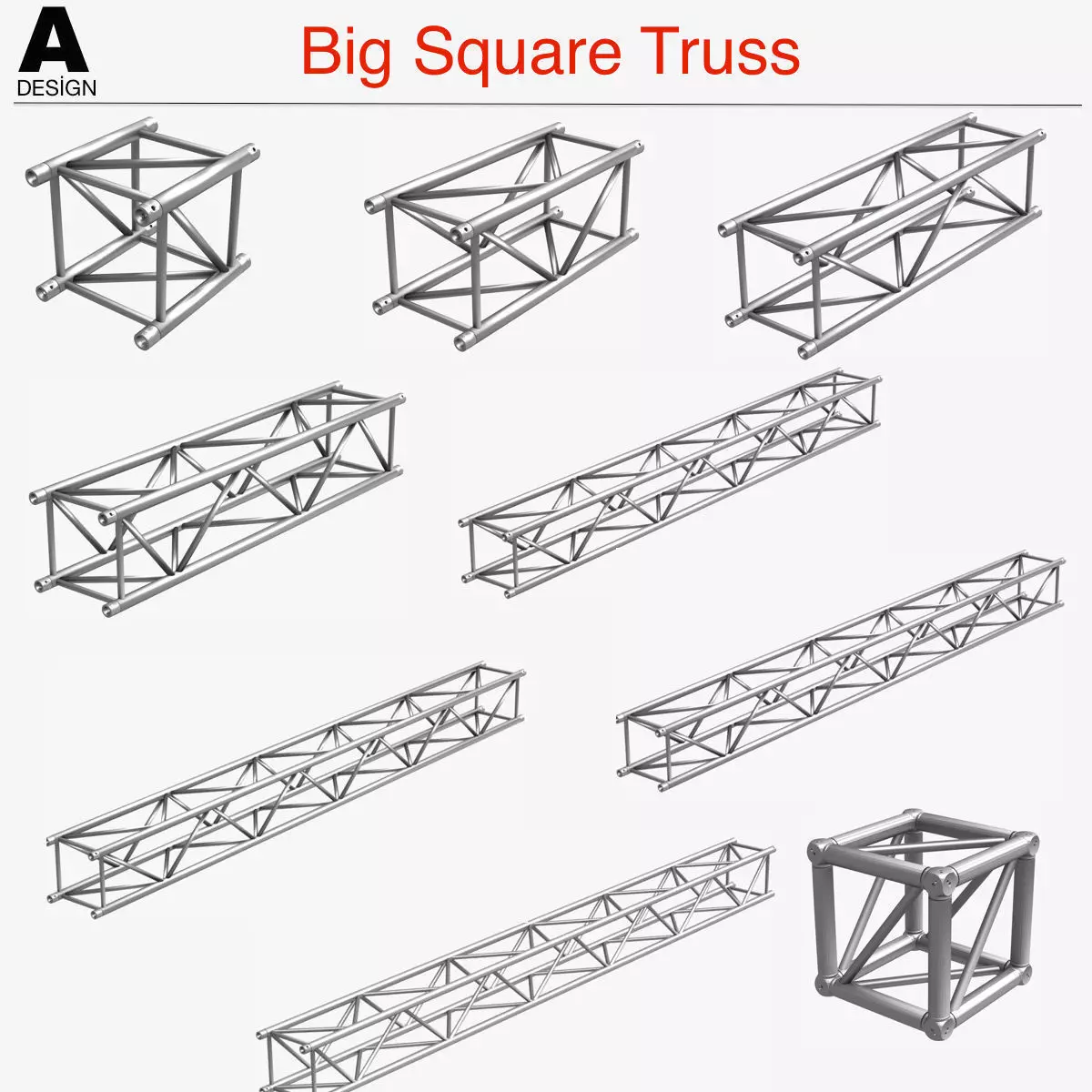

Big Square Truss:10 object

- Straight Segments
- Cross and T-Junctions
- Corner Junctions

*********************************
This a Collection of Collections
Other collection ID's are;

Square Trusses
Square Truss Standard: 24 objects
Mini Square Truss: 7 objects
Light Duty Square Truss: 9 objects
Big Square Truss: 10 objects

Triangular Trusses
Triangular Truss Standard: 41 objects
Mini Triangular Truss: 14 objects

Beam Truss Standard: 24 objects

*********************************
For questions and requests, please send us mail.
Our other models, click the user name to see the full gallery.

Usage License:
You may NOT sell or give away any files found in this zip package without express permission.

Enjoy.
