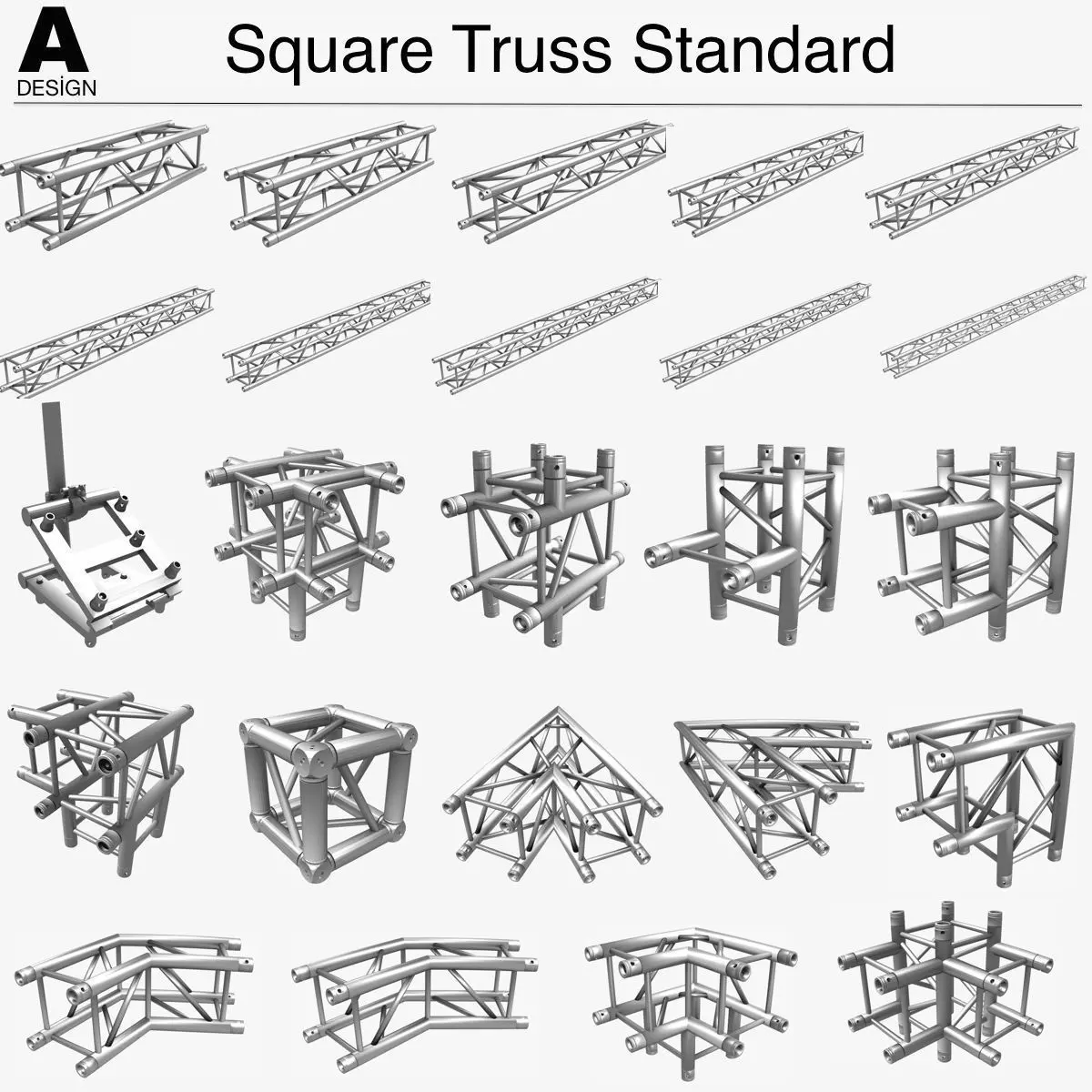

Square Truss Standard 25 Modular Pieces

Square Truss Standard 25 Modular Pieces 3D print model

Description

Model Info;

  • Modeled in 3ds Max 2012
  • Modular
  • 25 Modular Pieces.
  • Modeled in Real World Scale Overall Width : 11 7/16(290mm) Outer Diameter Tubing :  2 (50mm) Diagonal Bracing : 3/4(20mm) Wall Thickness : 0.08 (2mm) -Drawings are error free for manufacturing and visualization. -Ideal for 3d printers. -File may be reduced in proportion

Square Truss Standard: 24 object

  • Straight Segments
  • Cross and T-Junctions
  • Corner Junctions

This a Collection of Collections Other collection ID's are;

Square Trusses Square Truss Standard: 24 objects Mini Square Truss: 7 objects Light Duty Square Truss: 9 objects Big Square Truss: 10 objects

Triangular Trusses Triangular Truss Standard: 41 objects Mini Triangular Truss: 14 objects

Beam Truss Standard: 24 objects

For questions and requests, please send us mail. Our other models, click the user name to see the full gallery.

Enjoy.

Item rating
1 0
G
ghadi 2021-01-16 19:44:24 UTC
Recommended
Don't expect to print these with an Ender 3 or anything. You NEED a **Resin 3D Printer** to successfully print these .stl files. Besides that they're great models with all the details a truss system needs. 10/10 would recommend.
Square Truss Standard 25 Modular Pieces
$49.00

Royalty Free License
Square Truss Standard 25 Modular Pieces
$49.00

Royalty Free License
Response 40% in 48.0h
3D Modeling
3D Print Modeling
Lighting
Rendering
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (25 files)48.4 MB
  • Other 16.2 MB

3D Model details

  • Publish date2017-02-19
  • Model ID#695447
  • Ready for 3D Printing
