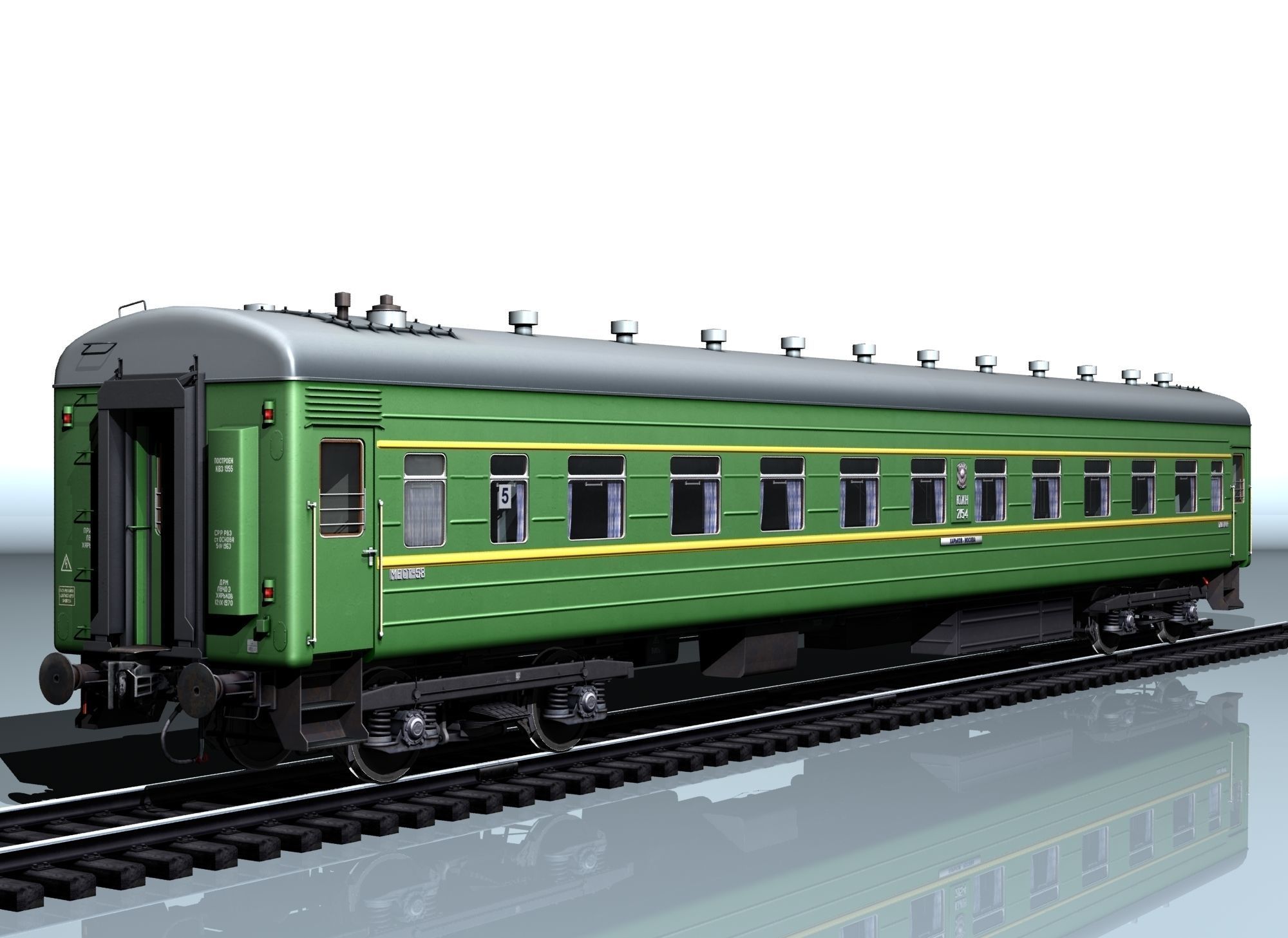

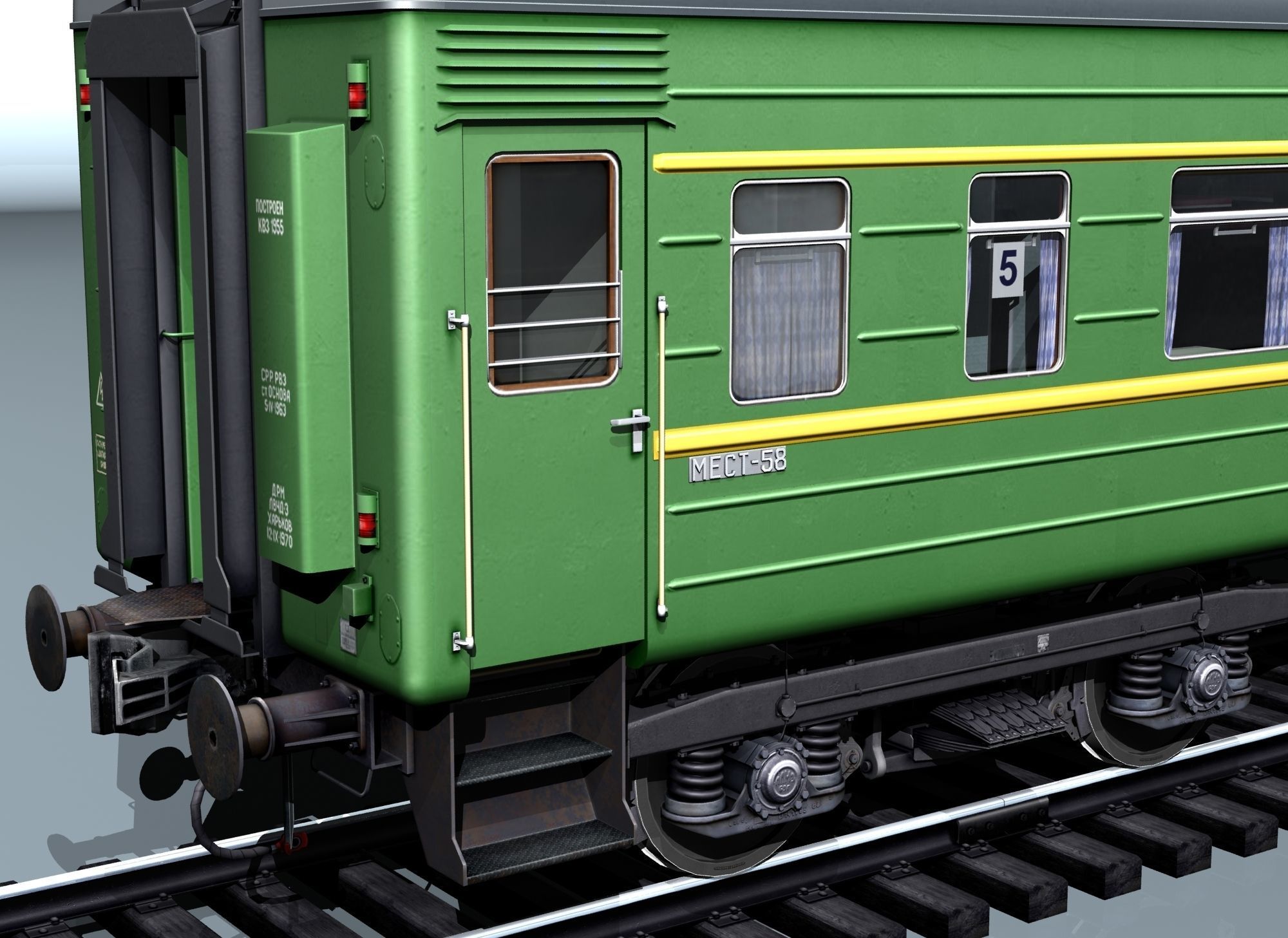

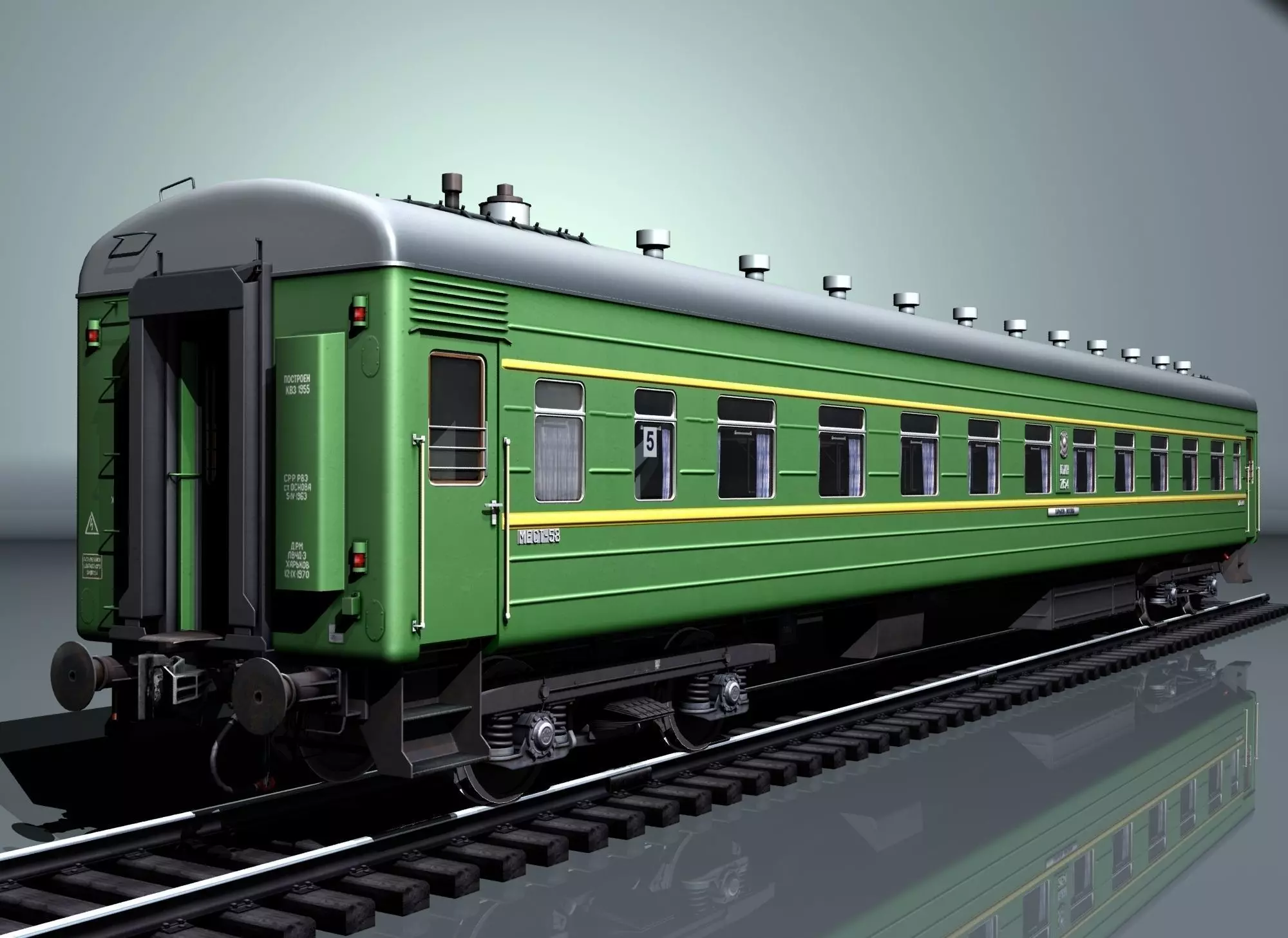

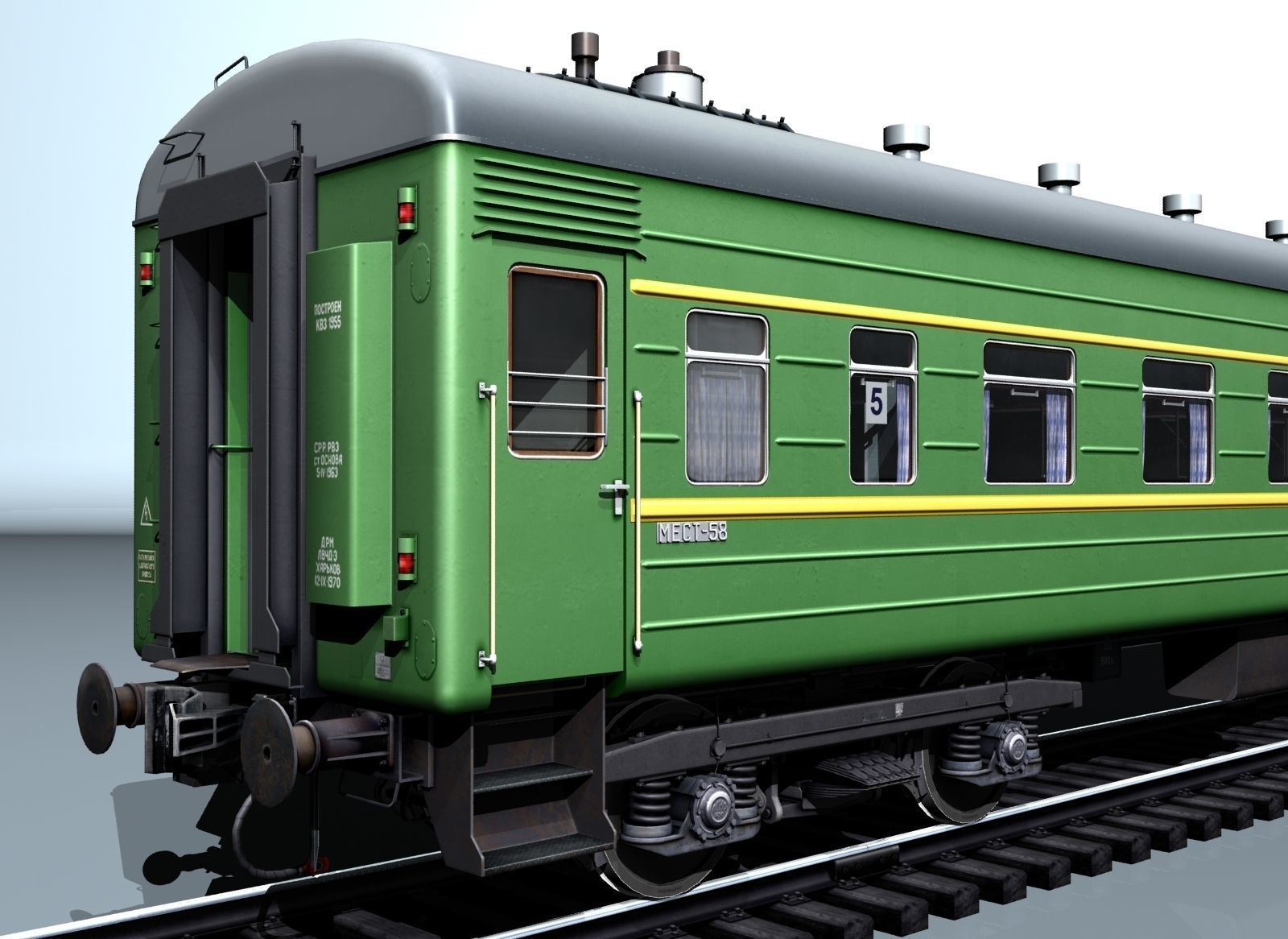

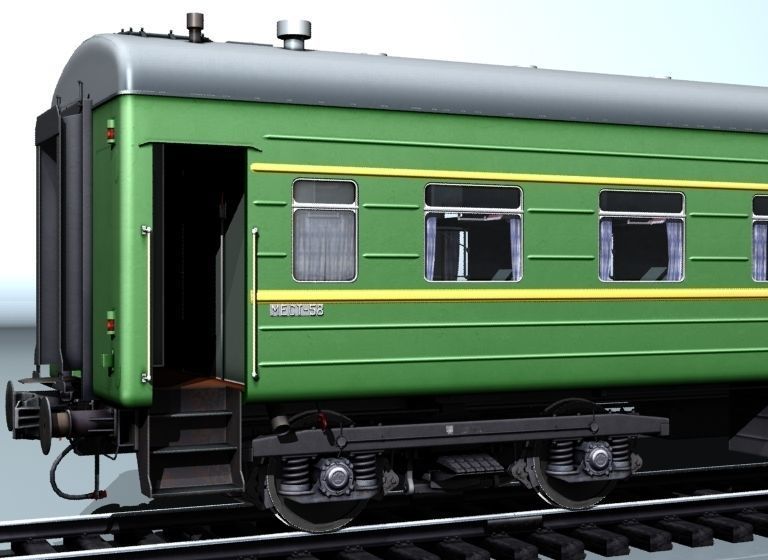

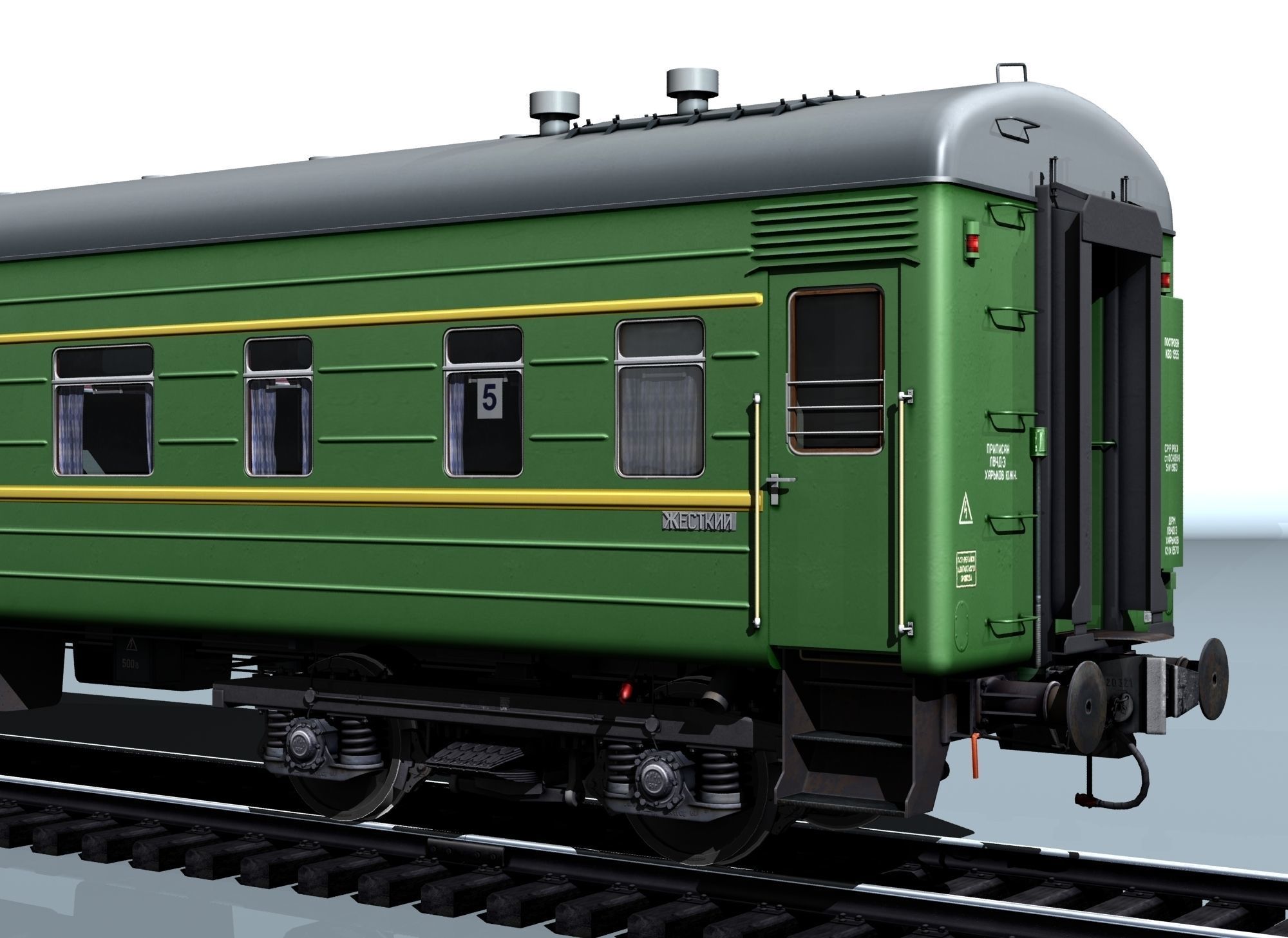

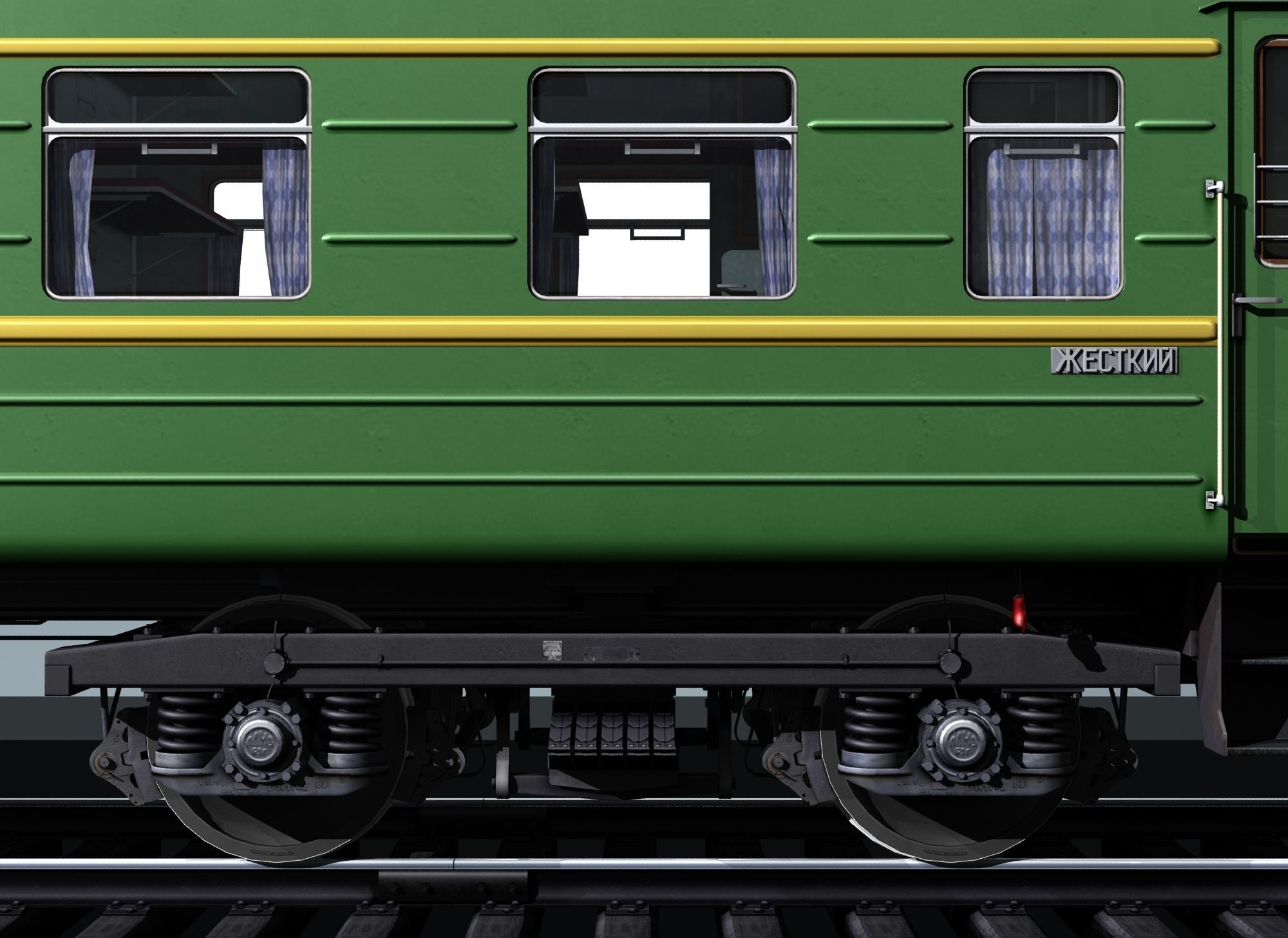

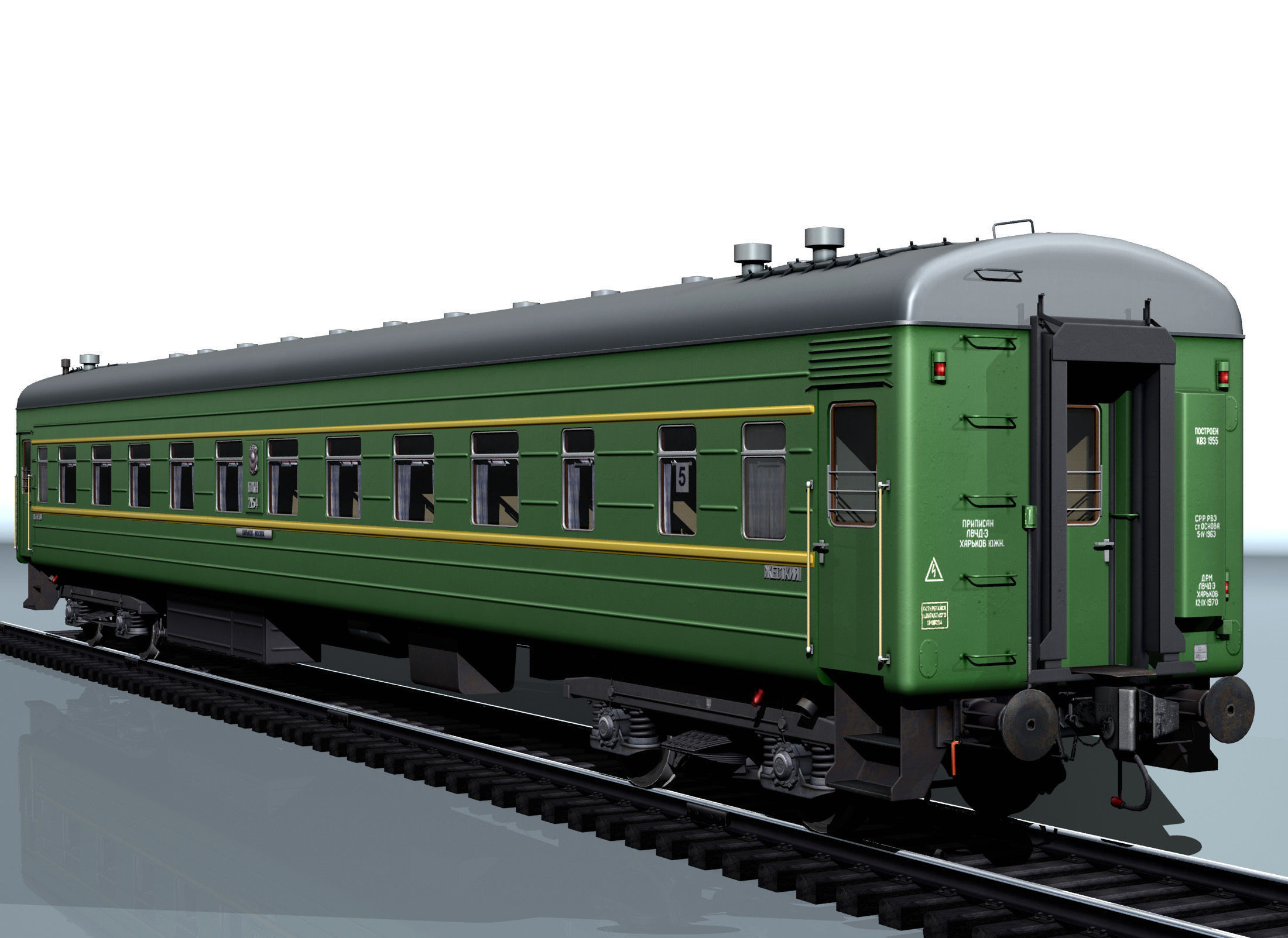

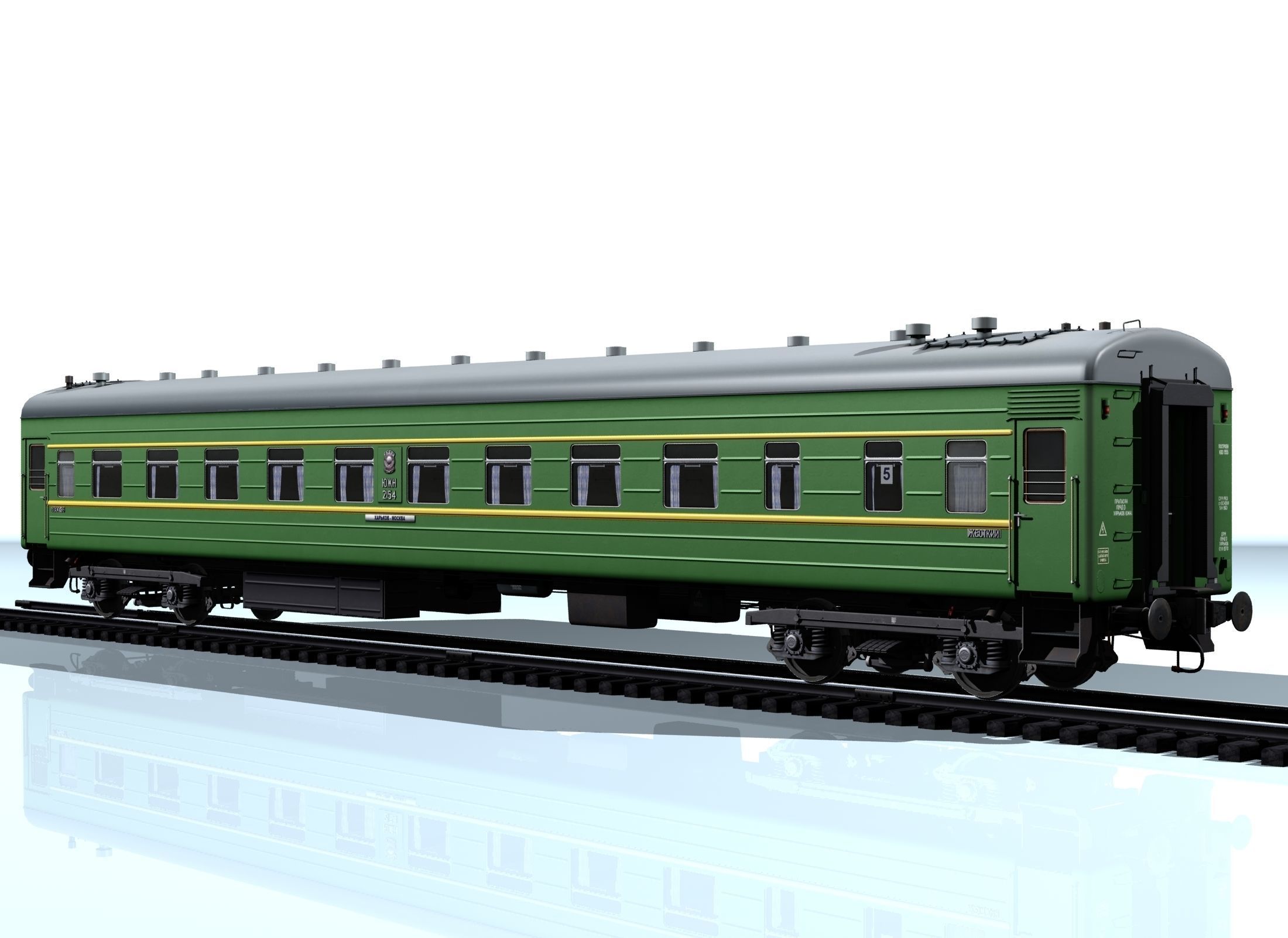

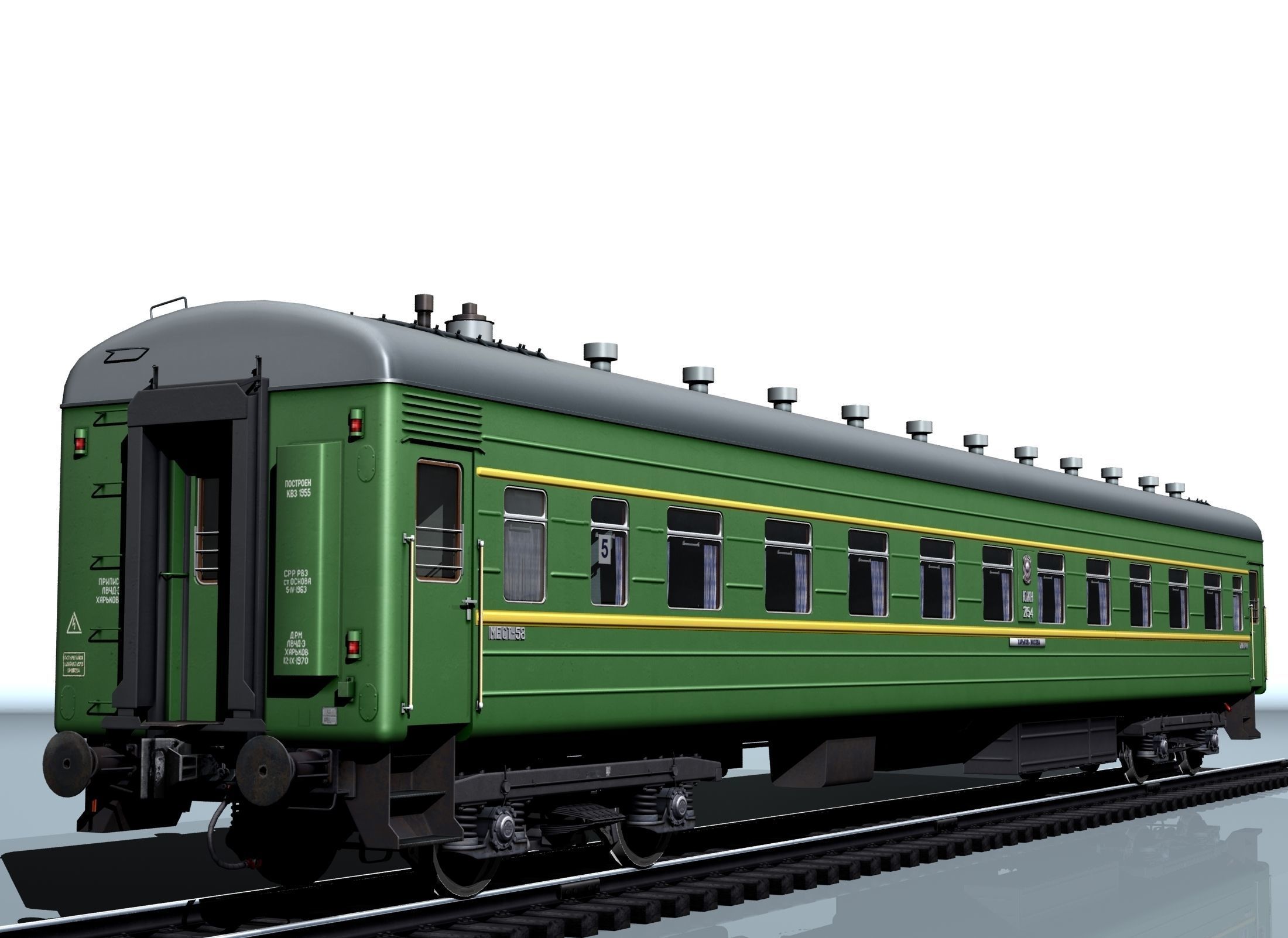

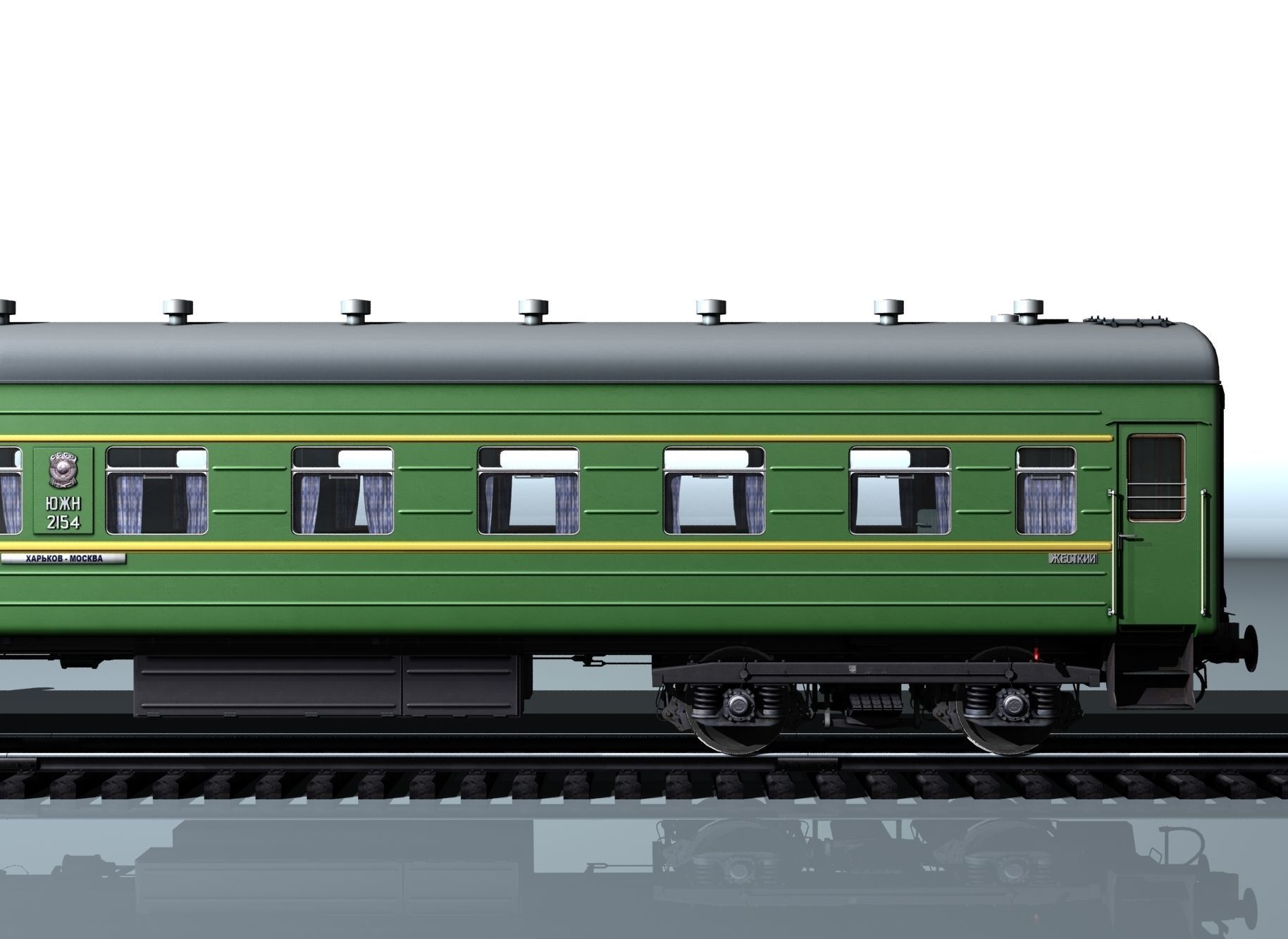

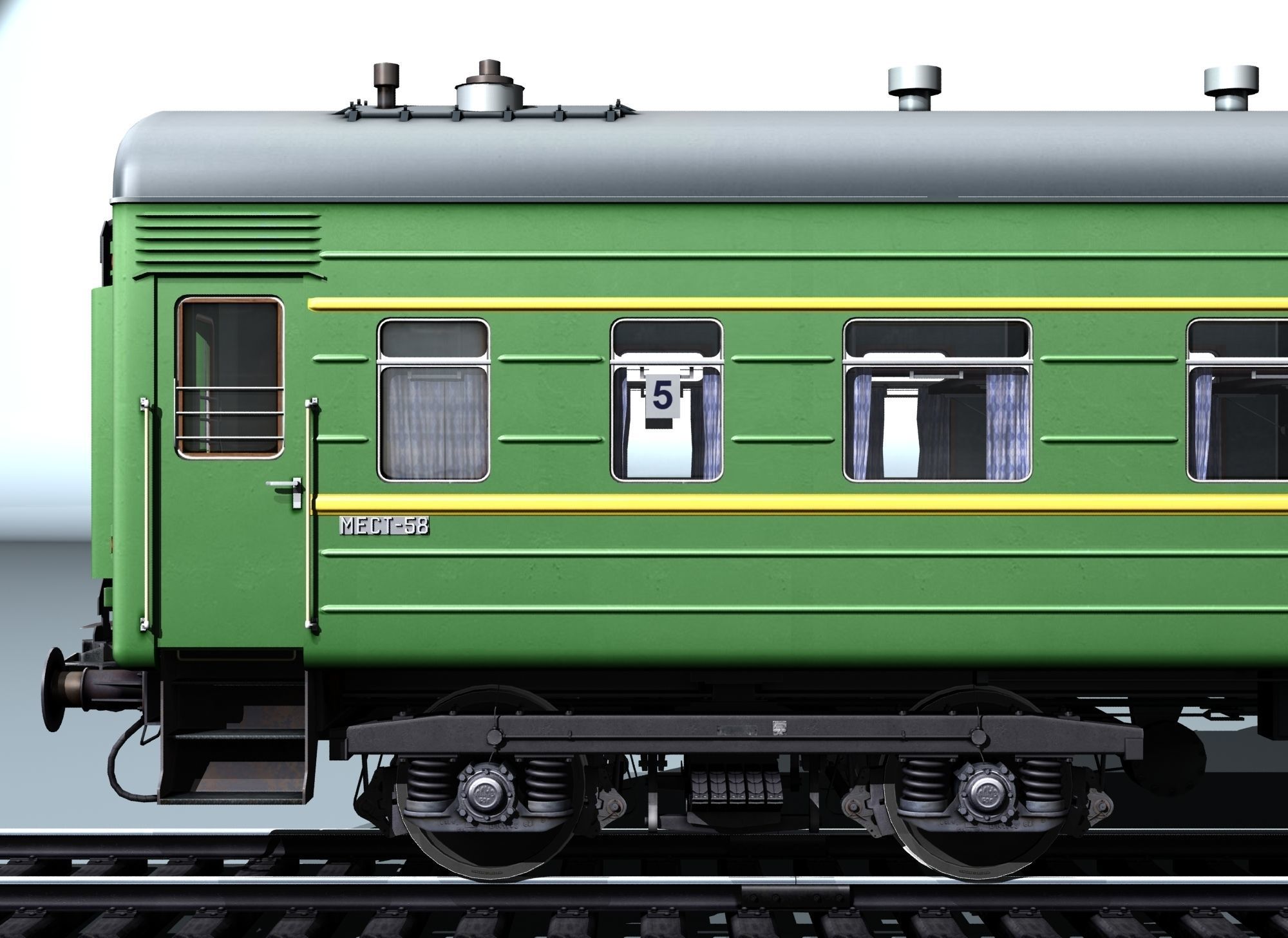

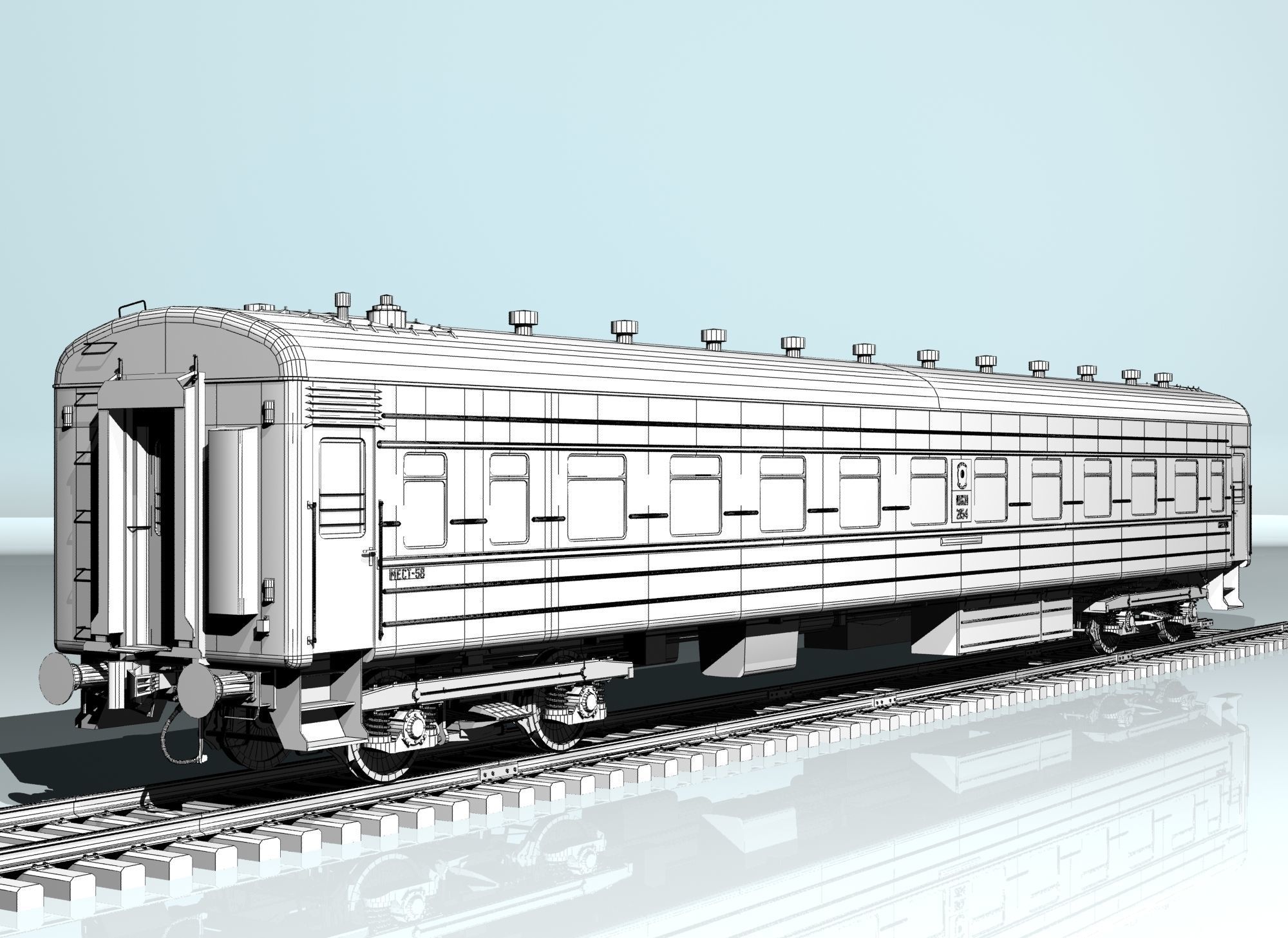

Railway wagon type 66W plant-KVZ Low-poly 3D model

4-axle, all-metall-corpus, passenger railcar type 66W (plant-KVZ) on 58 seats, sample 1952. (scheme shirring 2-2-1). Built by: KVZ, Kalinin wagon plant (Tver), later called the TVZ.

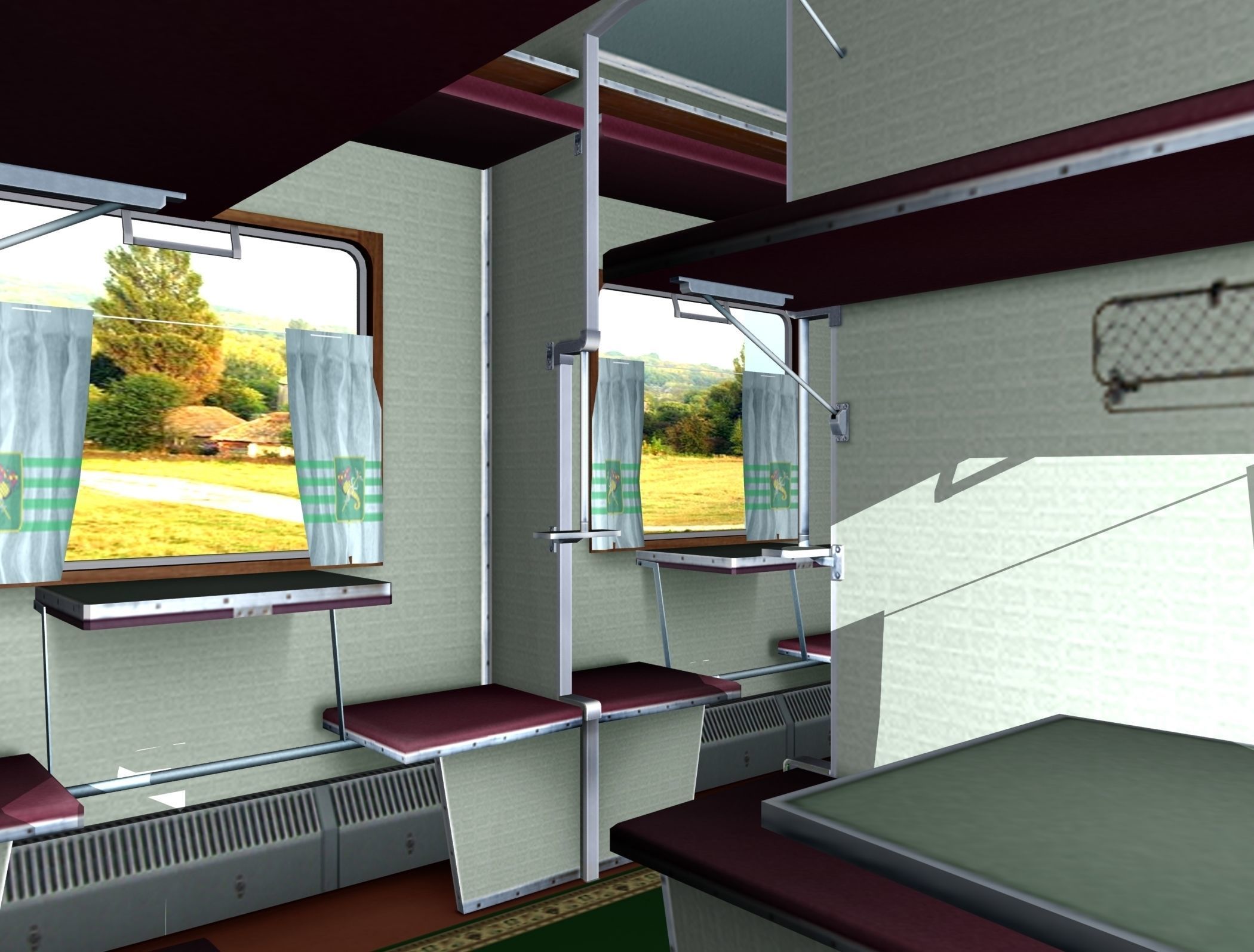

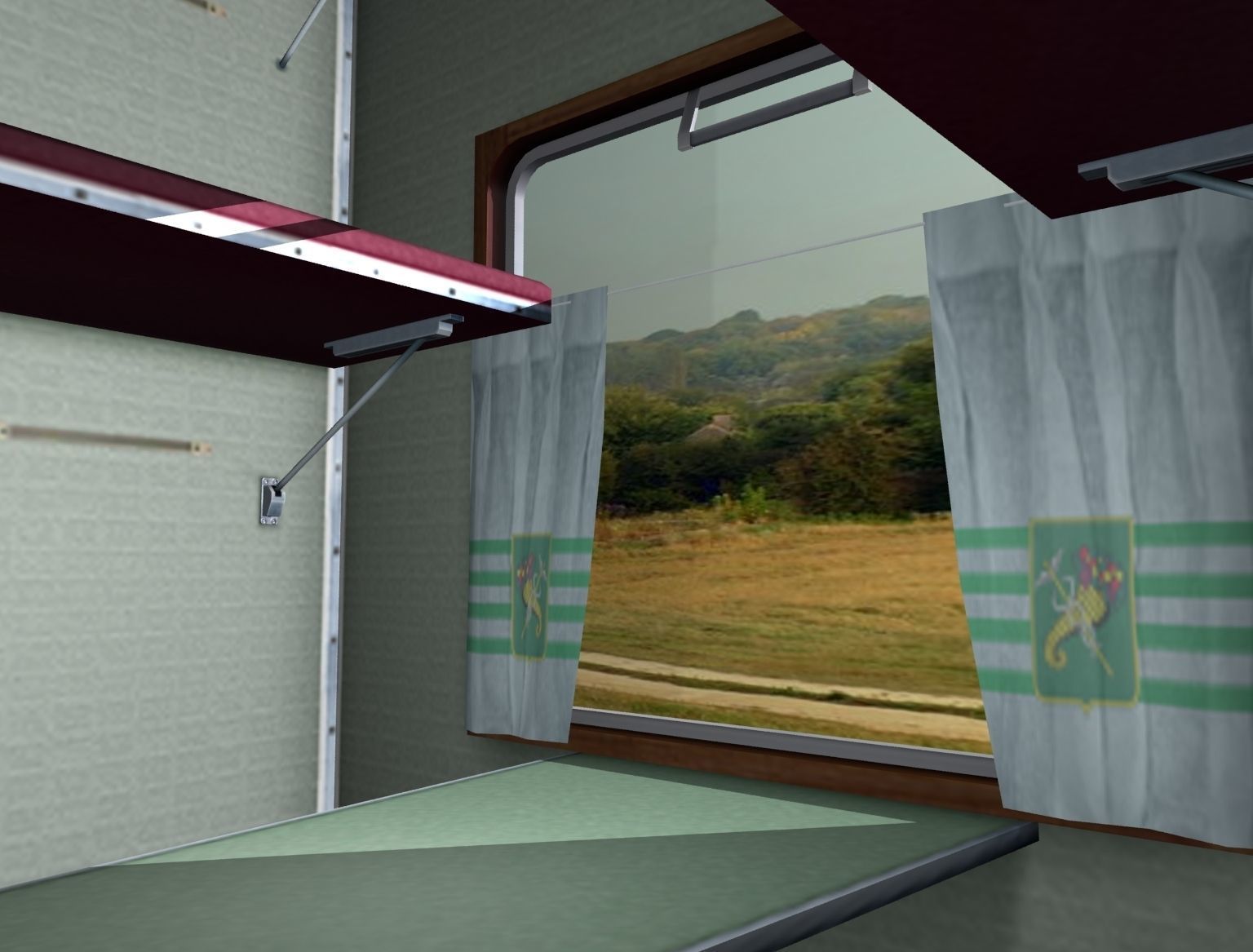

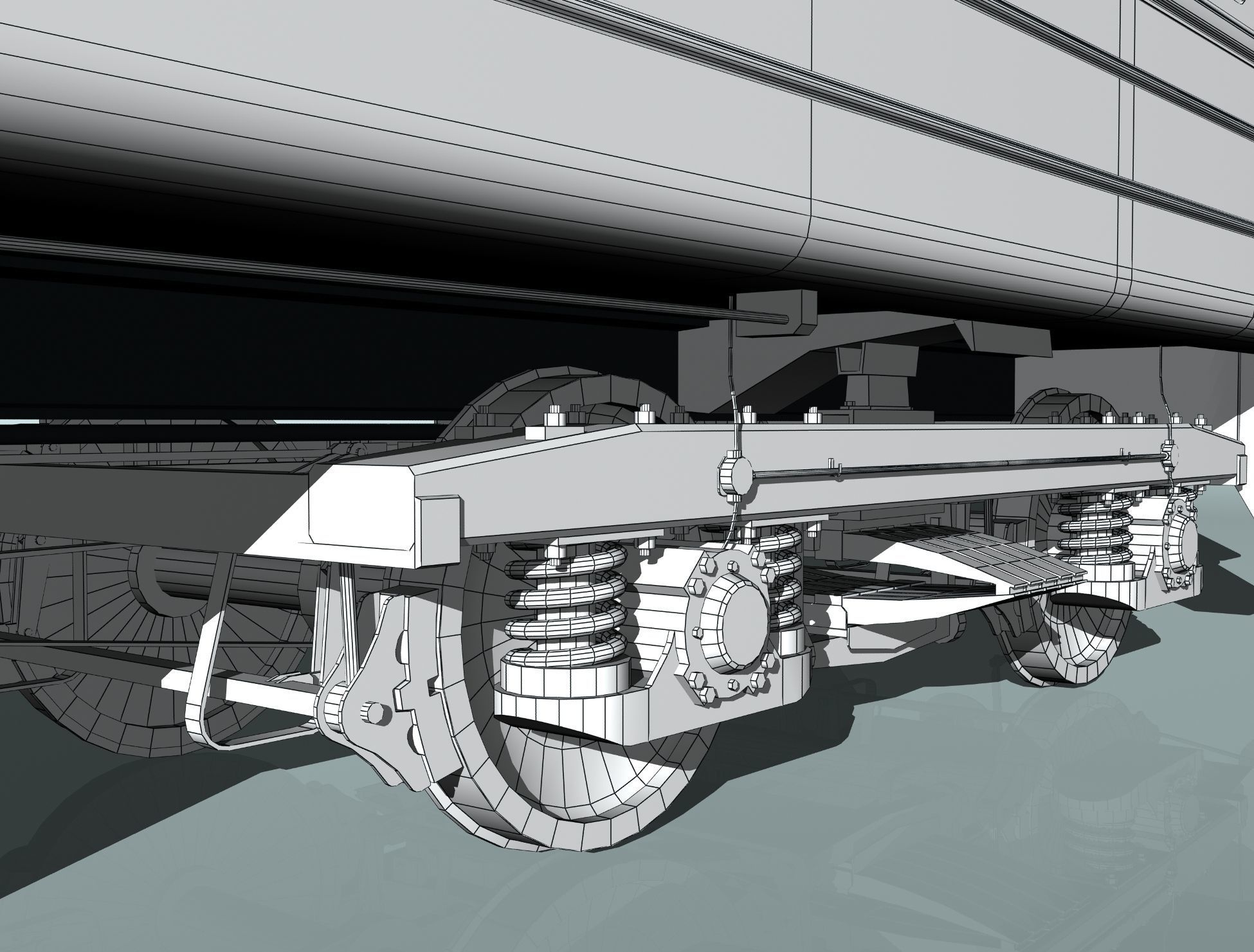

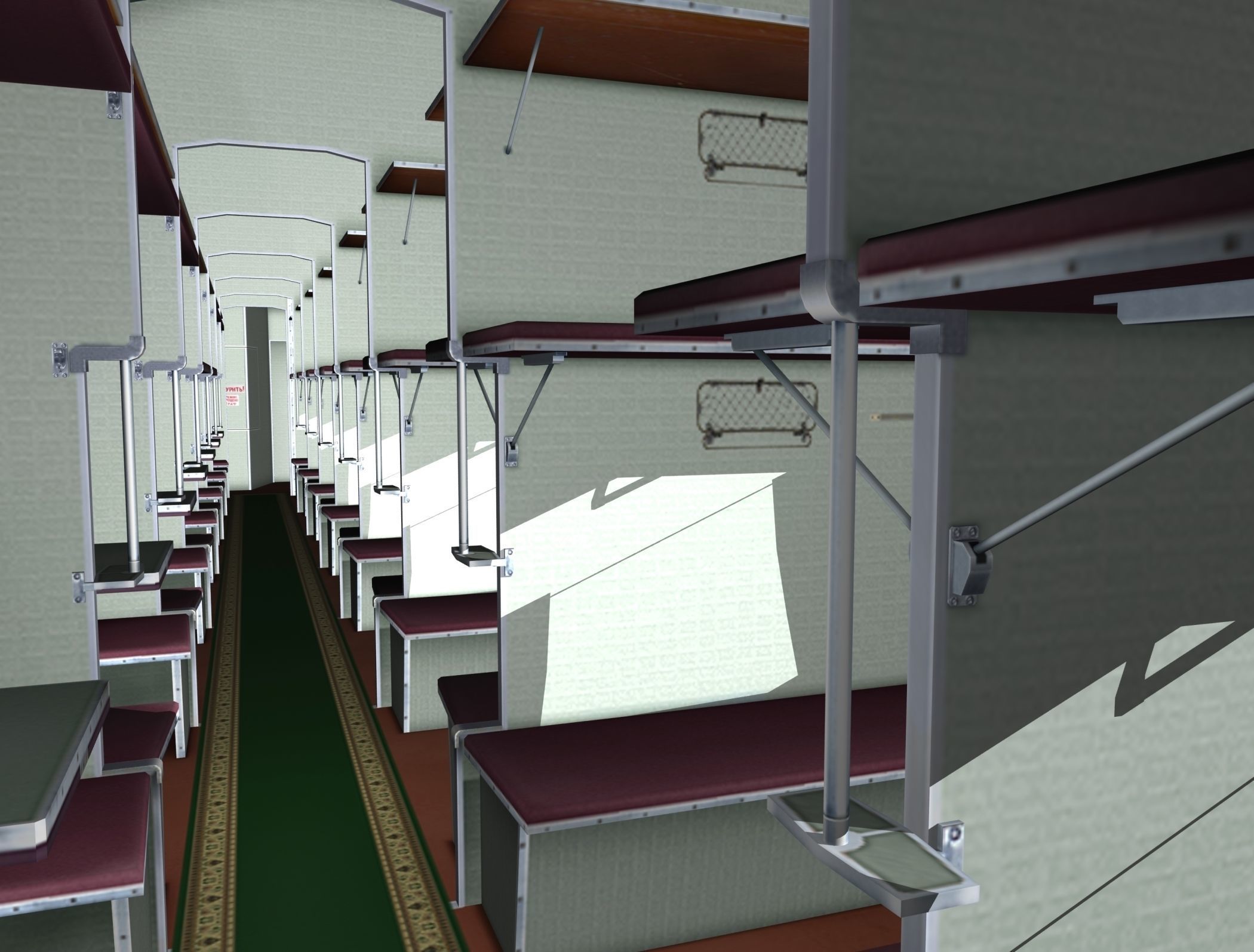

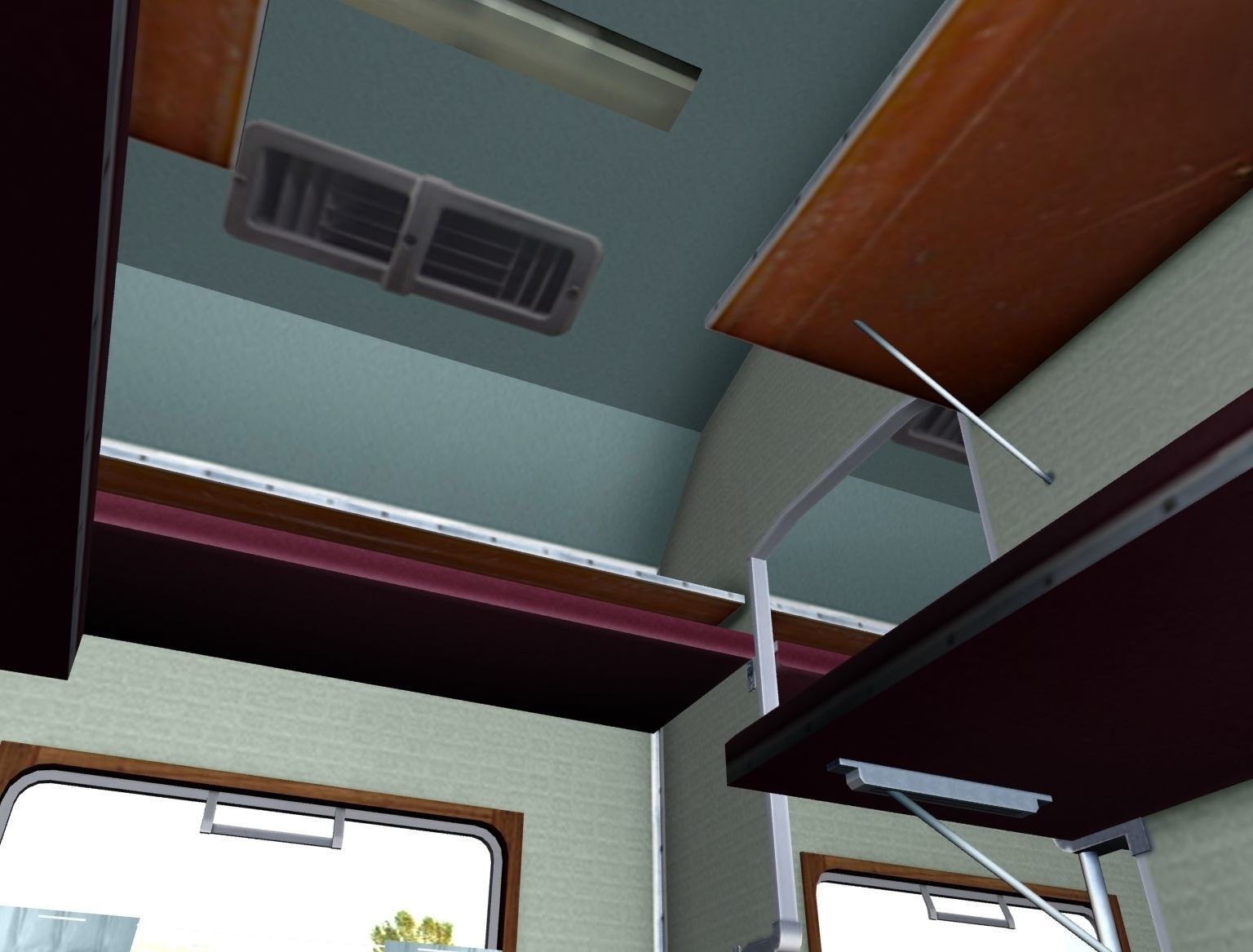

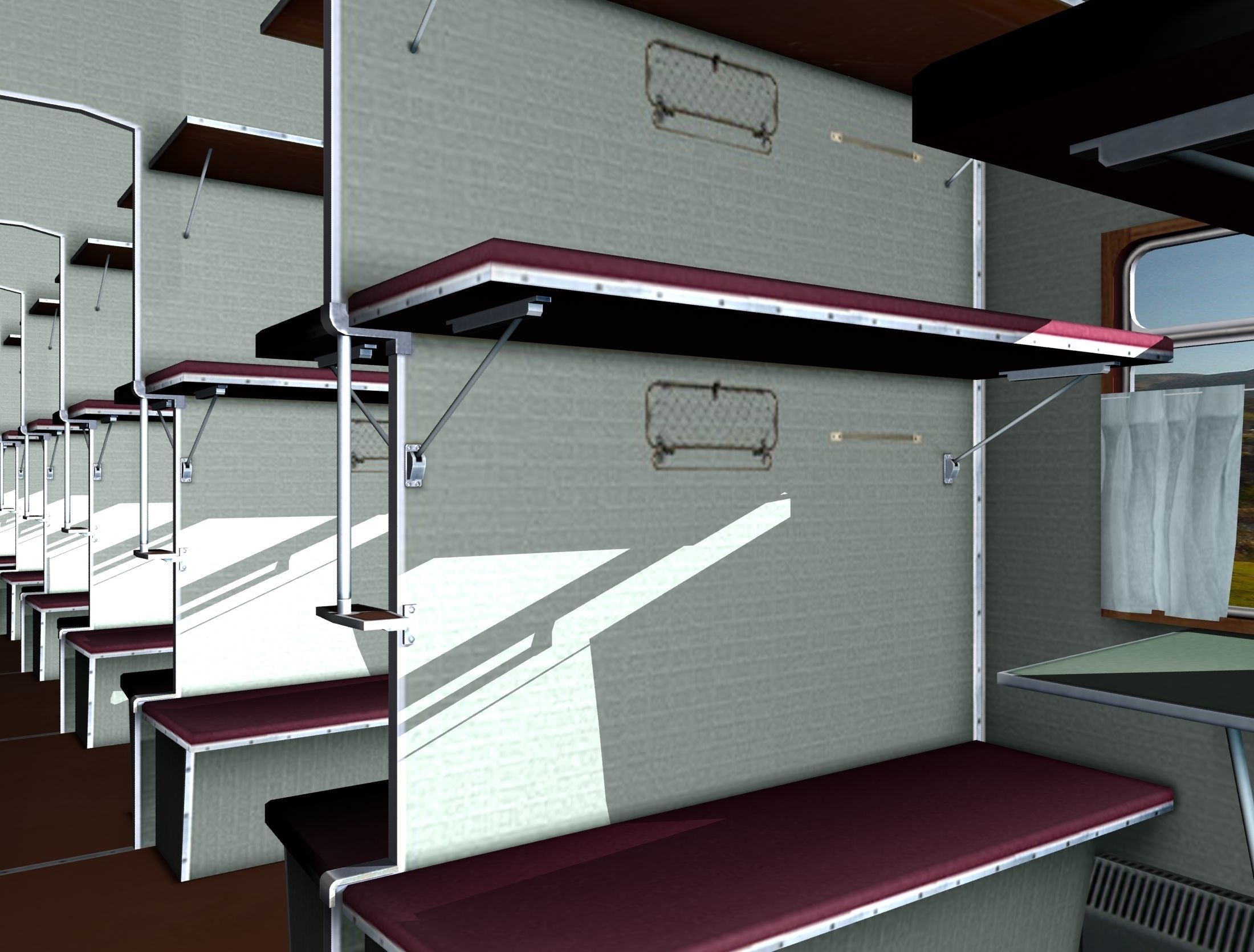

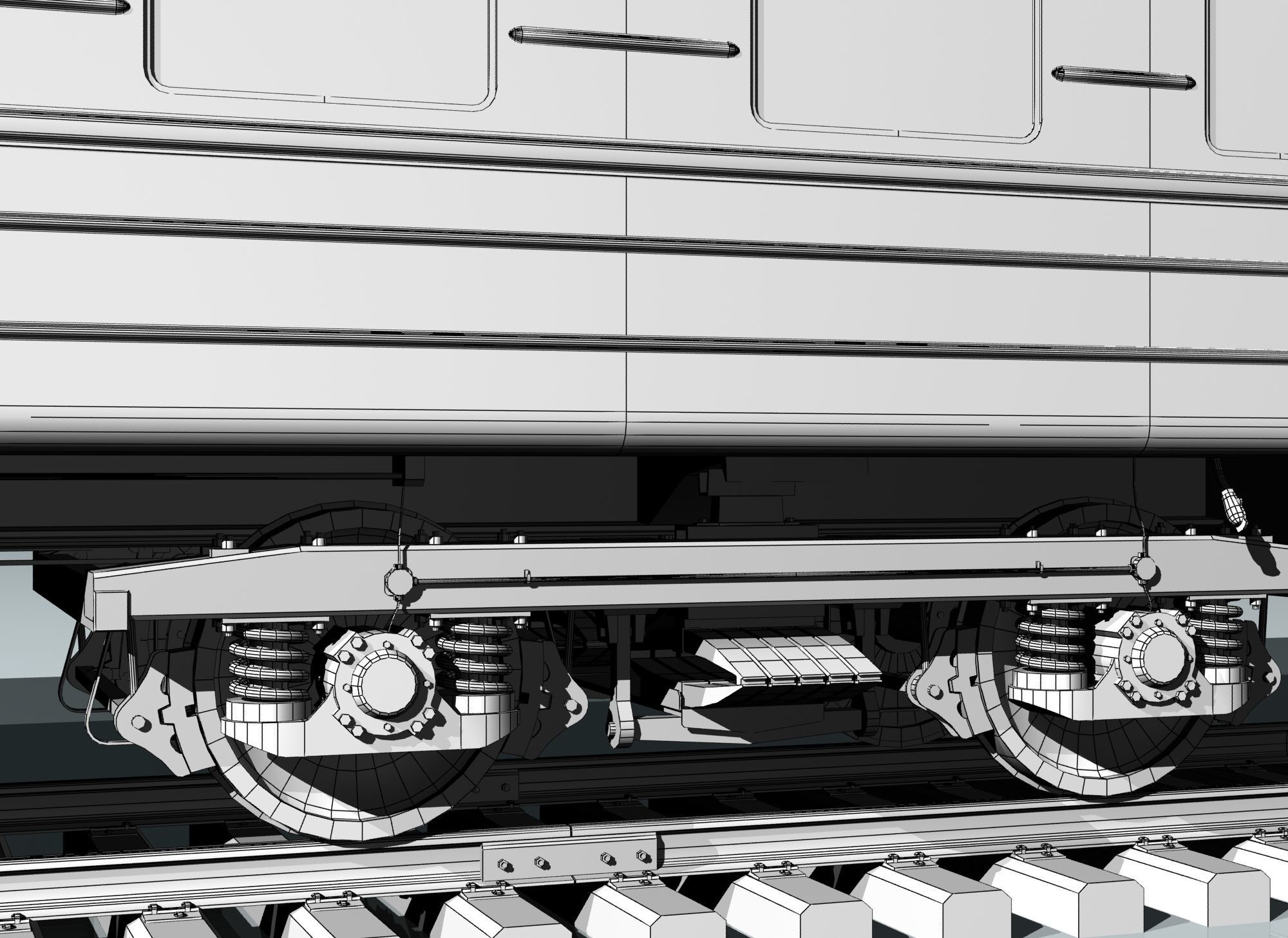

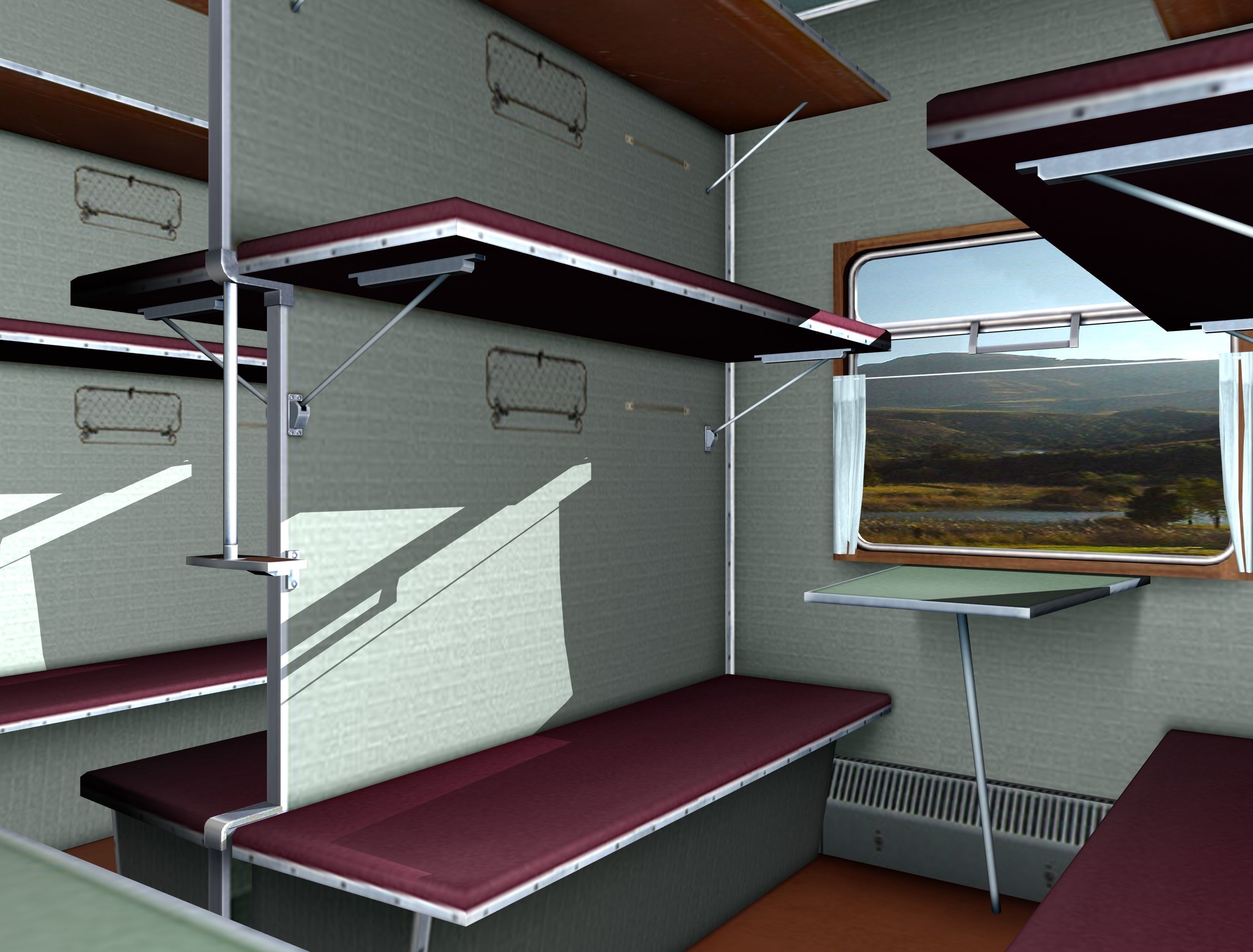

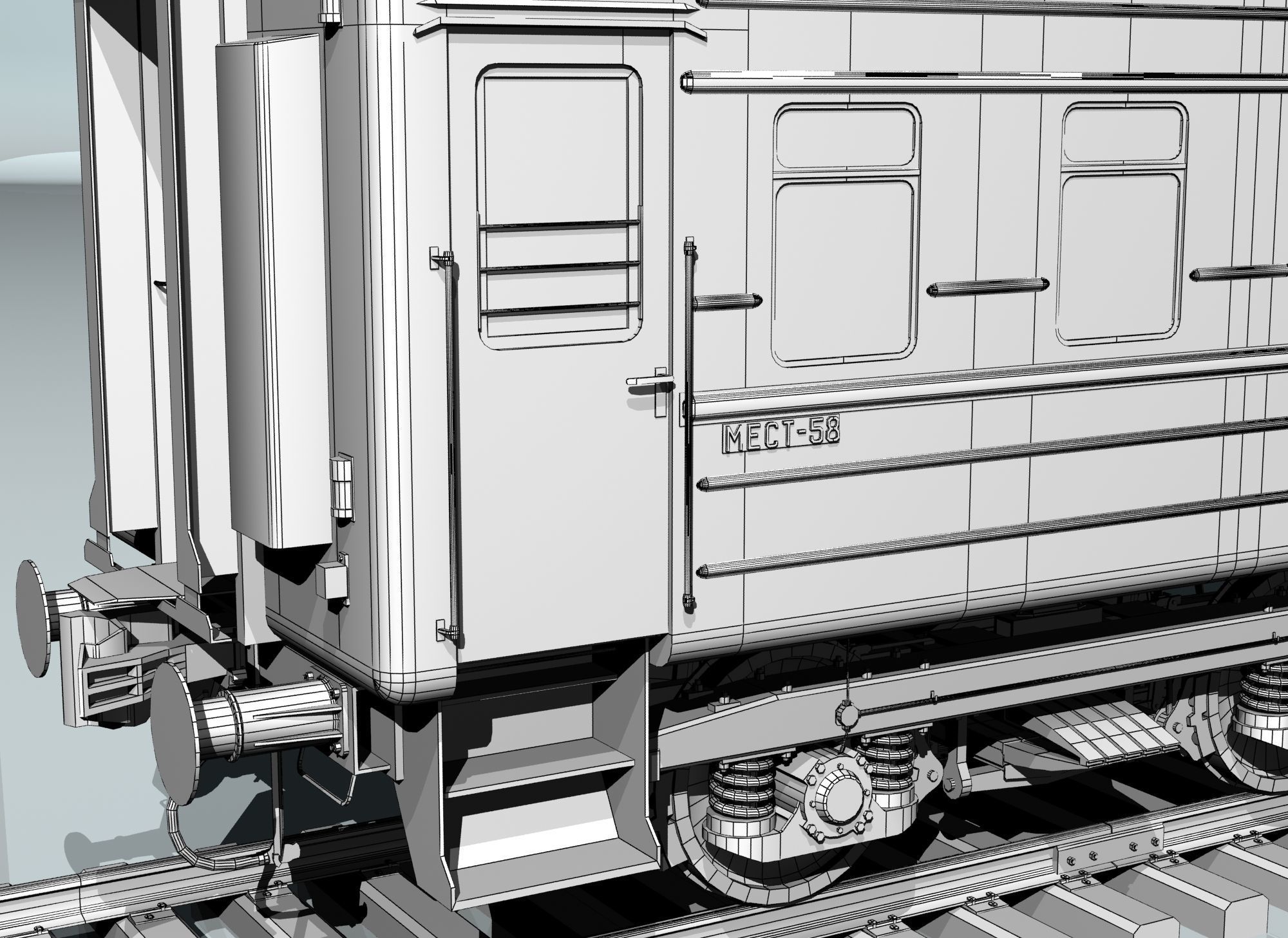

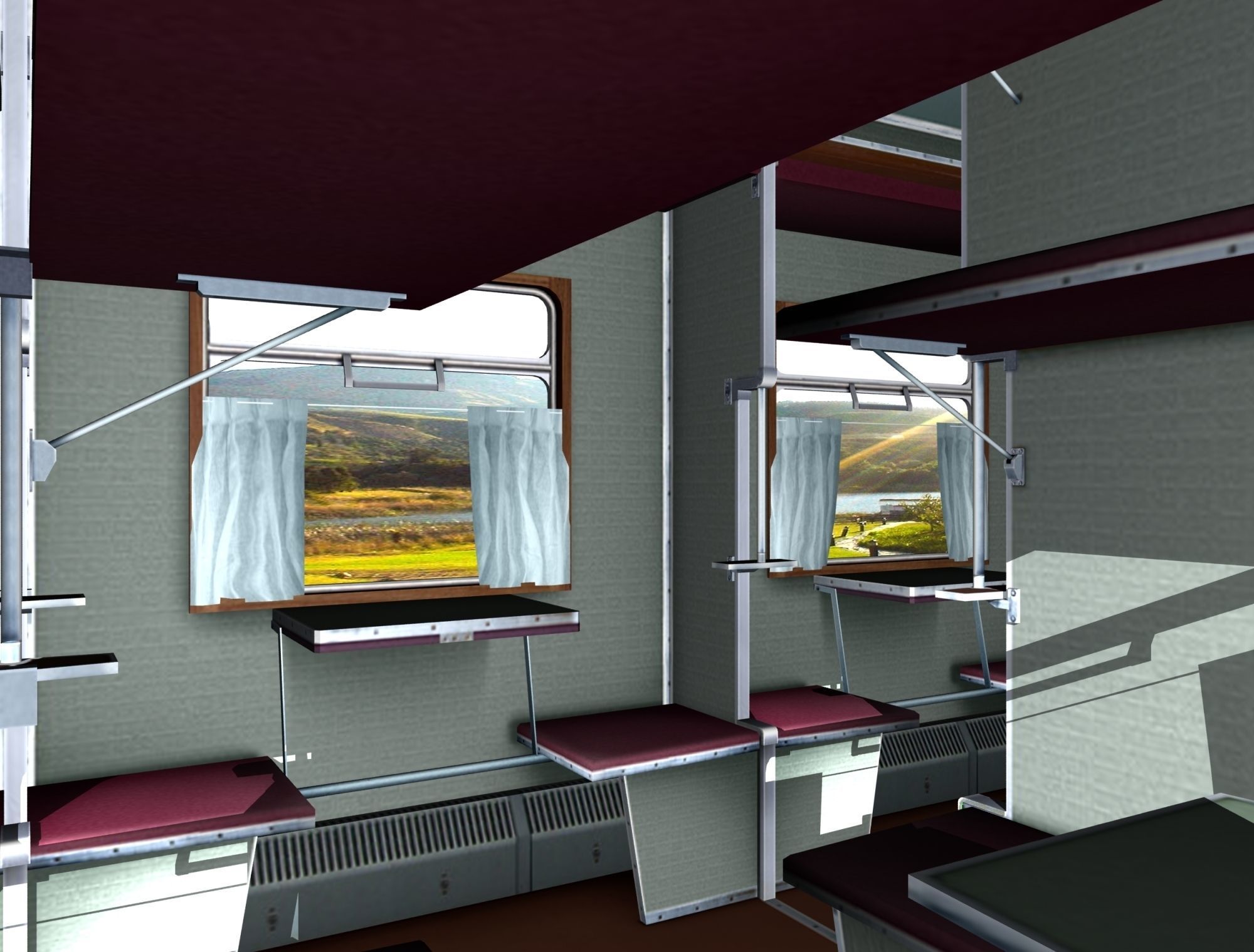

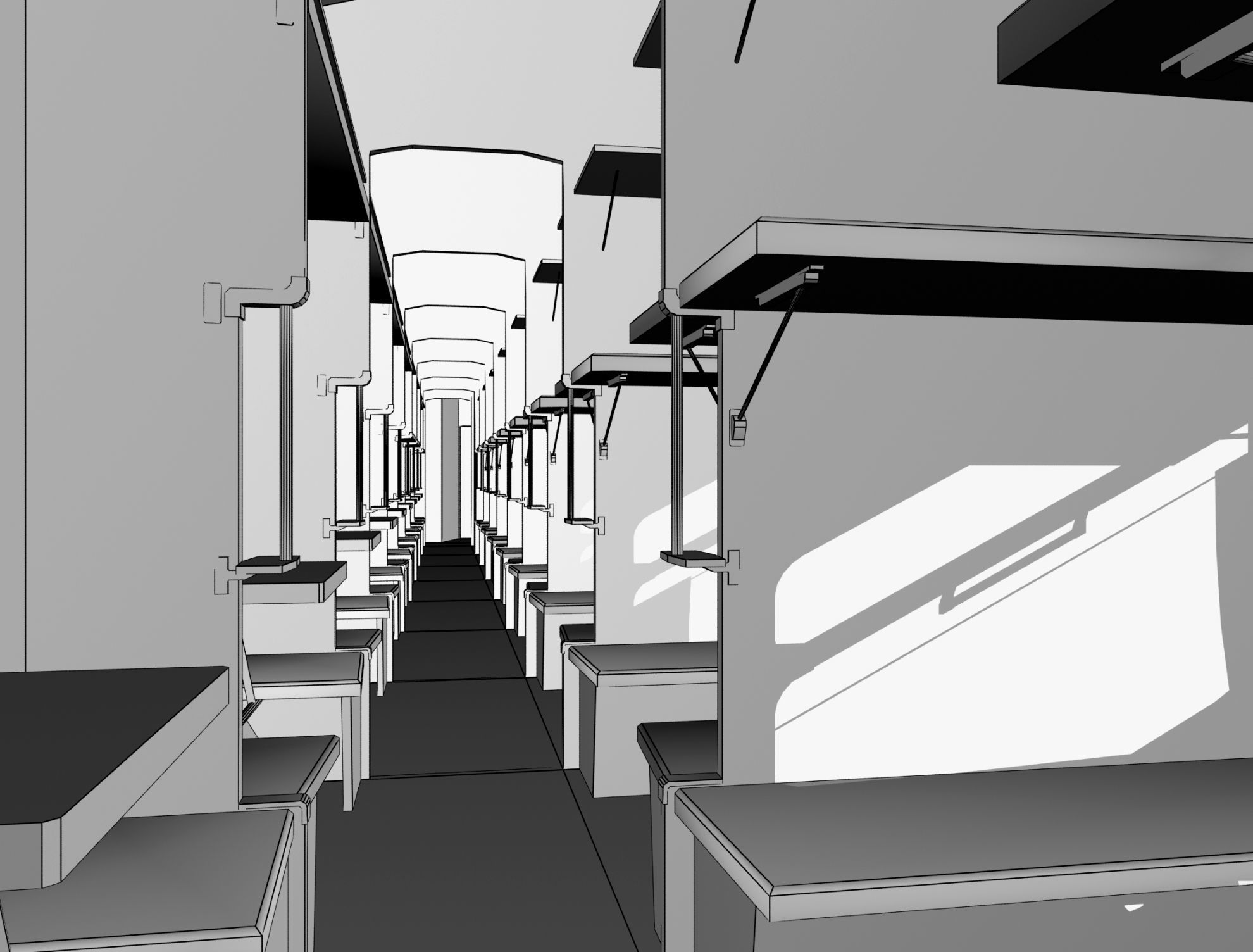

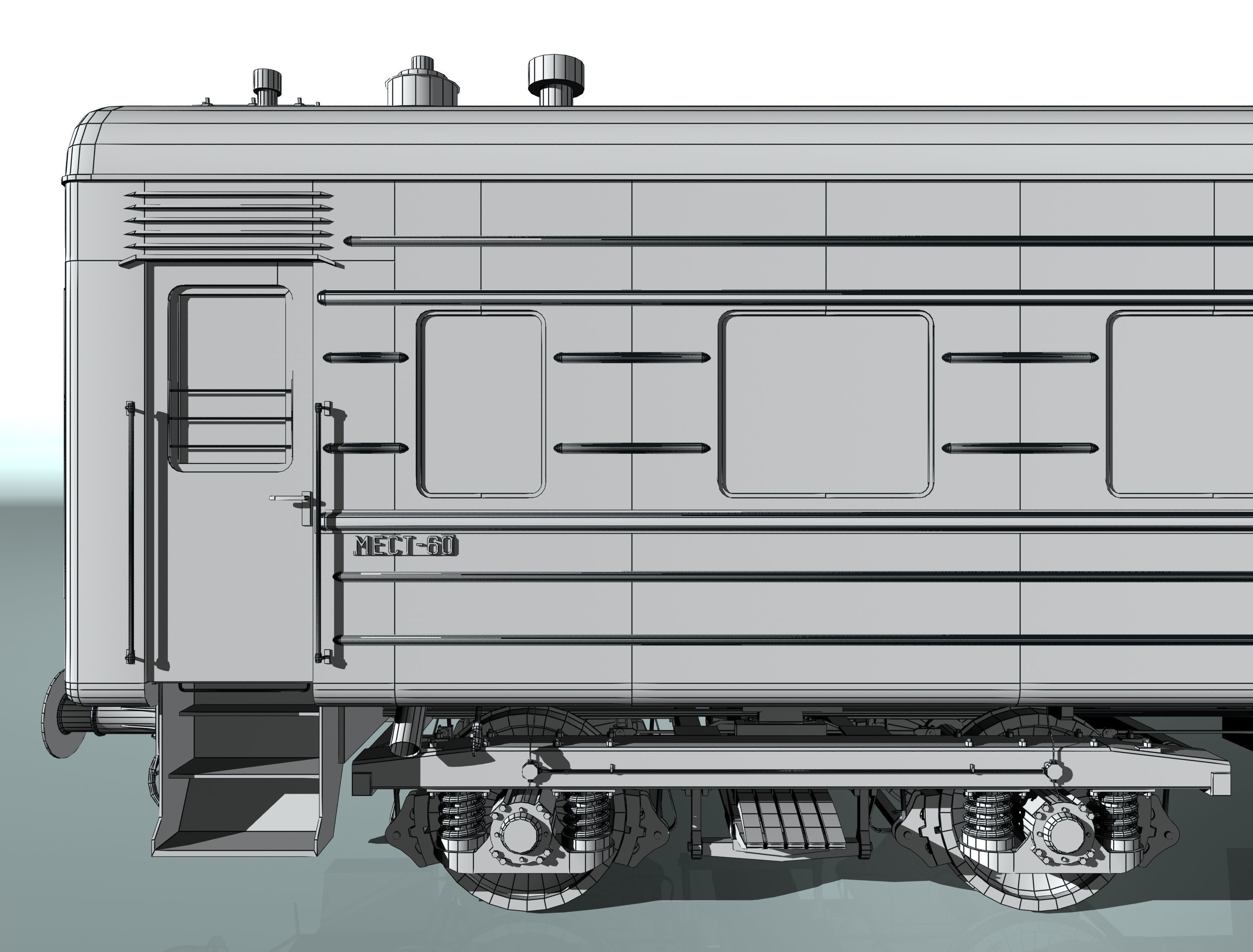

Model description: Model of the series Rolling stock of Railways of Russia and the USSR. Model category Lowpoly (faces- 135 800; verts- 84 300), made for visualization in various scenes, the gameplay, the simulators type Trainz (Auran) and mere... Units of model: [mm]; Scale: M1:1 uvw-mapping, textures in format .JPG. The model has a simple interior, the detailing of suspension and the braking system. Model high precision made according to the drawings provided by Uralvagonzavod.

Prototype Description: 4-axle all-metal railcar type 66W on 58-seat, production of KVZ plant, sample 1952, type 66W.

The first series of all-metal passenger cars for the Soviet Railways after 1950.

Technical characteristics of the prototype: Hull length: 23,6 m Width (full size): 3.22 m Height (from rail head): 4.56 m The base of the car: 17,0 m Tare of wagon: 56t The axis type - III Hitch: automatic coupling type CA3 Wheelbase: 4-axle, two bogie-type CMV. Wheels: rolled, cast iron with steel tires. Diameter 1050mm

Design features: Full metal corpus, smooth side of the case (without the ribs and moldings). Supporting frame with Two bearing beams with cross consoles Heating: water, independent. Lighting - electric mains. Ventilation: natural air supply with the discharge from the air stream.

Item Rating10
  • zzagdima
    2018-09-24 09:11
    Recommended
    nice passenger wagon
Railway wagon type 66W plant-KVZ
$48.00
All prices are exclusive of VAT
Send your price offer to the author if you want to buy it at lower price.
Royalty Free License
Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
Response 95% in 15.7h
3D Modeling
3D Print Modeling
Low-poly Modeling
Lighting
Rendering
UV mapping
Texturing
Shaders
Particles
Hire me
3D model formats
  • Autodesk 3ds Max 2009 (.max)5.96 MBVersion: 2009Renderer: Mental Ray
  • Autodesk FBX (.fbx)5.83 MB
  • OBJ (.obj, .mtl) (2 files)-
  • 3D Studio (.3ds)5.01 MB
  • Stereolithography (.stl) -
3D model details
  • Publish date2017-11-24
  • Model ID#811515
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 135,800
  • Vertices 84,300
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Non-overlapping
