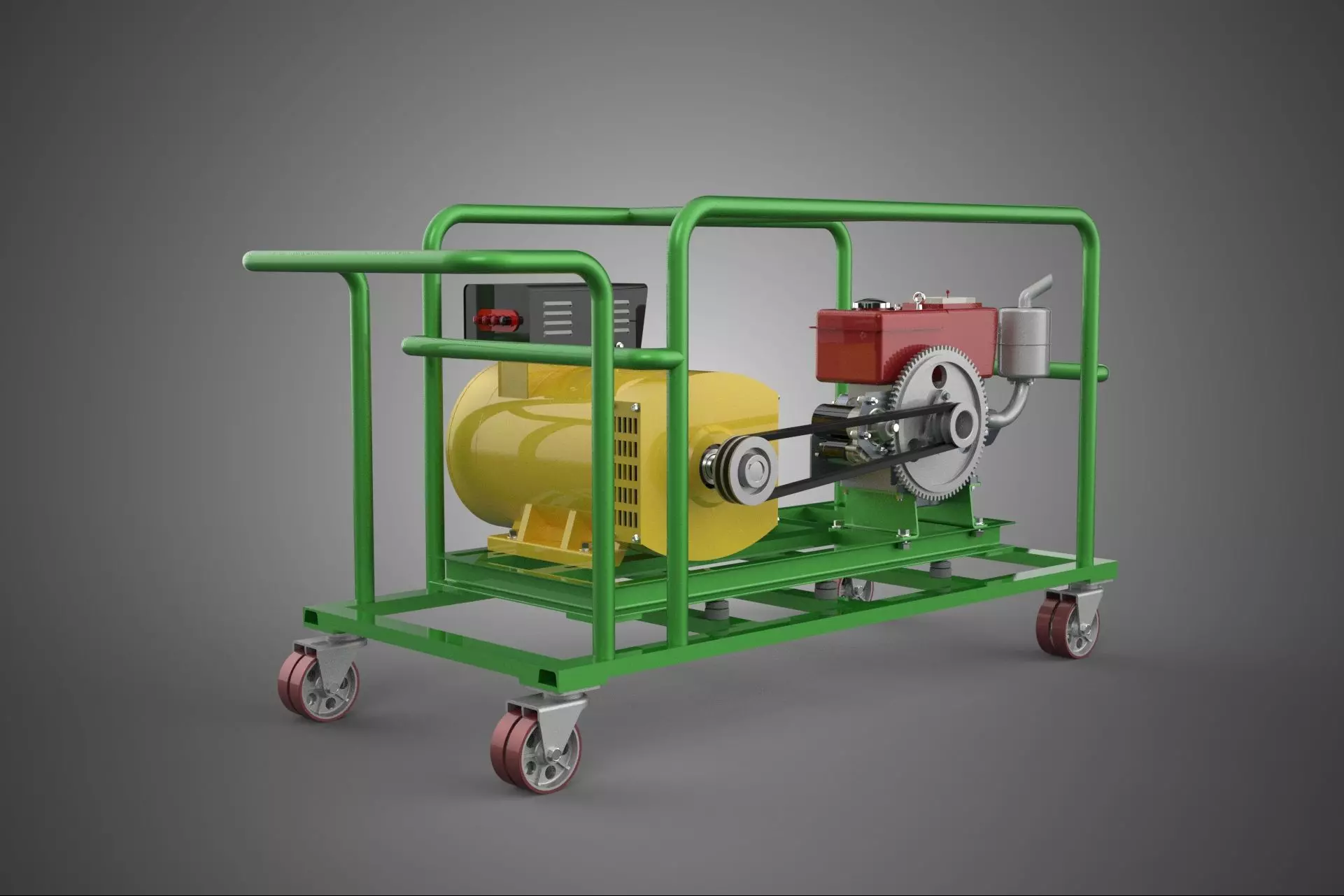

PORTABLE CASTER WHEELED DIESEL ENGINE POWER GENERATOR SET GENSET
A Portable Caster Wheeled Diesel Engine Power Generator Set (Genset) is an integrated electromechanical system designed to convert the chemical energy stored in diesel fuel into usable electrical energy, packaged specifically for high mobility within constrained operational areas. This classification distinguishes itself from fixed-base installations or road-legal trailer-mounted units primarily through its specialized undercarriage, which utilizes heavy-duty swivel and often lockable caster wheels, facilitating precise positioning and movement over flat, prepared industrial or commercial surfaces.
Nomenclature and Classification
The unit is fundamentally a diesel Genset, typically rated for small to medium power output (ranging generally from 5 kVA to 50 kVA, though variations exist), suitable for standby, prime, or temporary auxiliary power applications. The portable designation refers to its non-permanent installation and relatively compact footprint.
The core components of the Genset include:
- Prime Mover (Diesel Engine): A compression-ignition engine, selected for its high torque density, fuel efficiency, and longevity compared to spark-ignition engines. These engines often employ water or air cooling systems suitable for continuous, heavy-duty operation.
- Alternator (Generator Head): A synchronous AC generator, often brushless, coupled directly or via a belt drive to the prime mover's crankshaft to produce alternating current at specified voltage and frequency (e.g., 50 Hz or 60 Hz).
- Control Panel: Houses instrumentation for monitoring engine parameters (oil pressure, temperature, RPM), electrical output (voltage, amperage, frequency), and safety shutdowns. Modern units often incorporate digital controllers for automated startup and load management.
- Base Frame (Skid): A robust structural steel framework designed to withstand operational stresses and isolate vibration.
- Mobility System (Caster Wheels): The defining feature. The frame is mounted on heavy-duty, usually industrial-grade, swivel casters. These casters typically feature locking mechanisms (brake or swivel locks) to ensure stability during operation and prevent unintended movement, differentiating them from fixed skids or large-diameter pneumatic tires designed for rough terrain.
### Engineering and Design Features
The design of caster-wheeled Gensets emphasizes ergonomic handling and stability. To mitigate the high vibrational forces inherent to diesel engines—especially single or two-cylinder units common in smaller portables—the engine and alternator assembly are mounted on anti-vibration mounts (AVMs), often using rubber isolators or springs, before being affixed to the base frame.
Many portable units incorporate sound-attenuated enclosures or canopies. These enclosures, constructed from heavy-gauge, sound-dampening material, significantly reduce the overall noise signature (measured in dB(A)) and provide protection against environmental elements, making the units suitable for urban or indoor construction environments. Adequate ventilation is engineered into the canopy design to ensure proper heat dissipation for both the engine radiator and the alternator windings, while simultaneously baffling noise exit points.
Fuel tanks are commonly integrated into the base skid, featuring sufficient capacity for several hours of continuous operation, often with provisions for external auxiliary fuel connection. Safety features mandated by industry standards, such as emergency stops, earth grounding points, and circuit breakers, are integral to the design.
### Applications
The high maneuverability afforded by the caster system makes these Gensets ideal for applications requiring frequent repositioning within a confined space.
- Industrial Maintenance and Repair: Providing localized power for welding equipment, specialized tools, or temporary lighting within large workshops, factories, or shipyards where the unit must be moved easily between bays.
- Construction Sites (Interior): Supplying temporary power for tools and lighting on specific floors or sections of buildings under construction before permanent utility infrastructure is activated.
- Data Centers and Server Rooms: Used as temporary redundancy or testing power sources, requiring smooth movement across raised access floors.
- Rental Fleets: High demand in the rental market due to their ease of deployment and compact storage.
- Emergency Standby Power: Used in commercial settings requiring highly localized backup power sources, such as temporary medical facilities or event staging areas.
