High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

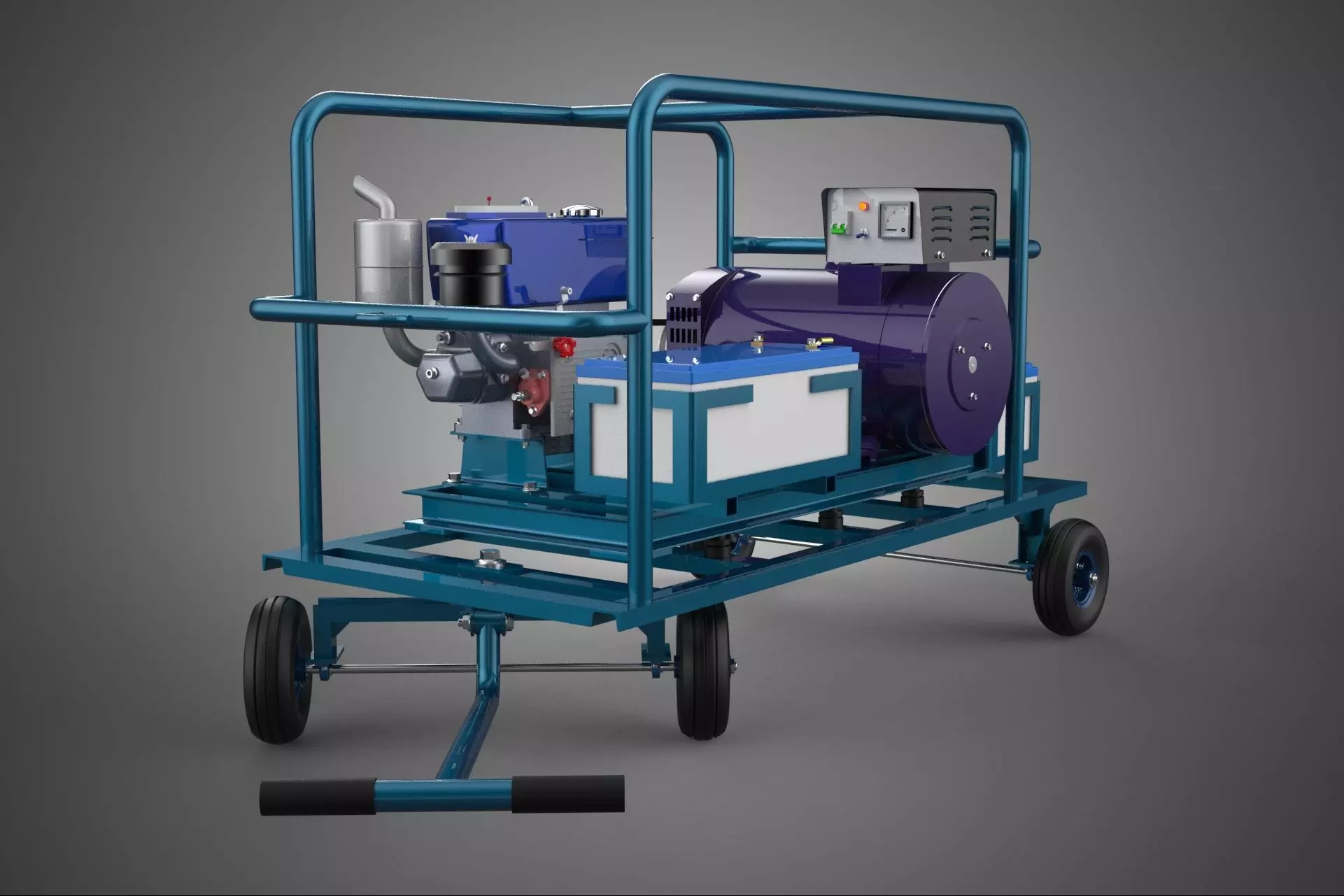

The apparatus commonly referred to by the composite title ALTERNATOR DYNAMO DIESEL ENGINE POWER GENERATOR SET GENSET MOTOR is formally known as a Diesel Generator Set (DGS) or Genset. This integrated system is a sophisticated machine designed for the autonomous conversion of chemical potential energy stored in diesel fuel into electrical energy, predominantly alternating current (AC).
Definition and Function
A Genset combines two principal components: the Prime Mover and the Electrical Generator. The diesel engine functions as the prime mover, providing the necessary mechanical rotational energy. This mechanical energy is transmitted via a direct coupling or drive shaft to the electrical generator—almost universally a synchronous alternator—which converts the motion into electrical power through the principle of electromagnetic induction.
These sets are critical infrastructure components, providing reliable power in environments lacking connection to the utility grid (prime power), or supplying mandatory emergency power during grid outages (standby power).
The Prime Mover: Diesel Engine
The diesel engine is a compression-ignition internal combustion engine. Its selection as the prime mover is due primarily to its inherent high thermal efficiency, durability, and superior torque characteristics compared to spark-ignition engines, making it suitable for sustained, high-load operation.
Key Engine Systems:
- Fuel System: Stores, filters, and precisely injects diesel fuel into the combustion chambers.
- Governor: An essential component regulating the engine speed (RPM) to maintain a constant output frequency. In AC systems, engine speed must be tightly controlled (e.g., 1500 RPM for 50 Hz or 1800 RPM for 60 Hz) to ensure electrical stability.
- Cooling System: Utilizes circulating coolant (liquid-cooled) or high-volume air (air-cooled) to manage the substantial thermal load generated during the compression and power strokes.
- Starting System (Motor): The term motor in the title often refers specifically to the electrical starter motor, typically battery-powered, which provides the initial rotation required to achieve the compression necessary for ignition.
### The Electrical Generator: Alternator vs. Dynamo
While the term Dynamo refers specifically to a generator producing direct current (DC) and is largely archaic in large-scale modern power generation, the modern Genset utilizes a Synchronous Alternator to produce alternating current (AC).
The alternator consists of a stationary winding (stator) and a rotating magnetic field (rotor). The rotor's magnetic field is typically established via a self-excitation system (often brushless), eliminating the need for high-maintenance physical connections (brushes and slip rings) in the main power circuit.
Generator Output Characteristics:
- Voltage Regulation: Maintained by an Automatic Voltage Regulator (AVR), which manipulates the excitation current supplied to the rotor to ensure stable output voltage under varying load conditions.
- Capacity: Measured in kilovolt-amperes (kVA) for apparent power or kilowatts (kW) for real power output, defining the maximum load the Genset can sustain.
### Integration and Control
The engine and alternator are mounted on a heavy steel frame (skid) and often integrated into a sound-attenuated enclosure. A flexible coupling absorbs minor misalignment and vibration between the two components.
The Control Panel is the operational nexus, housing the necessary instrumentation for monitoring engine status (oil pressure, temperature), electrical output (voltage, frequency, amperage), and protective relays (over-current, over-speed shutdowns). Advanced sets may utilize microprocessors for parallel operation, load management, and automatic transfer switching (ATS) integration.
### Applications
Diesel Gensets are categorized by their usage profile:
- Standby/Emergency Power: Used exclusively during utility power failure (e.g., hospitals, data centers).
- Prime Power: Serves as the primary, continuous source of electricity in remote locations (e.g., mining operations, island communities).
- Continuous Power: Operated for extended periods with minimal maintenance downtime, often running in parallel with other units.
- Mobile/Portable Power: Smaller units mounted on trailers for temporary power requirements on construction sites or events.
The convergence of all specified terms—alternator, dynamo (historical context), diesel engine, power generator set (Genset), and motor (starter/prime mover)—describes this single, indispensable machine central to modern decentralized electrical supply infrastructure.
KEYWORDS: Diesel Generator Set, Genset, Alternator, Prime Mover, Compression Ignition, Synchronous Generator, Automatic Voltage Regulator, AVR, Engine Governor, Standby Power, Prime Power, Kilovolt-Amperes, kVA, Electrical Output, Internal Combustion, Power Generation, Starter Motor, Excitation System, Brushless Alternator, Stator, Rotor, Frequency Control, Load Management, Automatic Transfer Switch, ATS, Thermal Efficiency, Mobile Generator, Emergency Power, DC Dynamo, AC Power, Power Density.
