High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

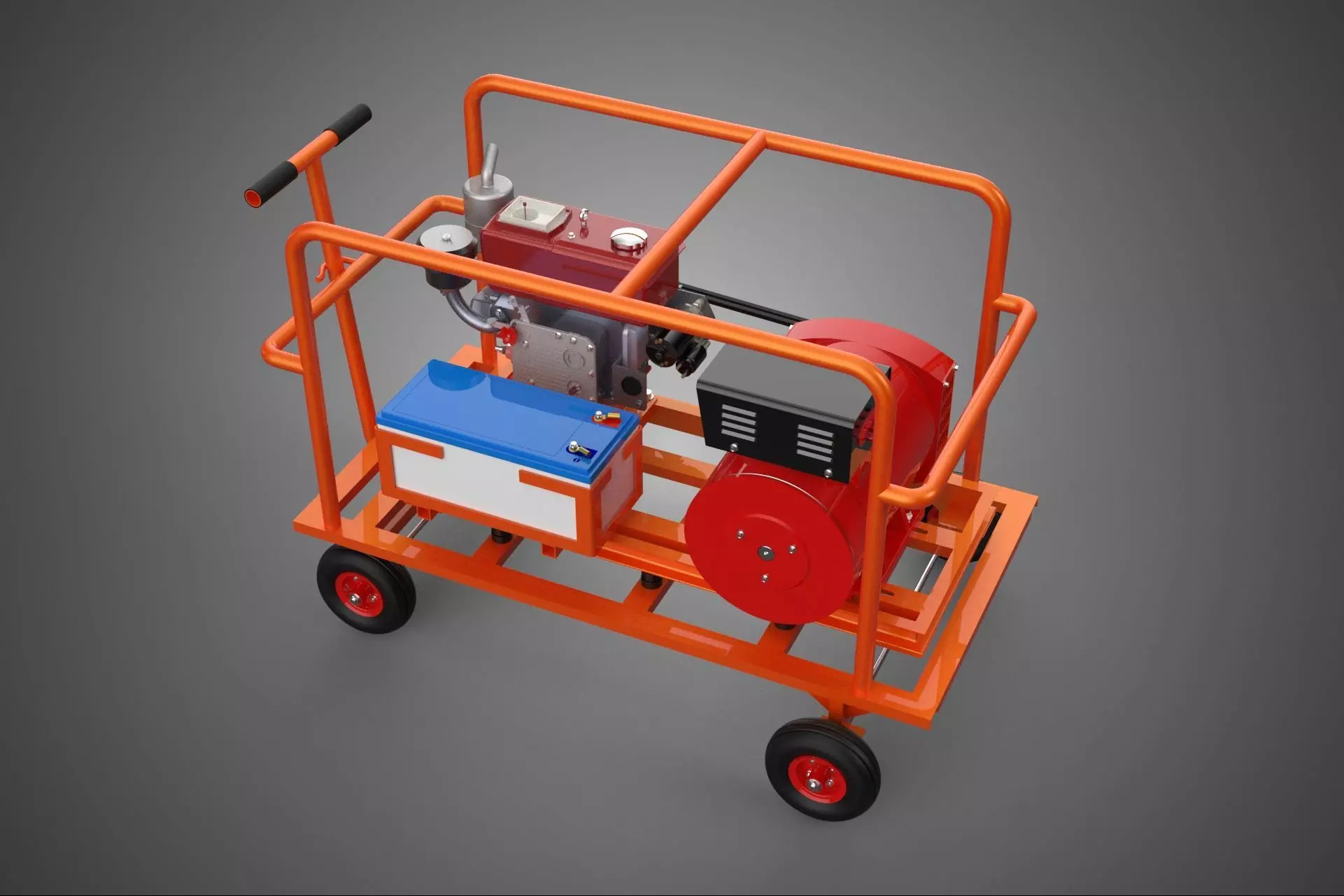

AUTO STARTER ELECTRIC DIESEL MOTOR DYNAMO FLYWHEEL GENERATOR SET
A comprehensive Auto Starter Electric Diesel Motor Dynamo Flywheel Generator Set, commonly referred to as an automated diesel genset, is an integrated electro-mechanical system engineered for the conversion of chemical energy (fuel) into usable electrical energy, typically for standby, backup, or remote primary power applications. This system is defined by the critical interrelation of its primary components: the diesel internal combustion engine (motor), the electrical generation machine (dynamo/generator), the inertial stabilizer (flywheel), and the automated initiation mechanism (auto starter).
Operational Principles and Core Components
1. The Diesel Motor (Prime Mover)
The diesel motor functions as the prime mover, providing the mechanical torque necessary to rotate the generator armature. Diesel engines are selected for generator sets due to their high thermal efficiency, durability, reliability, and superior torque output at operational speeds. The motor converts the stored chemical energy in diesel fuel through compression-ignition cycles into rotational mechanical energy. The operational stability and rated electrical output frequency (e.g., 50 Hz or 60 Hz) are directly dependent on the precise speed (RPM) control of the motor, managed by an electronic or mechanical governor.
2. The Electric Dynamo/Generator (Alternator)
The dynamo or generator is the electrical component responsible for transforming the rotational mechanical energy from the diesel motor into electrical energy via electromagnetic induction. While the term dynamo historically referred specifically to a DC generator, modern high-capacity gensets invariably utilize an AC alternator. These generators are typically synchronous machines, producing voltage and current at a specific frequency and phase configuration (single-phase or three-phase). Excitation systems, often brushless, manage the magnetic field strength to ensure consistent voltage output regardless of load fluctuations. The generator and the motor are typically coupled via a rigid shaft connection.
3. The Auto Starter System
The auto starter system facilitates the automatic and rapid initiation of the diesel engine. This mechanism is crucial for standby power applications, especially those linked to an Automatic Transfer Switch (ATS) that monitors the primary utility power. The system typically consists of a high-torque DC electric motor, powered by a dedicated battery bank, coupled to the engine’s ring gear via a solenoid-activated Bendix drive. When the ATS detects a utility power failure, it signals the auto starter solenoid, engaging the starter motor to turn the diesel engine over until self-sustaining combustion is achieved. Redundancy and rapid start capabilities (often within seconds of power failure) are critical design features.
4. The Flywheel
The flywheel is a heavy, mechanically balanced disc attached to the crankshaft of the diesel motor. Its function is crucial for kinetic energy storage and mechanical stabilization. Specifically, the flywheel serves two primary purposes:
- Smooth Operation: It dampens the torsional vibration and absorbs the instantaneous torque variations inherent in the four-stroke diesel combustion cycle, contributing to smoother operation.
- Frequency Stability: By increasing the system's inertia, the flywheel minimizes the transient speed drop when a large load is suddenly applied to the generator, thereby aiding the governor in maintaining stable output frequency ($\pm$ 0.5% tolerance is common).
### Applications and Integration
The integrated auto starter electric diesel genset is deployed in environments where uninterrupted power is essential, including data centers, hospitals (critical life support systems), telecommunications infrastructure, manufacturing plants, and marine vessels. The system's robustness, combined with its automated initiation capability, makes it the standard solution for emergency power generation globally.
***
KEYWORDS: Genset, Diesel Generator, Standby Power, Prime Mover, Alternator, Dynamo, Auto Starter, Electric Motor, Flywheel, Internal Combustion Engine, Automatic Transfer Switch, ATS, Synchronous Generator, Frequency Stability, Voltage Regulation, Critical Infrastructure, Emergency Power, Brushless Excitation, Governor, Torsional Vibration, Kinetic Energy, Backup Power, Power Generation, Solenoid, Bendix Drive, Ring Gear, Compression Ignition, AC Output, High Torque.
