High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

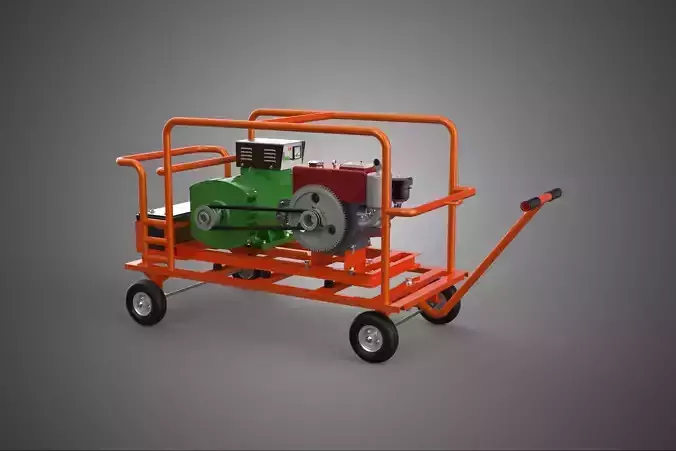

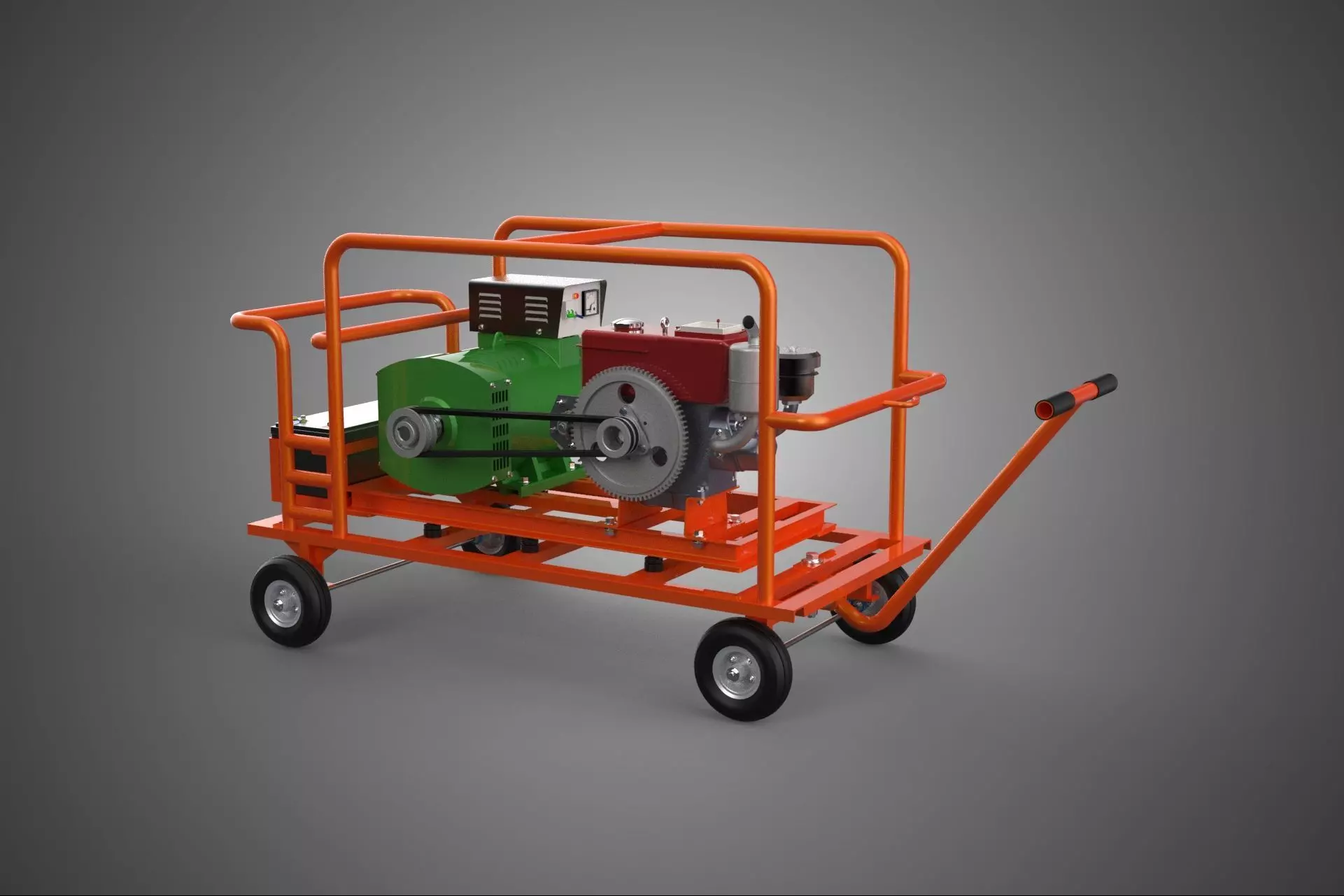

A mobile power generation unit, classified as a diesel power generator set (genset), mounted upon a specialized chassis incorporating wheel swivel casters for enhanced internal maneuverability. This composite system addresses the requirement for localized, high-capacity electrical power that must be repositioned frequently within controlled environments, such as industrial facilities, laboratories, or large commercial complexes.
The Diesel Power Generator Set (Genset)
The core function of the apparatus is the electromechanical conversion of chemical energy stored in diesel fuel into usable alternating current (AC) electricity. The genset comprises two primary components: the diesel engine (the prime mover) and the alternator (the electrical generator).
1. The Diesel Engine
The engine operates on the principle of compression ignition, offering high thermal efficiency and robust torque characteristics suitable for driving a continuous electrical load. Industrial-grade diesel engines utilized in gensets are typically water-cooled, multi-cylinder units designed for reliable operation across varying load factors and extended duty cycles, including continuous (prime power) and intermittent (standby/emergency) modes. Engine speed is meticulously governed to maintain the required output frequency (e.g., 50 Hz or 60 Hz), crucial for the stability of the generated electrical waveform.
2. The Alternator (Synchronous Generator)
The alternator is mechanically coupled, often via a flexible coupling, directly to the engine crankshaft. It functions as a synchronous generator, converting the mechanical rotational energy from the prime mover into electrical energy via electromagnetic induction. Modern industrial alternators are frequently of the brushless design, minimizing maintenance requirements. They are equipped with an Automatic Voltage Regulator (AVR) subsystem, which monitors and adjusts the field excitation current to ensure the output voltage remains within strict regulatory tolerances, regardless of fluctuations in the connected electrical load. The alternator determines the electrical capacity of the unit, typically rated in kilovolt-amperes (kVA) or kilowatts (kW).
The Wheel Swivel Caster System
The integration of wheel swivel casters facilitates the high-load mobility required for the often substantial mass of the diesel genset, control panel, fuel tank, and enclosure. This design is critical for applications where the unit must be temporarily placed for maintenance access, power distribution reconfiguration, or specific localized operations.
1. Caster Engineering and Function
A swivel caster assembly consists of a wheel, a yoke (or fork), and a precision-engineered swivel bearing system (often utilizing ball or roller bearings). The swivel mechanism allows the wheel axis to rotate 360 degrees horizontally relative to the genset frame, granting omnidirectional movement capability crucial for navigating confined spaces. The wheels themselves are specified based on load capacity, floor surface material, and resistance to chemical exposure, often featuring robust materials such as cast iron, forged steel, or high-durometer polyurethane on steel cores.
2. Load Management and Safety
Given the substantial dynamic and static loads imposed by industrial gensets, the casters must possess extreme structural integrity. Safety features are paramount, including total-lock or wheel-lock brakes integrated into the caster assembly. When engaged, these locking mechanisms prevent both the wheel rotation and the swivel action, securely immobilizing the generator set during operation, thereby mitigating potential hazards associated with vibration-induced movement (caster flutter or migration). Vibration isolation mounts are often interposed between the genset frame and the caster mounting plate to dampen operational harmonics.
Applications and Configuration
This configuration is typically restricted to lower-to-mid-range power capacity gensets (generally under 200 kVA, though specialized heavy-duty casters can support greater loads) utilized for non-permanent internal power requirements. Common operational environments include workshops, test facilities, factory assembly lines, and temporary data center cooling or power support where fixed infrastructure is impractical. The unit often includes a sound-attenuating enclosure to minimize noise pollution during operation and a comprehensive control panel for monitoring electrical output parameters, engine diagnostics, and safety shutdown mechanisms.
KEYWORDS: Genset, Diesel Engine, Alternator, Swivel Caster, Mobile Generator, Synchronous Generator, Prime Mover, Brushless Excitation, Automatic Voltage Regulator (AVR), Load Capacity, Emergency Power, Standby Power, Industrial Mobility, AC Power Generation, Compression Ignition, KVA Rating, Hertz, Frequency Regulation, Noise Attenuation, Enclosure, Total-Lock Brake, Shock Absorption, Heavy Duty Caster, Internal Transport, Power Module, Load Factor, Voltage Stability, Duty Cycle, Engine-Generator Set, Maintenance Maneuverability.
