Detailed, editable industrial CNC router for factory visualizations, workshop environments, manufacturing scenes, and product presentations.

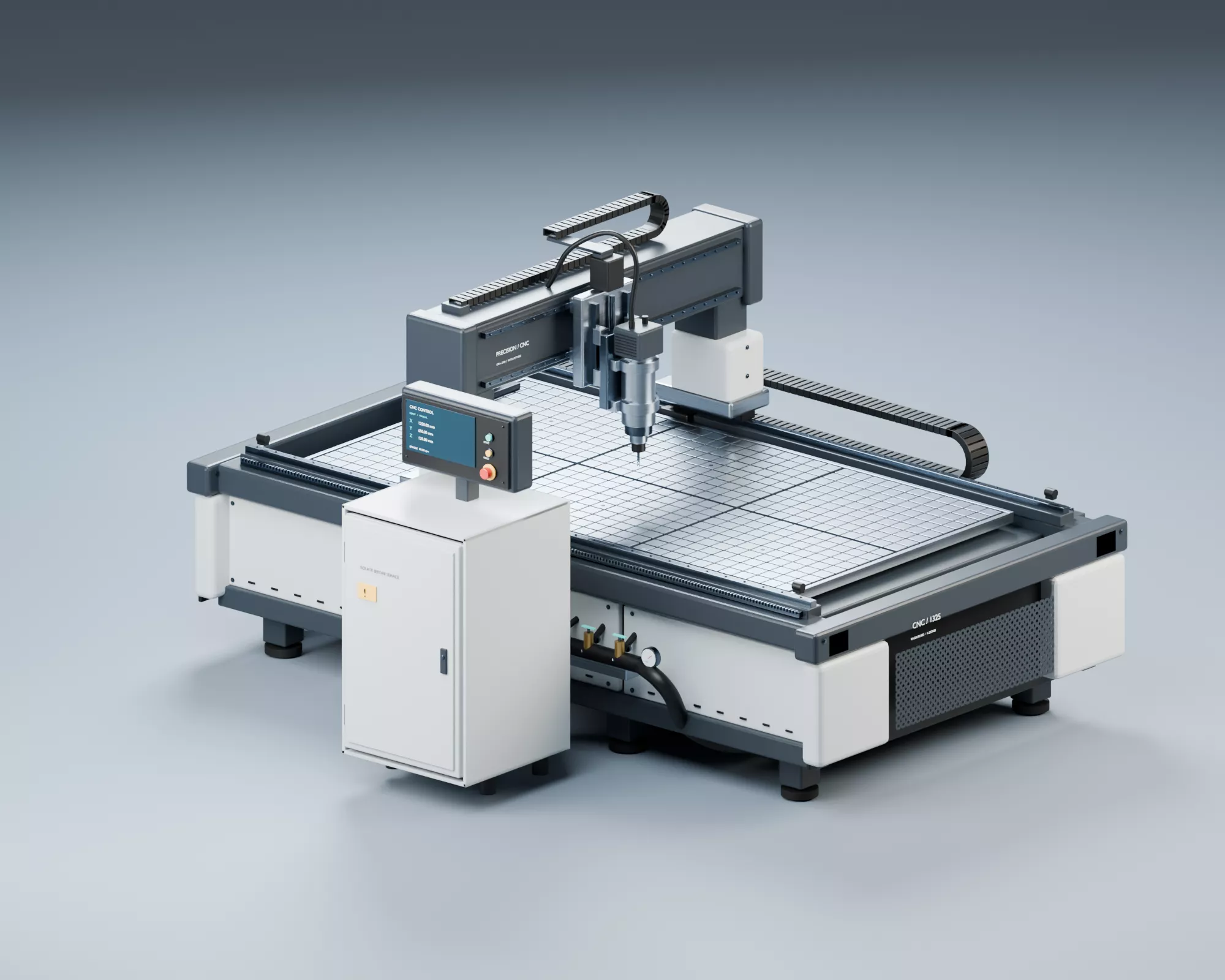

This generic, unbranded 4×8-class machine features graphite-and-grey enclosed bodywork, a 2500 × 1300 mm working bed, a separate electrical cabinet, and an operator console. The package includes a detailed hero model and a separate optimized LOD1 version.
MODEL FEATURES
• Six-zone vacuum table with surface channels and vacuum plumbing.• Detailed spindle assembly with clamps, collet, and cutter.• Gantry, linear rails, bearing blocks, and gear racks.• Segmented cable chains and cable routing.• Operator console with display, controls, and emergency-stop button.• Electrical cabinet with internal components and a separately movable door.• Panel fasteners, perforated ventilation grilles, valves, gauge, and leveling feet.• Organized Blender collections and named components for convenient editing.• Separate X, Y, and Z assemblies with transform controls for manual positioning.
MATERIALS AND TEXTURES
Six 4K PBR material sets are supplied for graphite paint, light-grey paint, brushed aluminium, machined steel, black polymer, and rubber.
Each main material set includes PNG maps for:• Base Color• Roughness• Metallic• Normal
Additional accent and control materials use shader values. Meshes are UV mapped using shared tiling materials. UVs are not arranged as a unique, non-overlapping texture atlas.
INCLUDED FILES
• Editable Blender hero scene.• Separate Blender LOD1 scene.• Hero and LOD1 exports in GLB, FBX, and OBJ/MTL formats.• Texture files.• Studio lighting and preview cameras in the Blender scenes.• Preview images and supporting documentation.
MODEL STATISTICS
Hero model:• 560,048 evaluated triangles.• 288,568 evaluated vertices.
Optimized LOD1:• 123,025 triangles.• 65,364 vertices.
LOD1 reduces the triangle count by approximately 78% and omits hidden cabinet internals and small hardware. It is intended for mid-distance use and scenes requiring lighter geometry.
SOFTWARE AND SCALE
• Native application: Blender 5.2.1 LTS.• Preview renderer: Cycles.• Real-world metric scale.• Working area: 2500 × 1300 mm.• Bed height: 820 mm.
All preview images show the supplied model. The design is generic and contains no third-party branding or logos.
PLEASE NOTE
This is a visualization asset, not engineering CAD, a fabrication plan, or a 3D-print-ready model.
No animation clips or skeletal rig are included. Machine assemblies can be positioned manually in Blender; cable chains require manual adjustment when repositioning the machine.
The package does not include automatic cable-chain deformation, a dedicated lightmap atlas, baked ambient occlusion, collision meshes, or an Unreal Engine/Unity project. Materials and lighting may require adjustment in applications other than Blender.
