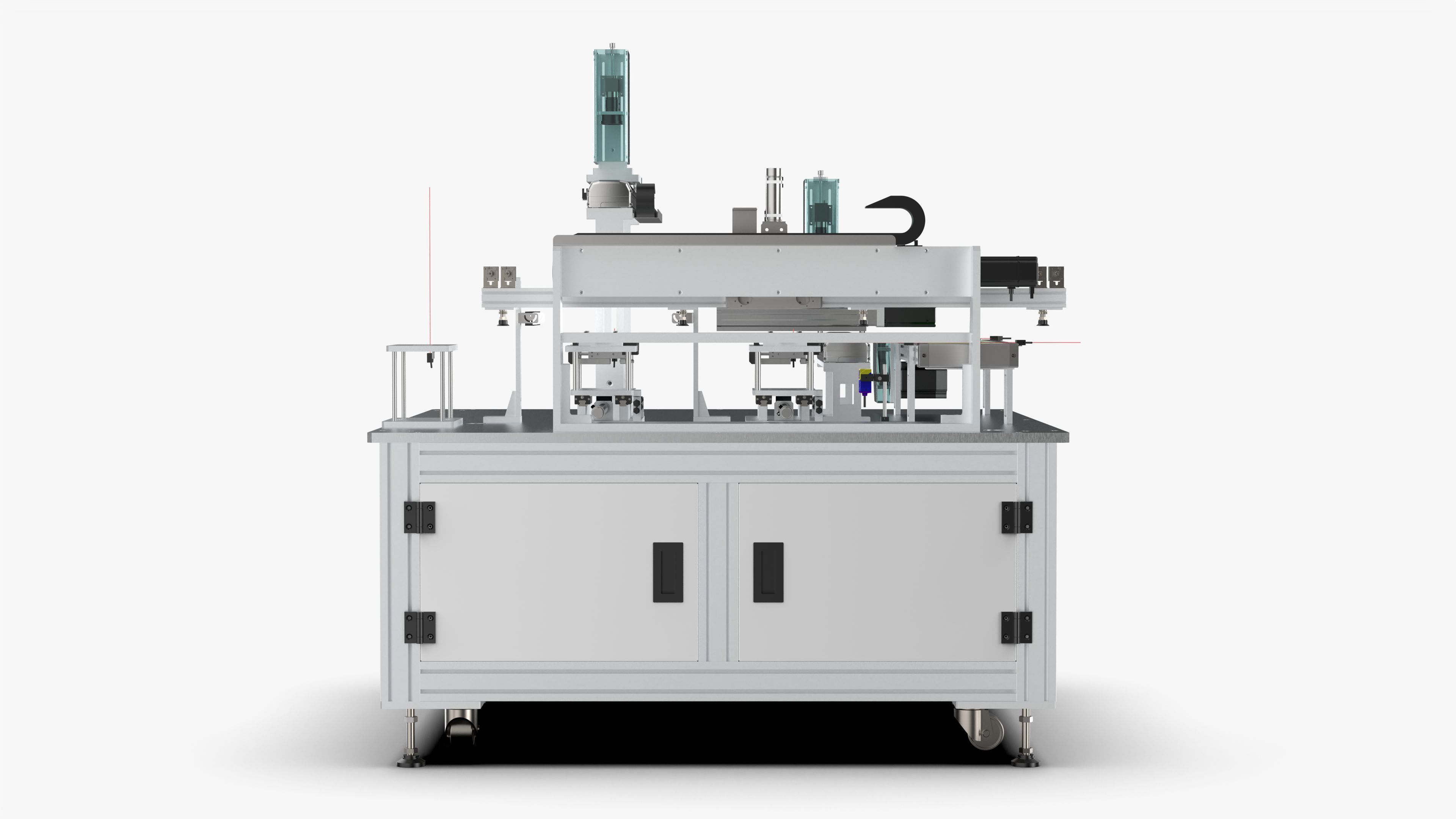

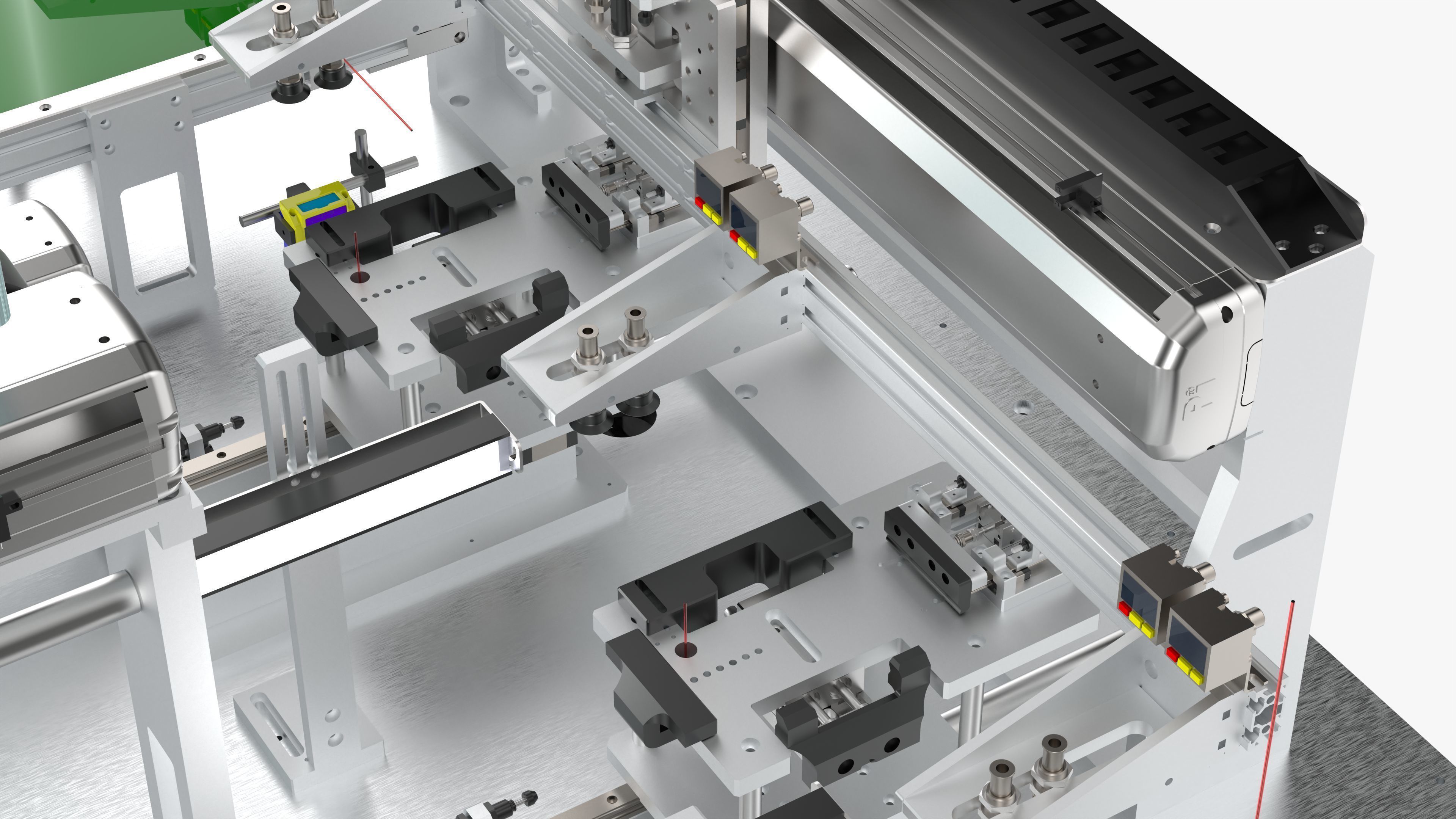

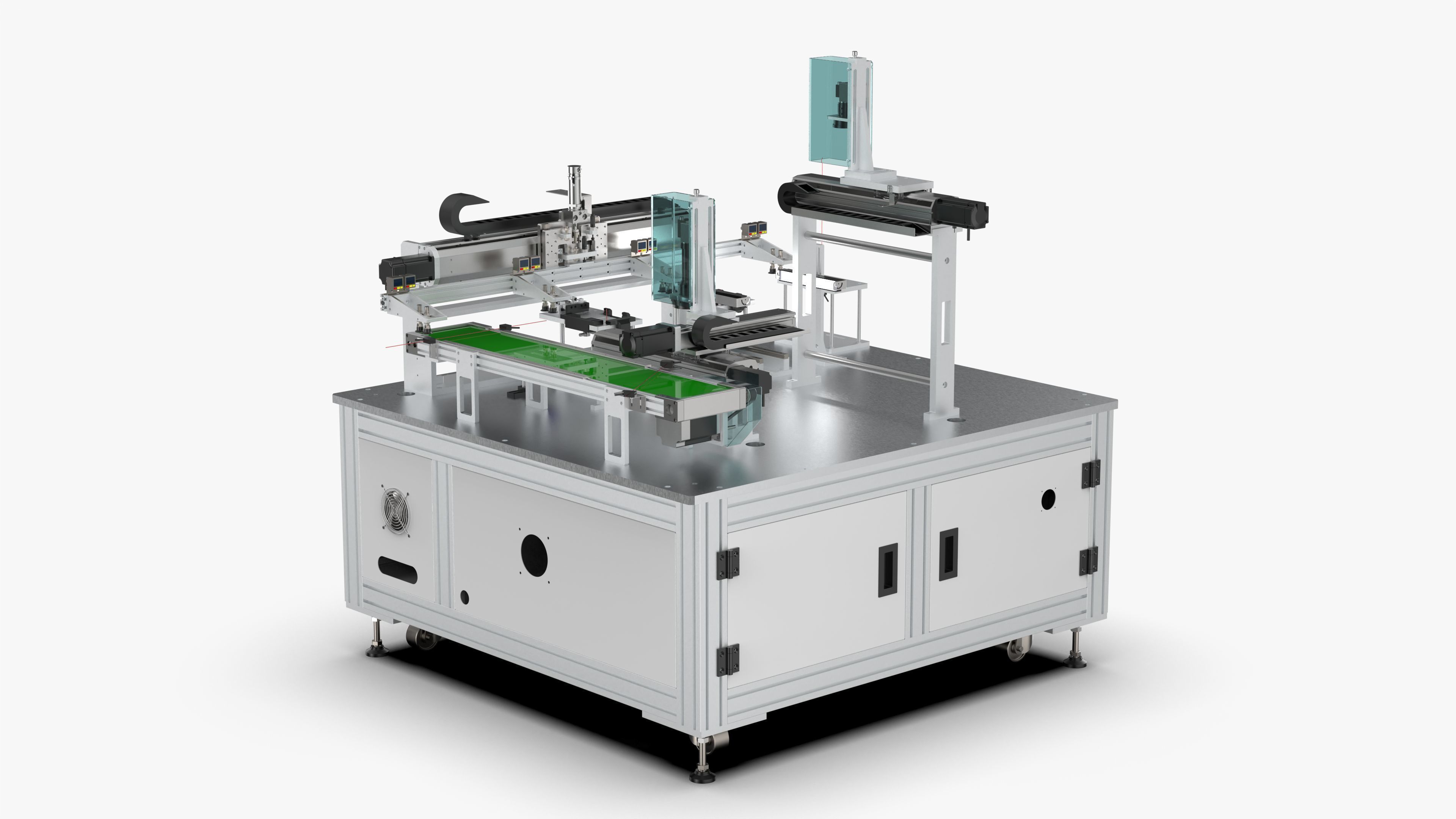

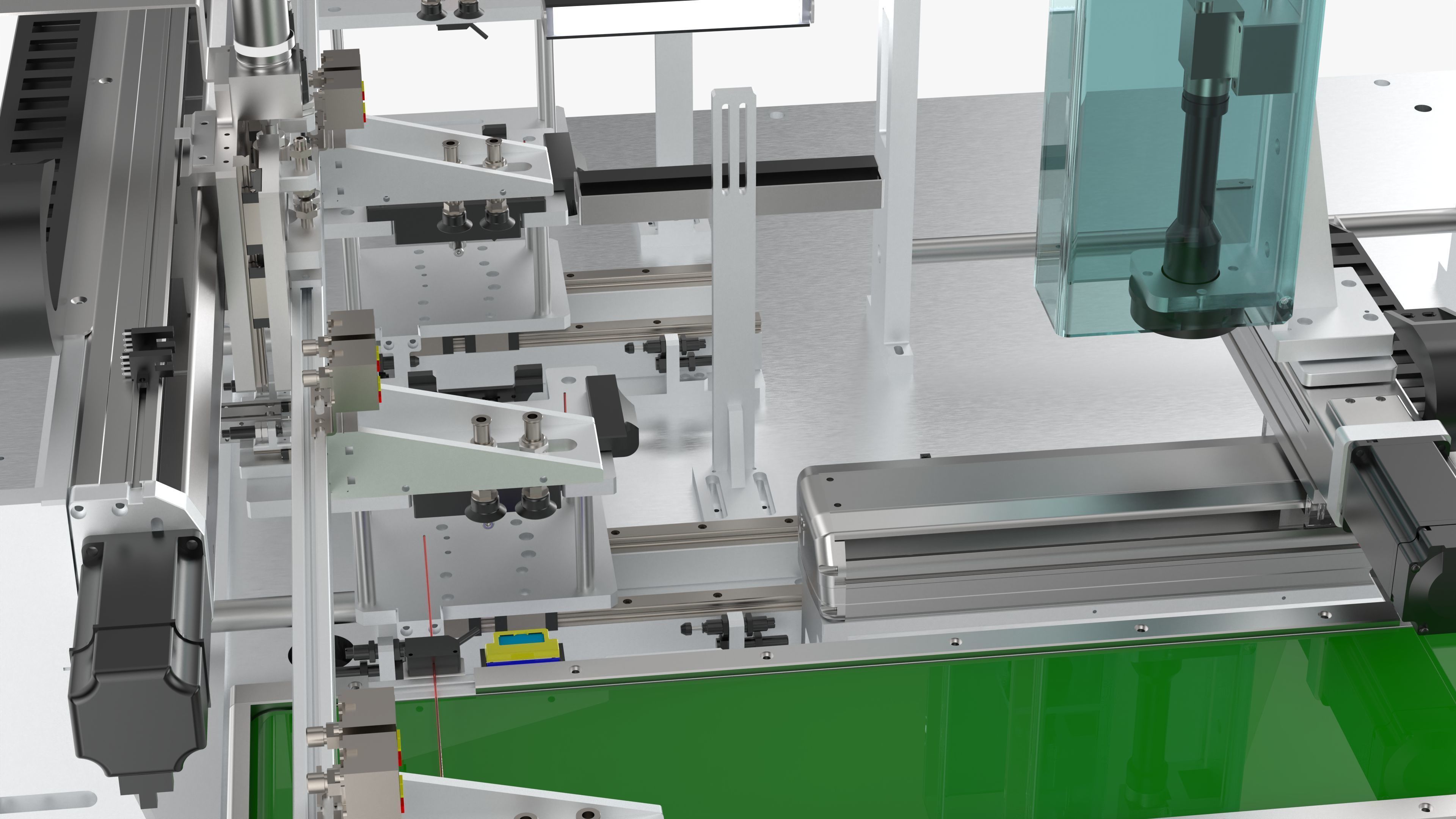

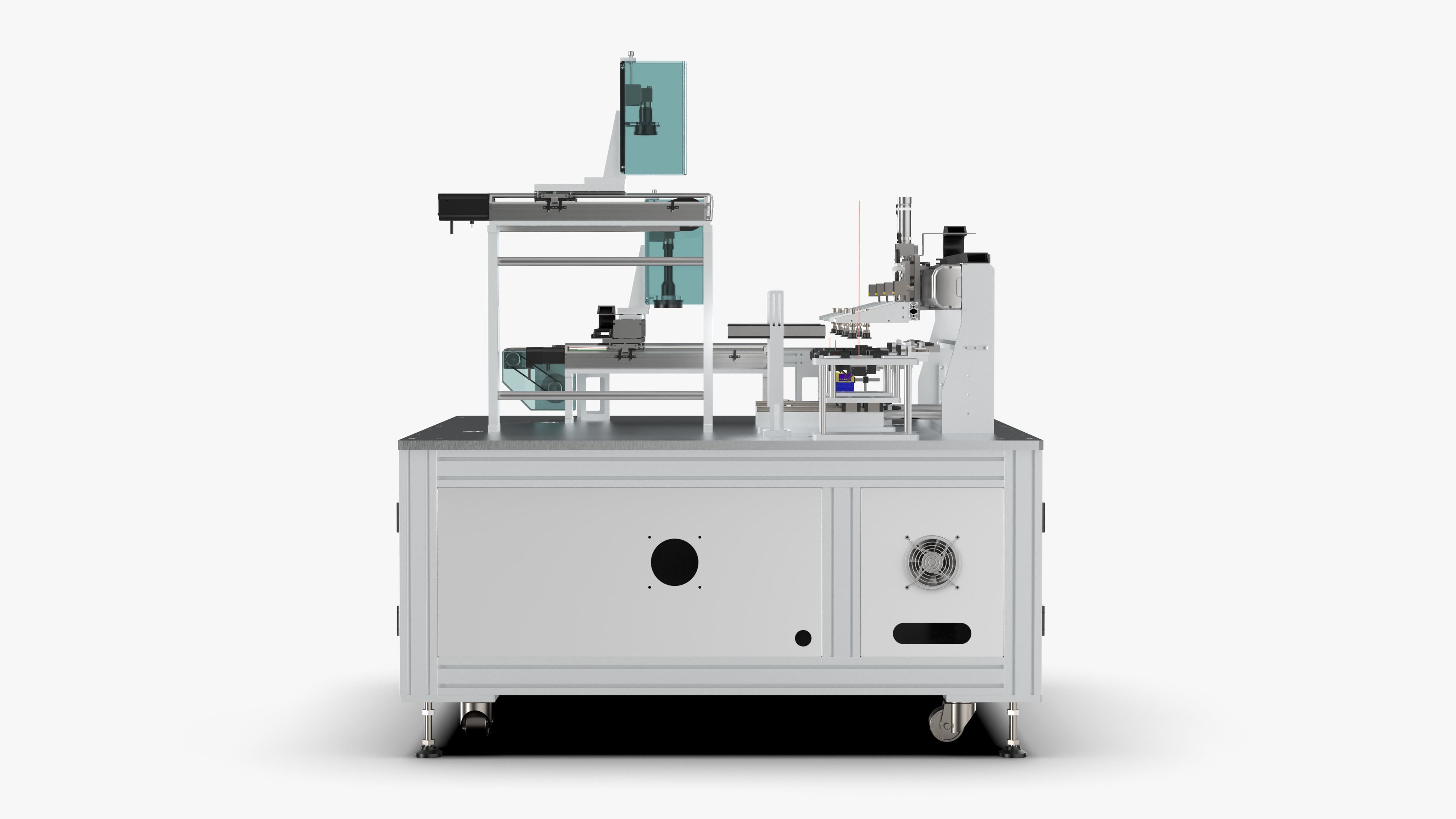

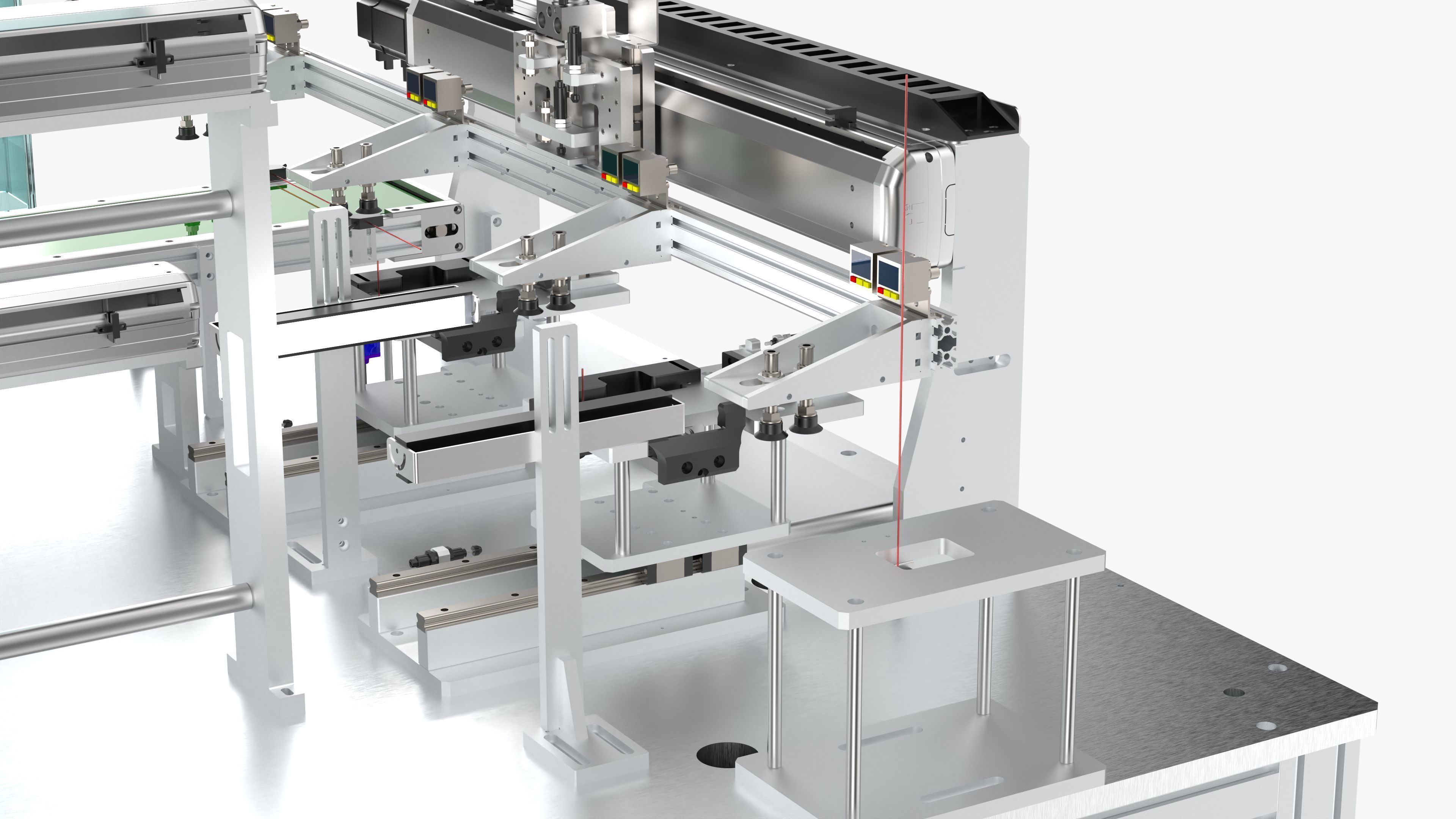

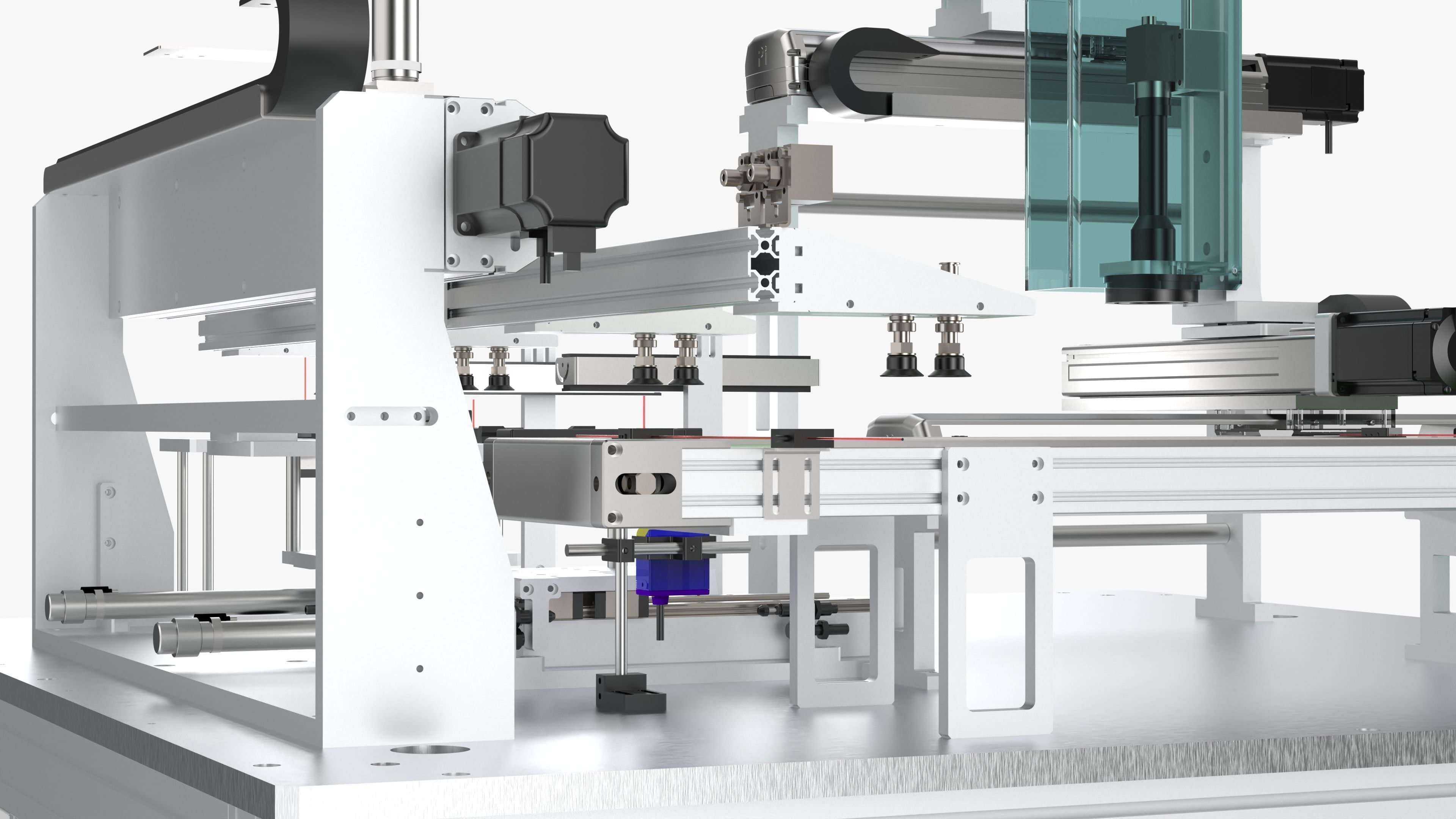

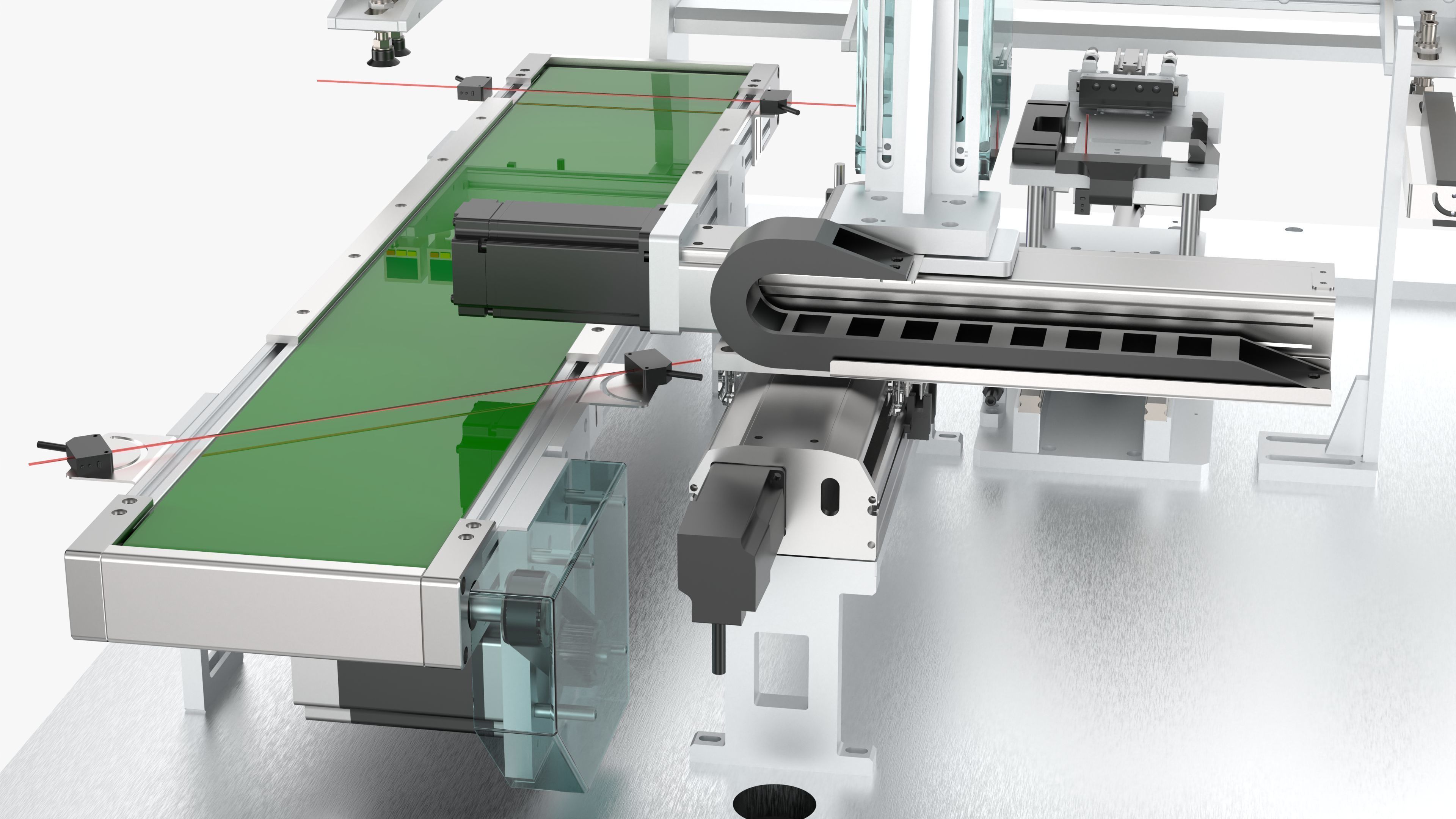

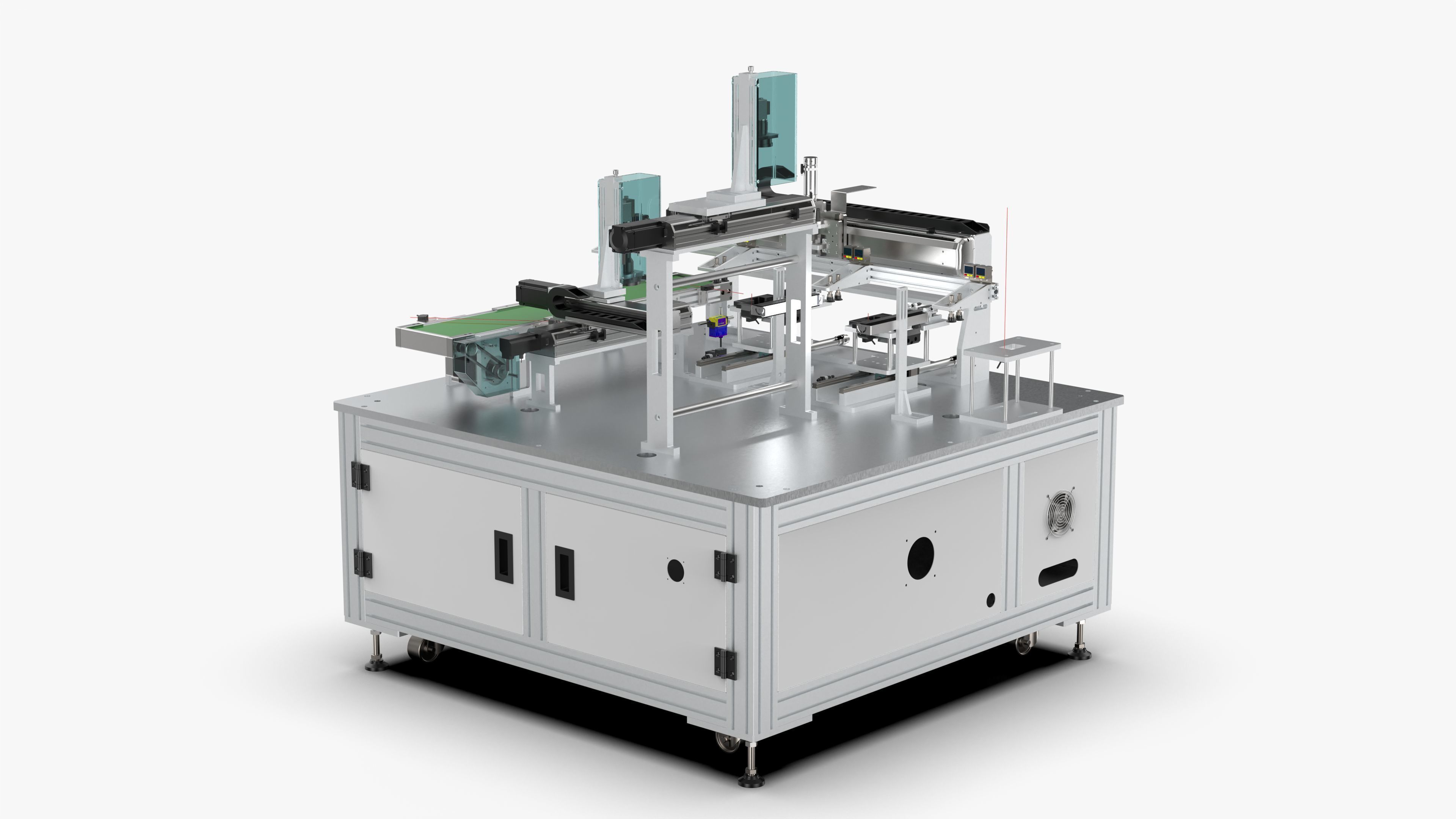

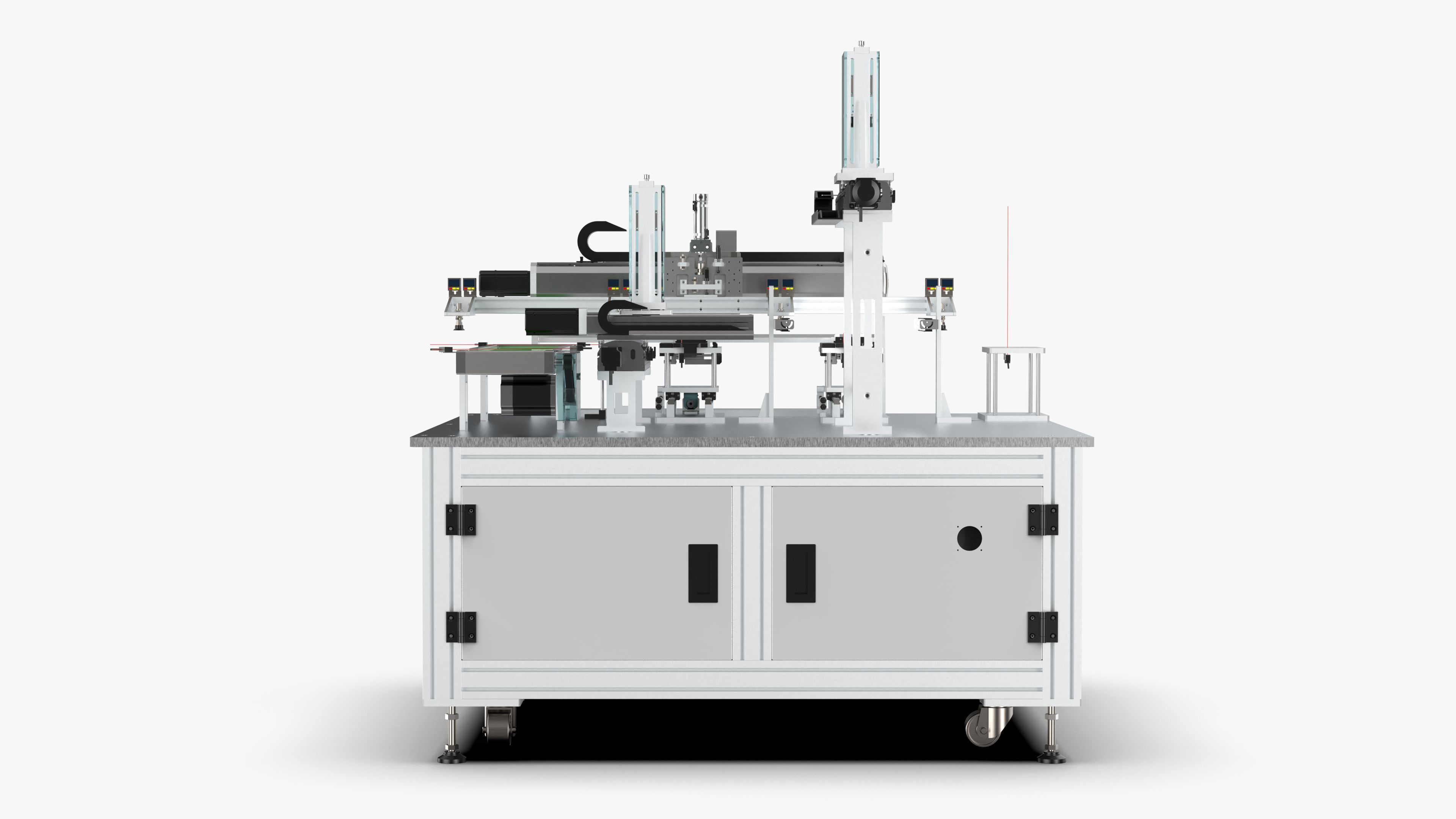

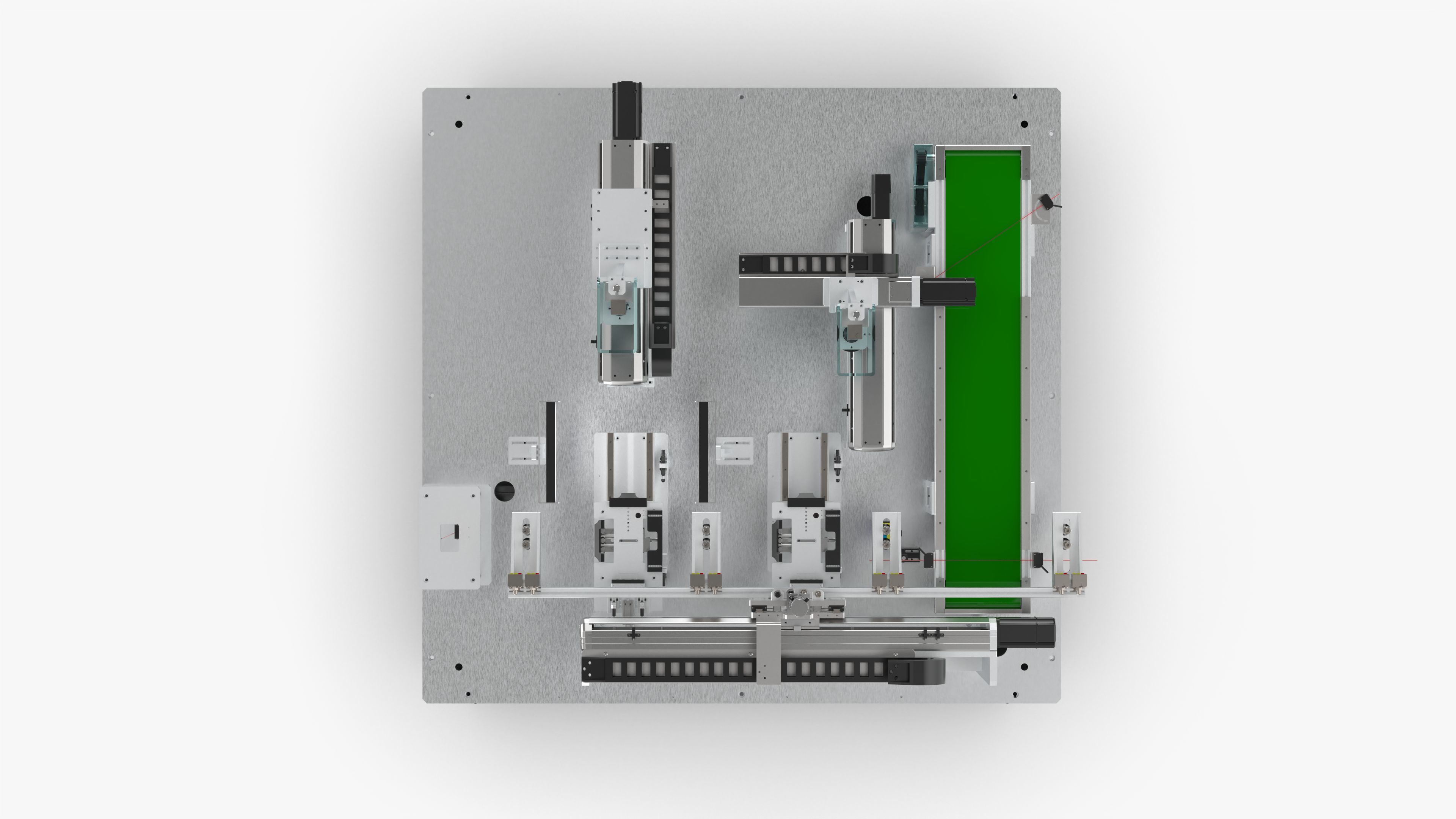

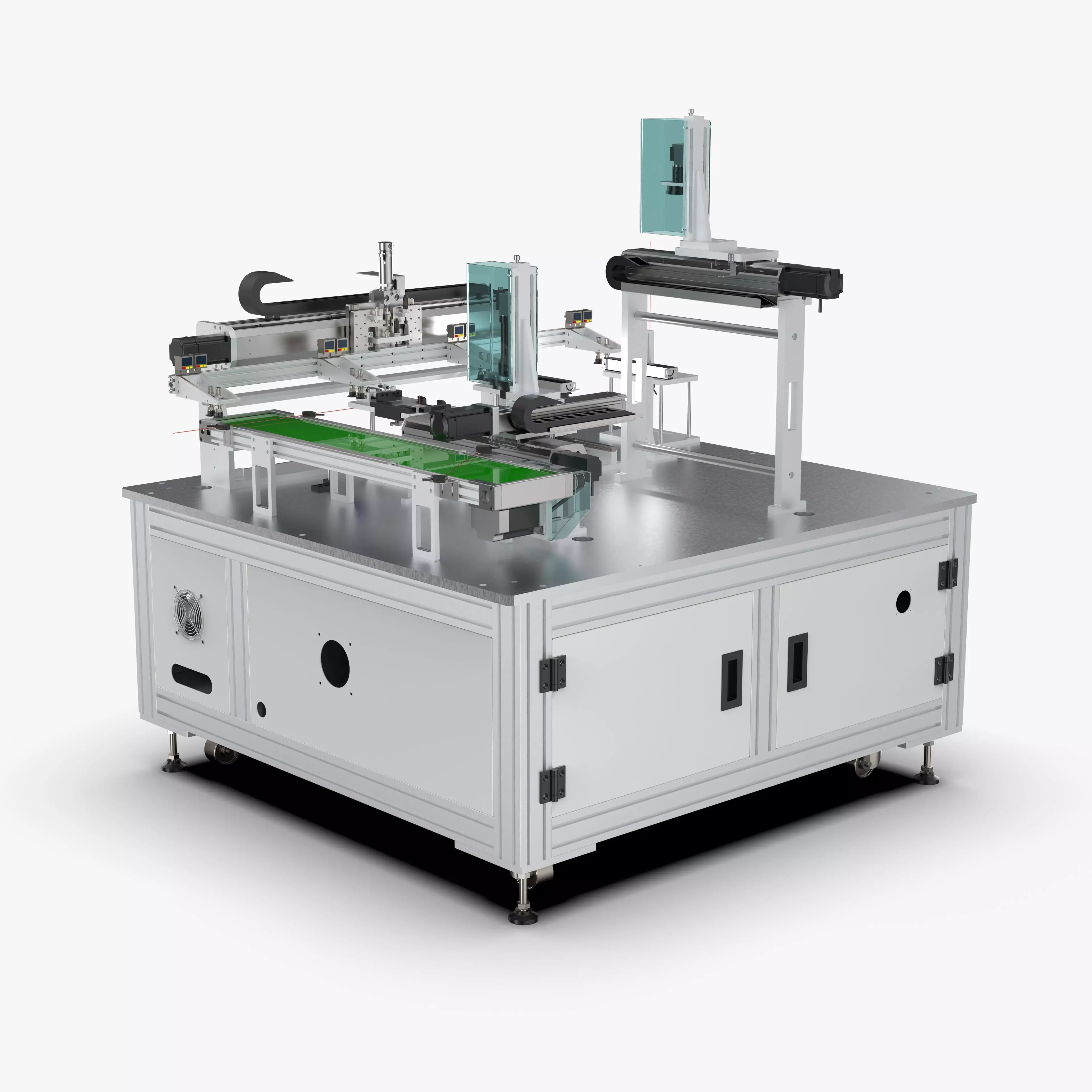

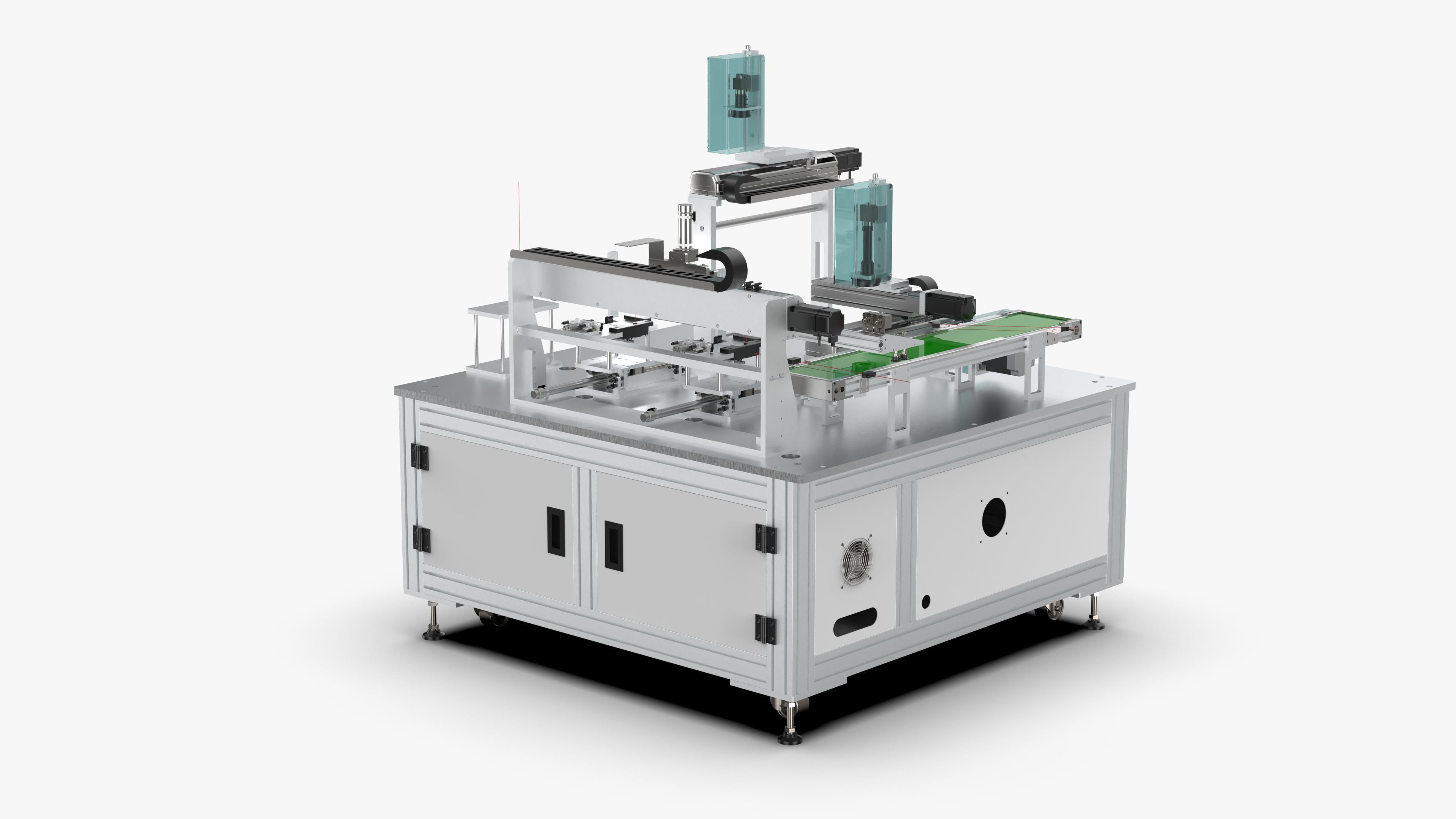

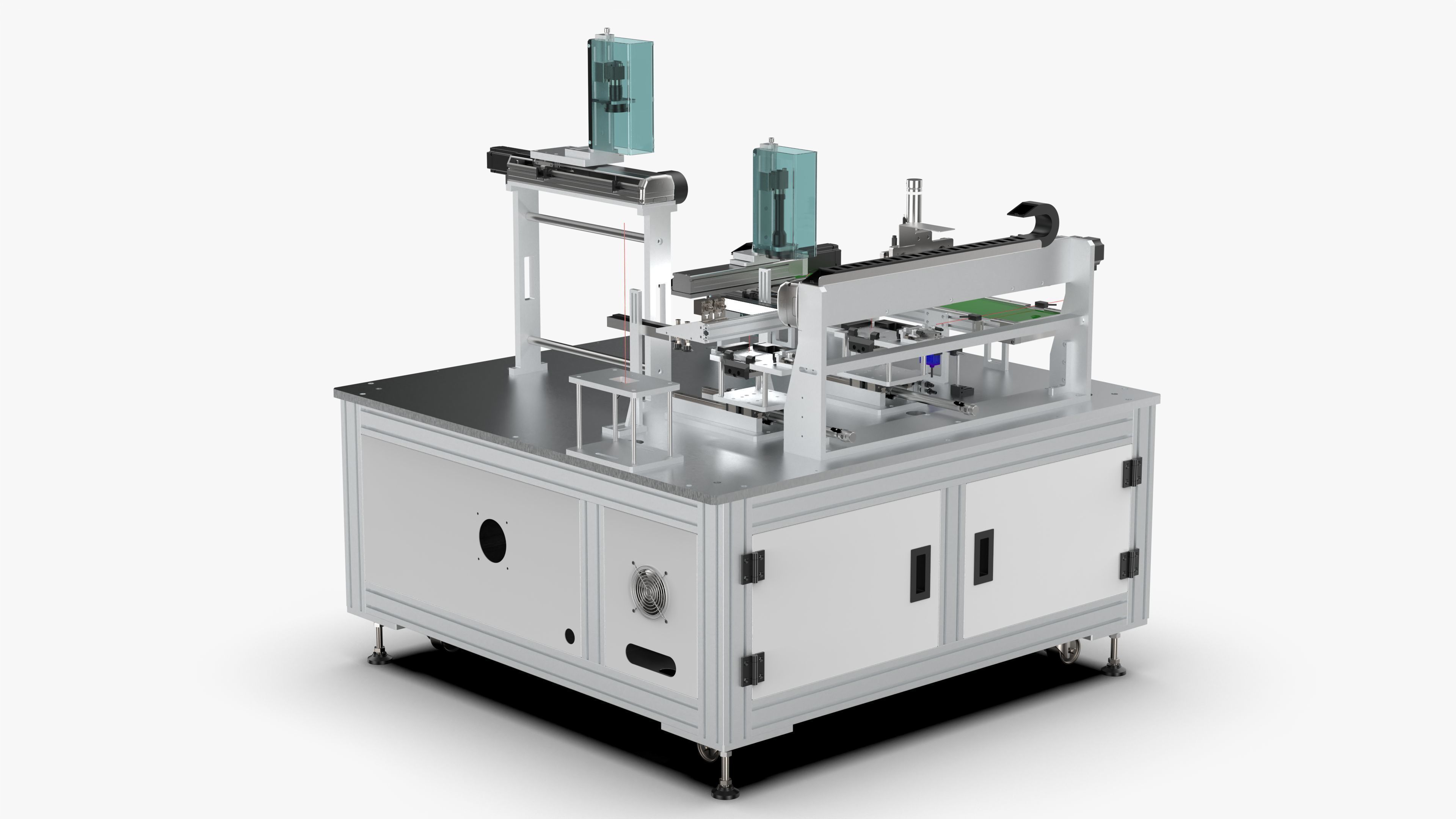

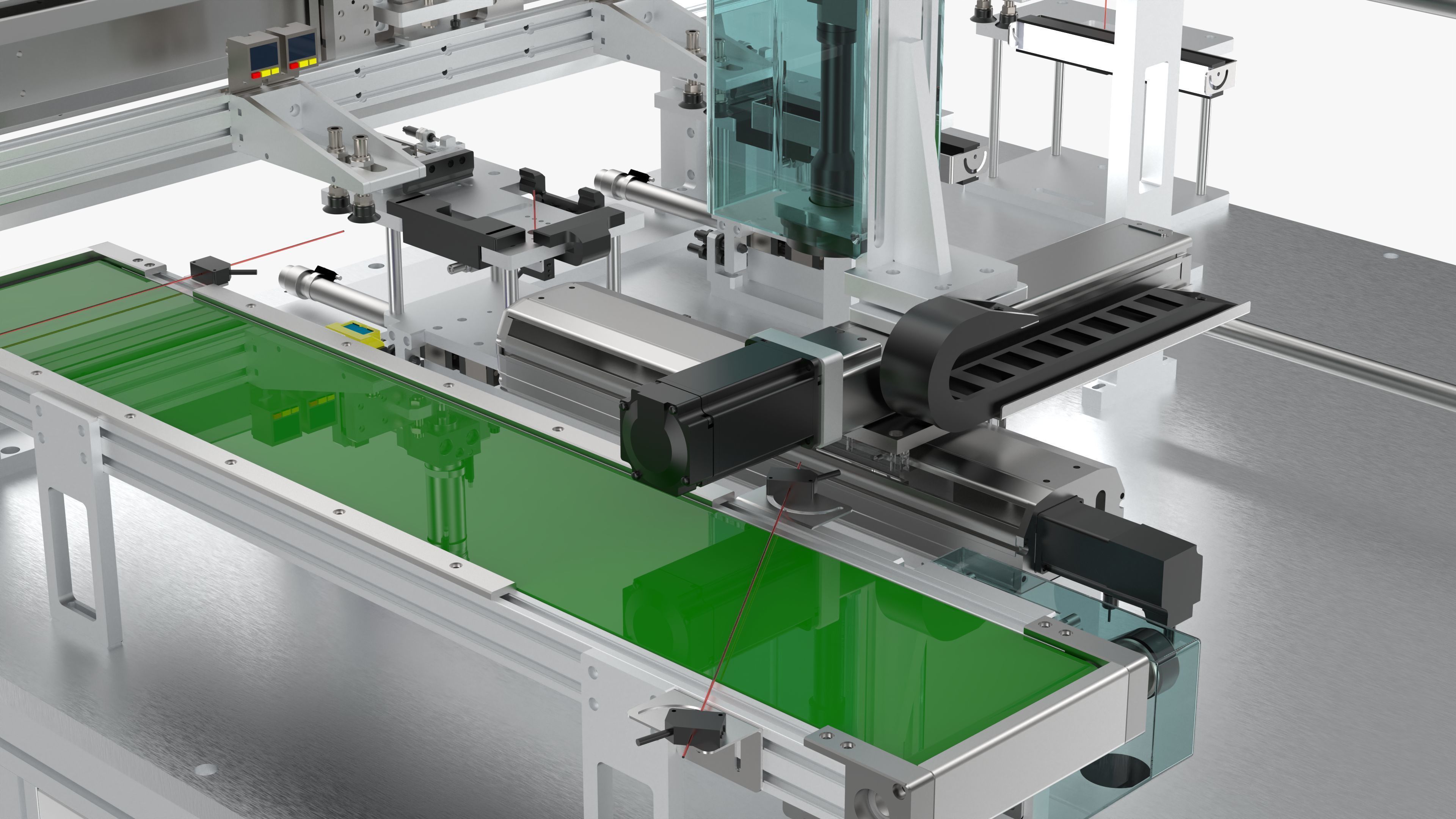

Automatic Power Battery Detection Machine 3D model

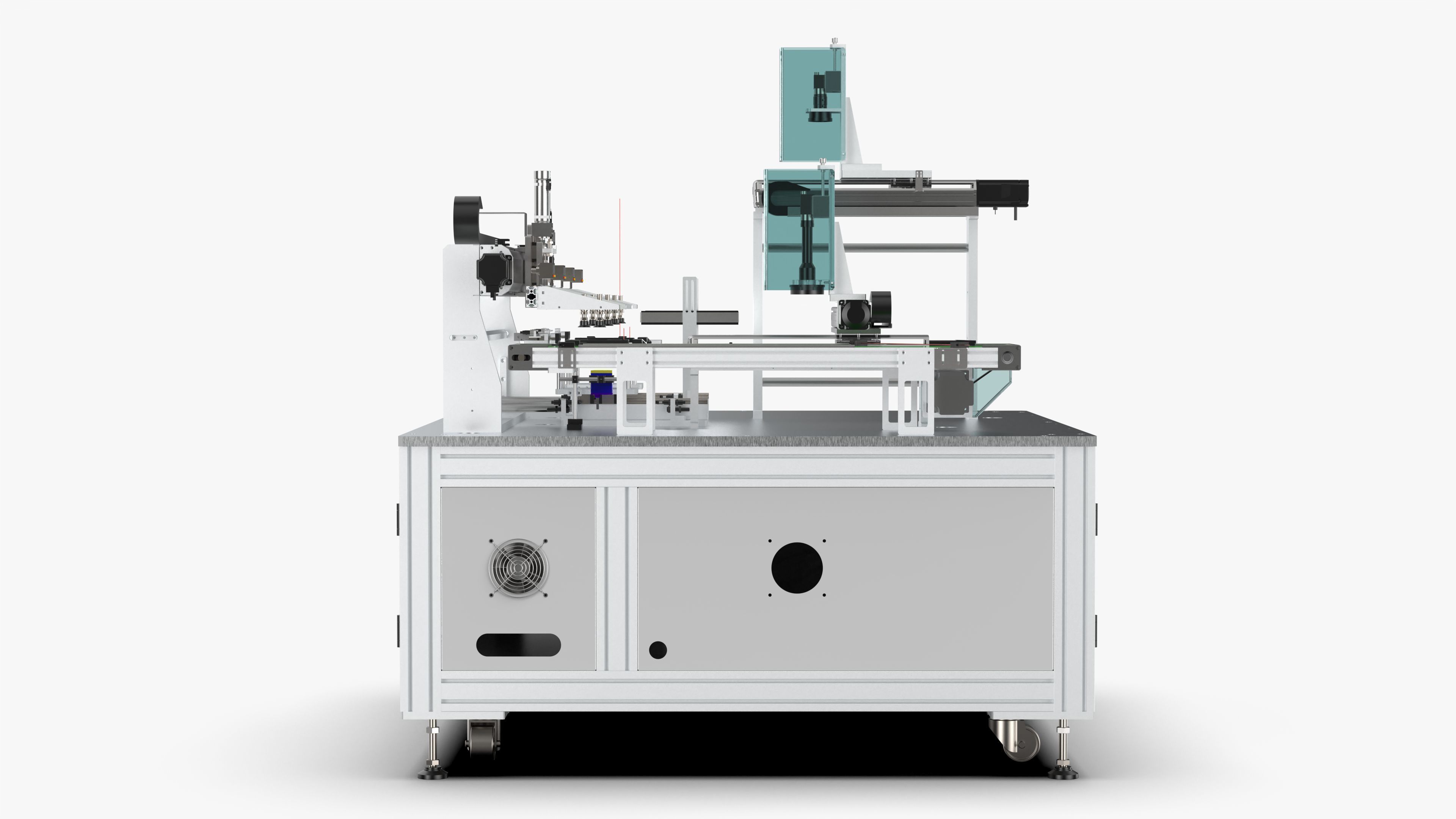

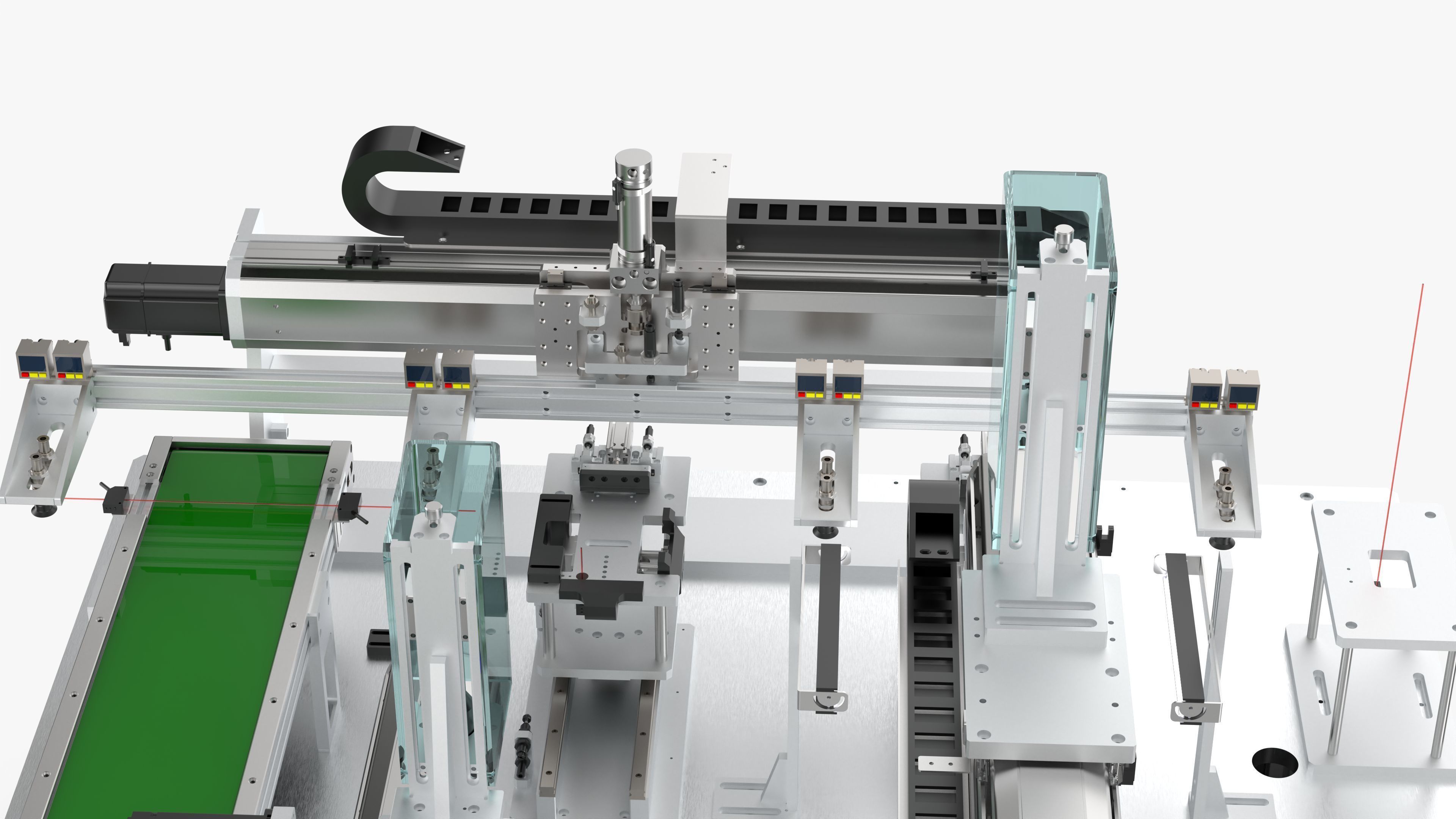

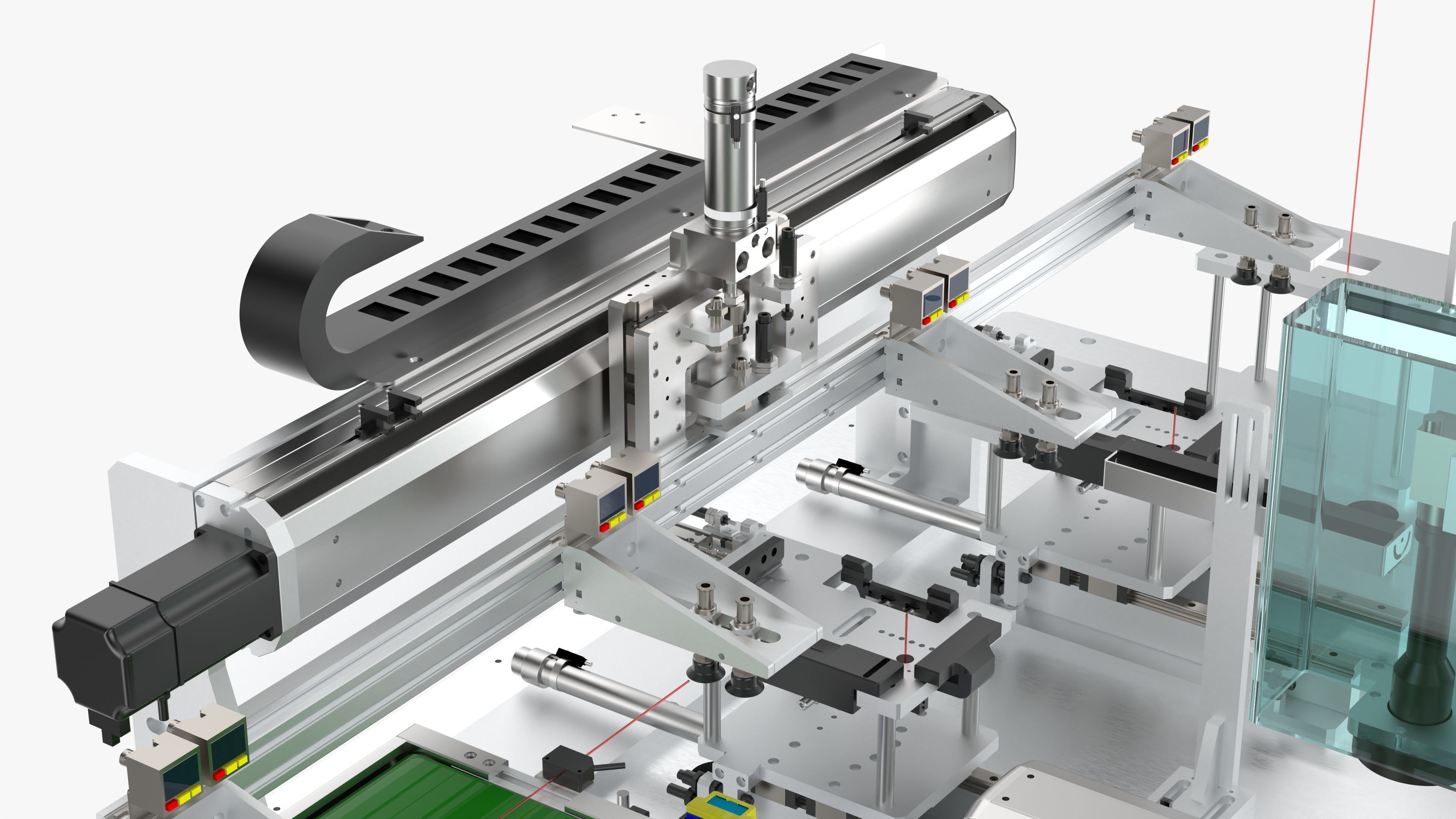

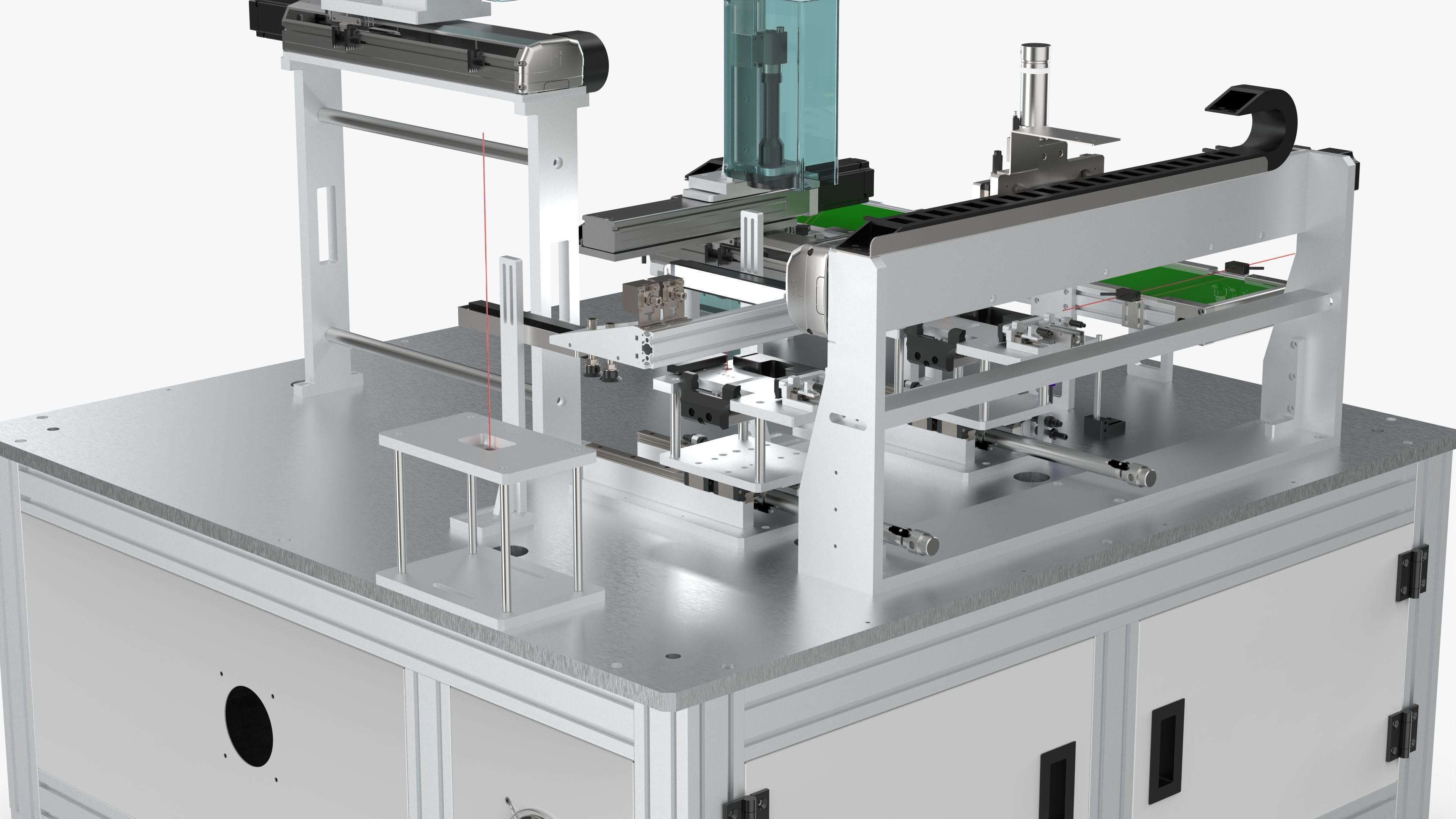

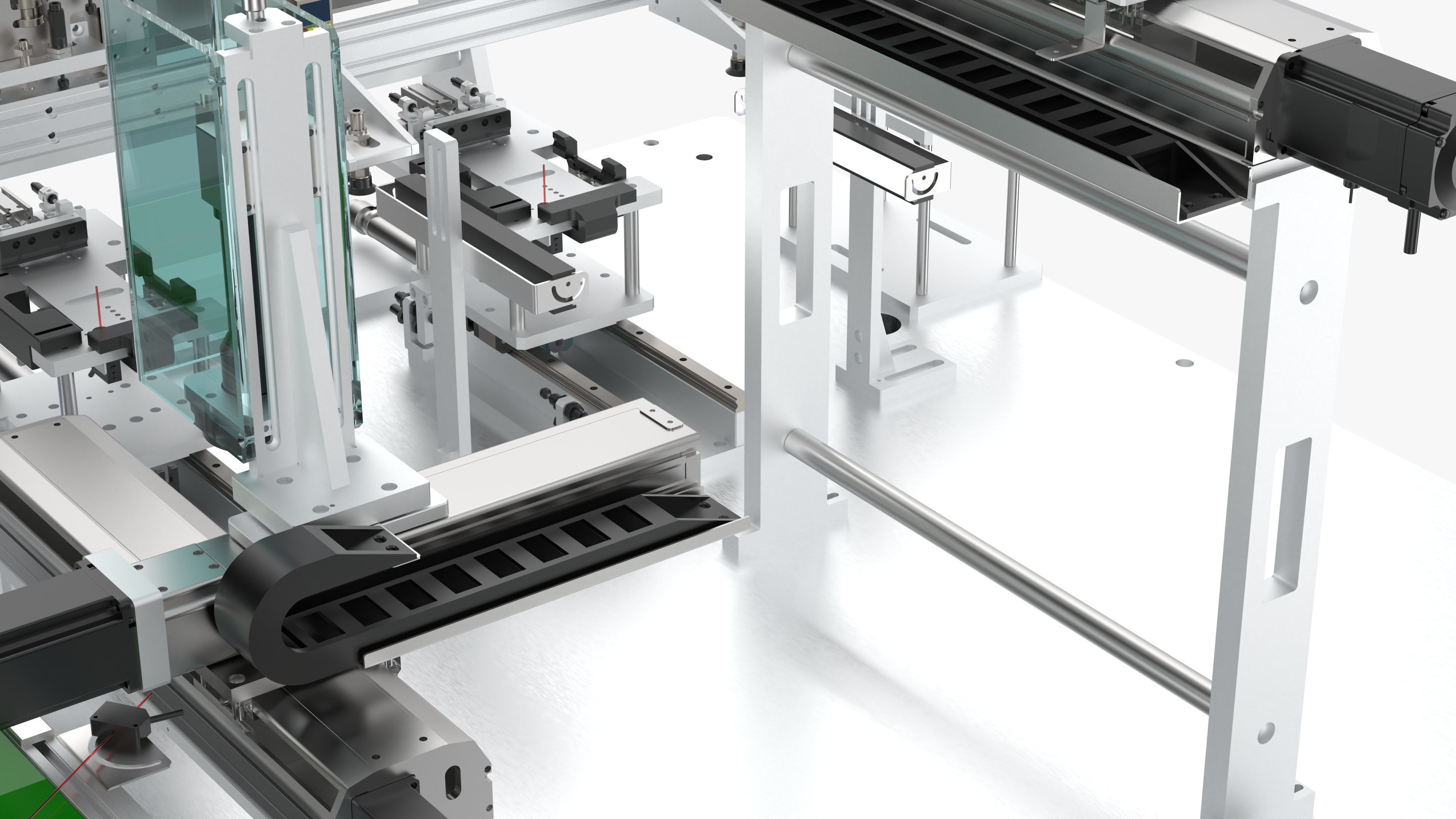

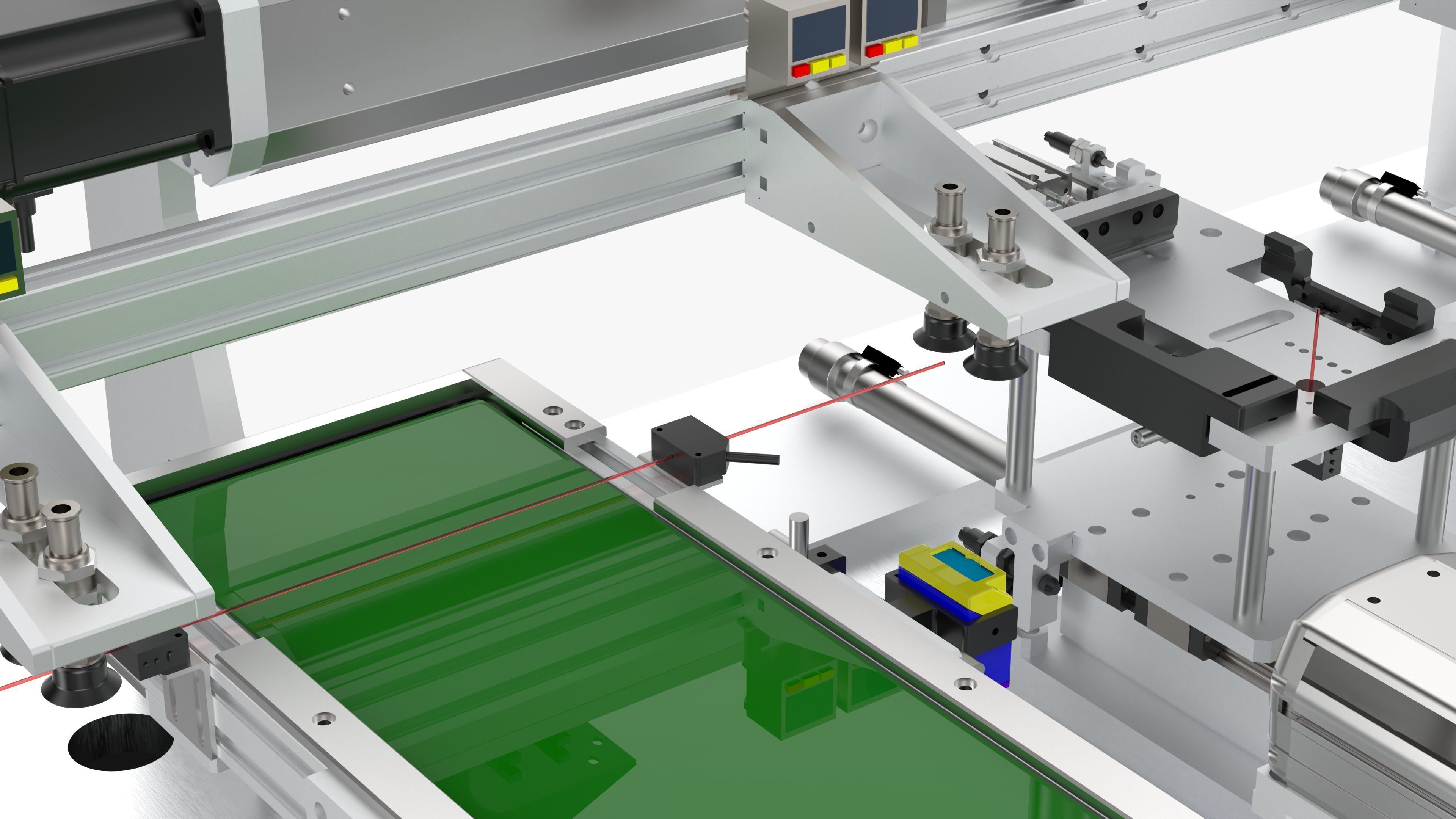

Automatic Power Battery Detection Machine

Introduction

CCD detection equipment, that is, CCD visual detection equipment, actually refers to converting the ingested target into an image signal through the machine vision product CCD image sensor, sending it to a dedicated image processing system, and converting it into a digital signal according to pixel distribution, brightness, color and other information.

The image system performs various operations on these signals to extract the characteristics of the target, and then controls the on-site equipment action according to the result of the discrimination. CCD visual inspection equipment can replace human eyes for measurement and judgment, and is a valuable equipment for production, assembly or packaging. It is invaluable in its ability to detect defects and prevent defective products from being shipped to consumers.

File Formats

• SolidWorks 2021 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

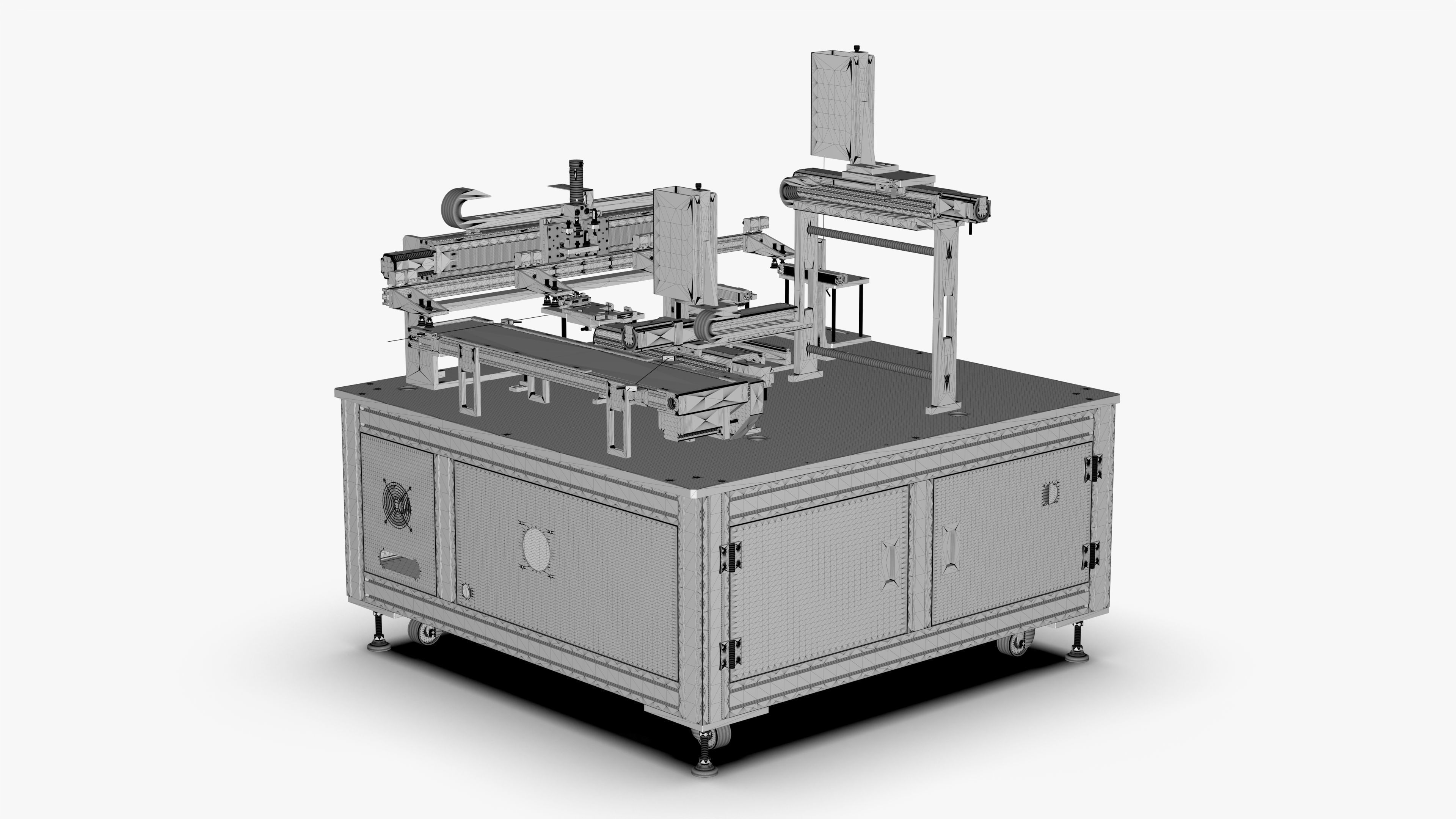

Geometry

• Polygons: 1,463,386
• Vertice: 4,390,158
