Automatic Pipe Bending Machine 3D model
Description

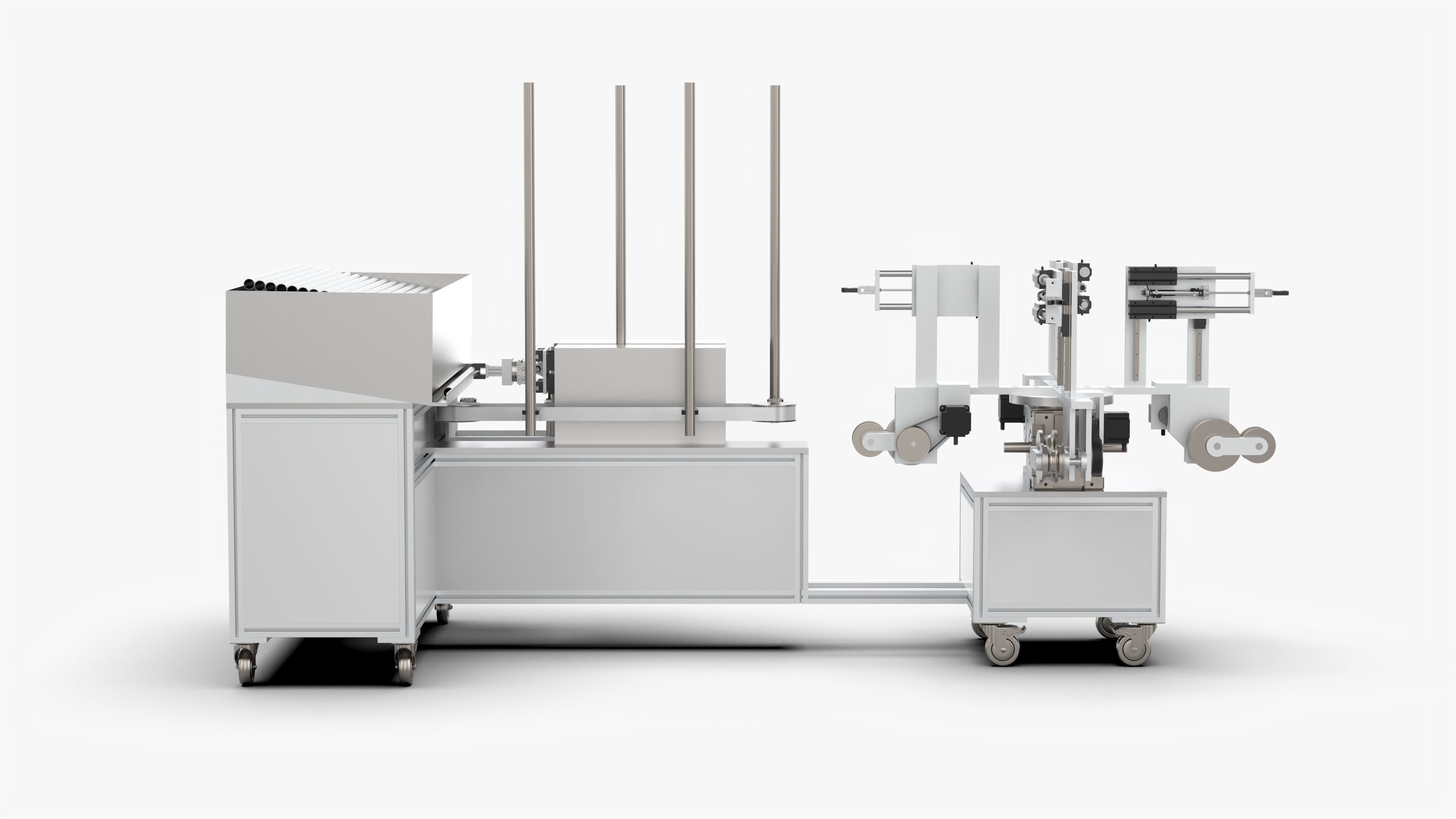

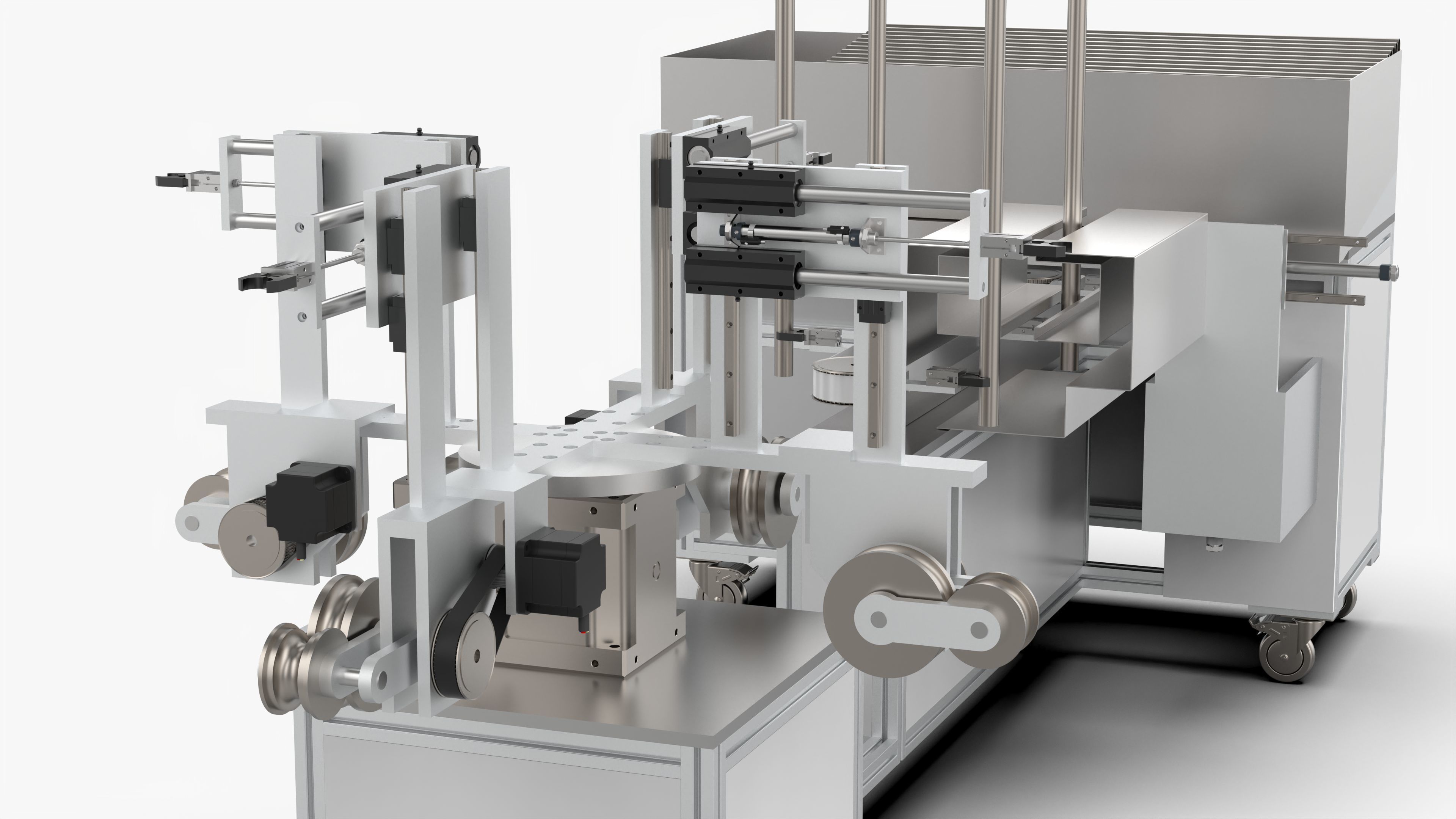

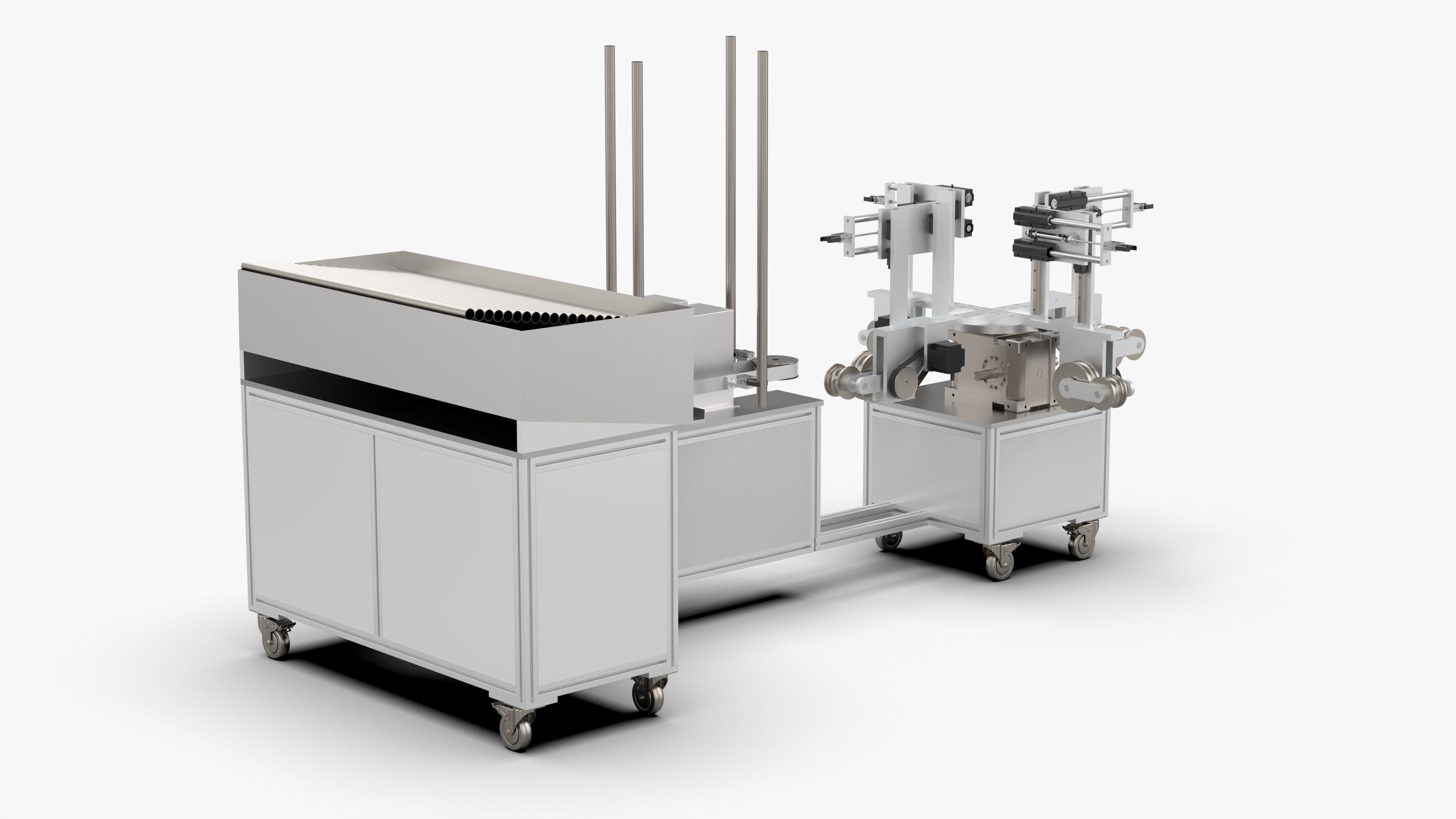

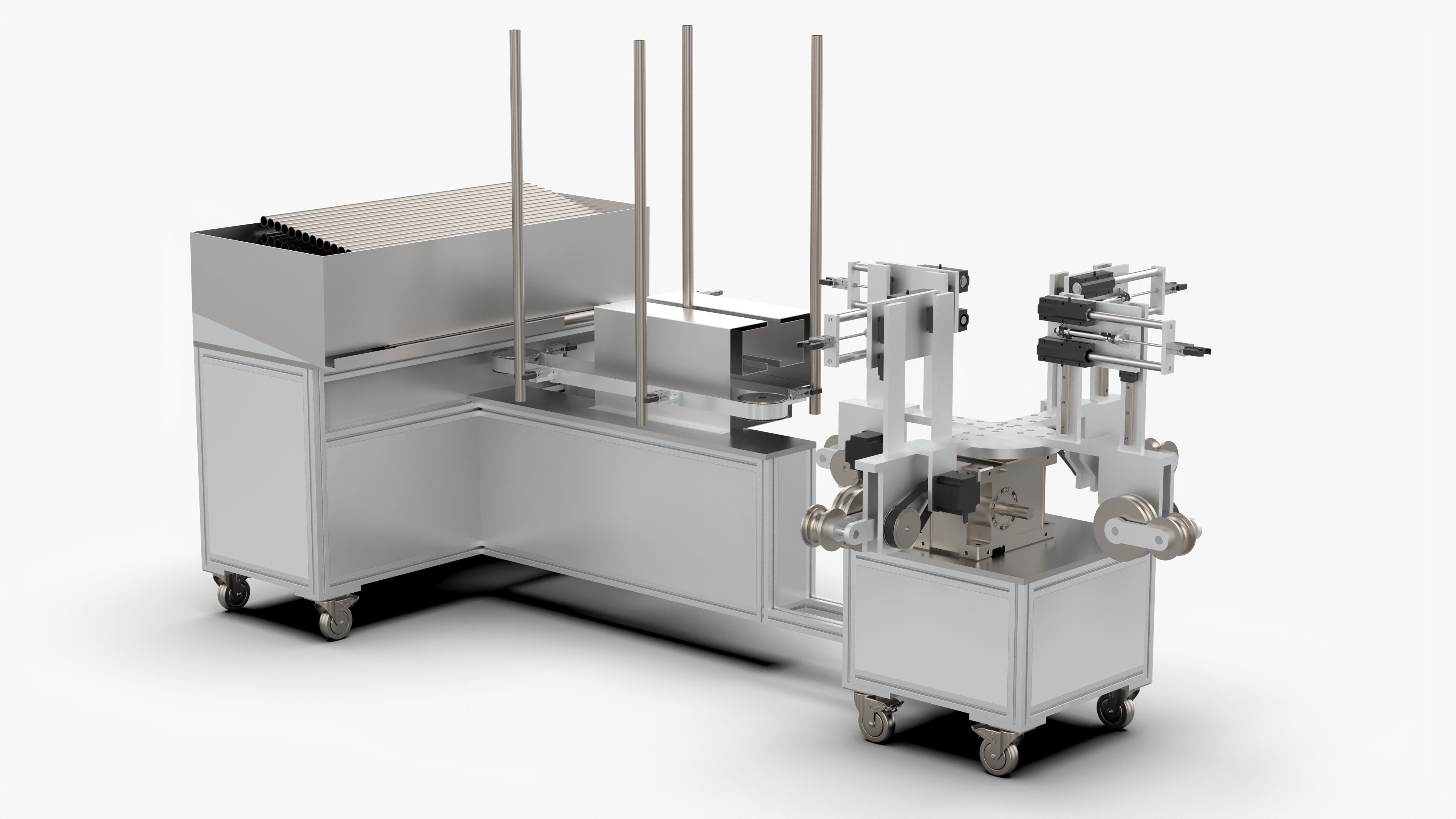

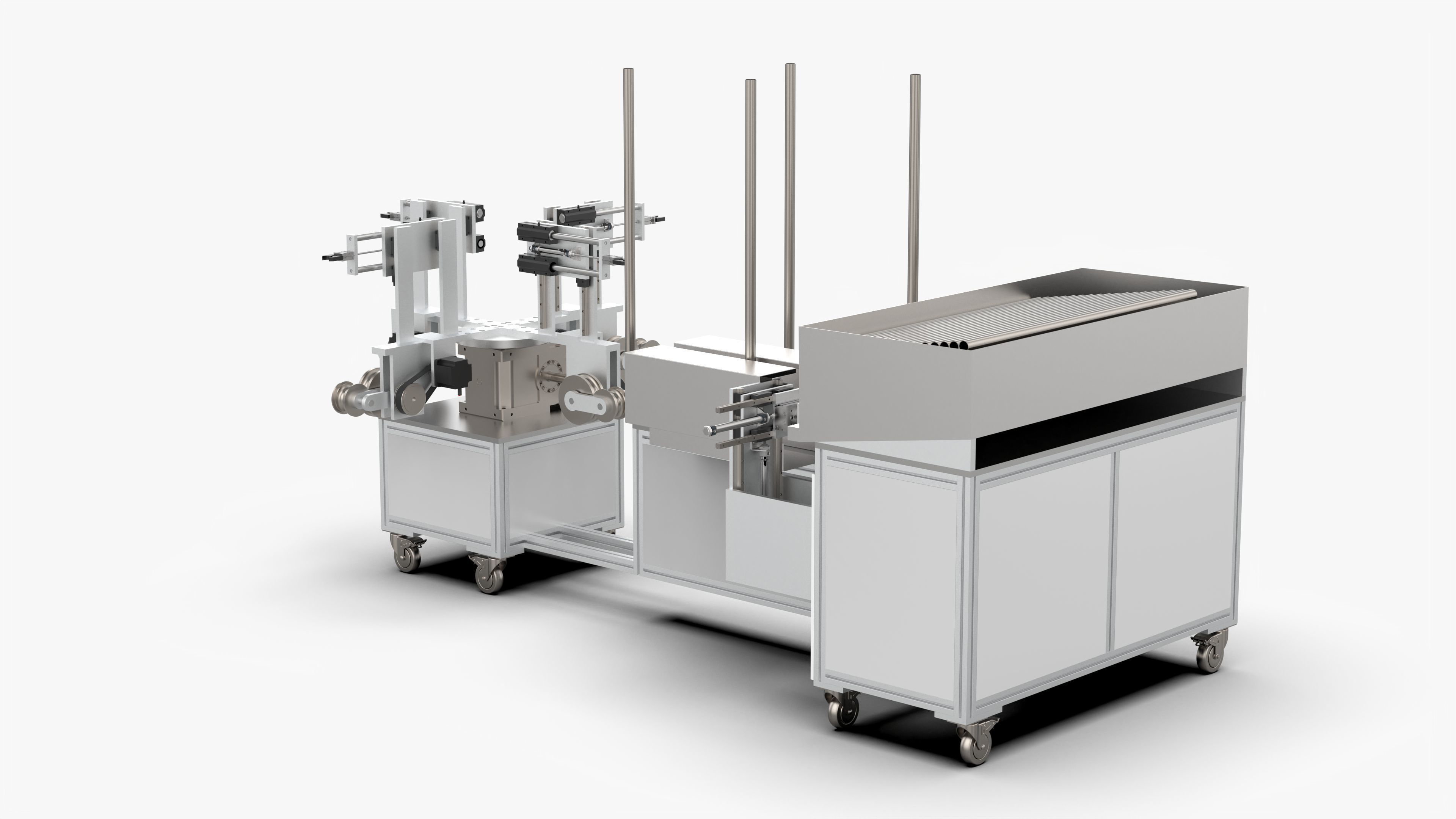

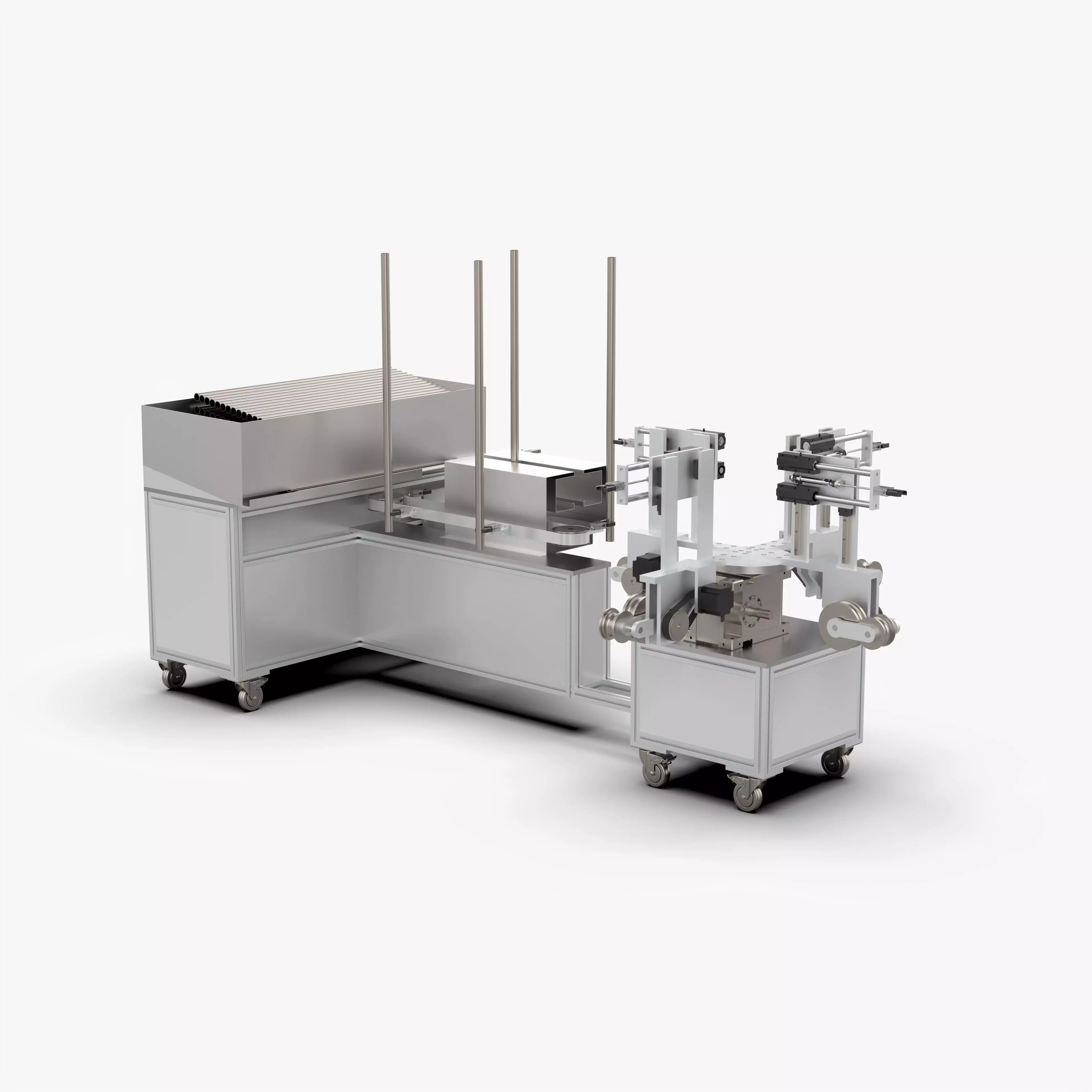

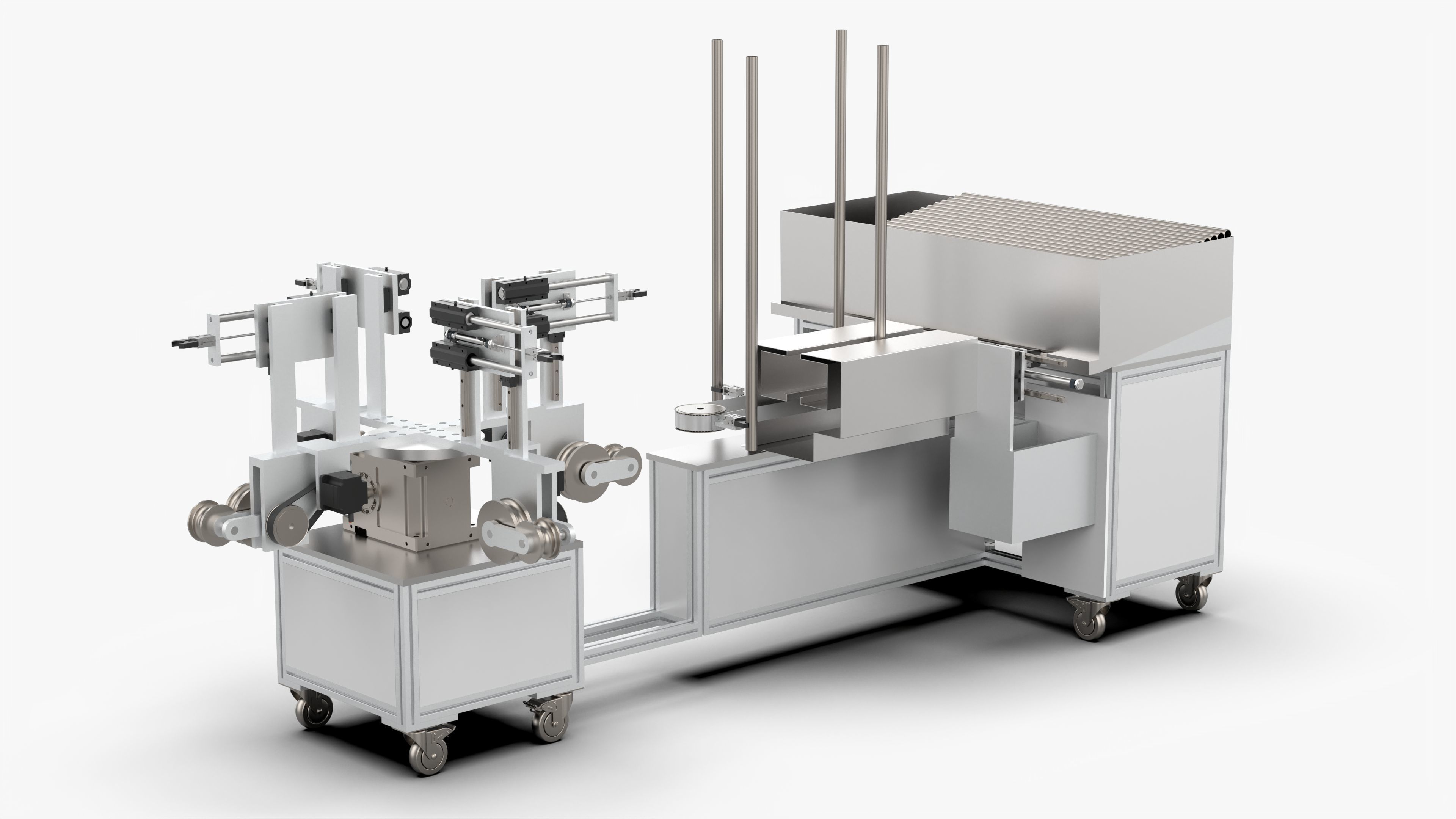

Automatic Pipe Bending Machine
Introduction

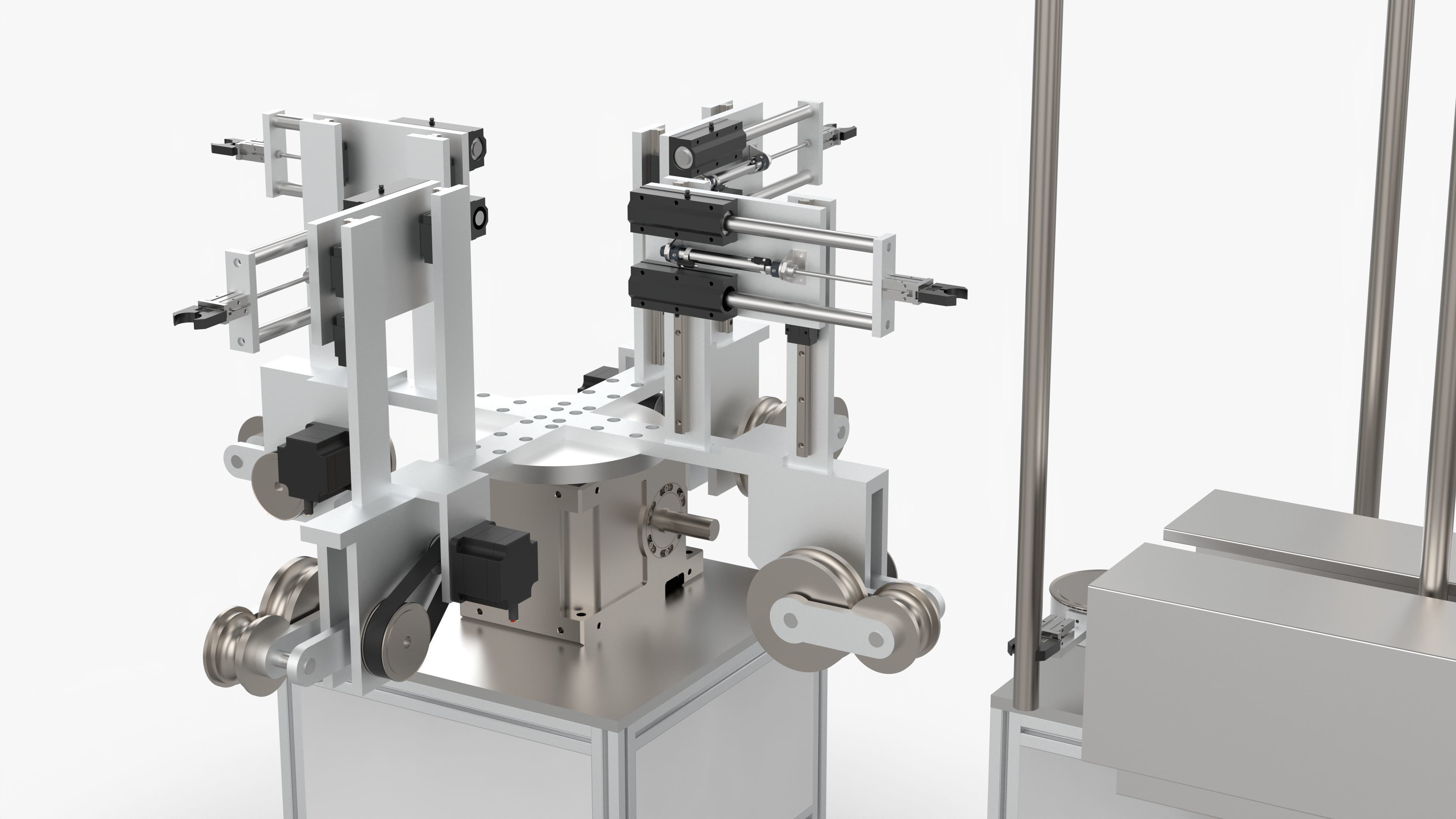

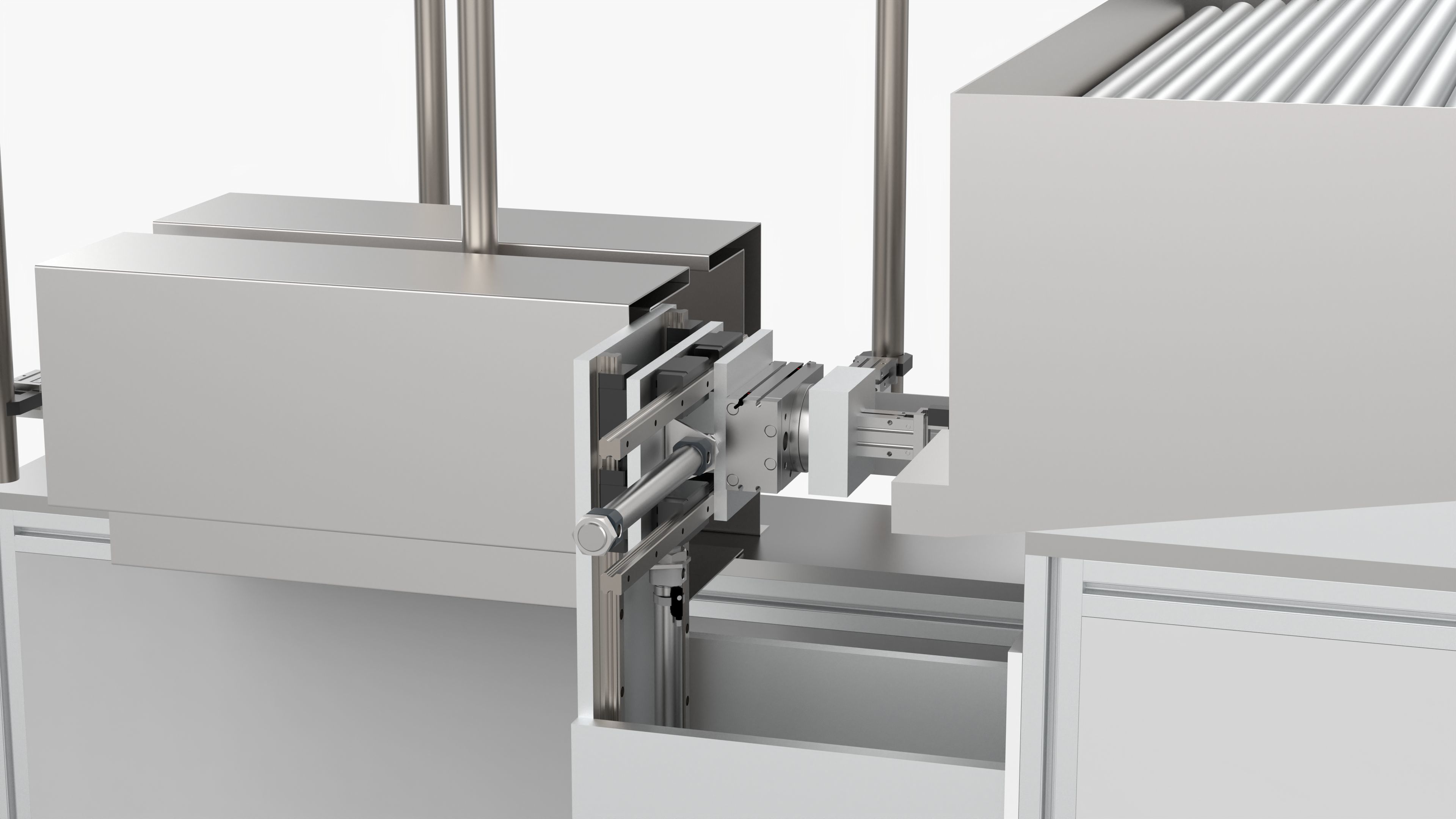

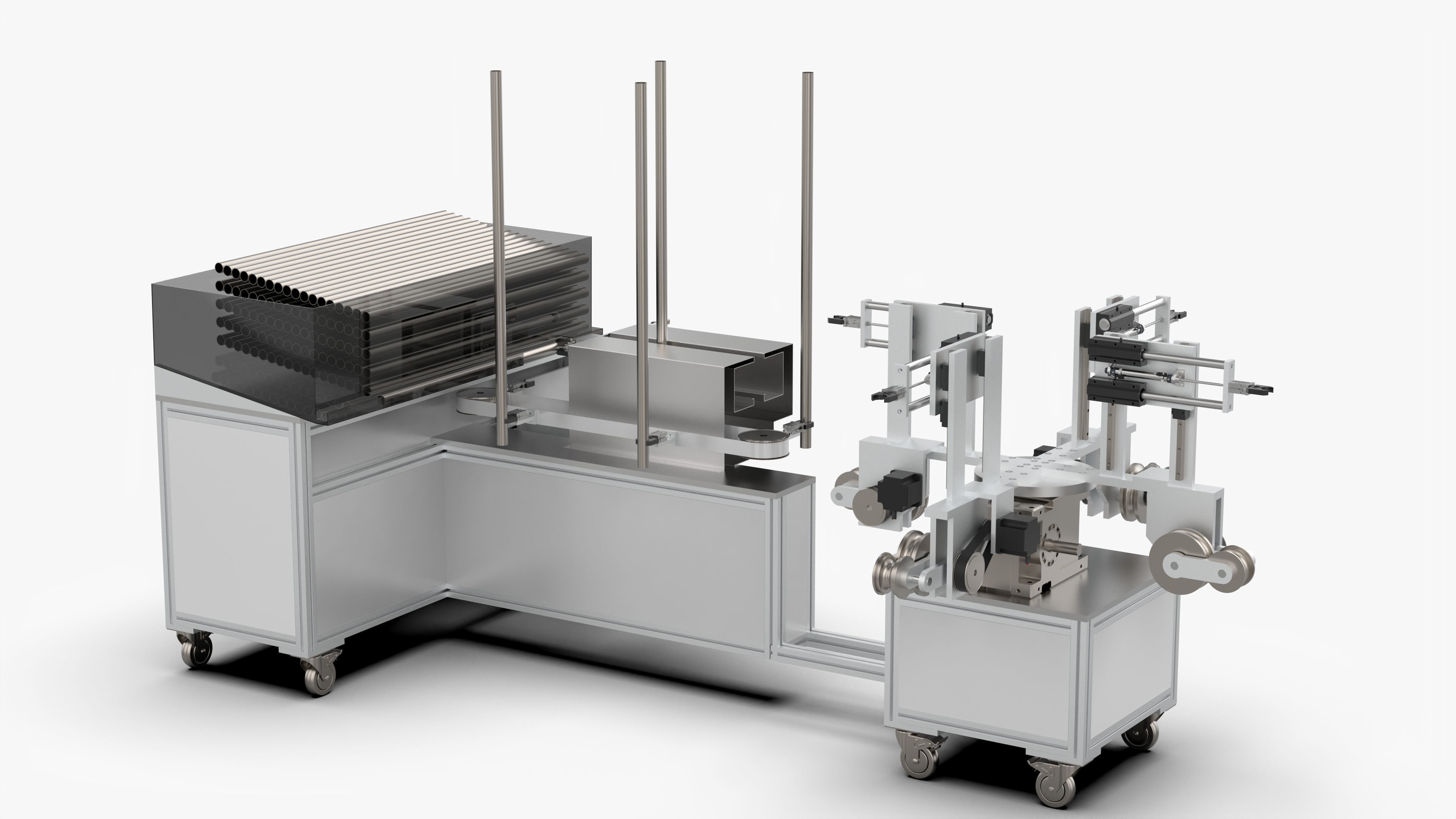

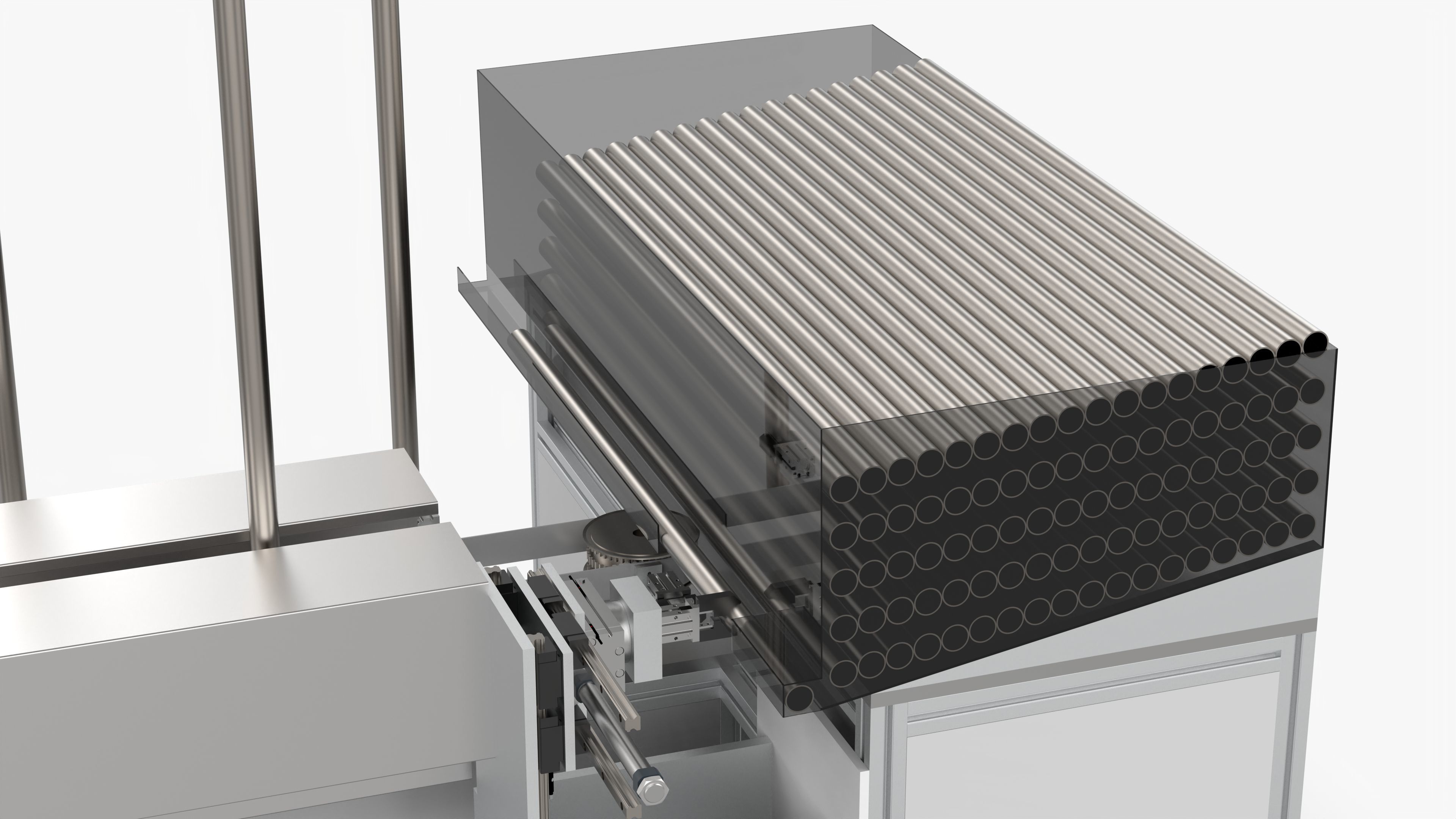

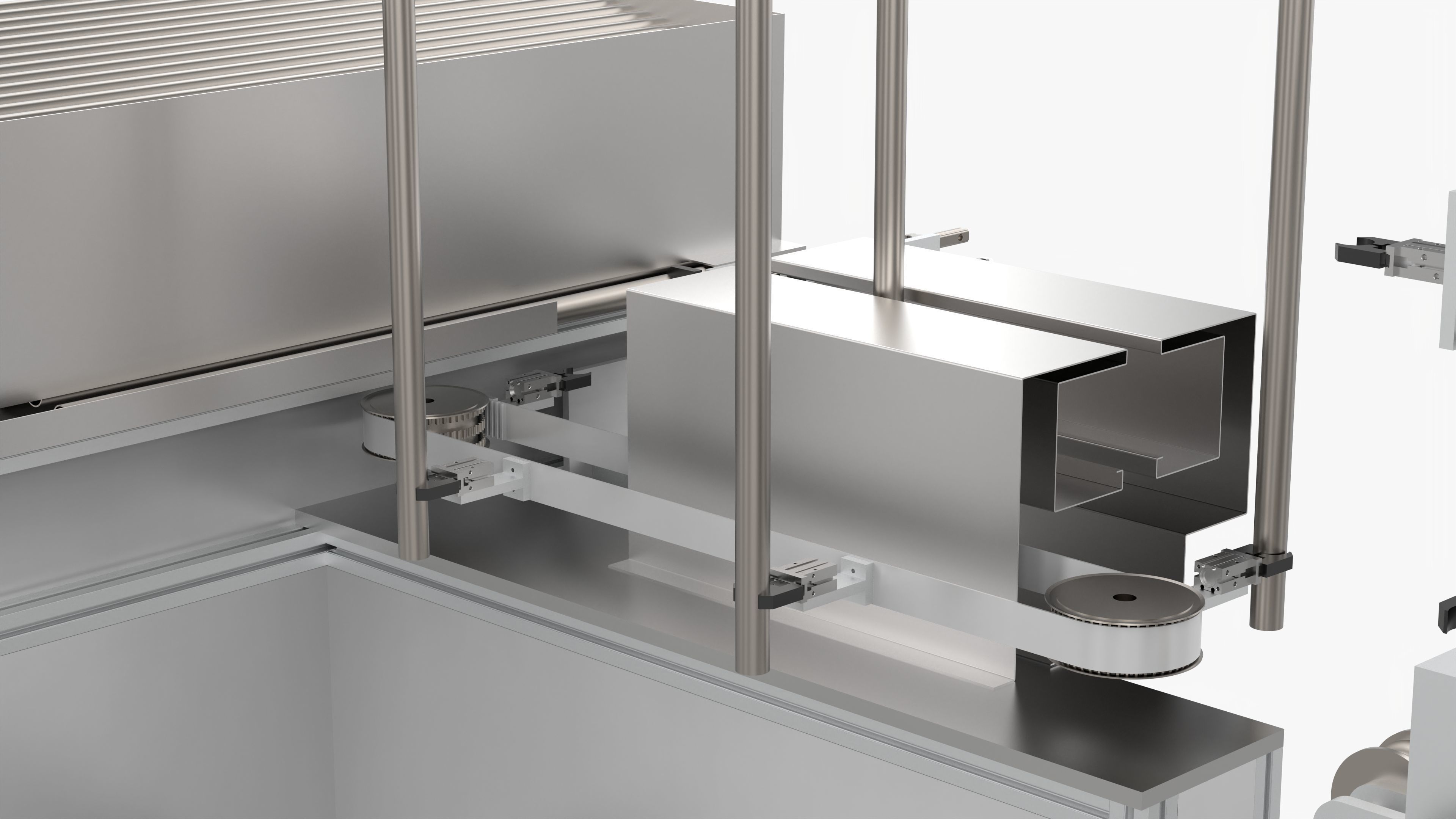

This mechanism is a special solution for bending rubber hose. A round tube is placed in the storage mechanism, the manipulator takes it out and sends it to the bent tube after heating, and uses the pressure wheel and the arc of the pressure wheel to press out the corresponding curvature to ensure that the tube does not deform.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 1,771,750
- Vertice: 5,315,250
Automatic Pipe Bending Machine
Royalty Free License
Automatic Pipe Bending Machine
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw)34.9 MBVersion: undefinedRenderer: Mental Ray 3.0
Exchange
- Stereolithography (.stl)84.5 MB
- STEP (.stp)18.8 MB
- IGES (.ige, .igs, .iges)82.8 MB
- OBJ (.obj, .mtl)132 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351294
- Animated
- Rigged
- VR / AR / Low-poly
- PBR

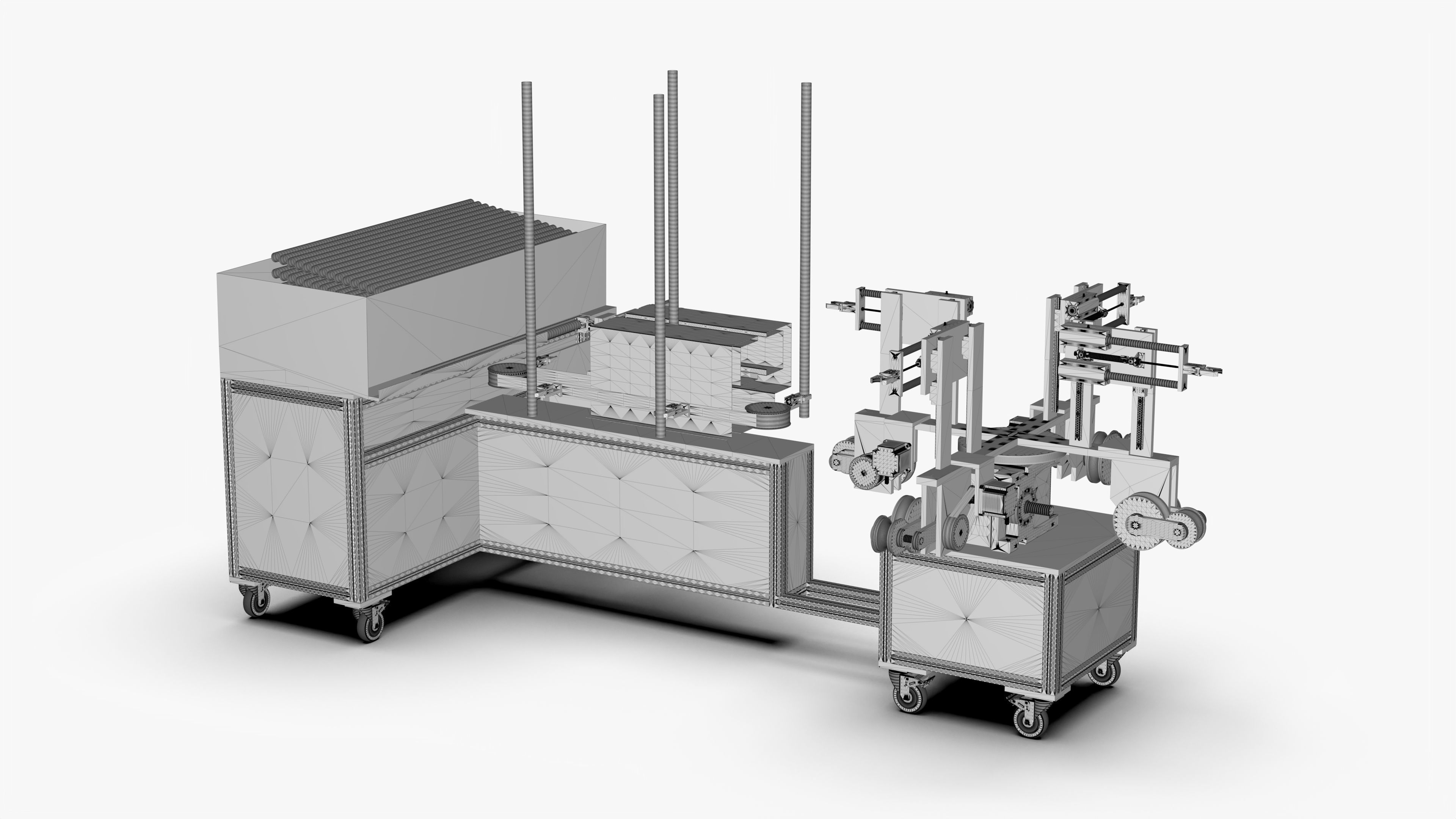

- Geometry Polygon mesh
- Polygons 1,771,750
- Vertices 5,315,250
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
